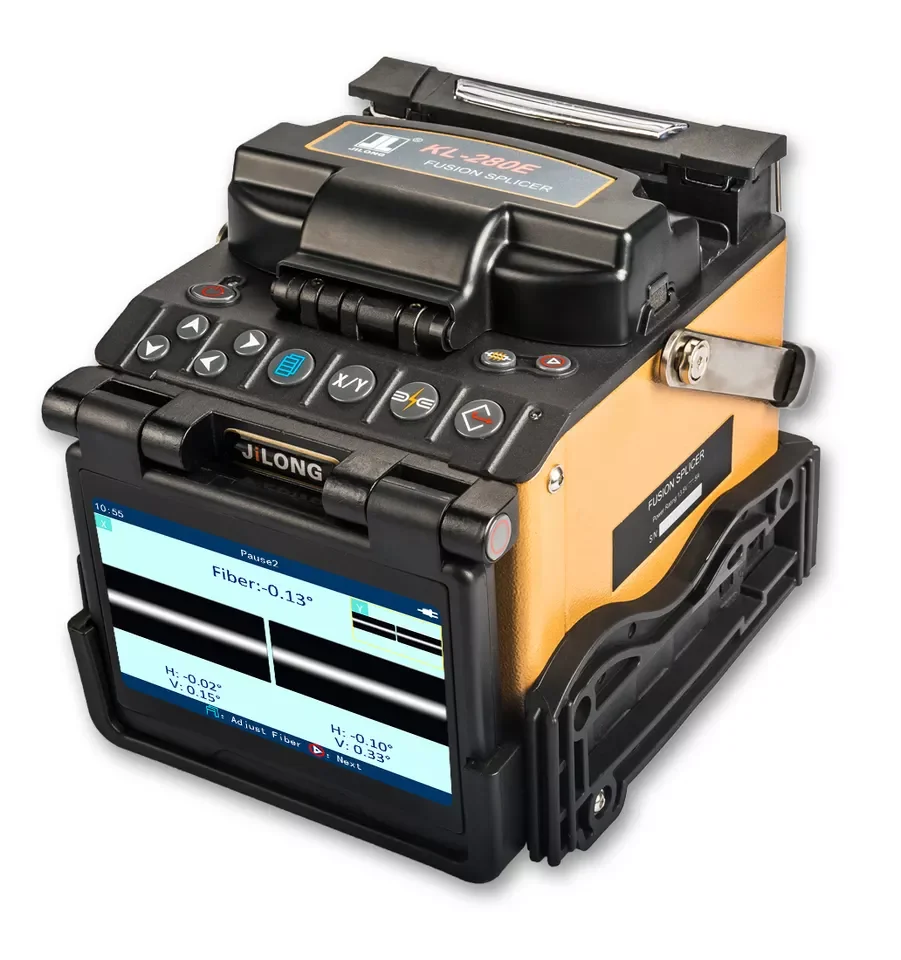

Jilong KL 280E fiber fusion splicer machine price heating fast Auto splice & auto heat function 4 motors
- Category: >>>
- Supplier: Beijing,W&f,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
item | value |
Model Number | KL-280E |
Type | Fiber fusion splicer |
Place of Origin | China |
Brand Name | JILONG |
Splice Method | Core Alignment |
Aplicable Fibers | SM(TU_T G.652&G.657)/ MM(TU-T G.651) / DS(TU-T G.653) / NZDSITU-T G.655) |
Compatible Flber | 0.25~3.0 mm / Rubber-insulated fber cable |
Fiber Holder | Replaceable universal ftber holder |
Fiber Diameter | Cladding:80- 150um, Coating: 1001000um |
Fiber Cleave Length | 8-16 mm |
Splice Mode | Max 128 modes |
Typical Splice Loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657; 0.02dB |
Return Loss | >>60d8 |
Splicing Time | SM Quick mode: 8 sec/ SM Average: 10 sec |
Heating Time | Quick mode 18 sec.(SM 9652 250um 40mm Sleeve) adjustable |
Protection Sloeve Length | 20mm, 30mm, 40mm, 50mm, 60mm |
Heat Programs | Max 32 modes |
Battery Capacity | 6800mAh Battery Capacity, Typical 300 Cycles Slice&Heat) per Charge |
Electrode Life | 5000 arcs, can be extended by using an electrode grinder |
Automatic Fiber Identification | Automatic arc calibration by air pressure and temperature |
Results Storage | The last 10,000 splice records and 2,000 result images |
Tension Test | 1.96-2.25N |
Operating Condition | Altitude: 0-5000m, 0-95% relative humidity, -20-50"C, Max Wind 15m/s |
Storage Condition | 0-95% relative humidity, -20-60C |
Display | 4.3”color high resolution (800 x 480) display |
Power Supply | AC Input 100 -240V, DC Input 9-14V |
weight | 1.6kg without battery / 1.9kg with battery |
size | 143H x 136W x 155D mm (including rubber bumper) |
Packing & Delivery
Company Profile
Beijing W&F technology Co.,LTD is founded in 2006.It is a hi-tech company specialized in manufacturing and trading fiber splicing machine and testing equipments . Our company is a communication test instrument supplier which is located in Beijing - the capital of China.
Our main products include fiber optic fusion splicers, OTDR, test instruments, such as optical power meters, optical laser sources, visual fault locators, PON power meters and cable fault locators, accessories, such as patch cords, fiber optic pigtails, fiber optic adapters, optical attenuators and optic join closures, optical fiber tools which are widely used in telecommunications, broadband, broadcast, CATV and network industry.
Our products have passed CE and other International Certifications, 70% of our products are exported into North America, South America, Eastern Europe, Southeast Asia, Africa, Western Europe and so many other countries
Holding the principle of "Customers first, Service foremost", we pledge to supply our customers with high-quality products and the best services. With top technologies, top equipments and a top group, we are confident to make our company remain invincible in the intense market competition and keep developing, growing and marching towards success and splendor.
Our main products include fiber optic fusion splicers, OTDR, test instruments, such as optical power meters, optical laser sources, visual fault locators, PON power meters and cable fault locators, accessories, such as patch cords, fiber optic pigtails, fiber optic adapters, optical attenuators and optic join closures, optical fiber tools which are widely used in telecommunications, broadband, broadcast, CATV and network industry.
Our products have passed CE and other International Certifications, 70% of our products are exported into North America, South America, Eastern Europe, Southeast Asia, Africa, Western Europe and so many other countries
Holding the principle of "Customers first, Service foremost", we pledge to supply our customers with high-quality products and the best services. With top technologies, top equipments and a top group, we are confident to make our company remain invincible in the intense market competition and keep developing, growing and marching towards success and splendor.
FAQ
1. who are we?
We are based in Beijing, China, start from 2006,sell to South America(20.00%),South Asia(15.00%),North America(10.00%),Mid East(10.00%),Africa(10.00%),Eastern Europe(10.00%),Northern Europe(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),Central America(3.00%),Oceania(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
fusion splicing machine,OTDR,fiber optic equipment,ethernet tester,Optical Power Meter
4. why should you buy from us not from other suppliers?
Beijing W&F technology Co.,LTD is founded in 2006.It is a hi-tech company specialized in manufacturing and trading fiber splicing machine and testing equipments . Our company focuses on the telecommunication 12 years.We can provide better solutions.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DAF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Spanish,Portuguese,German,Arabic,French,Russian
We are based in Beijing, China, start from 2006,sell to South America(20.00%),South Asia(15.00%),North America(10.00%),Mid East(10.00%),Africa(10.00%),Eastern Europe(10.00%),Northern Europe(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),Central America(3.00%),Oceania(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
fusion splicing machine,OTDR,fiber optic equipment,ethernet tester,Optical Power Meter
4. why should you buy from us not from other suppliers?
Beijing W&F technology Co.,LTD is founded in 2006.It is a hi-tech company specialized in manufacturing and trading fiber splicing machine and testing equipments . Our company focuses on the telecommunication 12 years.We can provide better solutions.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DAF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Spanish,Portuguese,German,Arabic,French,Russian
