2 axis linear guideway VMC1060L CNC Vertical CNC turning Machining VS Milling Center Lathe Machine
- Category: >>>
- Supplier: Shenzhen Richon Industry Co. Ltd.
Share on (1600566105099):
Product Overview
Description
Products Description

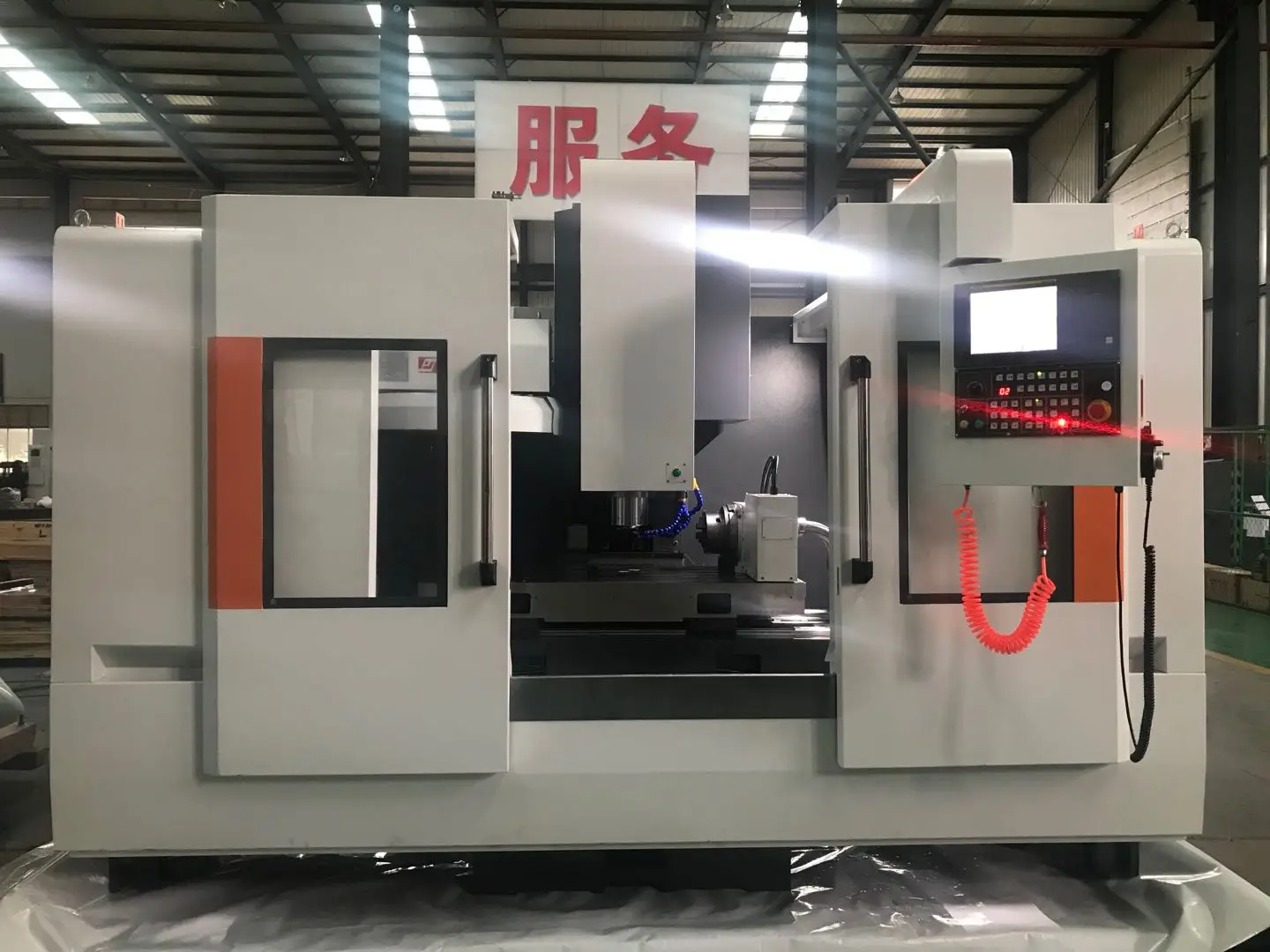

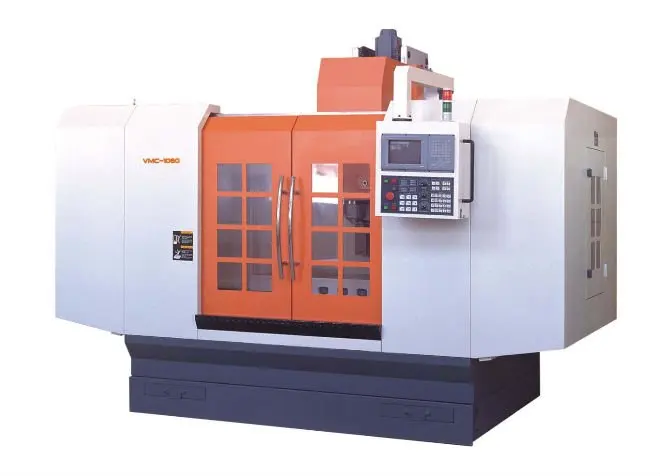

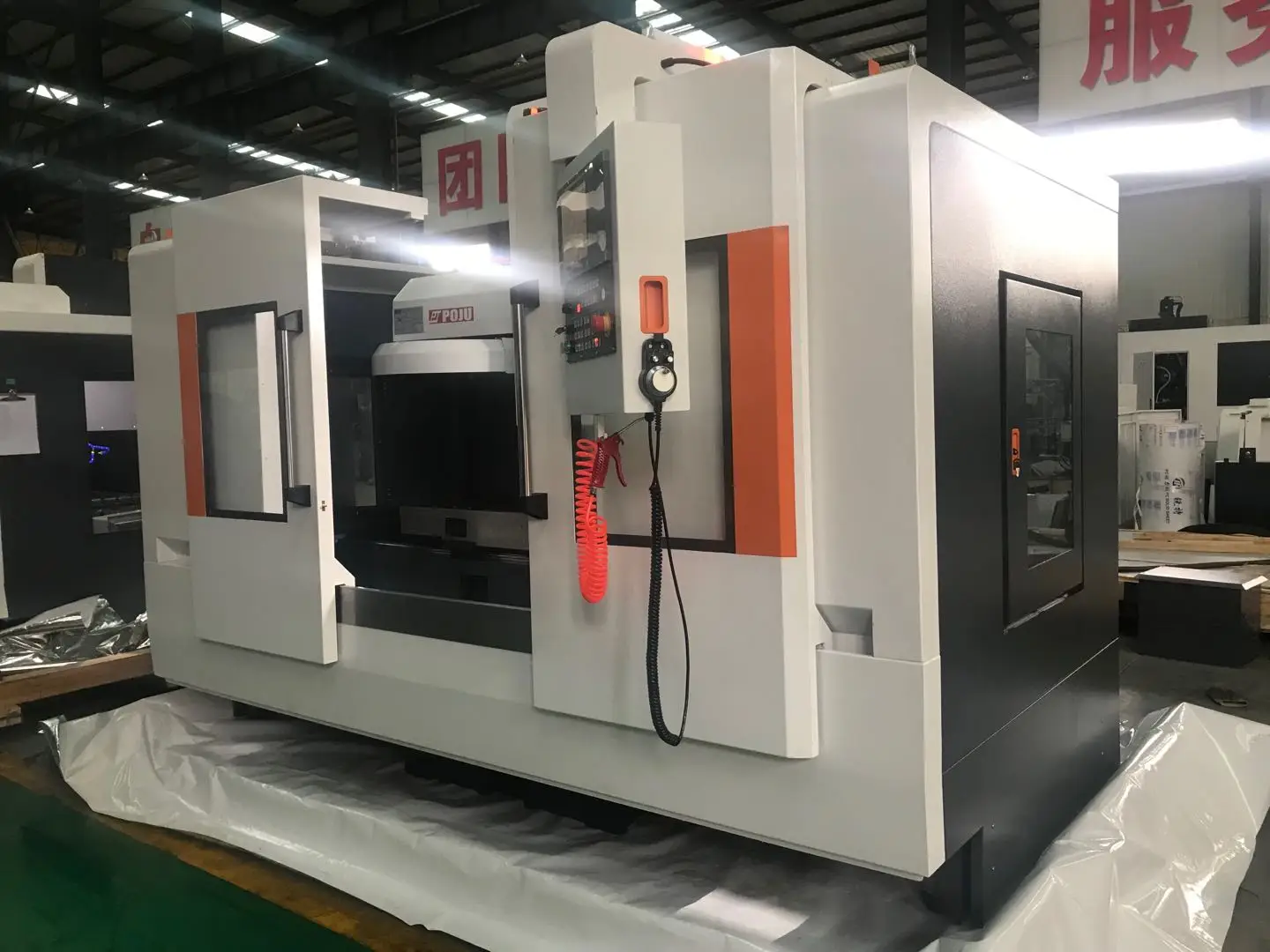

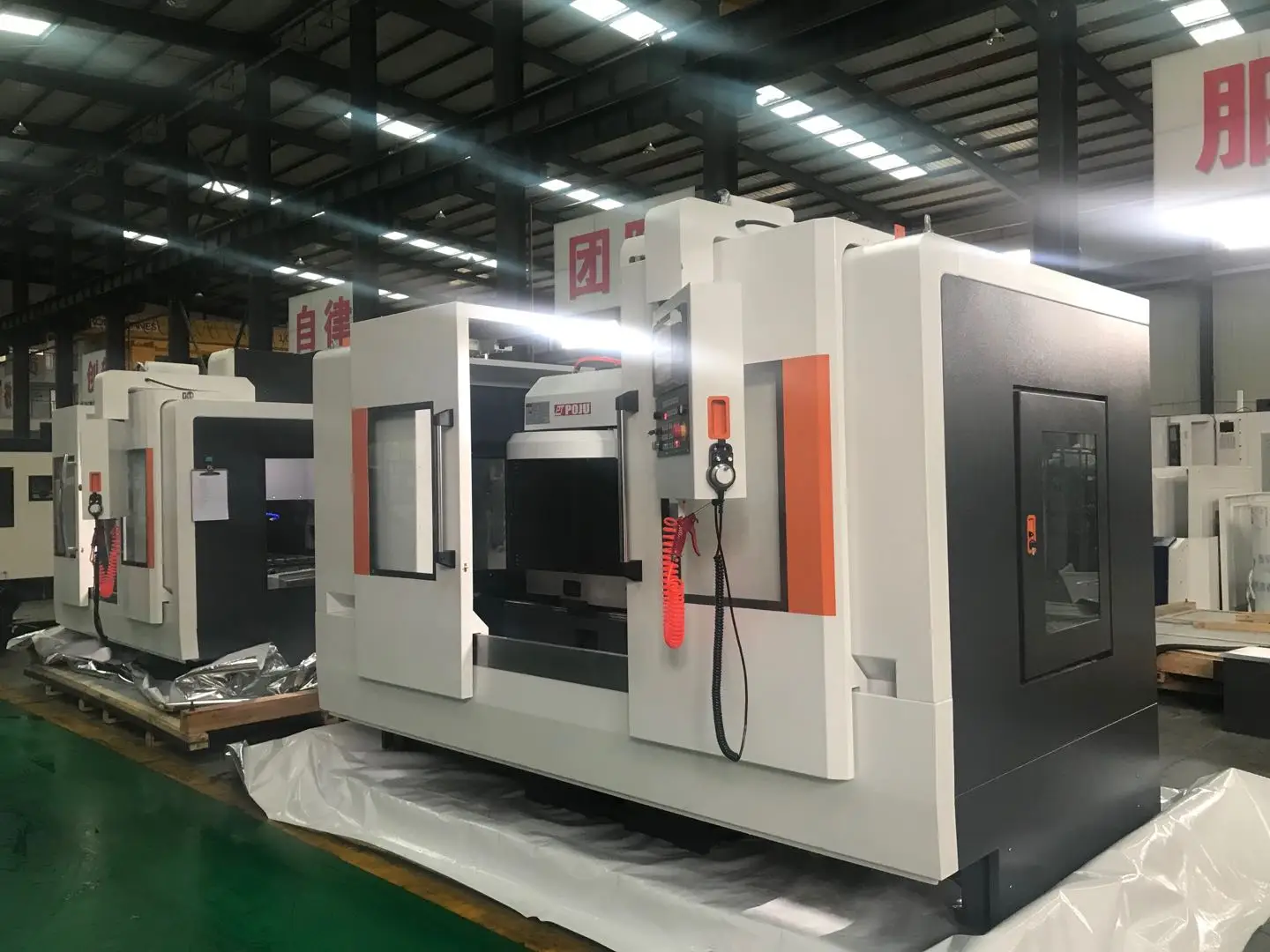

2 axis Linear Guideway Vertical Machining Center VMC1060L
Characteristics
1) Beautiful appearance and color matching, small footprint, and excellent sheet metal workmanship.
2) Good waterproof performance and smooth chip removal.
3) Good expandability, the protective door is guided by wire gauge, which is light and rapid, which is conducive to the
modification of the automatic door by the flexible line; the chassis flushing interface is reserved to facilitate chip removal.
4) The man-machine function is good, easy to operate on the system side, the protective door has no crossbeam, the width is wider, and the threshold is lower, which is convenient for lifting the workpiece.
1) Beautiful appearance and color matching, small footprint, and excellent sheet metal workmanship.
2) Good waterproof performance and smooth chip removal.
3) Good expandability, the protective door is guided by wire gauge, which is light and rapid, which is conducive to the
modification of the automatic door by the flexible line; the chassis flushing interface is reserved to facilitate chip removal.
4) The man-machine function is good, easy to operate on the system side, the protective door has no crossbeam, the width is wider, and the threshold is lower, which is convenient for lifting the workpiece.
Item | Specification | Unit | VMC1060L | |
Work table | Table size | mm | 600*1300 | |
Max load | kg | 800 | ||
T-Slot size (number-width.pitch) | mm | 5-18*100 | ||
Travel | X axis | mm | 1000 | |
Y axis | mm | 600 | ||
Z axis | mm | 600 | ||
Travel: Spindle nose to worktable distance | mm | 70-670 | ||
Travel: Spindle center to column block distance | mm | 655 | ||
Spindle | Spindle taper type/ installation size | mm | BT40- φ150 | |
Spindle speed range | r/min | 100-8000 Belt drive | ||
Spindle rating power | kw | 11 | ||
Max fast movement speed | X axis | m/min | 24 | |
Y axis | m/min | 24 | ||
Z axis | m/min | 18 | ||
Cutting feed speed | X, Y, Z axis | m/min | 0.005-10 | |
Lead screw spec | X, Y, Z axis | 4012 | ||
Guide way spec/type | X, Y, Z axis | Linear guide,Linear guide,Hardway | ||
Positioning accuracy | X, Y, Z axis | 0.008 | ||
Repeat positioning accuracy | X axis | mm | 0.004 | |
Y axis | mm | 0.004 | ||
Z axis | mm | 0.005 | ||
Tool magazine | BT40-20T umbrella type | changing tool time (knife to knife) 10 sec (BT40) | ||
BT40-20T arm type | Changing tool time(knife to knife) 4 sec(BT40), 16 sec(servo type) | |||
Max tool weight | 8KG (BT40) | |||
Max BT40 tool diameter | mm | 75(all tool in) 120(adjacent vacant) | ||
Max tool length | mm | 300 | ||
X,Y,Z axis motor parameter: torque | Nm | 12, 16, 16 | ||
Bed block height | mm | 50 | ||
Machine protection | Full sealed protection | |||
Power | KVA | 25KVA | ||
Pneumatic pressure | Mpa | 0.5-0.7 | ||
GW | T | 8.5 | ||
Dimension | MM | 3300*2600*2900 | ||
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
