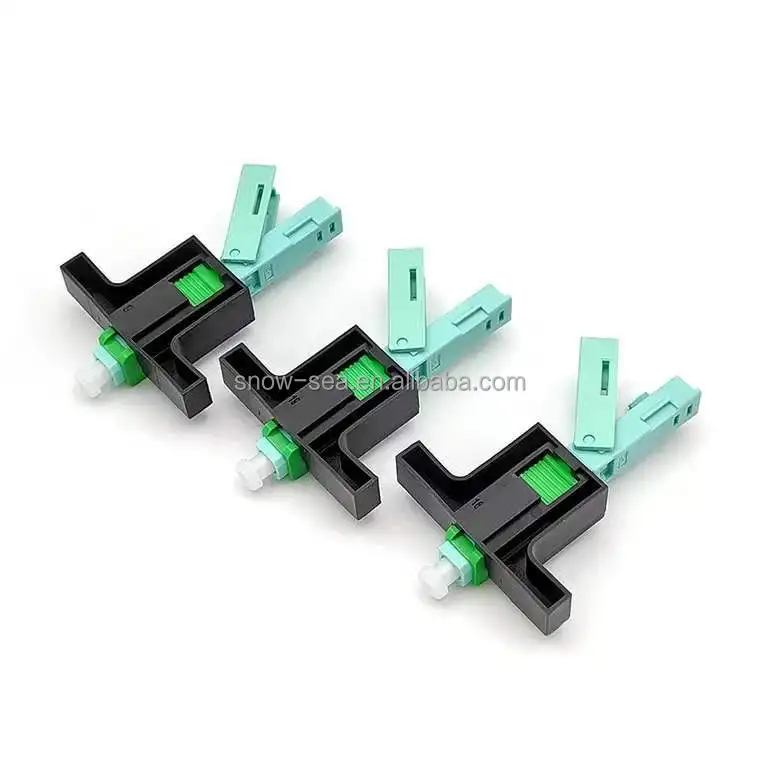

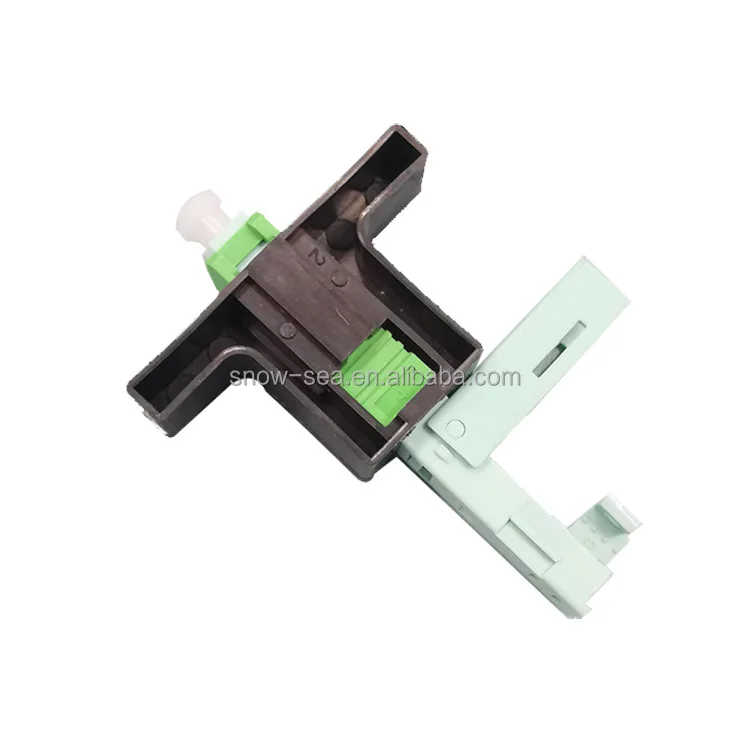

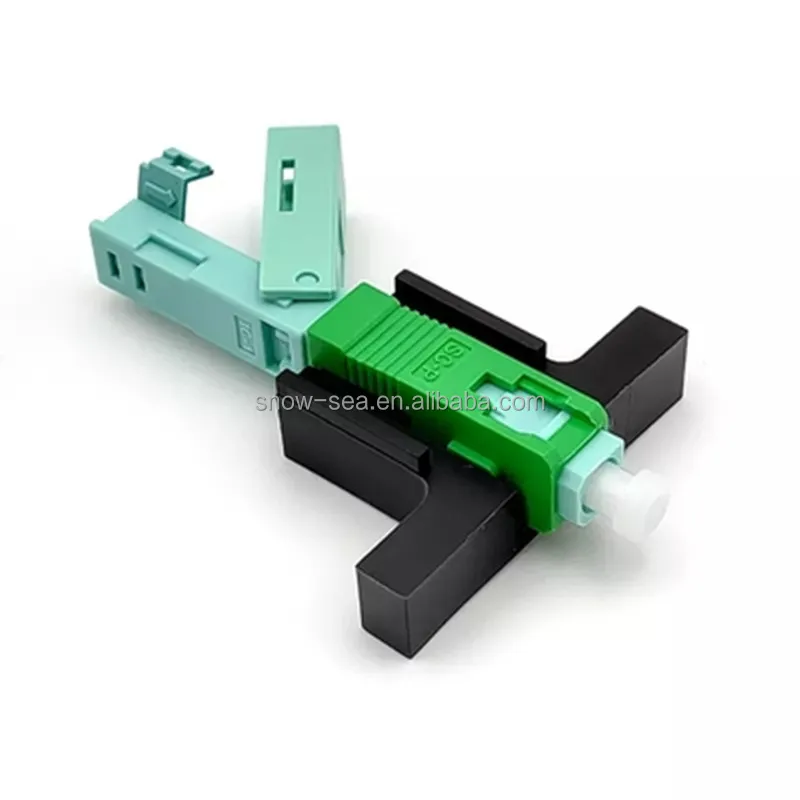

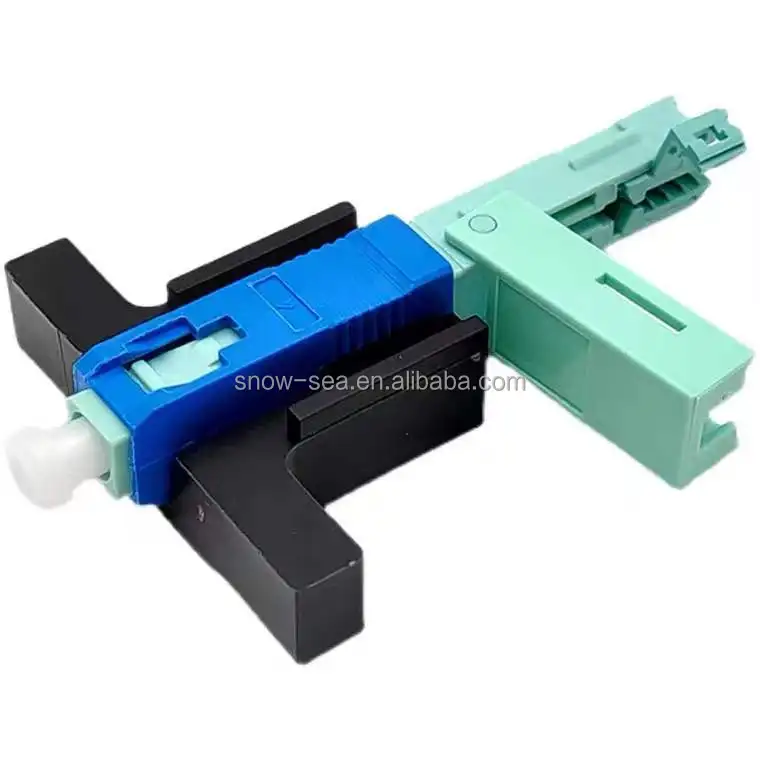

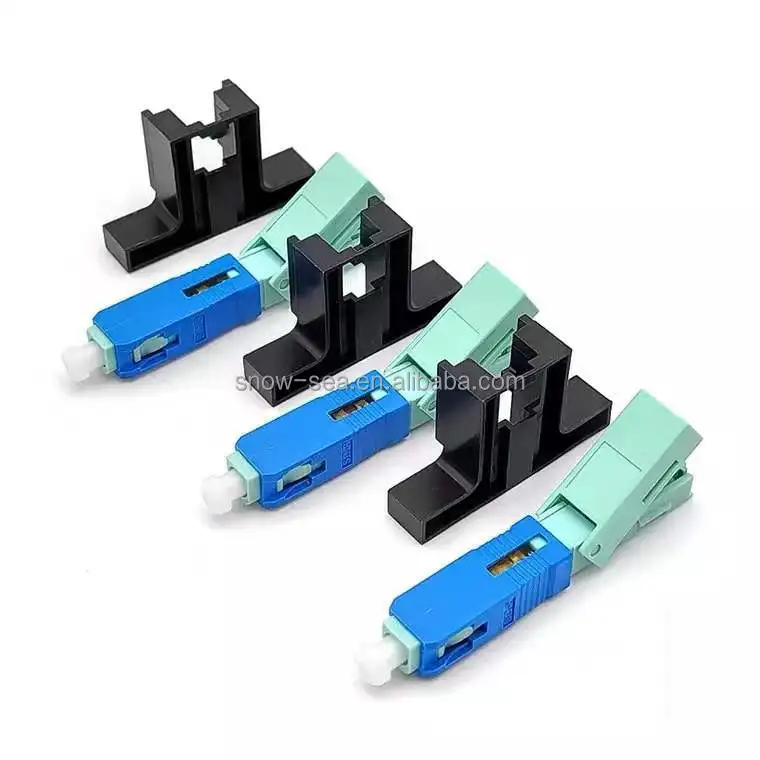

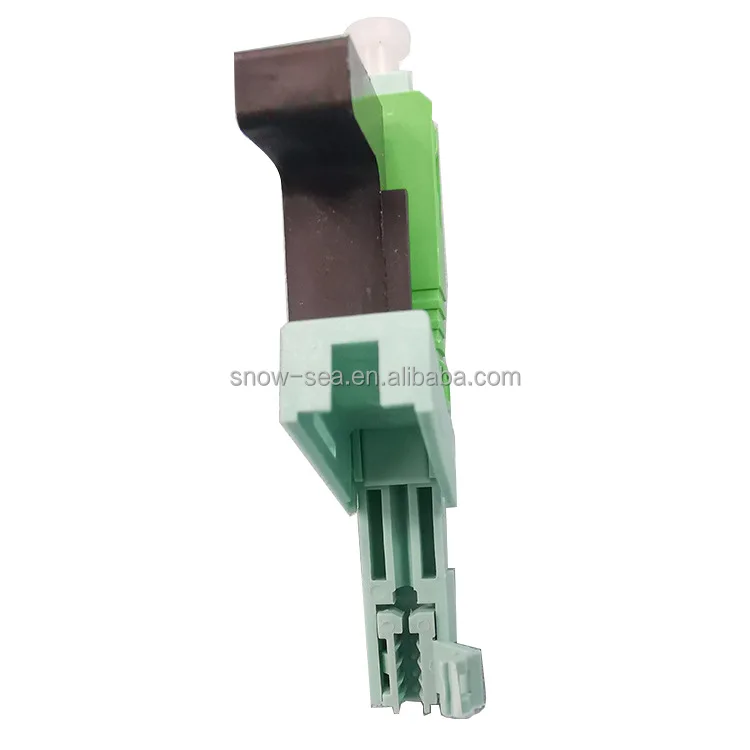

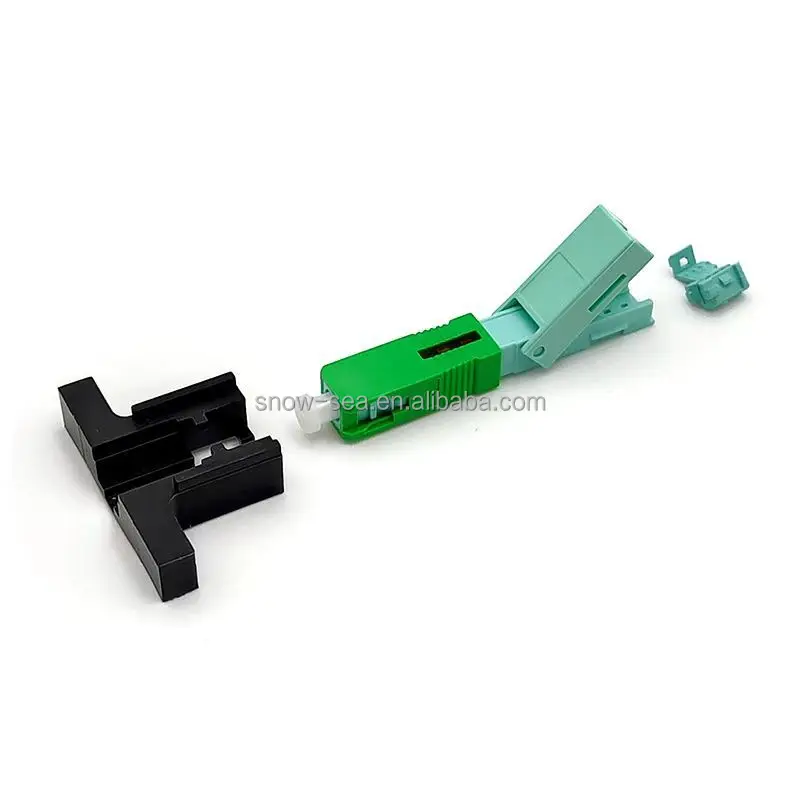

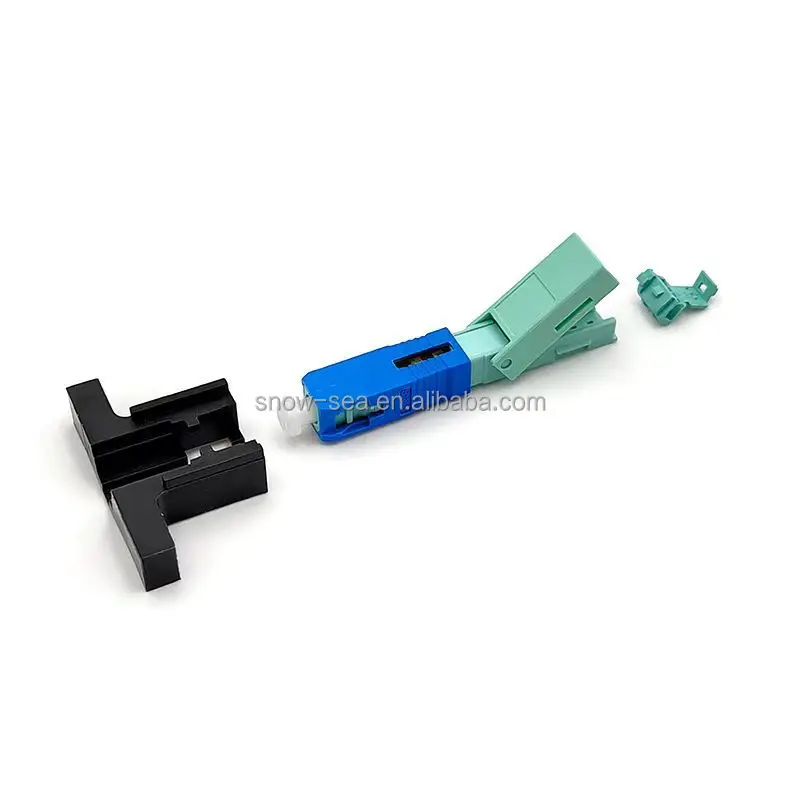

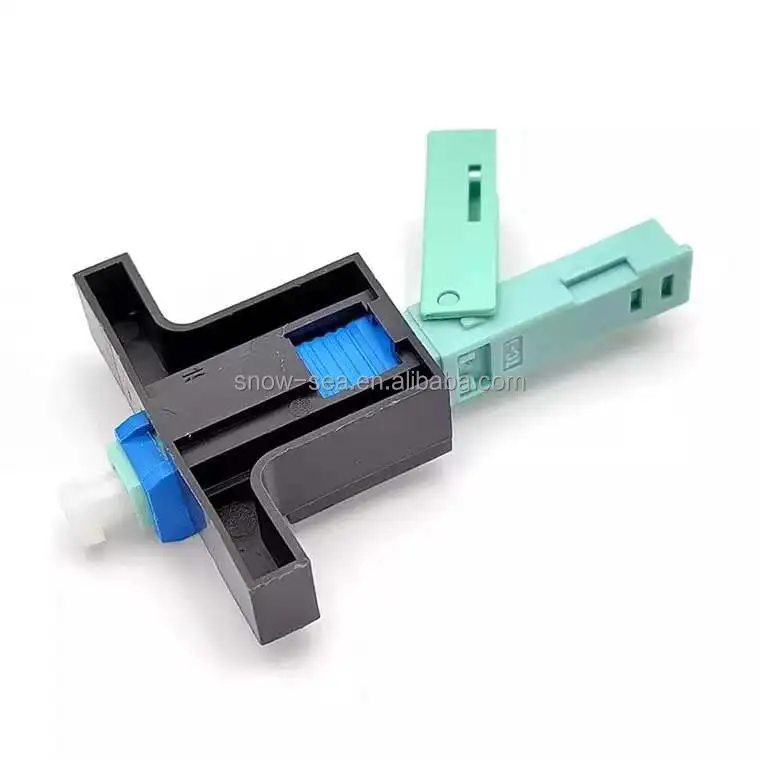

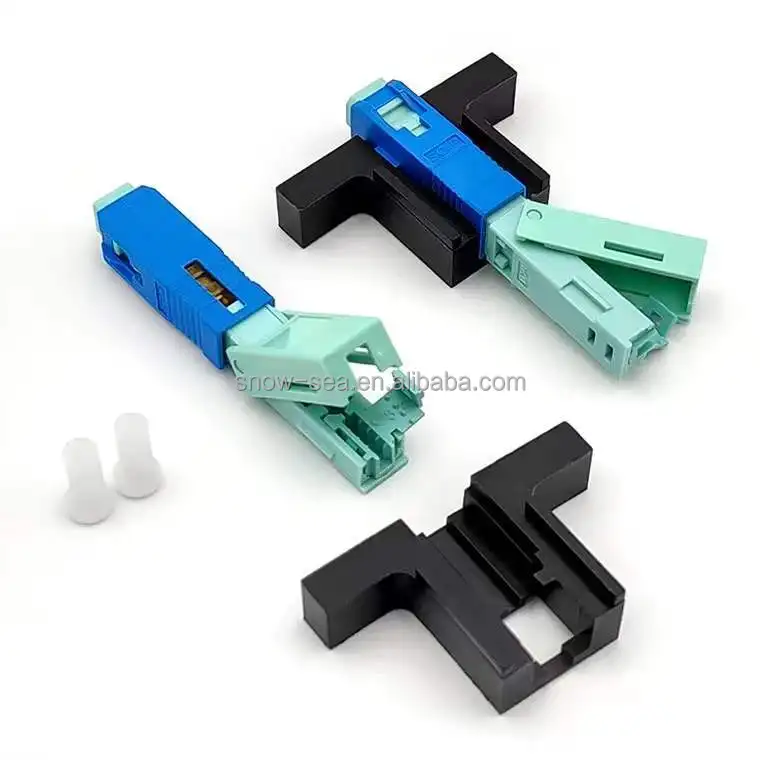

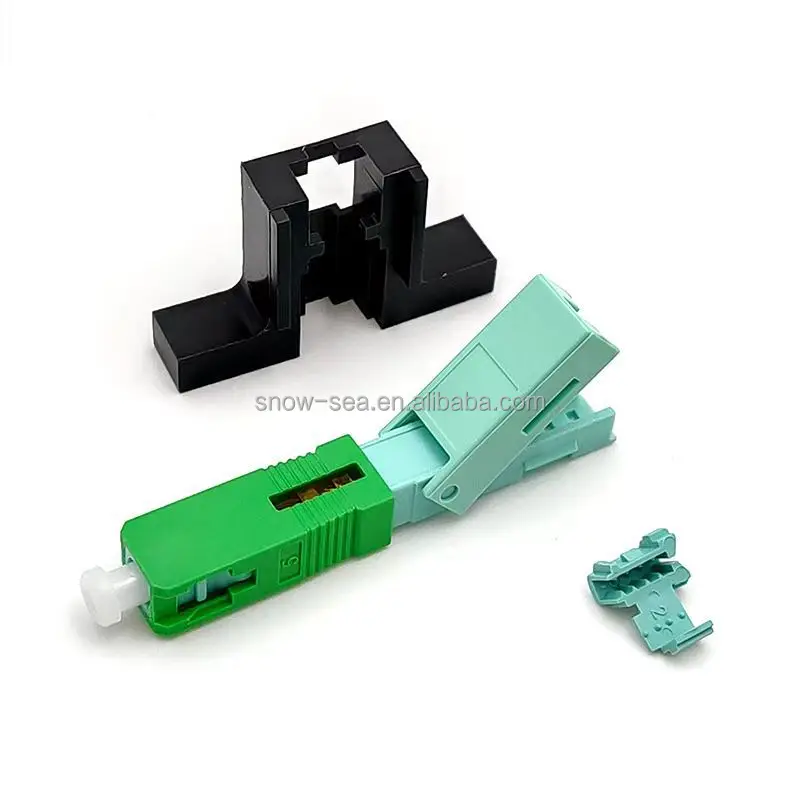

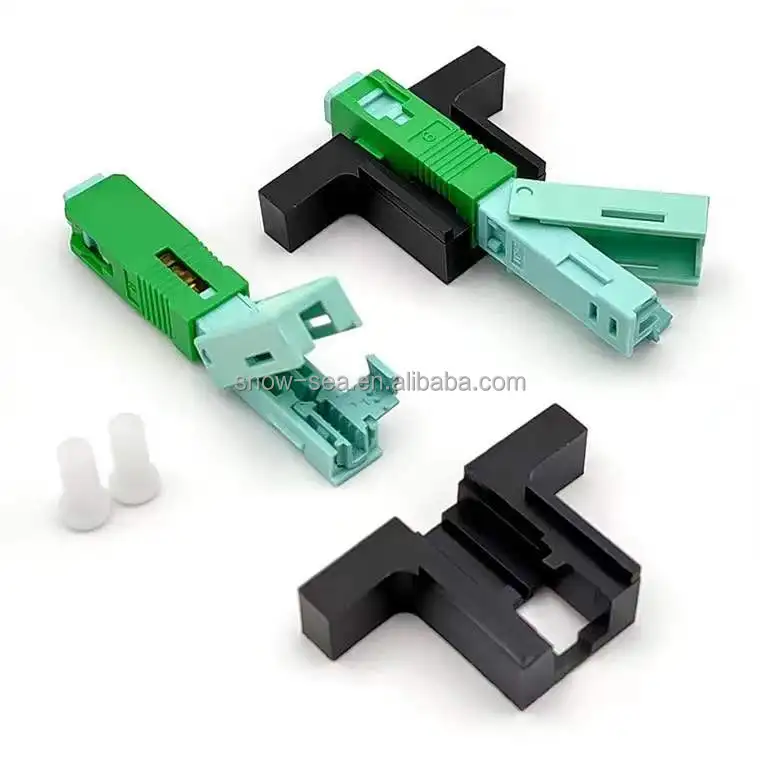

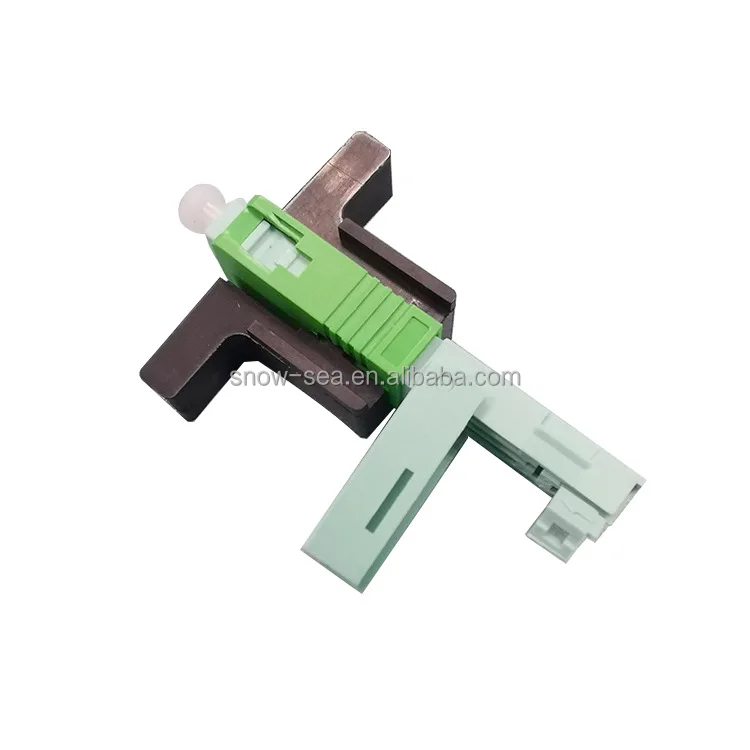

FTTH Passive SC/UPC SC/APC Quick Field Assemble Wedge T Click Type Fiber Optic Fast Connector

Product Overview

Description

FTTH Passive SC/UPC SC/APC Quick Field Assemble Wedge T Click Type Fiber Optic Fast Connector



Description

Fast connector is a good solution to field wiring and fiber-to-the home engineering connector. Assembly without glue, grinding and electrical tools, is widely used in construction section, the place need to quickly connect, to provide a fast and stable connector for the operation. It adopts the latest fiber formed technology. All the optical and mechanical index meet the patch cord standard, to achieve to make the patch cord via mechanical cold junction, it change the traditional splice opinion, offer the powerful support for FTTx.



Feature

Low insertion loss

High return loss (low amounts of reflection at the interface)

Ease of installation

Low cost

Reliability

Low environmental sensitivity

Ease of use



Application

CATV

Active device termination

Telecommunication networks

Metro

Local Area Networks (LANs)

Data processing networks

Test equipment

Premise installation

Wide Area Networks(WANs)



Specification

Item	Parameter
Cable Scope	3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
Size	51*9*7.55mm
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s (exclude fiber presetting)
Insertion Loss	≤ 0.3dB (1310nm & 1550nm)
Return Loss	≤ -50dB for UPC, ≤ 55dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test	IL ≤ 0.3dB
