Product Overview
Description
Product Description
Main features:
-Simple and compact:
Support column and wall mounting methods, occupy a small space, and take care of both operation and home use
-Security:
With SOC overcharge protection, battery overcharge protection, BMS data abnormal diagnosis, vehicle battery voltage abnormal detection, leakage, lightning protection and other active protection functions
-Strong compatibility:
Wide voltage output design, compatible with new and old national standards, interoperability, real-vehicle joint debugging test,applicable to various brand models
-Simple and compact:
Support column and wall mounting methods, occupy a small space, and take care of both operation and home use
-Security:
With SOC overcharge protection, battery overcharge protection, BMS data abnormal diagnosis, vehicle battery voltage abnormal detection, leakage, lightning protection and other active protection functions
-Strong compatibility:
Wide voltage output design, compatible with new and old national standards, interoperability, real-vehicle joint debugging test,applicable to various brand models
Wholesale Electric Car Level 2 Fast Rfid Ev Car Charger Station, LCD Screen Type Ac Portable Ev Charge
Main Parameters:
Model | YLEV14K-AD1 | YLEV14K-AD2 | YLEV14K-AD3 | ||
Technical Features | |||||

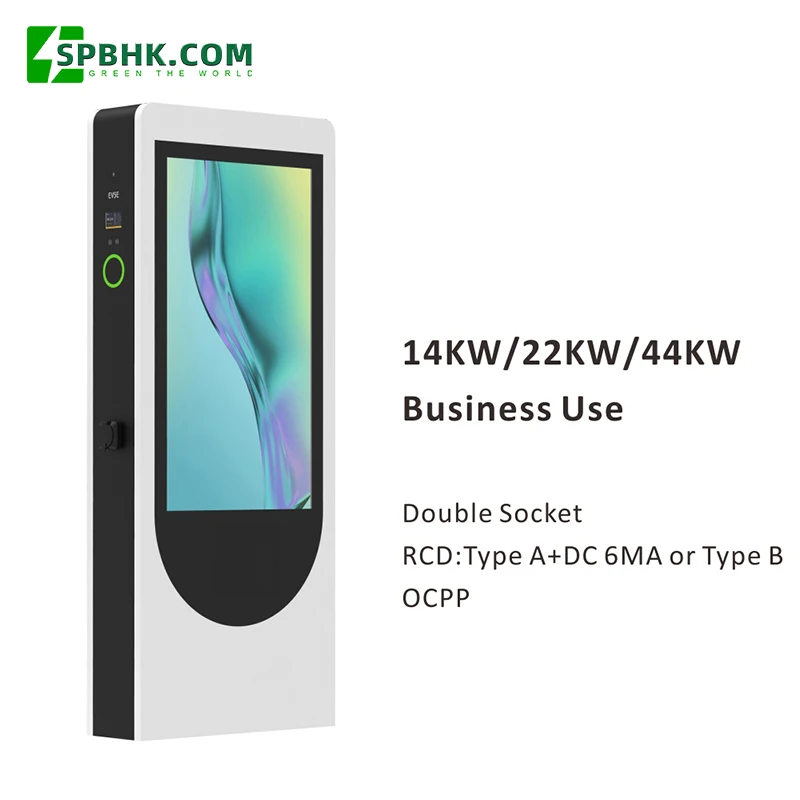

Charging capacity | Up to 14KW(7KW*2) | Up to 22KW(11KW*2) | Up to 44KW(22KW*2) | ||
Input/Output power | 230VAC±20%-50/60Hz- 32A*2-1phase | 400VAC±20%-50/60Hz- 16A*2-3phase | 400VAC±20%-50/60Hz- 32A*2-3phase | ||
RCD | 30Ma RCD Type A and DC 6Ma RCD function or Type B(optional) | ||||
Standby power | <5W | ||||
Measuring accuracy | 1% | ||||
Energy Meter | MID certifified | ||||
OCPP | OCPP1.6 Json(OCPP2.0 optional) | ||||
Communication | WIFI/Ethernet/4G(Optional) | ||||
User interface | LED / LCD(3.5’’) / RFID(mifare iso& IEC 14443A) | ||||
Certifificate/Compliance | CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018 | ||||
Charging Interface | Type 2 socket*2 or Type 2 Gun *2 5M | ||||
Special Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | ||||
Advertising Display | |||||
LCD screen | 49”IPS 1920*1080 16:9 HDV 1400cd/m² | ||||
Application platform | Android 4.3 and above | ||||
Communication | WIFI/Ethernet/4G(Optional) | ||||
Ad update | USB flflash disk,SD card, wired network remote release | ||||
Physical Properties | |||||
Warranty | 1 year | ||||

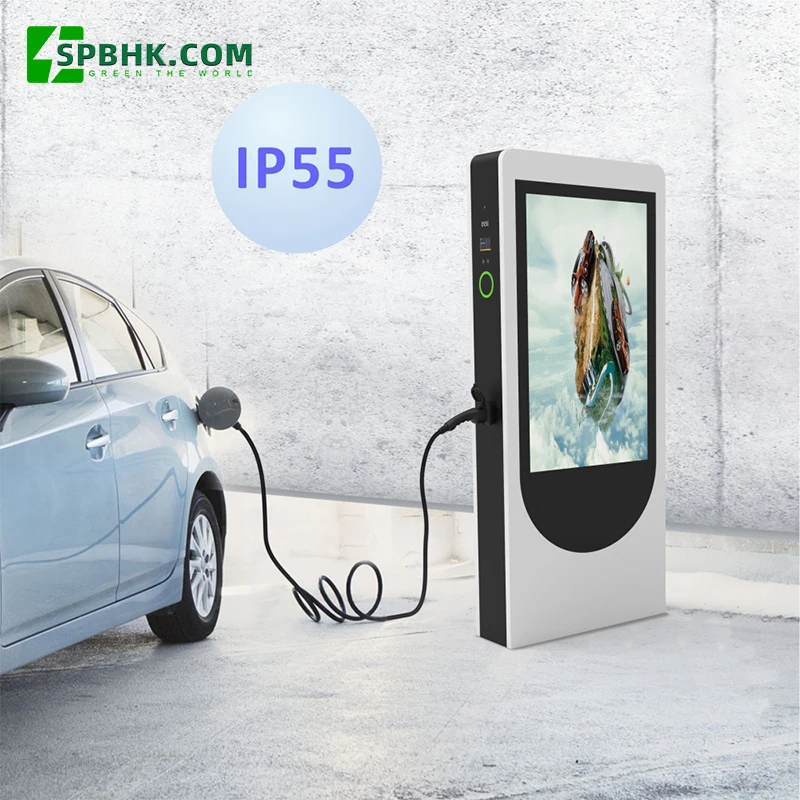

Protection | IP55(outdoor) | ||||
Special Protection | Topple & fall down protection | ||||
Cooling | Natural cooling | ||||
Operating temperature | -20℃ to +55℃ | ||||
Humidity | Max.95%(non-regulating) | ||||

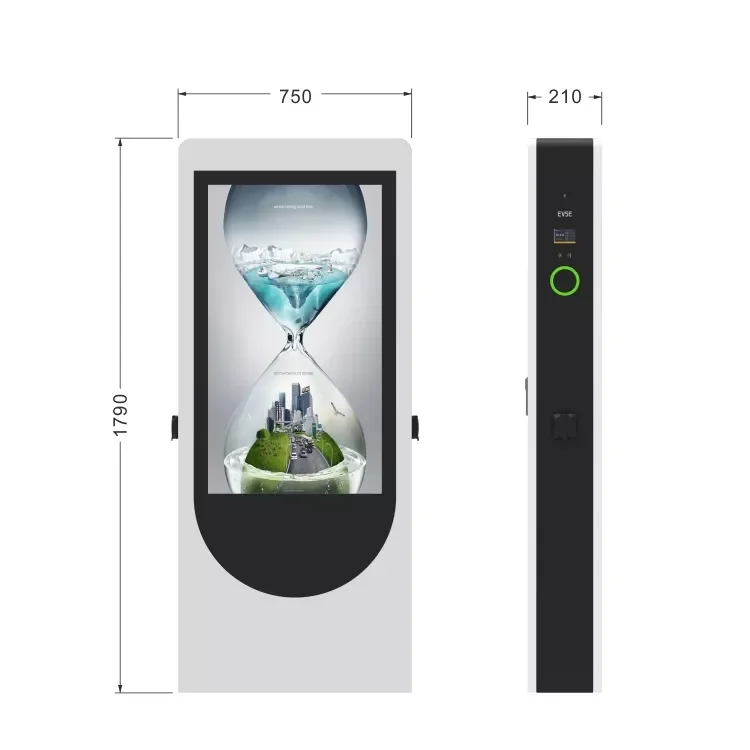

Dimensions | 1790*750*210(L*W*H) | ||||
Weight | <120Kg | ||||
