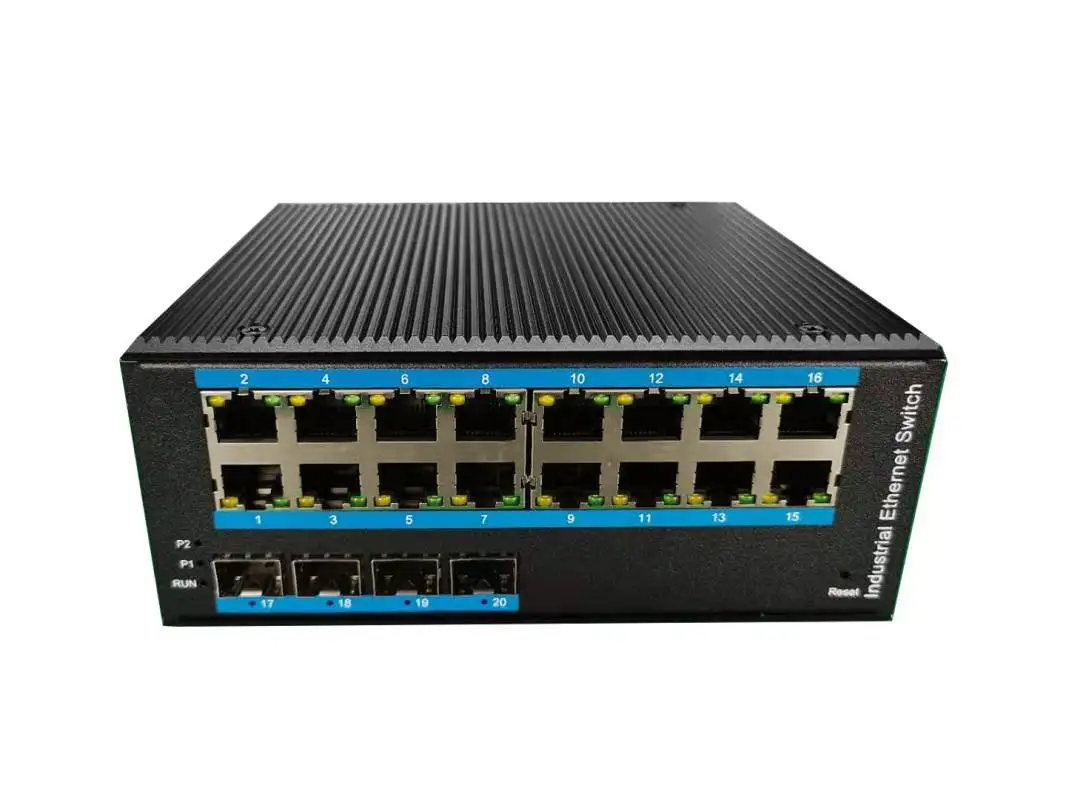

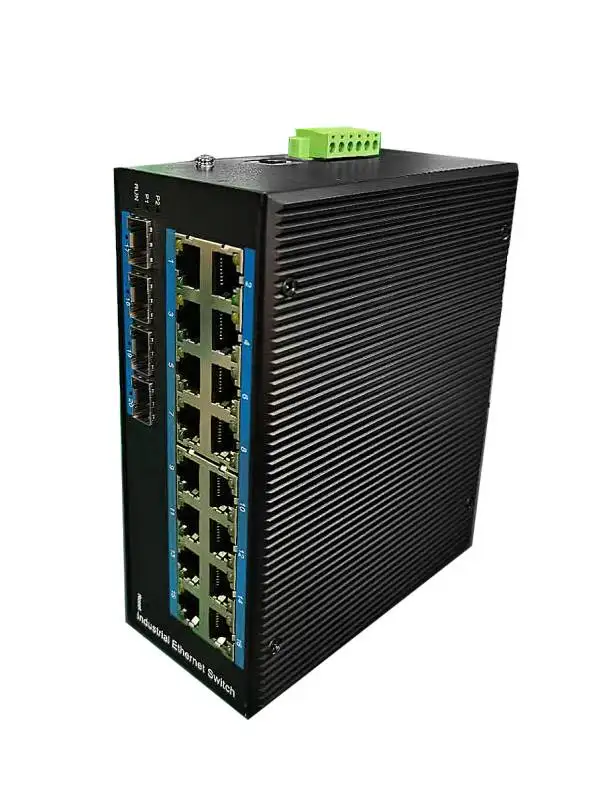

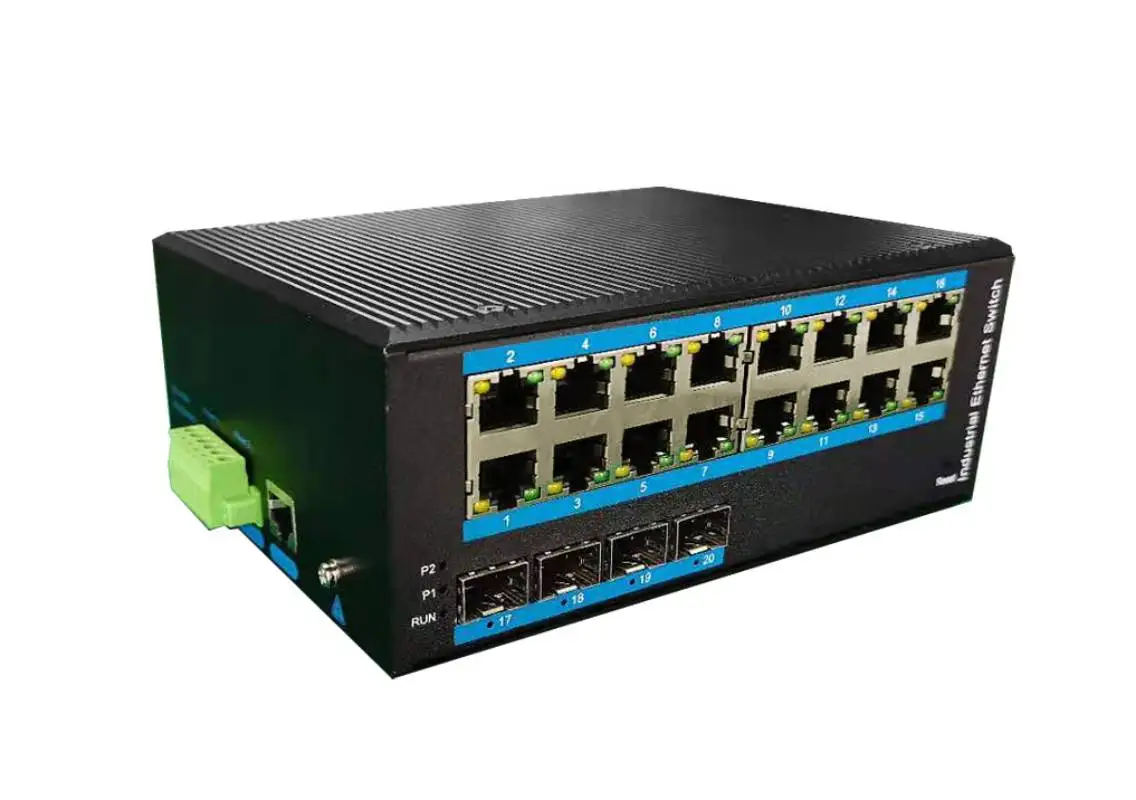

Custom 10/100/1000BASE TX 4G SFP 16 Ports L2 Managed Industrial PoE Switch
- Category: >>>
- Supplier: Shenzhen Yuhang Communication Technology Co. Ltd.
Share on (1600566135228):
Product Overview
Description
Product Overview
Slim Type with more Practicability and Convenience
ZX416GSP-M-SFP an hardened 20-port Industrial PoE Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000BASE-TX RJ45 PoE +4G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
FEATURES AT A GLANCE
Industrial conformance
•-40℃ to 80℃ operating temperature
•IP40 aluminum housing
•Supports 6KV DC Ethernet ESD protection
•Supports 6KV DC EFT protection for power line
•Free Fall, Shock and Vibration Stability
•DIN-rail design
•IP40 aluminum housing
•Supports 6KV DC Ethernet ESD protection
•Supports 6KV DC EFT protection for power line
•Free Fall, Shock and Vibration Stability
•DIN-rail design
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model No. | Performance Specification | Packet Buffer Memory: 12Mbit Packet Forwarding Rate: 42Mpps MAC Address Table: 8K | |
10/100/1000Base-TX Port | 16-Port RJ-45 auto-MDI / MDI-X | Installation | DIN rail |
PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at | Maximum Frame Size | |
PoE ports:1-16 port support PoE(max.) | Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex | |
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | Enclosure | ||
PoE port Auto detect af/at devices | LED Indicator | Power: Red Fiber: Link 2(Green) Ethernet: Yellow | |
Output Voltage: DC48V | Power Input | 48 to 57V DC redundant power | |
Power Pin Assignment:1/2+;3/6- | Power Consumption | < 10watts | |
Power Type: End-span( Mid-span optional) | Surge protection | ± 4KV | |
1000Base-FX Port | Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) | Certification | CE FCC Rohs compliance |
MTBF | >300,000hours | ||
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) | Dimensions (W x D x H) | 166×137×68.5mm |
Weight | Product Weight: 1.18KG Packing Weight: 1.3KG | ||
Working Environment | Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) | ||
Warranty | 1-year replacement with new item; 3-years for main parts. |
