Black 25mm lszh hft corrugated conduit Electrical Pipe
- Category: Wiring Accessories >>>
- Supplier: Dongguan Hopehead Decorative Materials Company Limited
Share on (1600566139106):
Product Overview
Description

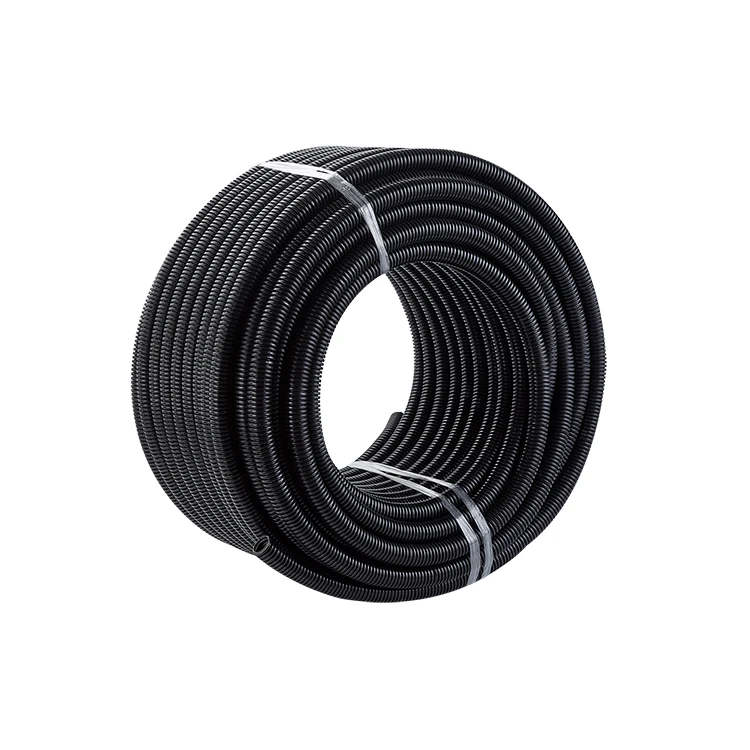

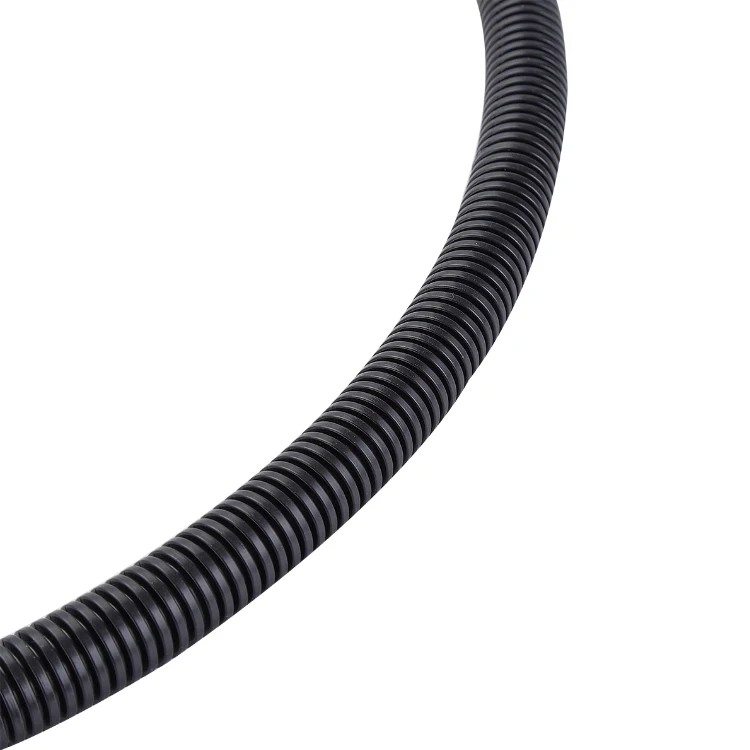

Black 25mm lszh hft corrugated conduit Electrical Pipe
Product Description
Item No.: | Black 25mm lszh hft corrugated conduit Electrical Pipe |
Resistance to compression: | 1250Nt/5cm(heavy duty); 750Nt/5cm (medium Duty) |
Temperature Range: | -45℃ to 120℃ |
Grade: | Heavy/medium Duty |
Electrical Characteristics: | with electrical insulated, >1000MΩ, |

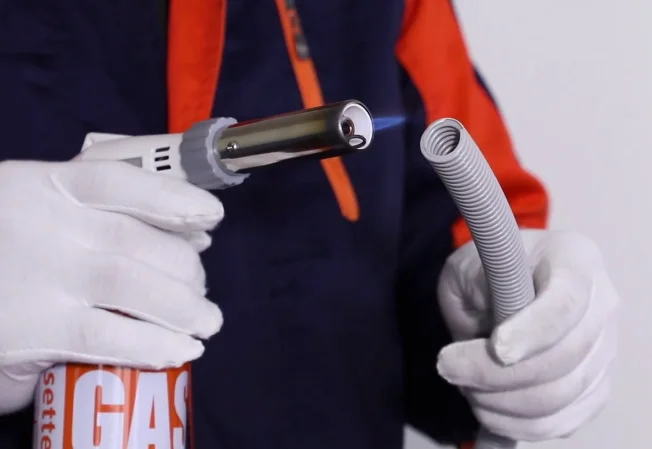

Resistance to flame propagation: | Non-flame propagating (V0 rated), the best fireproof level. V0 requests the fire should be died out automatically within 10 seconds. |
Resistance to UV : | Extreme UV resistance, can work on hash outdoor conditions. |
Colour: | Grey customized |
low smoke halogen free certified: | yes, with IEC61386-1/21 and etc certificates. Please contact us for more details. |
Remarks： | We also do high quality PVC electrical flexible conduit pipe, please contact us! |
Specification
Specification | Outer diameter (mm) | Wall Thickness Heavy Duty (mm) | Wall Thickness Medium Duty (mm) | Packing (meters/Rolls) | |||
16mm | 16 | 2.9 | 1.5 | 50 | |||
20mm | 20 | 3.05 | 3 | 50 | |||
25mm | 25 | 3.25 | 3.2 | 25 | |||
32mm | 32 | 4.35 | 4.25 | 25 | |||
40mm | 40 | 4.55 | 4.4 | 20 | |||
50mm | 50 | 5.55 | 5.35 | 20 | |||
Remarks: | Other out diameter/size and wall thickness is acceptable for electrical flexible conduit pipe. | ||||||

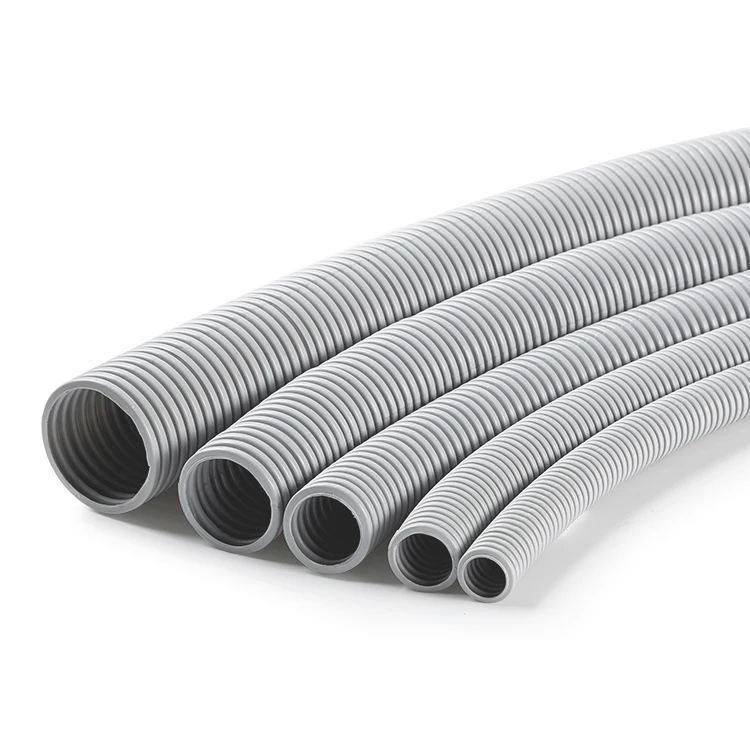

25mm lszh hft corrugated conduit:
-Referred to as LSZH, LSOH, LS0H, LSFH and OHLS.
-Smoke and poisonous fumes can be a greater risk to lives than that of fire alone.
-The low-smoke and halogen-free wire conduit is not composed of thermoplastic or thermosetting which has low smoke emission when heated.
-Most normal PVC conduit is composed of polyethylene, polyvinyl chloride or thermoplastic polyurethane. When catches fire, it will release toxic hydrogen chloride, and encounters water, it will produce hydrochloric acid. However, low-smoke halogen-free materials will not release hydrogen halides or other acids during fire.
-Low-smoke halogen-free materials can reduce the toxic and corrosive gases produced when they burn.
- Low smoke zero halogen conduit are suitable for installation in public buildings:schools, hospitals, hotels, airports, office buildings....
-Smoke and poisonous fumes can be a greater risk to lives than that of fire alone.
-The low-smoke and halogen-free wire conduit is not composed of thermoplastic or thermosetting which has low smoke emission when heated.
-Most normal PVC conduit is composed of polyethylene, polyvinyl chloride or thermoplastic polyurethane. When catches fire, it will release toxic hydrogen chloride, and encounters water, it will produce hydrochloric acid. However, low-smoke halogen-free materials will not release hydrogen halides or other acids during fire.
-Low-smoke halogen-free materials can reduce the toxic and corrosive gases produced when they burn.
- Low smoke zero halogen conduit are suitable for installation in public buildings:schools, hospitals, hotels, airports, office buildings....
Recommend Products
Projects
Low Smoke Halogen Free Rigid Conduit Used for Hospital

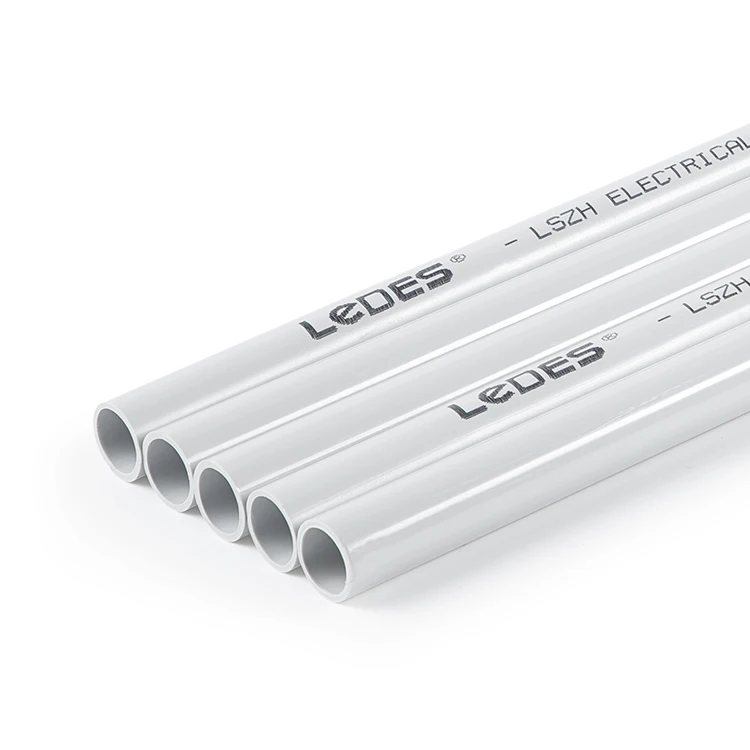

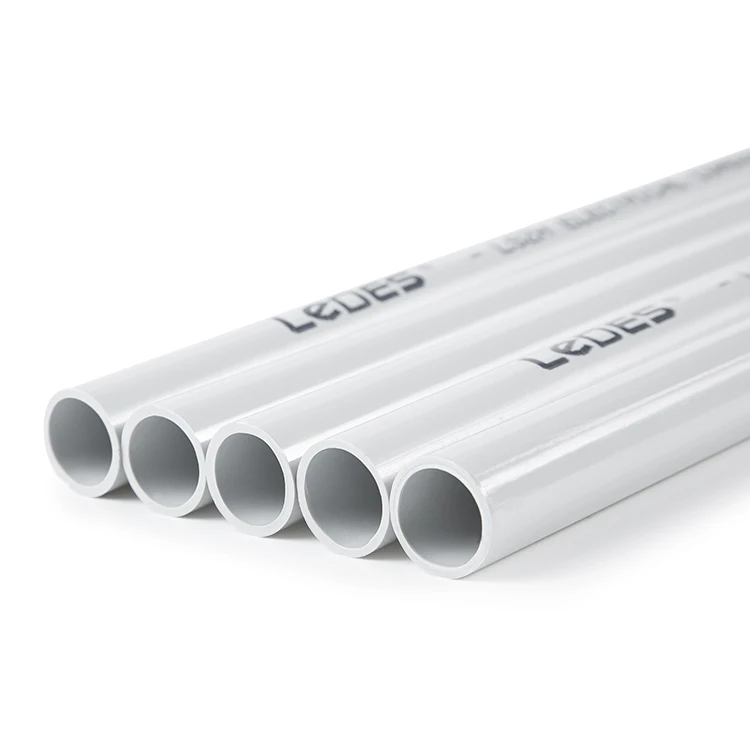

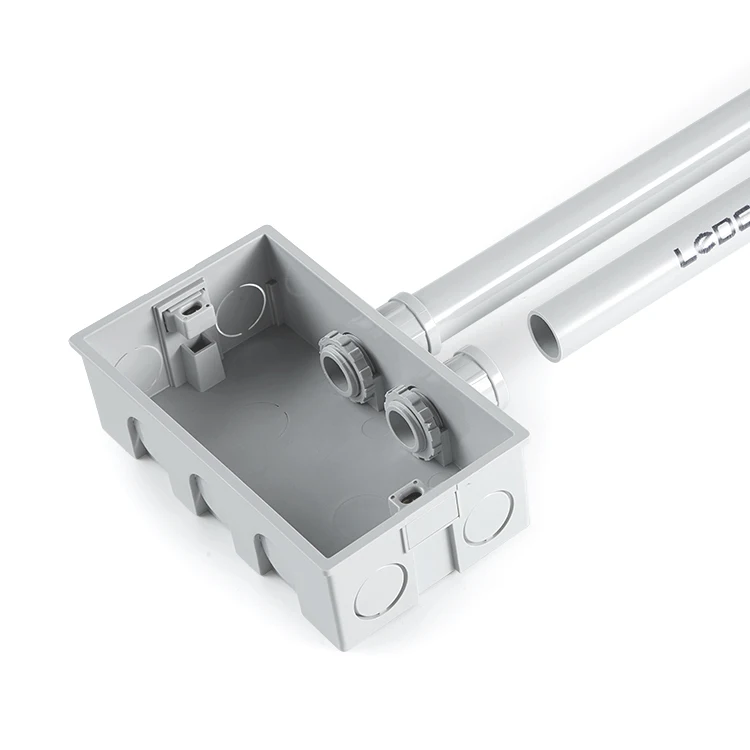

The Rigid Conduit with Our Brand Name "Ledes"

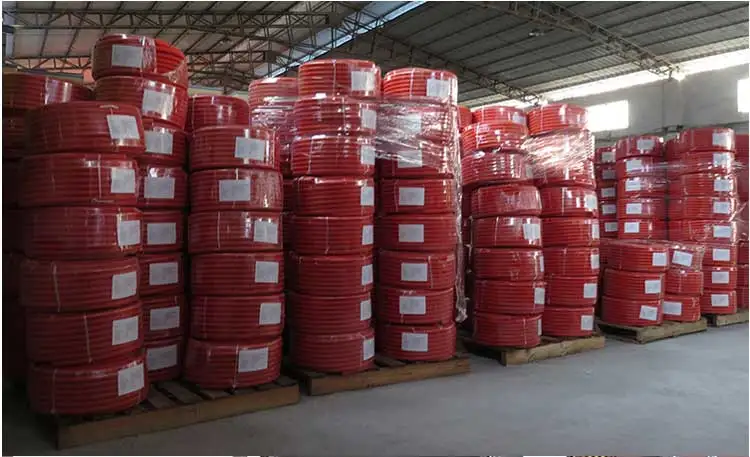

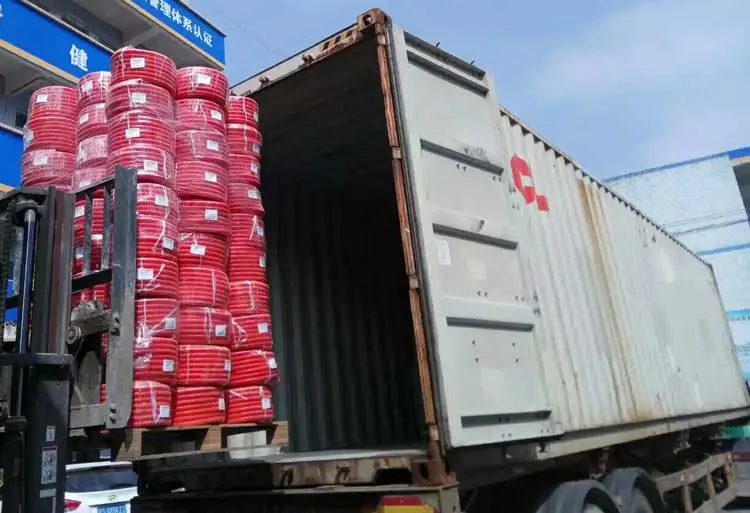

Packing & Delivery

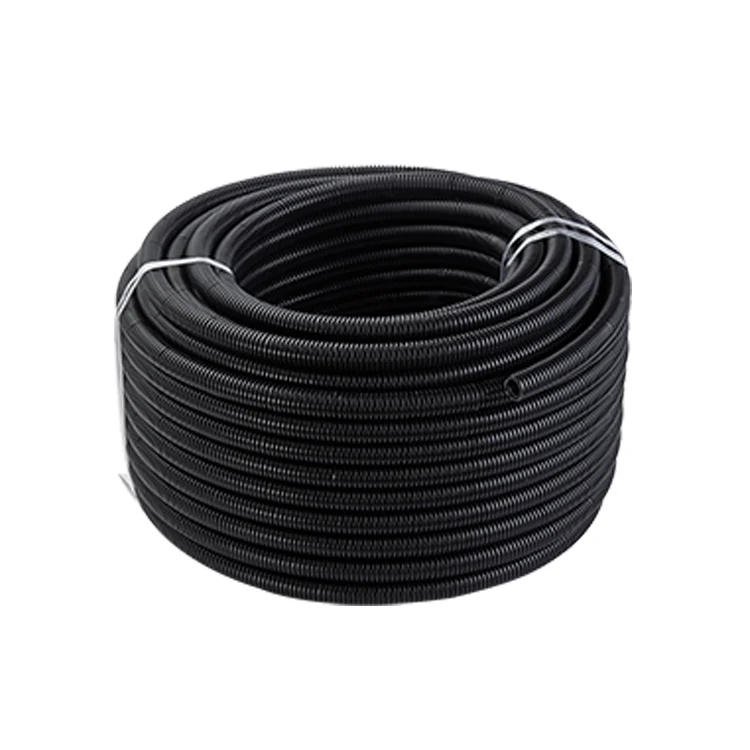

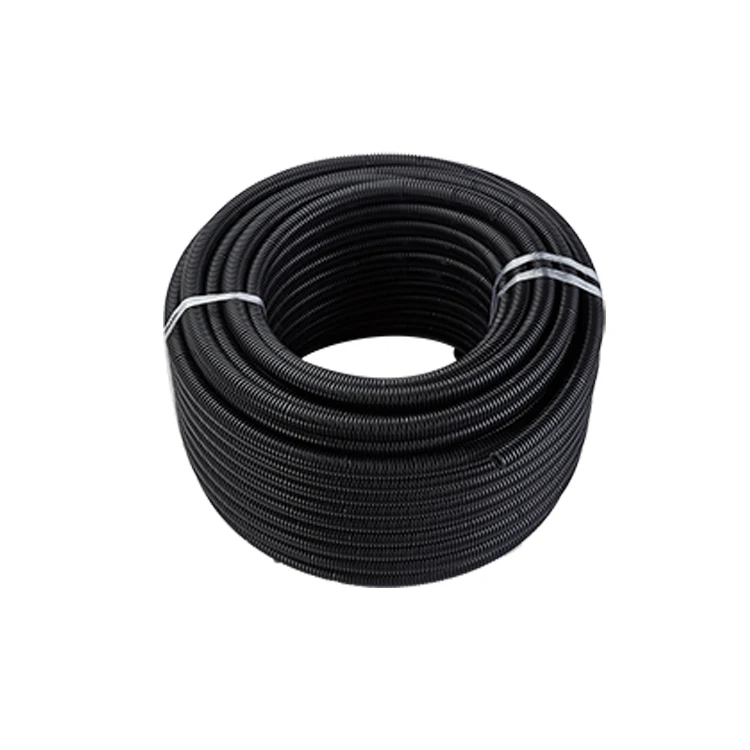

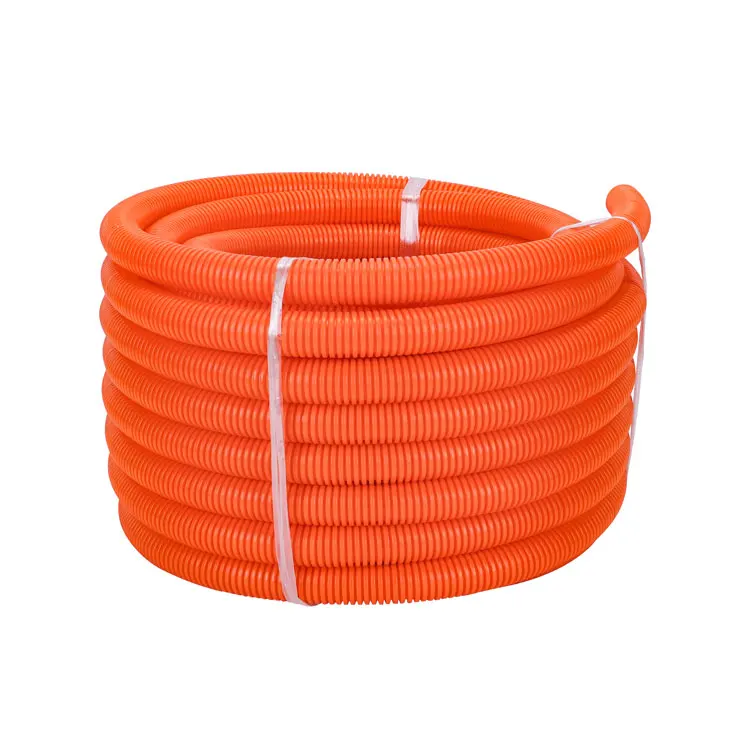

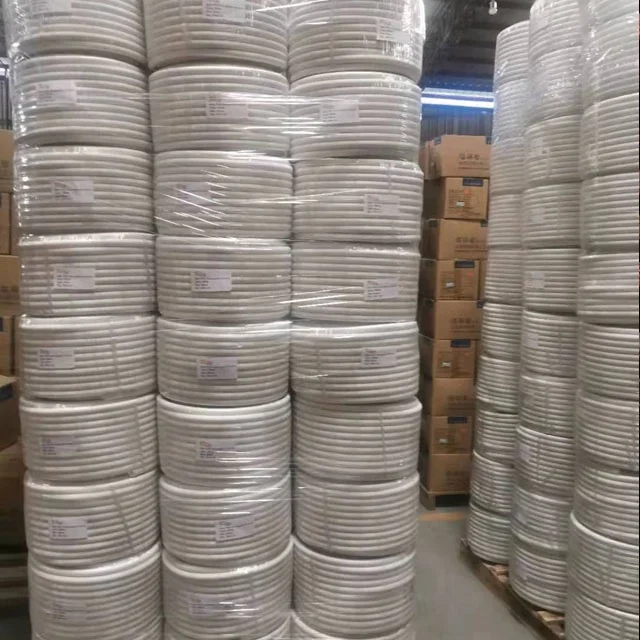

-It's usually 10 ~50 meter a roll for electrical flexible conduit pipe, customers' requests are acceptable.
- clients brand marks can be printed on the conduits or the packages
- other packaging ways can be negotiable.
- clients brand marks can be printed on the conduits or the packages
- other packaging ways can be negotiable.
Certifications
Certificates for Halogen Free conduit and fittings:
low smoke halogen free certified, with IEC61386-1/21 and etc certificates.
Please contact us for more details.
Please contact us for more details.
Company Profile
ABOUT US
Our Company, Dongguan Hopehead Decorative Materials Co., Ltd, located in Gonguang City, China. We specialize in halogen free electrical conduit and fittings, PVC conduit, electrical flexible conduit pipe, rigid conduit, and fitting products.
We have over 10 years experience on manufacturing electrical conduit and fittings. Our factories have been assessed as conforming to the requirements of ISO9001:2015, ISO14001:2015, CE, EN61386-1....
We have our own research and development team, large-scaled mould workshop with over ten senior mould designers and a team of experienced mould manufacturing technicians. Our products can meet the different standards such as BS standard, AS/NZS 2053 standard....And we are expanding our research and design team.
In order to make sure the quality, we have a 24-hour rigorous QC team. We also can accept the inspection from the inspection third party or the inspection directly from clients.
We have over 10 years experience on manufacturing electrical conduit and fittings. Our factories have been assessed as conforming to the requirements of ISO9001:2015, ISO14001:2015, CE, EN61386-1....
We have our own research and development team, large-scaled mould workshop with over ten senior mould designers and a team of experienced mould manufacturing technicians. Our products can meet the different standards such as BS standard, AS/NZS 2053 standard....And we are expanding our research and design team.
In order to make sure the quality, we have a 24-hour rigorous QC team. We also can accept the inspection from the inspection third party or the inspection directly from clients.
FAQ
1.What is your MOQ ?
Depend on your order (different kinds of items have different MOQ )
2. What is your delivery time ?
Normally, the time of delivery duration is around 15-45 days.
3. What is the shipping port ?
We ship the goods via Shenzhen Port, Guangzhou Port.
4. What is your payment term ?
T/T, L/C, Alibaba trade Assurance order
5. How should I contact you ?
You can contact us with Trade Manager or send us an email
6. How about the samples ?
we can provide the samples for 25mm lszh hft corrugated conduit
Depend on your order (different kinds of items have different MOQ )
2. What is your delivery time ?
Normally, the time of delivery duration is around 15-45 days.
3. What is the shipping port ?
We ship the goods via Shenzhen Port, Guangzhou Port.
4. What is your payment term ?
T/T, L/C, Alibaba trade Assurance order
5. How should I contact you ?
You can contact us with Trade Manager or send us an email
6. How about the samples ?
we can provide the samples for 25mm lszh hft corrugated conduit
