Shacman F3000 Brand Rhd 420 HP 30 Ton Wrecker Truck Crane and Towing Truck for Road Malfunction Urban Violation Emergence
- Category: >>>
- Supplier: Hubei Ruili Automobile Co. Ltd.
Share on (1600566171110):
Product Overview
Description
Shacman F3000 Brand Rhd 420 HP 30 Ton Wrecker Truck Crane and Towing Truck for Road Malfunction Urban Violation Emergence Resuce Work
Description
1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.
2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.
3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.
4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.
5. We have different brands of truck chassis to make the wrecker tow truck.
6. The tow truck chassis are Forland, Foton, SINOTRUK HOWO, Dongfeng, Faw, JAC etc.
Cabin | Driving type 8x4, Left hand drive | |||
HOWO 76 cab, with air condition and one sleeper bed, 70°hydraulically tillable to the front as attached photo for ref. | ||||
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11460×2500×3270 | ||
| Wheel base (mm) | 1800+4600+1350 | |||
| Wheel track (front/rear) (mm) | 2022/1830/1830 | |||
| Approach/Departure angle(°) | 16/18 | |||
Weight in KGS | Tare Weight | 24870 | ||
| payload | 50000 | |||
| Front axles loading capacity | HF9 2x9000 | |||
| Rear axles loading capacity | HC16 2x16000 | |||
Engine | Brand | Sinotruk | ||
| Model | WD615.47 | |||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Horse Power(HP) | 371 | |||
| Emission standard | Euro-II, EURO-III | |||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |||
| Tire | 12R22.5 tubeless tire with one spare | |||
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |||
| Steering | ZF8118 | |||
| Oil tank | 400L | |||
| Special Device For Wrecker System | ||||
| Towing | Max Towing weight(kg) | Above 50000 | ||
Hoisting Organ | Max hoisting weight(kg) | 25000 | ||
| Max Under-hoisting Capacity (kg) | 12000 | |||

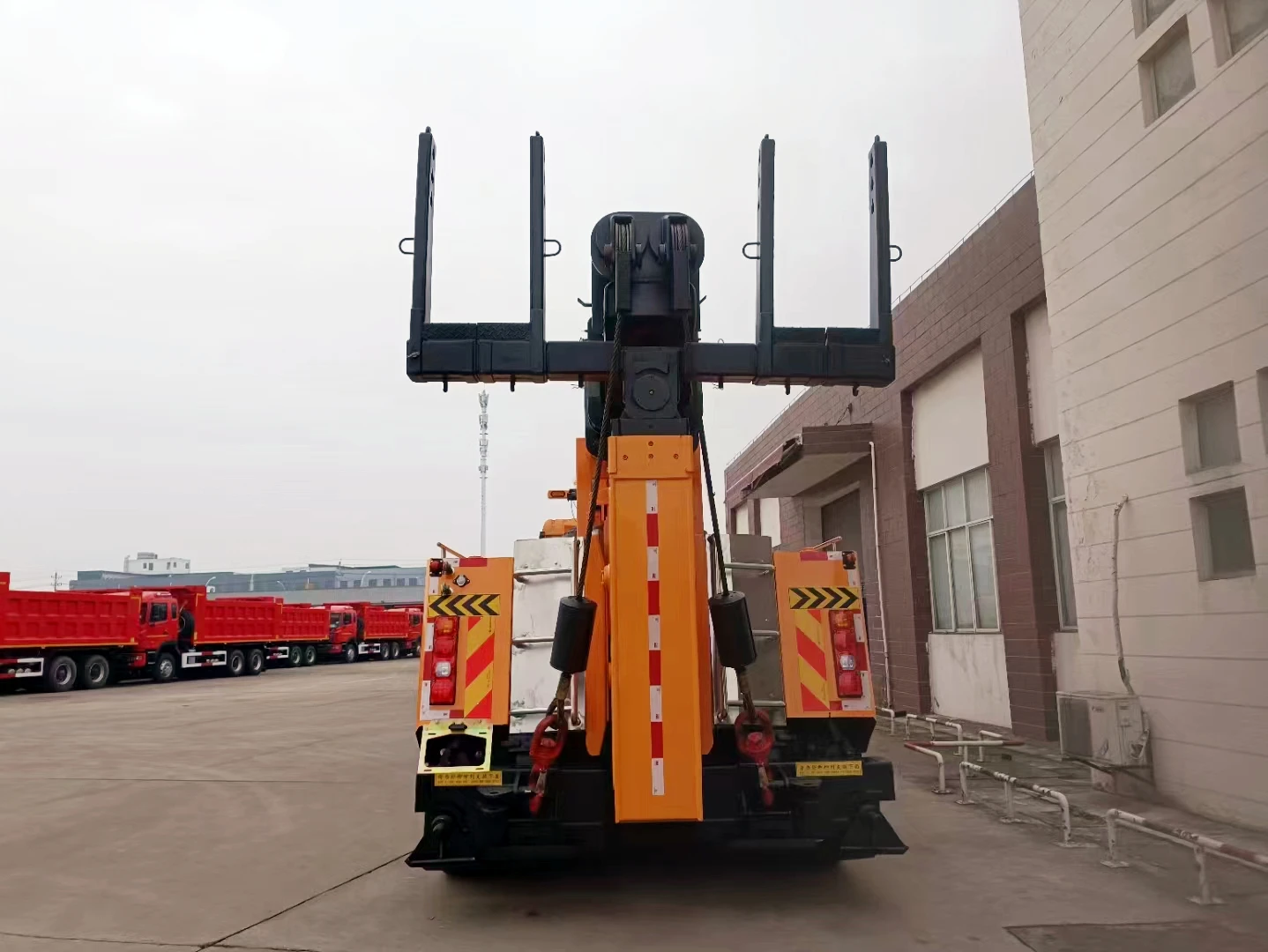

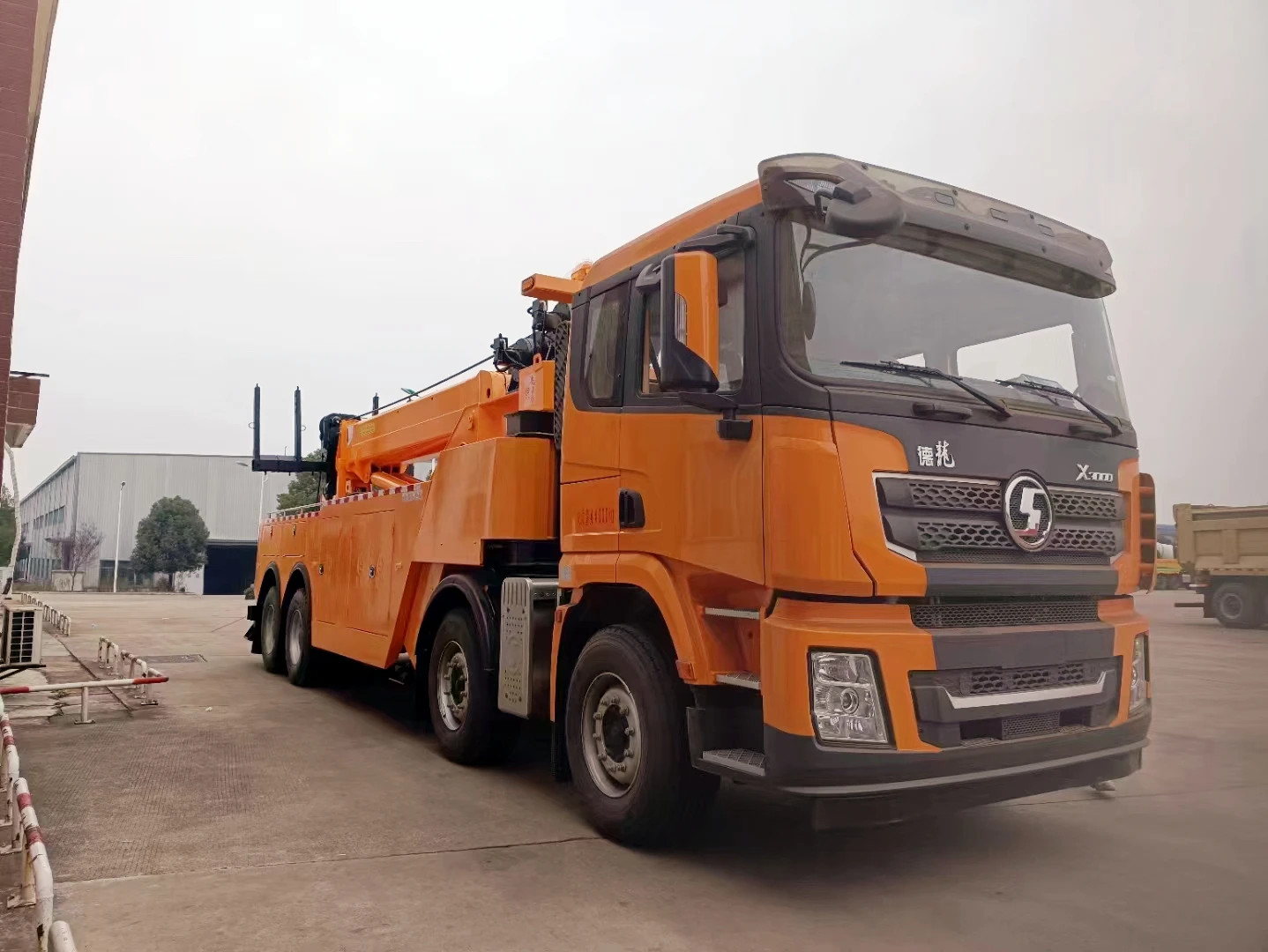

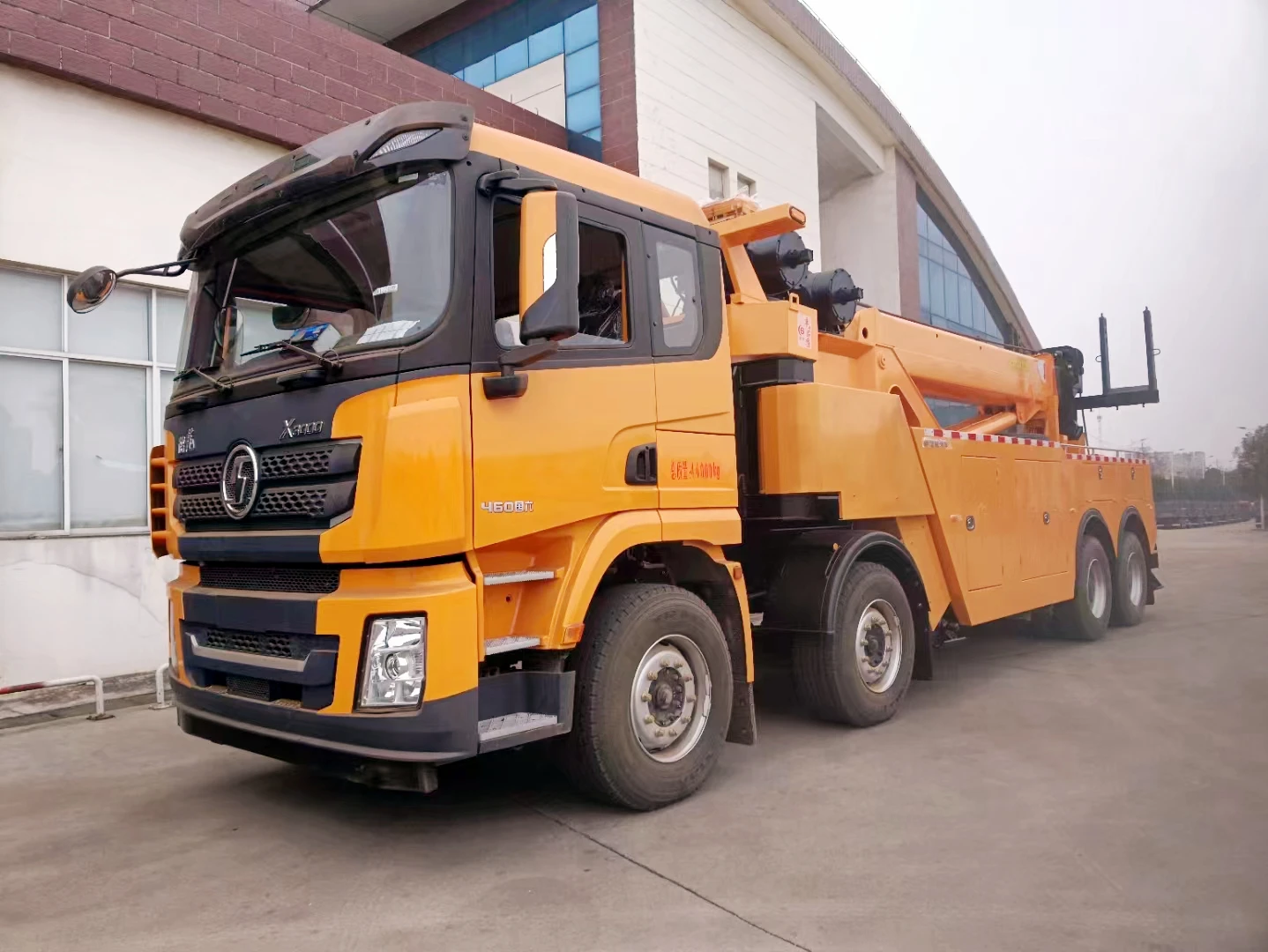

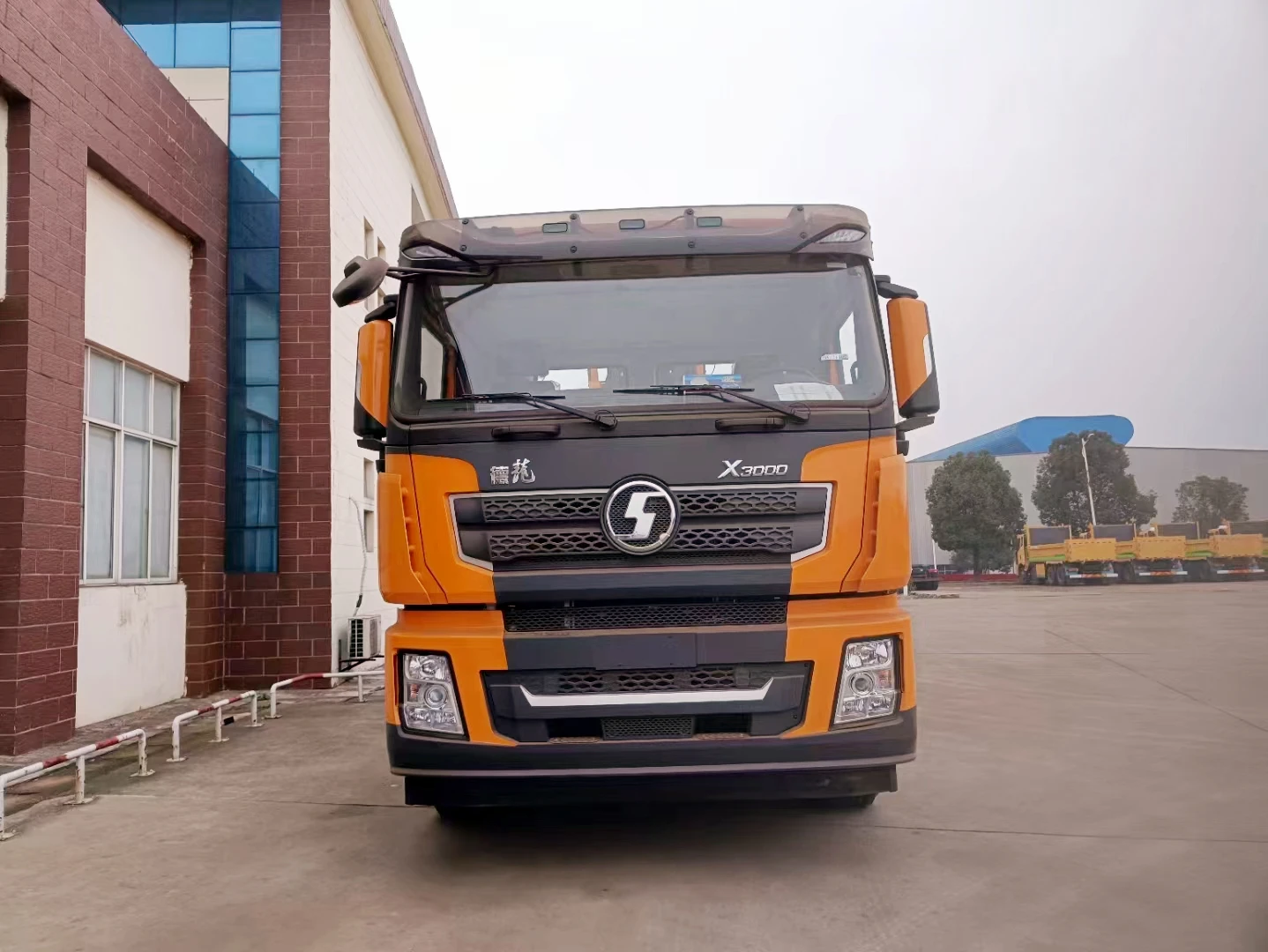

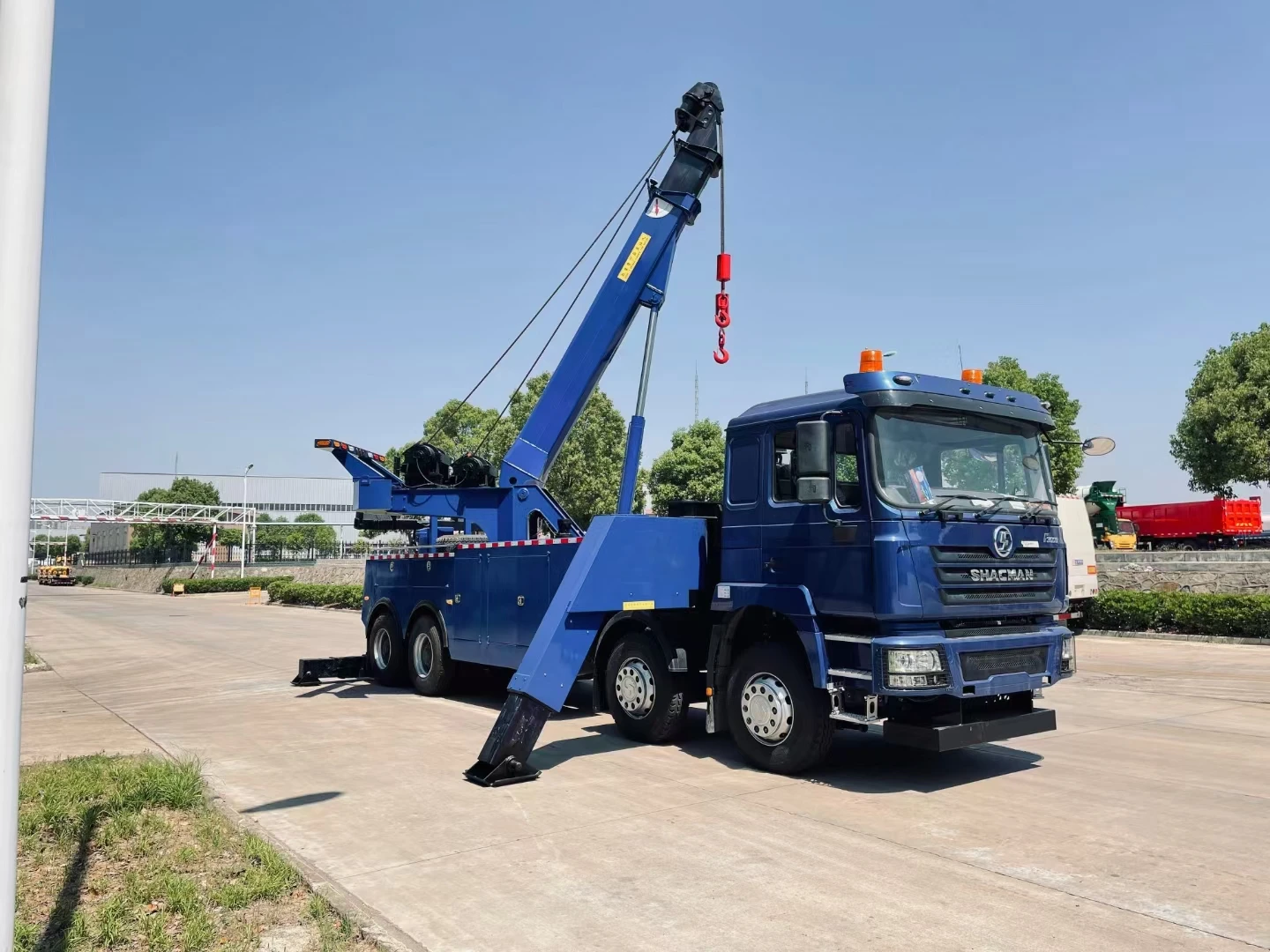

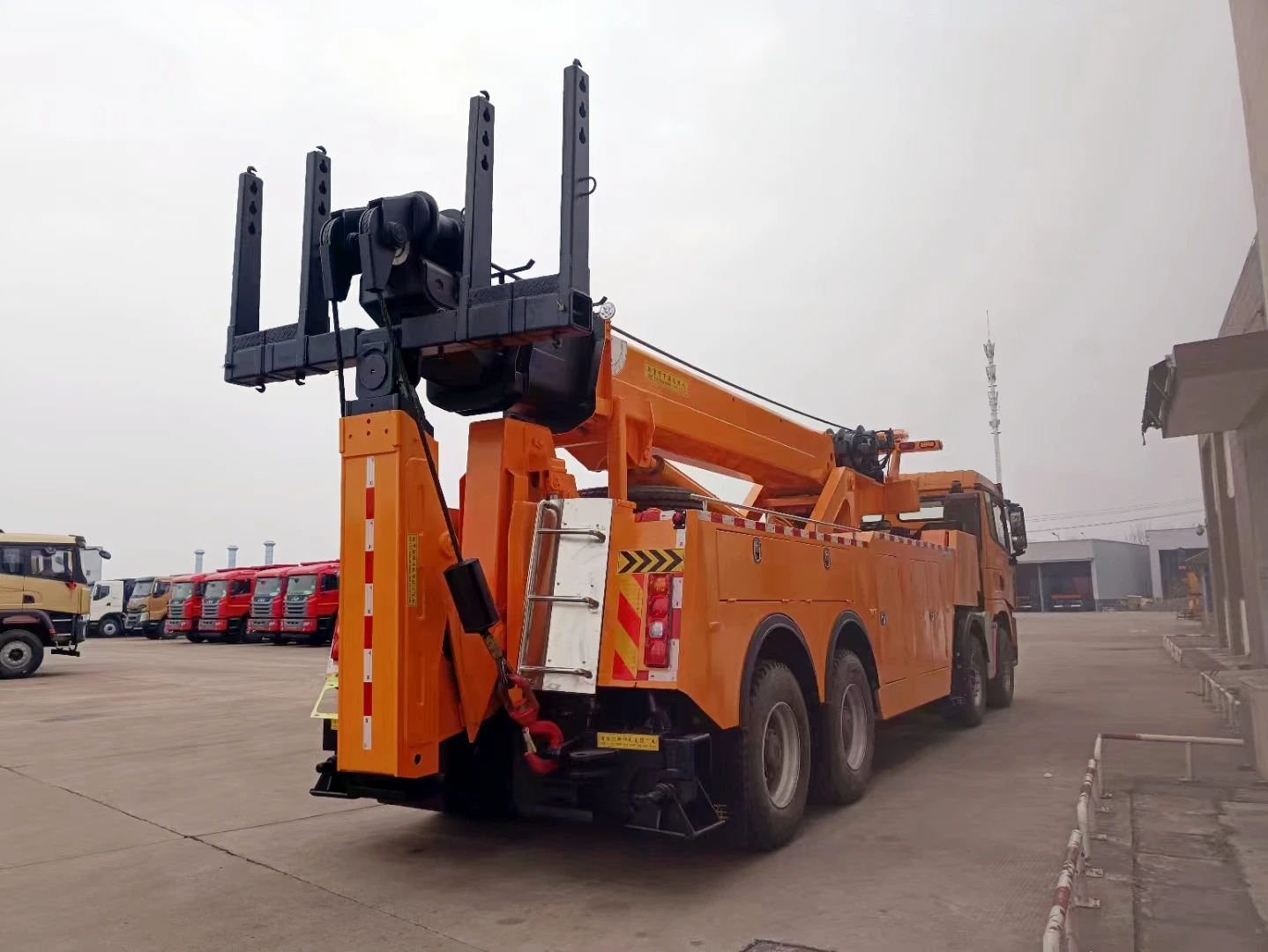

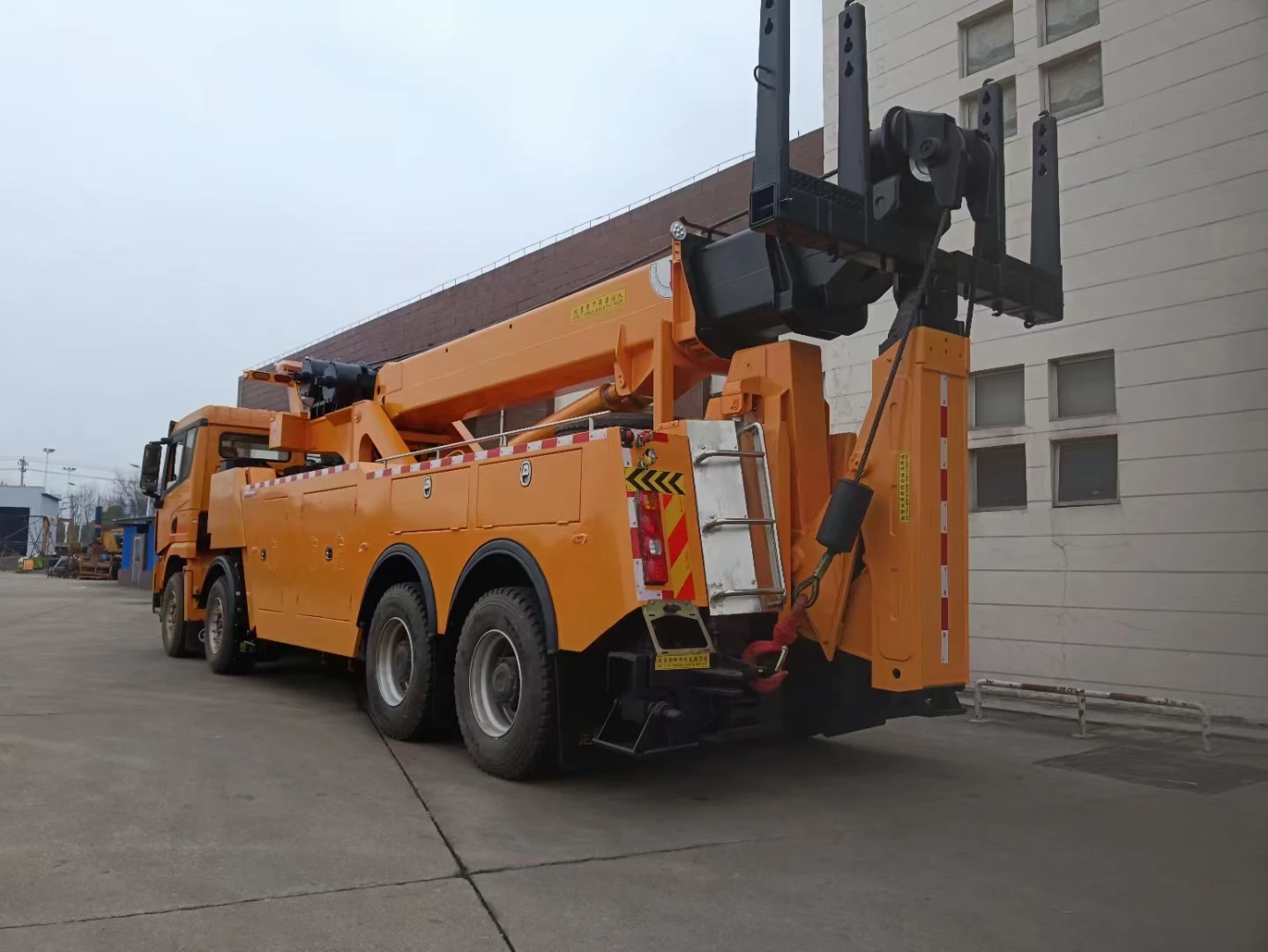

Reference Photos
