Full touch button Pre amplifier with 4 mic input aux input

Share on (1600566184067):


Price:$155.00 - $159.00

Quantity:


Product Overview

Description



Get Price




Details Images




Feature

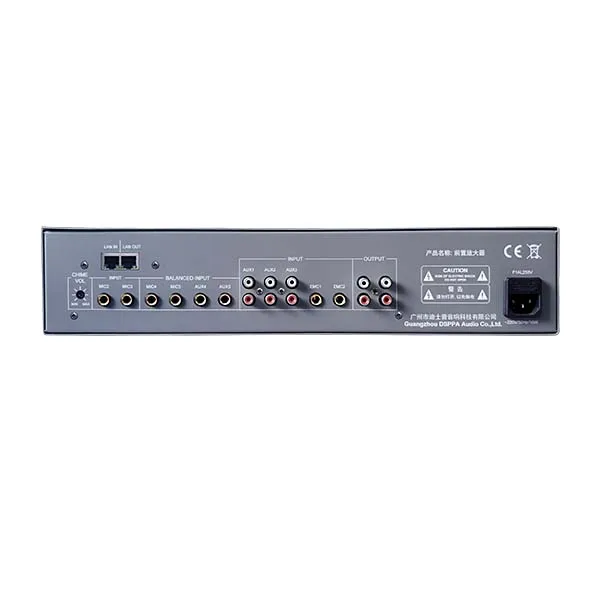

● Various and multiple input/output ports: 1 unbalanced priority microphone port; 2 unbalanced microphone ports; 2 balanced
microphone ports; 3 audio source unbalanced input ports; 2 audio source balanced input ports; 2 EMC emergency input ports; 4
output ports.

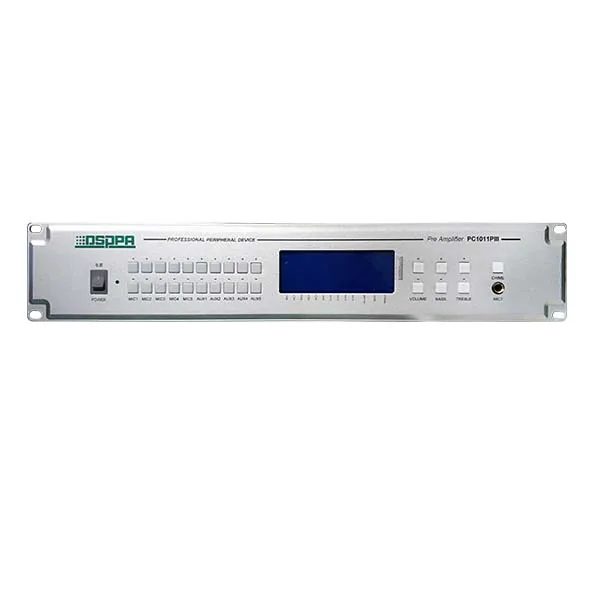

● Full touch button operation.
● Independent volume control for each channel, and total volume control.
● Treble and bass tone control.
● The LCD with high illuminance for volume scale position


Product Paramenters


Nominal Input
Mic1, 2, 3:600Ω,5mV, unbalanced
Mic4,5:600Ω,5mV, balanced
EMC1, 2;Aux1, 2, 3:10kΩ,300mV,unbalanced
Aux4,5:10kΩ,300mV,balanced
Nominal Output
0dBV
Frequency Response
20Hz-20kHz(±3dB), line input
THD
Aux:0.05%,Mic:0.3%(0dB)
SNR
Mic input:>70dB
Aux input:>70dB
Tone
Bass:±10dB (100Hz)
Treble:±10dB (10kHz)
Chime
Each time press the button, the melody is“(1-3-5-ì-) ”,
with adjustable volume.
Protection
AC fuse×1 (220V:F0.6AL, 110V:F1AL)
Power Supply
AC220V/50Hz
Package Dimension (mm)
(L×W×H)555×455×185
Machine Dimension (mm)
(L×W×H)484×320×88
Gross Weight
7.9kg
Net Weight
6.1kg
