Intubation Camera Flexible Endoscope Video Laryngoscope
- Category: >>>
- Supplier: Henan Huanrui Medical Technology Co. Ltd.
Share on (1600566191632):
Product Overview
Description
Product Description

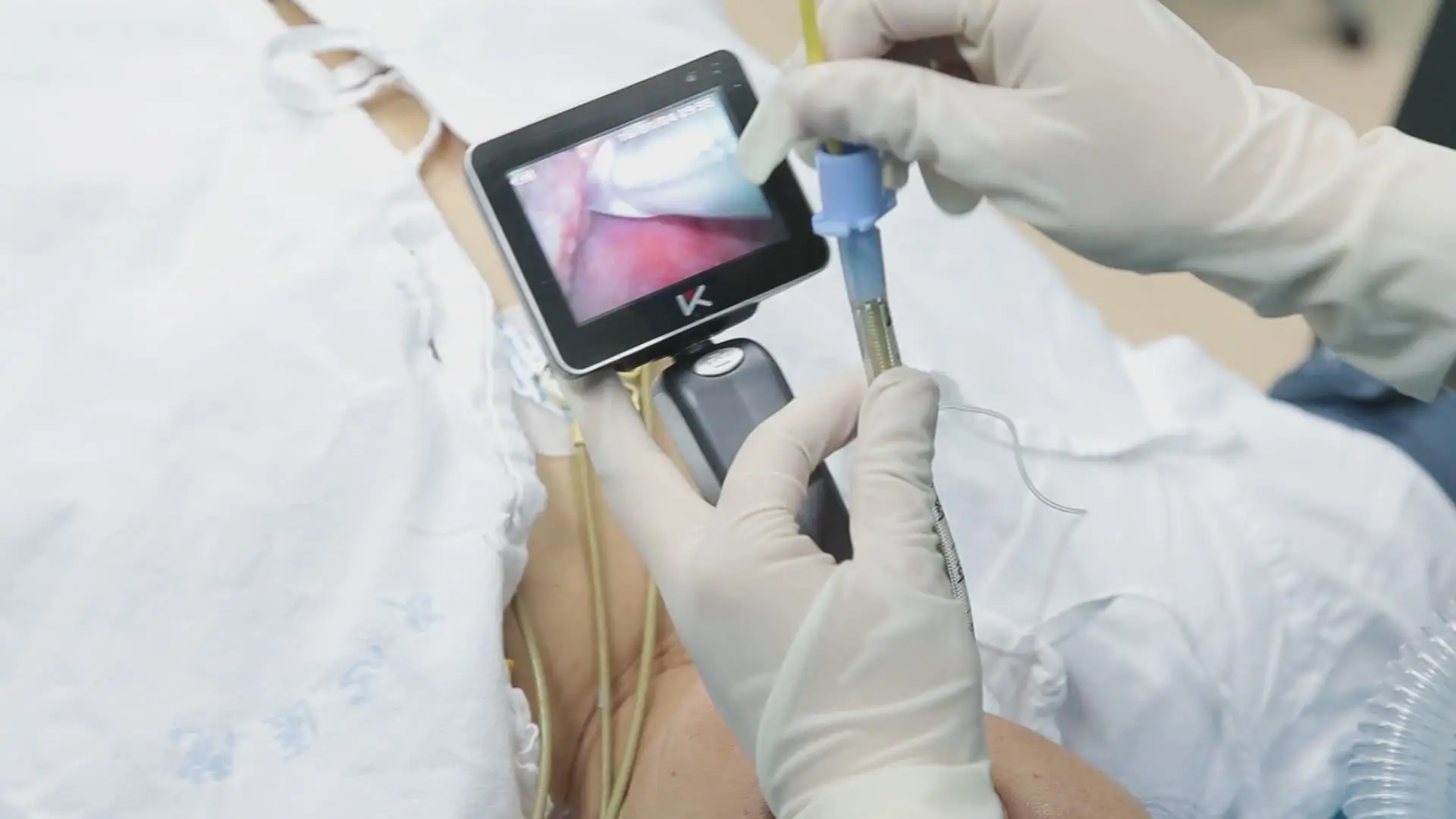

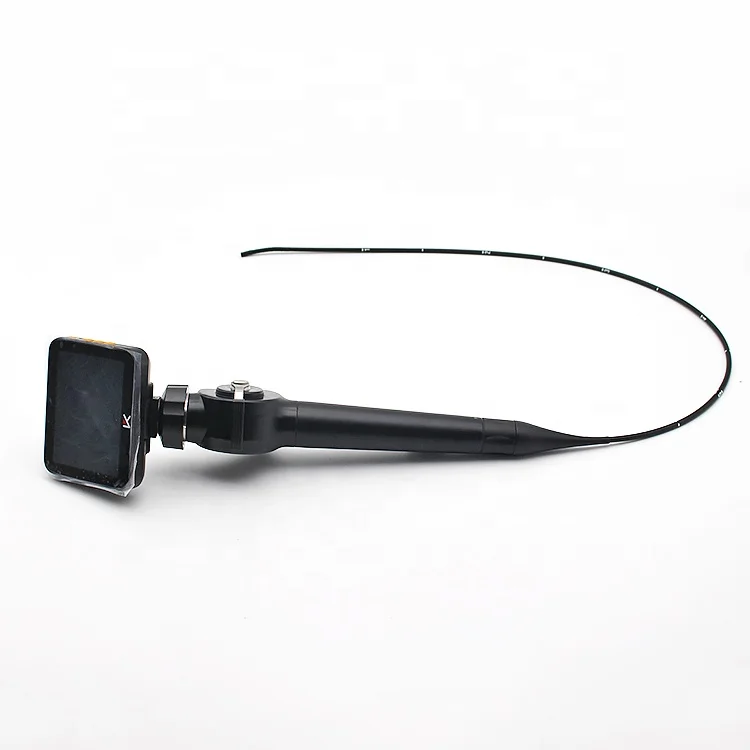

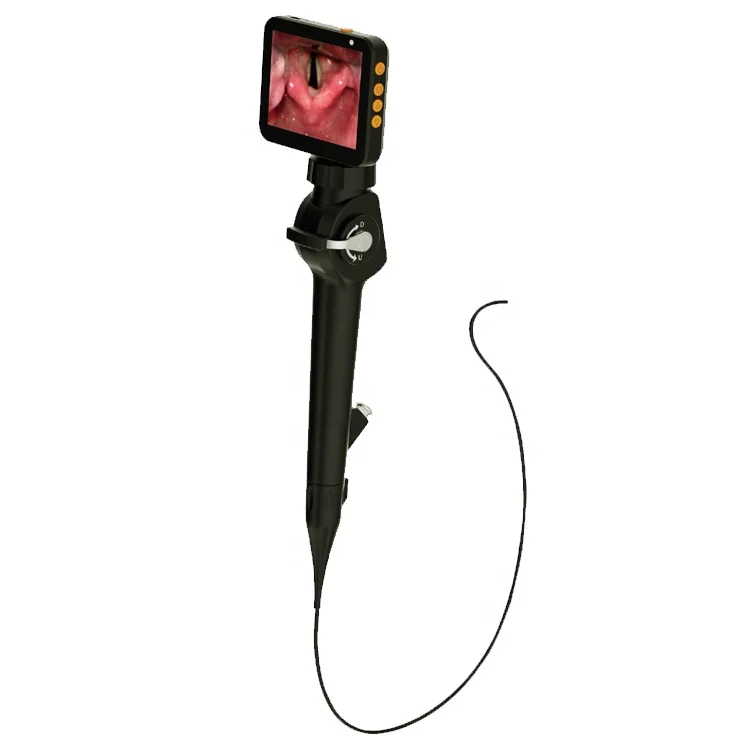

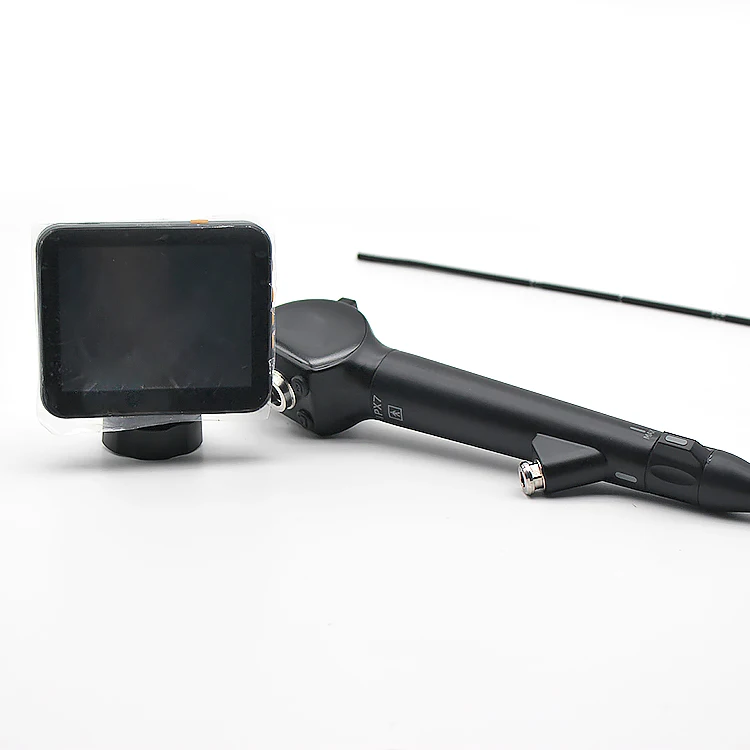

The Hrmedtec Flexible Video Laryngoscope are video flexible endoscopes for use in intubations and verification of double lumen or endobrochial tube placement. The Hrmedtec flexible scopes both use the universal high definition host display that is compatible with the Hrmedtec video laryngoscope and the Hrmedtec rigid endoscope.

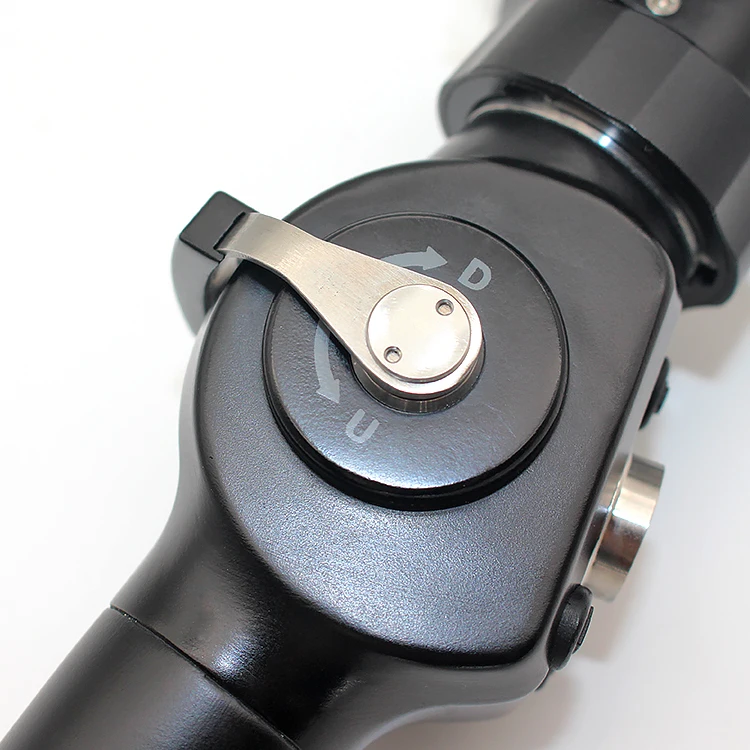

One-handed Operation
Three buttons on the back the handle, Suitable for one-handed operation:zoom in/out, Freeze image, photo/ video record

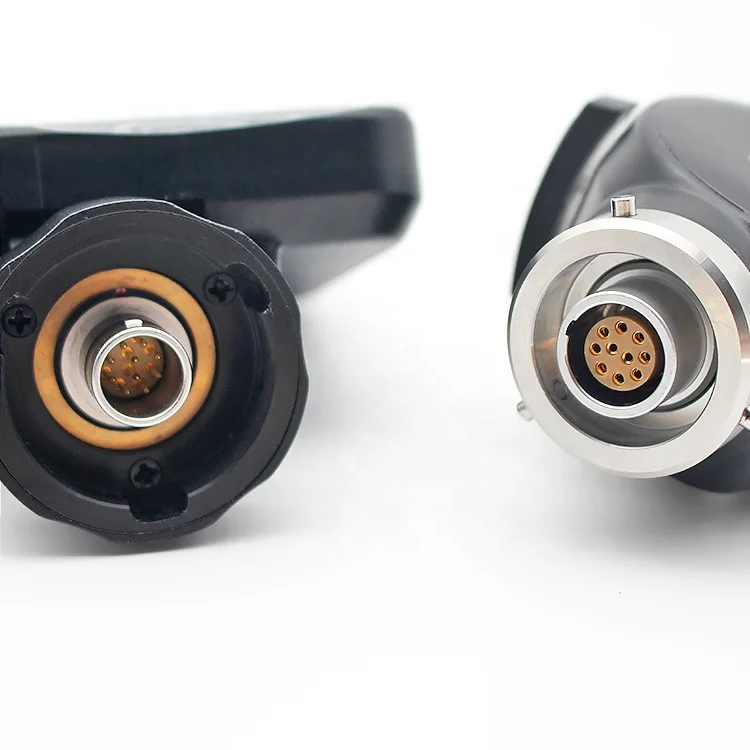

Air Interface
The display and the operating handle are connected by an aviation interface. After docking, it can be locked by rotating 90° to ensure the stability of the connection and the fluidity of image output.
Insert Part Can Be Rotated 240°
The insert part can be rotated 240° left and right. When multi-directional observation is required after
insertion, you only need to rotate the lower part of the handle instead of rotating it with the whole machine.
insertion, you only need to rotate the lower part of the handle instead of rotating it with the whole machine.

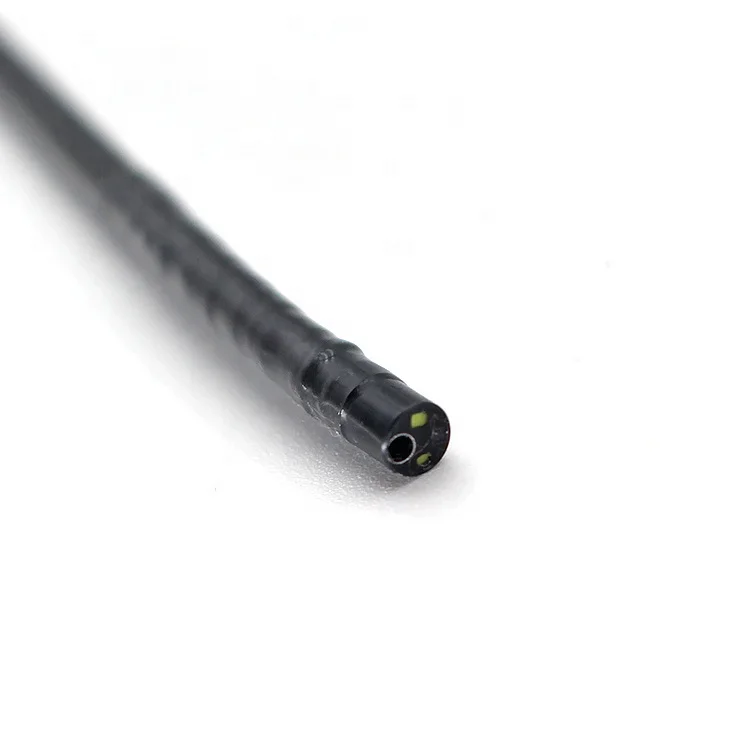

Distal Tip Part Bending Up/Down 180°/130°
The use of polymer materials reduces airway irritation, and the internal and external insulation ensures safe use.
The curved part is 180° up and 130° down, making it easier to observe.
The curved part is 180° up and 130° down, making it easier to observe.
Products Feature
Portable: Light weight, Easy to operate, Saving time for EMS, Convenient for transportation and storage
Multifunction: Available for the intubation of difficult airway, Inspection of airway and double chamber, Alveolarlavage, Biopsy,Treatment of pneumothorax, Stent Implantation, Removal of tracheal foreign bodies, Other treatments for the bronchi, Such as Local radiotherapy and chemotherapy, Medication Injection
Economic: One screen for four scopes, Four working channel sizes for option Durable Electronic camera system with LED, New technology for the photo processing: CMOS, Higher quality pictures, Last longer than traditional scope.
Multifunction: Available for the intubation of difficult airway, Inspection of airway and double chamber, Alveolarlavage, Biopsy,Treatment of pneumothorax, Stent Implantation, Removal of tracheal foreign bodies, Other treatments for the bronchi, Such as Local radiotherapy and chemotherapy, Medication Injection
Economic: One screen for four scopes, Four working channel sizes for option Durable Electronic camera system with LED, New technology for the photo processing: CMOS, Higher quality pictures, Last longer than traditional scope.
Specifications
Model | Display | Insertion tube outer diameter | Instrument inner channel diameter | Working channel diameter |
YKS-R39 | Standard 3.0 Optional 8.0 | Φ3.9mm | Φ1.5mm | Yes |
YKS-R50 | Standard 3.0 Optional 8.0 | Φ5.2mm | Φ2.2mm | Yes |
YKS-R52 | Standard 3.0 Optional 8.0 | Φ5.2mm | Φ2.6mm | Yes |
YKS-R31 | Standard 8.0 | Φ3.1mm | Φ1.2mm | Yes |
YKS-R48 | Standard 8.0 | Φ4.8mm | Φ2.2mm | Yes |
YKS-R58 | Standard 8.0 | Φ5.8mm | Φ2.8mm | Yes |
YKS-R28 | Standard 3.0 Optional 8.0 | Φ2.8mm | / | / |
YKS-R38 | Standard 3.0 Optional 8.0 | Φ3.8mm | / | / |
