Heavy Duty Solid Wood Woodworking Cutting Sawing Machine MJ165
- Category: >>>
- Supplier: Foshan Yowing Machinery Co. Ltd.
Share on (1600566230323):
Product Overview
Description

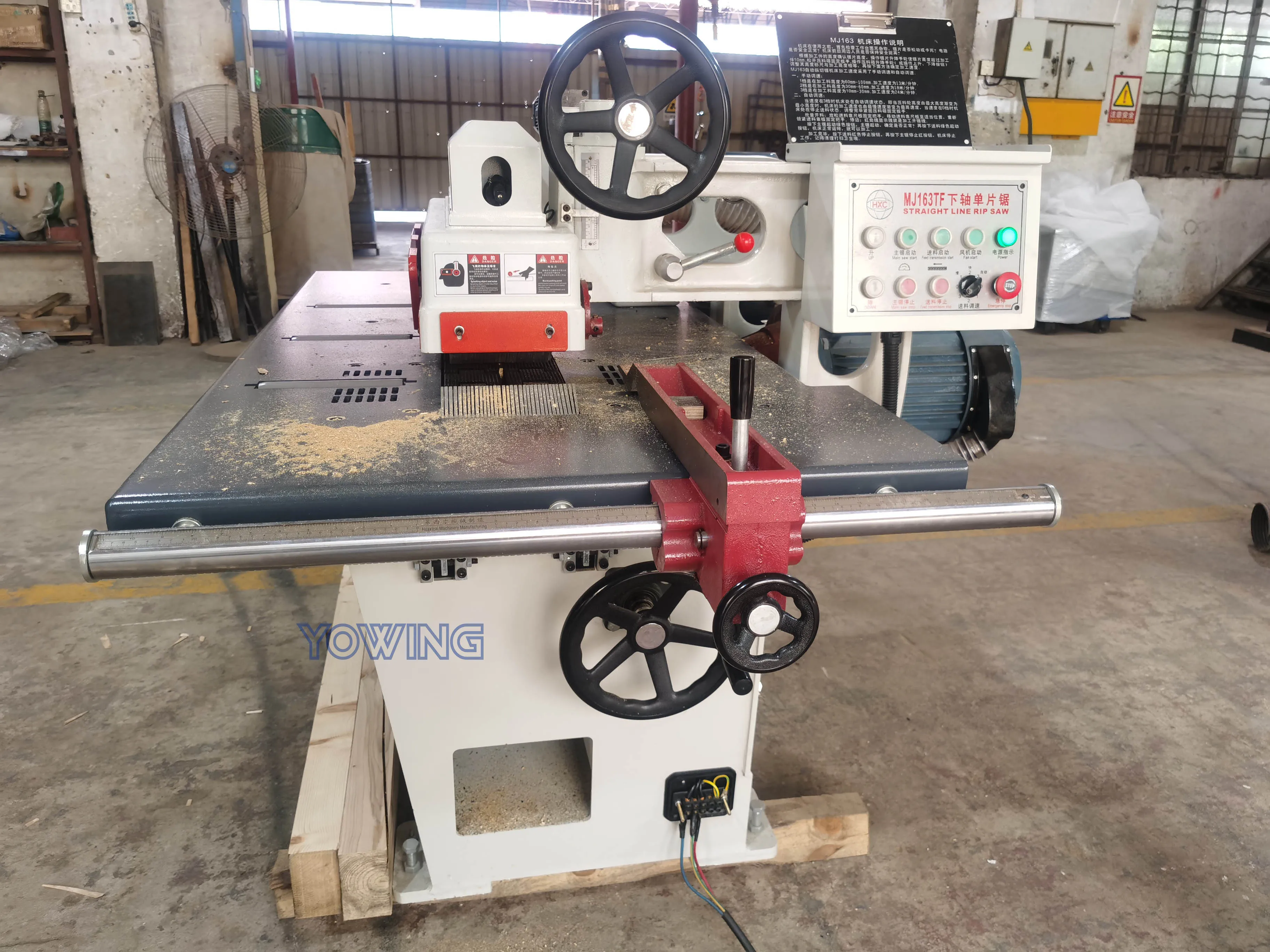

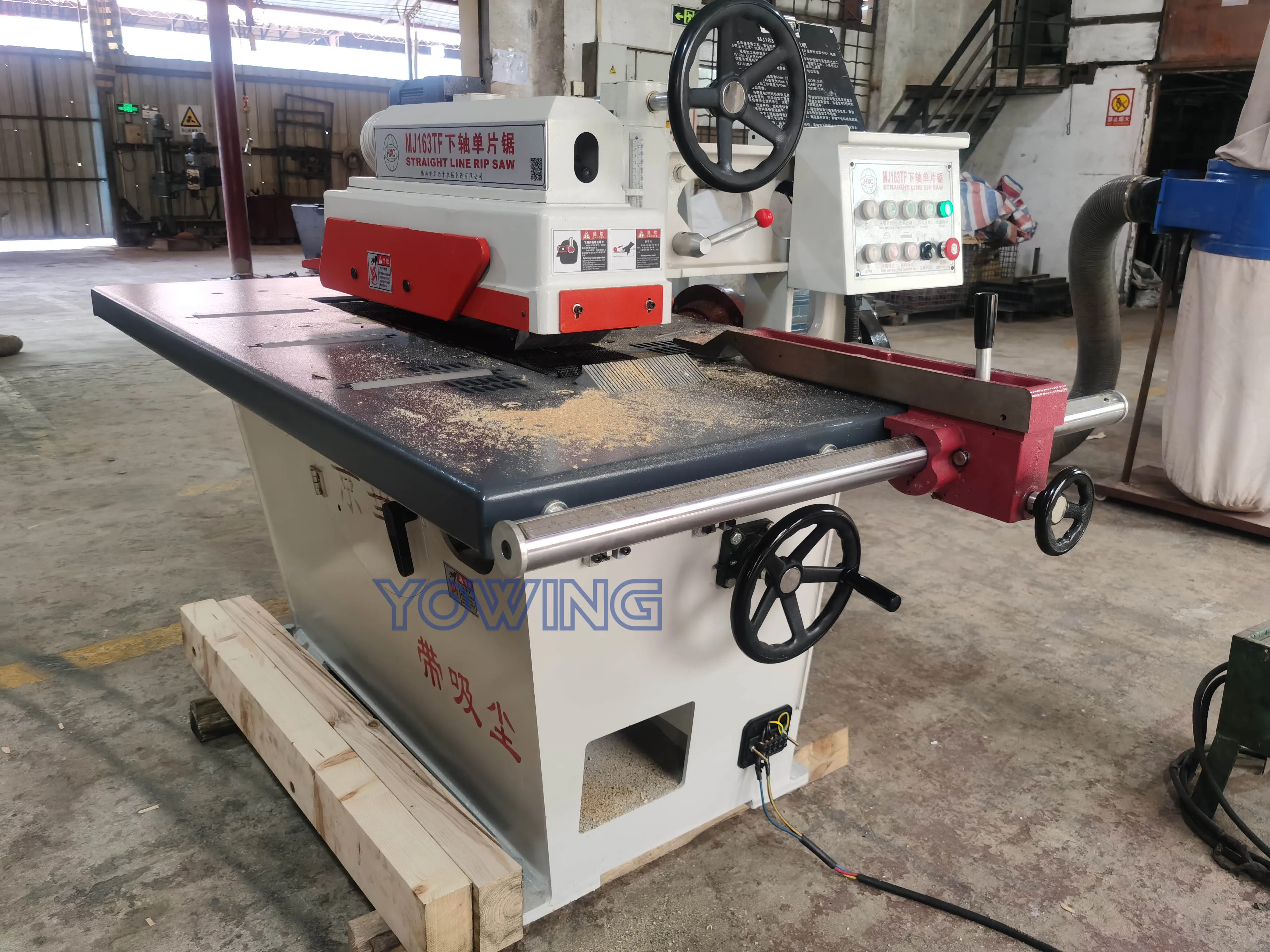

Bottom Rip Saw Straight Line Rip Saw Solid Wood Cutting Machine Edge Cutting Machine
Solid wood sawing machine Band Saw MJ153 MJ163 MJ163TF MJ165!
Specification
Model | MJ153(TOP) | MJ163 | MJ163TF | MJ165 | ||
Saw Position | Top | Bottom | Bottom | |||
Cutting Thickness | 95mm | 100mm | 100mm | 160mm | ||
Distance from saw blade to fence | 360mm | 470mm | 470mm | 600mm | ||
Work table size | 1500×970 | 1700×950 | 1700×950 | 2200X1100 | ||
Working length | ≧300mm | ≧200mm | ≧200mm | ≧300mm | ||
Main saw motor | 9kw | 10kw | 10kw | 15kw | ||
Total power | approx 10.5KW | approx12.2KW | apr.14.5KW | apr. 19.56KW | ||
Weight | 1200kgs | 1500kgs | 1600kgs | 1800kgs | ||
Product Description
Machine Details
Ten-year durable spindle.
The saw spindle is processed by forging technology, and the saw spindle’s barrel is filled with lubricating oil, its service life
is as long as 10 years. Each spindle has been individually adjusted and the error is zero.
is as long as 10 years. Each spindle has been individually adjusted and the error is zero.

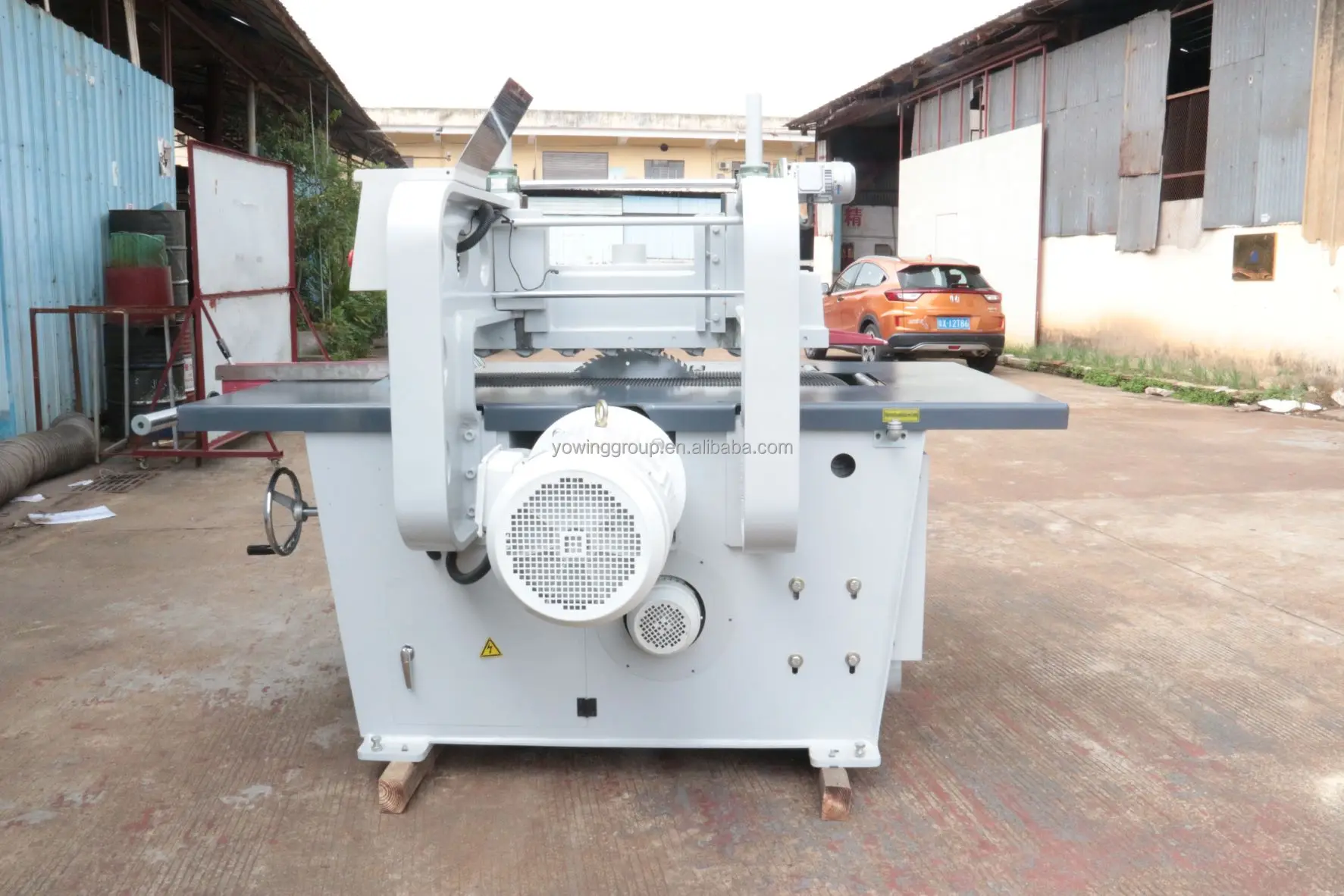

Heavy duty frame .
We use thick metal as materials and use tenoning welding tech by cnc lathe for connection, ensure it durable and no-deformation for 10 years.
Vacuum table design with crushing wood chips ..
It is with crushing dust suction device, which can crush and suck out the wood blocks falling down the dust hopper.
Vacuum table design with crushing wood chips ..
It is with crushing dust suction device, which can crush and suck out the wood blocks falling down the dust hopper.
Dust holes on the table
We make 2 dust outlets on the table, to make sure maximum moving all the dust and keep clean.

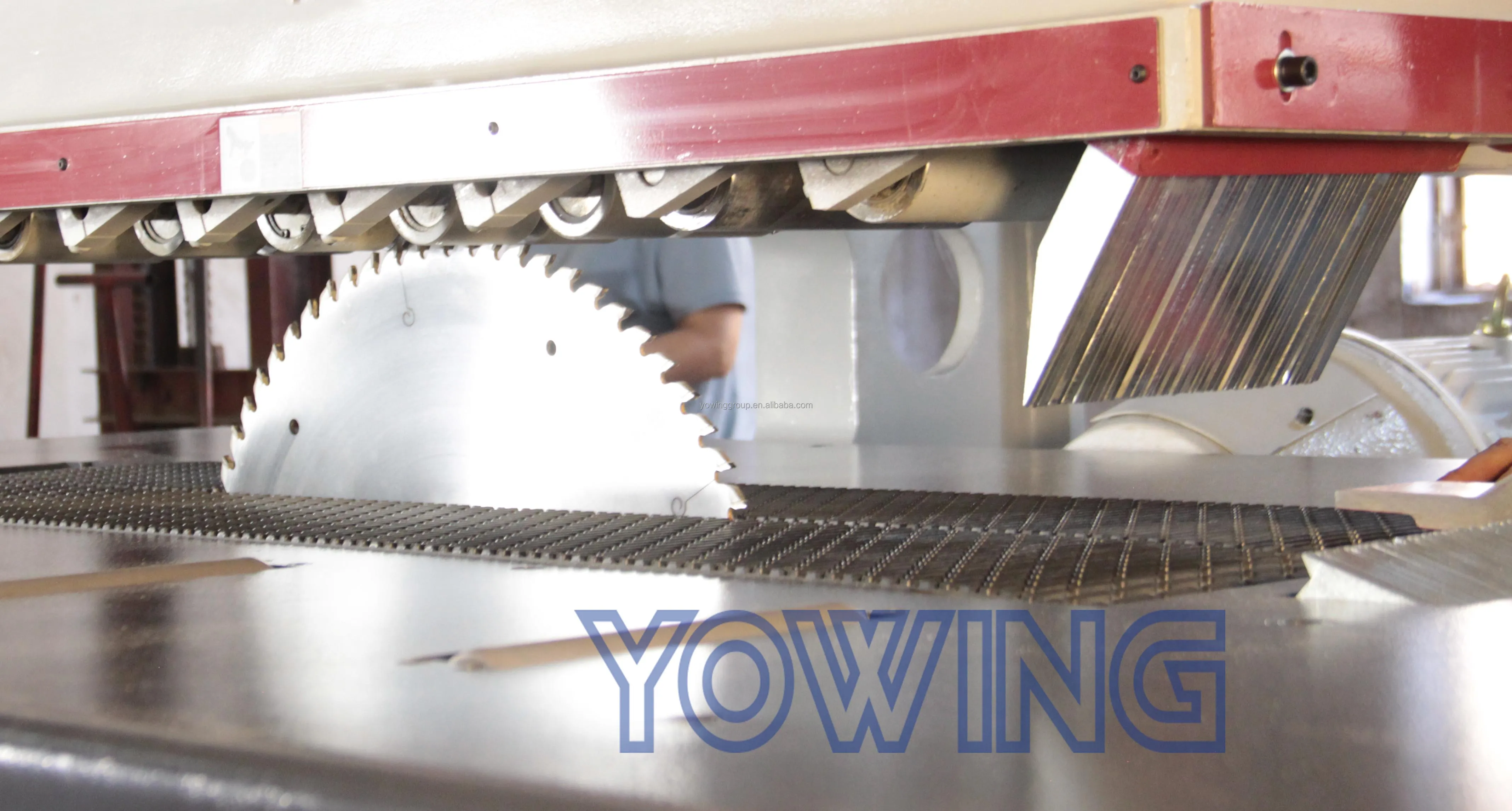

The top dust hole with anti-licking
and IR correction is inside.
Inside the cover, it is a dust hole also , but it is also with anti-kicking function,to make sure big wood chips not move out.
Smooth cutting interface.
The sawing surface is very smooth as if it was planed. You can join the board directly, we can saw up to 2 meters of wood and the
sawing error is within +/-0.2mm.
sawing error is within +/-0.2mm.

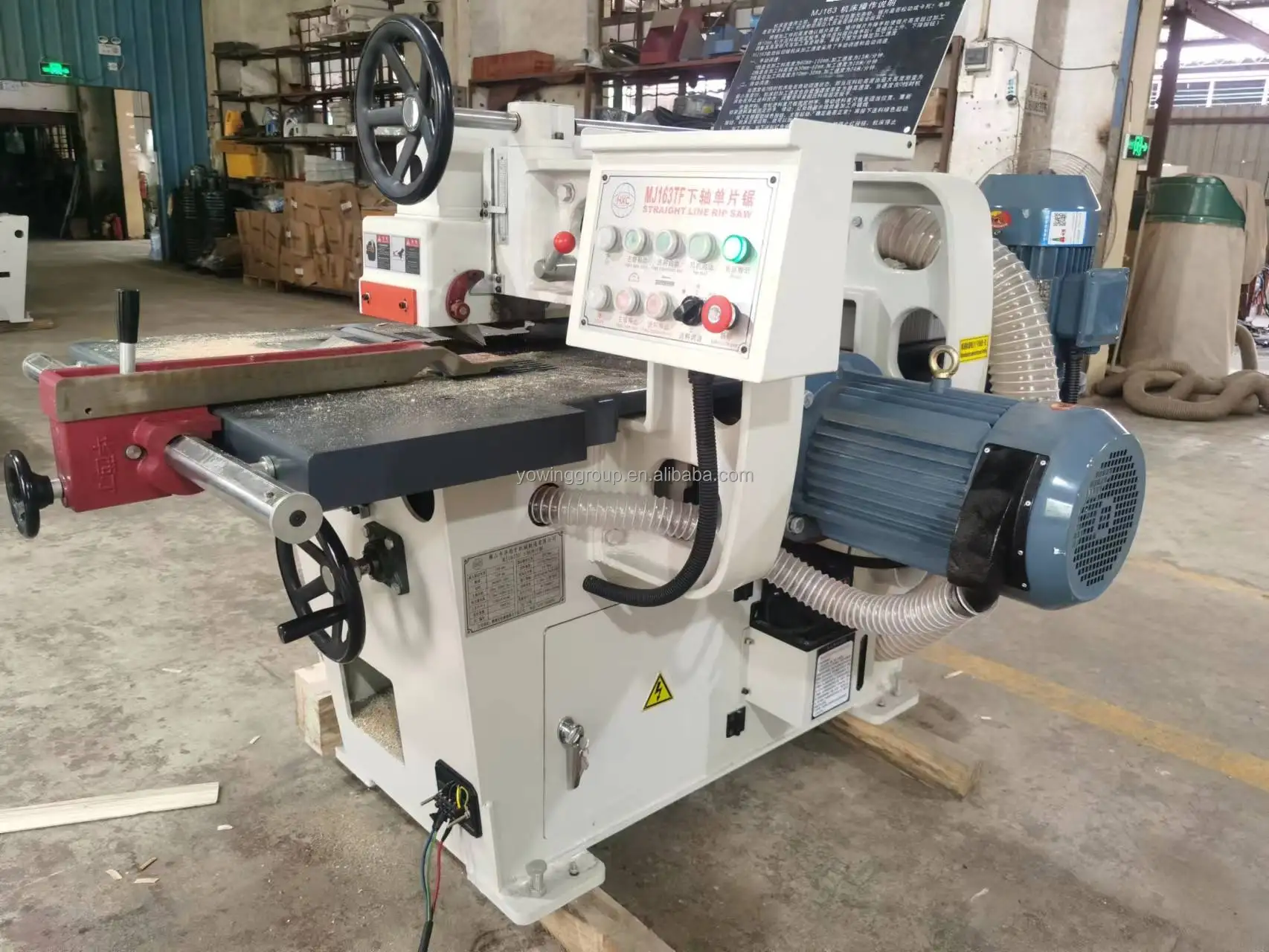

All motors with protection.
All the motors are with protection.
To keep motor safe even if the voltage is not that stable.
