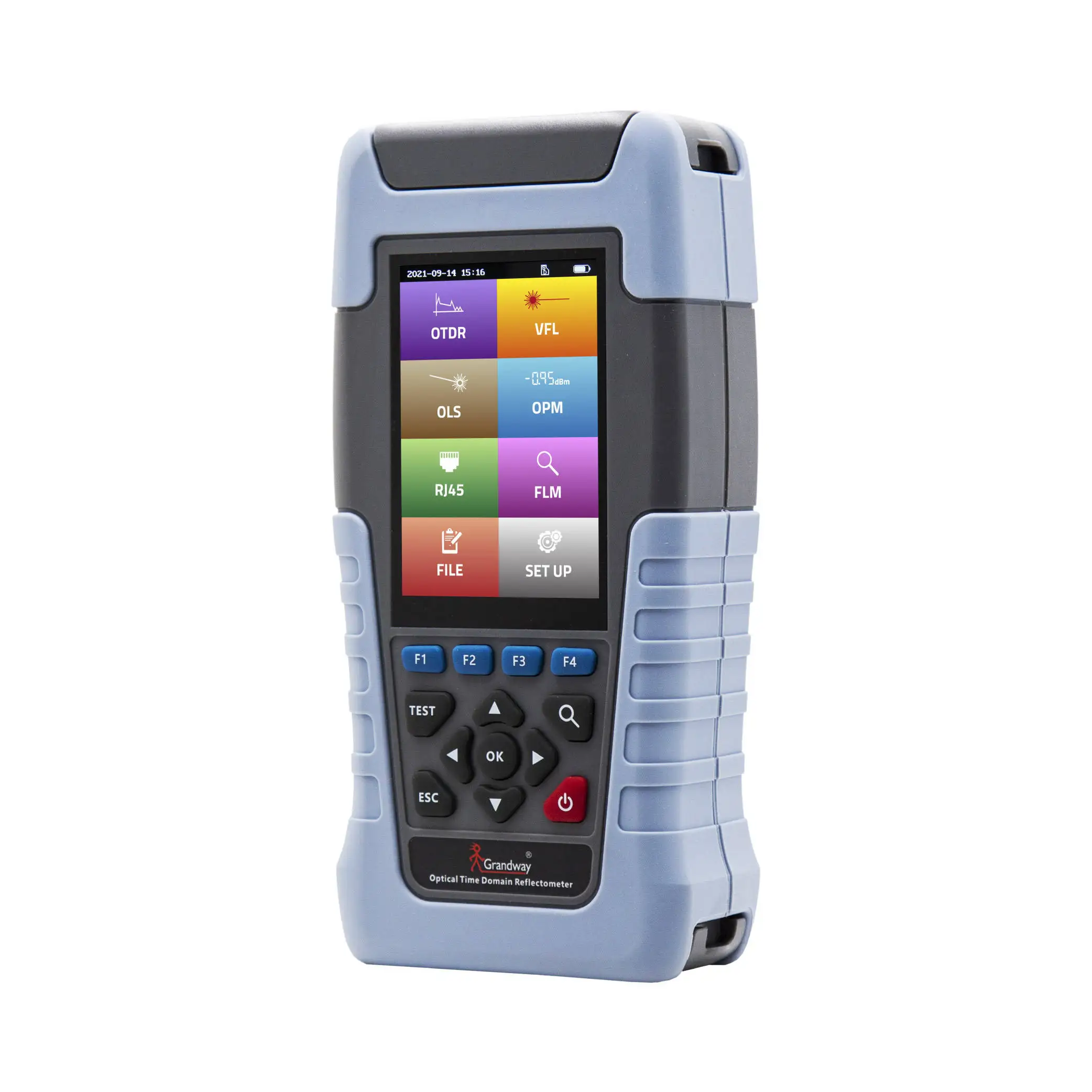

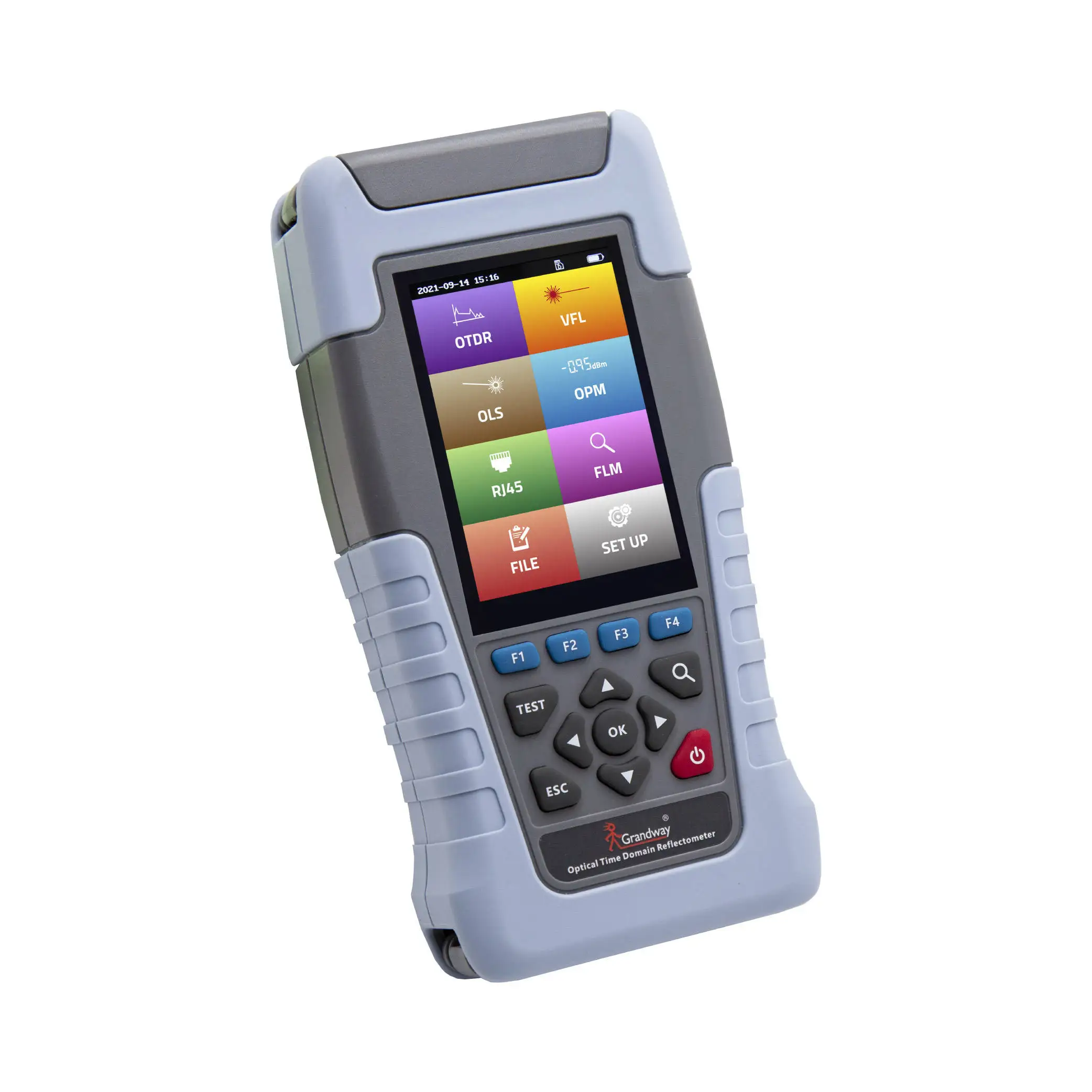

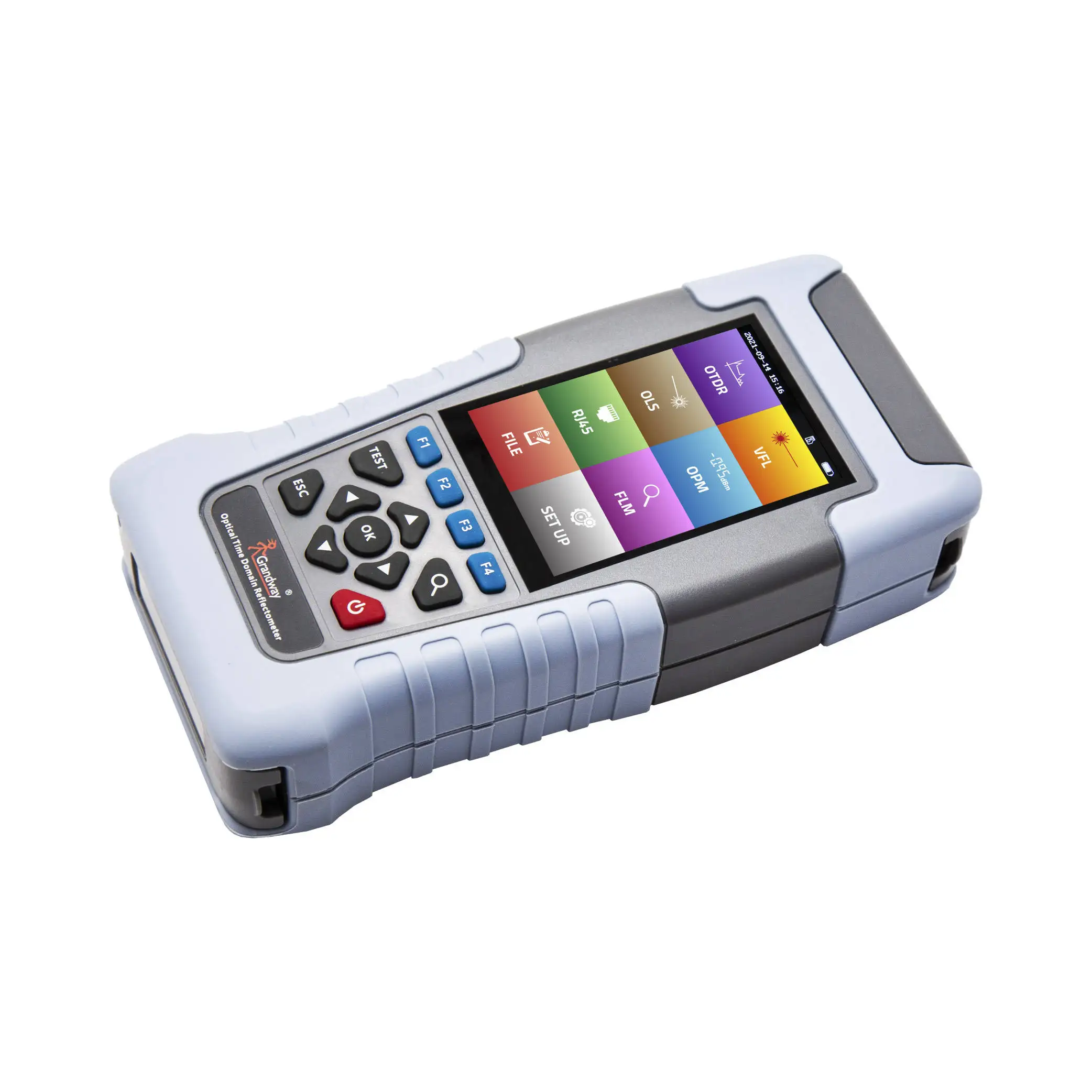

Grandway OTDR FHO1000 SM OTDR machine Fiber Optic Otdr Equipment
- Category: >>>
- Supplier: Zhejiang Grandway Telecommunication Technology Co. Ltd.
Share on (1600566251076):
Product Overview
Description
Product Description
Specification
Items | Specifications |
Fiber type | SMF (ITU-T G.652) |
Wavelength | 1310±20nm/1550±20nm |
Dynamic range | 22/20dB |
Test range | 1km, 2km, 5km, 10km, 20km, 40km, 80km, 120km |
Pulse width | 3ns/5ns/10ns/30ns/50ns/100ns/275ns/500ns/1us/2us/5us/10us/20us |
Event deadzone① | ≤1m |
Attenuation deadzone② | ≤4m |
Refractive index | 1.000~1.999 |
Sampling points | 64000 |
Sampling accuracy | 0.05m (1km) |
Distance accuracy | ±(1m+test distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
Loss accuracy | 0.1dB |
Linearity | 0.1dB |
Reflectance accuracy | ±2dB |
Event display | 1) Fiber end 2) Reflection event3) Splice loss |
VFL | Working wavelength: 650±10nm Output: 10mW, CW/1Hz/2Hz |
Stable OLS | Working wavelength: 1310±20nm/1550±20nm Output >-13dBm, CW/270Hz/1kHz/2kHz |
OPM | Calibrated wavelength: 850/1300/1310/1490/1550/1625/1650nm Test range: -70~+10dBm |
RJ45 line sequence test | TIA568-A and TIA568-B standard |

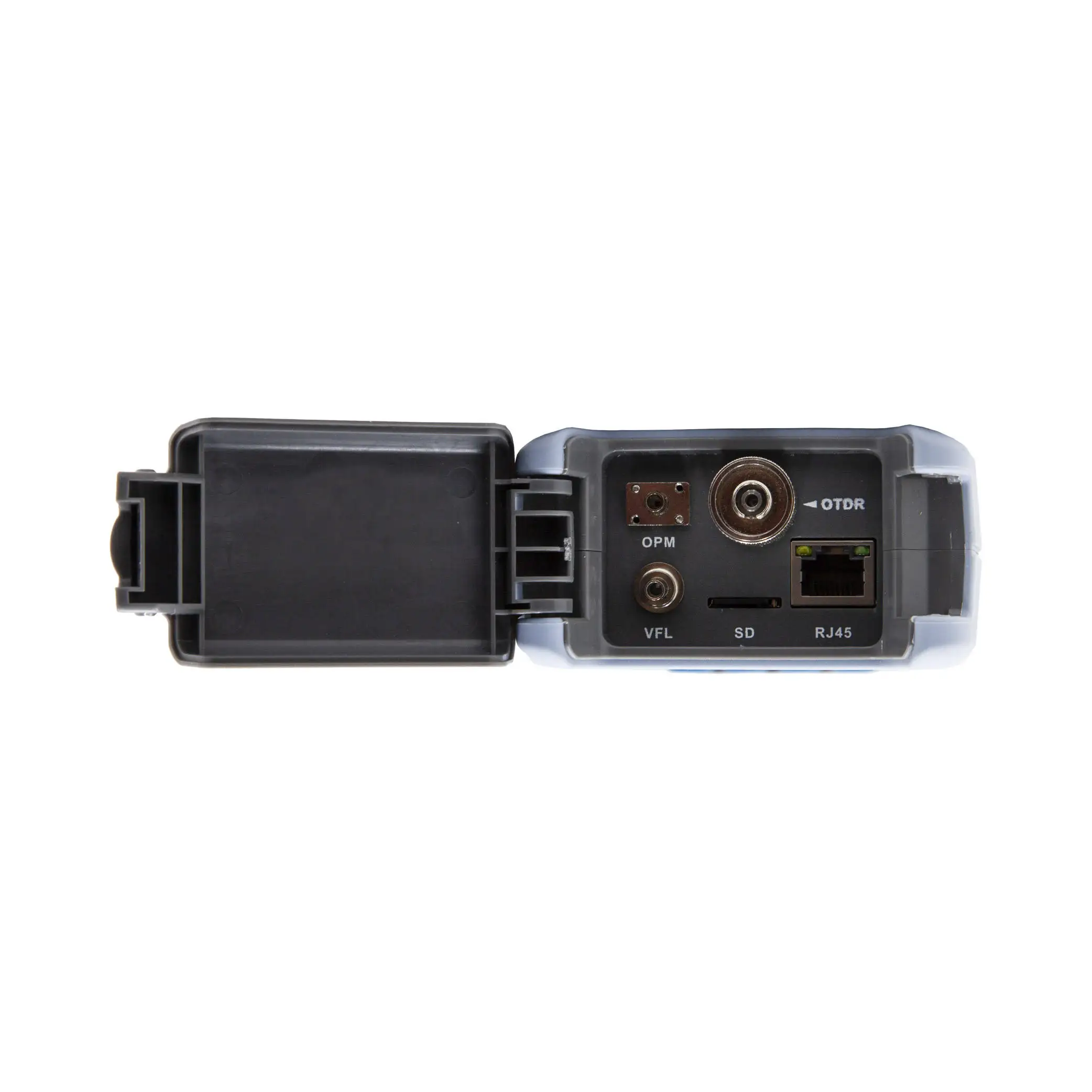

Optical interface | OTDR: standard FC/UPC, optional SC/UPC, FC/APC, SC/APC VFL: 2.5mm universal port OLS: share the OTDR port OPM: 2.5mm universal port |

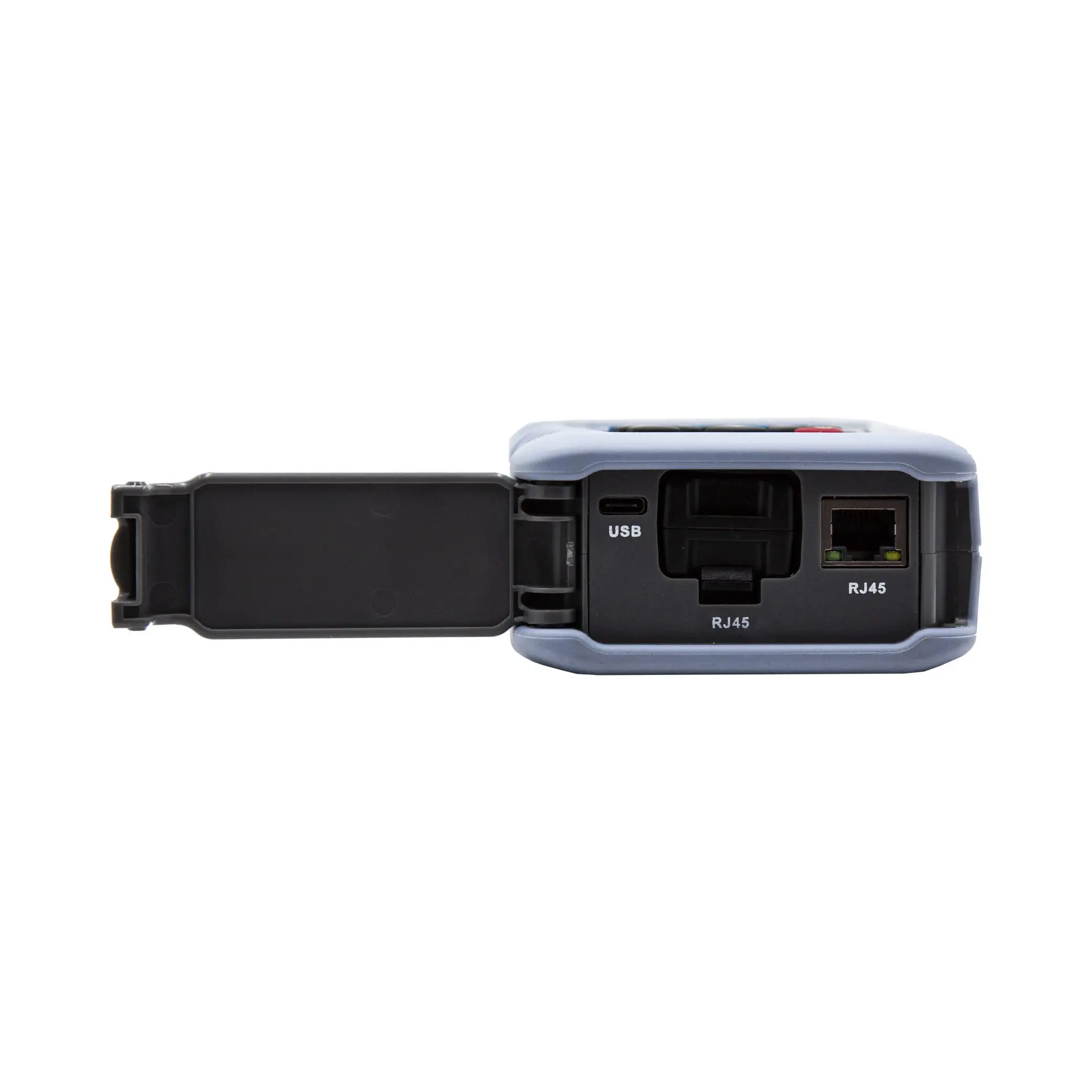

Electrical interface | RJ45 port×2, RJ45 remote module，USB Type-C |
Data storage | Pluggable 8GB micro SD card |
Battery | 5000mAh lithium battery |
Working humidity | 0~85%(non condensing) |
Working temperature | -10~50℃ |
Dimension | 192.9×93.8×47mm |
Weight | 0.57kg |
FAQ
Q1:What if there is quality problem when we get the goods?
A1:The quality of our products is stable and there will be no problems in general. Even if there are problems, most problems can be solved by software and remote.If it is the hardware problem of the unused new machine, it can be replaced free of charge, or a refund. If it is used, half of the freight will be borne within the warranty period respectively, and there is no maintenance cost. Outside the warranty period, customers will bear the two-way freight + maintenance cost.(For subsequent orders, discount is available)
Q2:How long is the guarantee of the product?
A2:According to the type of product,we offer Instrument 15 months free warranty. Lifetime maintenance service, may be
charged.Consumable materials used on the warranty, such as cutting knife
Q3:Can you supply customized products with our brand?
A3:Yes,OEM service costs, software is free, labels and other costs are subject to the actual purchase quotation.Label has a minimum order quantity, OTDR minimum order quantity of 5 sets, small instrument minimum order quantity of 50 sets.
Q4:Can i get a sample free?
A4:A discount can be offered for samples of new products, or a discount can be offered for subsequent orders
Q5:What about the MOQ?
A5:We can accept the minimum order quantity is 1PCS.
Q6:What’s your payment way?
A6:T/T Bank is usually used. If L/C exceeds $100,000, please use Credit Card.
