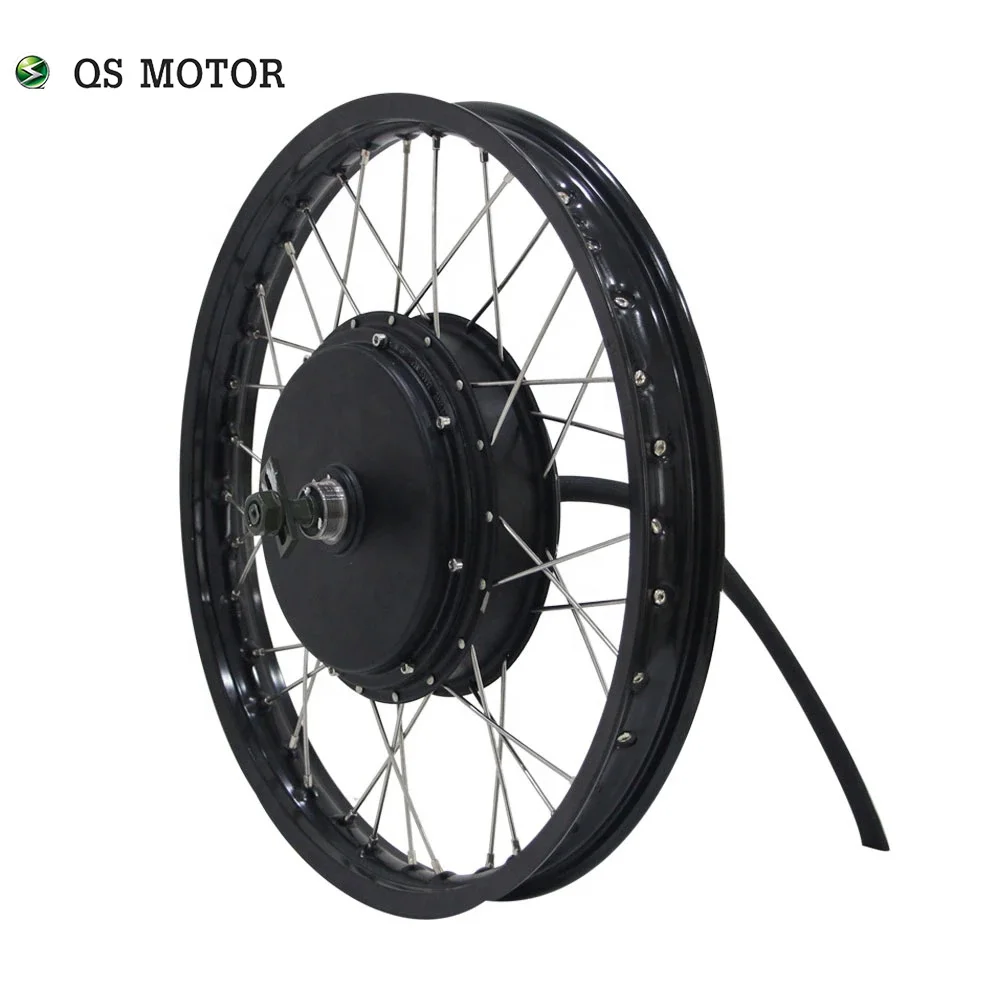

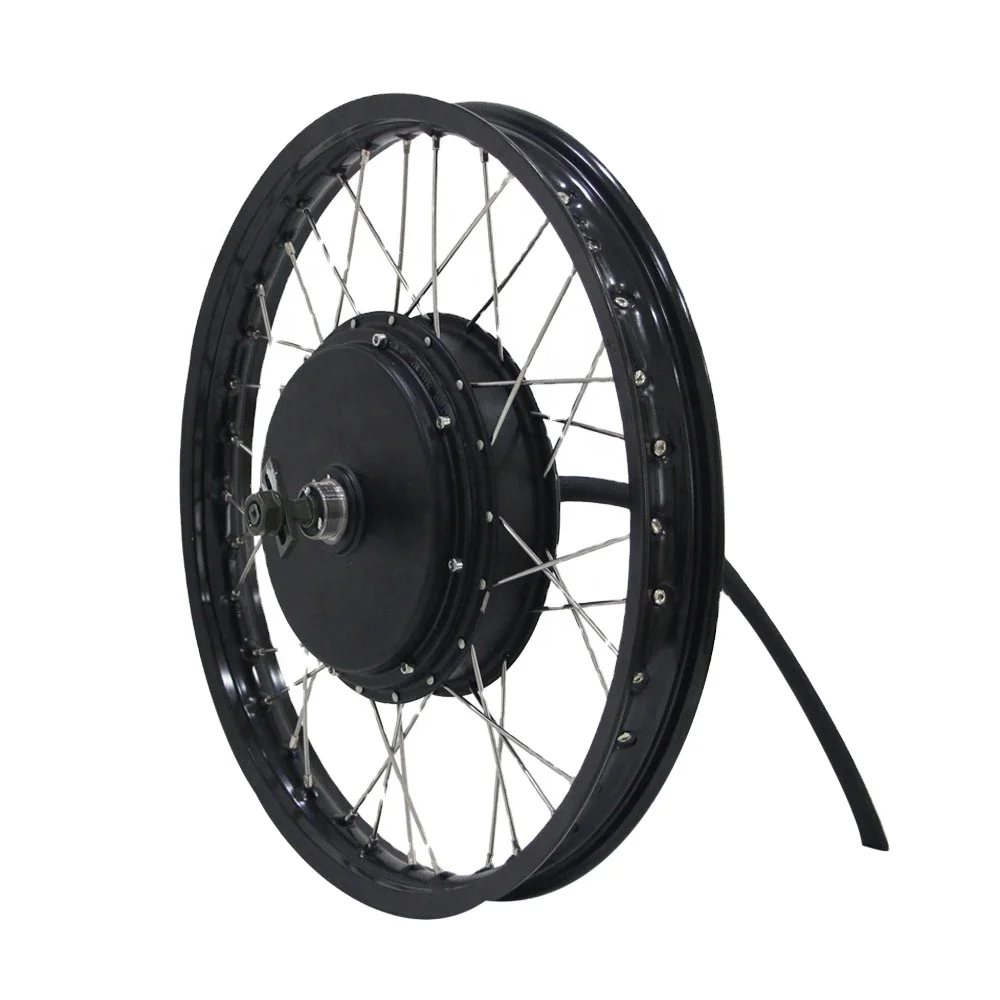

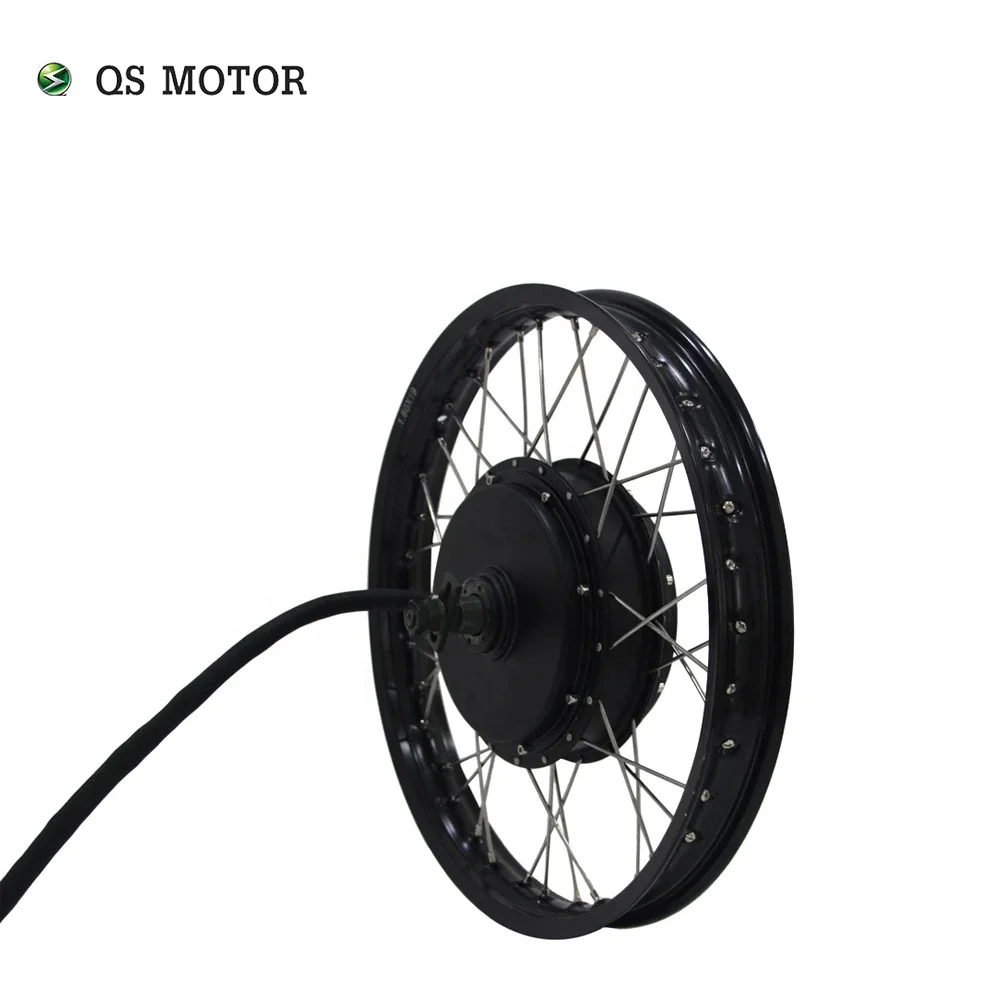

QS Motor Bicycle Spoke motor 3000W 205 50H V3I/V3TI Type Hub Motor lacing with wheel rim 19inch/18inch/17inch match svmc72150 controller for e-bicycle.

Application e.g. Electric high power bike with 3kW 205 spoke hub motor, SIA7230 controller

E-bike weight, approx 47kg+80kg

Tire diameter: 2.50-17

Speed: 72V 70km/h

Climbing slope: 25°@127kg

Battery: 72V40h lithium battery

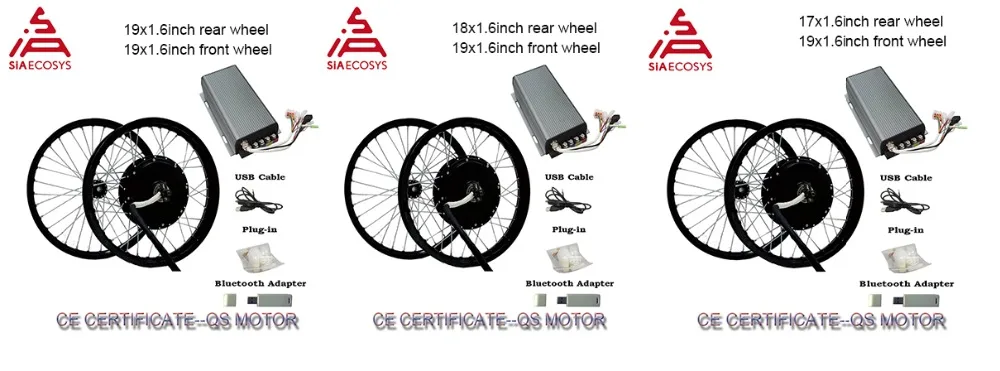

One set including below kits:

1. 1pc X QSMOTOR 205 3kW 50H V3I/V3 electric spoke hub Motor with moped wheel (17x1.6inch/ 18*1.6inch/19x1.6inch optionals,spokes is sliver as default)

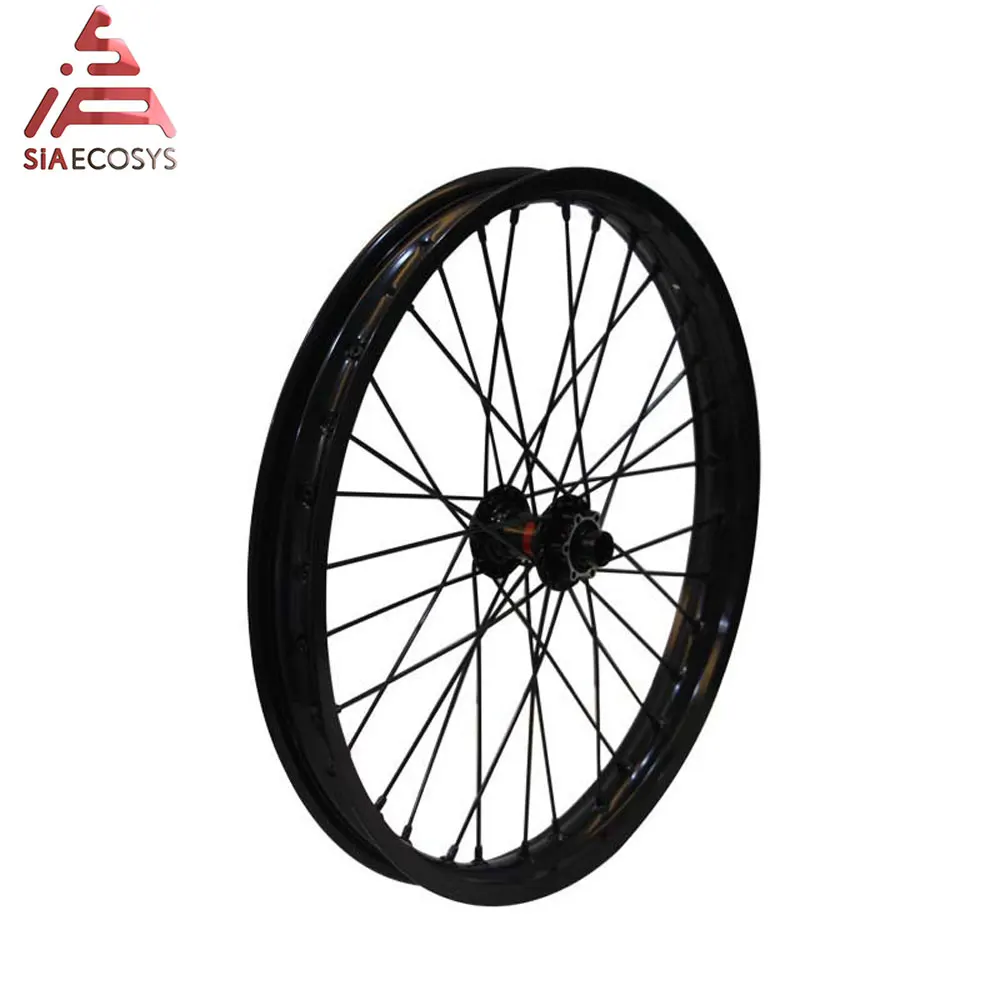

2. 1pcs X 19*1.6inch front wheel rim (front wheel rim only 19x1.6inch so far,spokes is sliver as default) )

3. 1pc X Sabvoton 72150 controller

4. 1pc X BT adapter

5. 1pc X Spacer(As free)

P.S. Spokes color, we will make sliver as default. when you order 17inch,18inch rear motor moped wheel kits,also included 19x1.6inch front wheel.

Descrption for motor :

Key Features

1. QS Motor with high quality and service.
2. Sine Wave controller, BT adapter wireless connection are optional, Highest Reliability!
3. Parameter Programmable
4. Higher Torque & Higher Efficiency
5. No noisy
6. Temperature sensor inside and Lower overheating
7. Regenerative braking

Product Description of motor

Specification

1.Item: QSMOTOR 3000W 205 50H V3I/V3TI electric spoke hub Motor

SPEC

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: double axle without rim

·Matched Wheel: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

·Stator: Aluminmum Core

·Rated Power: 3000W (6000kW peak in few seconds)

·Rated Voltage: 72V

·Speed: 5T650rpm@72V (stock)/ 4T 820rpm@72V(stock default)/ 3T 1170rpm@72V(no in stock) , please contact seller for which winding do you prefer

·Max Torque: approx 181N.m

·Max Efficiency: approx 91%

·Continuous Battery Current: 44A (72V)

·Peak Battery Current: 100-150A (72V)

·Suggest Peak Phase Current:240A

·Thermic Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-120℃ , peak 150 ℃

·Brake type: Bike Disc brake, PCD6*44mm(as default)

·Drop-outs/Rear Fork Width for installation: 150mm

·14mm english thread length for single/3 speed freewheel

·10mm axle flats

·Dual Hall Set with waterproof connectors

·10mm² Cross Section of Phase Wire (not include insulation layer)

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP65

·Color: Black

·N.W./G.W.: approx 12.5/14.0kg (TBD)

·Package Dimension: 34cm*34cm*33cm/piece

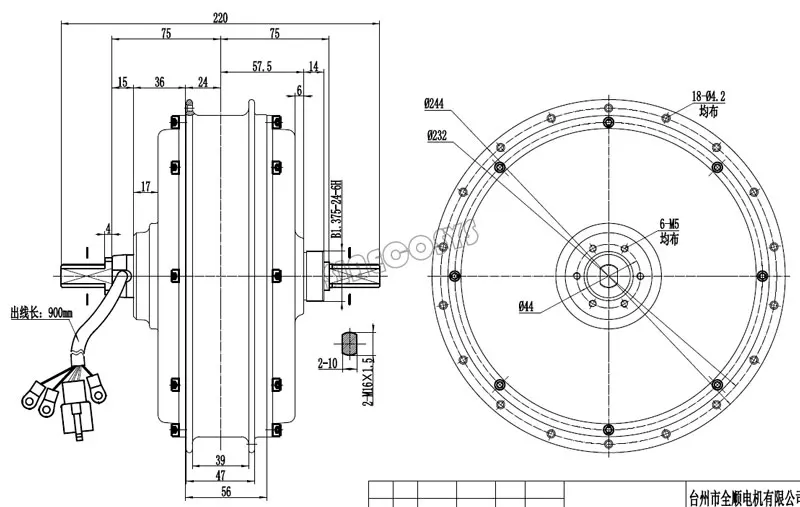

 Dimension Drawing

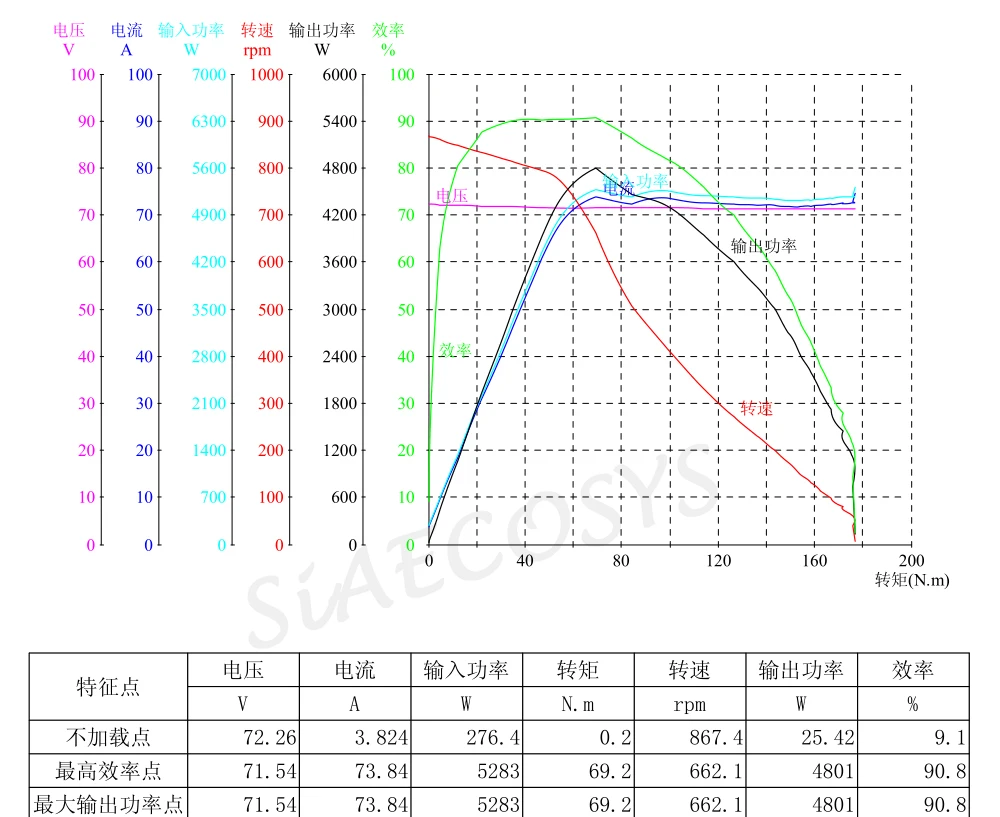

Power train test Report:

we also can offer front wheel(only 19x1.6inch front wheel), if need, please feel free to contact seller,or just click below hyperlink(click picture) to buy directly:

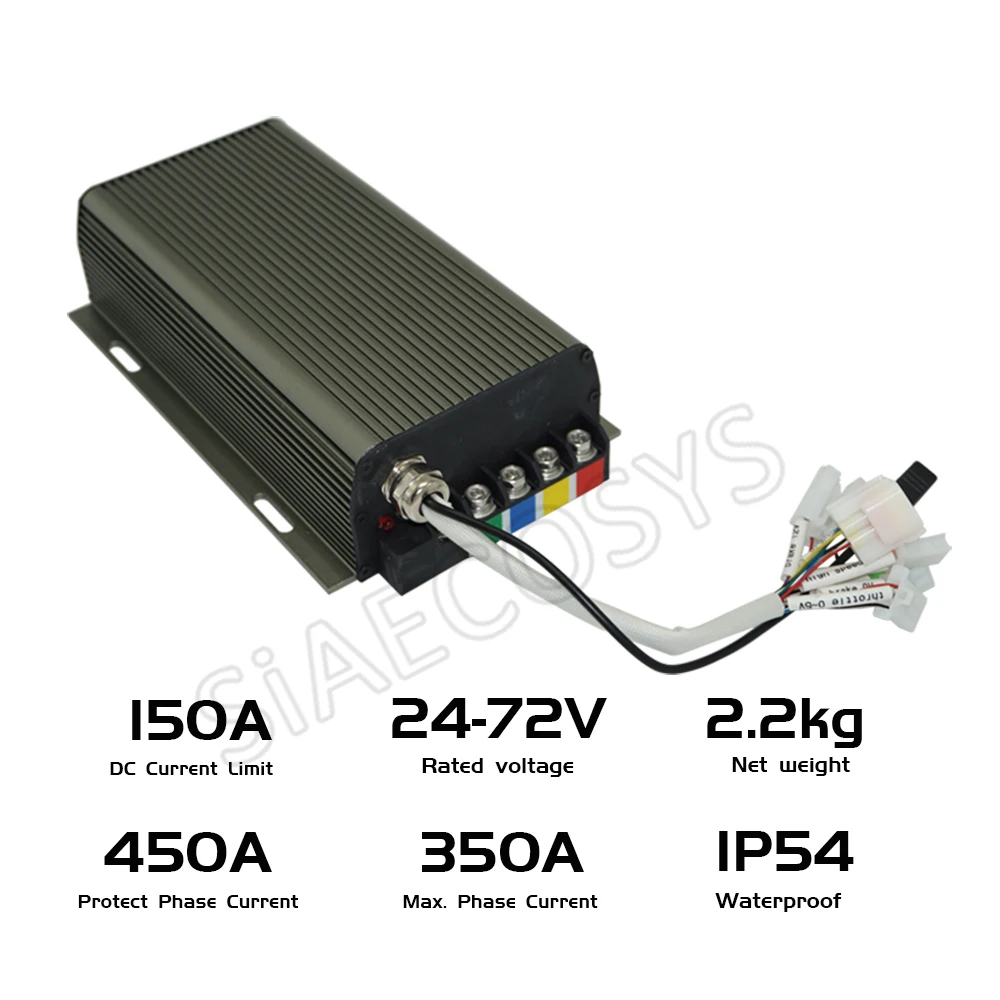

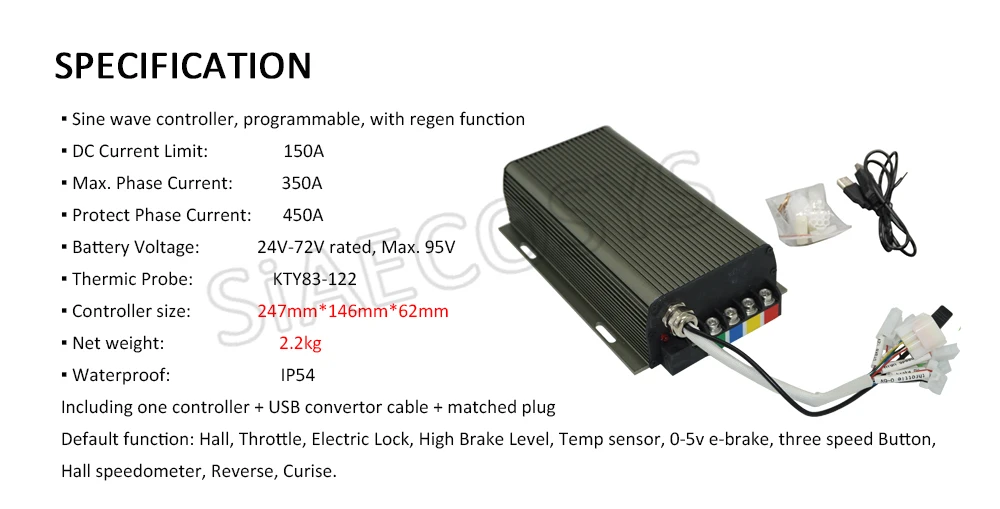

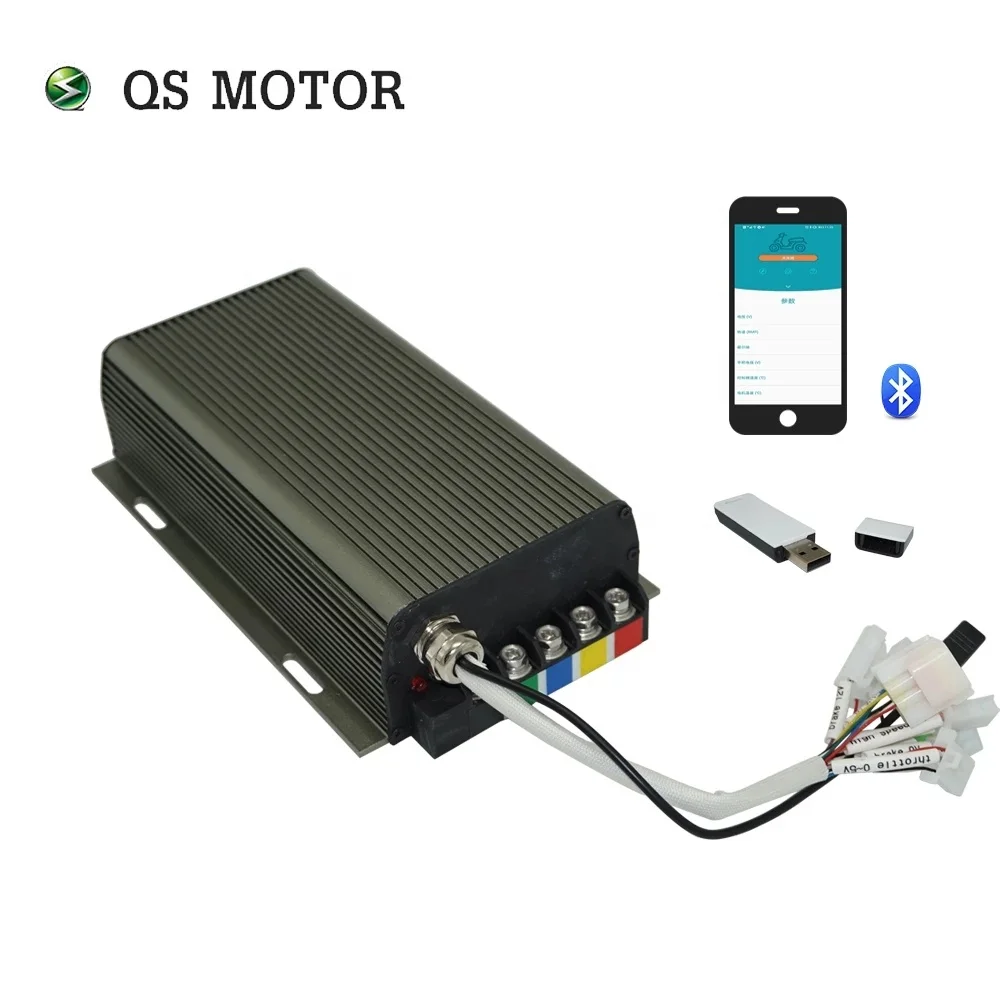

3. SIA7230S motor controller

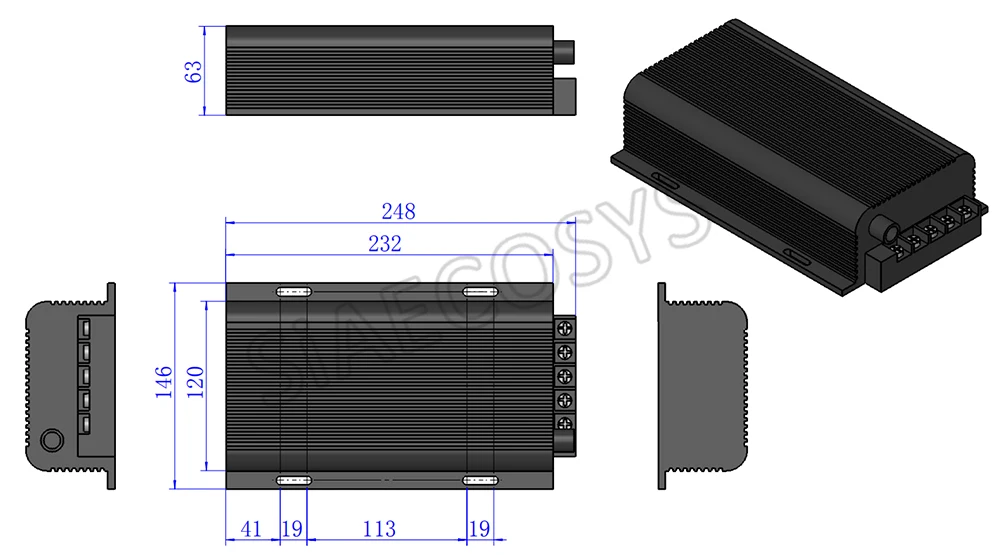

Drawing of controller:

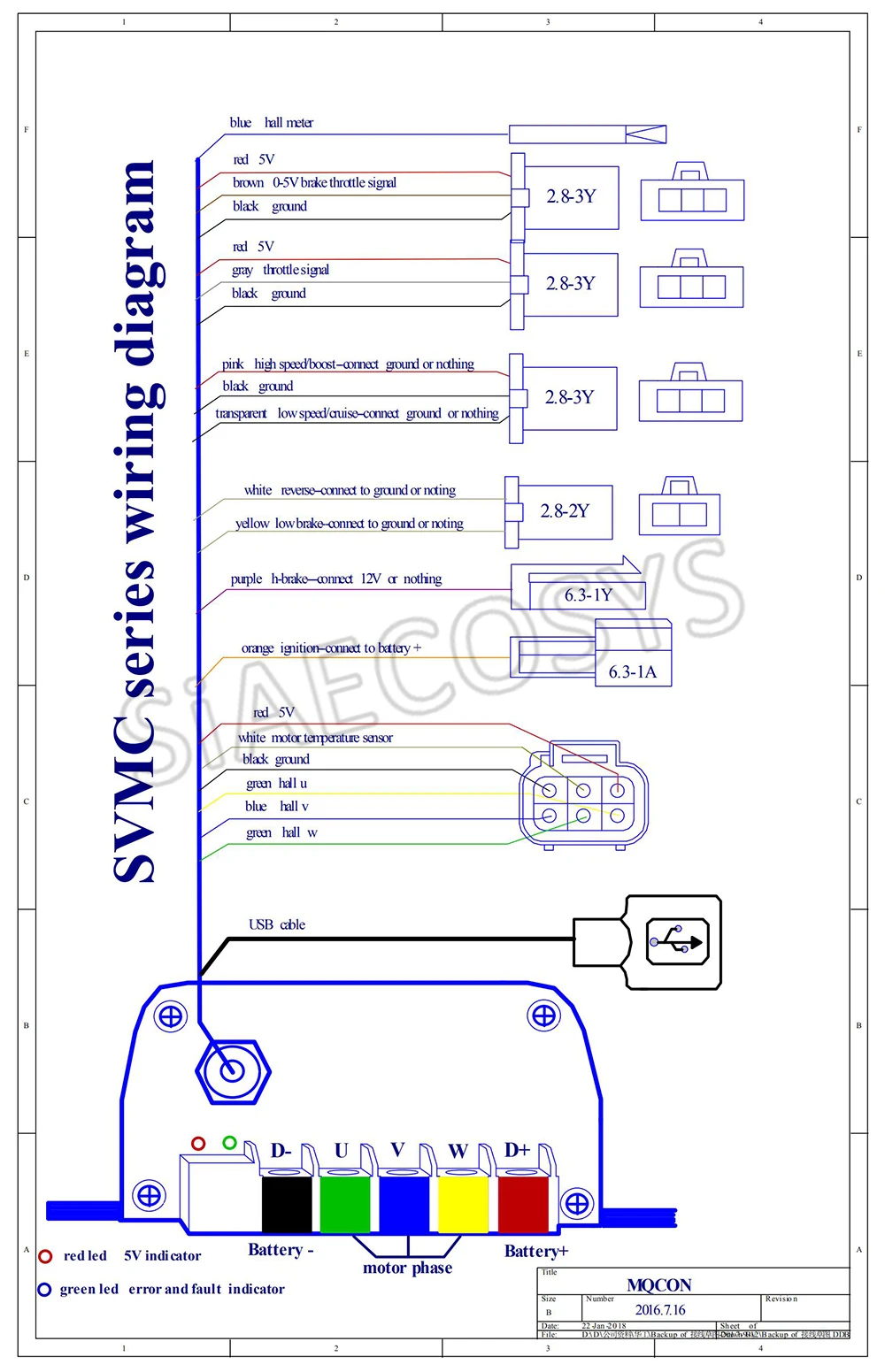

Wiring diagram

4.BT adapater for svmc72150 Controller:
