Wellco W PFA 260C PFA Heat Shrink tube Hot sale PFA tubing hose pipe
- Category: >>>
- Supplier: Shanghai Wellco International Limitd
Share on (1600566277097):
Product Overview
Description
Product Description

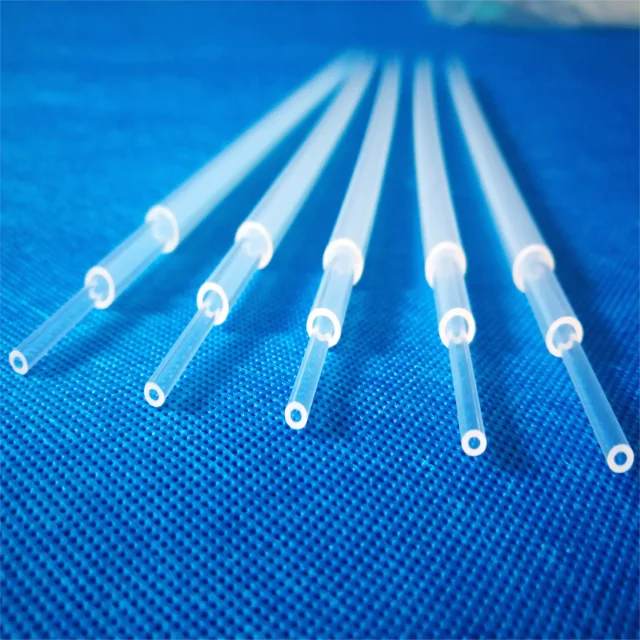

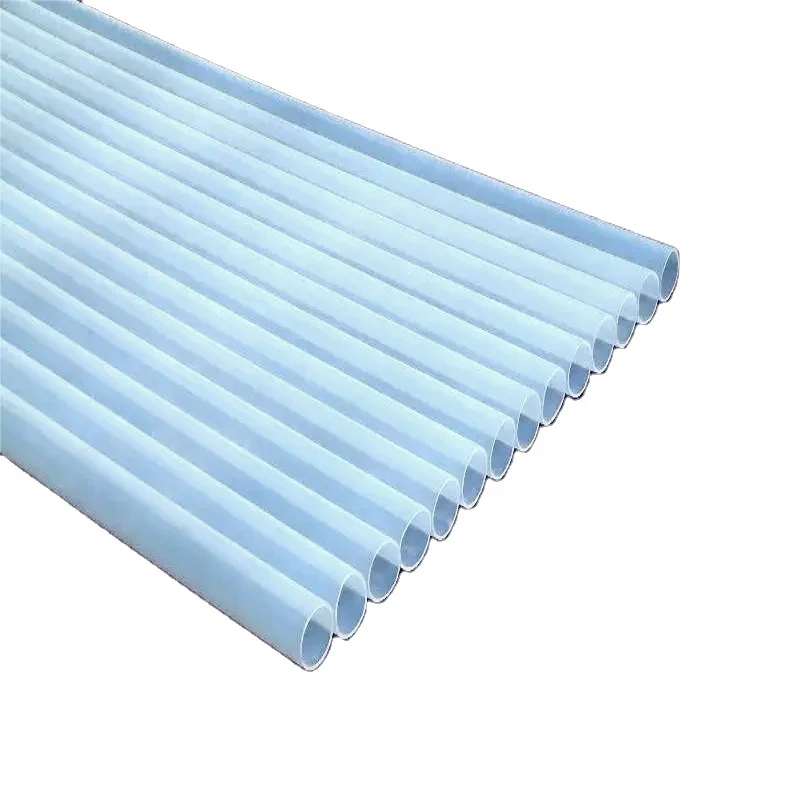

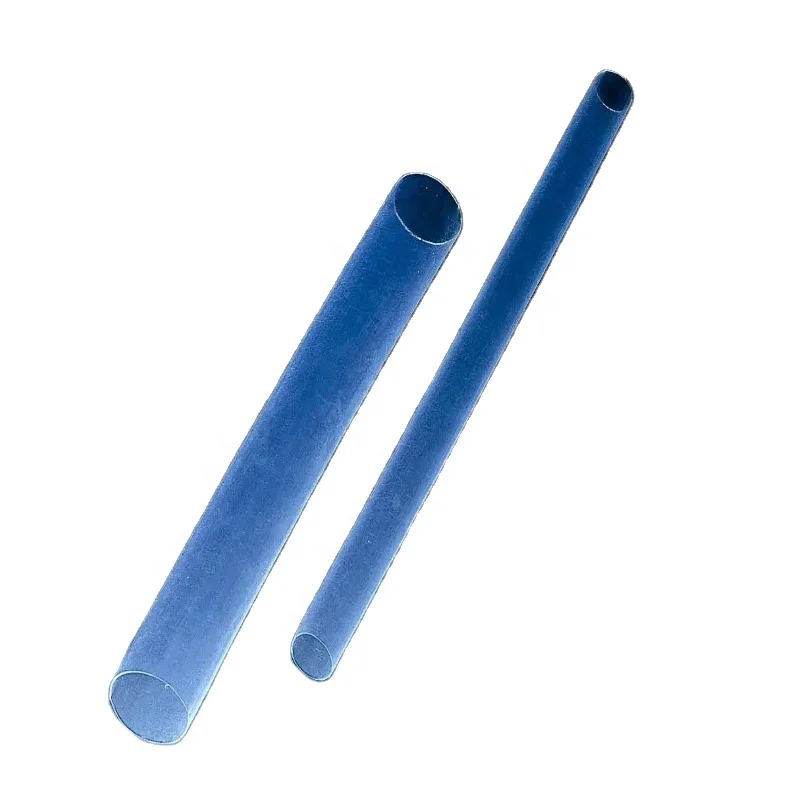

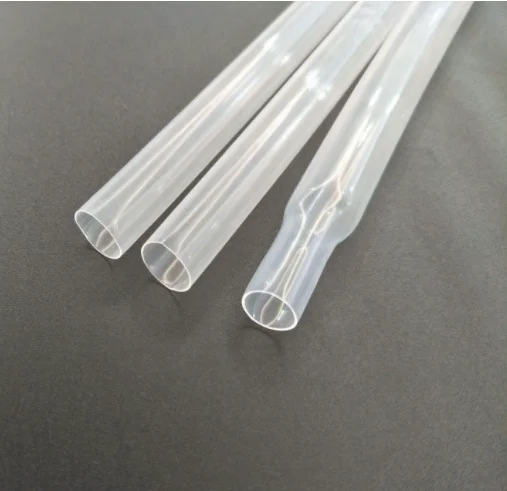

W-SPFA 260℃ PFA Heat shrink tube
˙Applications:
PFA heat shrinkable tubing is made of PFA with excellent high-temperature performance, chemical resistance, high insulation and
excellent mechanical properties. Designed to provide insulation and mechanical protection in severe chemical and thermal
environments. Widely used in electronic, aerospace, military and communication fields. Compared to PTFE tubing, PFA has excellent
clarity.
PFA heat shrinkable tubing is made of PFA with excellent high-temperature performance, chemical resistance, high insulation and
excellent mechanical properties. Designed to provide insulation and mechanical protection in severe chemical and thermal
environments. Widely used in electronic, aerospace, military and communication fields. Compared to PTFE tubing, PFA has excellent
clarity.
Materials: PFA˙Operating temperature range:-65℃～260℃
˙Min fully recovery temperature:350℃
˙Min fully recovery temperature:350℃
* Shrink ratio 1.3:1 and 1.6:1
* Excellent clarity
* High flame resistance
* High temperature resistant to 260℃
* Superior physical and chemical properties.
* RoHS and REACH compliant.
* Excellent clarity
* High flame resistance
* High temperature resistant to 260℃
* Superior physical and chemical properties.
* RoHS and REACH compliant.
Property | Requirement | Test method | Typical data |
Longitudinal shrinkage | ≤5% | ASTM D 2671 | ≤3% |
Tensile strength | ≥17.3 MPa | ASTM D 2671 | ≥ 25 MPa |
Elongation at break | ≥200% | ASTM D 2671 | ≥300% |
Dielectric voltage withstand | 2500V,60sec, no breakdown | ASTM D 2671 | pass |
Volume resistivity | ≥1015Ω·cm | ASTM D 876 | ≥1016Ω·cm |
Corrosion | No corrosion | ASTM D 2671 | No corrosion |
Flammability | VW-1 | UL224 | pass |
Dielectric constant | 2.1 | ||
Friction coefficient | 0.1-0.2 |
Size | ID as supplied | ID After shrinked | Wall after shrinked | |||
1.3:1 | ||||||
φ0.8 | 0.8 | ≤0..69 | 0.20±0.05 | |||
φ1.0 | 1.0 | ≤0.8 | 0.20±0.05 | |||
φ1.5 | 1.5 | ≤1.0 | 0.20±0.05 | |||
Φ1.9 | 1.9 | ≤1.20 | 0.20±0.05 | |||
φ2.3 | 2.3 | ≤1.60 | 0.23±0.05 | |||
Φ2.9 | 2.9 | ≤1.80 | 0.23±0.05 | |||
Φ3.6 | 3.6 | ≤2.3 | 0.23±0.05 | |||
φ4.0 | 4.0 | ≤2.9 | 0.25±0.07 | |||
φ4.6 | 4.6 | ≤3.2 | 0.25±0.07 | |||
φ5.0 | 5.0 | ≤3.6 | 0.25±0.07 | |||
Φ5.7 | 5.7 | ≤4.0 | 0.28±0.10 | |||
Φ6.4 | 6.4 | ≤4.6 | 0.28±0.10 | |||
φ7.4 | 7.4 | ≤5.0 | 0.28±0.10 | |||
Φ7.9 | 7.9 | ≤5.8 | 0.28±0.10 | |||
Φ9.2 | 9.2 | ≤6.4 | 0.30±0.10 | |||
Φ12.7 | 12.7 | ≤7.9 | 0.38±0.10 | |||
Φ14.7 | 14.7 | ≤9.7 | 0.50±0.10 | |||
Φ16.9 | 16.9 | ≤11.4 | 0.50±0.10 | |||
Φ21.1 | 21.1 | ≤13.0 | 0.64±0.10 | |||
Φ29.7 | 29.7 | ≤16.1 | 0.90±0.10 | |||
Φ33.8 | 33.8 | ≤22.7 | 0.90±0.10 | |||
Φ38.1 | 38.1 | ≤26.0 | 0.90±0.10 | |||
1.6:1 | ||||||
Φ2.4 | 2.4 | ≤1.5 | 0.20±0.08 | |||
Φ3.2 | 3.2 | ≤2.0 | 0.25±0.08 | |||
Φ4.8 | 4.8 | ≤3.0 | 0.25±0.08 | |||
Φ6.4 | 6.4 | ≤4.0 | 0.25±0.08 | |||
Φ9.6 | 9.6 | ≤6.0 | 0.31±0.08 | |||
Φ12.7 | 12.7 | ≤7.9 | 0.38±0.10 | |||
Φ19.1 | 19.1 | ≤11.9 | 0.51±0.10 | |||
Φ25.4 | 25.4 | ≤15.9 | 0.64±0.13 | |||
Φ38.1 | 38.1 | ≤23.8 | 0.76±0.13 | |||
Other sizes are available upon request | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Material Mixing
Extrude
.
Cross linking
Expand
Whole Production line
Factory
Shanghai Wellco International Limited is a professional Team with 18years experience for R & D, production, sales of special heat shrink Tube and other radiation crosslinking materials manufacturers. We concentrate on to providing all kinds of products and solution for Insulation,Connection ,Waterproof, high temperature ,Chemical resistant ,EMI and mechanical protection for the wire and cable .we has strong technical force with 20 years experience and advanced production equipment. We can supply (such as modifiedPE, PVDF ,FEP ,EPDM,Silicone,FKM.FEP.PTFE Etc materials)heat shrink tube and insulation tube. The products are widely used in the fields ofelectronic communication, automobile, high-speed rail, electotor, aviation, medical and other fields, such as insulation, water-proof, electrostatic shielding, oil-resistant, chemical and high-temperature resistant Protection, etc. Our products have passed UL certification ,RoHS ,REACH.
We also can produce customized products or develop products with special requirements according to customer requirements, and we carry out our production according to ISO9001 and IATF16949 quality management system standards to ensure the stability and reliability of product quality.
We also can produce customized products or develop products with special requirements according to customer requirements, and we carry out our production according to ISO9001 and IATF16949 quality management system standards to ensure the stability and reliability of product quality.
