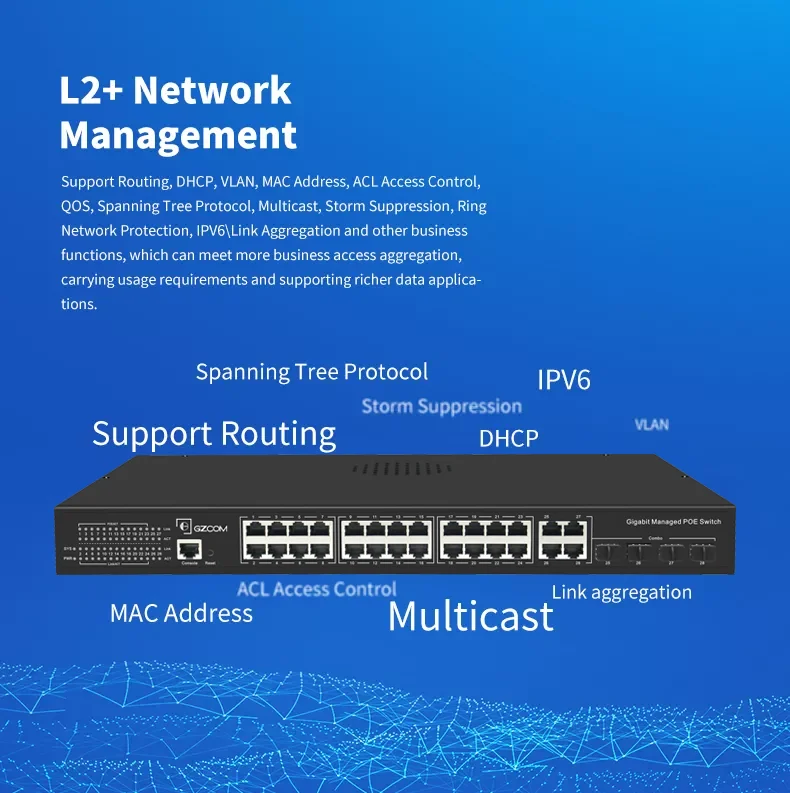

OEM Factory layer 2 network switch 24 port managed gigabit PoE Switch For CCTV IP Camera

Power

Input: AC 100-240V, 50/60Hz

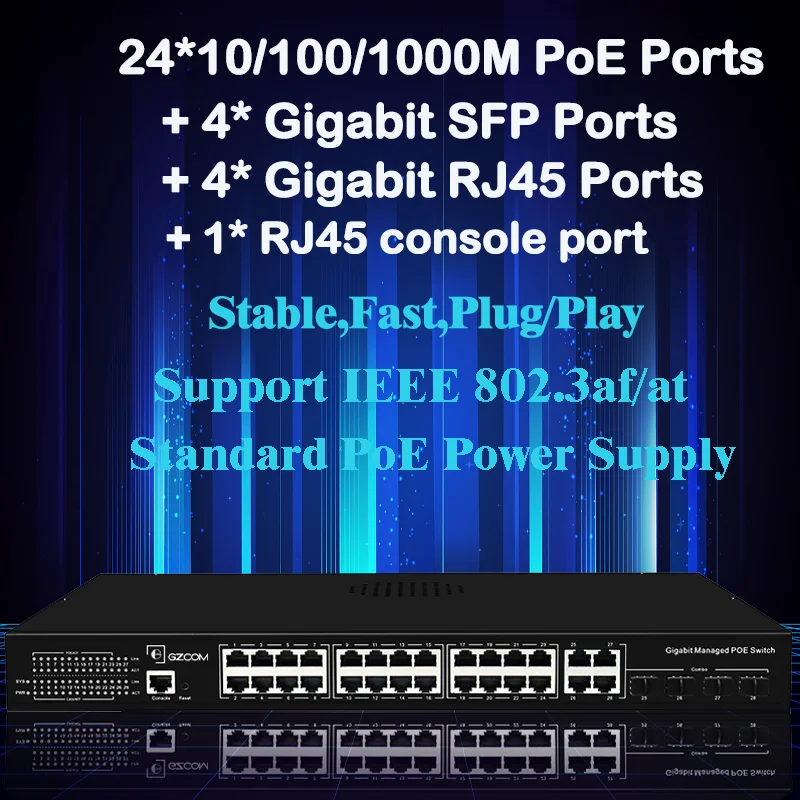

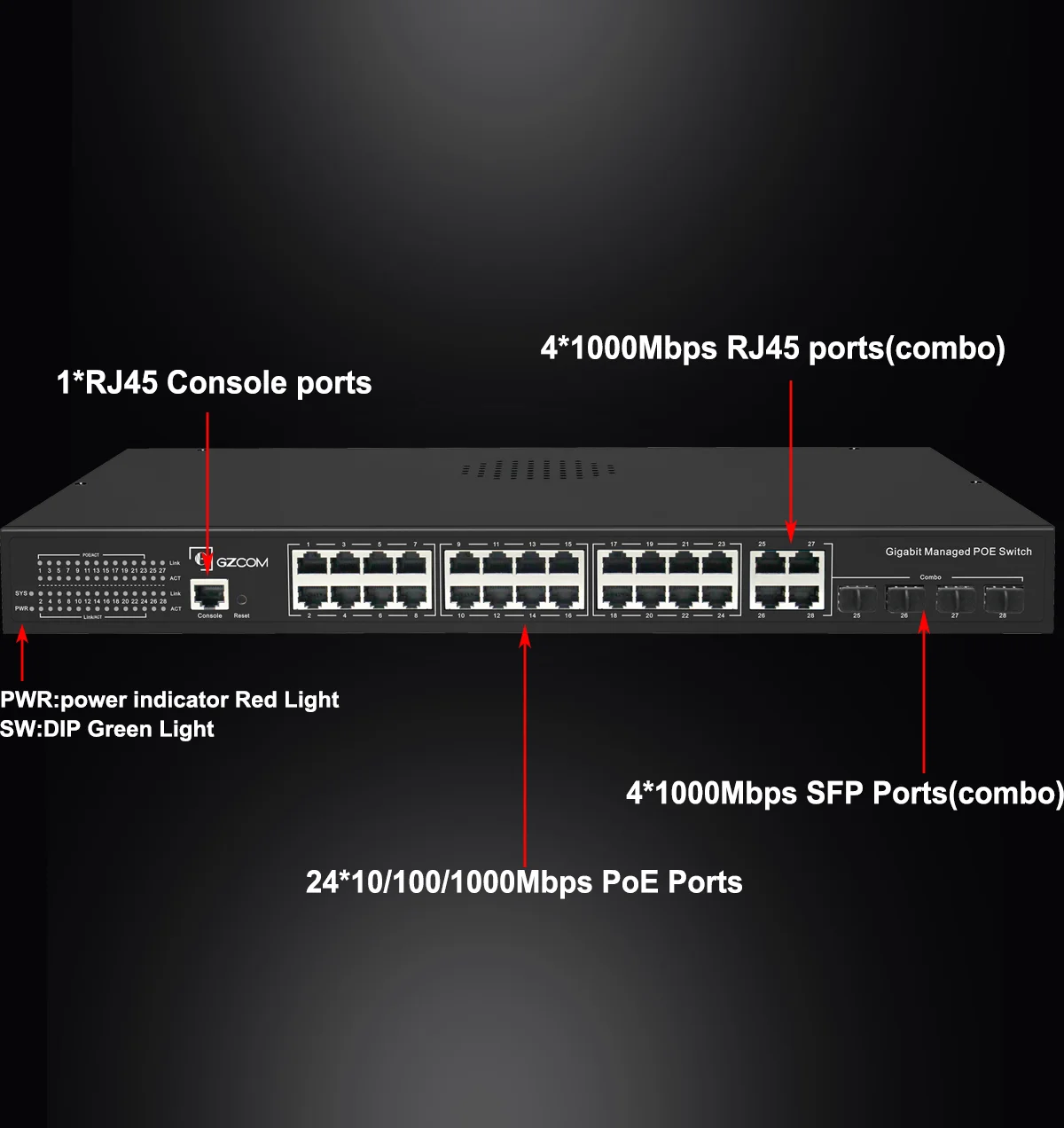

Ethernet

24* 10/100/1000Mbps PoE Port
4* 1000M RJ45 Port(Combo)
4*1000M SFP Port (Combo)

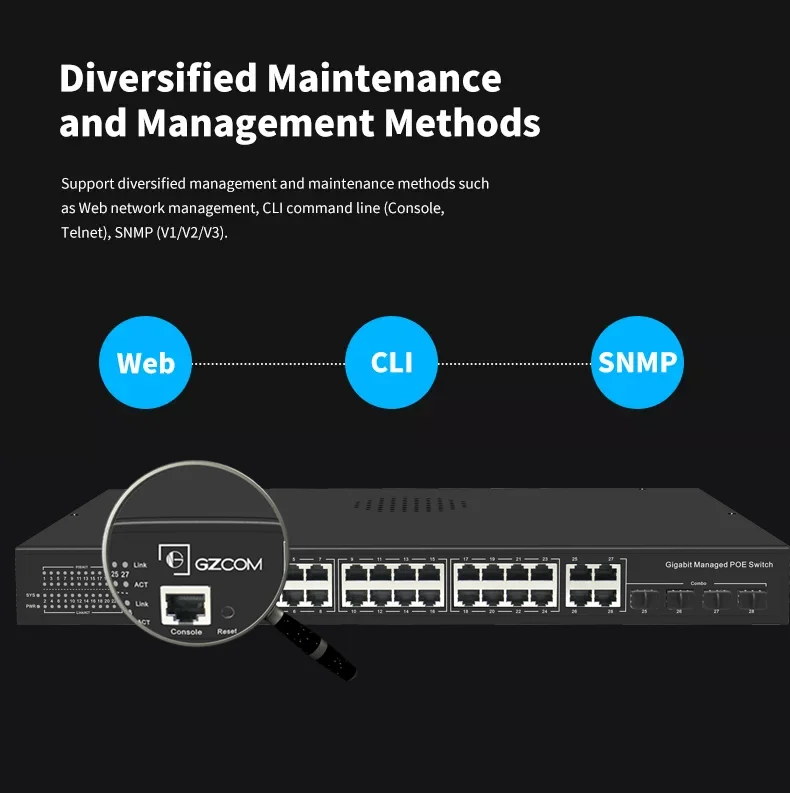

1 * RJ45 Console Port

Switching Capacity

56Gbps

Throughput

41.66Mpps

Packet Buffer

4Mb

Flash Memory

16MB

DDR SDRAM

128MB

MAC Address

8K

Jumbo Frame

9.6Kbytes

Transfer Mode

Store and forward

MTBF

100000 hour

Network protocol

IEEE 802.3：Ethernet MAC Protocol
IEEE 802.3i：10BASE-T Ethernet
IEEE 802.3u：100BASE-TX Fast Ethernet
IEEE 802.3ab：1000BASE-T Gigabit Ethernet
IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3az：Energy Efficient Ethernet
IEEE 802.3ad：Standard method for performing link aggregation
IEEE 802.3x：Flow control
IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)
IEEE 802.1q：VLAN Bridge Operation
IEEE 802.1x：Client/Server Access Control and Authentication Protocol
IEEE 802.1d：STP
IEEE 802.1s：MSTP
IEEE 802.1w：RSTP

PoE Protocol

IEEE802.3af （15.4W）
IEEE802.3at （30W）

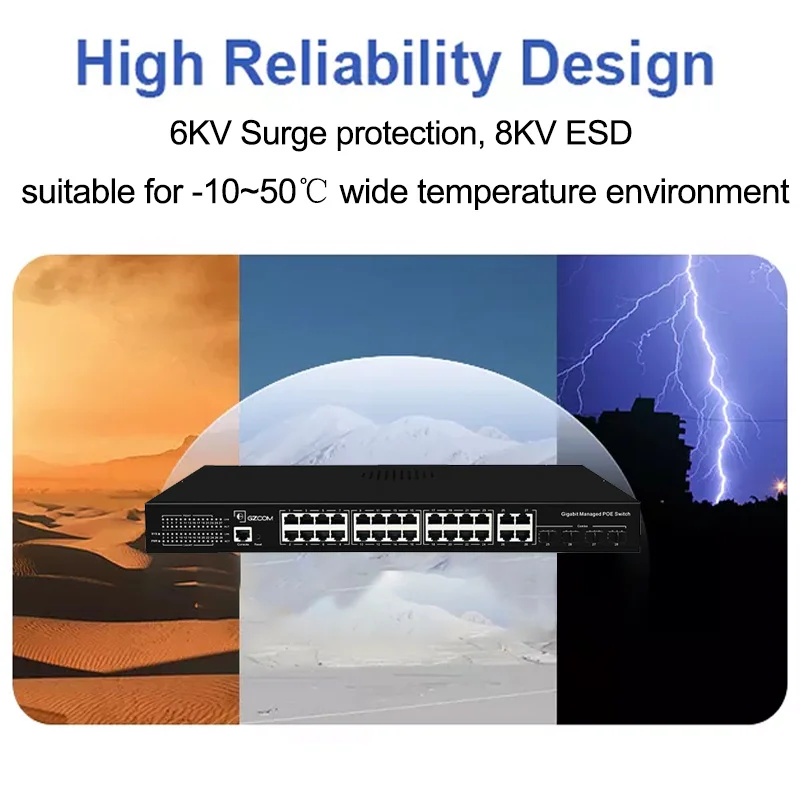

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Network Medium

10Base-T : Cat3、4、5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
Multi-mode Fiber: 50/125、62.5/125、100/140um
Single-mode Fiber: 8/125、8.7/125、9/125、10/125um

Security Certificae

CE、FCC、RoHS

Working Environment

Working Temperature：-20~50°C
Storage Temperature：-40~85°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
Working Height：Maximum10,000 feet
Storage heigh：Maximum 10,000 feet

LED Indicators

PWR（power supply）,SYS（System）,1-24 PoE&ACT (PoE),1-24 Link&ACT（Link&Act），25-28 Link(Link),25-28 Act (Act)

DIP Switch

Reset

Mechanical

Structure Size

Product Dimension (L*W*H): 440* 280*44mm
Package Dimension (L*W*H): 500*350*90mm
N.W：3.9kg
G.W：4.6kg

Packing Info

Carton MEAS：600*495*435mm
Packing Qty：5 units
Packing Weight：24KG

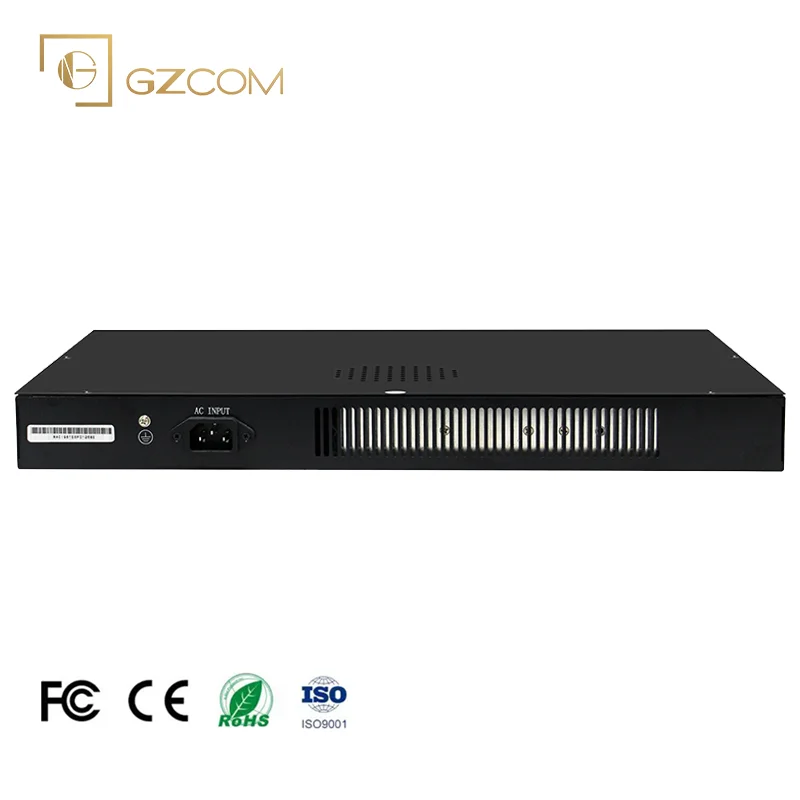

Power Voltage

Input Voltage ：AC 100-240 V
Power supply：52V7.69A

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair(Selectable)
