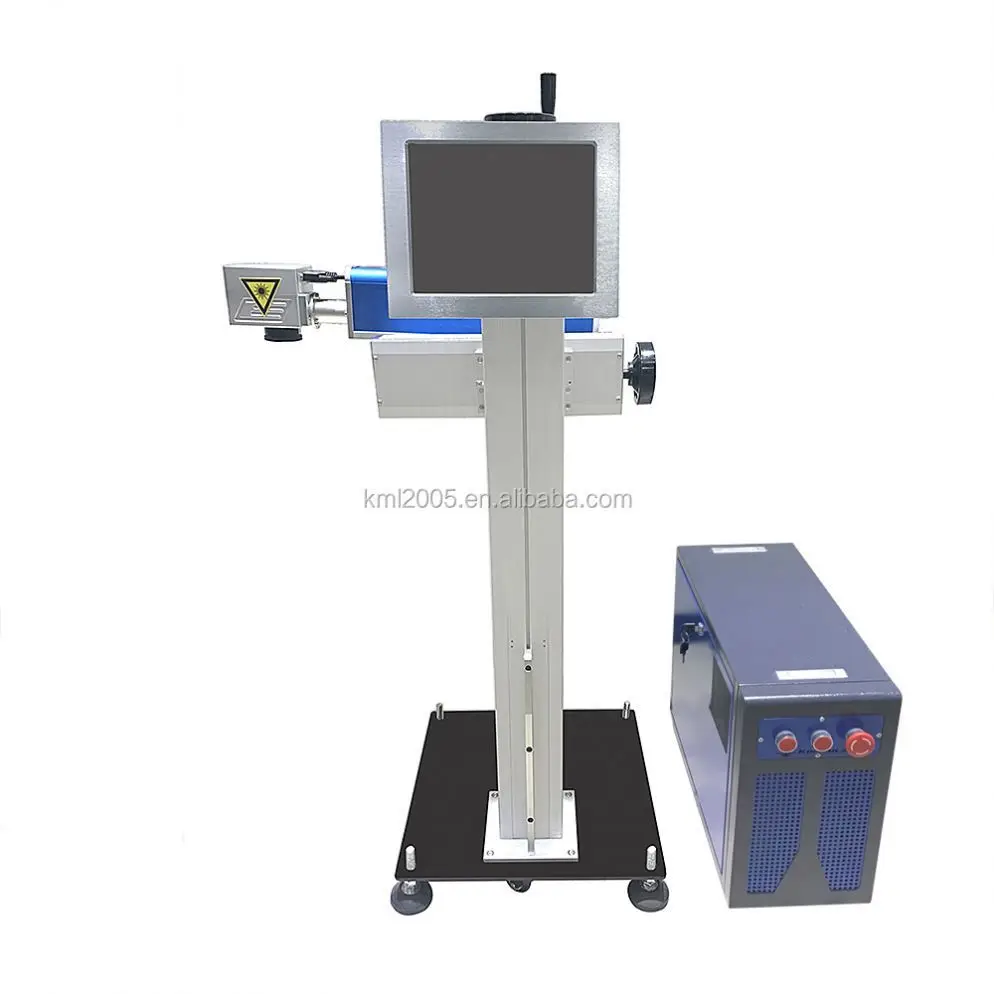

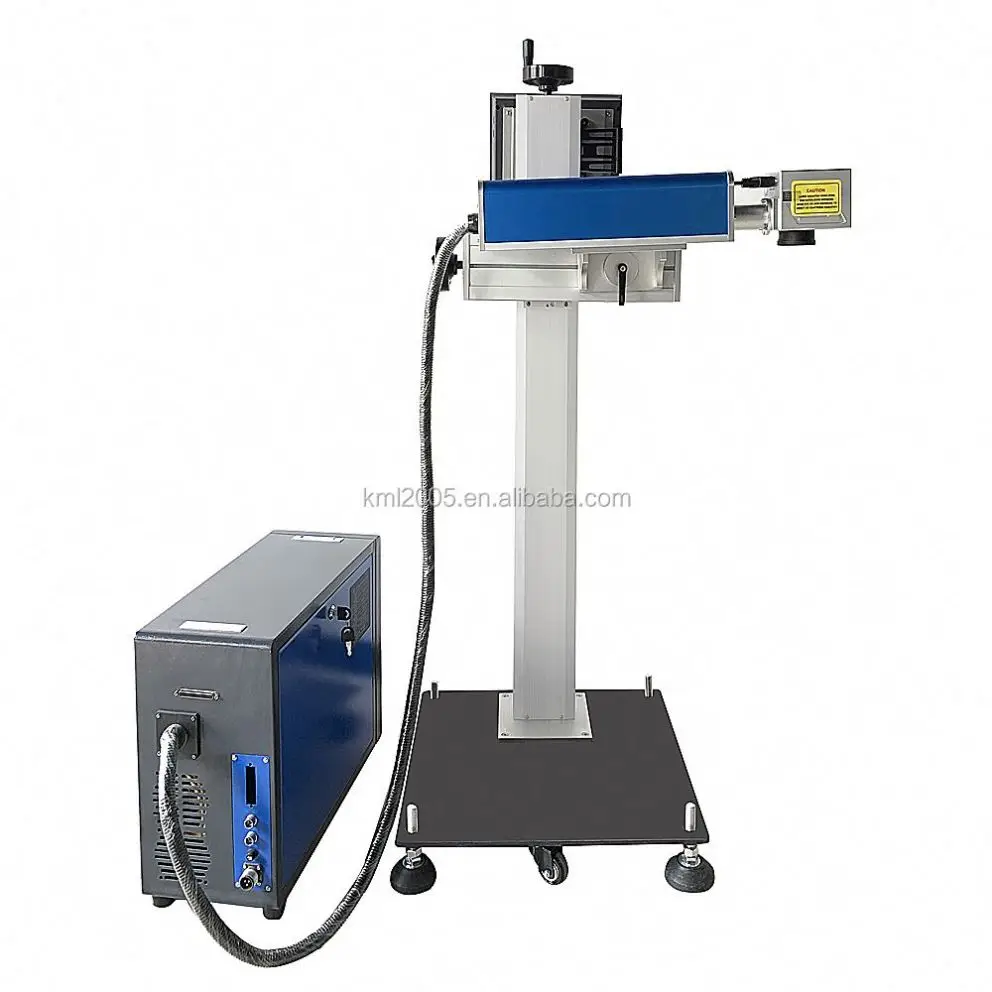

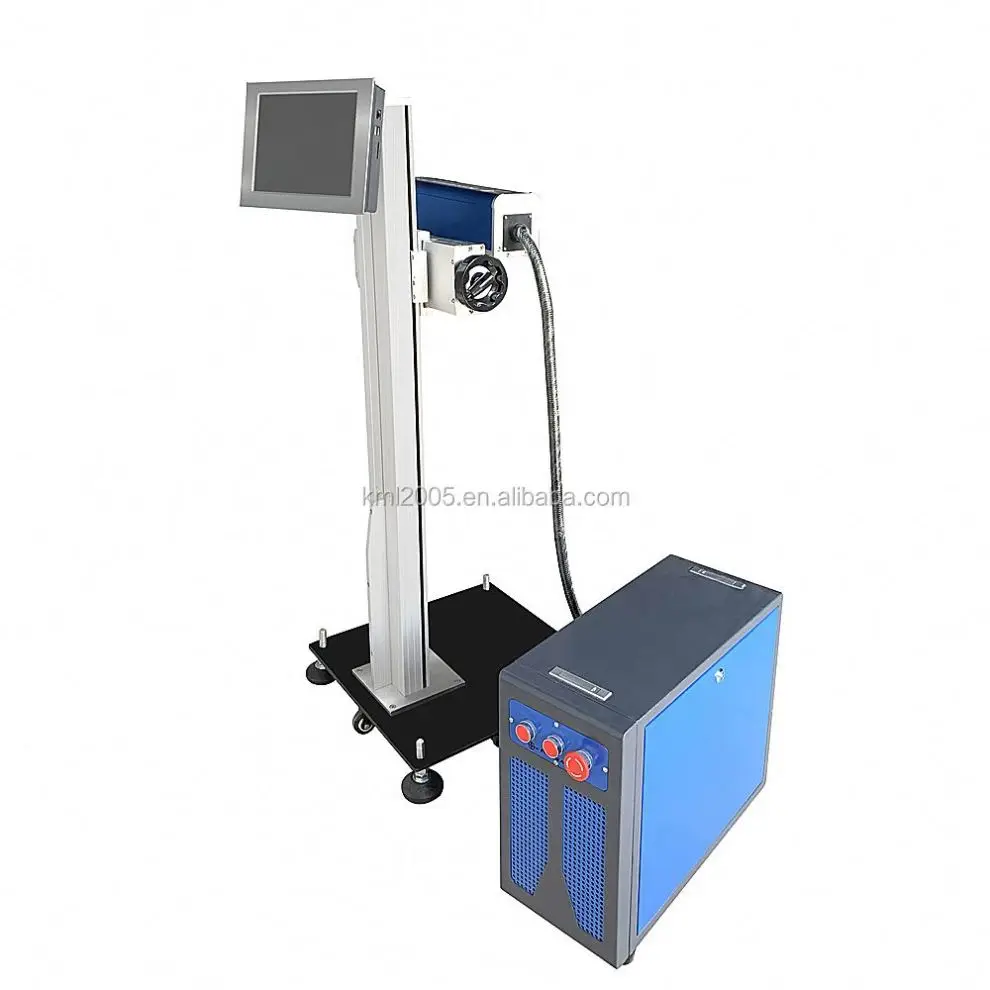

Kingmilan Pvc Pipe Extrusion Making Laser Printing Machine
- Category: >>>
- Supplier: Zhangjiagang Kingmilan Delong Machinery Co. Ltd.
Share on (1600566389042):
Product Overview
Description
Product details
Laser Type | Fiber | ||
Laser Wavelength | 1.06μm | ||
Beam | ＜1.4M² | ||
Laser Power | 20W/30W/50W | ||
Cooling method | Air cooling | ||
Marking area | 110mm×110mm/175mm×175mm | ||
Focal distance | 170mm | ||
Min line-width | 0.15mm | ||
Min character | 0.7mm | ||
Marking speed | 0-7000mm/s | ||
Graphic format supported | PLT | ||
Voltage | AC220V±10% | ||
Frequency | 50Hz/60Hz | ||
Machine dimension | 450mm×450mm×1300mm | ||
Machine weight | 80Kg （Estimate) | ||
Work environment | Temperature: 0~45°C; Humidity: 5%-95% non-condensing water, no dust or dust less temperature | ||
Power | 1KW | ||
Class of safety protection | IP54 | ||
Laser safety level | level 4 | ||
Adjustable height direction | 0-450mm | ||
Front and back direction adjustable distance | 0-250mm | ||
Marking angles | 0°，45°，90°，180° | ||
Product features
1 Equipped with CNF or KML controller, easy operation
2 The service life of the laser is 100,000 hours, and the whole machine is used for 4-6 years
3 Industrial aluminum frame, beautiful and reliable
4 Protection power supply design, solve the damage caused by unstable power supply
3 Industrial aluminum frame, beautiful and reliable
4 Protection power supply design, solve the damage caused by unstable power supply
5 strong wind cooling, the effect is 2 times that of ordinary air cooling

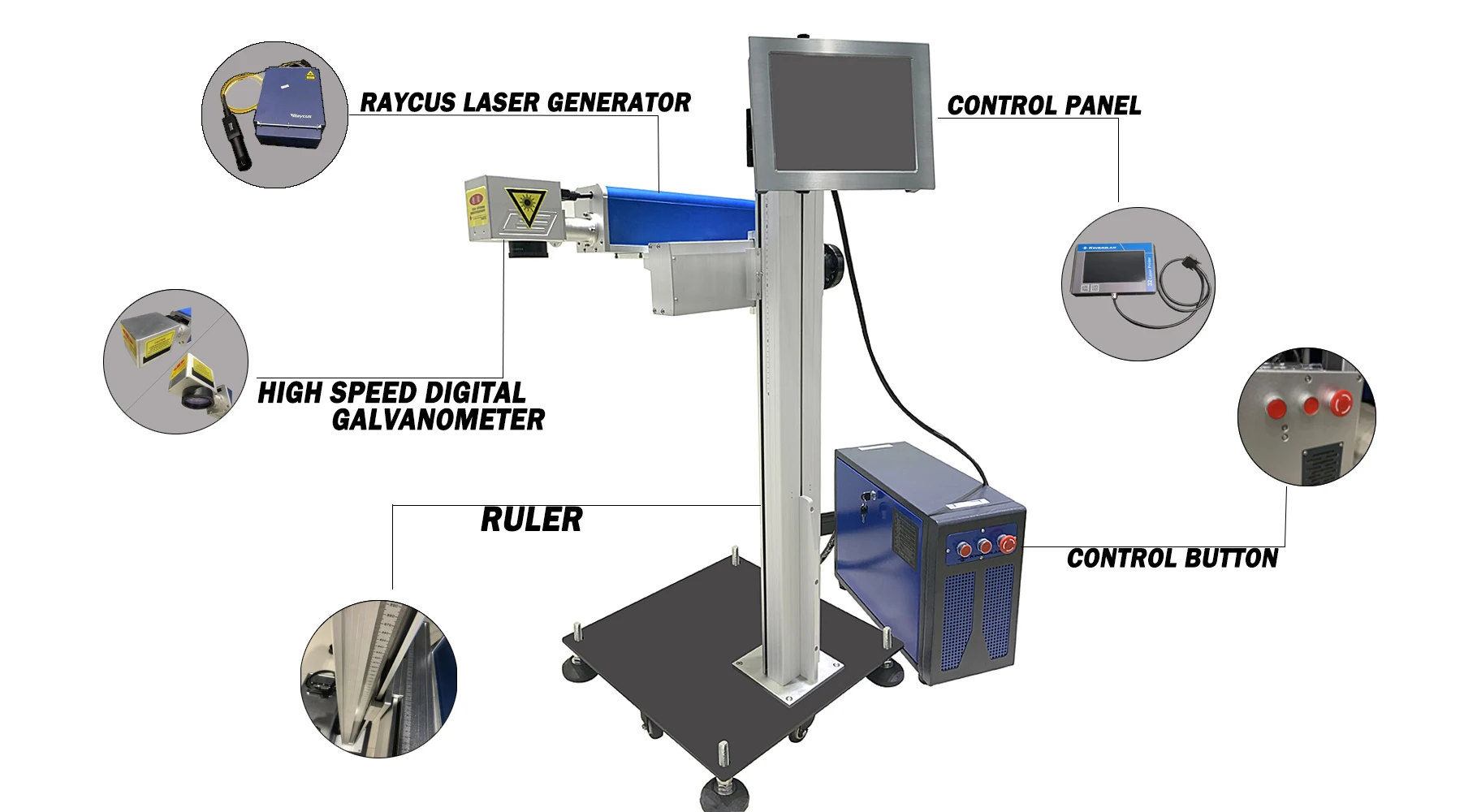

Details Images
Laser Source
Radio frequency tube laser source with high laser engry,fine laser path,low fault rate.
Self-developed Control system
1.4 G super high speed CPU, running smoothly
1 GB memory
Galvanometer
High speed digital galvanometer,meet requirement of production speed.

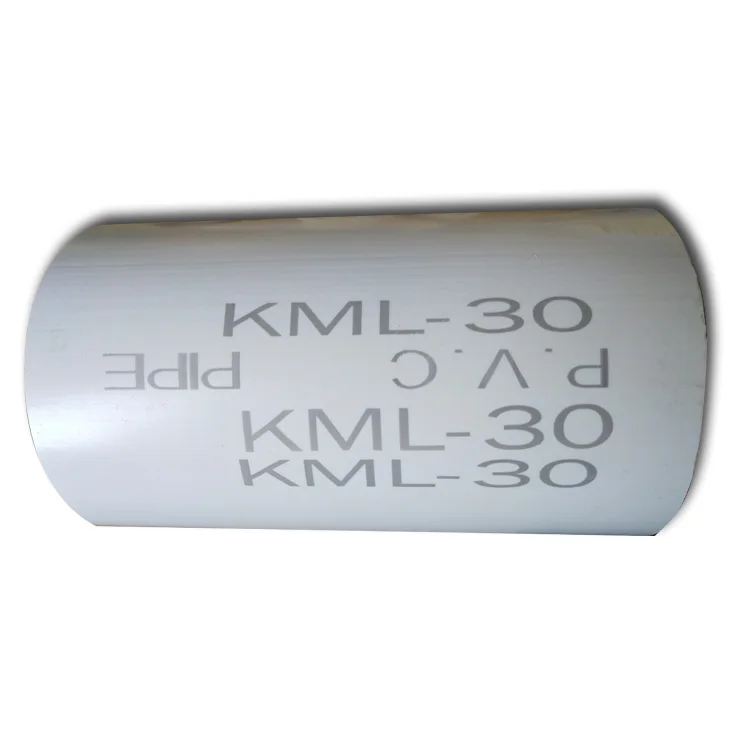

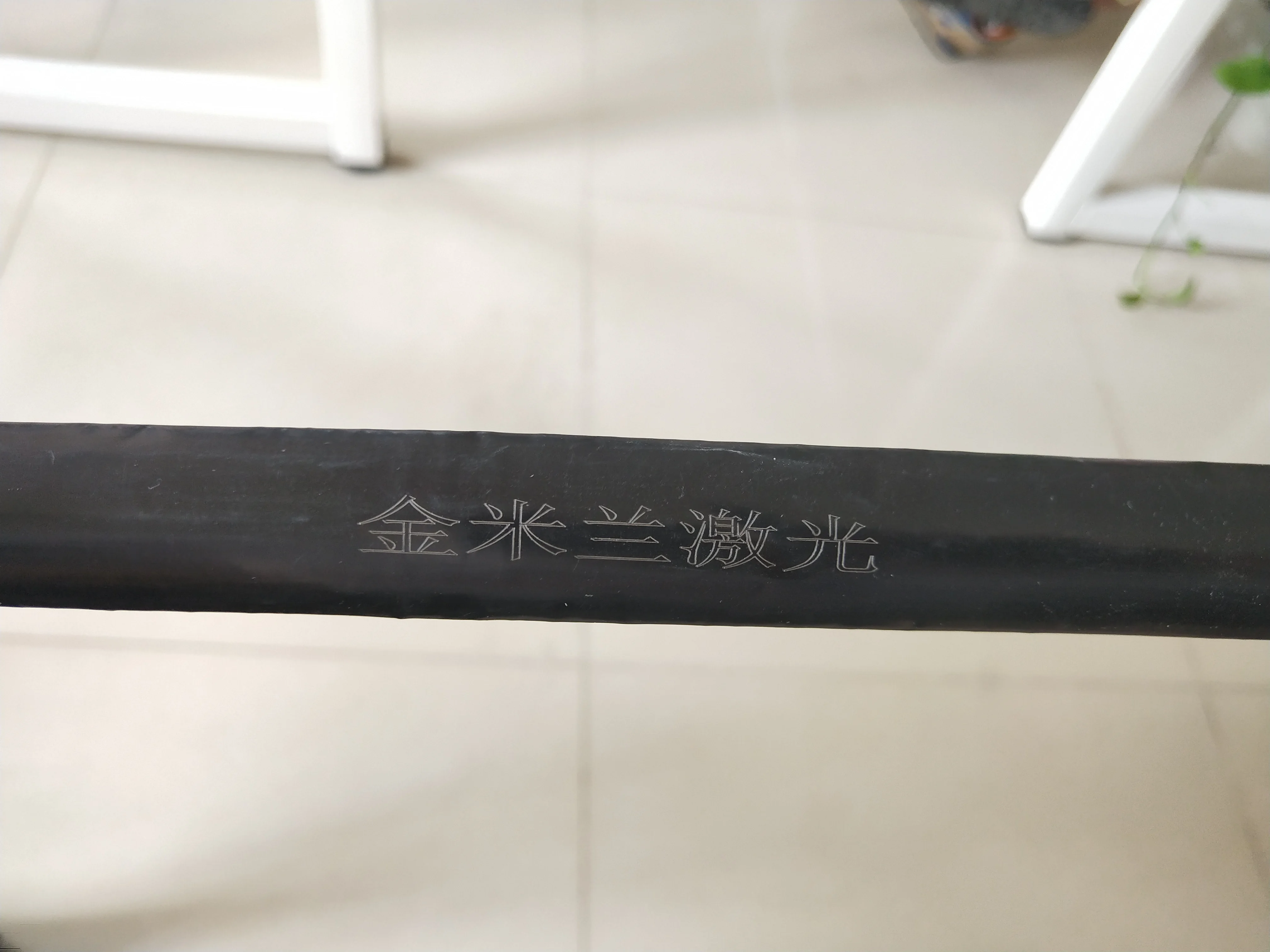

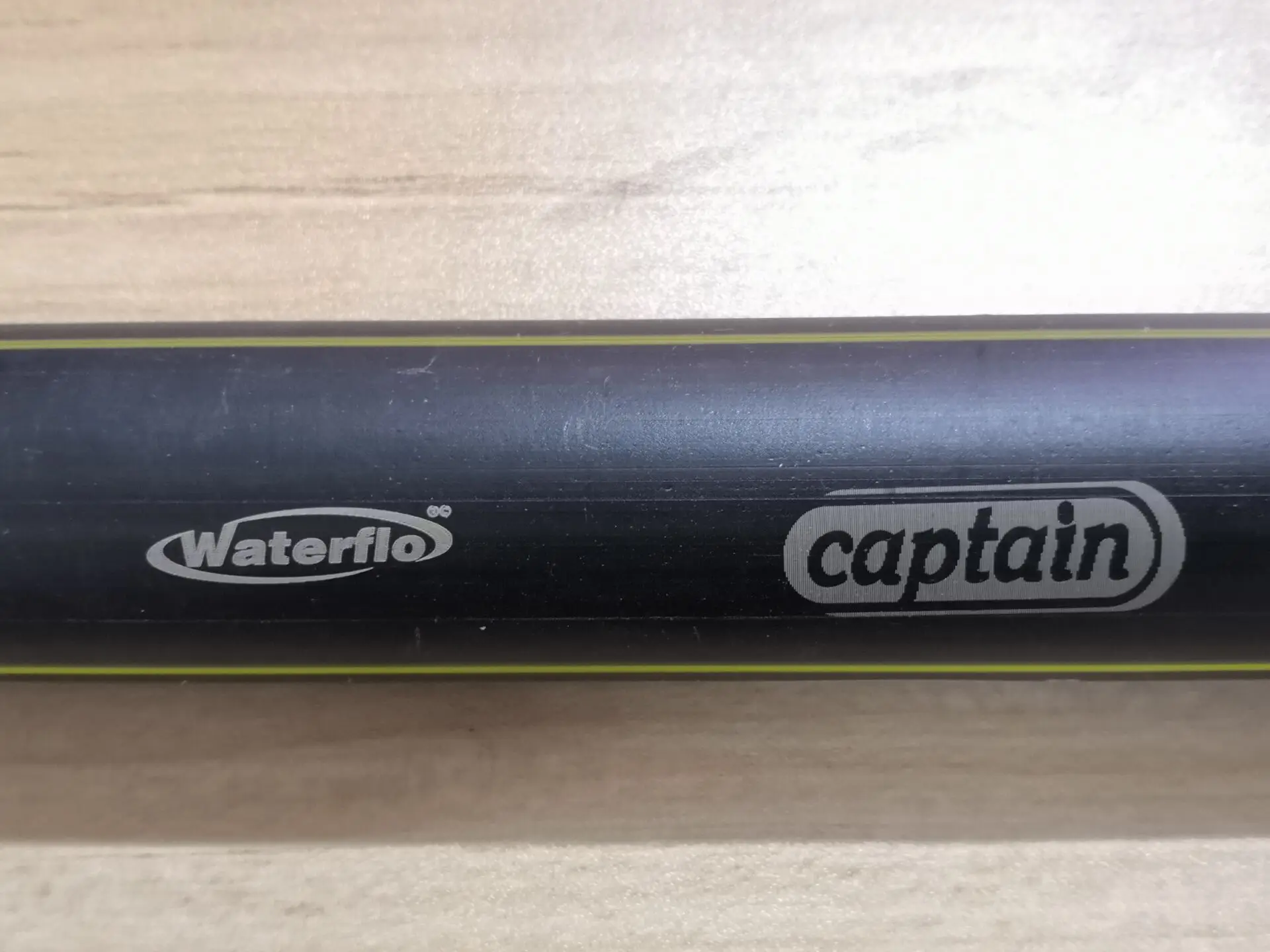

Applicable Materials of fiber laser marking machine:
Compared with ink jet machine
Marking equipment | Ink jet Printer | Kingmilan Laser Printer |
Investment cost | Low | Middle |
Consumables and maintenance | Large | None |
Maintenance frequency | High | Low |
Adhension strength | Easy to loss color | Permanent identification |
Loss prevention and anti pollution | Easy to be polluted | Prevent oil stains,water pollution and do not change with the oxidation of materials |
Production flexibility | The product must be movable | The product can be static and movable |
Product packaging
Certifications
Exhibition&Team
FAQ
Q: Are you the manufacturer or trading company?
A: We are an industrial manufacture factory, founded in 2005.We have produce laser machine for more than 10 years; all the products are made by our technical team .
Q: How do you make the quotation for client?
A: Please offer the following information, so we can give you price and our advice as manufacturer:
Product material,Product color,Production line speed.
If you can also send us photos of your samples, it would be highly appreciated
Q: It will be the first time for me to use laser printer, is it hard?
A: We will provide English Service Manual and teach the operation through video. It is easy to use.
Q: How long is the delivery time?
A: For standard machines, we will deliver in 3~5 days; For non-standard machines and customized machines, it will be 5~10 days.
Q: How about the documents after shipment?
A: After shipment, we'll send all original documents by DHL, TNT etc., including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
