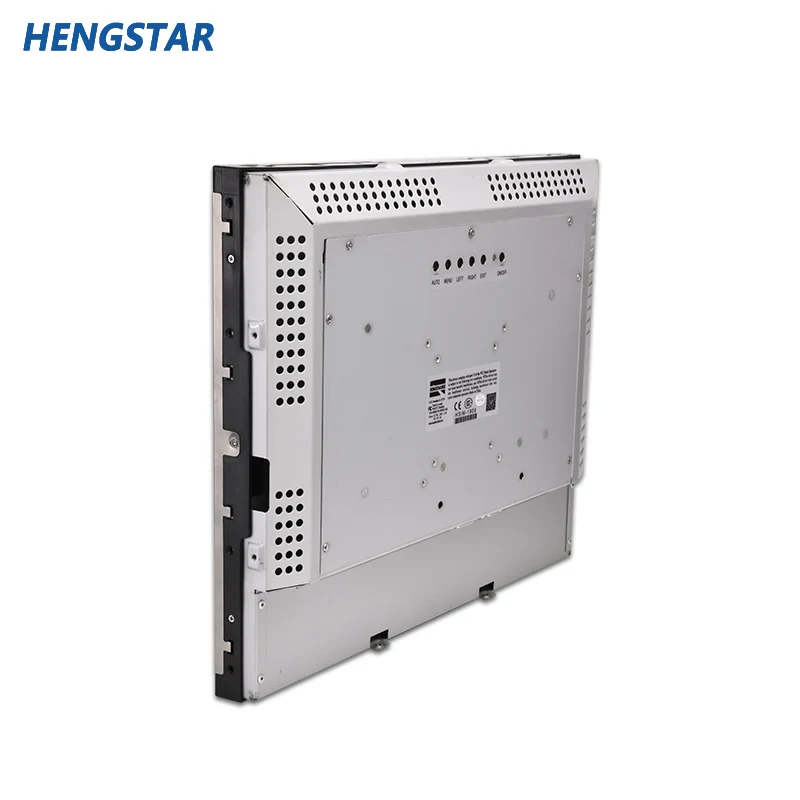

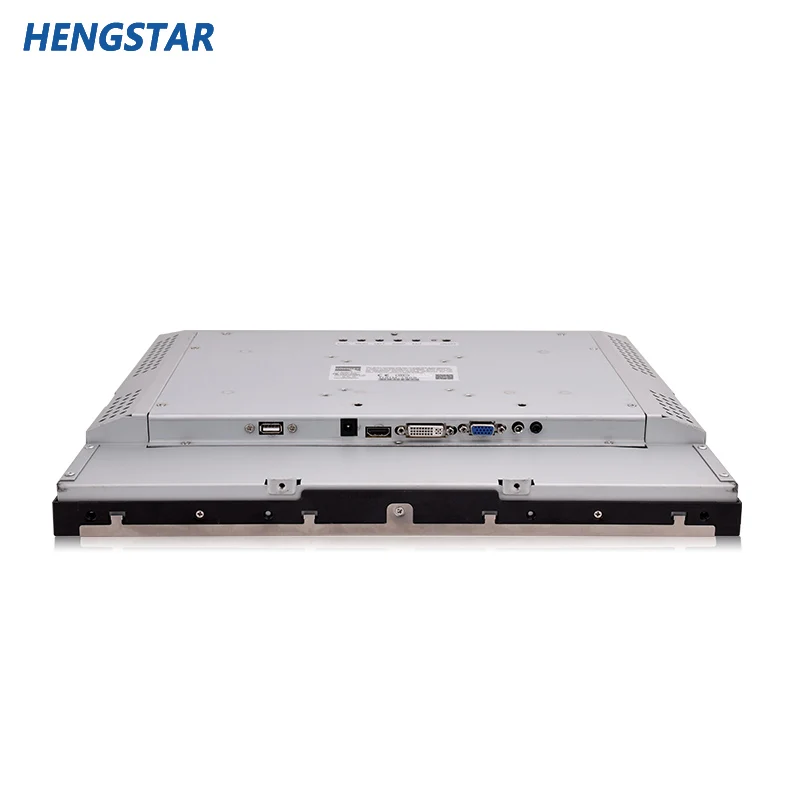

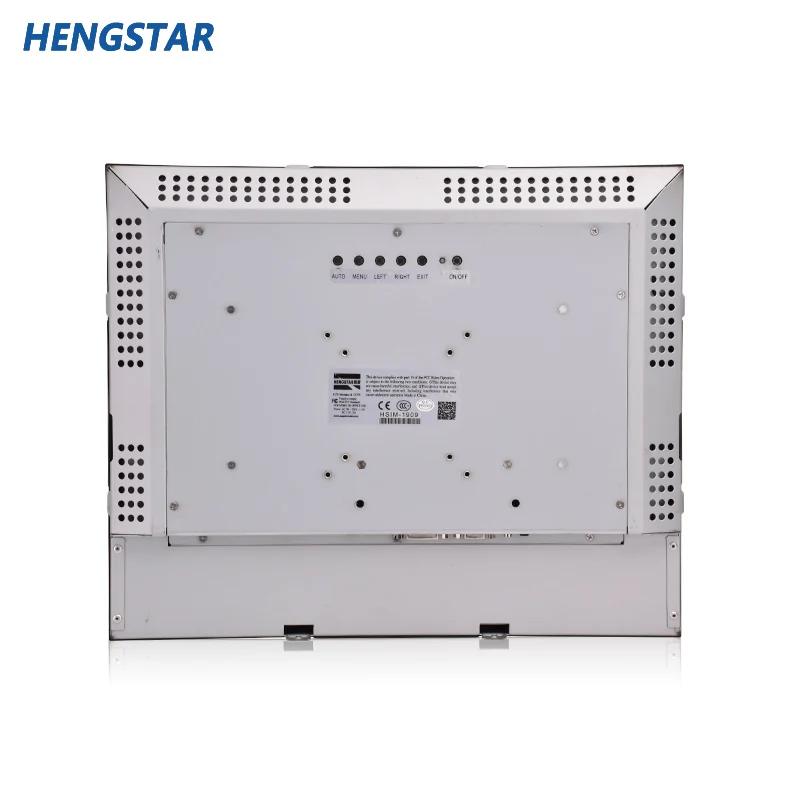

OEM ODM Outdoor 1000Nits High Brightness Open Frame LCD Display Waterproof Industrial Monitor
- Category: >>>
- Supplier: Shenzhen Hengstar Technology Co. Ltd.
Share on (1600566495655):
Product Overview
Description
OEM ODM Outdoor 1000Nits High Brightness Open Frame LCD Display Waterproof Industrial Monitor
Product Description
PRODUCT BRIEF FEATURE
1) Industrial open frame lcd monitor , frameless design suit for self-mounting into kiosk.
2) Capacitive / Resistive touchscreen , tempered glass optional.
3) HD RESOLUTION max 1920x1080 ; LUMINANCE max 1500 cd/m2 (24 inch)
4) Industrial controller board with VGA, DVI,MI, USB , ports are optional.
5) With VESA holes support : wall mounted , rack mounted , panel mounted , flush mounted.
PRODUCT SPECIFICATION
Size Options: 7" 10.4" 15" 17" 18.5" 19" 21.5" 24" 65"
| LCD panel | Size | 10.4" | 15" | 18.5" | 21.5" |
| Aspect ratio | 4:3 | 16:9 | 16:9 | 16:9 | |
| Pixel numbers | 800x600 | 1024x768 | 1366x768 | 1920x1080 | |
| Brightness | 230 cd/m2 | 280 cd/m2 | 350 cd/m2 | 1000 cd/m2 600 cd/m2 | |
| Contrast Ratio | 500:1 | 700:1 | 500:1 | 1000:1 | |
Viewing Angle (H) / (V) | 160° 130° | ±85° or 170° ±80° or 160° | 178° 178° | ±85° or 170° ±80° or 160° | |
| Touch screen | Capacitive Touch | Capacitive Touch | 4-wire Resistive | Capacitive Touch | |
| Colors | 16.2 M | 16.7 M | 16.7 M | 16.7 M | |
| Input terminals | Signal | VGA (D-sub) | VGA (D-sub) | DVI , VGA, USB , Full HD | DVI , VGA, USB |
| PC audio | Stereo headphone jack*1 | ||||
| Power plug | 12 VDC jack | / | IN: 100~240V OUT: DC 12V, 3.5A | ||
| OSD Control | Menu / Select, Auto, Up, Down, Power | ||||
| Environments | Temperature Operating / Storage | -20°C ~ 60°C -30°C ~ 70°C | -10°C ~ 60°C -0°C ~ 60°C | 0°C ~ 50°C -20°C ~ 60°C | -10°C ~ 60°C -15°C ~ 65°C |
| Humidity Operating / Storage | 10% ~ 90% 10% ~ 90% | / | 10% ~ 90% 10% ~ 90% | / | |
| Power | Input Voltage | 12V DC | / | / | / |
| Operation | < 16 watt | / | 30 Watts ( Max ) | ||
| Stand-by | < 5 watt | / | / | ||
| Weight | N.W./G.W. | 1.0Kgs / 1.5Kgs | / | / | |
| System | Support System | WIN98 / 2000 / XP / WIN7 | |||
| Mounting Type | Brackets Included | Flanges Rack Mount Flush Mount | 75*75 standard VESA mount | Panel-Mount Rear-Mount VESA 75mm/100mm | 75*75 , 100*100 VESA mount With M4 screws |
| Optional | Touch screen (Resistive , Capacitive) | ||||
| PC Mainboard | |||||
| Speakers | |||||
| Protect glass ( Screen protected , double coating ) | |||||
| Accessories | 15-PIN VGA cable, Power cord, AC adaptor | ||||
Hottest Products
Company Information
Packaging & Shipping
FAQ
Q1.Are you manufacturer?
A1:Yes,we are professional manufacturer, which establish in 2004,having 1 years production experience.
Q2.Where is your factory?
A2:Our factory is located in shenzhen City, Guangdong Province with 1500 square meters workshop.
Q3:How is the quality?
All of Hengstar items are industrial and military grade items:
1.Raw material:they are built with military grade components: PCB layer≥ 4/6/9, the plastic case use:ABS+PC, Never use recycled raw materials, the metal case use aluminium alloy, All raw materials comes from supplier chain of Fortune Global 500, such as Avnet, Arrow Electronics,completely control supply chain. Component brand supplier such as Samsung,LG and TI.These material can help to withstand conditions that would cause a consumer grade tablet to fail. The items can be used 24x7 without interruption in harsh conditions.
2.R&D: industrial manufacture processes, each product goes through 56 processes.
3.Production:the quality system strictly according to AQL inspection process.
Q4:How is the service?
A4:After-sales:24 hours online technical services.
Q5: Do you support OEM or ODM?
A5: OEM & ODM are welcomed. We have been offered OEM or ODM service for well-known brands and even the Chinese military.
Q6: Do you have any certificate for your products?
A6: Yes, we have CE, KCC certificate for our products.
