Product Overview
Description
Cast Steel High Pressure Centrifugal Multistage Water Pump

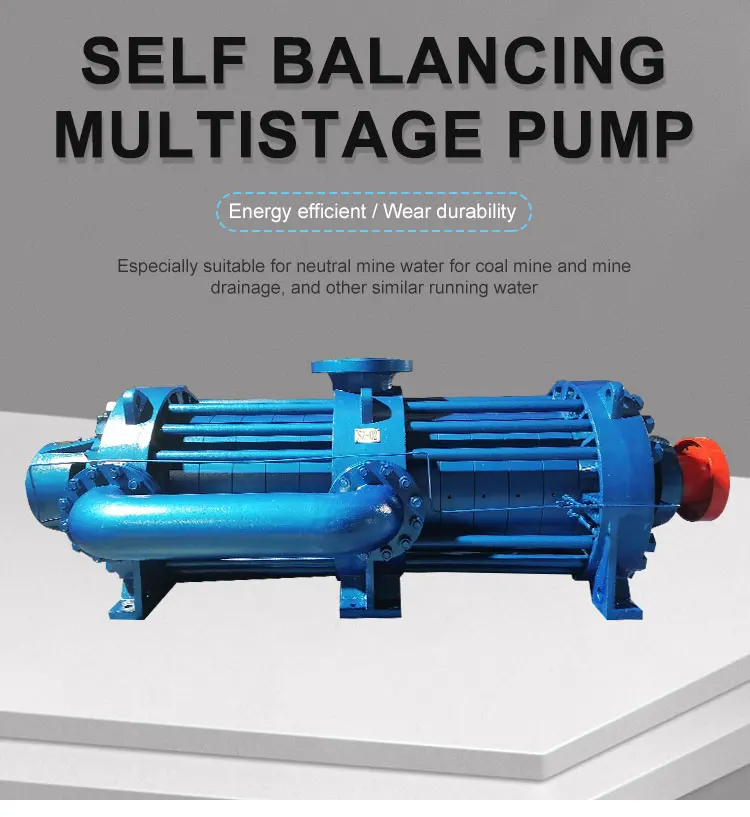

Self-balancing wear-resistant multi-stage centrifugal pump for coal mines is a self-balancing wear-resistant multi-stage centrifugal pump designed by our factory on the basis of MD type wear-resistant multi-stage centrifugal pumps for coal mines. It has high efficiency, energy saving, and reliable wear resistance. , Long life and other characteristics, especially suitable for neutral mine water (particle diameter less than 0.5 mm) for coal mines and mine drainage, and other similar living waters.
Product Name | Self-balancing multistage centrifugal pump |
Voltage | 380V/415V/660V/1140V Meet the needs of different countries |
Sample | Support to pay for samples，contact us |
Place of Origin | China |
Material | HT250、QT500-7、2Cr13、304、316L，2205 Can be customized |
Warranty | One Year |
Product parameter
Stage | Flow (m3/h) | Lift (m) | Speed (r/min) | Power (KW/V) | ||||
2 | 36 | 231 | 2980 | 75 | ||||
3 | 36 | 346.5 | 2980 | 110 | ||||
4 | 36 | 462 | 2980 | 132 | ||||
5 | 36 | 577.5 | 2980 | 160 | ||||
6 | 36 | 693 | 2980 | 200 | ||||
7 | 36 | 808.5 | 2980 | 250 | ||||
8 | 36 | 924 | 2980 | 280 | ||||
9 | 36 | 1039.5 | 2980 | 315 | ||||
10 | 36 | 1155 | 2980 | 355 | ||||
11 | 36 | 1270.5 | 2980 | 400 | ||||
12 | 36 | 1386 | 2980 | 450 | ||||
12 | 60 | 1235 | 2980 | |||||
... | ... | ... | ... | ... | ||||
Abou more Type, Flow, Lift, Speed, Power, you can contact us | ||||||||
Products Description
Application

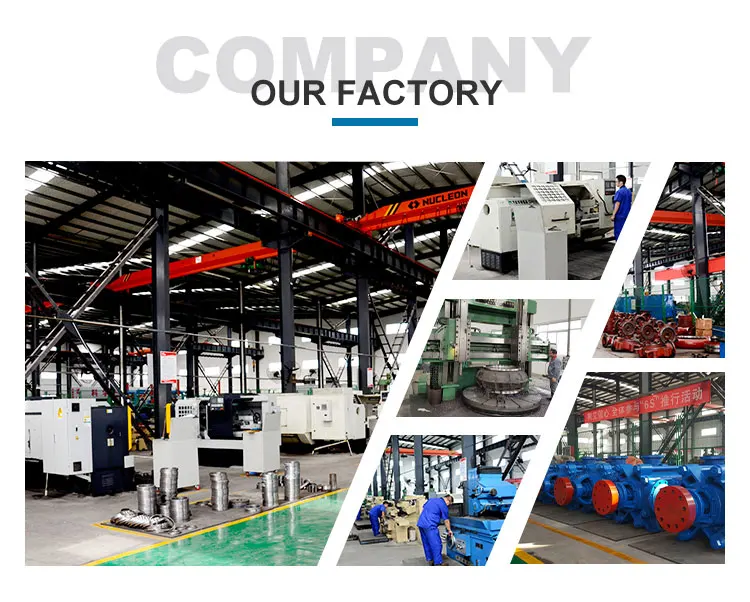

Company Profile
