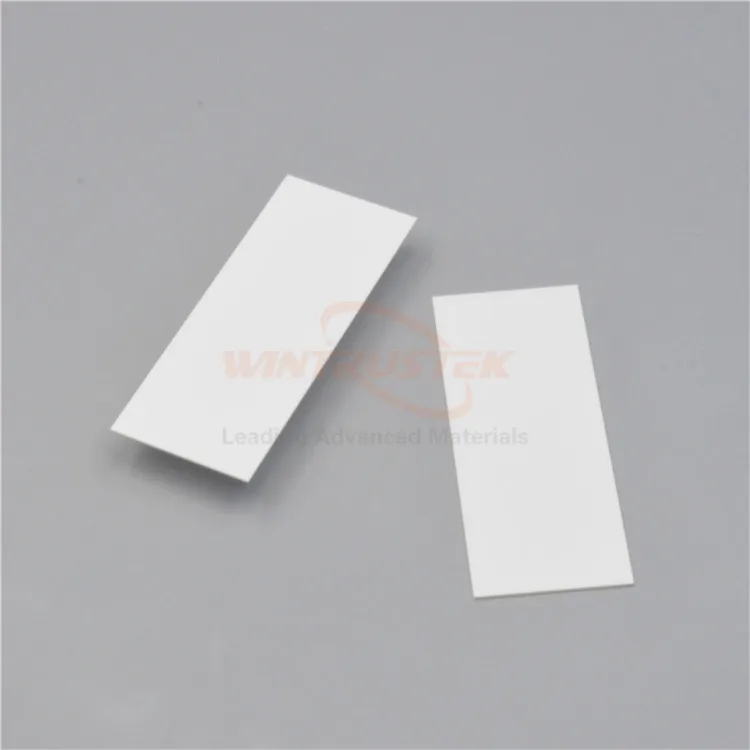

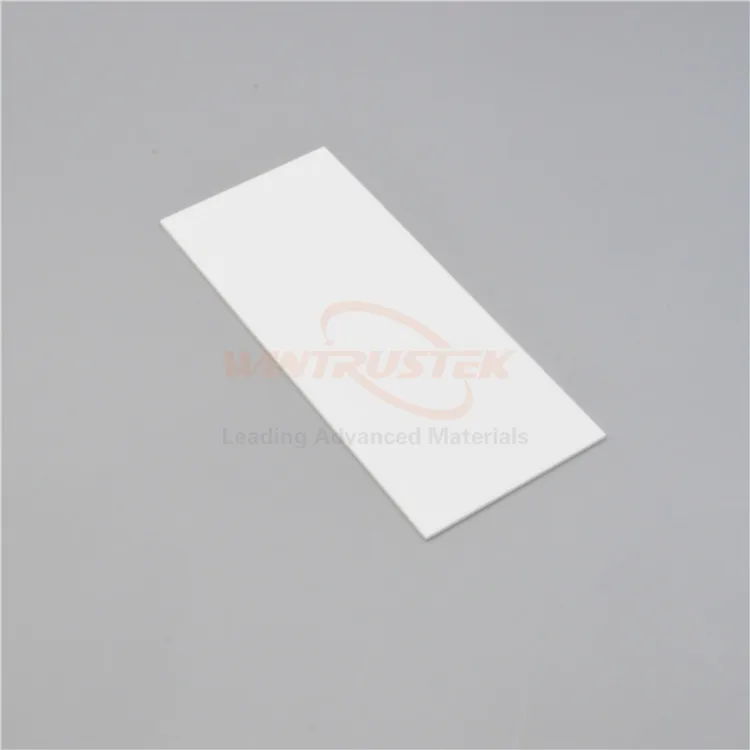

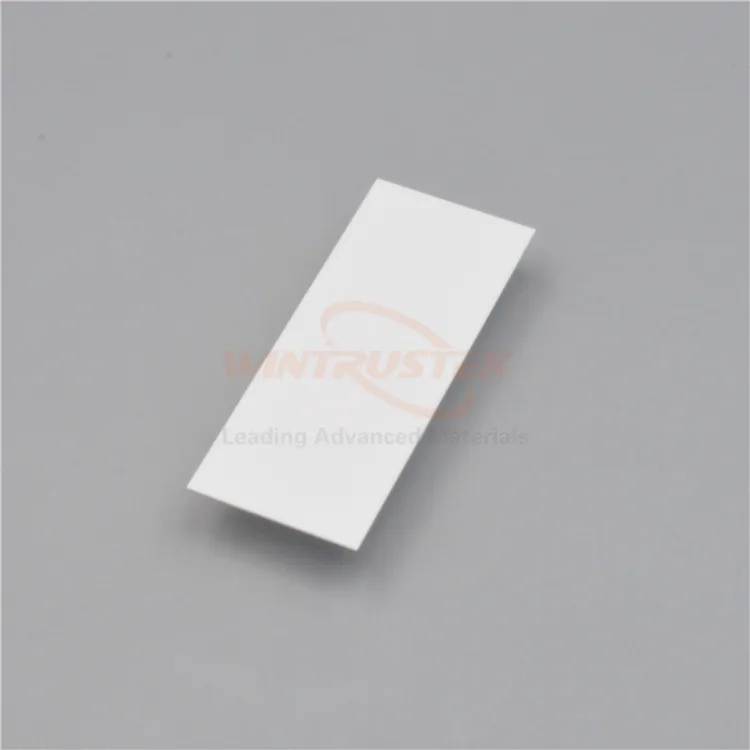

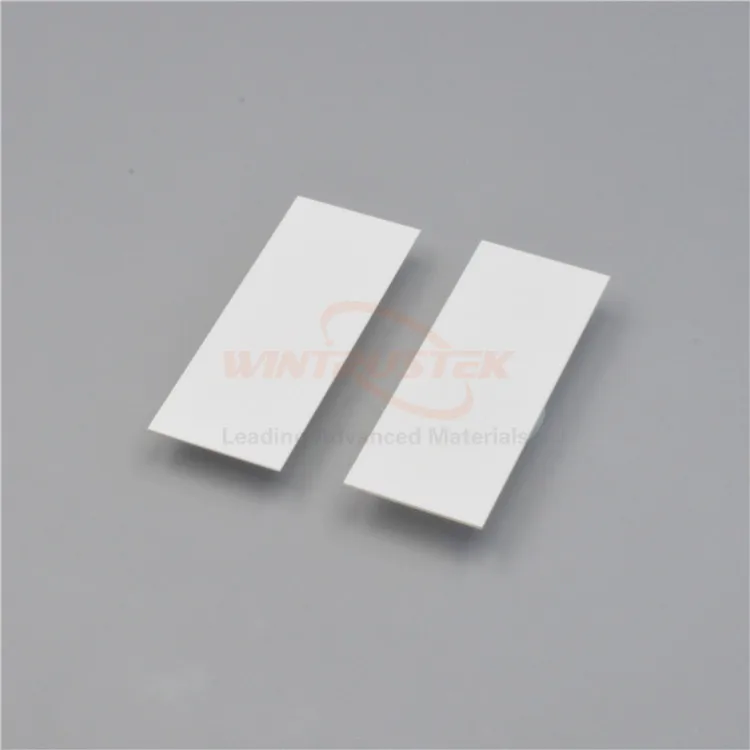

High Heat Conductivity Insulating Alumina Ceramic Substrate Alumina Ceramic Thin Sheet
- Category: >>>
- Supplier: Xiamen Wintrustek Advanced Materials Co. Ltd.
Share on (1600566527766):
Product Overview
Description
Product Description
| - Product Name: | Heat Insulating Alumina Ceramic Substrate |
| - Material: | 96% Alumina |
| - Typical Characteristics: | 1. Excellent Electrical Insulation 2. Good Thermal Shock Resistance 3. Corrosion Resistance 4. Good Flatness |
| - Typical Applications: | 1. Thick Film Hybrid Integrated Circuit 2. Ceramic Radiating Base for LED 3. Power Module 4. Semiconductor Device |
Material Properties
| Properties / Material | 96% Alumina | AlN |
| Density (g/cm3) | 3.6 | 3.3 |
| Color | White | Grey |
| Dielectric Strength (KV/mm) | ≥17 | ≥17 |
| Dielectric Constant (1MHz) | 10.6 | 8.9 |
| Volume Resistivity (@20°C, Ω.cm) | ≥1014 | ≥1014 |
| Thermal Conductivity (@20°C, W/mk) | ≥24 | ≥175 |
| Thermal Expansion Coefficient (10-6/°C) | 6.5-8.0 | 4.8 |
Flexural Strength (MPa) | ≥350 | ≥450 |
Regular Size
| Length x Width (mm) | Thickness (mm) | ||||
3'' x 3'' (76.2 x 76.2) | 4'' x 4'' (101.6 x 101.6) | 4.5'' x 4.5'' (114.3 x 114.3) | 5'' x 5.5'' (130 x 140) | 5.5'' x 7.5'' (140 x 190) | 0.385 |
| 0.5 | |||||
| 0.635 | |||||
| 0.8 | |||||
| 1.0 | |||||
Product Show
Production Process
Buying Guides
In your inquiry, please provide as detailed imformation as you can for our evaluation.
1. Material:
If you are not sure what exact material you need, please tell us your requests on material performance and your specific application, according to which we will offer you the most suitable material.
2. Drawing:
Please make sure the drawing is clear with all of your technical requests to get our offer at the soonest.
3. Quantity:
The last but not the least, don't forget to tell us the quantity so that we can quote our best price.
