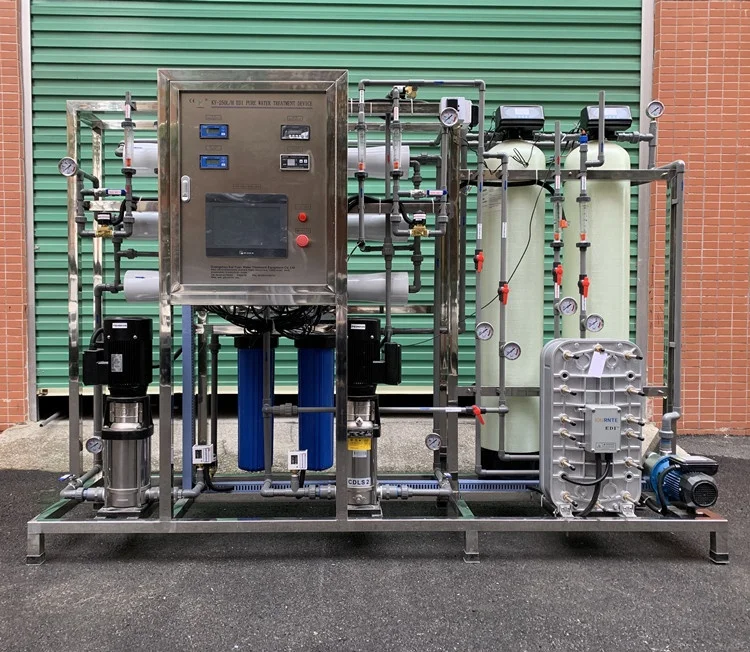

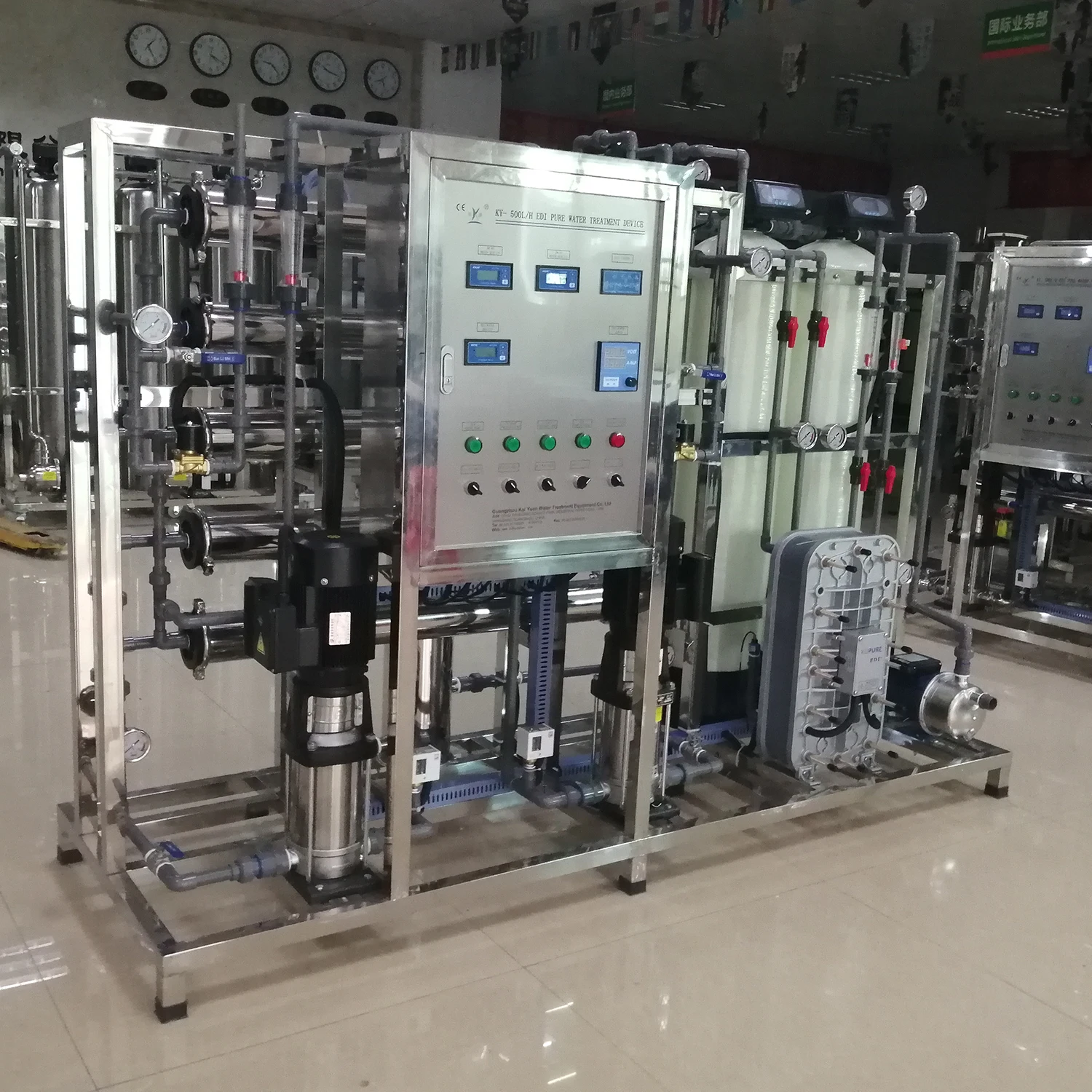

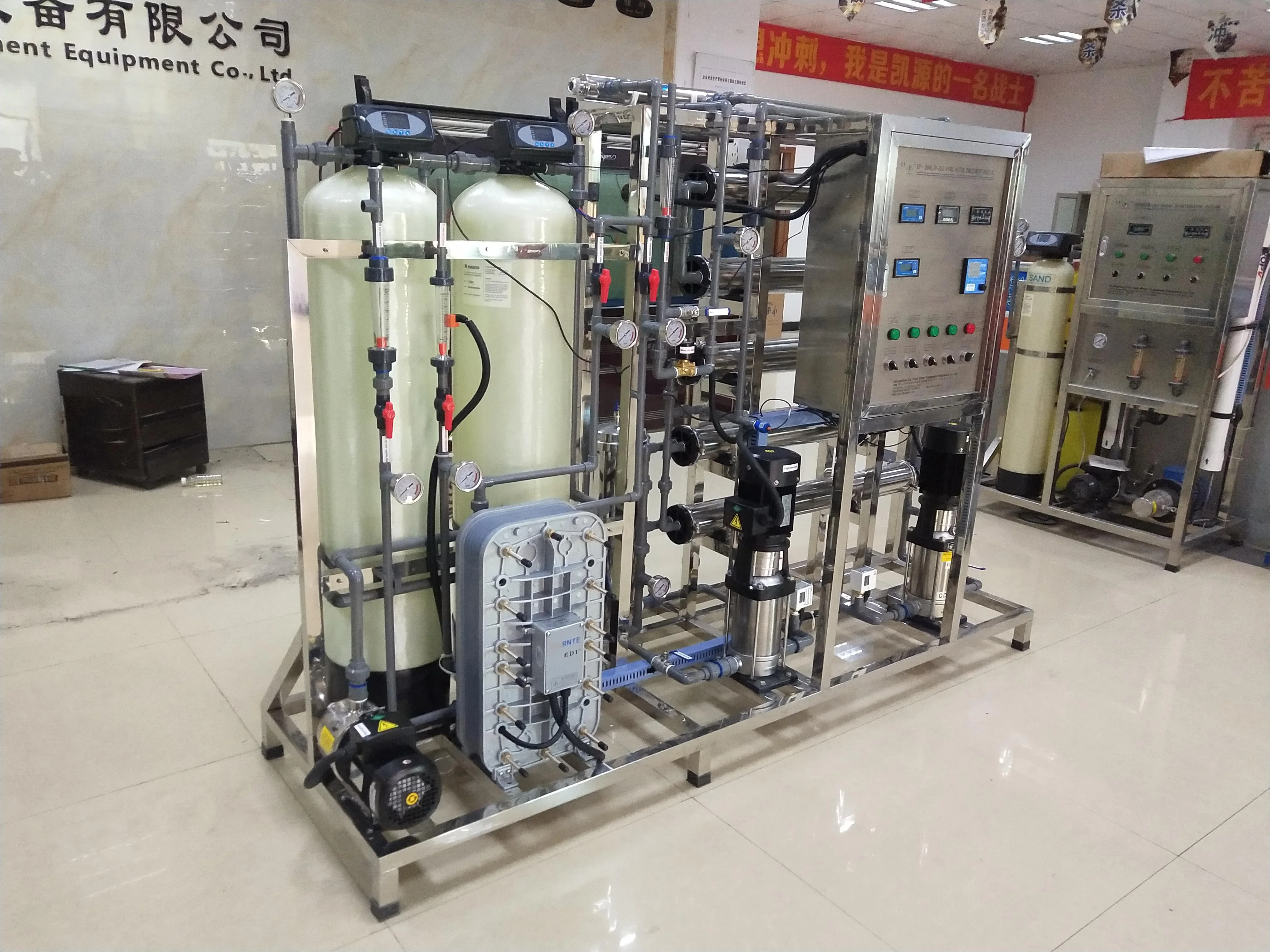

500lph Two Stage Ultrapure Ro EDI Purification Treatment System For Electronic Semiconductor/Hemodialysis
- Category: >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (1600566529656):
Product Overview
Description
500lph Two Stage Ultrapure Ro EDI Purification Treatment System For Electronic Semiconductor/Hemodialysis
Product Paramenters
Description of RO+EDI ultra pure water plant
EDI(electrodeionization) is also known as electrodeionization, it's a new type of ultra pure water producing technology which gradually developed in the 20th Century, It is a revolutionary progress in the history of pure water production technology. This technology is skillfully combined electroosmosis technology with ion exchange technology. By means of the selectivity permeation effect on anion and cation by the anion and cation exchange membrane, and exchange effect on ion by ion exchange resin. Under direct-current electric field, realize the directed migration of ions, thus completely make water salt removing, meanwhile, hydrogen ion and hydroxyl ion generated by water electrolysis will continuously make the ion exchange resin regeneration, so it can produce ultrapure water continuously without acid-base chemical regeneration. With the advantages of advanced technology, compact structure and simple operation. It can be widely applied in the fields of power, electronics, medicine, chemical industry, food and laboratory, and it is a green revolution of water treatment technology. The output water quality has the best stability, water quality can reach 5MΩ ~18.2 MΩ
Model | KYEDI-500 |
Production capacity | 500L/H |
Power | About 3.0 KW |
RO membrane | USA,Domestic ;2PCS |
EDI module | EDIMD-500 |
Power supply | AC 380V 50Hz 3phase or 220V 50hz single phase |
Membrane housing | SUS404, 2pcs |
Raw water pump | Domestic |
Quartz sand filter Activated carbon filter Water softener | Stainless steel tank; sand, carbon,resin |
Security filter | 20 "× 5μm , 2pcs |
High pressure pump | Domestic |
Desalination rate | 99% |
Recovery rate | 90% |
Size (mm) | main machine: 1920X610X1850 |
Material | SUS304 |
Certificate | CE&ISO9001 |
Warranty | One year |

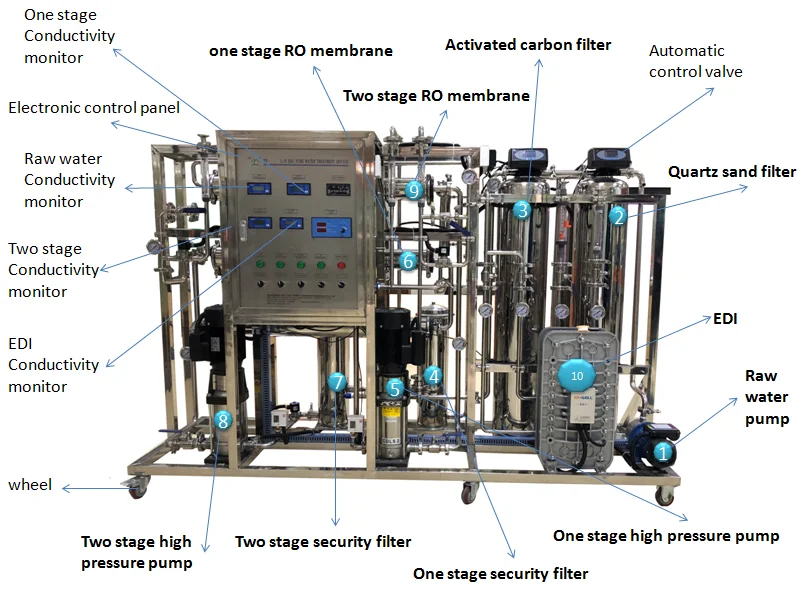

Every part of the reverse osmosis system
S/N. | Commodity name | Application | Remark |
1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight |
2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Other pumps |
3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | We use China brand or WAVE CYBER brand |
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual,chlorine and organics substances. | We use China brand or WAVE CYBER brand |
5 | Water softener, demineralizer, or called Na+ exchanger(Optional) | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | We use China brand or WAVE CYBER brand |
6 | Antiscalant dosing system or PH regulating system | Dosing antiscalant into feed water, prevent the ro membranes from blocking, prolong the lifetime of RO membranes. Regulating PH to suitable range. | Italy SEKO dosing pump or German Prominent |
7 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm, | Stainless steel housing or PVC housing |
8 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Other pump |
9 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts. | RO membranes USA Filmtec; Domestic well-known brand. |
10 | EDI device | EDI (electrodeionization) system further deeply deionize for the RO pure water, the output water quality has the best stability, water quality can reach 5MΏ ~18.2MΏ. | EDI module:GE or Chinese Brand |
11 | Sterilizing device | UV sterilizer or ozone generator | DAHUAN ozone , ClearUV UV Lamp |
Products Description
RO reverse osmosis system
Kaiyuan reverse osmosis water treatment equipment uses pretreatment device (quartz sand filter,
activated carbon, water softener, security filter) With RO reverse osmosis system multiple filtration
and separation of water ion technology, the salt removal rate can reach 97%-99%
activated carbon, water softener, security filter) With RO reverse osmosis system multiple filtration
and separation of water ion technology, the salt removal rate can reach 97%-99%

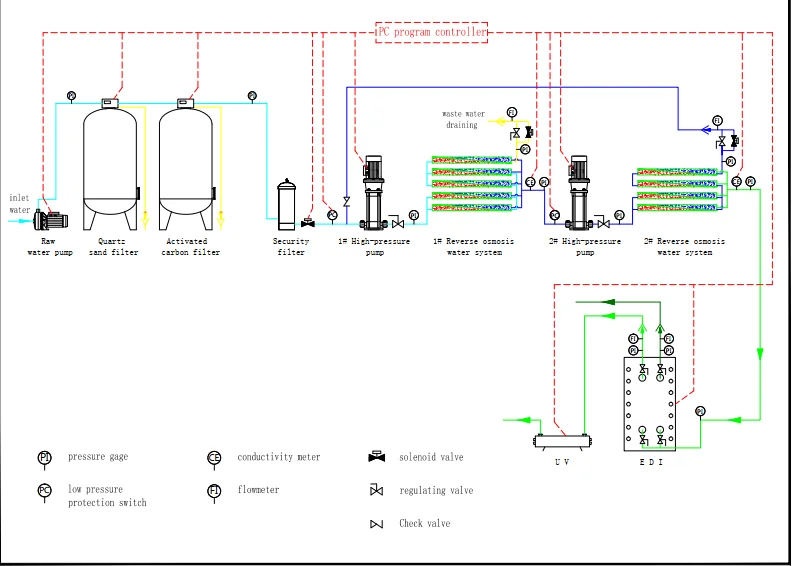

Working Process Chart:
raw water pump→ quartz sand filter→ activated carbon filter→water softener→ security filter → one stage high pressure pump →one stage reverse osmosis system→EDI→ pure water
tank
tank
Laser engraving to customize your logo company and language, Simple operation, real-time display of data, monitoring of equipment working conditions
Label each wire and synchronize engineering drawings for easy operation, 4 independent air switches + 2 fuses, 6-fold safety protection, the equipment is more durable
High pressure pump CNP pump, The famous pump brand in China.It is to provide the pressure for water into ro membrane.It is the improtant part in the system
Laser engraving to customize your logo company and language，MOQ 1set, Our craft, Single-sided welding, double-sided molding，no dead -angle, won't leak water and grow bacteria
How long the consumables should be replaced?
All the consumable replace period will be depend on the feed water quality.
PP filter cartridge
Advice Replacement time: every month
Quartz sand
Advice Replacement time: Every 15 - 18 months
Activated Carbon
Advice Replacement time: Every 15 - 18 months
Resin
Advice Replacement time: Every 15 - 18 months
RO membrane (LCLE4040)
Advice Replacement time:
Every 2 years
Every 2 years
UV lamp
Advice Replacement time:
9000 hours
9000 hours
Certifications
Company Profile
Guangzhou Kai Yuan Water Treatment Equipment Co. Ltd. is located in Guangzhou, China, has
been engaged in water treatment equipment since 2006. Our company is ISO9001:2008 certified company and our products are approved CE and SGS. We are specialized in manufacturing reverse osmosis pure water machines, industrial pure water equipment, ultra pure water equipment, underground water treatment equipment, brackish water treatment systems, EDI systems, water softener, ultrafiltration(UF) and sea water desalination equipment
been engaged in water treatment equipment since 2006. Our company is ISO9001:2008 certified company and our products are approved CE and SGS. We are specialized in manufacturing reverse osmosis pure water machines, industrial pure water equipment, ultra pure water equipment, underground water treatment equipment, brackish water treatment systems, EDI systems, water softener, ultrafiltration(UF) and sea water desalination equipment
