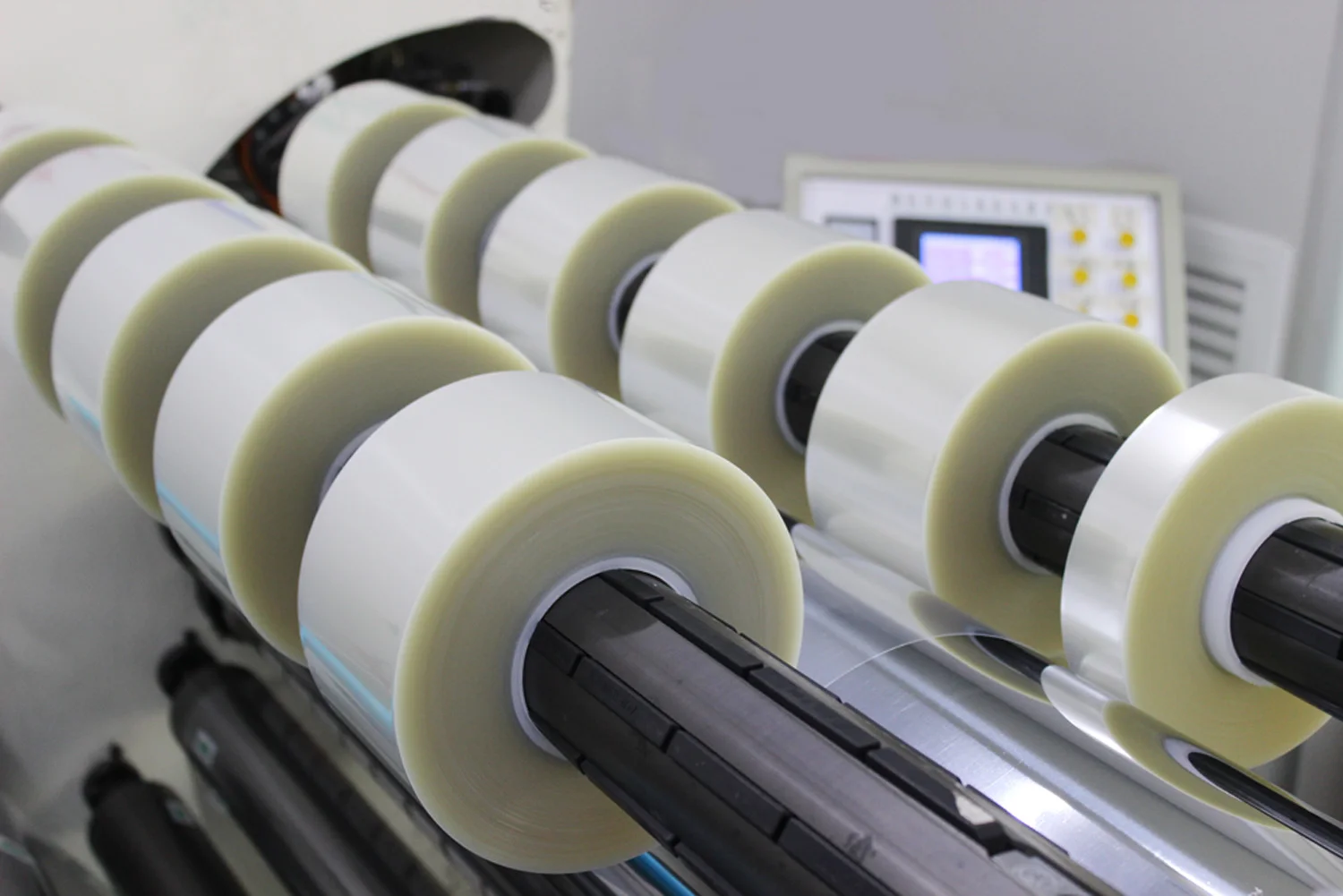

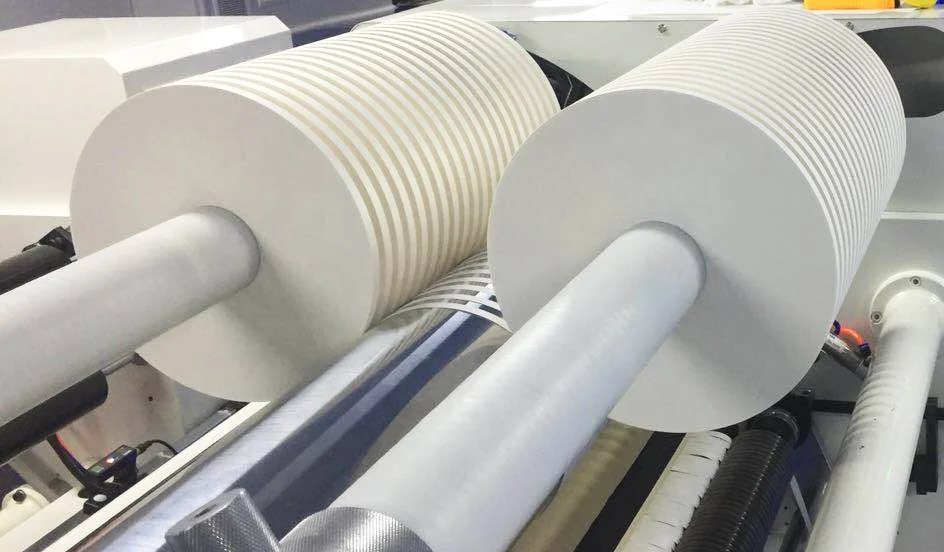

Double shafts turret slitter rewinder for BOPP / PVC / PET / label papers
- Category: >>>
- Supplier: Shenzhen JCD Machinery Co. Ltd.
Share on (1600566541614):
Product Overview
Description
Double shafts turret slitter rewinder for BOPP / PVC / PET / label papers
---MACHINE FUNCTION---
It's specialized for kinds of optical films and coated film and paper industries.
Such as the OCA, TPU, ITO, cellophane, PET, OPP, CPP,, PVC, and other similar film and printing of various materials.
---MACHINE FEATURES---
1) Double shafts winding the finished rolls.

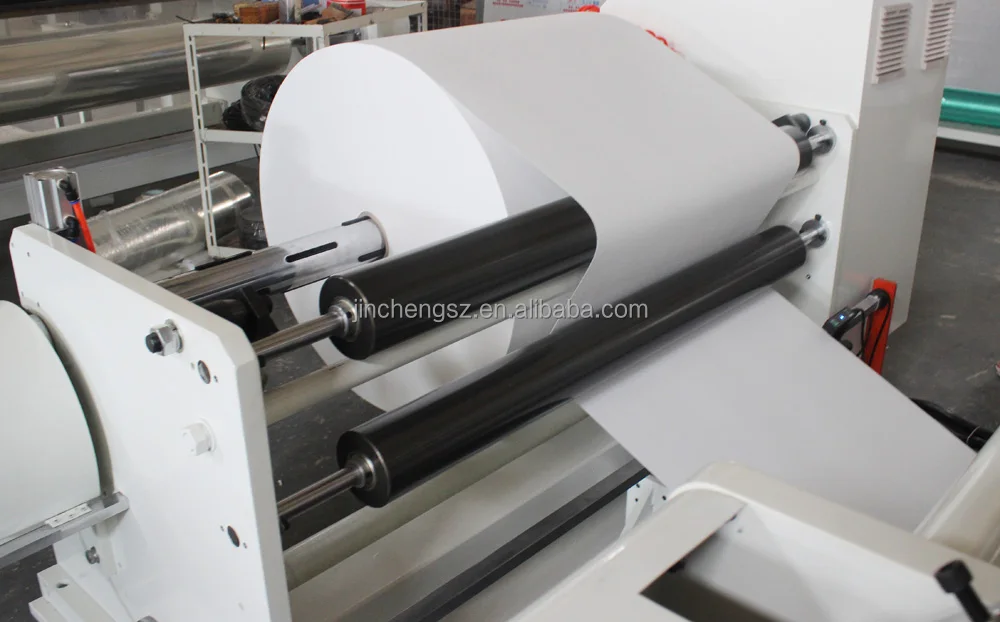

2) Separated jumbo roll loading device with automatic tension controller for unwinding.
3) Equipped with hydraulic lifter for jumbo roll loading.
4) With ultrasonic EPC device for web guiding.
5) Automatic tension controller for rewinding.
6) Both unwinding shaft and rewinding shafts are air shafts.
2) Separated jumbo roll loading device with automatic tension controller for unwinding.
3) Equipped with hydraulic lifter for jumbo roll loading.
4) With ultrasonic EPC device for web guiding.
5) Automatic tension controller for rewinding.
6) Both unwinding shaft and rewinding shafts are air shafts.
7) Slitting knife by round knife or straight knife for optional according to different material.
---MACHINE PARAMETERS---
Material width | 650mm~1600mm |
Max.unwind diameter | 800mm |
Max.rewind diameter | 400mm |
Slitting knife | Round knife / straight knife |
I.D of paper core | 76.2mm |
Min. slitting width | 5 mm |
Rewind speed | 0-150 M/min |
Voltage | 3 phase 380V/ 50HZ |
Power | 10 HP |
Air pressure | 6kg/cm2 |
---MACHINE PARTS---
10'' SIZE Colorful LCD panel.

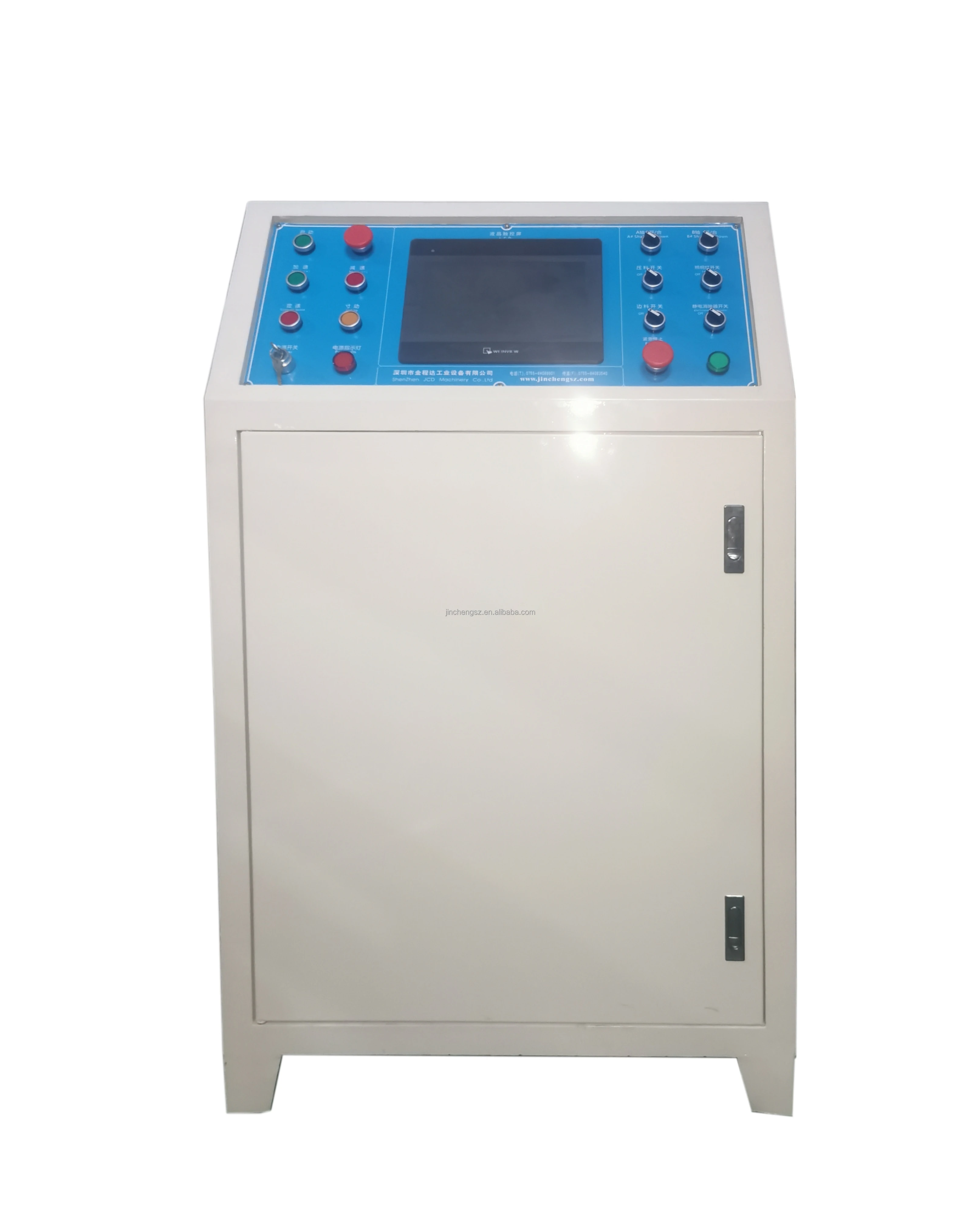

Operation panel.

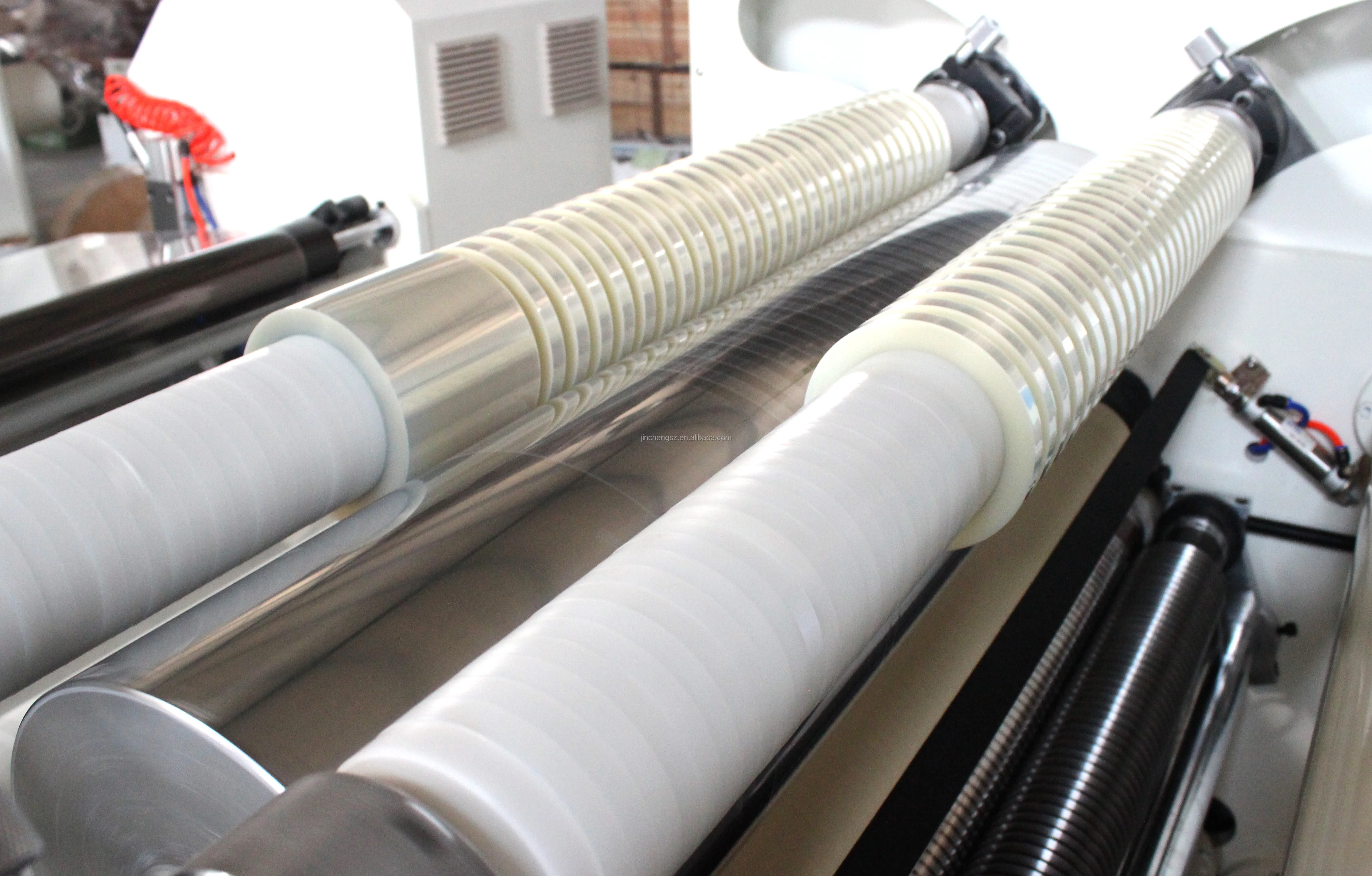

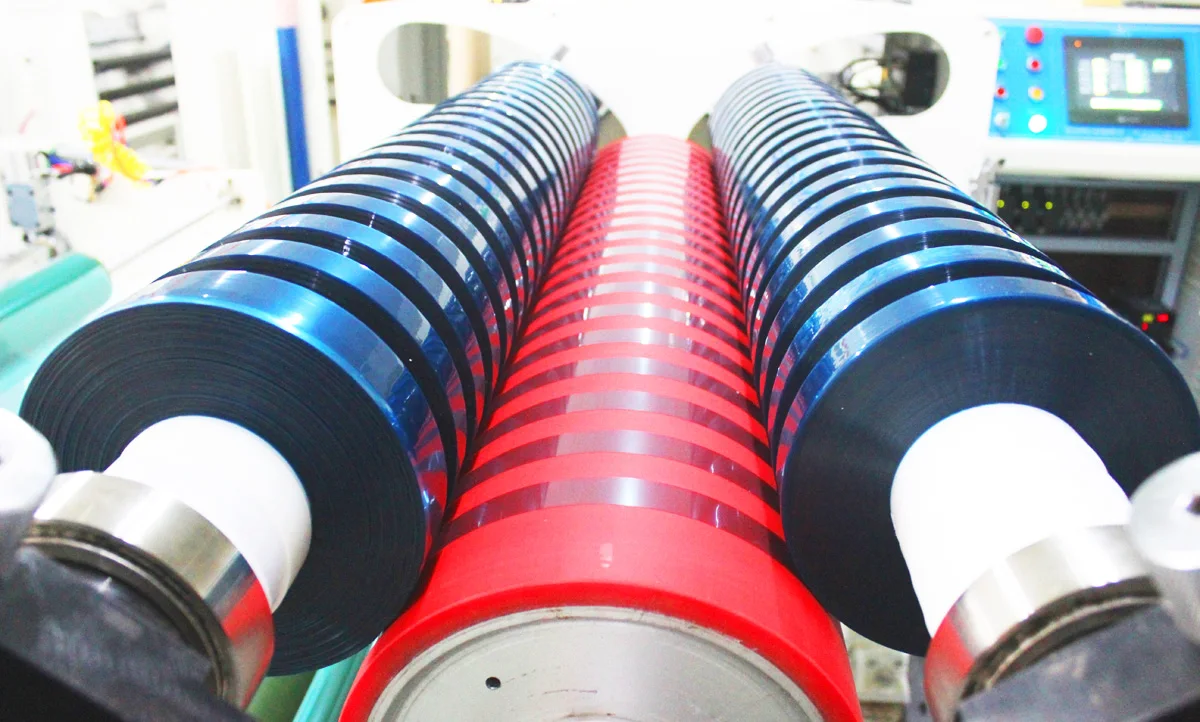

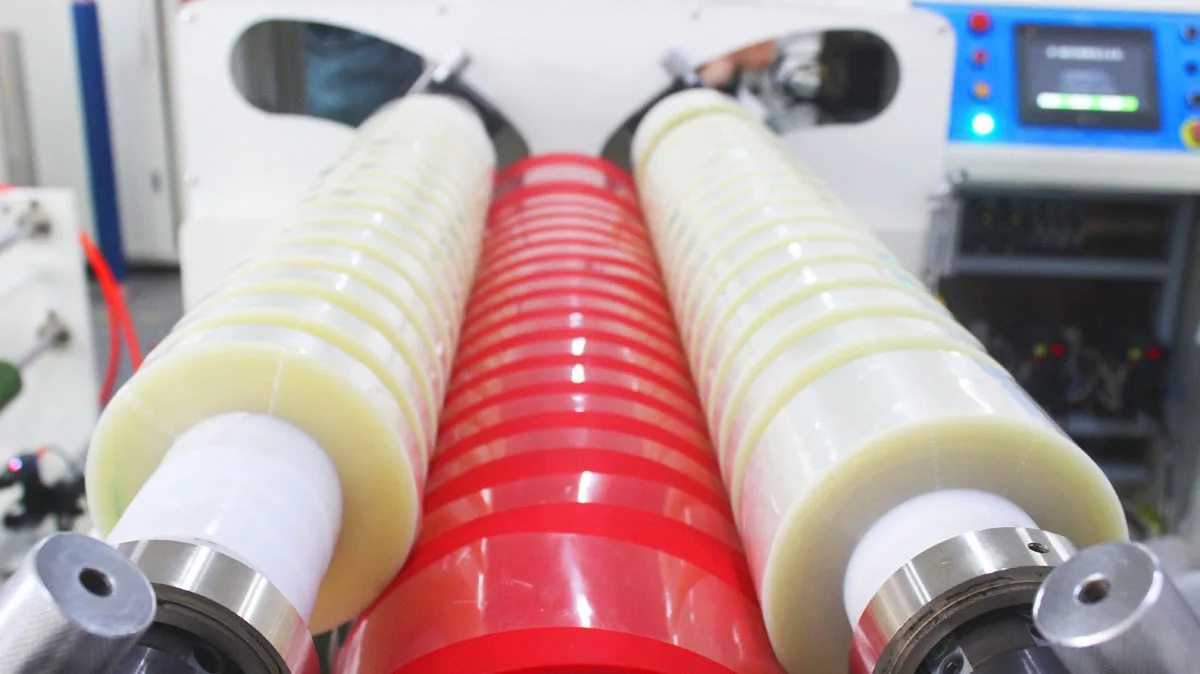

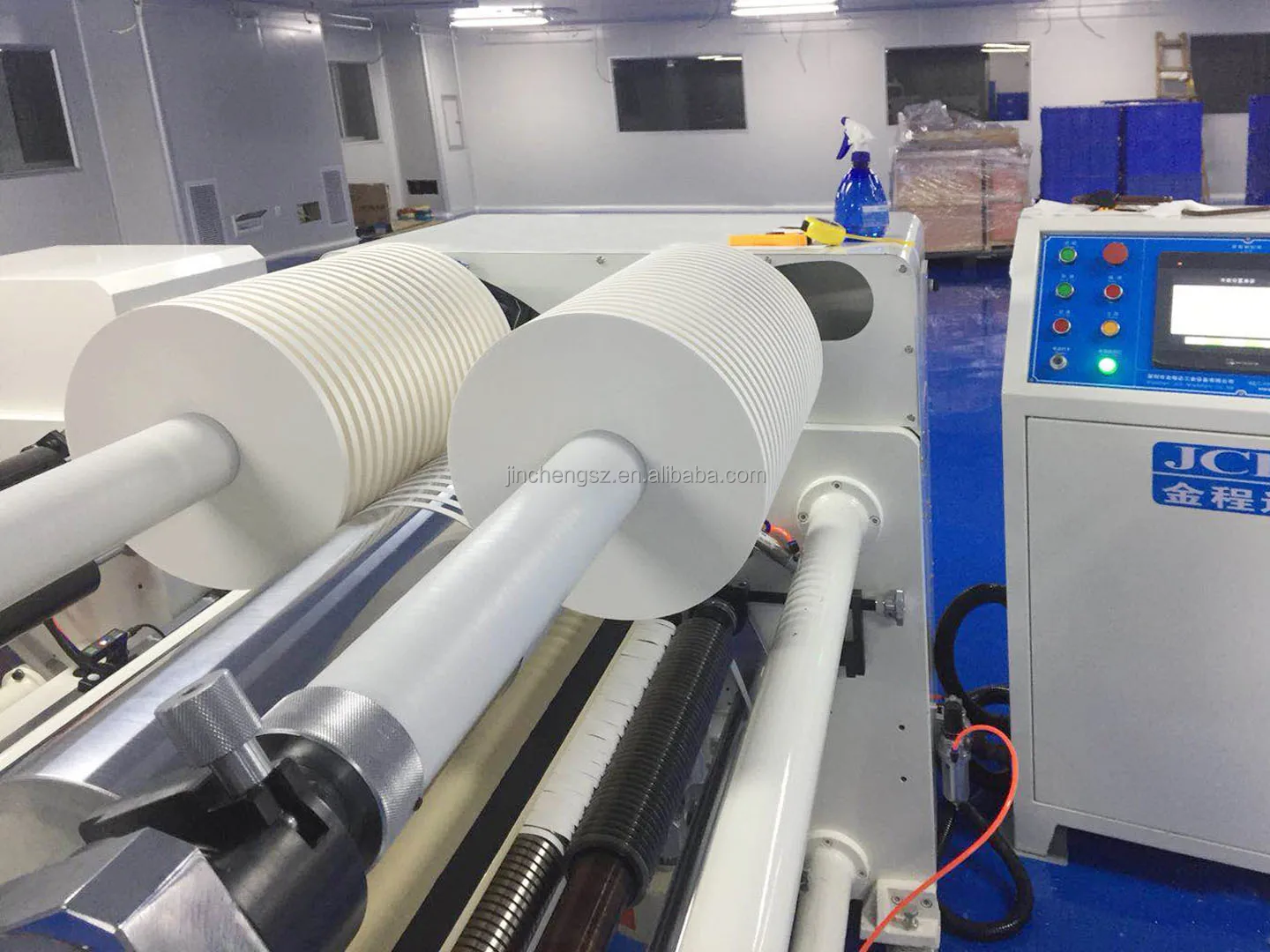

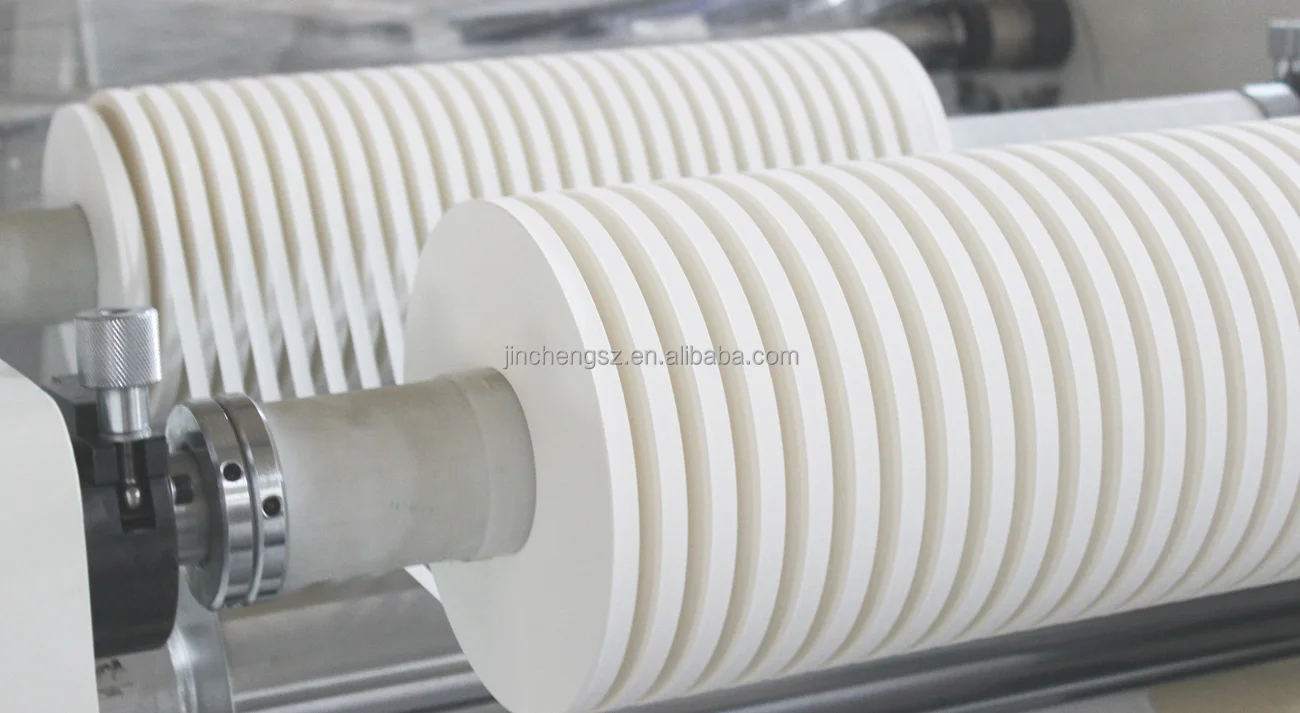

Double shafts for rewinding.
Hydraulic lifter :
Convenient to load the big and heavy jumbo roll.
You can quickly complete the action of rising or falling.
Ultrasonic EPC device for web guiding.
Make sure the web goes straight.
With circular knife and spacers.
You can adjust the cutting width according to the combined spacers.
---PACKING & DELIVERY---
Packaging: WOODEN CASE | ||
Packaging Details | A seaworthy wooden case for packing the whole machine. No need do fumigation bcs it is a kind of plywood. Convenient for the forklift operation during loading & unload in container. | |
Packaging: VACUUM PACKING | ||
Packaging Details | We also provide vacuum packing for machine according to customers special request. Avoid the electrical parts appliances during long distance transportation on the sea. | |
--- CE CERTIFICATION---
---OUR FACTORY---
---OUR EXHIBITION---
---FAQ---
---CONTRACT US---
