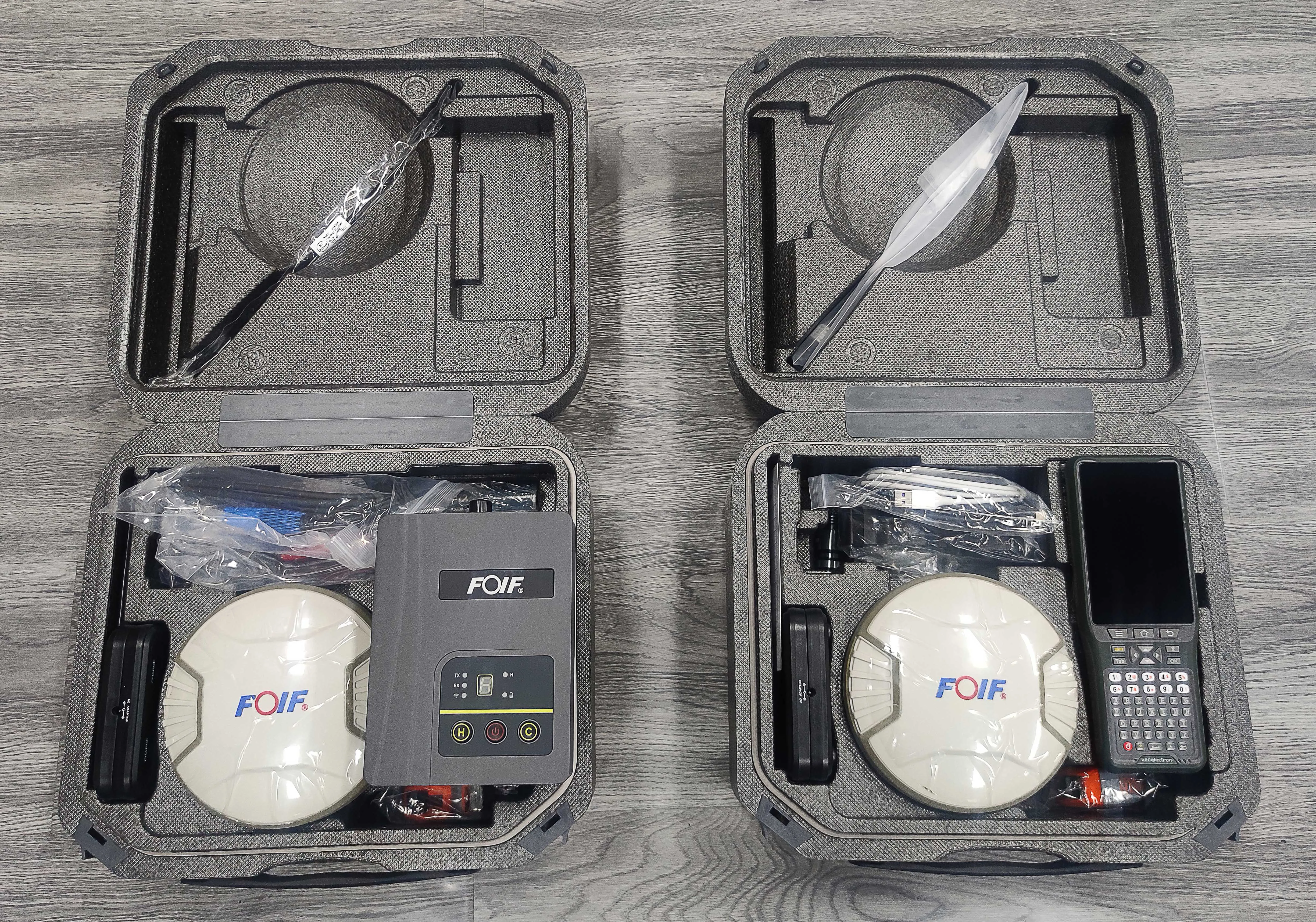

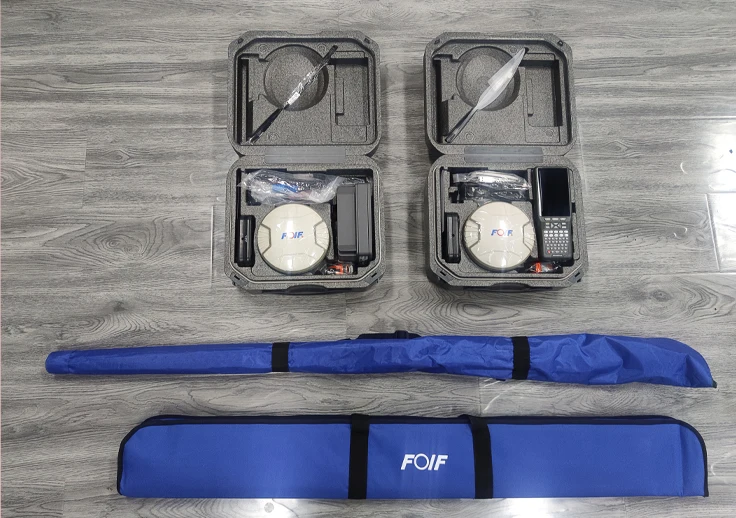

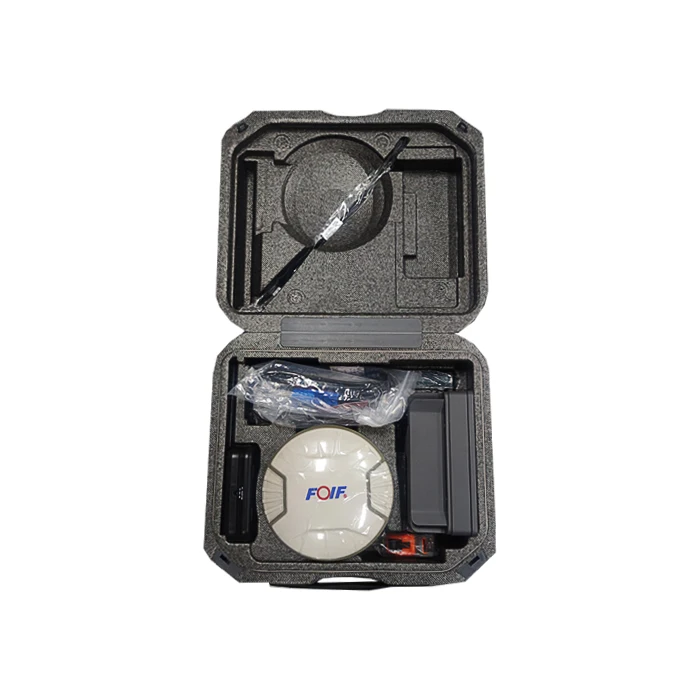

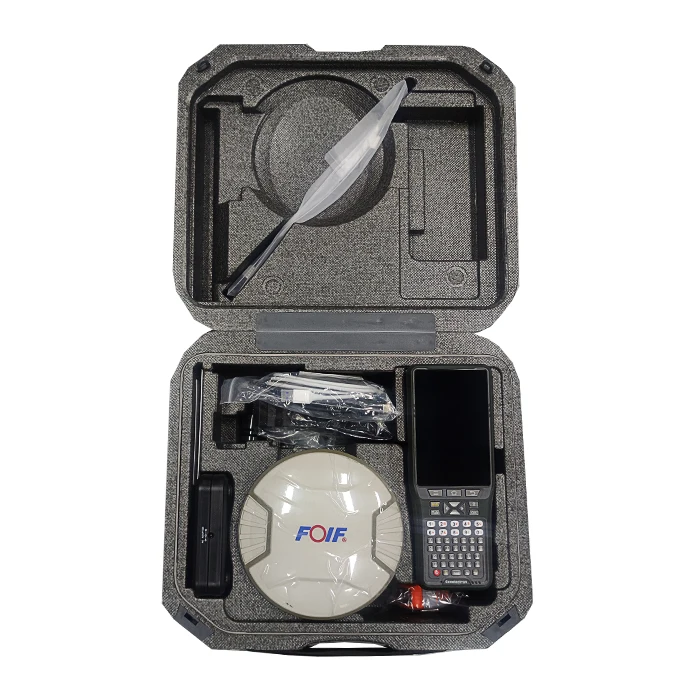

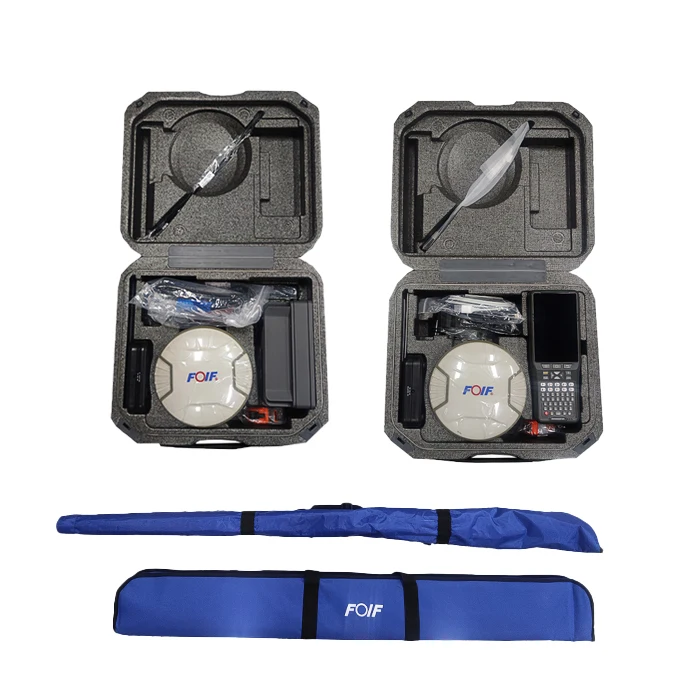

High Performance 800 channels RTK FOIF A90 GNSS Receiver GPS rtk base and rover gnss RTK Land surveying instruments
High Performance 800 channels RTK FOIF A90 GNSS Receiver GPS rtk base and rover gnss RTK Land surveying instruments
High Performance 800 channels RTK FOIF A90 GNSS Receiver GPS rtk base and rover gnss RTK Land surveying instruments
High Performance 800 channels RTK FOIF A90 GNSS Receiver GPS rtk base and rover gnss RTK Land surveying instruments
High Performance 800 channels RTK FOIF A90 GNSS Receiver GPS rtk base and rover gnss RTK Land surveying instruments
High Performance 800 channels RTK FOIF A90 GNSS Receiver GPS rtk base and rover gnss RTK Land surveying instruments
High Performance 800 channels RTK FOIF A90 GNSS Receiver GPS rtk base and rover gnss RTK Land surveying instruments

High Performance 800 channels RTK FOIF A90 GNSS Receiver GPS rtk base and rover gnss RTK Land surveying instruments

Share on (1600566544717):


Price:$2,000.00 - $2,100.00

Quantity:


Product Overview

Description















Model
A90
GNSS
Channels
800
Signals
BDS: B1, B2, B3
GPS: L1CA, L1P. L1C, L2P, L2C, L5
GLOASS: G1,G2, P1, P2
GALILEO: E1BC, E5a. E5b
QZSS: L1CA. L2C. L5, L1C
SBAS: L1CA, L5;
L-Band
Accuracy
Static
H: 2.5 mm±1ppm , V: 5 mm±1ppm
RTK
H: 8 mm±1ppm, V:15 mm±1ppm
DGNSS
<0.5m
ATLAS
8cm
System
Initialization Time
8s
Initialization Reliable
99.90%
Operating System
Linux
Merrory
8GB, support expanable MisroSD
Wifi
802.11 b/g/n
V2.1+EDR/V4.1Dual,Class2
E-Bubble
support
Tilt Survey
IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate
Datalink
Audio
support TTS audio broadcast
UHF
Tx/Rx Internal Radio, 1W/2W adjustable, radio support 410-470Mhz
Protocol
support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target
Network
4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)
Physical
Interface
1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232)
Button
1 Power Button
Indication Light
4 Indication Lights
Size
Φ156mm * H 76mm
Weight
1.2kg
Power supply
Battery capacity
7.2V, 24.5Wh(standard two batteries)
battery Life Timer
Static Survey: 15 hours, Rover RTK survey: 12h
External power source
DC 9-18V, with overvoltage protection
Environment
Work Temporature
-35℃ ~ +65℃
Storage Temporature
-55℃ ~ +80℃
waterproof&dustproof
IP68
Humidity
100% anti-condensation
