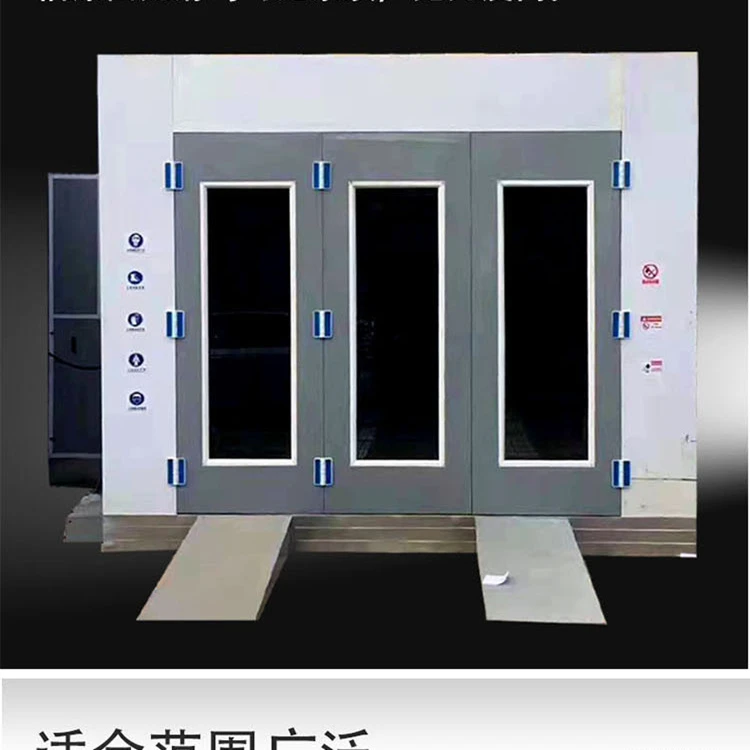

Natural Gas Paint Spray Booth Automotive Car Lacquer Baking CNG LNG Oven Room
- Category: Spray Booths >>>
- Supplier: Jinan Aos International Co. Ltd.
Share on (1600566549782):
Product Overview
Description
Product Description

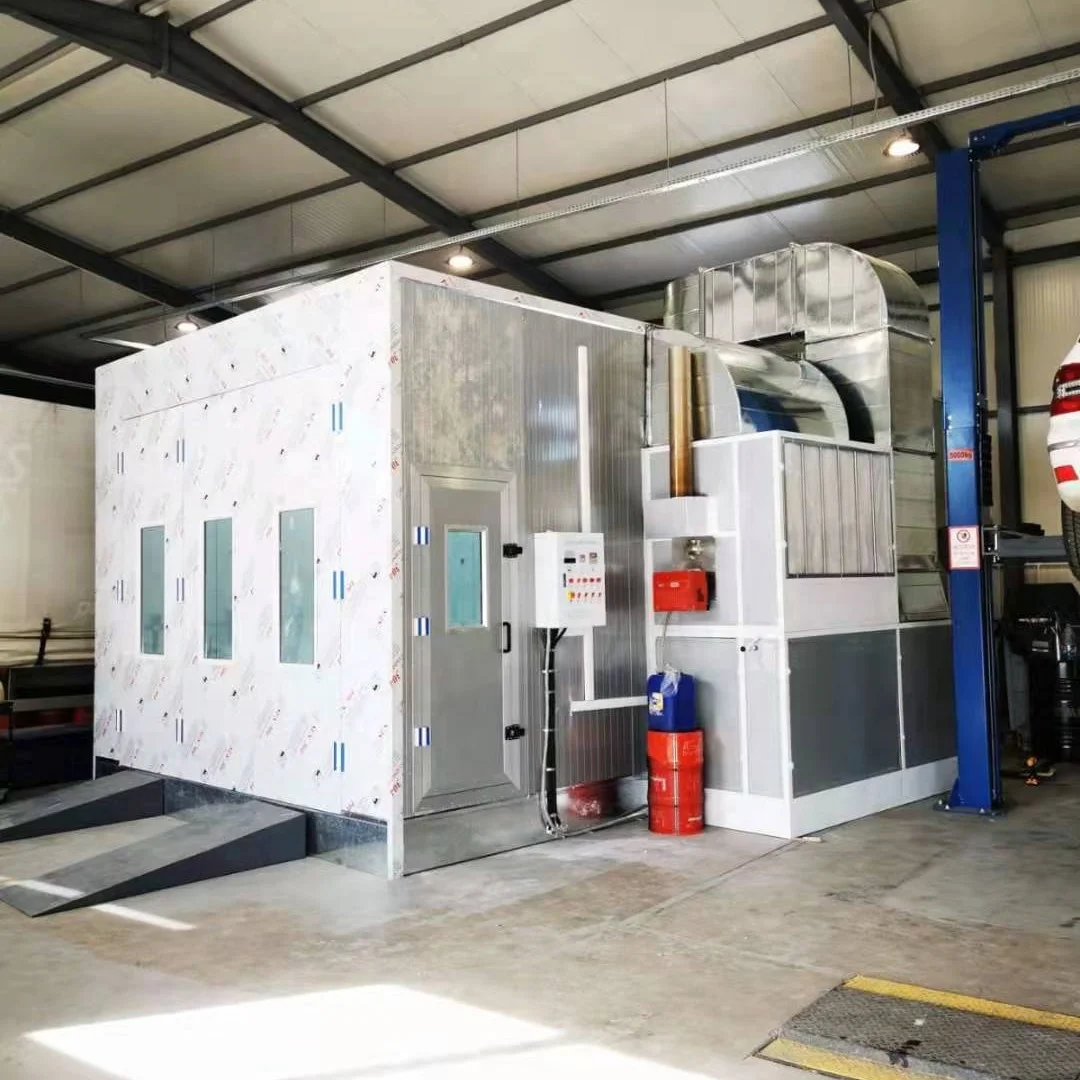

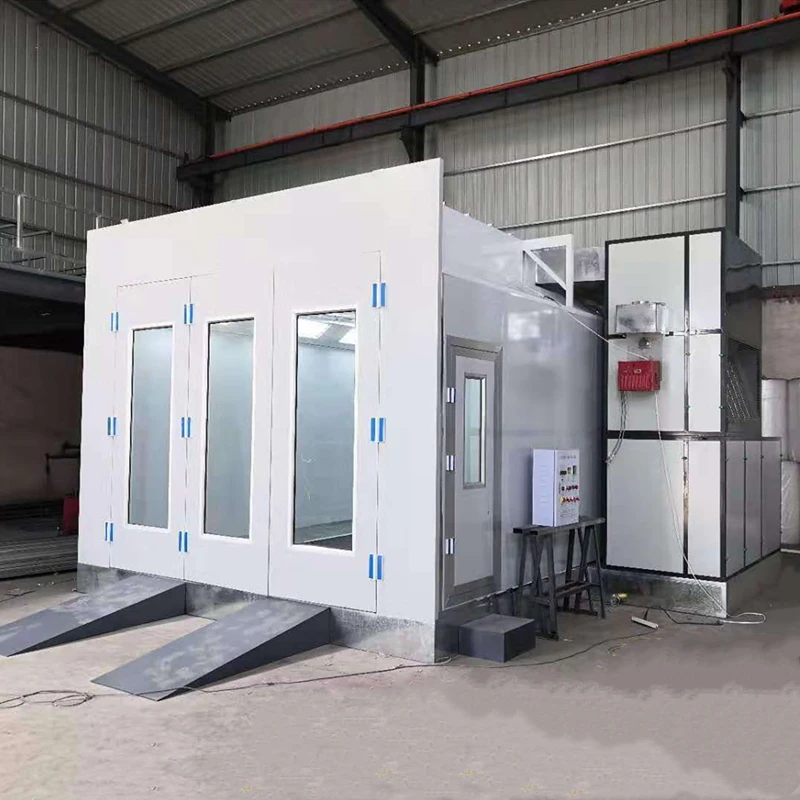

Advanced efficient car paint spray booth
Product details
Outside Size: | 7000*4000*3320mm | |
Inside Size: | 6900*3900*2650mm | |
Cabin system: | Wallboard: | Antiflaming EPS Plate,50mm thick,steel skin is 0.4mm thick, tongue & groove style, anti-flame and heat-insulation, galvanized steel roof panel. |

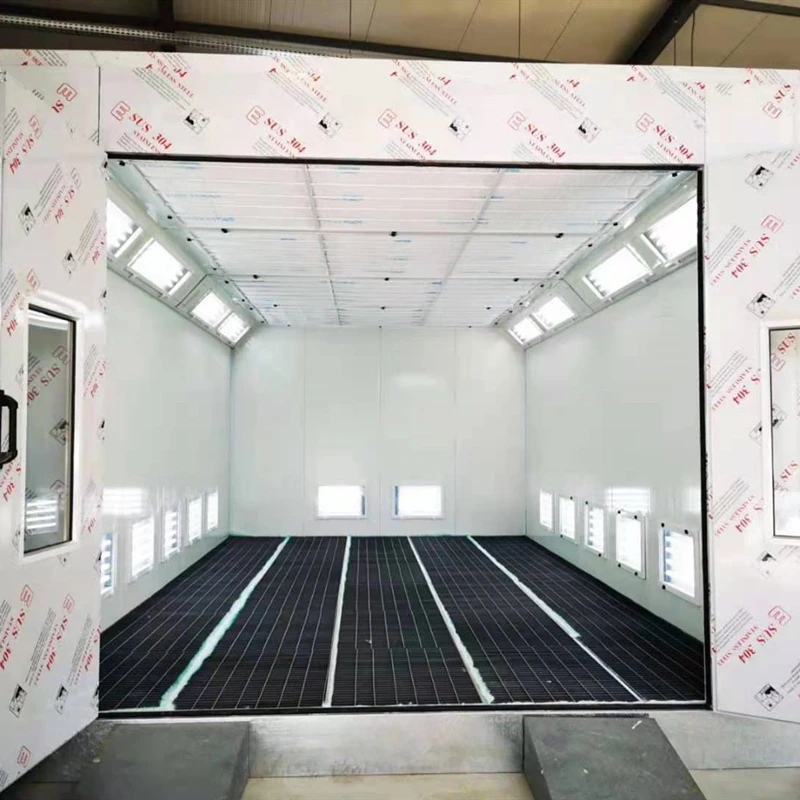

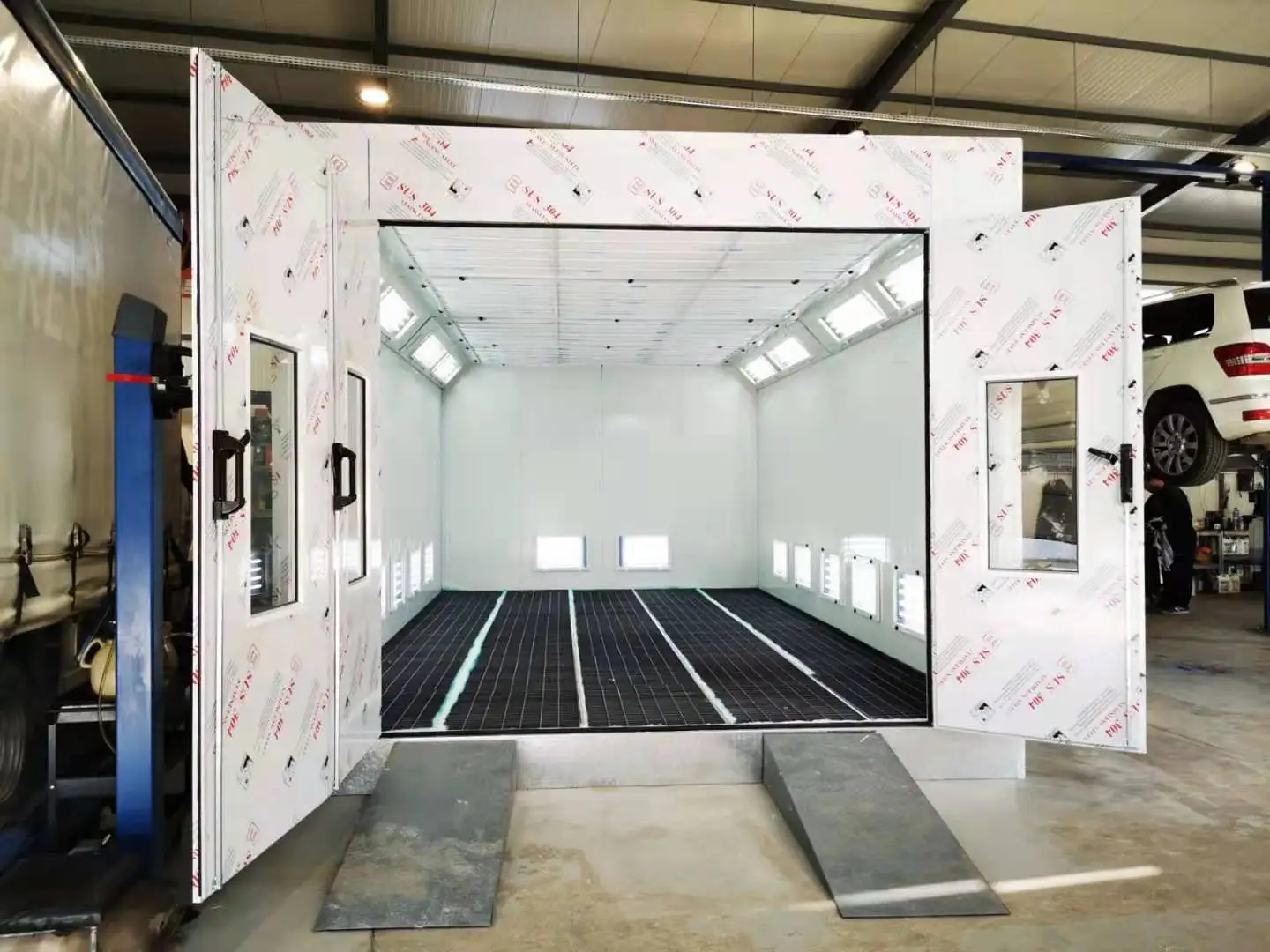

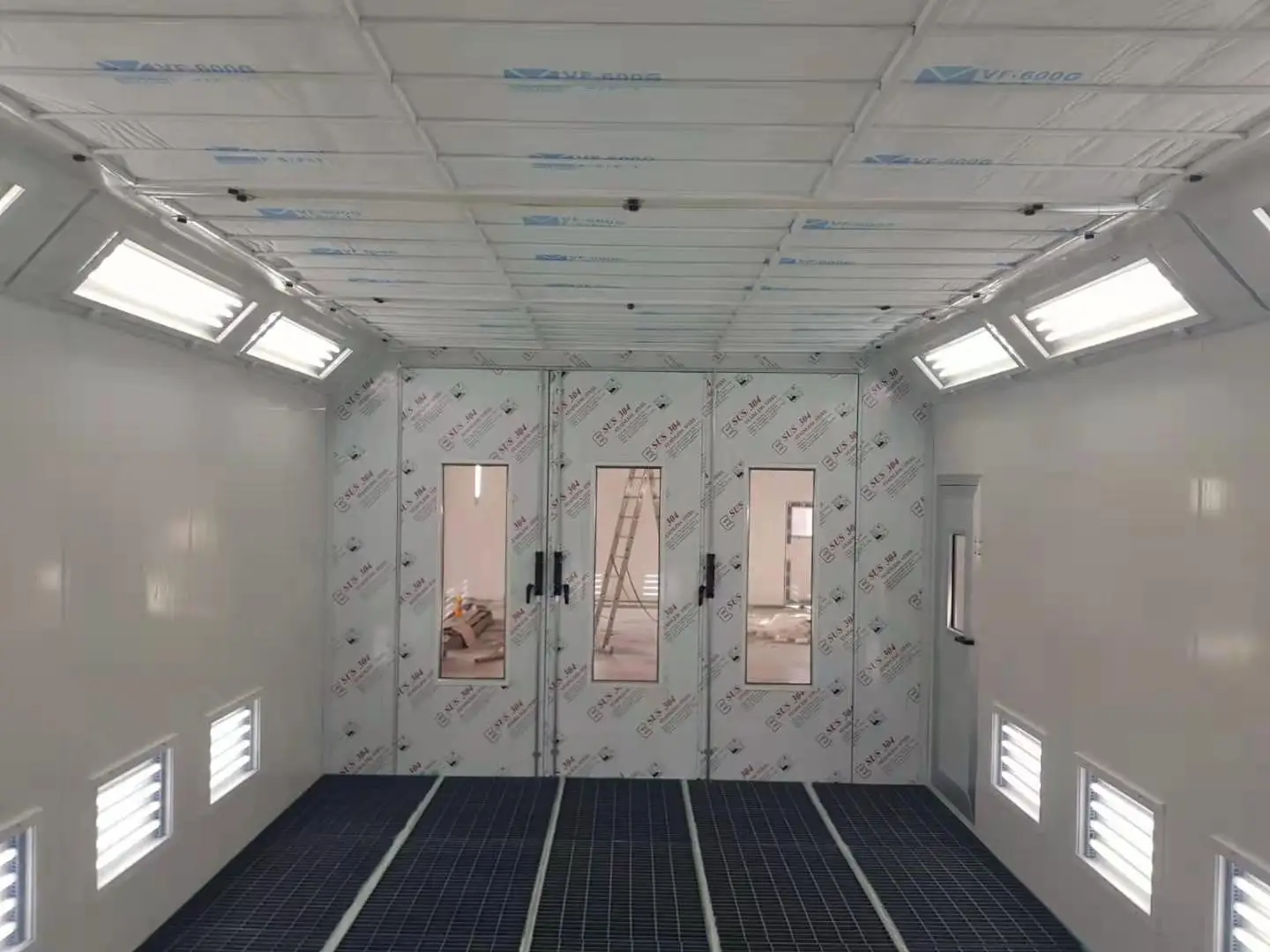

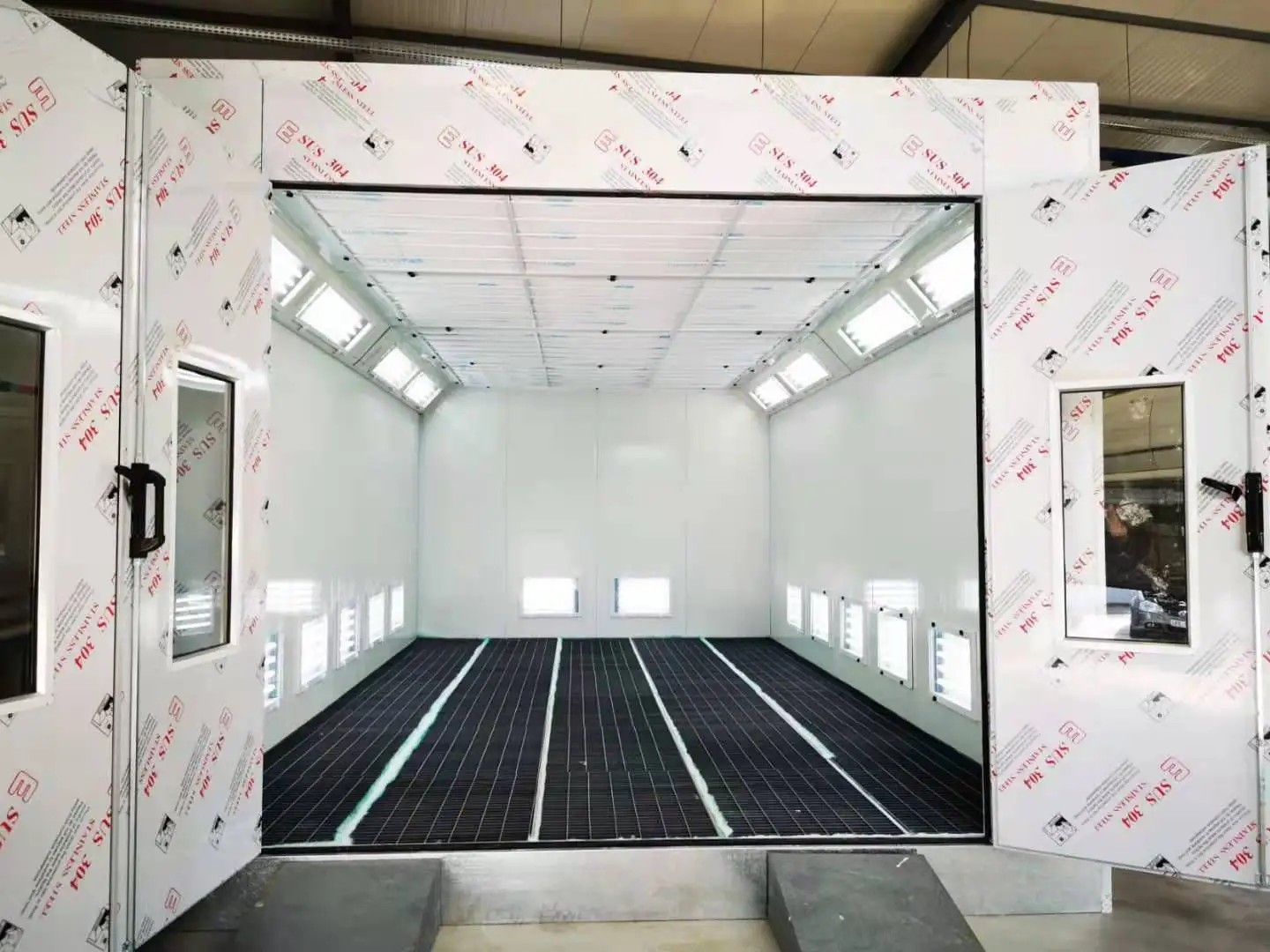

3-fold main doors,total 3000*2500mm(W*H),with safety glass, with handles and high-pressure safety lock. | ||
Side door: | 1 unit 700*1800mm(W*H), with safety glass windows, aluminum alloy frame, with handle and safety lock. | |
Basement: | 280mm height galvanized metal-base. 2 rows of grid plates made by flat bar and round steel, 3 rows of embossed plates. Two sets of hard strength ramps. | |
Air circulation system: | Intake Fan: | 2*4kw;double-inlet centrifugal fans, air capacity:24000m3/h. |
Exhaust Fan: | 1*7.5kw; double-inlet centrifugal fans, air capacity:21000m3/h. | |
Cabinet for the fans*1unit,air ducts*3pcs,electric damper switch*1unit. | ||
Filtering system: | Pre-filter, filtering rate>83%,can capture granules larger than 10μm; Ceiling filter,filtering rate>97%, can capture granules bigger than 4μm Fiberglass floor filter, filtering rate>70%. | |
Heating System: | Natural Gas Burner heating, Italy Riello FS20 Natural Gas Burner. Heating productivity: 200000 Kcal/h, stainless steel heat exchanger, with anti-explosion hole for protection, max working temperature is 80ºC. | |

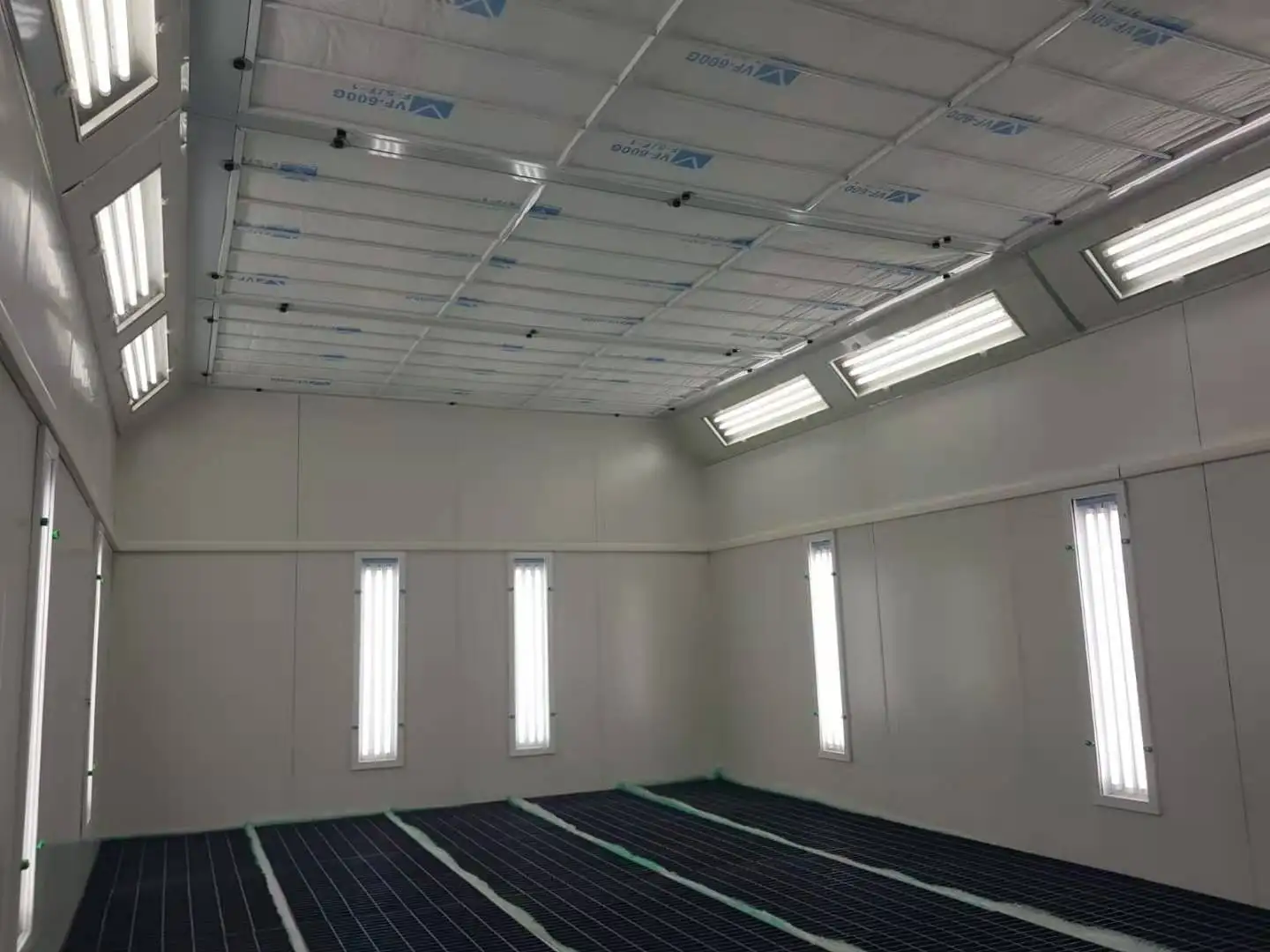

Lighting system: | Ceiling lights: 8units*3pcs=24pcs*36W, with electronic ballasts, powder-coated light box. Side lights:6units*3pcs=18pcs*36W,vertically set,powder-coated light box. | |
Controlling system: | Intelligent control,power switch,spray/baking switch,light switch,emergency stop,breakdown alarm. | |
Power total: | About 17KW (380V/3P/50hz) Support for Customization | |
Quality assurance:
1. Vinner is equiped with world advanced computer driving production lines.
2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices.
3. Manufactured in advanced production line.
Packaging & Shipping
PACKAGE:
Standard export packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
FAQ
- What is the process of purchase?
1 Please tell me your precise needs
2 Confirm every detail after our communication.
3 We will make Proforma Invoice for payment, or place the order by Alibaba.
4 You arrange the payment and send bank slip to us.
5 We arrange the production and deliver to you.
6 We send you the shipping documents by express or email.
7 When goods arrive at your sea port, you get the goods against the shipping documents. If you don’t know how to do it. local shipping agent will help you do customs clearance. It's so easy, don’t worry about it.
- What is your payment terms?
We accept, T/T, LC, Western Union, Alibaba Trade Assurance etc.
- How long can I get the goods?
Lead time is 15 days after we receive the deposit. It is then delivered to the shipping company for transport. The shipping time on the sea is around 30 days. So you will receive the goods around 50 days.
- How to transfer the machine?
It is usually shipped by sea. Plywood package.
- How much is the shipping fee?
Please tell us the models and quantity of goods you need, we will check the shipping cost with shipping company.
- If I pay machine and shipping, do I still need to pay any fee at my country port?
Yes, you also need to pay customs fee and tax. You can check local custom office or import agent for exact cost.
- Is it OK to print my LOGO on the lift?
Yes. Please inform us formally before our production and send us your high pixel LOGO.
- What is your warranty? How can I get spare parts?
Our warranty is one year. We will provide you spare parts freely by express.
- Can you provide the voltage of my country?
We can offer all the different voltages in different countries.
Company Information
- Why choose us? AOS International, Inc
1 We have a professional technical team, We have 18 years' experience, We will provide you with machines of high standard and reasonable price.
2 We offer one year warranty. Spare parts will be freely sent you.
3 We provide a one-stop service. Other car repair and maintenance machines can be purchased from us, such as spray booths, tire balancers, frame machine, hydraulic vehicle, tractors etc.
4 Jinan AOS International Co., Ltd, was established in 2004, our company has various certification systems such as ISO, CE, SGS, etc. It can undertake OEM and ODM mass production. Quality is always considered as the foundation for our standard and growth. We also offer One-Stop Supply Solution. Now our products have been sold all over the world and are widely used in various industries and places. Let us work together for a win-win situation!
