IP68 водонепроницаемый 1500 В Солнечный разъем TUV CE IP68 Водонепроницаемый 40A PPO солнечный DC PV Панель Кабельный разъем
- Category: Connectors >>>
- Supplier: Dongguan Slocable Photovoltaic Technology Co. Ltd.
Share on (1600566559606):
Product Overview
Description
Slocable TUV CE IP68 Waterproof 1.5KV 40A PPO Solar DC PV Panel Cable Connector
Product Description
Product advantage
1.Simple on-site processing.
2.Mating safety provided by keyed housings.
3.Multiple plugging and unplugging cycles.
4.High current carrying capacity.
5.TUV,CE approved.
6. Accomodates PV cable with different insulation diameters
Technical Data
| Insulation material | PPO |
| Rated current | 40A |
| Rated voltage | 1500V DC |
| Test voltage | 8kv(50HZ,1min) |
| Contact resistance | <0.5mΩ |
| Contact material | Copper,Tin plated |
| Degree of protection | IP2X/IP68 |
| Safety class | II |
Overvoltagecategory/ pollution degree | CATIII/2 |
| Insertion force | Max.50N |
| Withdrawal force | Min.50N |
| Ambient temperature range | -40°C-+85°C(IEC) |
| Suitable cable cross sections | 2.5/4.0/6.0 mm2 14/12/10 AWG |
| Connecting system | Crimping connection |

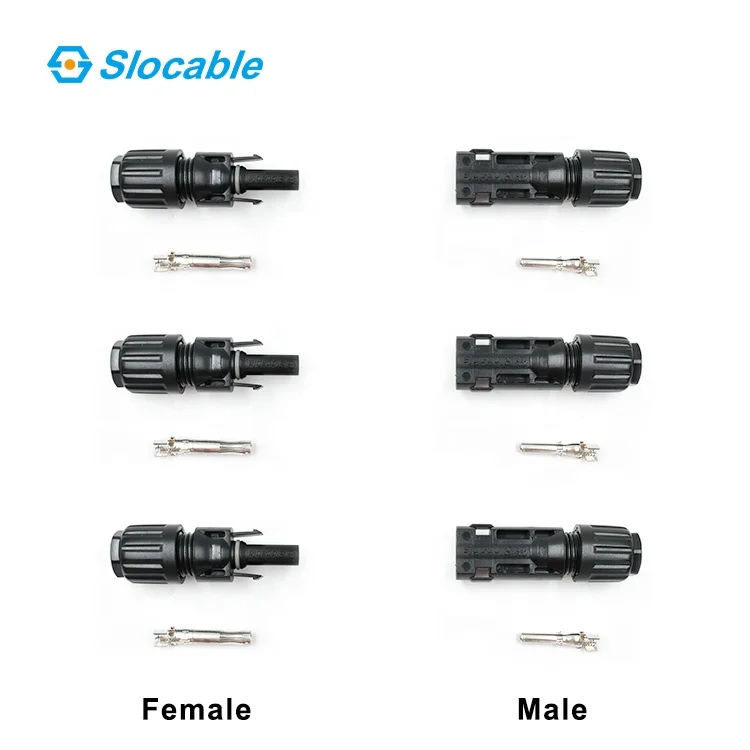

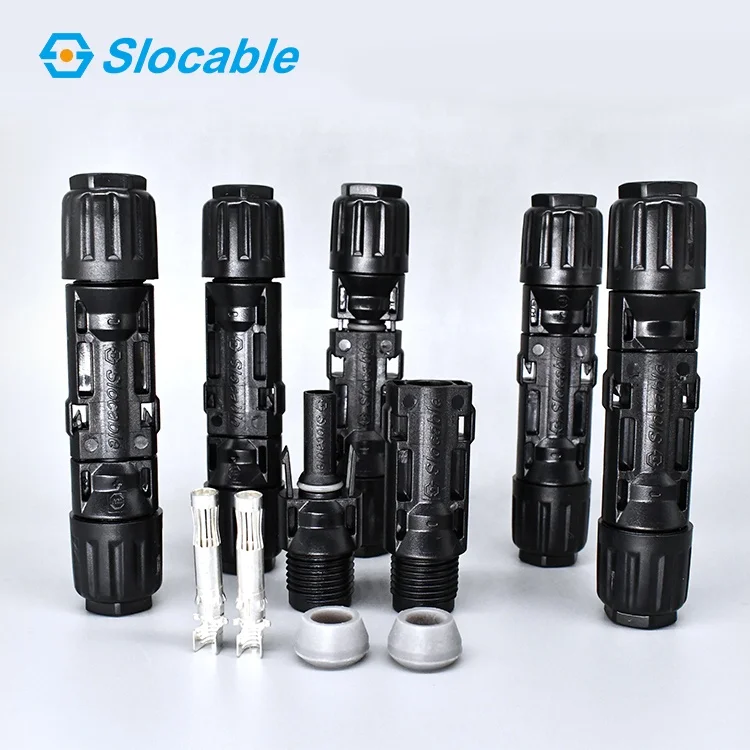

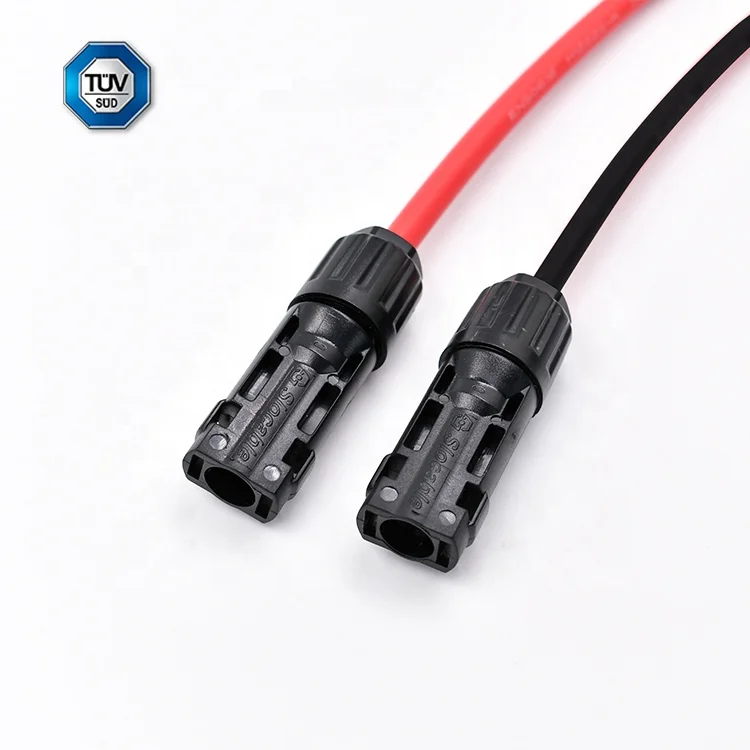

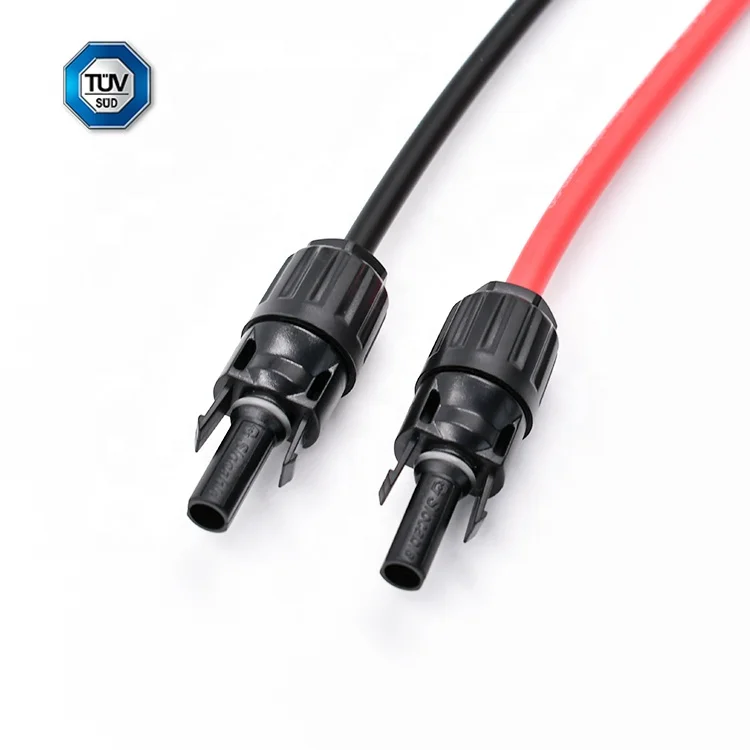

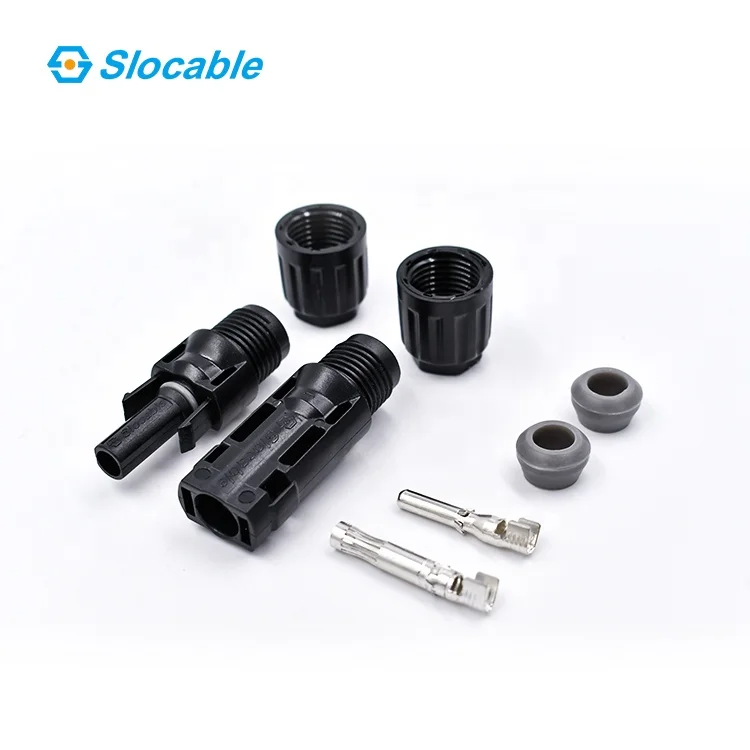

Product picture
Quality Comparison
More products
More products:
Company Information
Company Information:
Package:
Package:
FAQ
FAQ:
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors, PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 13years experience.
Q2: How can I get the Quotation of the products ?
Send your Message to us by E-mail / TradeManager,We'll reply you within 1 hour in the Working Time.
Q3: How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the delivery time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
