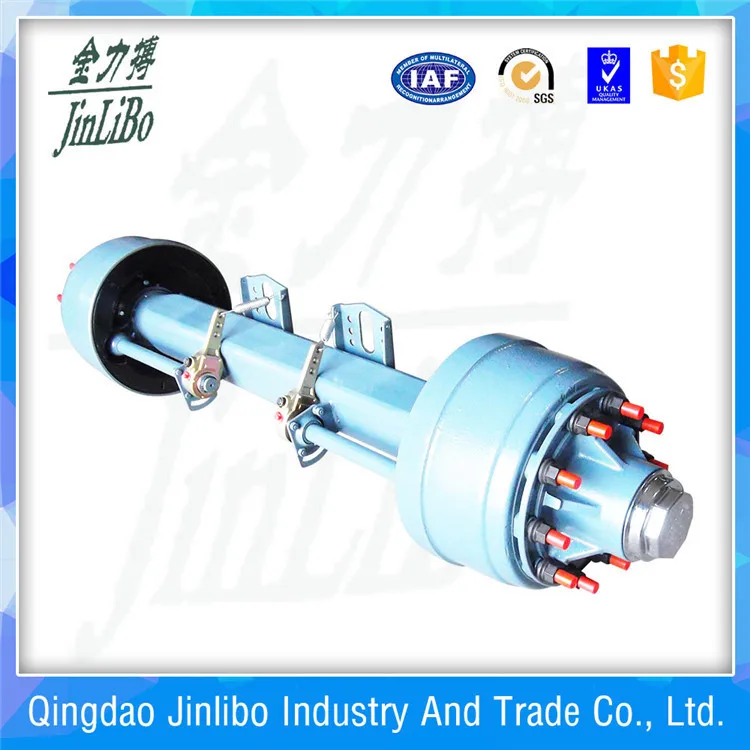

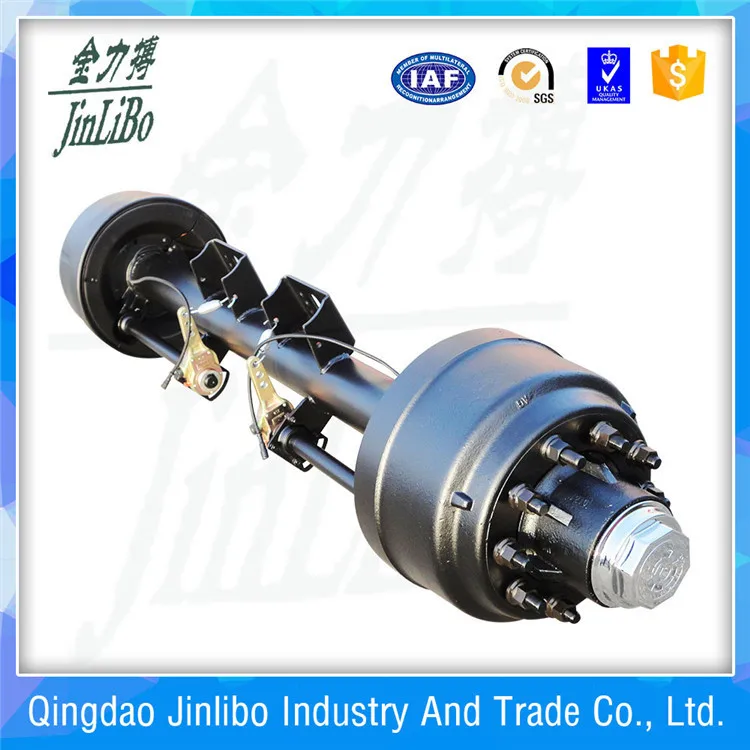

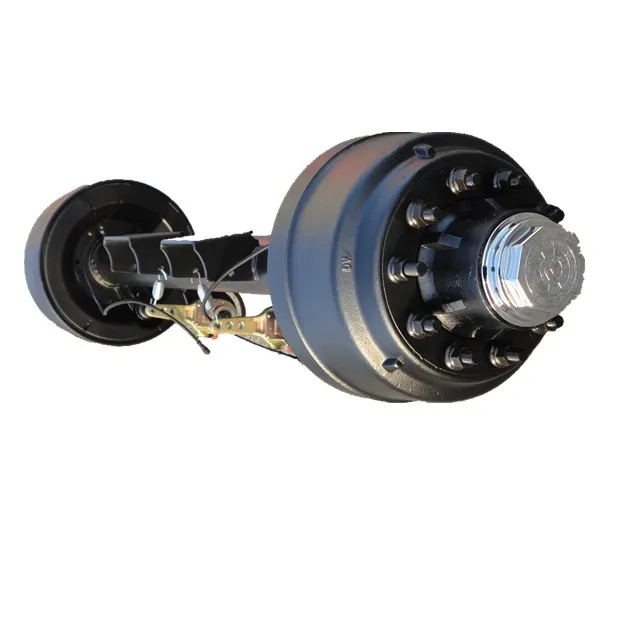

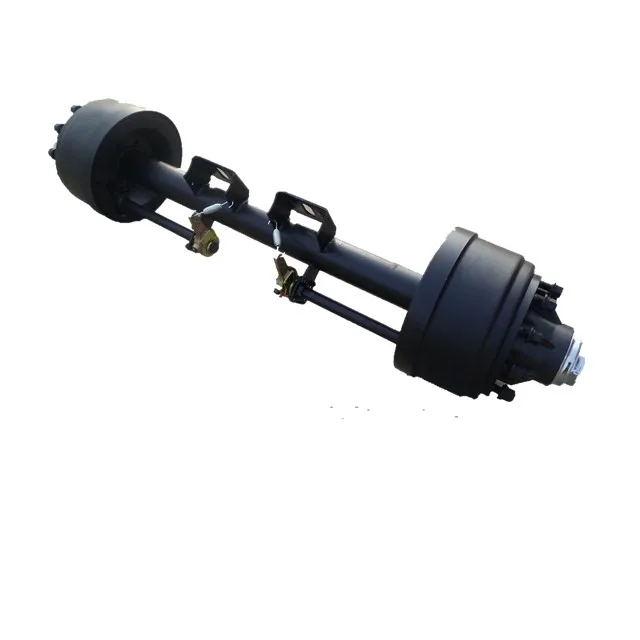

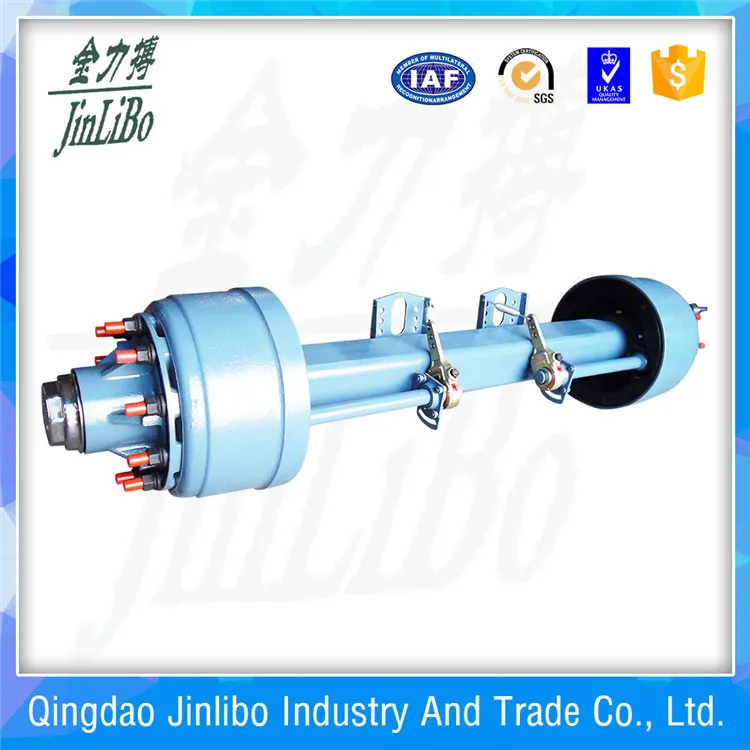

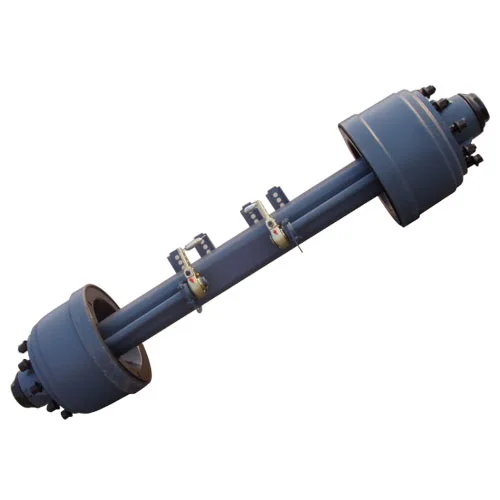

13t American Type Outboard Axle Of Trailer Parts
- Category: Auto Transmission Systems >>>
- Supplier: Qingdao Jinlibo Industry And Trade Co. Ltd.
Share on (1600566566715):
Product Overview
Description
Company Information
Product Description
| American Outboarding Axle Specifications 13T | ||||||||||||
| AXLE TYPE | BRAKE SIZE | WHEEL FIXING | NO.XSIZE OF WHEEL STUD (DIM A) | WHEEL REG.DIA.(DIM B) | DIM D | BEARING | WHEEL RIM SIZE | BEAM SIZE | AXLE CAPACITY | SPRING SEAT INSTALLATION | TRACK LENGTH(DIM C) | WEIGHT |
| KMMR1318B | 420*180 | ISO | 10*M22*335 | 281 | 725 | 518445 518445 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 378KG |
| square 150 | ||||||||||||
| KMMR1320B | 420*200 | ISO | 10*M22*335 | 281 | 735 | 518445 518445 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 390KG |
| square 150 | ||||||||||||
| KMMR1318C | 420*180 | ISO | 10*M22*285.75 | 221 | 725 | 518445 518445 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 378KG |
| square 150 | ||||||||||||
| KMMR1320C | 420*200 | ISO | 10*M22*285.75 | 221 | 735 | 518445 518445 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 390KG |
| square 150 | ||||||||||||
| KMMR1318A | 420*180 | JAP | 10*M22*285.76 | 221 | 725 | 518445 518445 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 378KG |
| square 150 | ||||||||||||
| KMMR1622E | 420*220 | ISO | 10*M20*335 | 281 | 738 | 518445 220149 | 20´´ | round127x19 | 16T | ≤450 | 1850mm | 440KG |
| square 150 | ||||||||||||
| American Outboarding Axle Specifications 16T | ||||||||||||
| AXLE TYPE | BRAKE SIZE | WHEEL FIXING | NO.XSIZE OF WHEEL STUD (DIM A) | WHEEL REG.DIA.(DIM B) | DIM D | BEARING | WHEEL RIM SIZE | BEAM SIZE | AXLE CAPACITY | SPRING SEAT INSTALLATION | TRACK LENGTH(DIM C) | WEIGHT |
| KMM622E | 420X220 | ISO | 10XM22X335 | 281 | 738 | 518445 220149 | 8.00-20'' | square 150 | 16T | ≤450 | 1850MM | 440KG |
Advantages
Novel design and various styles.
Excellent materials.
professional and animated design.
environmmentally favorable materials and equirpments.
Providing the top quality and best services.
Marvelous and satisfactory after-sale services.
Colors,sizes and etc.can be adjusted as your requirements.
A small majority orders are acceptable.
Your any order will be enthusiastically welcomed.

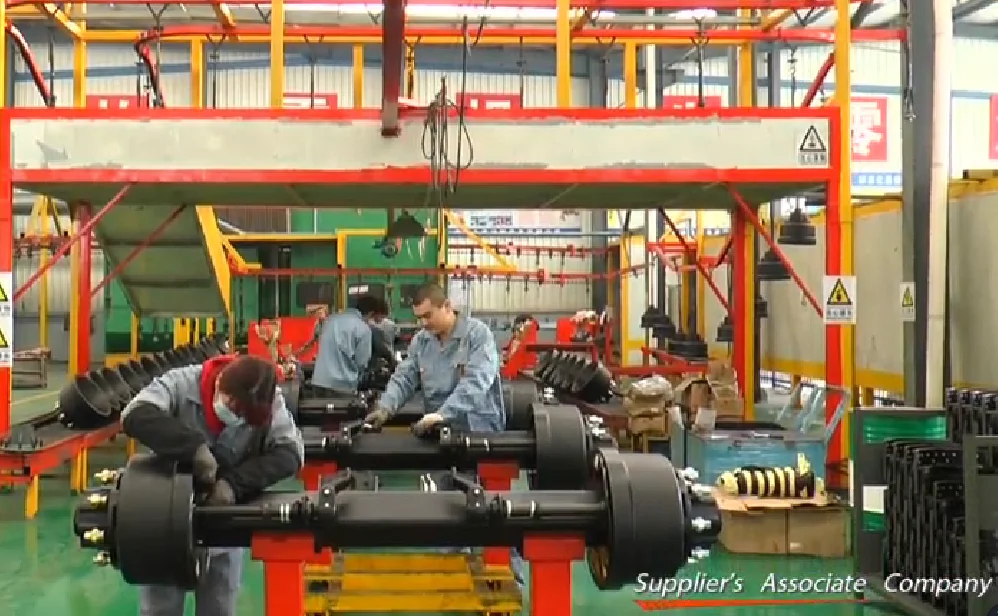

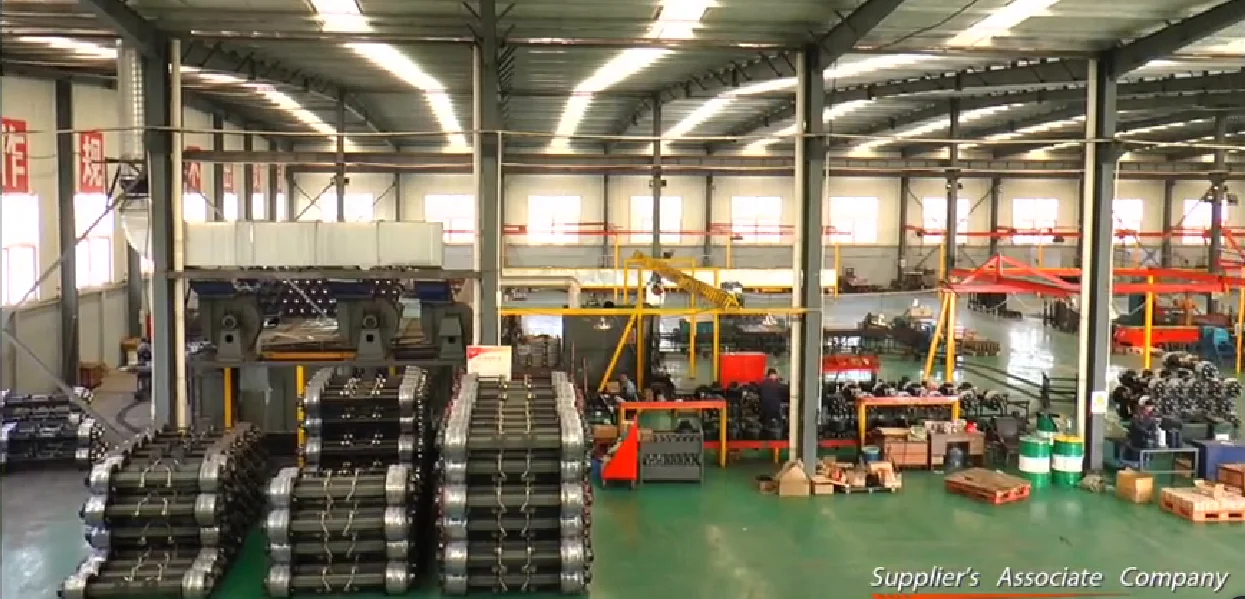

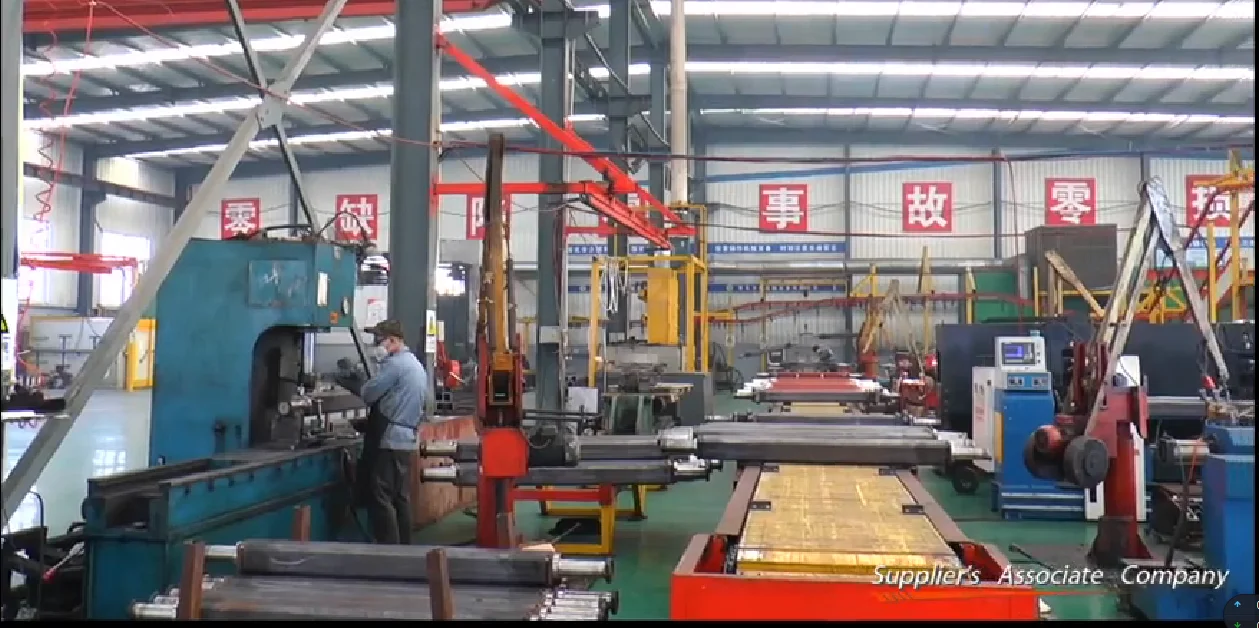

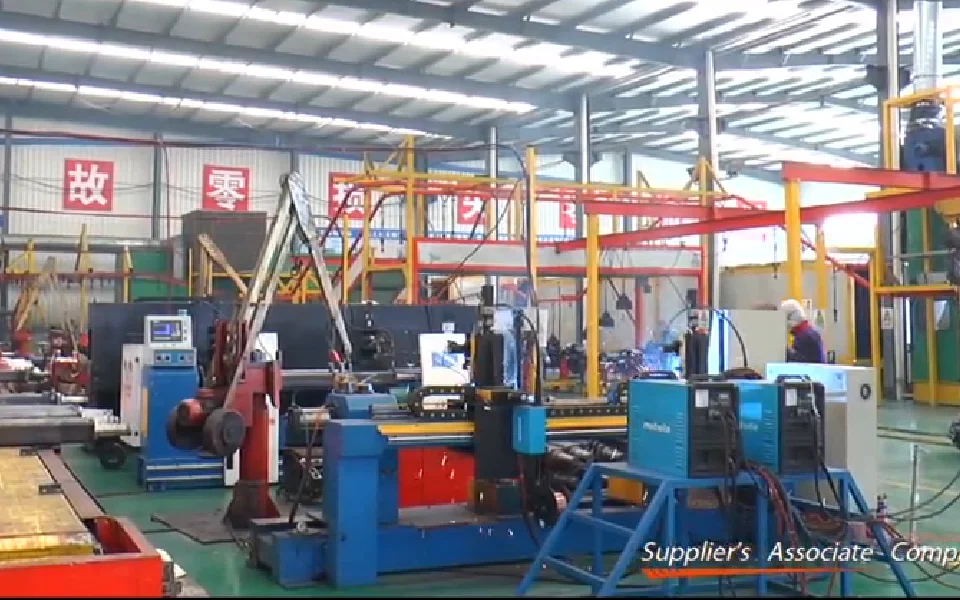

EXHIBITION
FAQ
Q1:Are you a factory?
A:Yes,we are a factory,but not just a factory,as we have sales team,our own offices,and they all can help the buyers and cooperative partners to decide which products are the best choices for them,and all your requirements and inquires will be replyed in time.
Q2:What's your Delivery Time?
A:In general, the delivery time is 15-20 days.We will make the delivery as soon as possible with the guaranted quality.
Q3:What is the convenient way to pay?
A:L/C , T/T,Unionpay,DP are accepted,and if you have a better idea , please be free sharing with us.

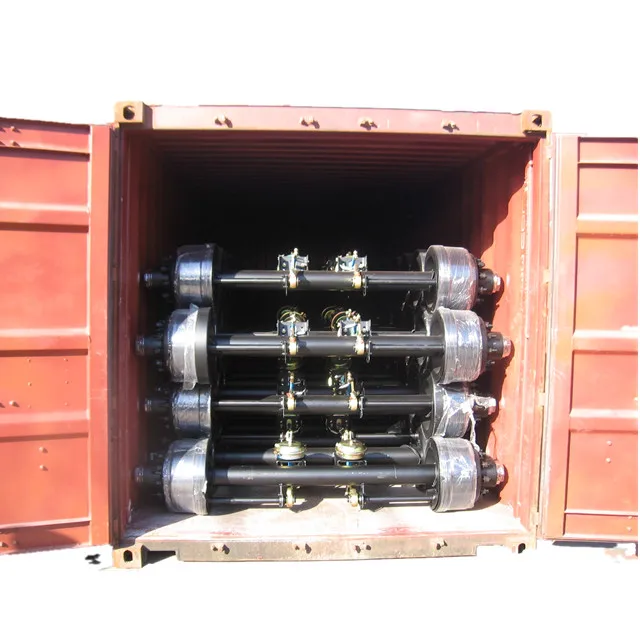

Q4:Which type of shipping would be better?
A:Generally,in consideration of the cheap and safe superiorities of sea transportation,we advice to make delivery by sea.What's more, we respect your views of other transportation as well.
contact info
Sales Contact Information
Emily zhang
Qingdao jinlibo Industry And Trade Co.,Ltd
TEL:86-532-55550735
FAX:86-532-55550736
Mob:86-18661818623(SAME AS WHATSAPP ID)
