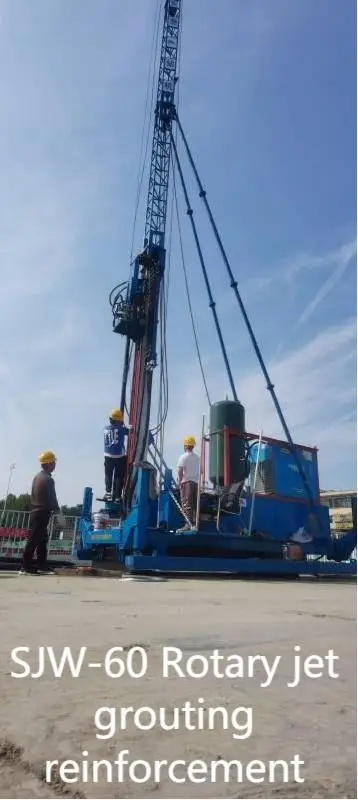

SJW 60 without the removal of drill rod Trailer Mounted drill rig reduce labor costs Borehole drilling rig
- Category: >>>
- Supplier: Wuxi Antian Engineering Technology Co. Ltd.
Share on (1600566571943):
Product Overview
Description
VR

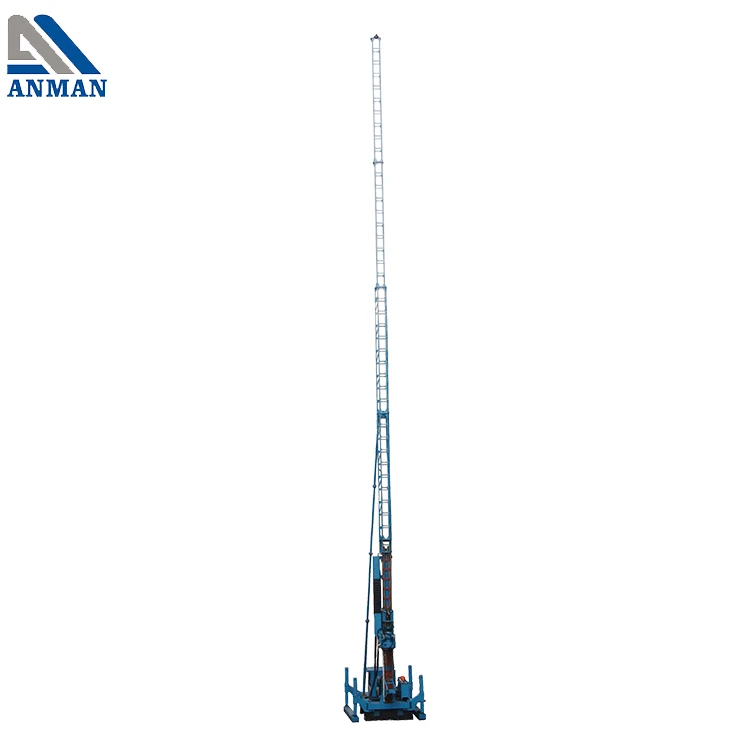

Products Description
SJW-60
by our technical department, to meet the market.

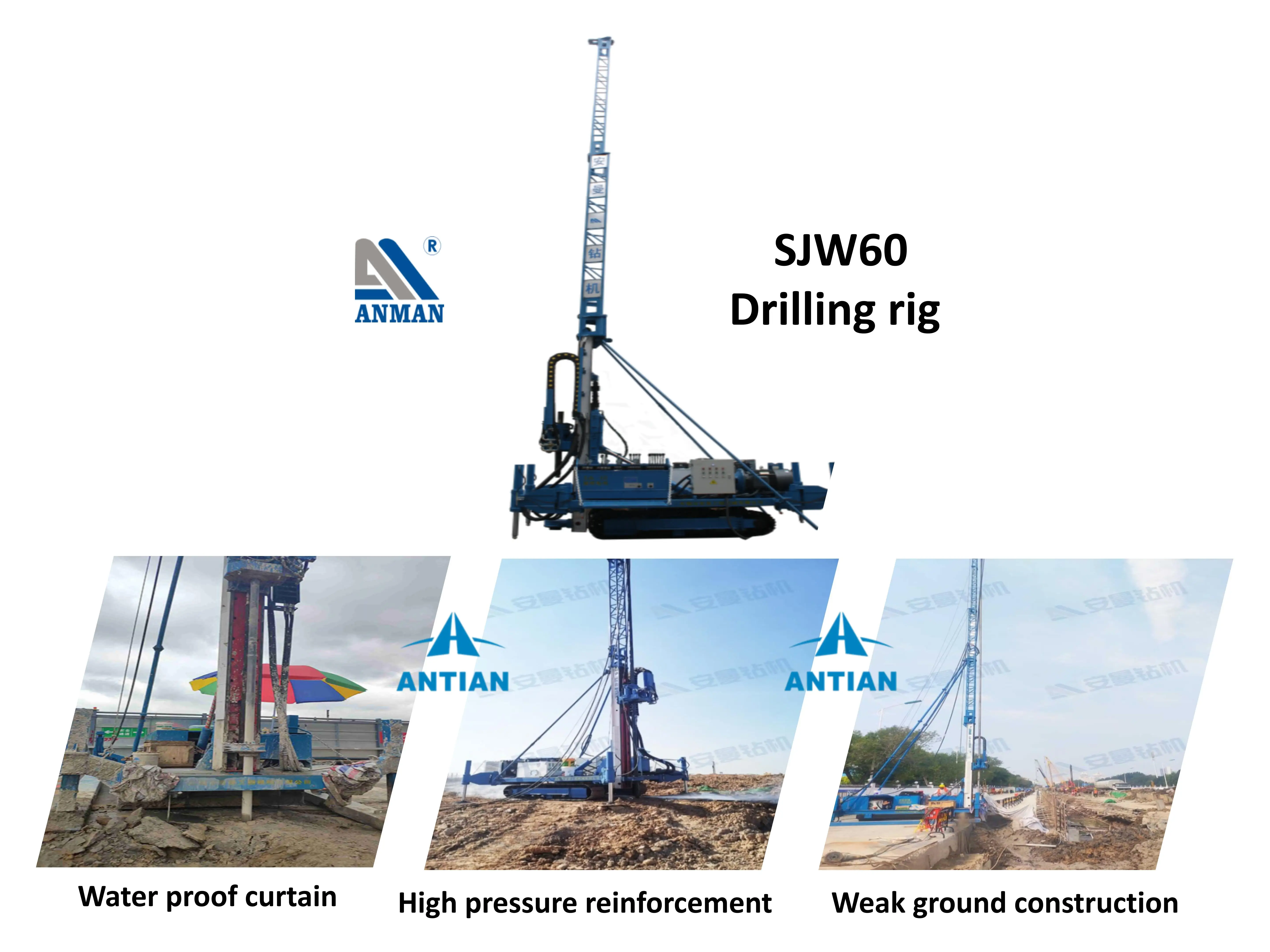

Application
PRODUCT SPECIFICATIONS
SJW-60 Online Wholesale drill rig vendor in china hydraulic borehole high pressure jet-grouting drilling rig
Model number | SJW-60 |
Hole diameter(mm) | Φ73,Φ89 |
Hole depth(m) | 80 |
Hole angle(°) | 90 |
Output speed of rotary head(max)(r/min) | 0~10、0~20、25、50、60、125 |
Output torque of rotary head(max)(N.m) | 7000 |
Stroke of rotary head(mm) | 4000 |
Lifting force of rotary head(kN) | 66 |
Lifting speed of rotary head(m/min) | 0~1.3/8/18/27 |
Feeding force of rotary head(kN) | 34 |
Feeding speed of rotary head(m/min) | 1.3~2.6 |
Input power(Electromotor)(kW) | 45+15 |
Dimension(L*W*H)(mm) | 6400*1940*2600 |
Vertical Working Dimension (L*W*H)(mm) | 5050*3200*27500 |
Weight(kg) | 7000 |
Jet-grouting | Single，Double，Triple |
Stake diameter(mm) | 400~600,600~1500,800~1500 |
Length of joint pipe(m) | 7,12,17,24 |
Elevating power of winch(KN) | （Main winch）20 （Vice winch）5 |
Cross-country height(mm) | 300 |
Longitudinal shift(mm) | 800 |
Lateral shifting(mm) | 500 |
Drilling parameter | optional |

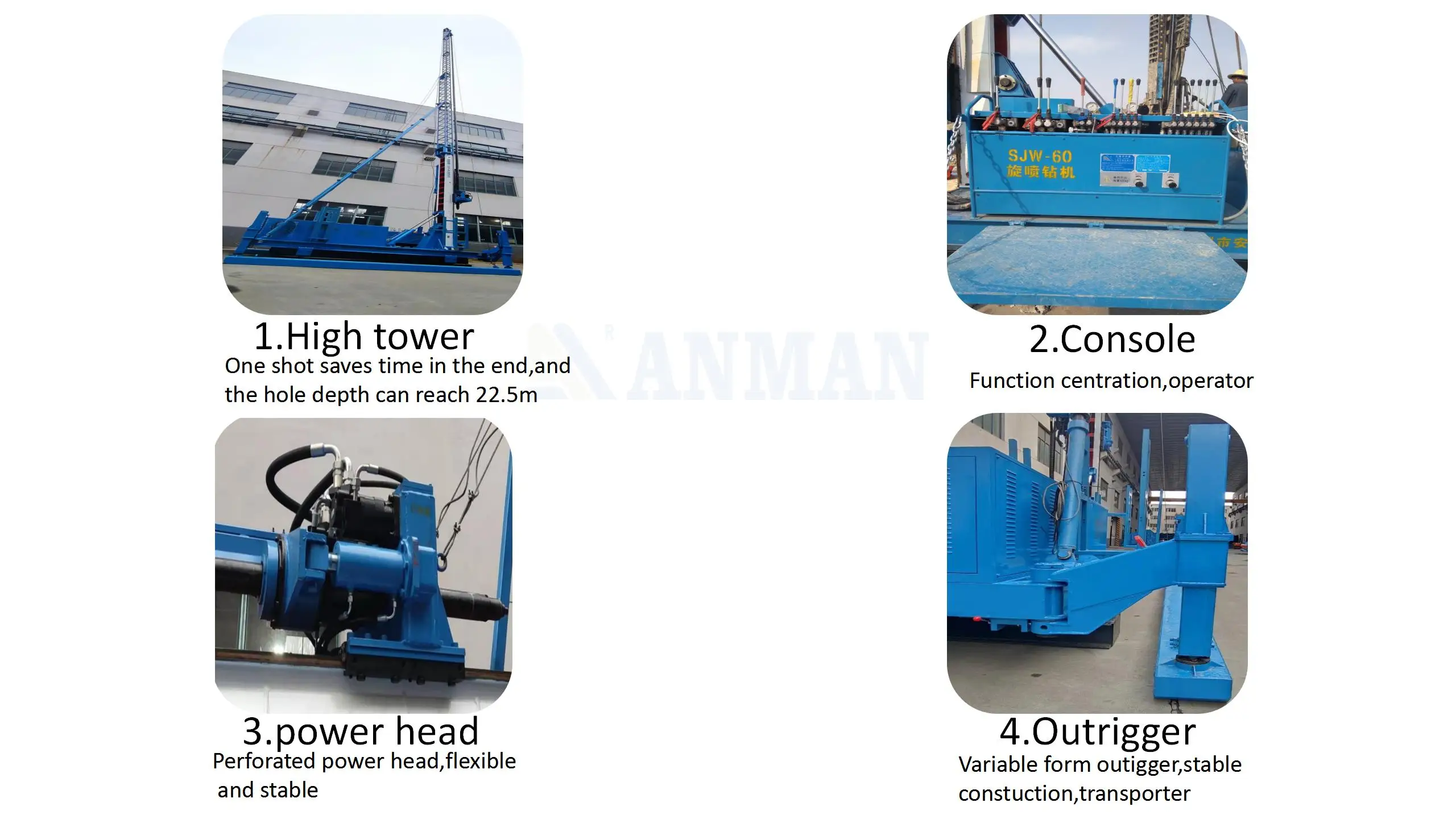

Details

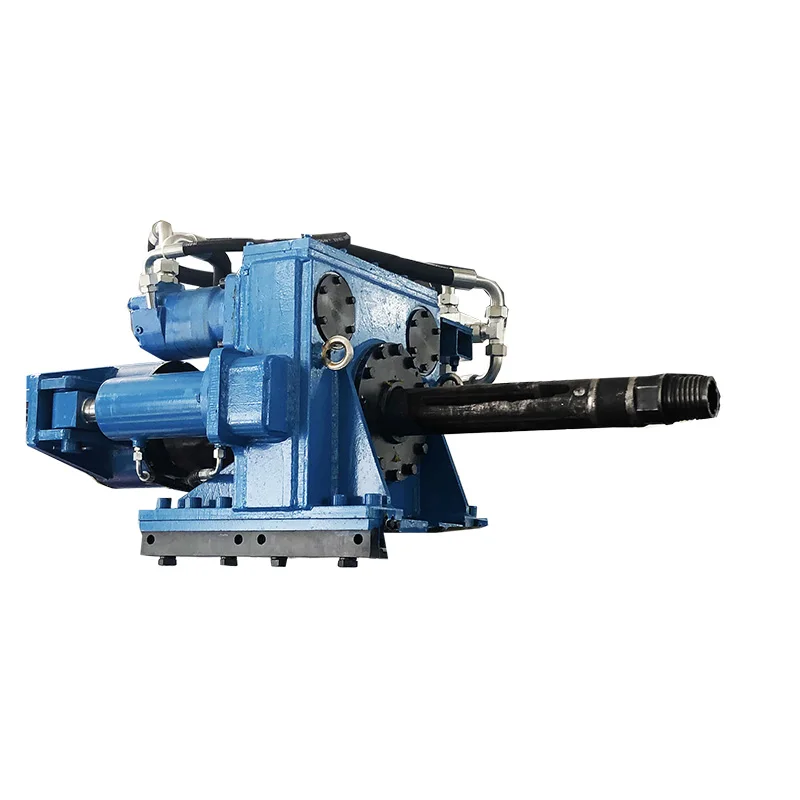

Rotary head (through-hole type)

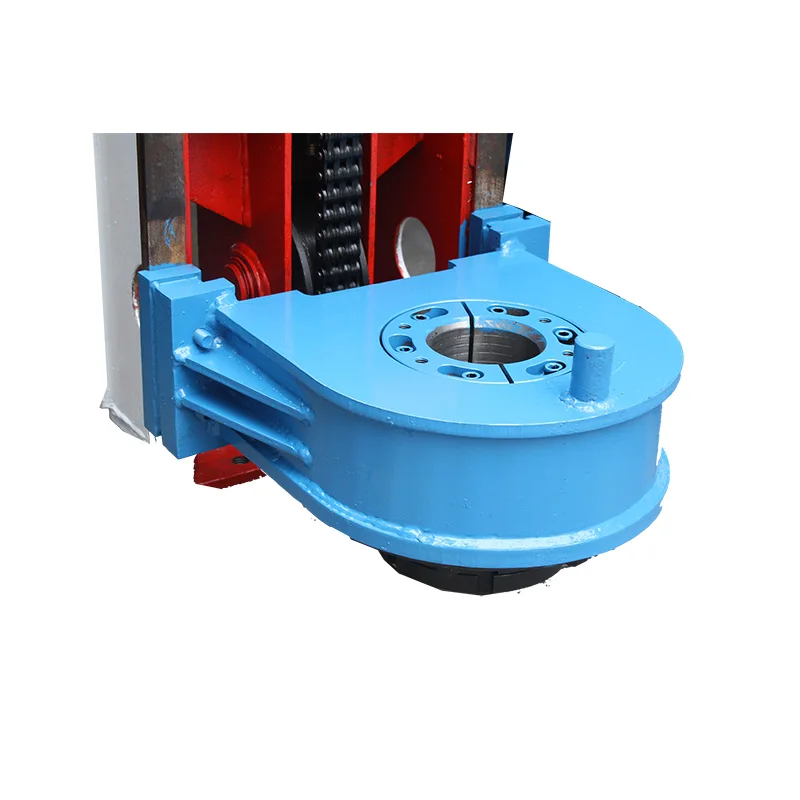

orifice guide device
Successful projects
Company profile

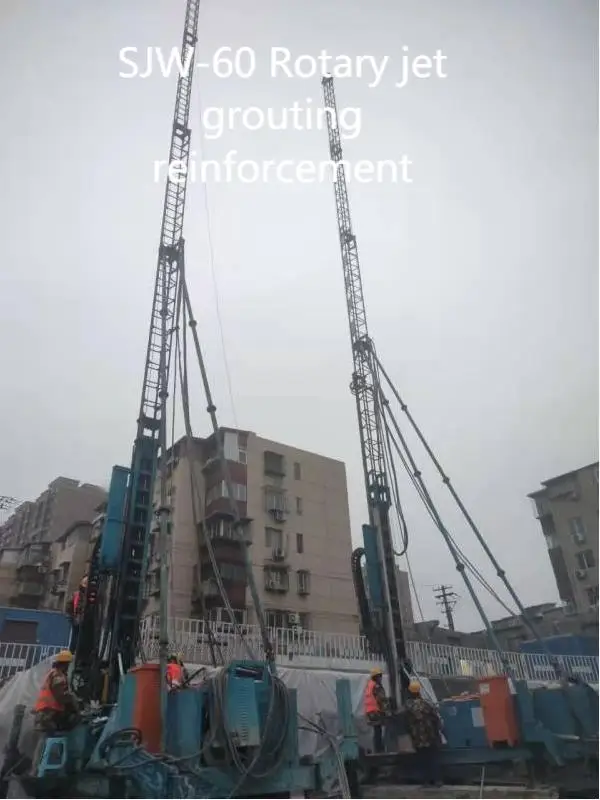

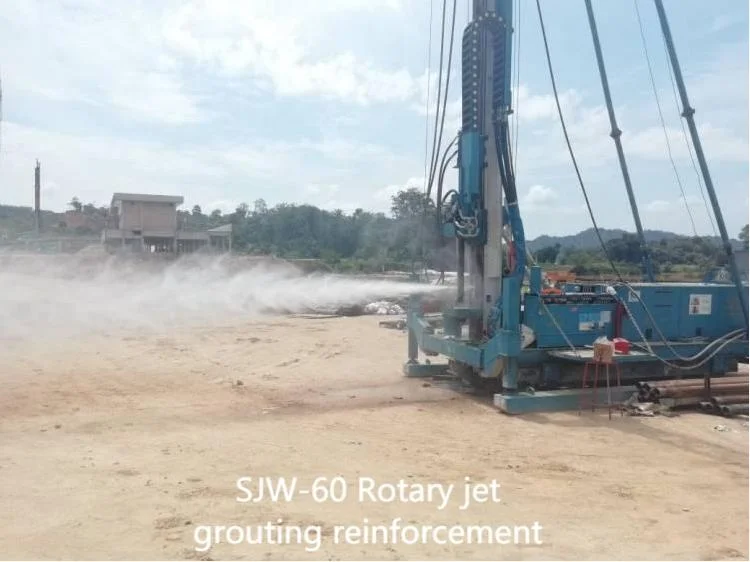

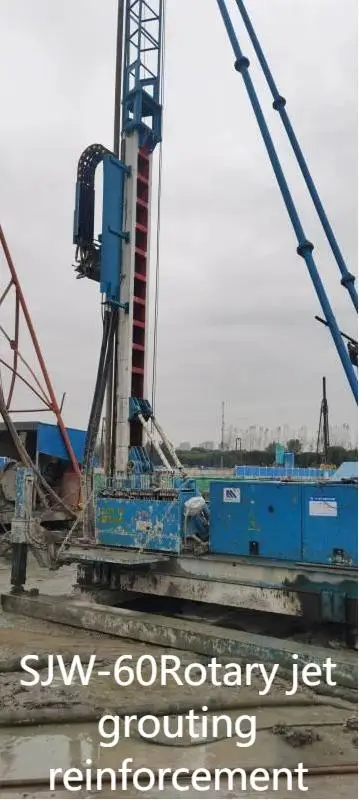

Construction case display
FAQ
