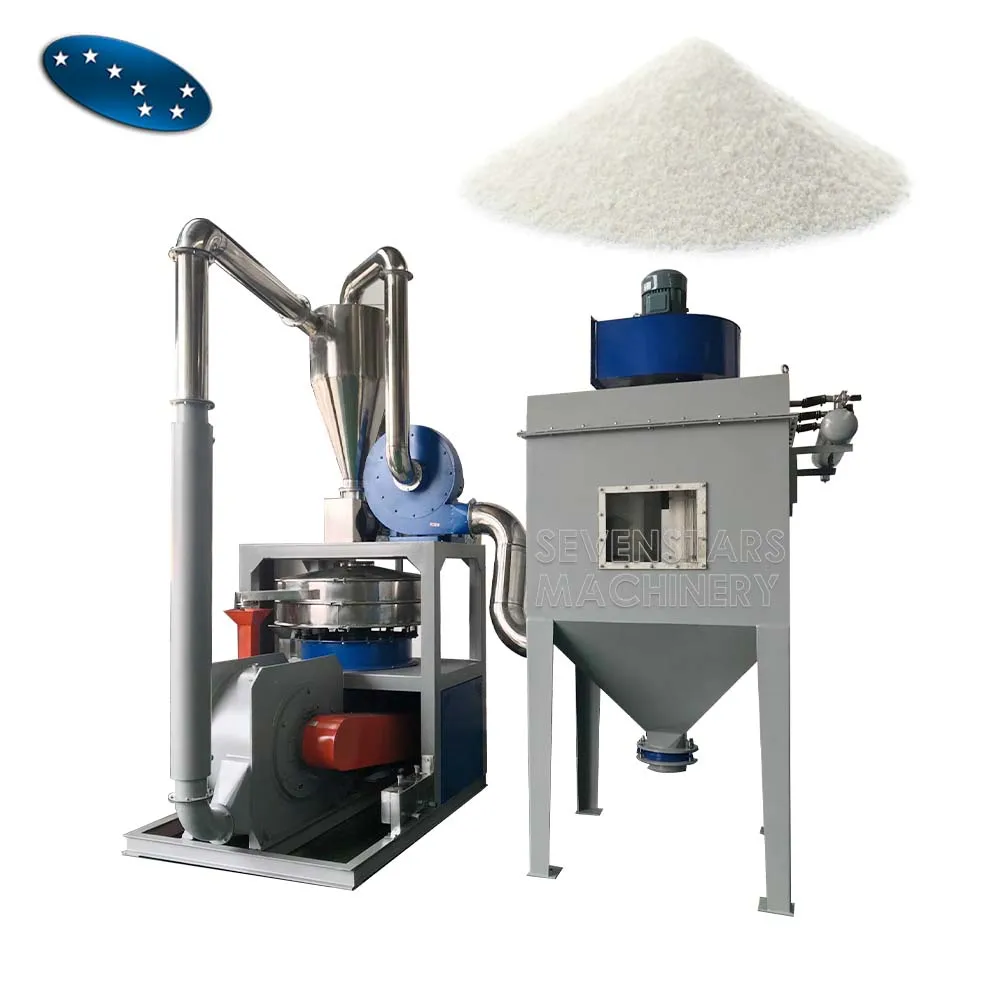

plastic flour PVC milling machine powder grinder PE PP powder machine
plastic flour PVC milling machine powder grinder PE PP powder machine
plastic flour PVC milling machine powder grinder PE PP powder machine
plastic flour PVC milling machine powder grinder PE PP powder machine
plastic flour PVC milling machine powder grinder PE PP powder machine
plastic flour PVC milling machine powder grinder PE PP powder machine
plastic flour PVC milling machine powder grinder PE PP powder machine

plastic flour PVC milling machine powder grinder PE PP powder machine

Share on (1600566581404):


Price:$7,900.00 - $8,000.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Applicable Industries
Machinery Repair Shops, Manufacturing Plant
Condition
New
Place of Origin
China
Jiangsu
Brand Name
SEVENSTARS
Production Capacity
150kg/h, 300KG/H, 400kg/h, 220kg/h
Voltage
380V 50HZ
Power
55kw/75kw/15kw
Weight
500KG
Dimension(L*W*H)
1*1*1m
Warranty
1 Year
Marketing Type
Hot products
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Other, PLC, Gear, Gearbox, Motor, Bearing, Pressure vessel, Pump
After-sales Service Provided
Engineers available to service machinery overseas
Product Type
Plastic POWDER
Brand
SEVENSTARS
Power
60kw/
After Service
24 hours on line
Diameter of cutter head
610mm
Type
plastic
Application
NEW
Certification
CE & ISO9001 certificate
Automatic Grade
Automatic


FAQ


1. who are we?
We are based in Jiangsu, China, start from 2006,sell to South America(15.00%),Africa(15.00%),Mid East(12.00%),South Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Western Europe(4.00%),Central America(2.00%),Eastern Asia(1.00%),Oceania(1.00%),Northern Europe(0.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Plastic Recycling Line, Plastic Pelletizing Line, Plastic Board Production Line, Plastic Profile Extrusion Line, Plastic Pipe Extrusion Production Line

4. why should you buy from us not from other suppliers?
We have factory, we can control both the manufacture of the machine materials and its fabrication into the finished product to ensure the dependability of our products. We have four modern standard workshops, we have our own skilled worker team, sales team

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Escrow;
Language Spoken:English,Chinese




General Description




Application

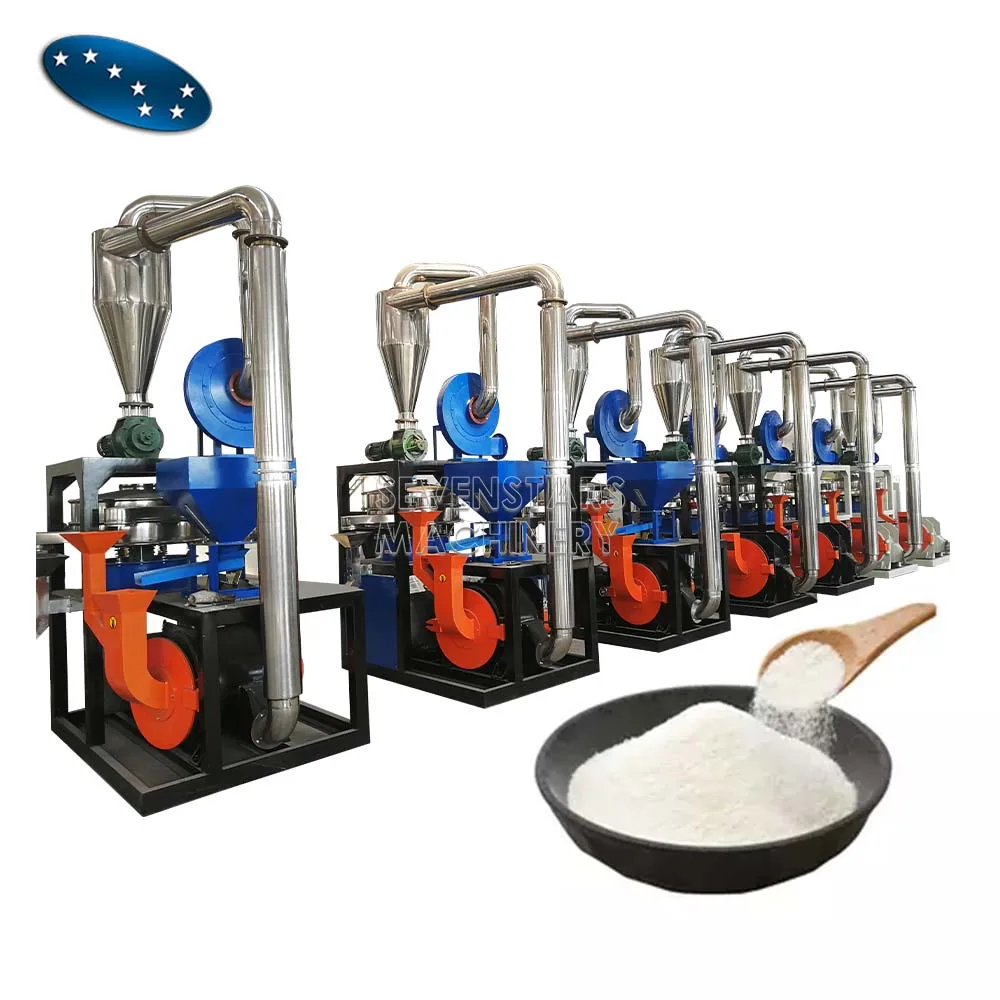

The plastic milling machine is mainly used in the plastic chemical industry.
For the characteristics of rigid PVC material, we've designed unique grinding discs.
Generally, the size of raw material don't surpass 12 mm. Final product size is in general between 20-80 mesh. The mesh size is adjustable.
Its new tool structure improves the output and overcomes the abrasion resistance of the tool.
The cooling system of the plastic mill adopts a combination of air and water cooling.


Advantages
1
New tool structure is adopted to improve the output and enhance the wear resistance of the tool
2
High output, fine grinding, energy saving and environmental protection
3
Wide range of application
4
Easy to install and maintain
5
The whole grinding cabinet is completely sealed. No dust pollution.
6
Easy to adjust the size of final powder, from 20 to 80 mesh
7
The cooling system of plastic grinding machine adopts the combination of air and water cooling.


Model


Model
SMW400
SMW500
SMW600
SMW800
Diameter of grinding disc (mm)
400
500
600
700
Qty of rotary blade
18
24
28
30
Qty of fixed blade
10
12
14
20
Material of blade
SKD-11



Main motor power (kw)
30
45
55
90/110
Capacity (kg/h)
Approx. 100-150
Approx. 200-250
Approx. 300-400
Approx. 500-600


Details


New design grinding disc with improved wear resistance,can effectively enhance the output.
The external bearing of the butterfly valve can effectively stop the powder from entering the bearing and avoid the bearing from seizing.

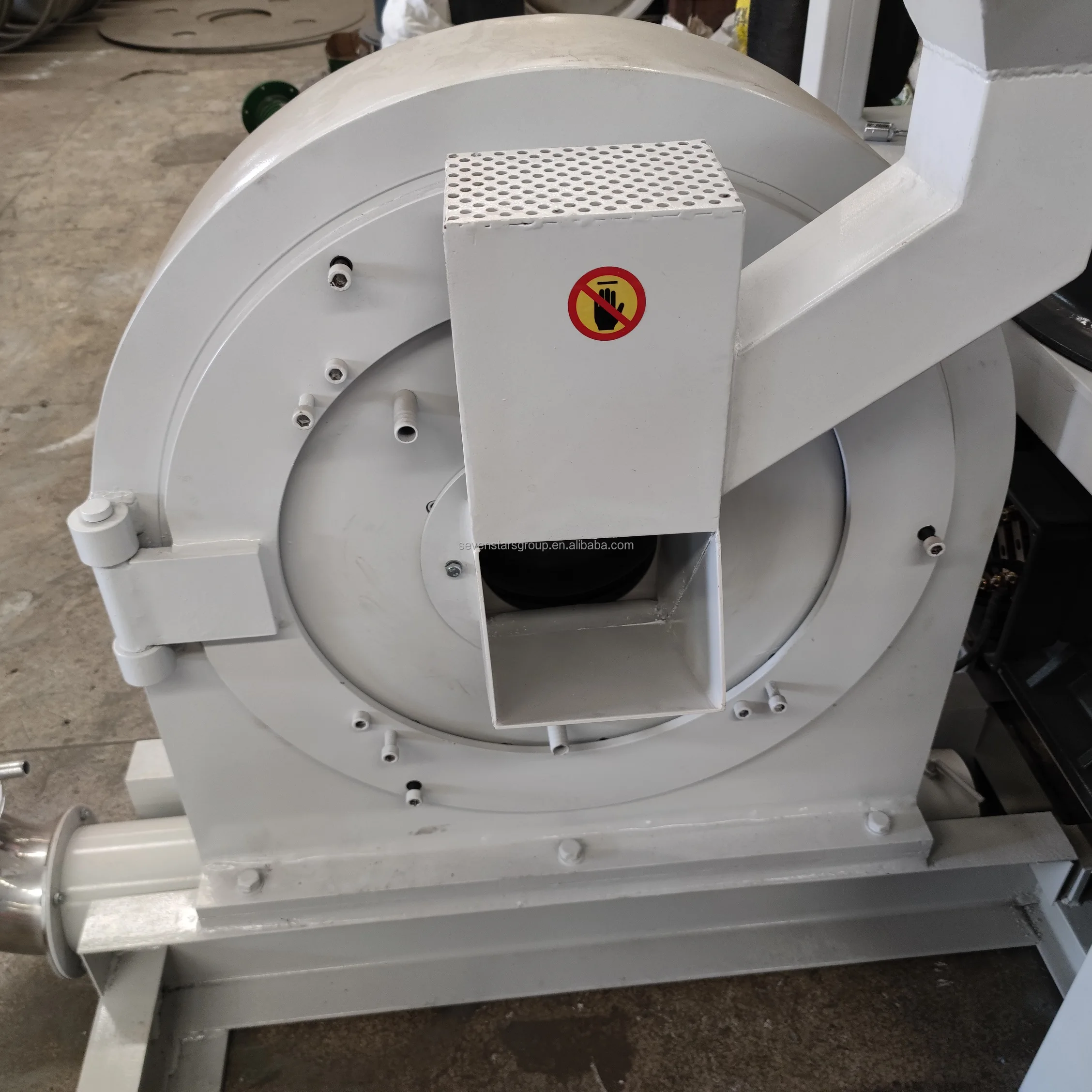

The inlet of pulverizer. With corresponding loading machine, the efficiency will be better.

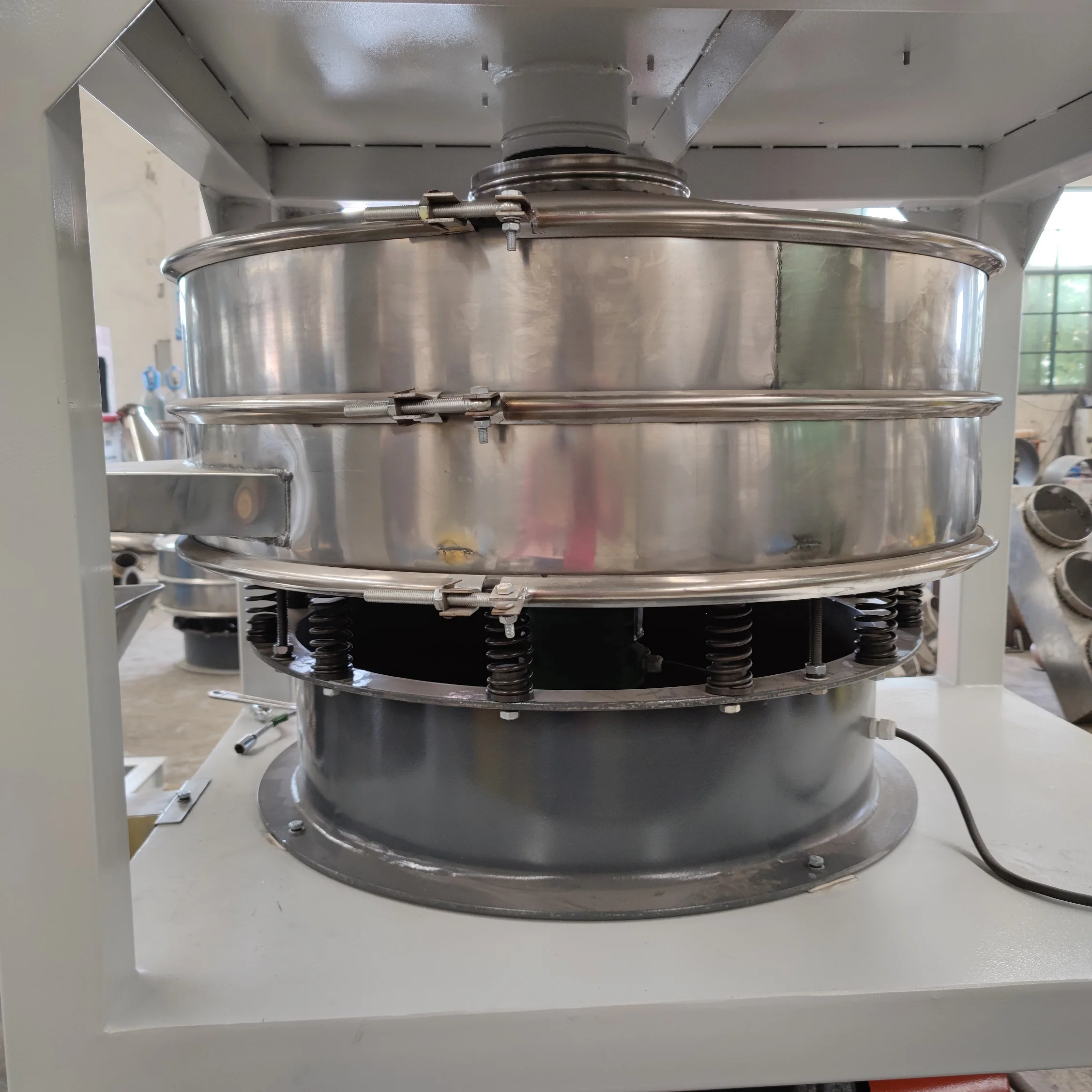

The vibration sieve is made of stainless steel 304. In addition, the qty of layer is customized.

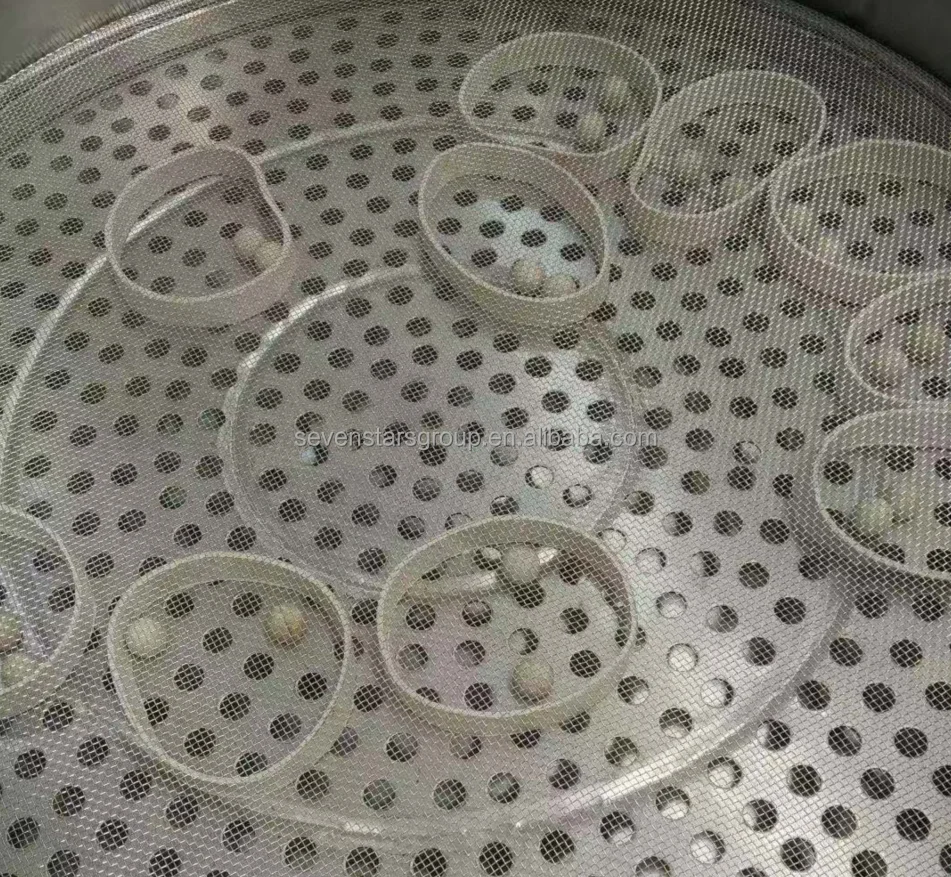

In the vibration sieve, there're some bouncy balls, which can efficiently enhance the output.

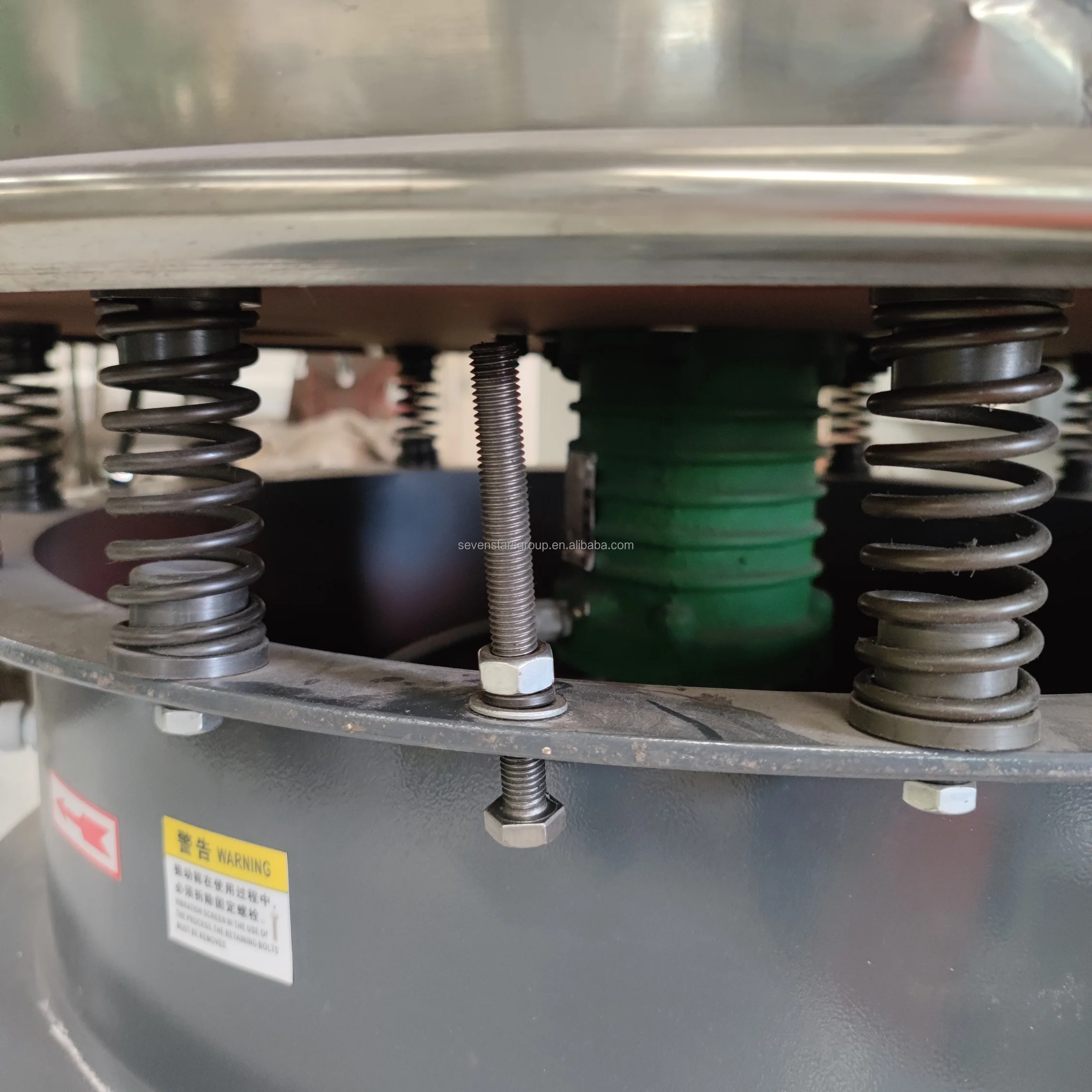

The screws under the vibration sieve are used for fixing the machine during transportation. They should be unscrewed when in producing process.


Auxiliary Equipments

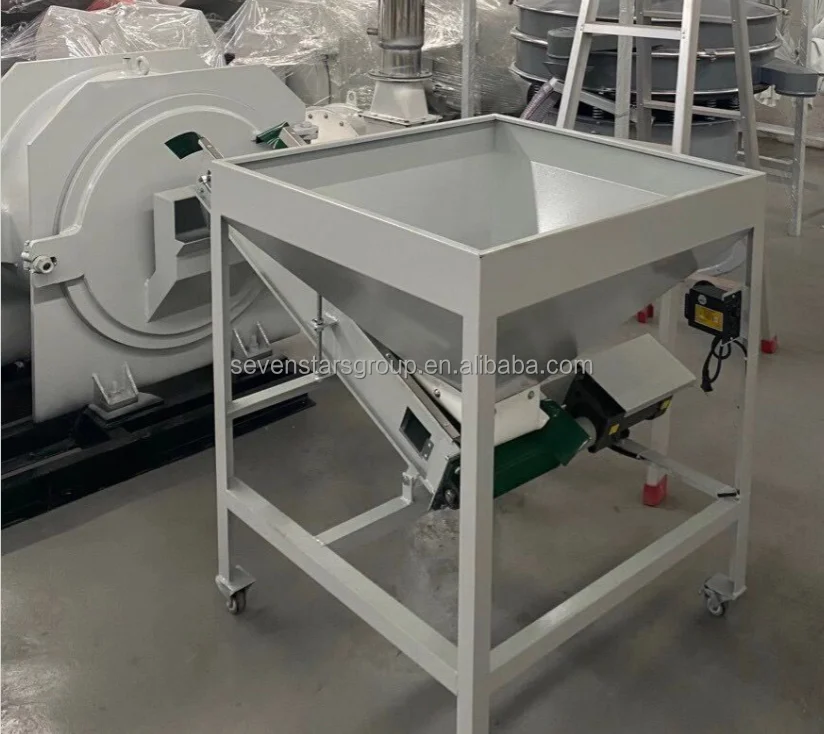

Customized feeding method
According to your requirement, there're three common feed way:

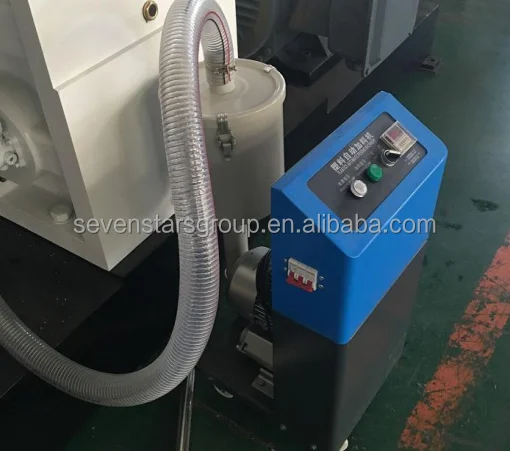

Screw automatic loader, magnetic convey loader and vacuum loader.

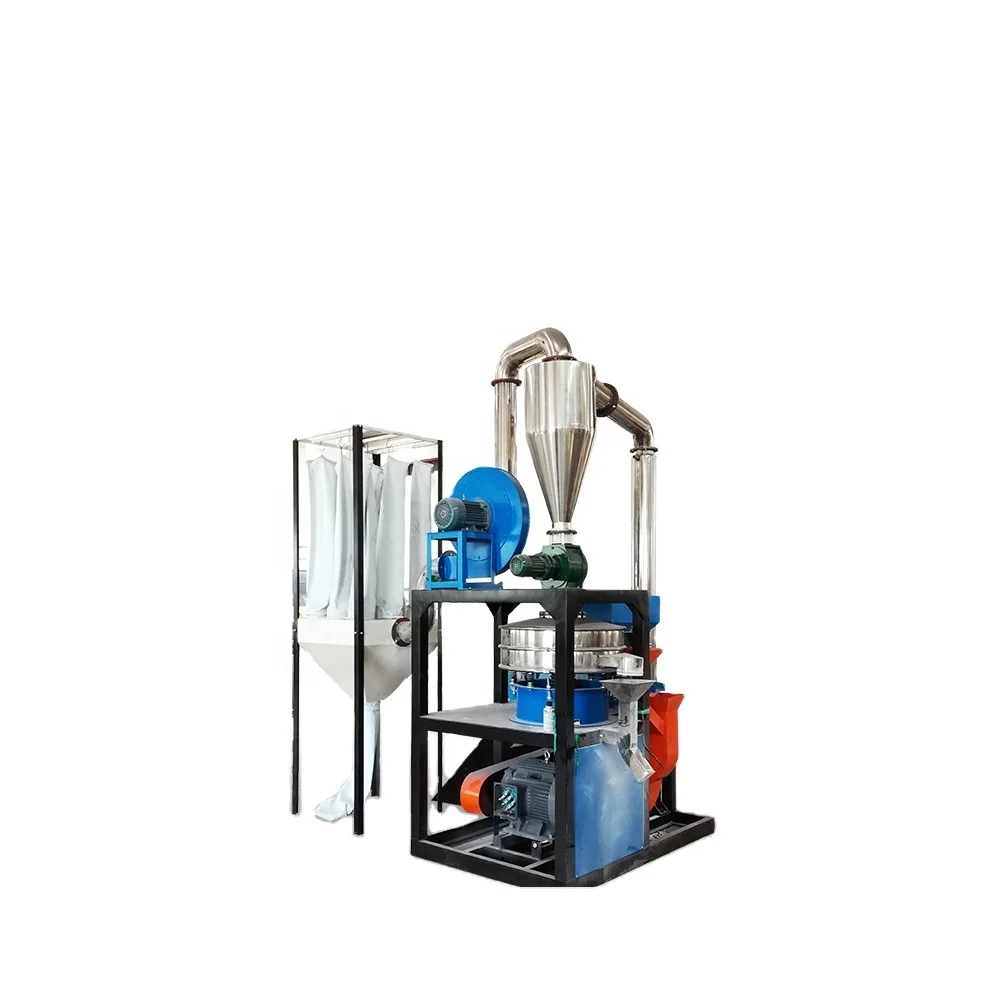

Customized dust collector
There're two way to collect dust: with fabric bags or with impulse dust collector.




Maintenance


How to maintain the pulverizer?
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
