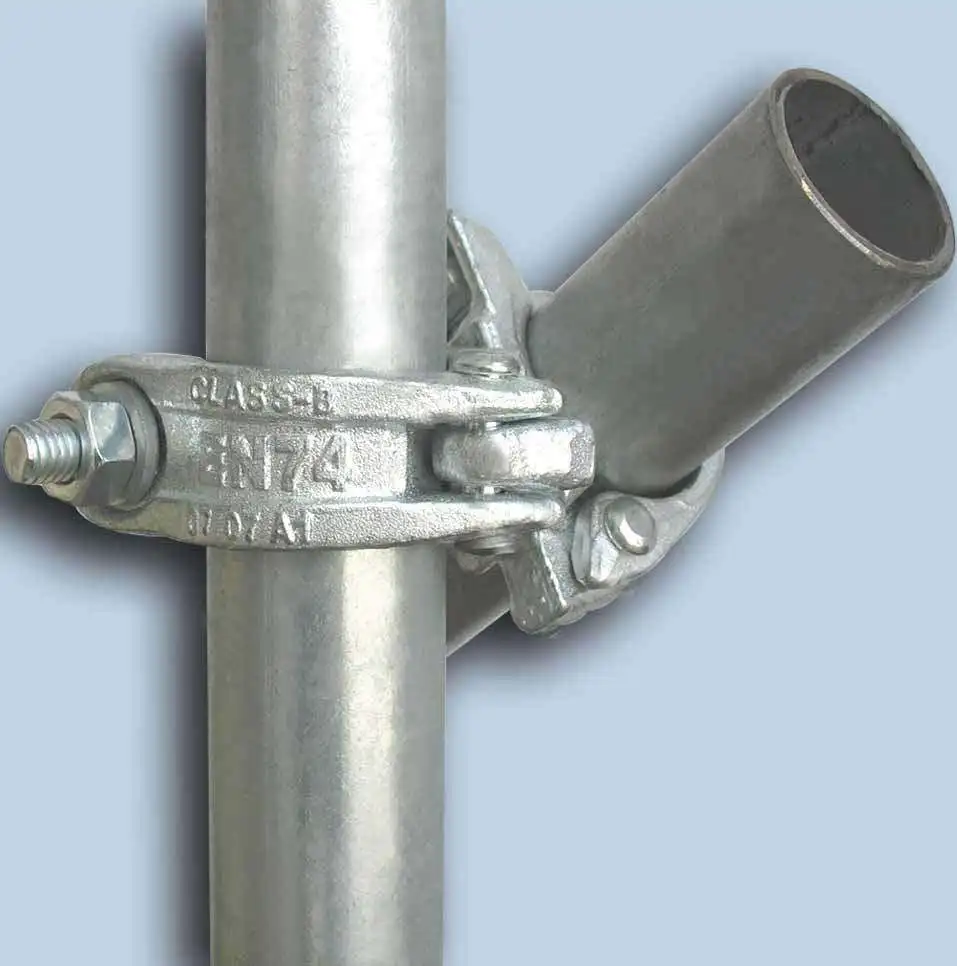

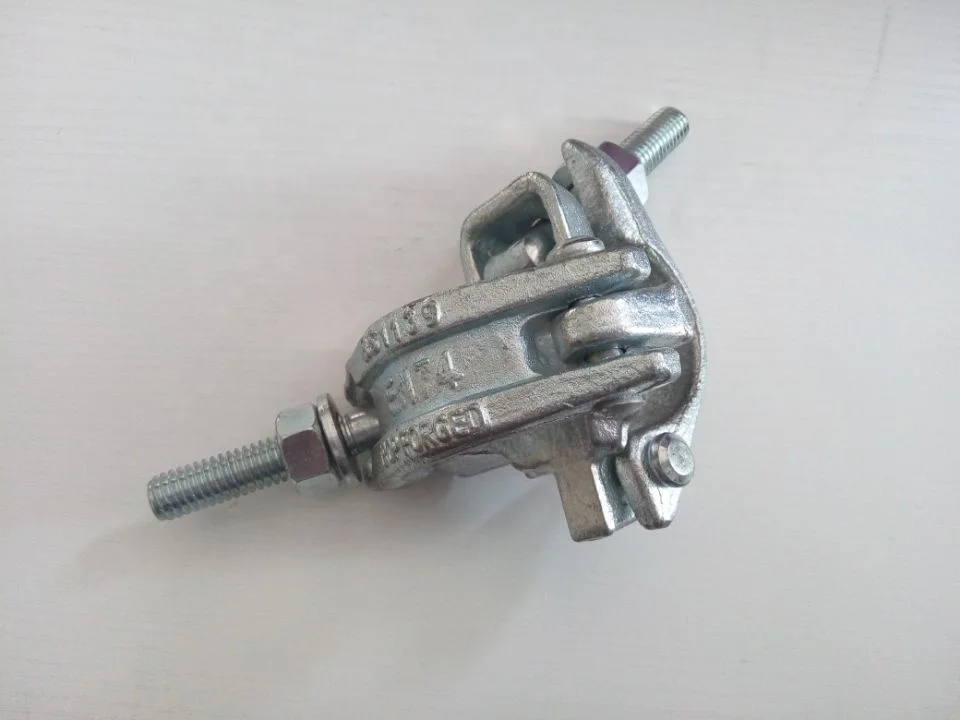

Drop Forged Scaffolding Fitting Clamp Double Coupler
- Category: >>>
- Supplier: Tangshan Wufang Industry Co. Ltd.
Share on (1600566594910):
Product Overview
Description
Product Paramenters
1. Pressed scaffolding clamp
Item | Product Name | Type | Thickness | Outer Diameter | U.W | PC of 20`GP |

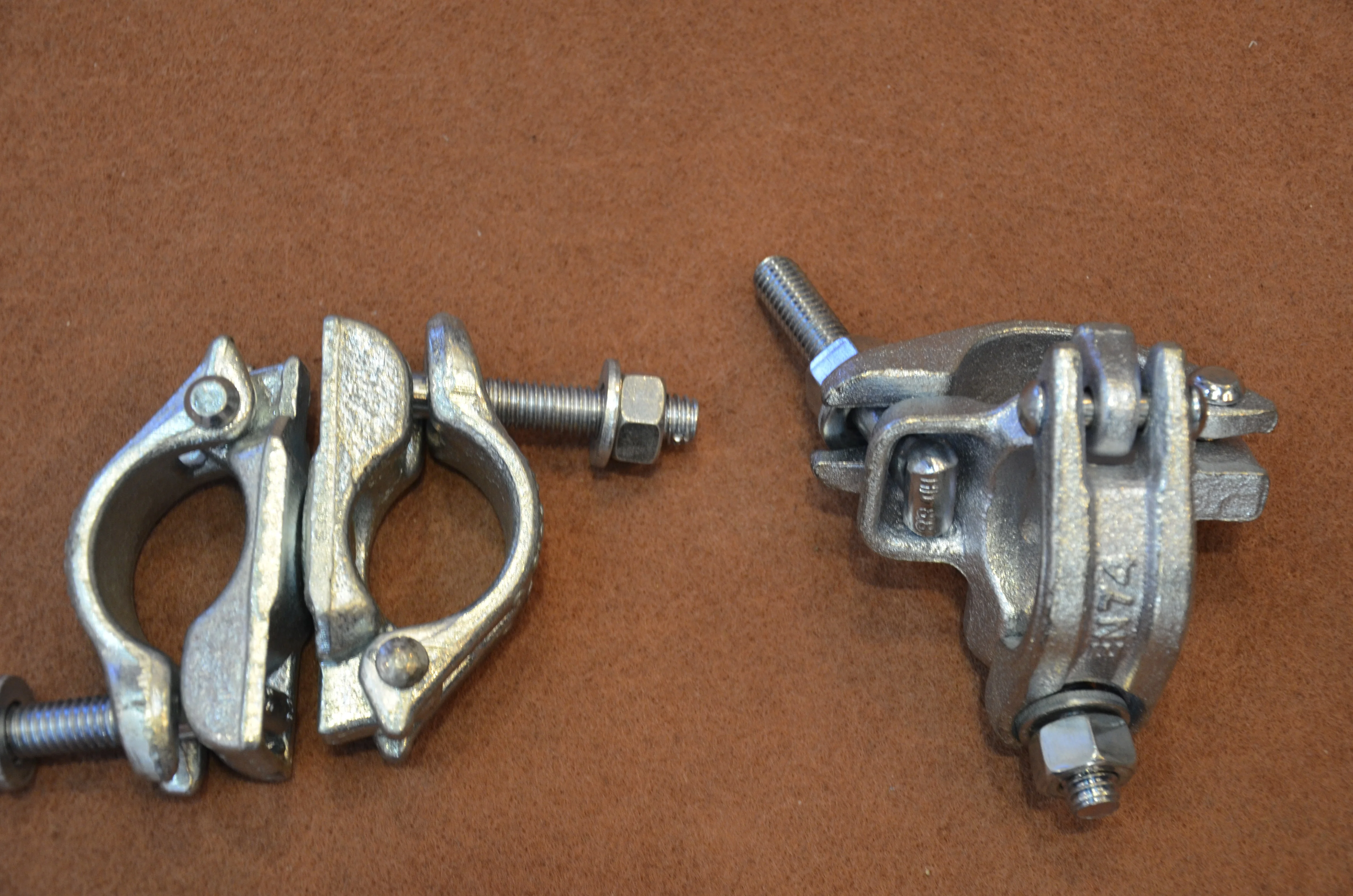

1 | Double Coupler | Pressed | 4.75mm | 48.3mm | 0.82kg | 25000 |
2 | Swivel Coupler | Pressed | 4.5*4.75mm | 48.3mm | 0.99 | 23500 |
3 | Sleeve Coupler | Pressed | 3.5mm | 48.3mm | 1.0kg | 20736 |
4 | Inner Joint Pin | Pressed | 4.5mm | 48.3mm | 0.7kg | 35000 |
5 | Half Coupler | Pressed | 4.75mm | 48.3mm | 0.45 | 49000 |

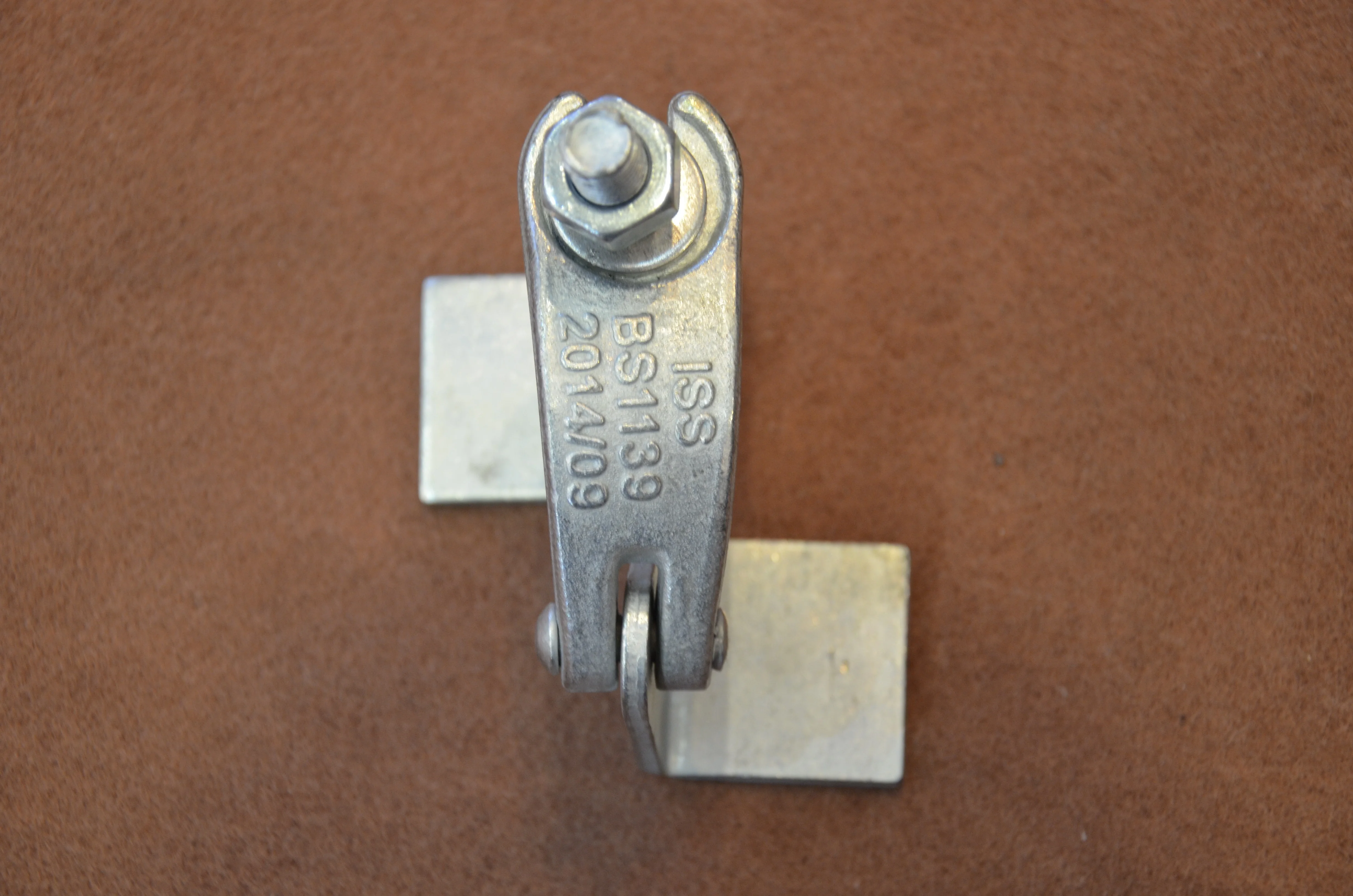

6 | Board Retaining | Pressed | 4.75mm | 48.3mm | 0.56kg | 35000 |
7 | Putlog Coupler | Pressed | 4.75mm | 48.3mm | 0.57kg | 35000 |
2. Drop forged scaffolding clamp
Item | Product Name | Type | Thickness | Outer Diameter | U.W | PC of 20'GP |
1 | Double Coupler | Drop Forged | 48.3mm | 1.0-0.98kg | 24000 | |
2 | Swivel Coupler | Drop Forged | 48.3mm | 1.12kg | 21000 | |
3 | Sleeve Coupler | Drop Forged | 3.5mm | 48.3mm | 0.98--1.0kg | 21000 |
4 | Inner Joint Pin | Drop Forged | 48.3mm | 1.05kg | 24000 | |
5 | Board Retaining | Drop Forged | 4.75mm | 48.3mm | 0.61kg | 35000 |
6 | Girder Coupler | Drop Forged | 11.5mm | 48.3mm | 1.52 | 15000 |
7 | Putlog Coupler | Drop Forged | 4.75mm | 48.3mm | 0.61kg | 35000 |
Product Description
♦ Material: Q235
♦Size:48.3*48.3mm,48.3*60.3mm♦Surface finish: electro galvanized

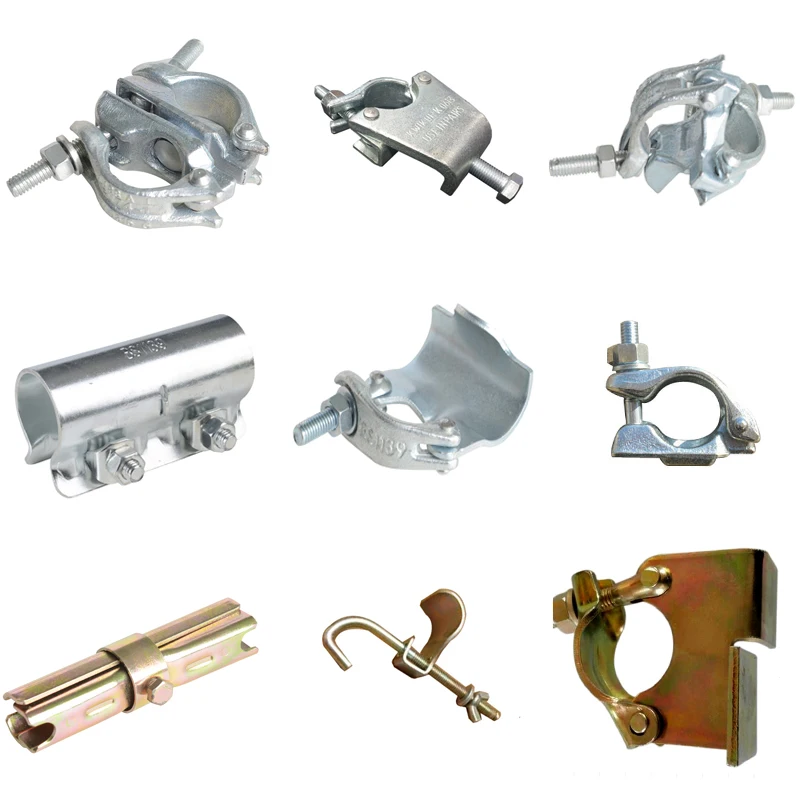

♦Standard: BS1139, EN74, ♦Types: British swivel coupler, British fixed coupler, Board Retaining coupler, Putlog coupler, Sleeve coupler, Inner joint pin, 110° double coupler, 110° swivel coupler, 90° swivel coupler,90° double coupler ♦Packing: 25pcs/Woven bags, 50bags/pallets or as customer required.
♦ The tube and coupler scaffolding system is the best solution for construction or maintenance works. ♦ economic convenience ♦ safety and quality

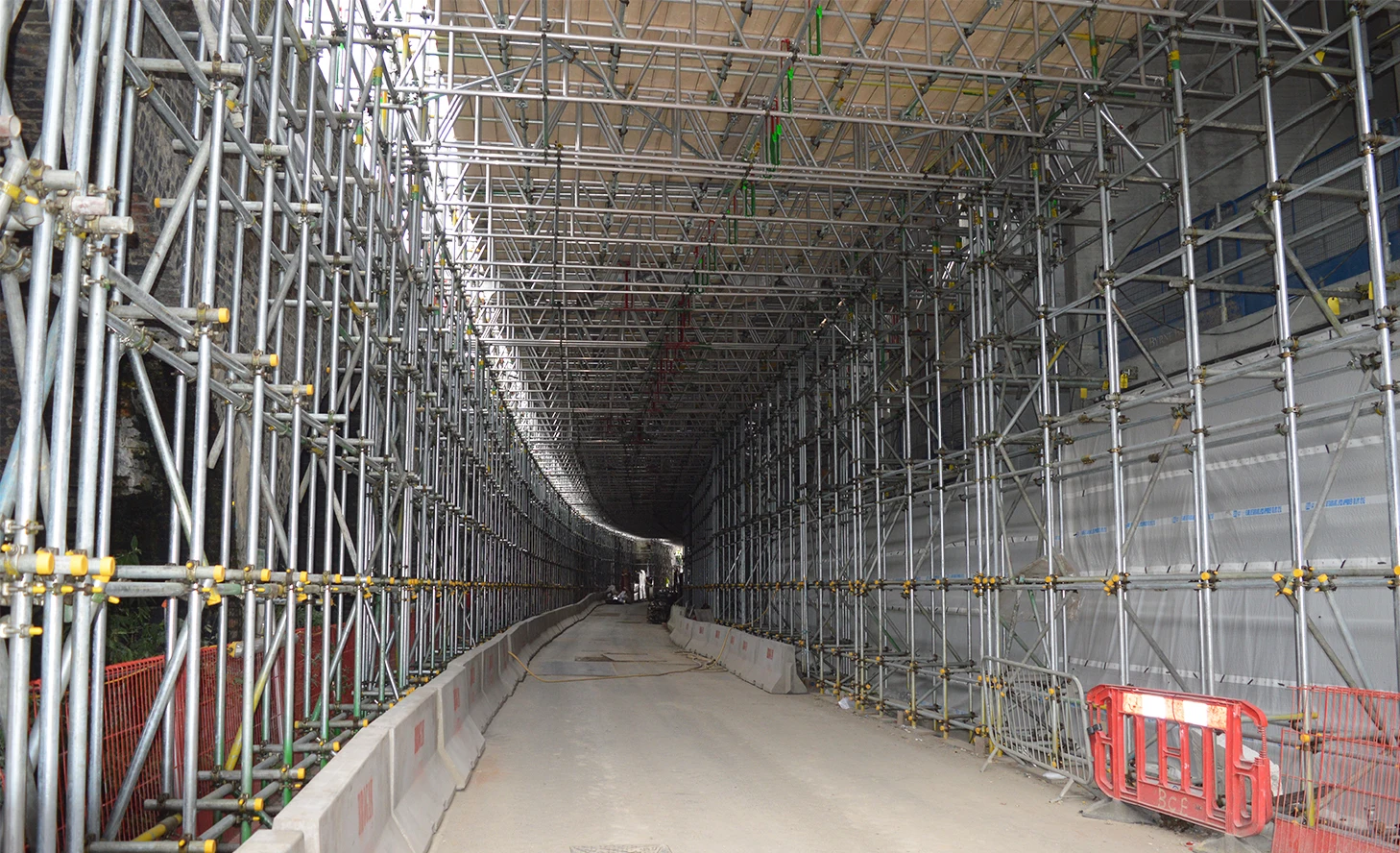

Applications

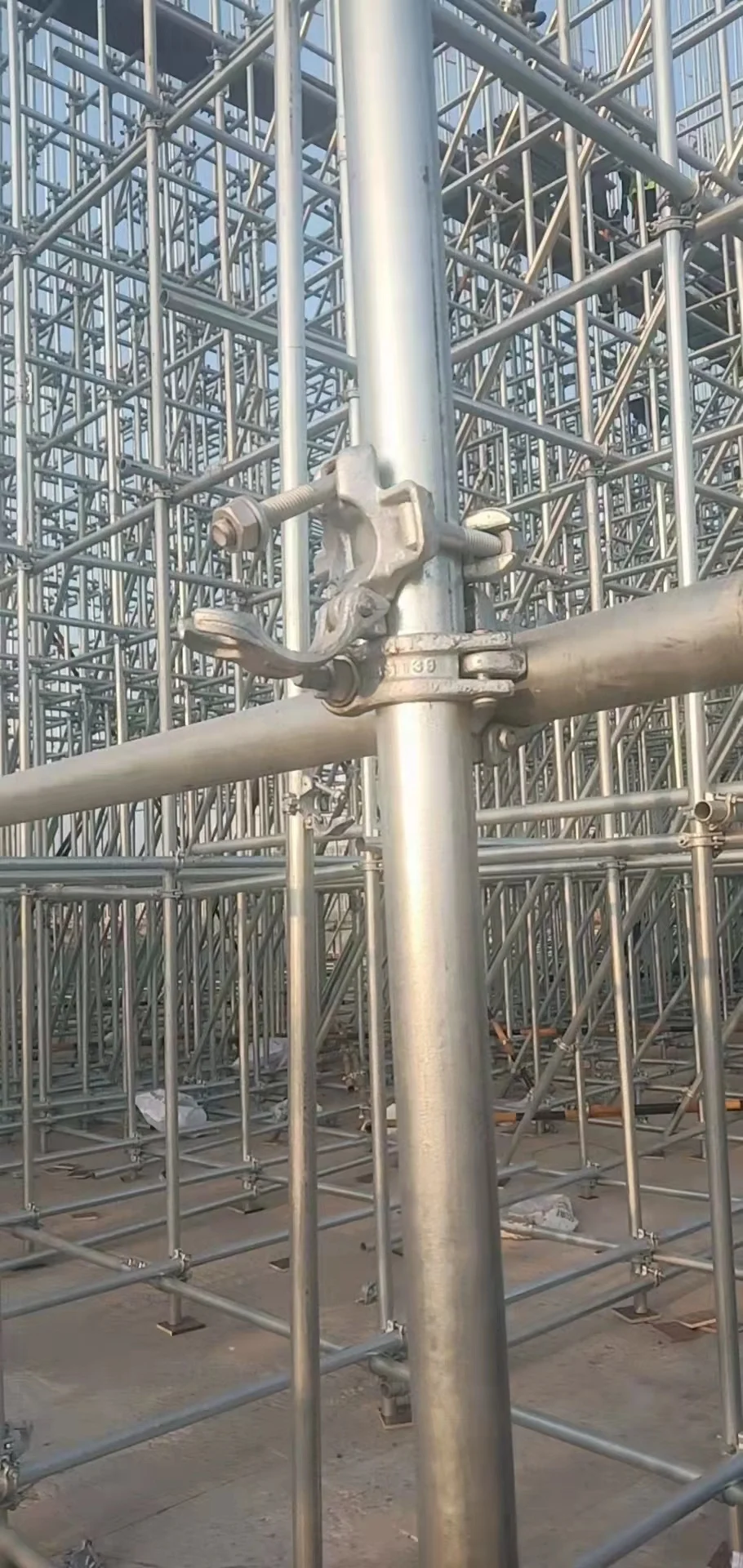

♦ Scaffolding coupler is used to assemble tube-and coupler scaffolding system.
♦ Restoration of buildings.
♦ maintenance of particularly complex or extremely deteriorated architectural works.
♦ Restoration of buildings.
♦ maintenance of particularly complex or extremely deteriorated architectural works.

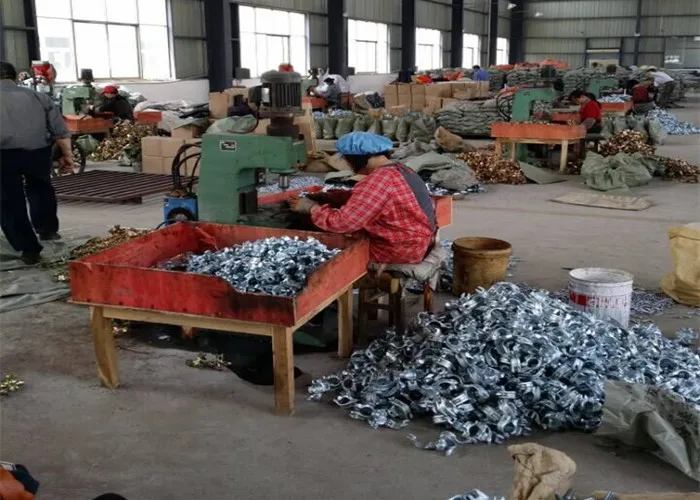

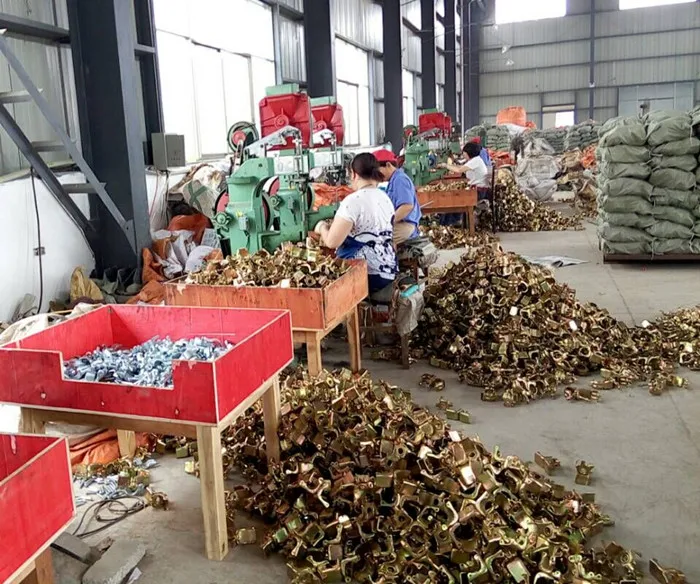

Company Profile
Tangshan Wufang Industry Co., Ltd. is located in Tangshan Seaport Development Zone with convenient transportation access. With an investment of 50 million RMB, Wufang is a professional manufacturer engaged in the research, development, production, sale and service of scaffolding system.
Our main products are ringlock system, scaffolding tube, steel prop, safe stairway tower system, frame system, aluminium beam and metal plank etc.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Selling well in many cities and provinces around China, our products are also exported to clients in such countries and regions as Thailand, Indonesia, Bangladesh, Mexico, Kazakhstan, Russia, UK, US, Dubai, etc. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Selling well in many cities and provinces around China, our products are also exported to clients in such countries and regions as Thailand, Indonesia, Bangladesh, Mexico, Kazakhstan, Russia, UK, US, Dubai, etc. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

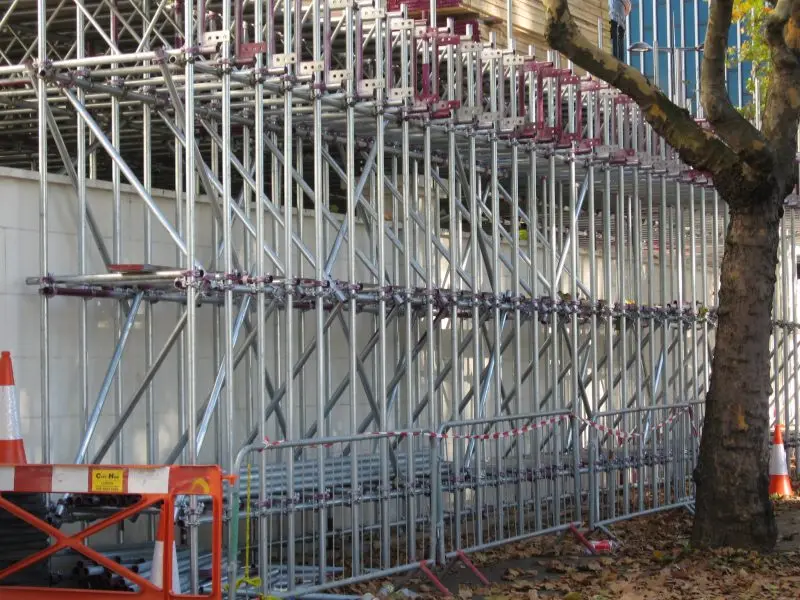

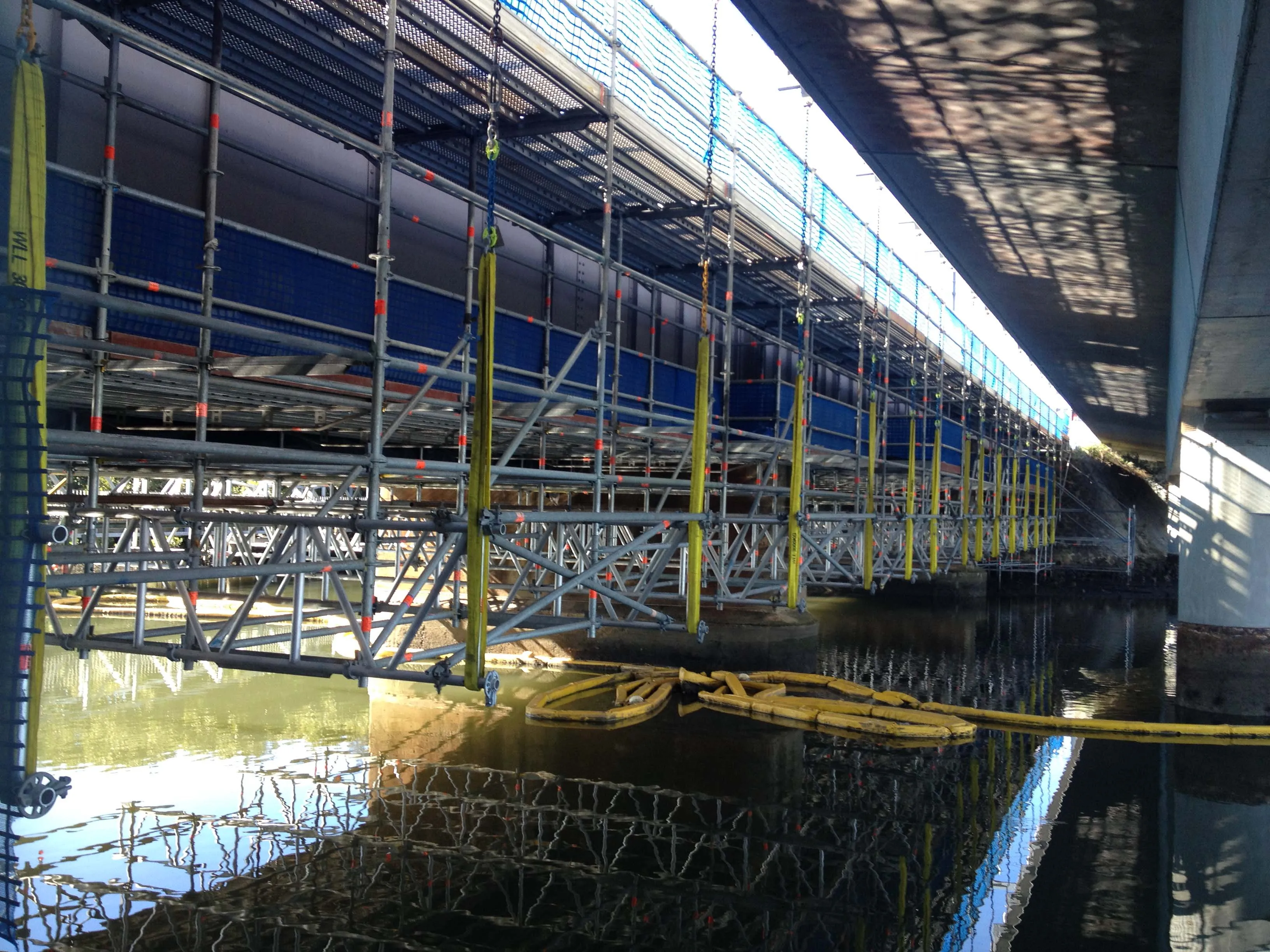

Customer Photos

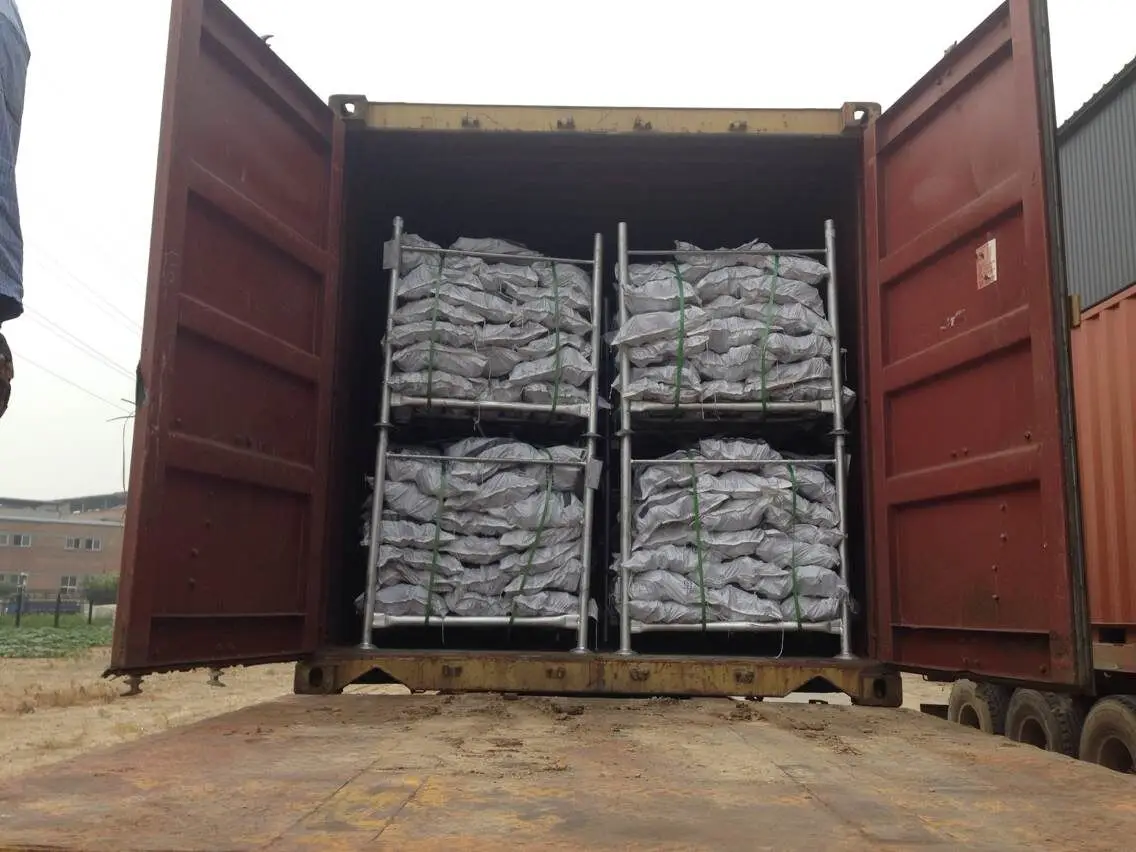

Product packaging
