Upgrade Model Chinese LED Strip Placement Machine TVM926S PCB Assembly Line SMT Pick Place Machine
- Category: >>>
- Supplier: Yueqing Qihe Electrical Technology Co. Ltd.
Share on (1600566595188):
Product Overview
Description

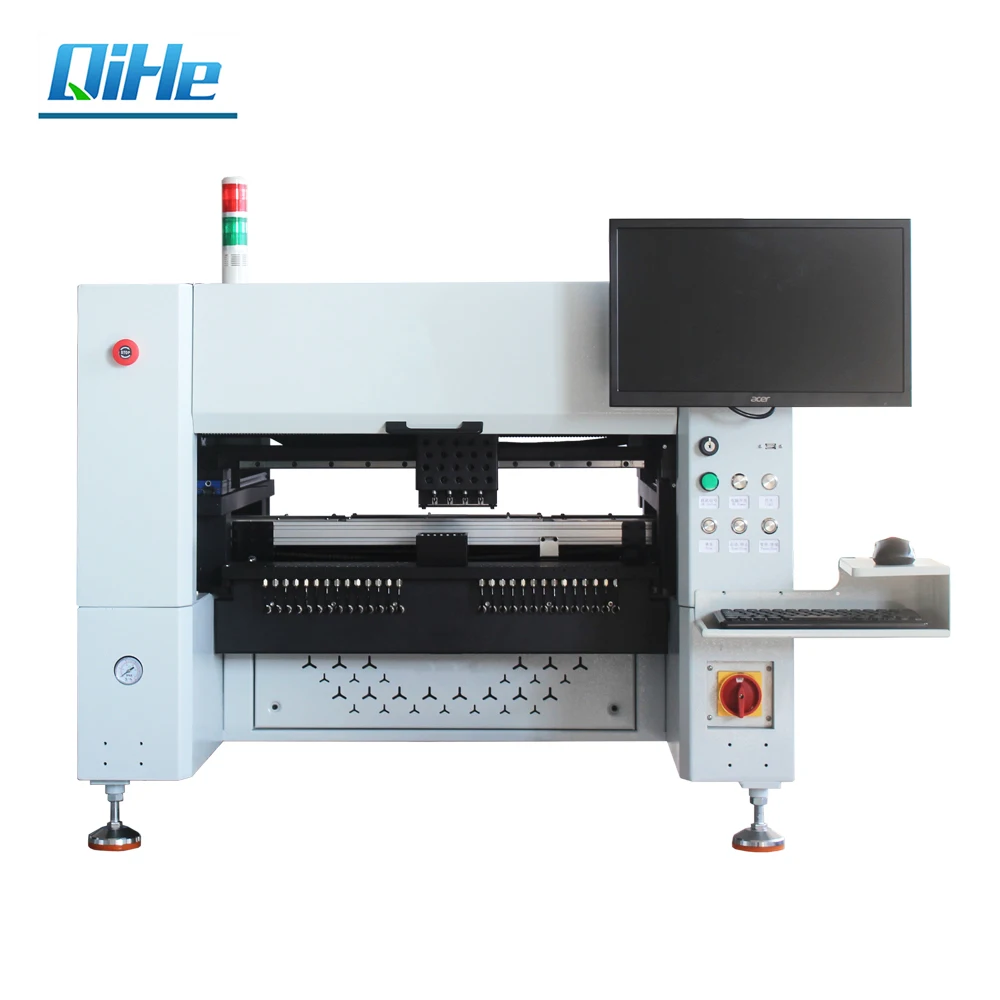

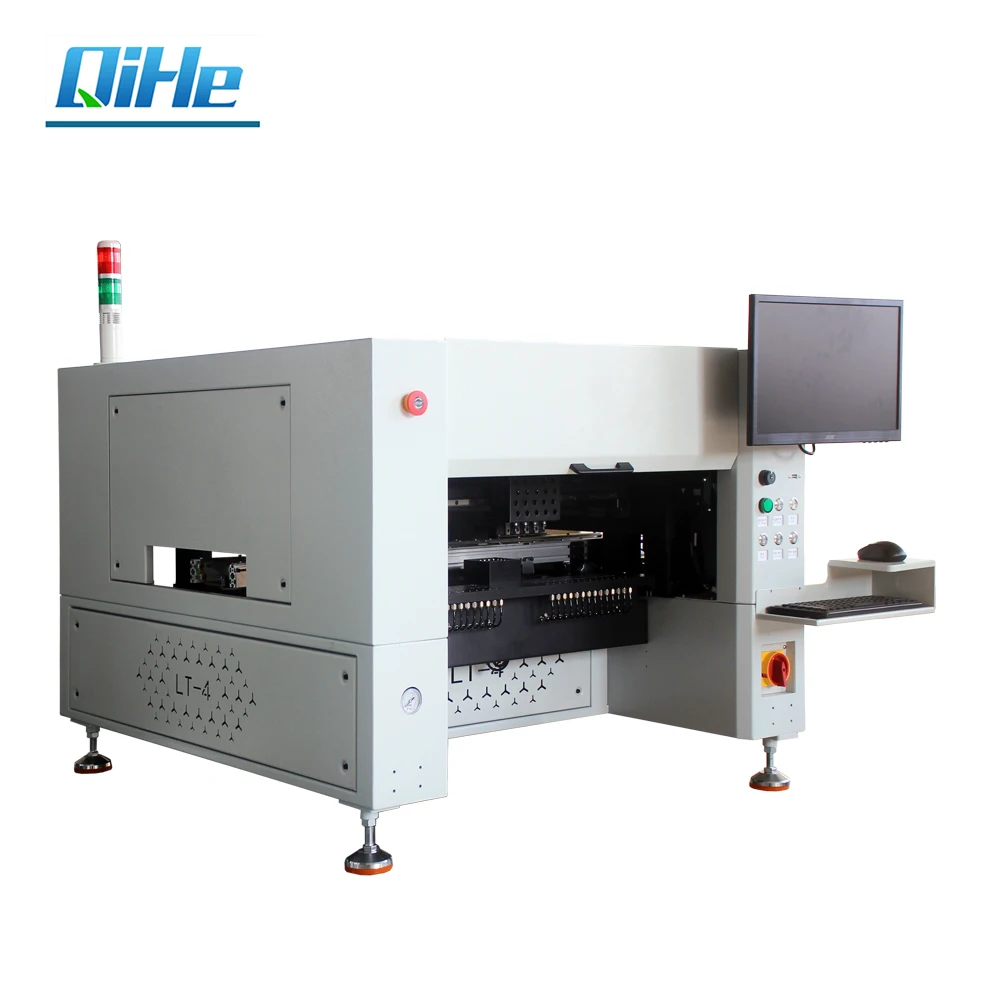

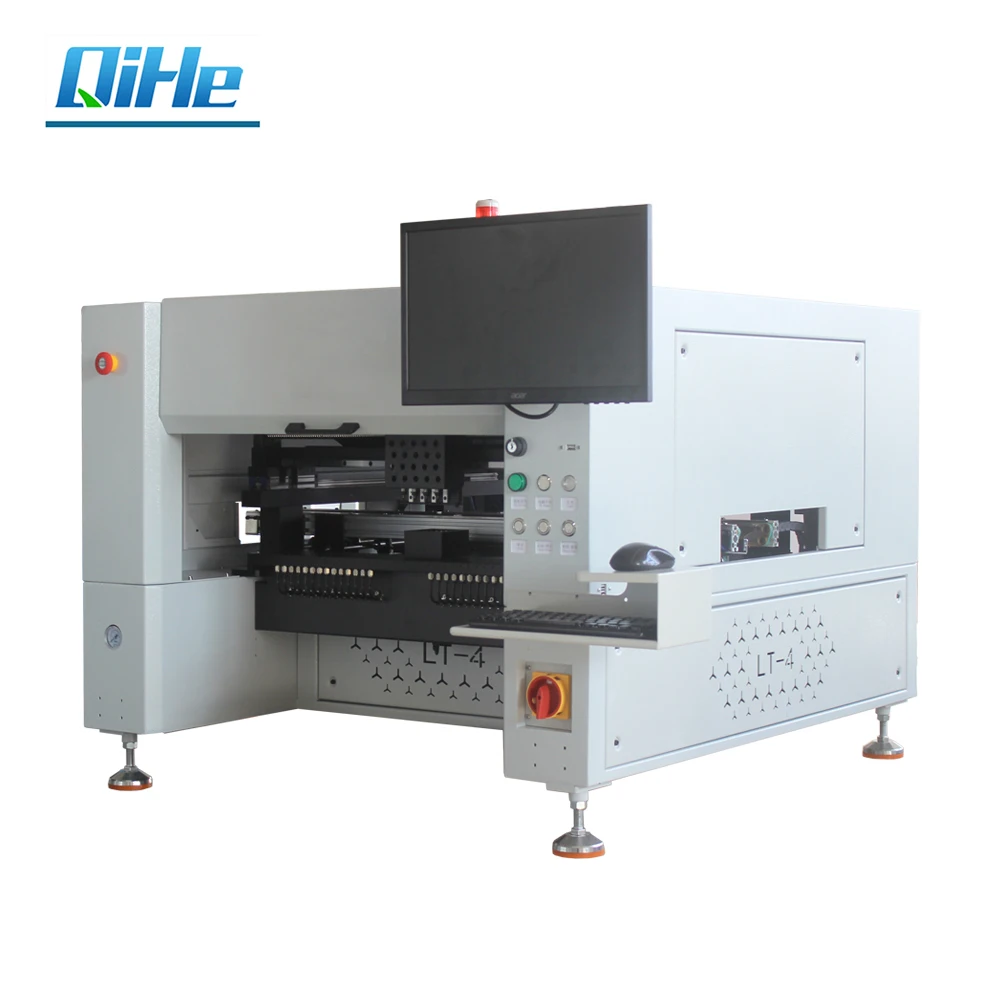

Upgrade Model Chinese LED Strip Placement Machine TVM926S PCB Assembly Line SMT Pick Place Machine
Specification TVM926
| Model | TVM926S |
| Max applicable PCB size | 330*400mm |
| Max xy moving range | 585*620mm |
| Max z moving range | 16mm |
| Placementhead quantity | 4 |
| Max mounting capability | Vision on: 7000pcs/h |
| Vision off: 9000pcs/h | |
| Feeder Capacity | 63 (YAMAHA Feeder is available) |
| Applicable component | Smallest size: 0201 |
| Largest size: 16*16mm (Pitch 0.5mm) | |
| Max height: 15mm | |
| Visual camera | 1 pcb inspection cameras & 1 flying camera |
| Power supply | 220V/110V |
| Net weight | 231kg |
| Machine Dimension | 1440*1000*920mm |
| Packing size | 1.32CBM |
Main Features
Install SMT conveyor and component library.

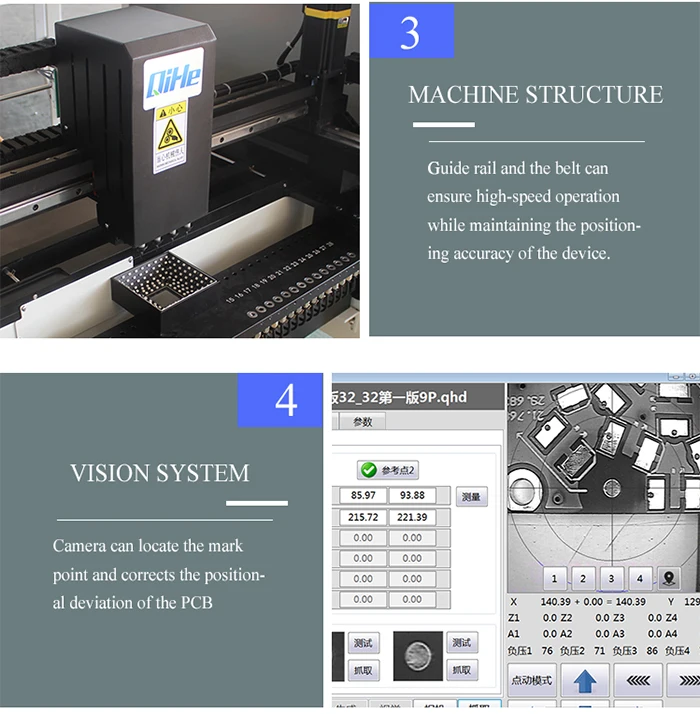

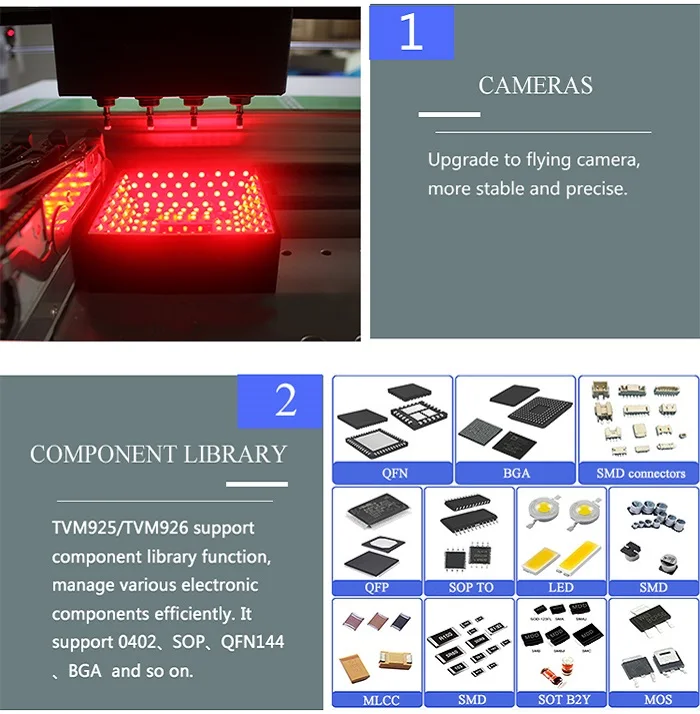

1. Vision system: 1 pcb inspection cameras & 1 flying camera.
2. Four placement heads can pick up and calibrate components at one time.
3. Up to 50 feeder slots, Yamaha standard feeder is available.

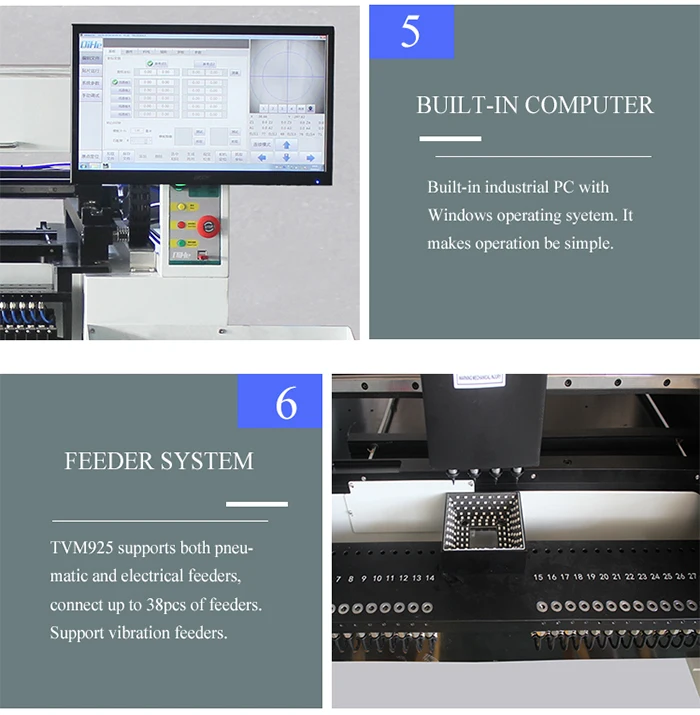

4. Built-in computer mainboard, the monitor, key board and mouse will ship with machine.
5. Video tutorials make you operate machine easily
6. Free to upgrade software and provide technology support for life.
Production Line Recommend
Company Information
Company Show
Exhibition Show
Certificate
FAQ
1. Q: How many nozzles do you supply? |
A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM61 has 6 nozzle-heads, we supply 8 nozzles. |
2. Q: Which language is the software? Do you provide software updates? |
A: English or Chinese. Free to upgrade software for lifetime. |
3. Q: This is the first time I use this kind of machine, is it easy to operate? |
A: Yes. There are English manual and guide video that show you how to use machine. If there is any doubt in the process of operating the machine, please feel free contact us. We also provide overseas on-site service. |
4. Q: Can we customize the machine? |
| A: Of course. All of our machines can be customized. |
5. How about the warranty? |
A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period. |
