BK YP015 Factory Directly Supply Big Drum 5 Gallon Barrel Water Oil Detergent Filling Package Machine
- Category: >>>
- Supplier: Ok Machinery Co. Ltd
Share on (1600566599514):
Product Overview
Description
Product Description

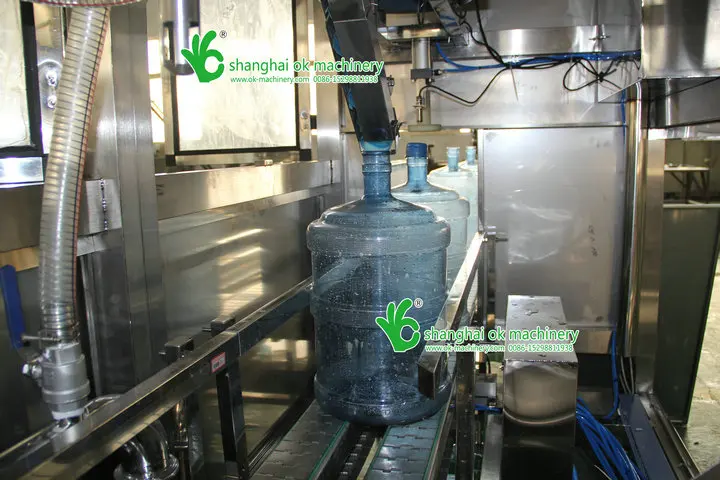

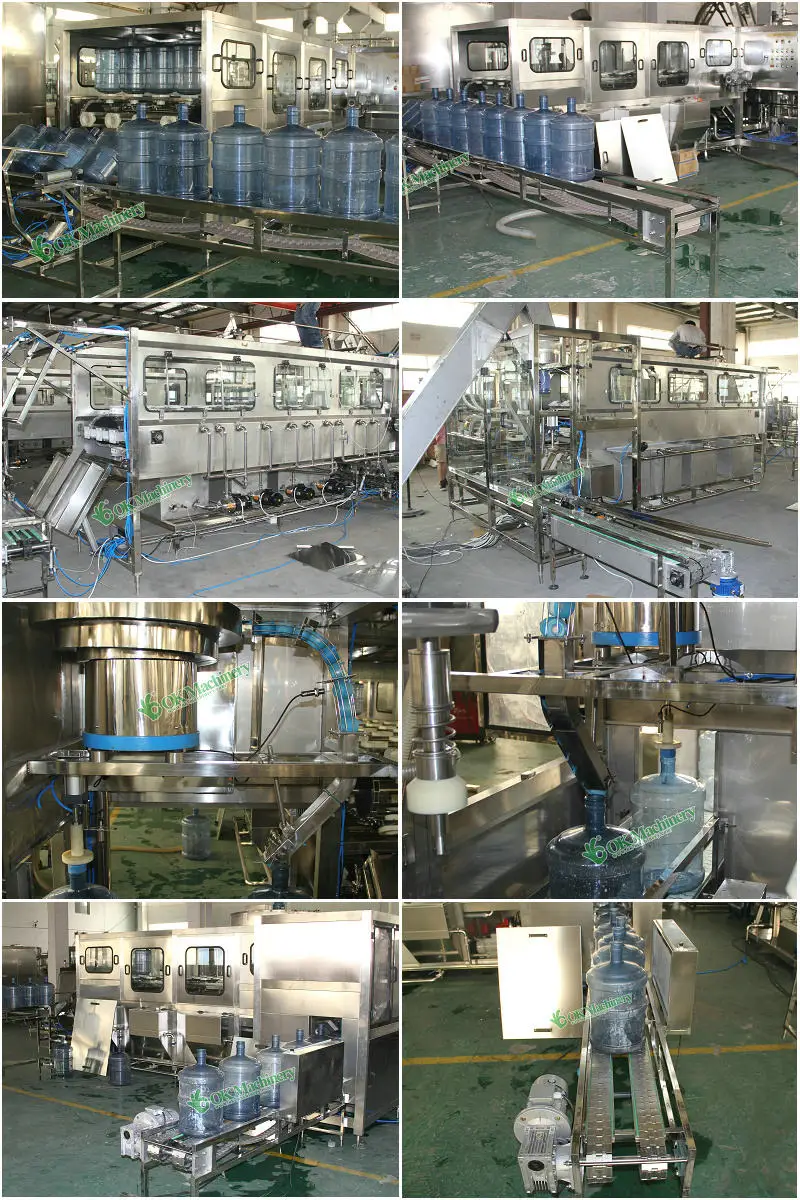

Automatic 5 gallon bottle water filling line/5 gallon filling machine
1. Model QGF-150
2.Capacity : 150BPH (5 GALLON /20L)
3. Suitable : Plastic bottle 3 GALLON TO 5 GALLON
4. Machine size : 3700*1300*1600mm
5.Machine electric brand : SIEMENS , MITSUBISHI
6.Machine power : 1.38KW
7. Machine weight : 680kg
8. Machine include function :washing filling capping
9. Application: Beverage, Mineral water, pure water, flavor water;
automatic water filling machine video
3. Suitable : Plastic bottle 3 GALLON TO 5 GALLON
4. Machine size : 3700*1300*1600mm
5.Machine electric brand : SIEMENS , MITSUBISHI
6.Machine power : 1.38KW
7. Machine weight : 680kg
8. Machine include function :washing filling capping
9. Application: Beverage, Mineral water, pure water, flavor water;
automatic water filling machine video

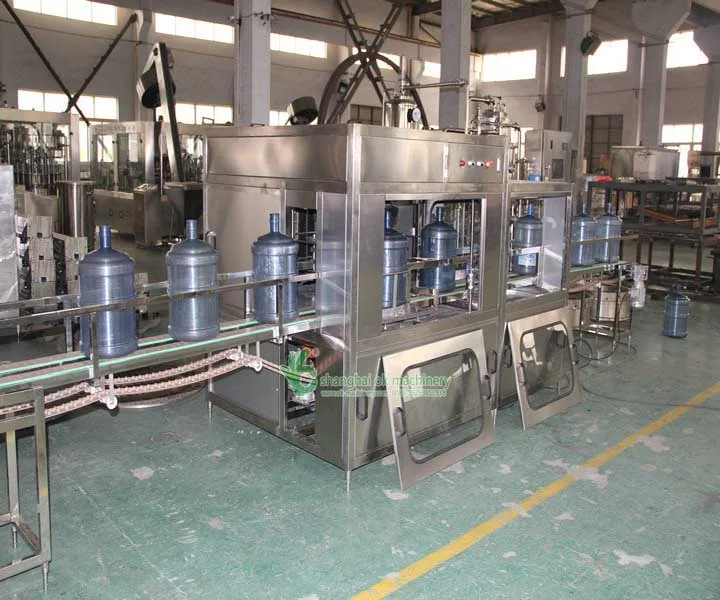

Automatic 5 gallon bottle water filling line/5 gallon filling machine
This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 |
Filling heads | 1 | 2 | 3 | 4 |
Capacity | 150 | 300 | 450 | 600 |
Weight | 680kg | 1500kg | 2100kg | 3000kg |
Motor power | 1.38kw | 3.8kw | 5.5kw | 7.5kw |
Dimension (mm) | 3700*1300*1600 | 4060*1860*1600 | 5000*1500*2200 | 5400*2600*2200 |
Specification

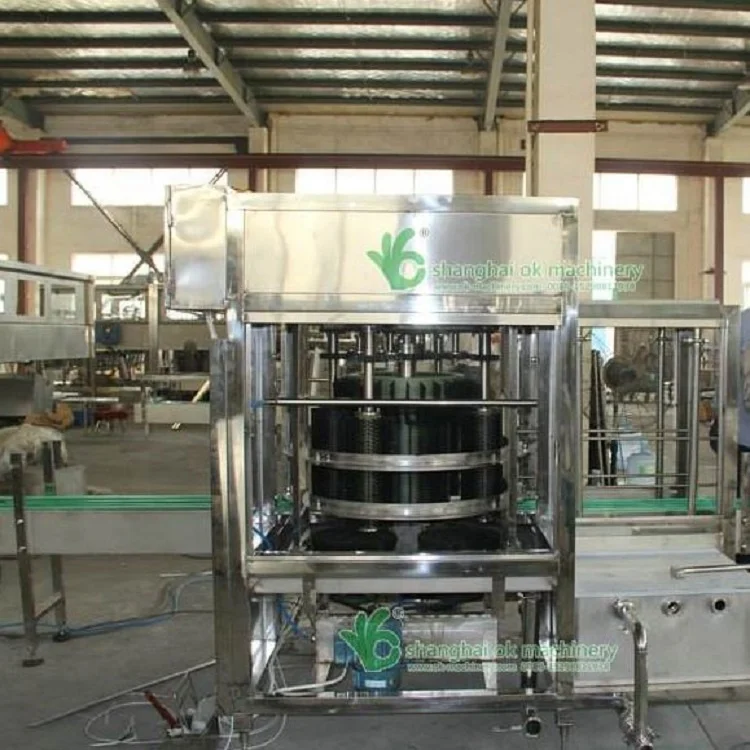

Washing Part
Function : washing bottle inside and outside dust .
Function : washing bottle inside and outside dust .

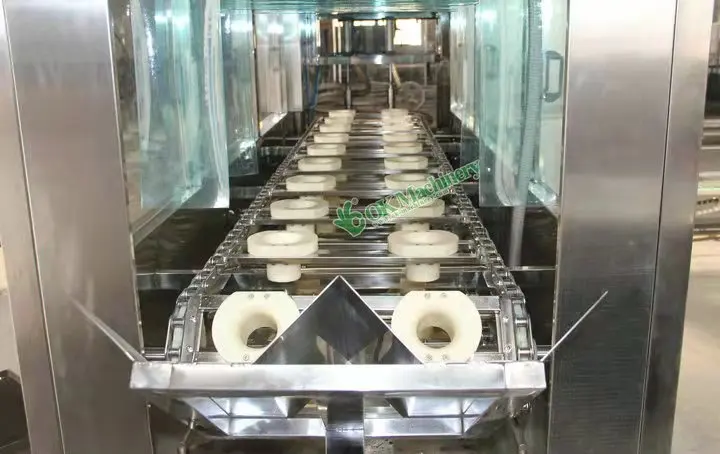

<1>All 304/316stainless steel rinse heads, water spray style inject design,more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during
washing
washing
<3> 304/316 stainless steel washing pump
Filling Part
Fucntion : filling water into bottle .
Fucntion : filling water into bottle .

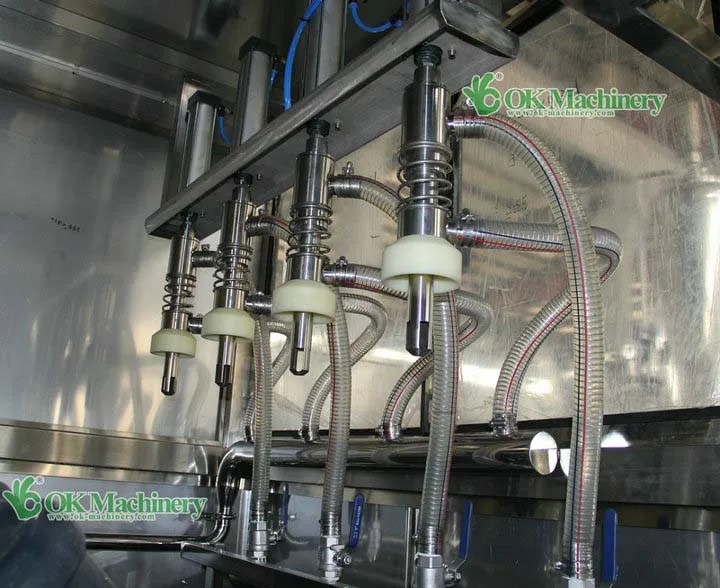

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping Part
Function : put caps on bottle .
Function : put caps on bottle .

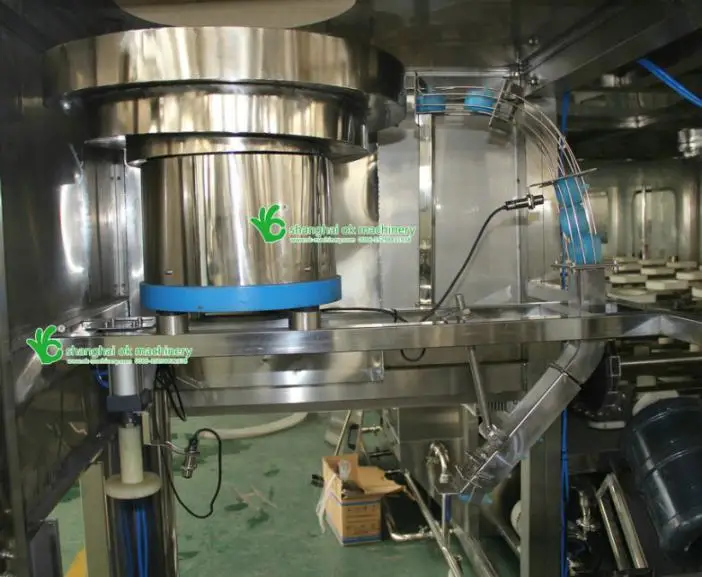

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
Flat Conveyor
- Energy saving. High efficient. Adapt to customer factory layout - Special lubrication system, keep products clean, health, safety - Extended service life
- Electric eyes design keep whole line running safety and quickly - Overload protection mechanism to effectively ensure the safety of the machine
- Electric eyes design keep whole line running safety and quickly - Overload protection mechanism to effectively ensure the safety of the machine
Air Conveyor
- Air conveyor is fixed on the floor, with fan installed on the top. - Air filter is positioned at every entrance of air fan, to
prevent dust blown into bottles. - Bottles are held on the neck in the conveyor and transported into filling machine by blowingpower. - All are made of stainless steel SUS 304 /316. - Rack made by high quality carbon steel welded.
prevent dust blown into bottles. - Bottles are held on the neck in the conveyor and transported into filling machine by blowingpower. - All are made of stainless steel SUS 304 /316. - Rack made by high quality carbon steel welded.
Products Description

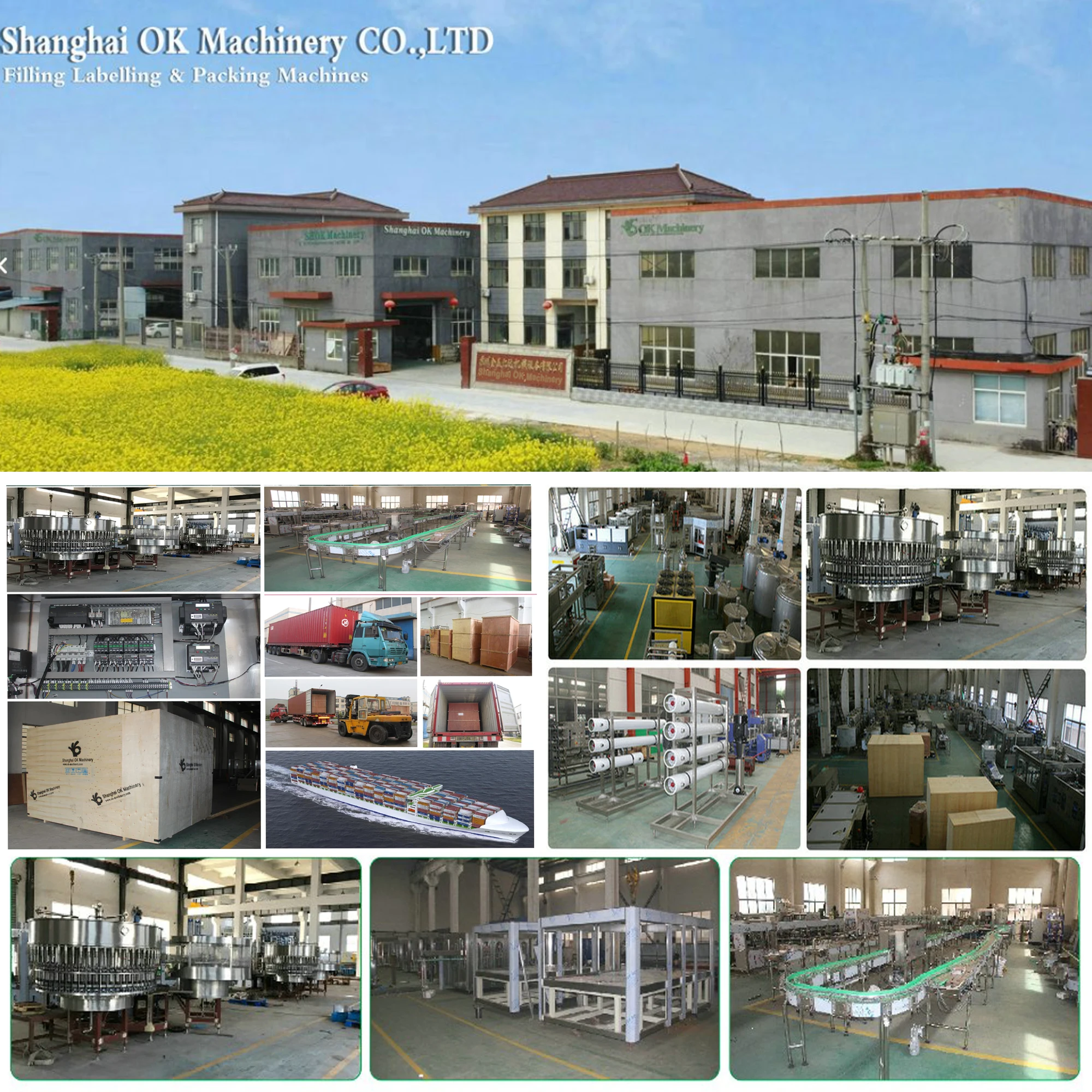

Company Profile
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory. And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory. And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
