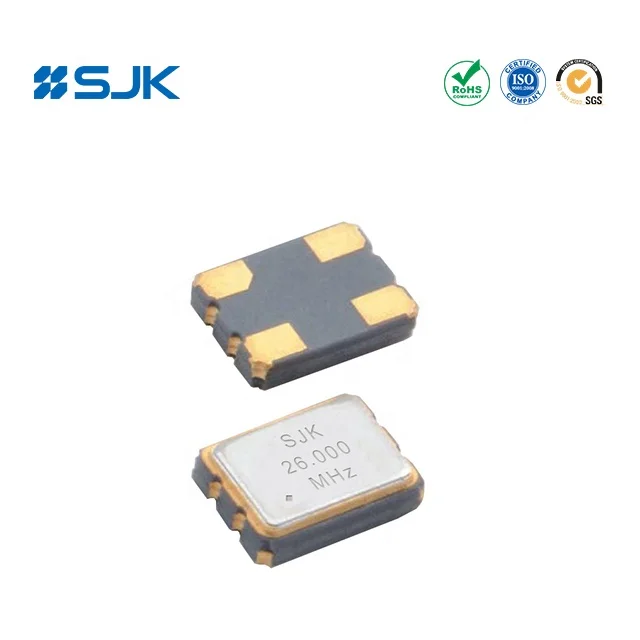

7X Series SMD 2016 TCXO


Model: 7X Series SMD 2016 TCXO /VC-TCXO


Frequency range: 10~52MHz


Supply voltage: 1.8V~3.3V


Frequency stability: ±0.5~±2.0ppm


Size: 2.0×1.6×0.75mm


Applications: GPS, Mobile phone, Wearable electronics, IoT, and more












Specifications and Dimensions



Features of 7X Series SMD 2016 TCXO /VC-TCXO


Output frequency range from 10MHz to 52MHz


2016size, 0.75mm high SMD TCXO /VC-TCXO


Low voltage operations and low phase noise


Temperature stability: ±0.5ppm~±2.0ppm


VCTCXO available


Automatic mounting and reflow soldering


Applications: Mobile phone, Wearable electronics, IoT, GPS, WLAN, and more


RoHS Compliant /Pb-Free


Electrical Specifications of 7X Series SMD 2016 TCXO /VC-TCXO





















































































Item /Type



7X (SMD 2016 TCXO /VC-TCXO)



Output Type



Clipped Sine wave



Output Load



10KΩ//10pF



Supply Voltage



1.8~3.3V



Frequency Range



10~52MHz



Supply Current



2.0mA Max.



Output Level



0.8Vp-p Min.



Frequency Stability



Tolerance



±2.0ppm Max. (after 2 reflows )



vs Temperature



±0.5ppm~±2.0ppm



vs Supply Voltage



±0.2ppm Max. (Vcc±5%)



±0.2ppm Max. (Vcc±5%)



vs Load



±0.2ppm Max. (Load varies±10%)



vs Aging



±1.0ppm Max./Year



Auto Frequency Control (AFC) Range



±7ppm~±16ppm (1.4±1V)



Start-up Time



2ms Max.



Operating Temperature



-30~+85℃



Phase Noise @19.2MHz



100Hz



-115dBc/Hz



1KHz



-135dBc/Hz



10KHz



-148dBc/Hz



Packing Unit



3000pcs./Reel

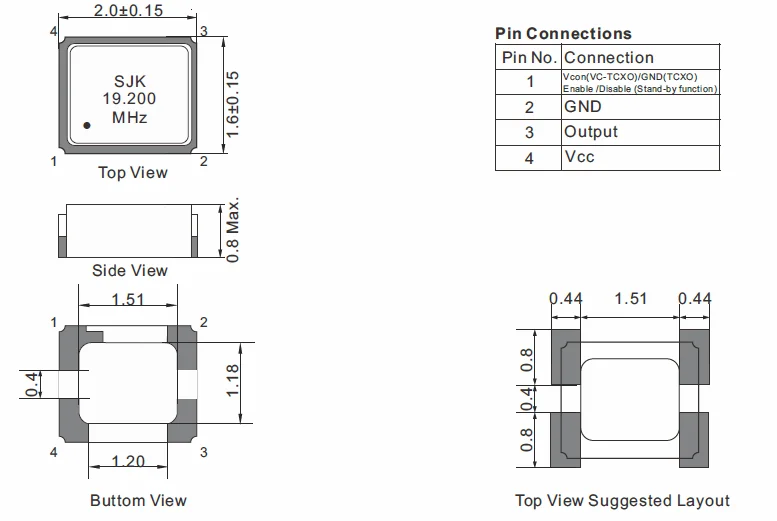

Dimensions [mm]


SMD 2016 TCXO 7X spec.png








REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
