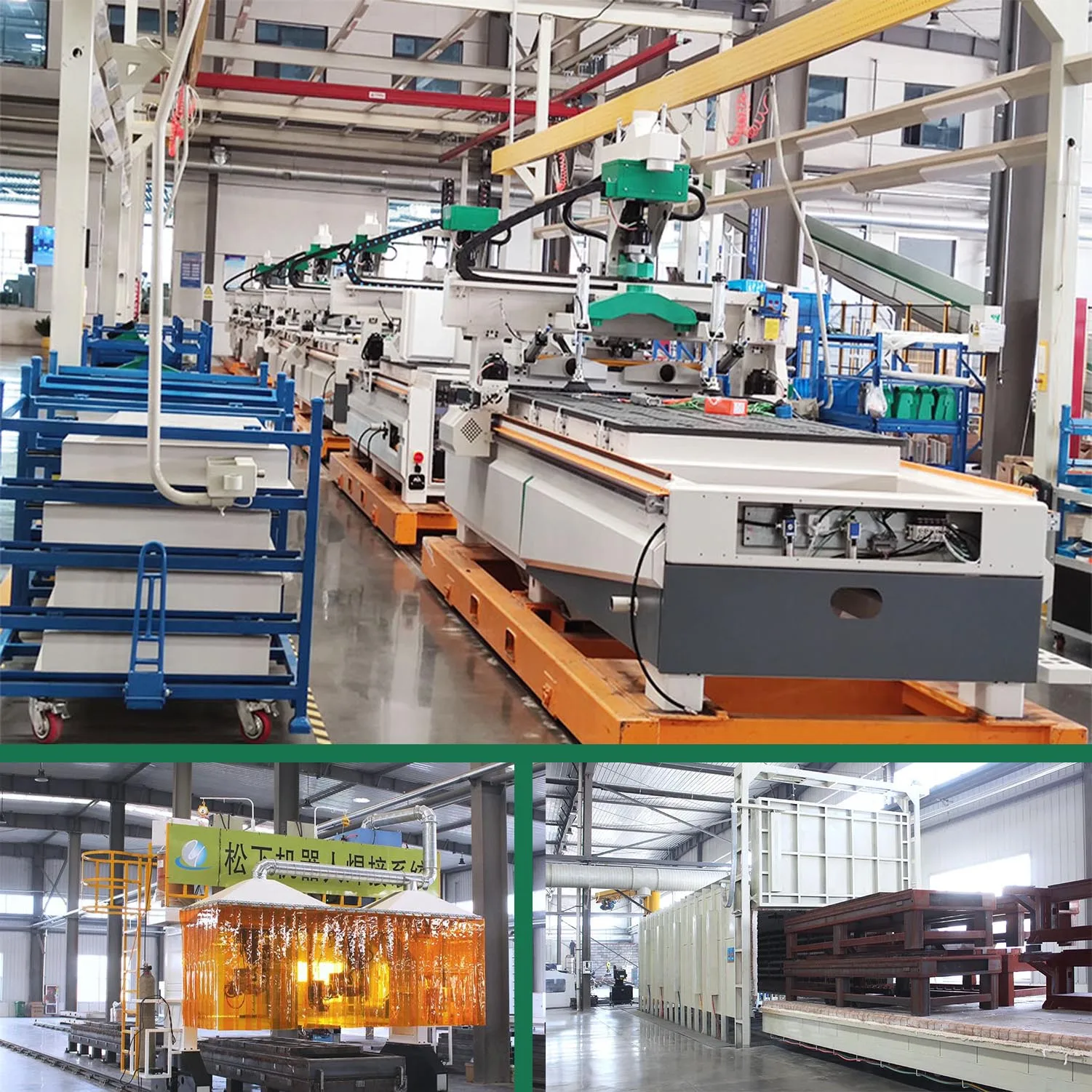

4 Axis Spindle With Computer Control Board Furniture Woodworking Atc Cnc Router Machine
- Category: >>>
- Supplier: Jinan Pinmai Cnc Equipment Co. Ltd.
Share on (1600566628102):
Product Overview
Description
Products Description

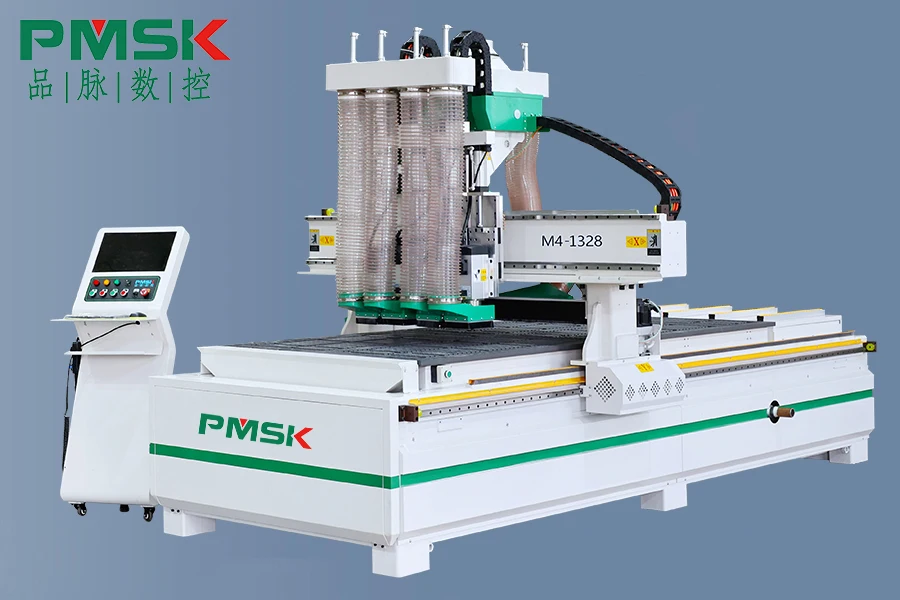

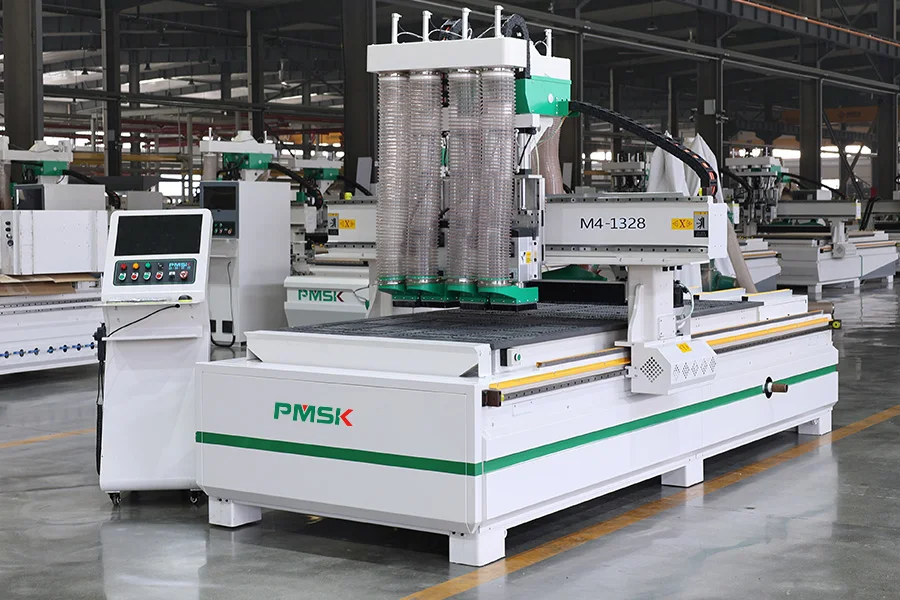

1325 Cnc 4 Axis Wood Panel Drilling Cutting Machine With High Accuracy And Easy Operation

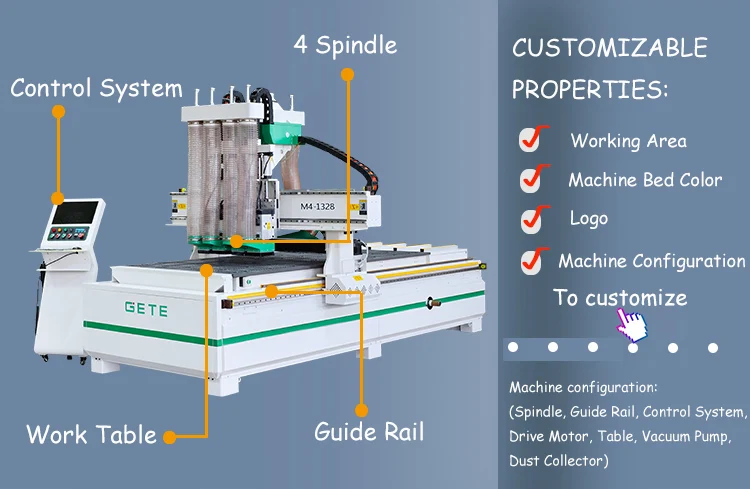

M4 four heads nesting cnc cutting machine is an economical panel furniture production equipment.
This model is a CNC cutting machine specially customized according to the required hole size of the panel furniture three-in-one link and sawdust.

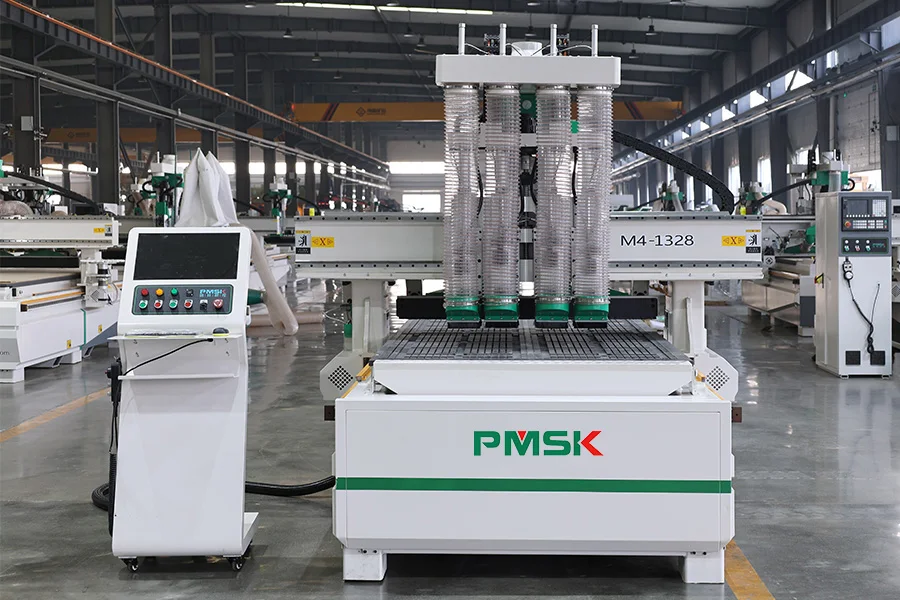

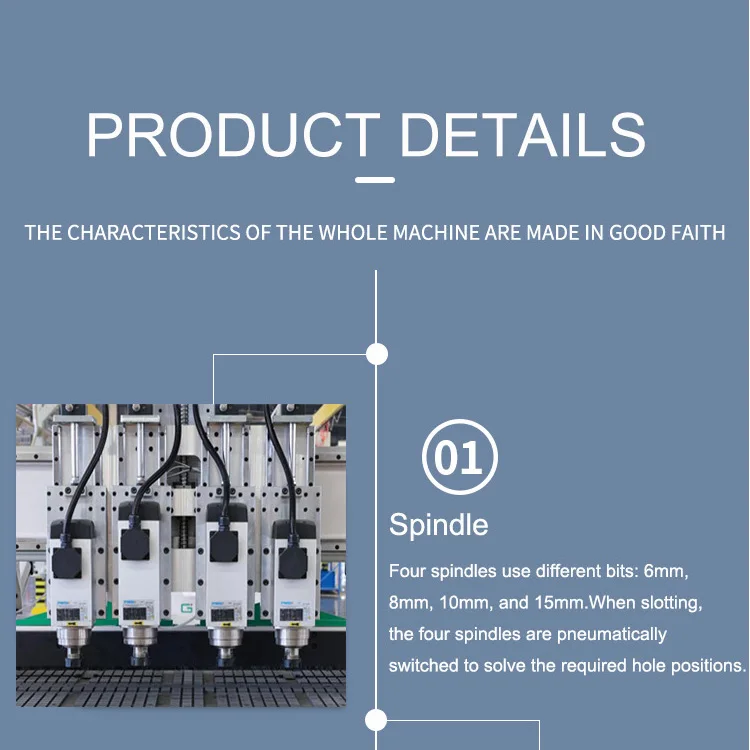

The machine head It is equipped with four spindles, and the tools loaded on the spindles are 6mm, 8mm, 10mm, and 15mm when processing cabinets.
Product Paramenters
Model | M4 |
Single table travel range | 1220*2440mm |
Travelling speed | 60m/min |
Max working speed | 18m/min |
Turnover processing accuracy | ±0.05mm |
Transmission | X/Y axis gear rack,Z axis ball screw |
Spindle parameter | 6KW*2+4.5KW*2 air cooled 18000RPM |
Operation system | SYNTEC/DELTA |

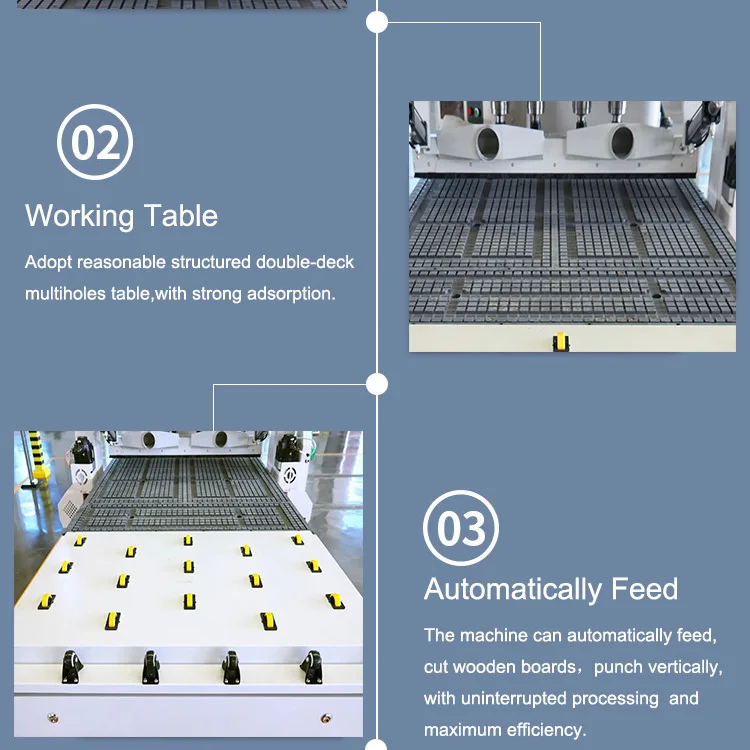

Table structure | Double layer multizone porous vacuum table |
Working voltage | 380V/50HZ |
Dimension | 3.7*2.1*2.3m(LWH) |
Weight | 2600KG |
machine net power | 11KW |
operation power of whole machine | 21.5KW |

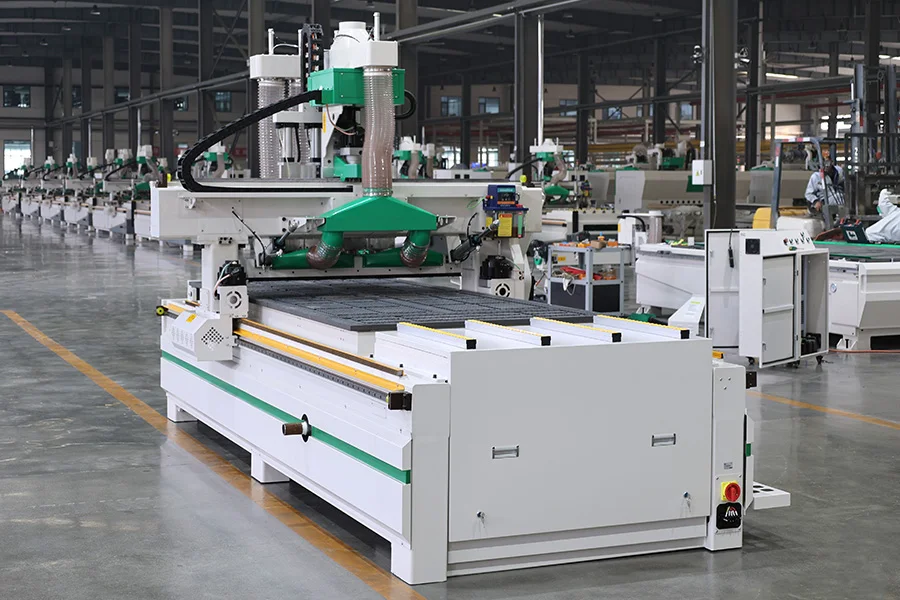

Details Images
Feature:
1.Four main spindle division of labor and cooperation
2.It can be used as a cabinet and can solve simple cabinet door production.

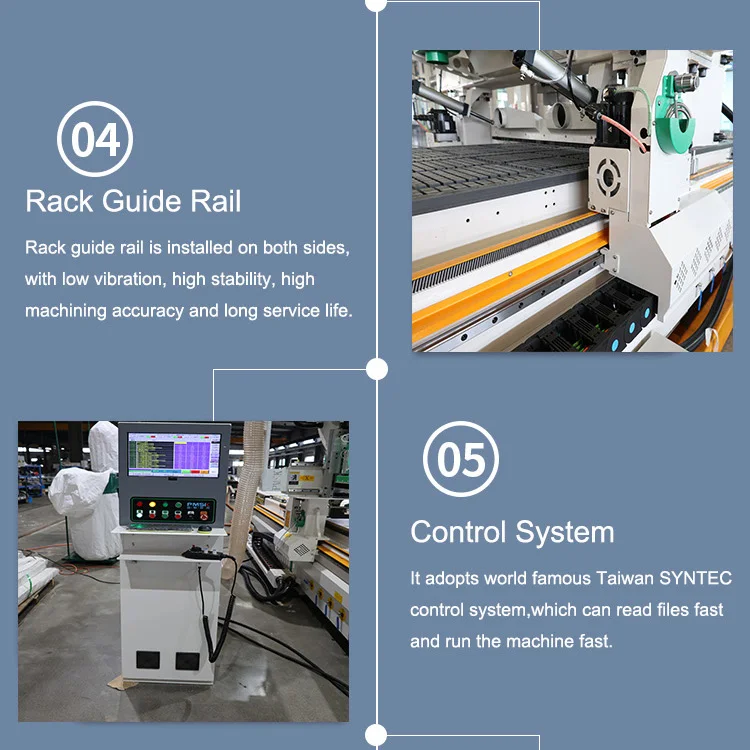

3.Delta/SYNTEC high-end CNC machine control system
4.Good stability, fast data processing speed and more accurate signal feedback.
5.Aging treatment of bed and gantry milling
6.The machine has higher stability, high precision and long service life.
1.Four main spindle division of labor and cooperation
2.It can be used as a cabinet and can solve simple cabinet door production.
3.Delta/SYNTEC high-end CNC machine control system
4.Good stability, fast data processing speed and more accurate signal feedback.
5.Aging treatment of bed and gantry milling
6.The machine has higher stability, high precision and long service life.
Application Scenario

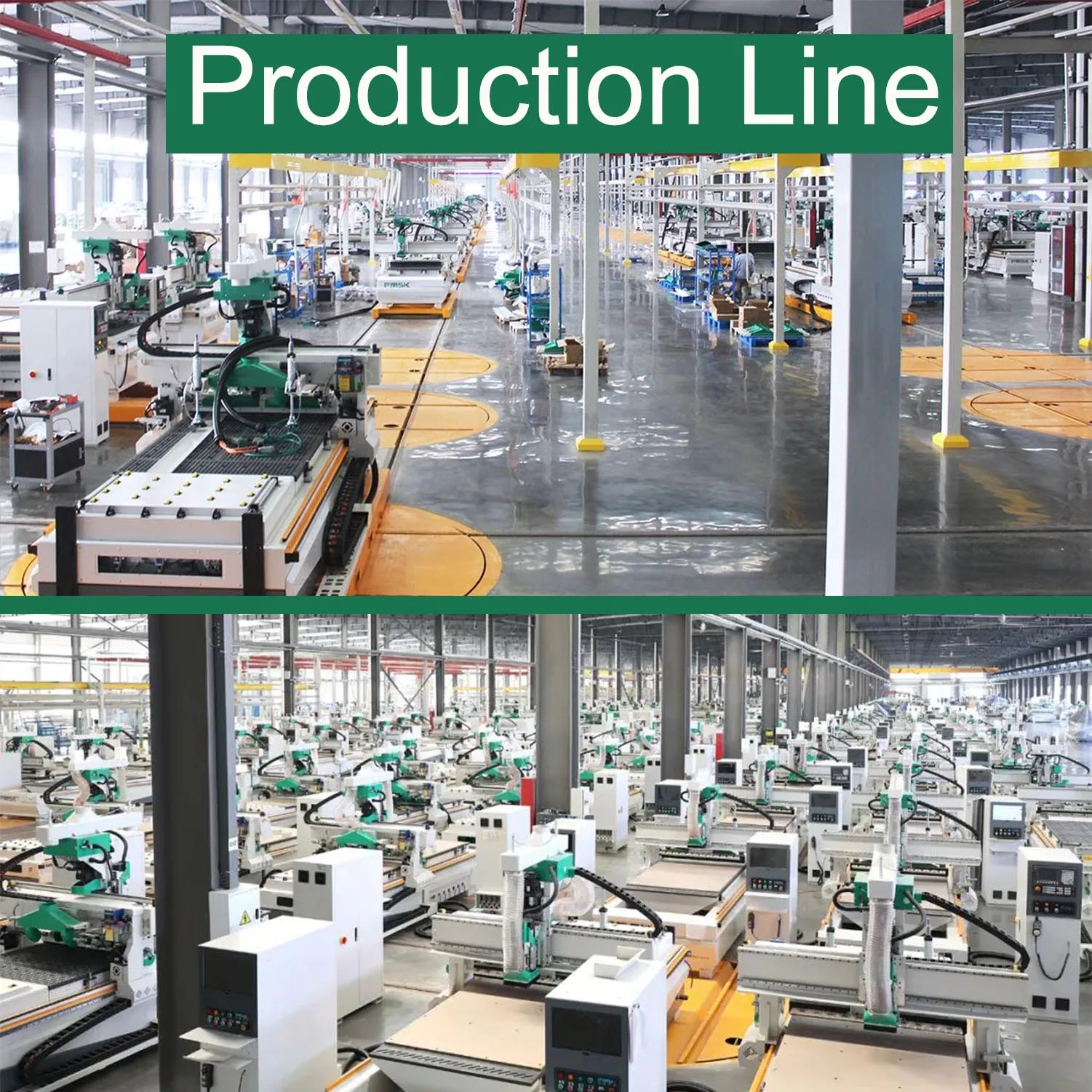

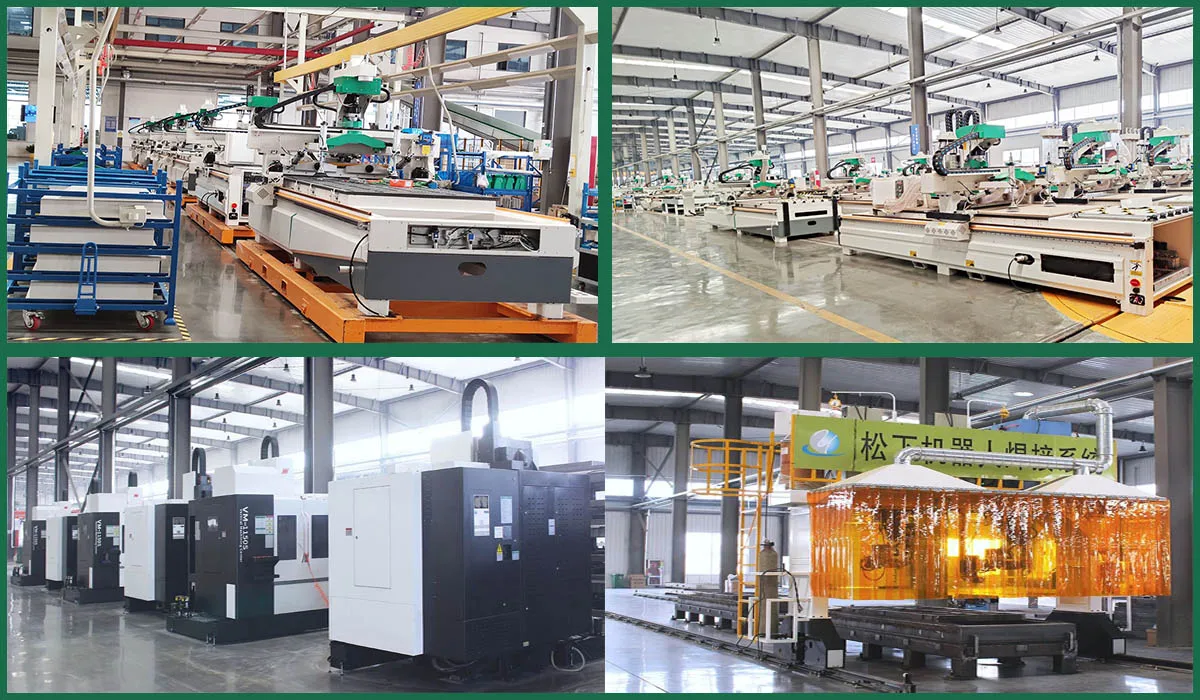

Company Profile
Exhibition
FAQ
1,I need a CNC router,can you give me some suggestions?
A,Sure,we will give suggestions of the most suitable machine,Before that,we need to know some information,such as effective processing area,materials,etc.,to getermine the main parameters. in addition，Our machines can be customized according to buyers’ request.
2,Which kind of materials can be processed on this machine?
A:Wood,mdf,stone,acrylic,glass,plastic,foam,aluminium,copper,and almost all kinds of non-steel materials.We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
3,Are you a factory or trading company?

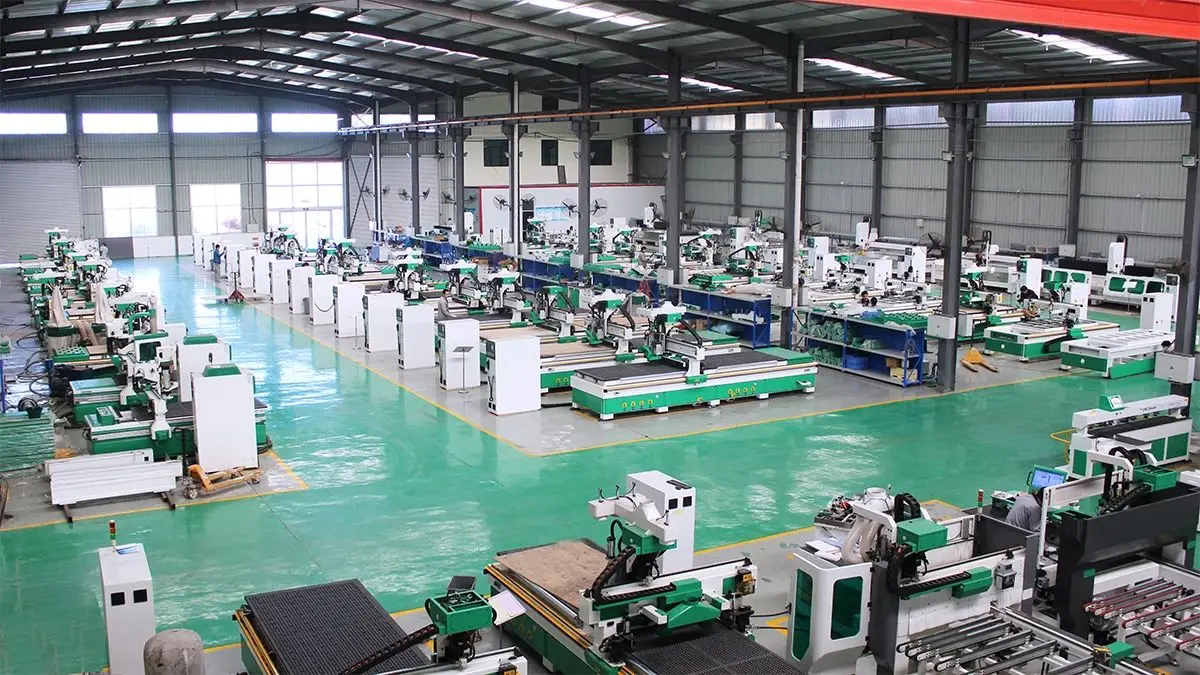

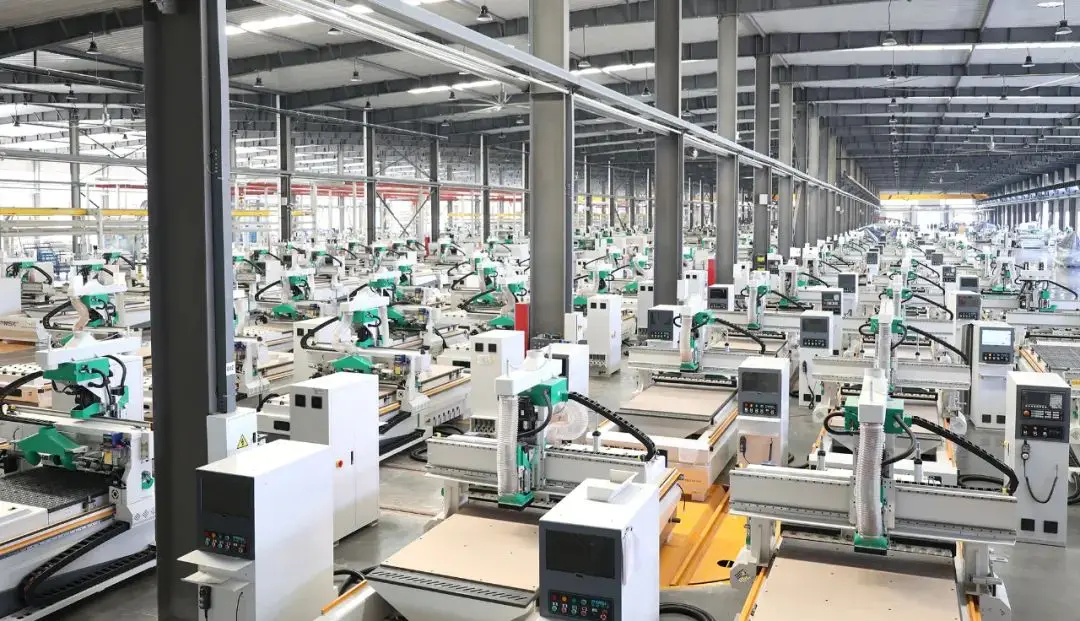

A:We are the manufacturer and we have 15 years factory experience.As only the machine made by ourself,the quality can be tursted,and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy,so welcome to visit to our factory.
4,How should i pay for my order?
A:You need to pay 30% as prepayment at first,then we will start to make production.When the machine is completed,we will send pictures or videos to you,and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5,How long is the delivery time?
A:For standard machines,it will be 1-3 days;For non-standard machines and customized machines according to client' specific requirements,it will be 10 to 15 days.
A,Sure,we will give suggestions of the most suitable machine,Before that,we need to know some information,such as effective processing area,materials,etc.,to getermine the main parameters. in addition，Our machines can be customized according to buyers’ request.
2,Which kind of materials can be processed on this machine?
A:Wood,mdf,stone,acrylic,glass,plastic,foam,aluminium,copper,and almost all kinds of non-steel materials.We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
3,Are you a factory or trading company?
A:We are the manufacturer and we have 15 years factory experience.As only the machine made by ourself,the quality can be tursted,and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy,so welcome to visit to our factory.
4,How should i pay for my order?
A:You need to pay 30% as prepayment at first,then we will start to make production.When the machine is completed,we will send pictures or videos to you,and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5,How long is the delivery time?
A:For standard machines,it will be 1-3 days;For non-standard machines and customized machines according to client' specific requirements,it will be 10 to 15 days.
