Product Overview

Description





Product Description

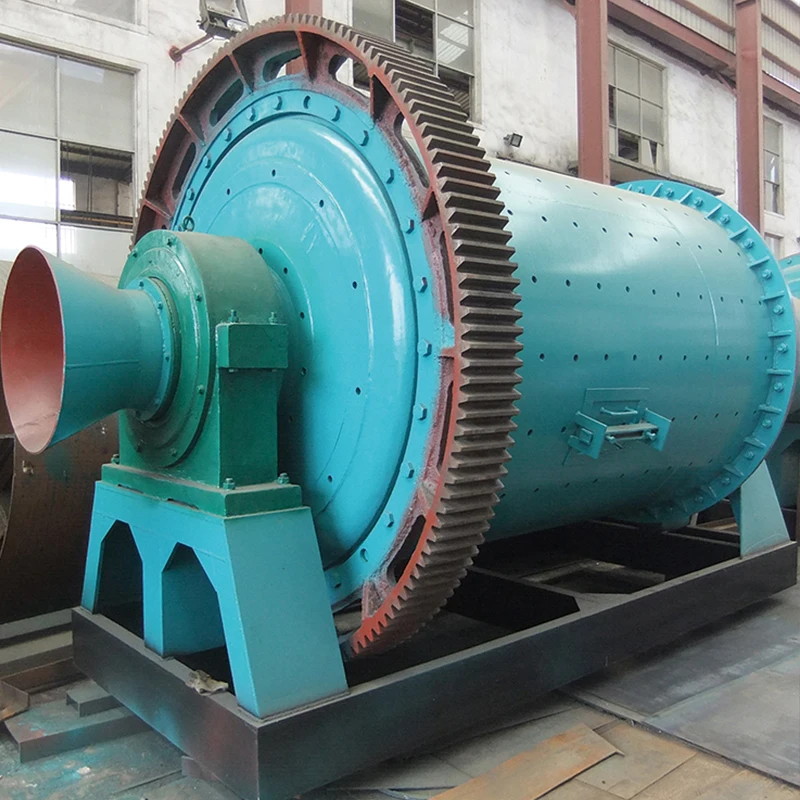

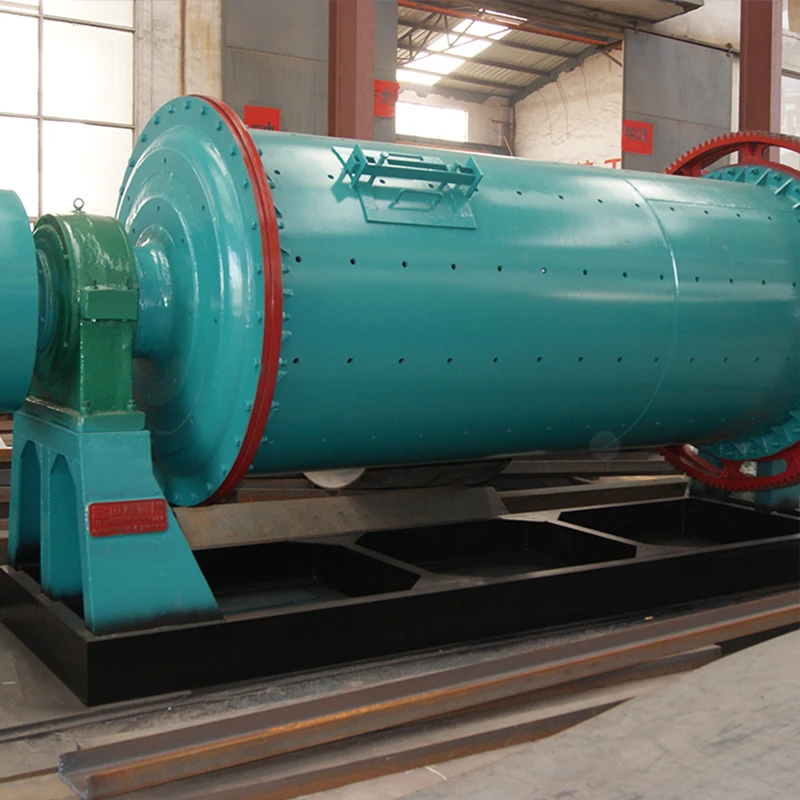

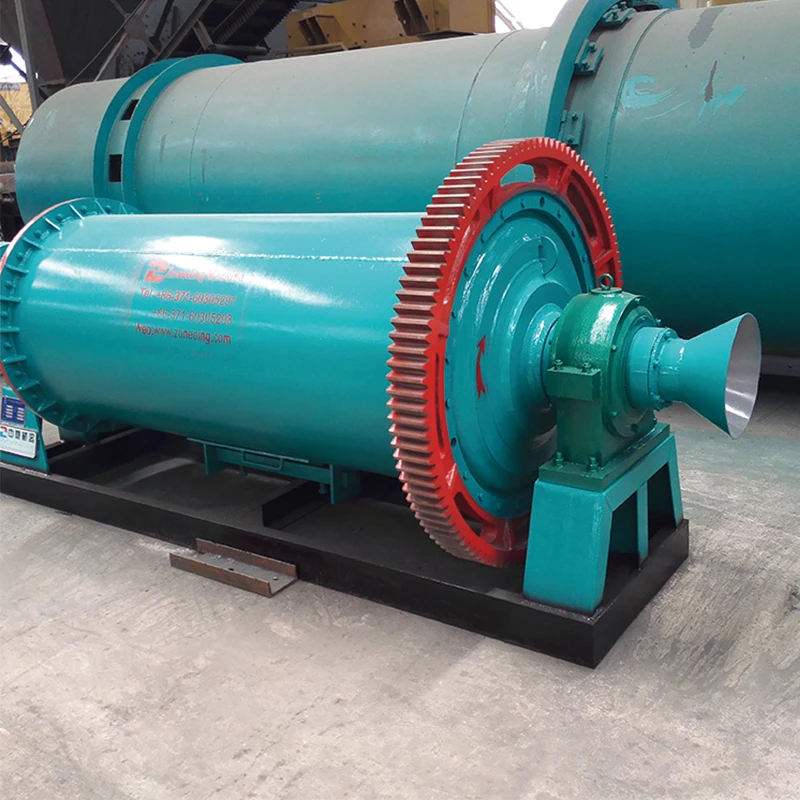

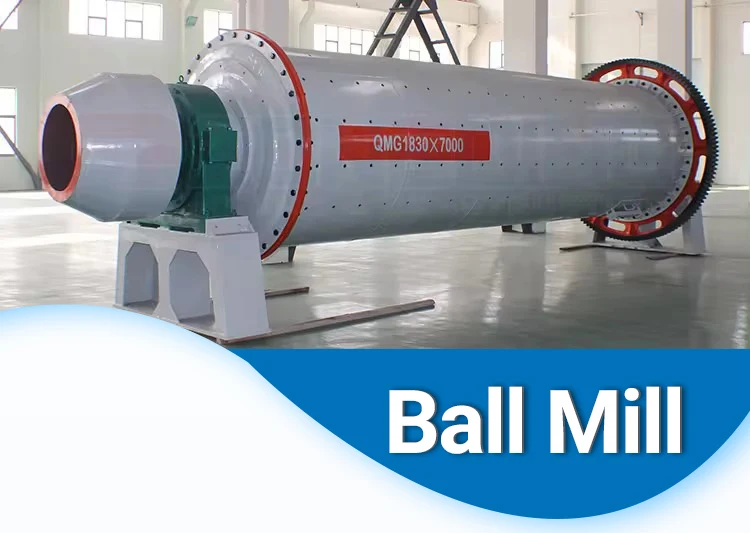

The ball milling machine is suitable for primary grinding (crushers + ball mill) and secondary grinding stages (crushers + rod mill + ball mill), and is used in conjunction with the crushers and beneficiation equipment in the mineral processing plant.

Its applicable materials include metal ores, non-metallic ores, cement clinker, slag, quartz sand, zircon sand, glass, ceramics, new building materials, etc. Thus, it is widely used in cement, building materials, fireproof materials, glass, ceramics, and other industries.




Φ900×2100
Φ1800×3000


Φ1500×4500
Φ1800×7000


Φ2400×4500
Φ3200×4500


If you are interested in this, please contact us as soon as possible! We will provide you with more than 2 solutions for you to choose from.




Model
Speed (r/min)
Max. weight of balls (t)
Input size (mm)
Output size (mm)
Power (kw)
Capacity (t/h)
Weight (t)
Φ900×1800
37
1.8
≤15
0.075-0.89
15
0.5-2
3.4
Φ900×2100
37
2.3
≤15
0.075-0.4
18.5
0.4-2
3.9
Φ900×3000
35
3.85
≤25
0.075-0.4
30
1.1-2.5
7.78
Φ1200×2400
35
4.6
≤25
0.075-0.4
30
1.3-3.2
8.65
Φ1200×2800
35
5.4
≤25
0.075-0.4
37
1.5-3.7
10.02
Φ1200×4500
35
8.6
≤25
0.075-0.4
45
2.7-6.79
14
Φ1500×3000
29
9
≤25
0.047-0.4
75
3.3-8.2
14.12
Φ1500×3500
29
10.5
≤25
0.047-0.4
75
3.3-8.5
15.64
Φ1500×4500
29
13.5
≤25
0.047-0.4
90
4.5-12
20
Φ1500×5700
29
17
≤25
0.047-0.4
110
2.6-14
21.5
Φ1830×3000
24
13.5
≤25
0.047-0.4
135
4-15
28
Φ1830×3600
24
14
≤25
0.047-0.4
135
4-15
29
Φ1830×4500
24
20
≤25
0.047-0.4
155
4-19
32
Φ1830×7000
24
31.5
≤25
0.047-0.4
210
6-22
37.5
Φ2100×3000
22
18
≤25
0.047-0.4
210
6.4-28
40.79
Φ2100×3600
22
20
≤25
0.047-0.4
210
7-28
42
Φ2100×4000
22
21.5
≤25
0.047-0.4
210
7.6-28
43.45
Φ2200×3600
21.7
25
≤25
0.047-0.4
245
5.2-32
44
Φ2200×7000
21.7
46
≤25
0.047-0.4
380
15-38
63
Φ2400×3600
21
28
≤25
0.047-0.4
320
8-60
47
Φ2400×4500
21
35
≤25
0.047-0.4
380
8.5-60
70.5
Φ2700×3600
20.7
40
≤25
0.047-0.4
400
12-80
75.5
Φ2700×4500
20.7
48
≤25
0.047-0.4
450
12-90
102
Φ3200×4000
18
65
≤25
0.047-0.4
800
30-180
137


Note: Any change of technical data shall not be advised additionally.

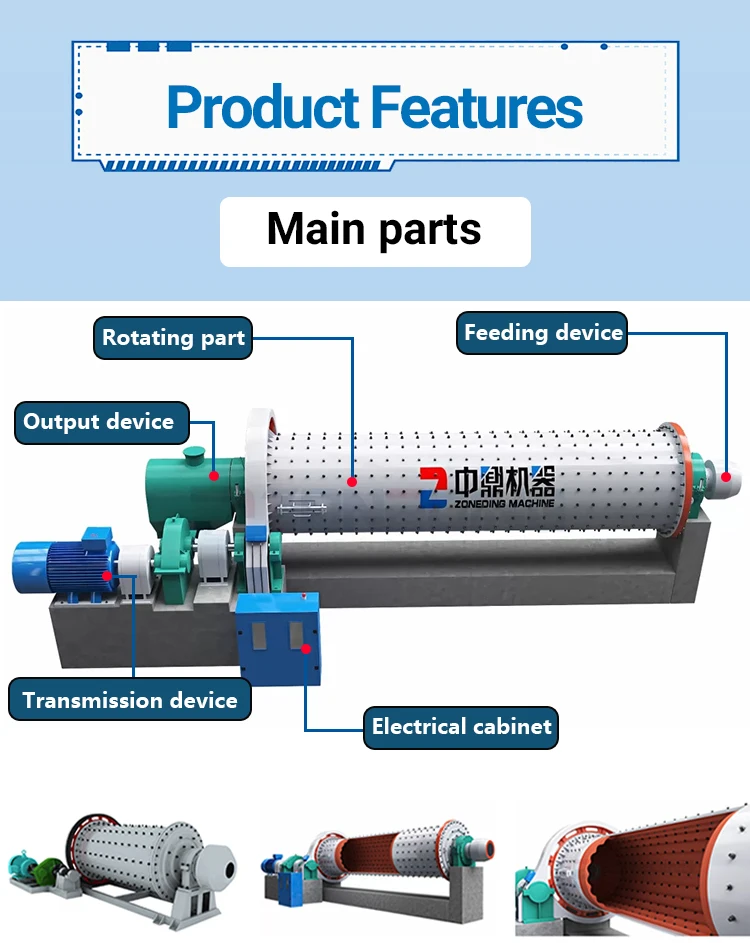

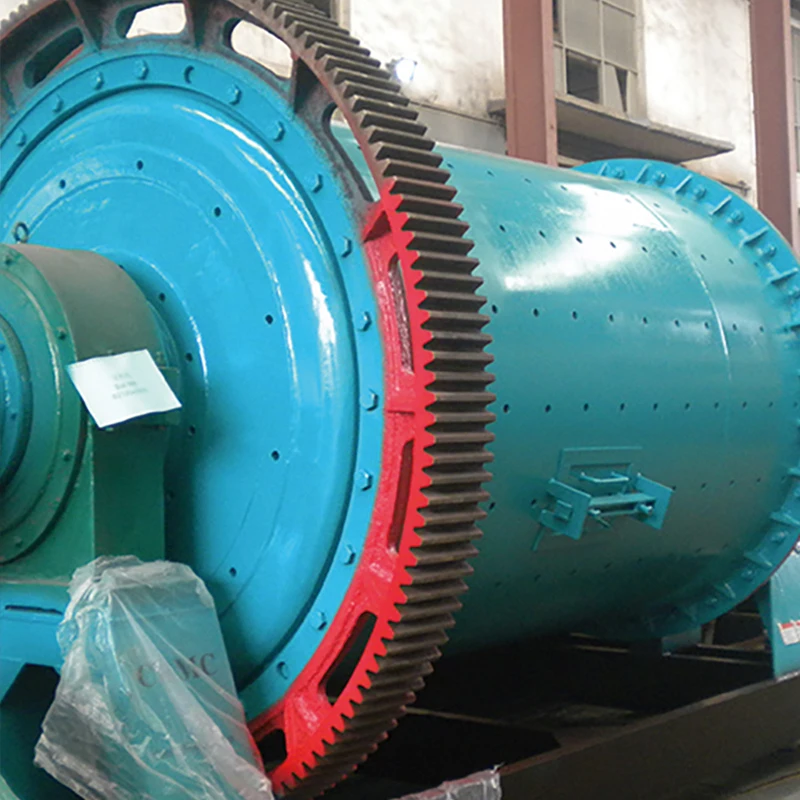

Ball Mill Working Principle
1. When the ball mill works, it is driven by the outer gear. Materials enter the mill through the feeding device. There are wear-resistant lining plates and grinding balls of different specifications in the cavity.

2. The rotation of the cylinder generates centrifugal force, which brings the ball to a certain height and then falls, causing a heavy impact and grinding effect on the material.

3. The powdery material is discharged through the discharging port to complete the grinding.

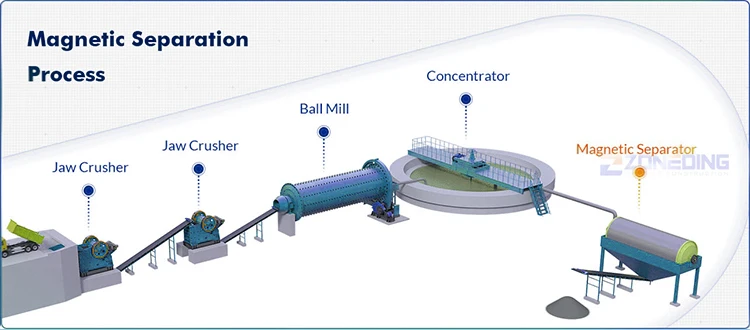

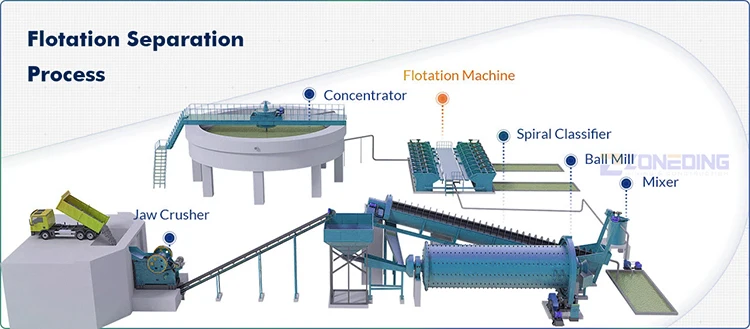

Common Ball Mill Solutions

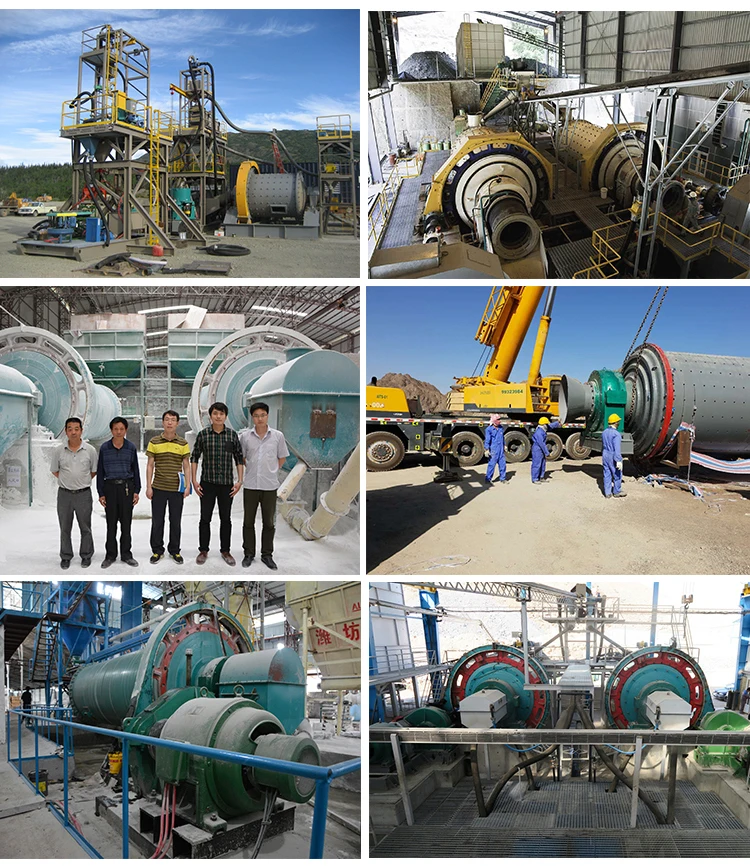

Customer Site

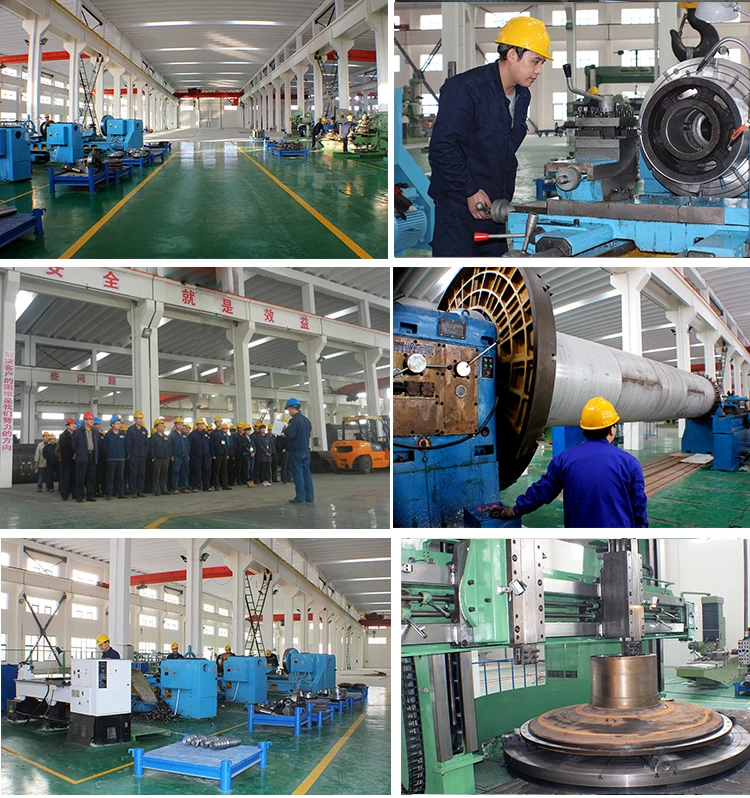

Company Information


Zhengzhou Zhongding Heavy Machinery Manufacturing Co., Ltd. is a professional solution provider of mineral processing, crushing, screening and drying equipment. We have long been committed to providing crushing equipment, vibrating screening equipment, washing equipment, belt conveyor equipment and other production line processes for the grinding, beneficiation, sand and aggregate industries.




Customer Visits




Why Choose Us


Technical Advantages
1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.
2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.


Price Advantages
1. We are the direct manufacturer, so we can offer you the lowest price than the market price.
2. The price of the machine can be given the largest discount based on quantity.


Transportation Advantages
1.Standard container or bulk cargo transportation.
2.Sea transportation, air transportation, land transportation, according to customer requirements.
3.Complete shipping options and best services at lowest prices are provided: MSC, APL, COSCO, OOCL, CSCL, MSC, MSK, KLINE, etc.
4.Seaports in normal use: Qingdao, Tianjin, Shanghai.
5.We promise that your goods will be delivered to the destination promptly and safely, and will remind you before the ship arrives.

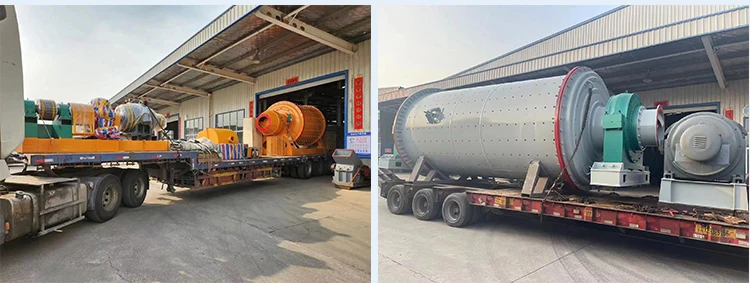

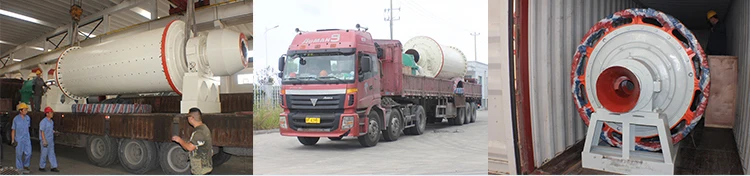

Packing & Delivery








FAQ


1. Which mineral processing method should I choose?
According to the properties of minerals, we will choose the treatment method that most suitable for you.

2. What machines are usually required for the whole production line?
Usually there are feeder, primary and secondary crushers, vibrating screen, ball mill, classifier, spiral chute, magnetic or flotation machine, dryer, etc. Equipment can be adjusted.

3. What is the final mineral concentration?
It depends on the ore grade. The final concentration of gold ore can reach 80-90%.
