High speed jumbo roll adhesive tape rewinder machine
- Category: >>>
- Supplier: Shenzhen JCD Machinery Co. Ltd.
Share on (1600566641290):
Product Overview
Description

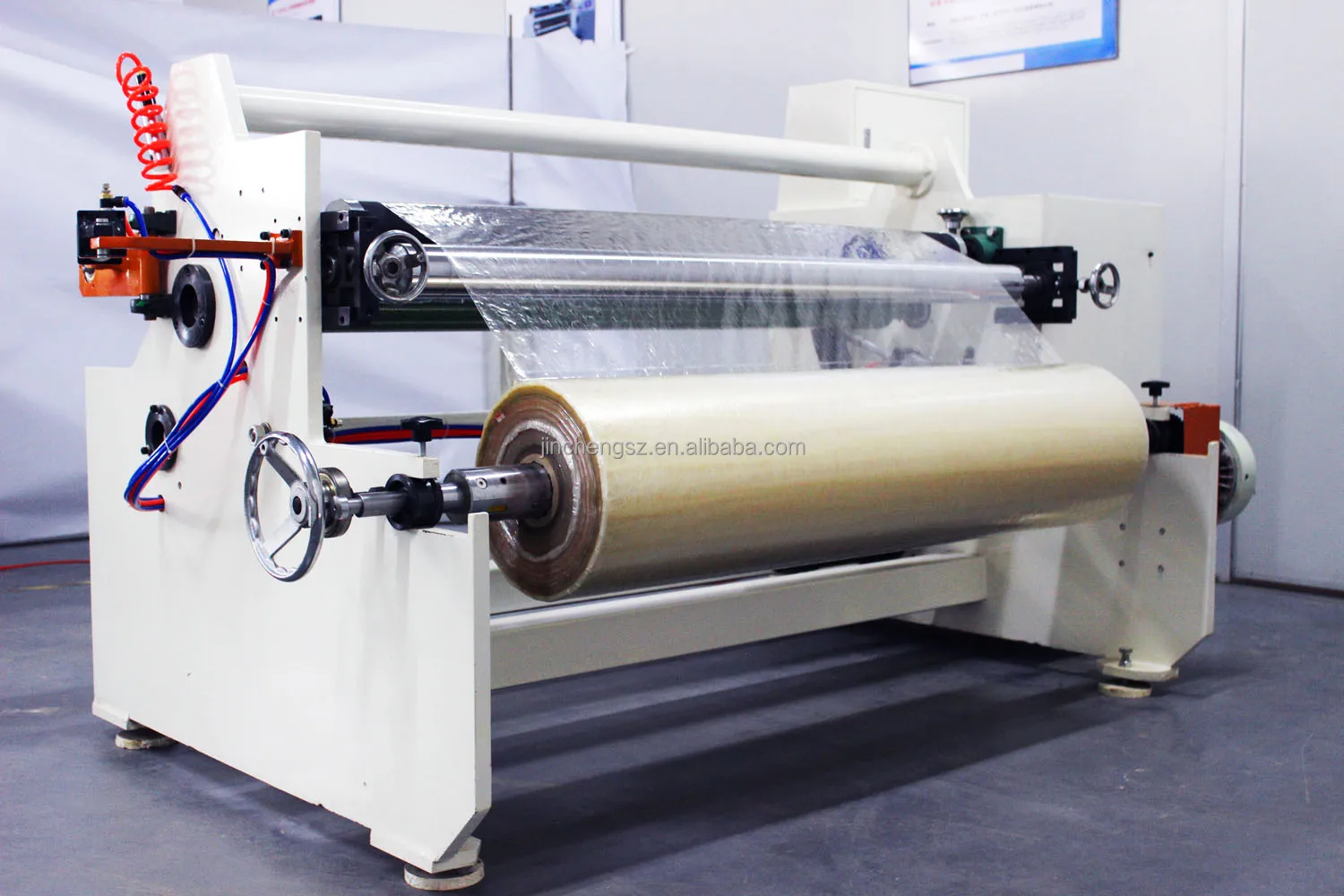

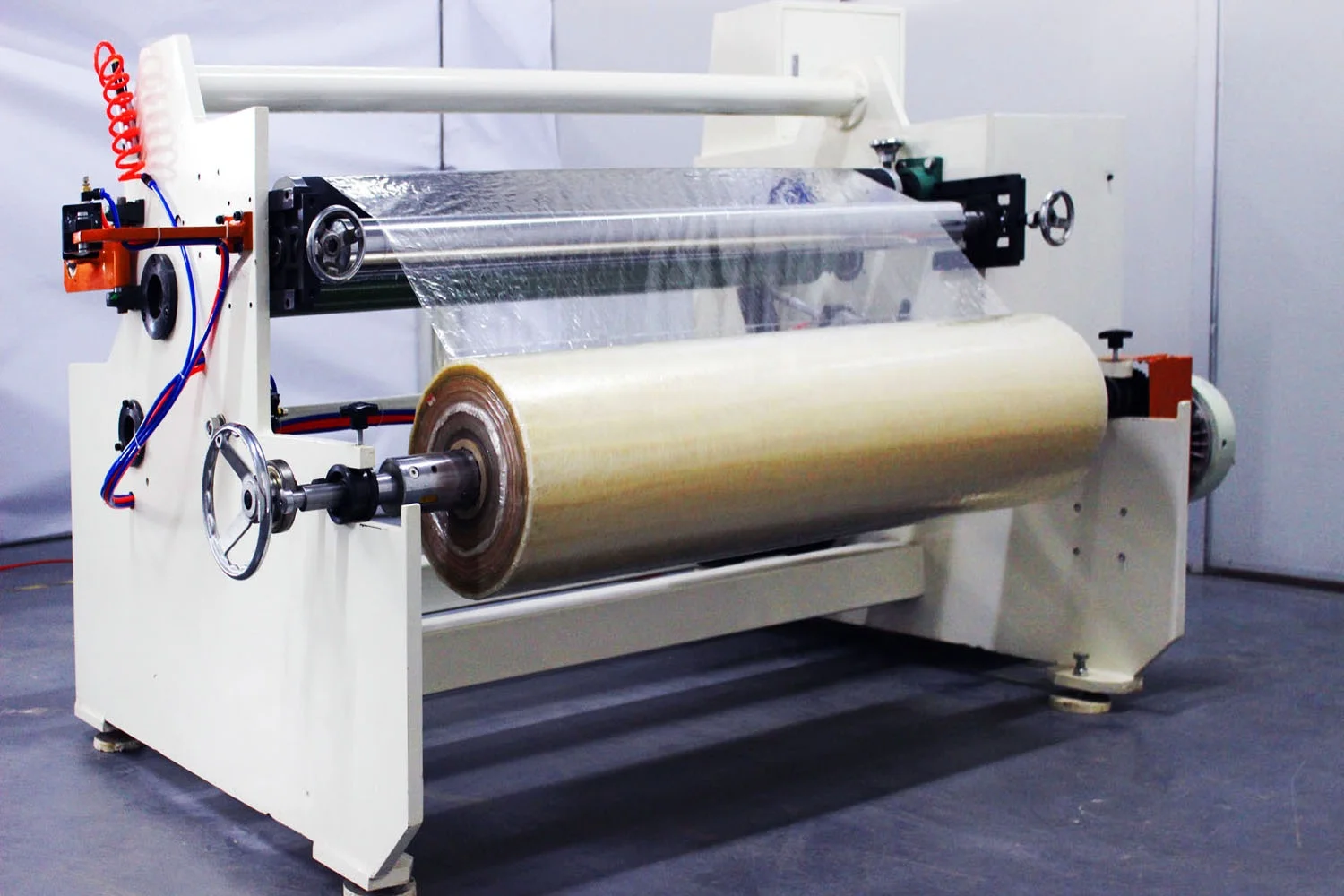

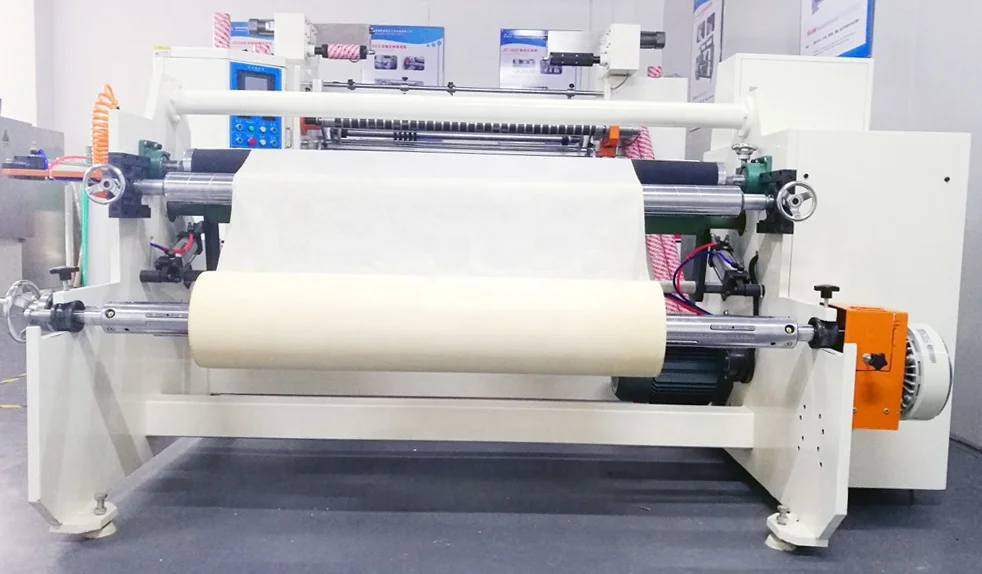

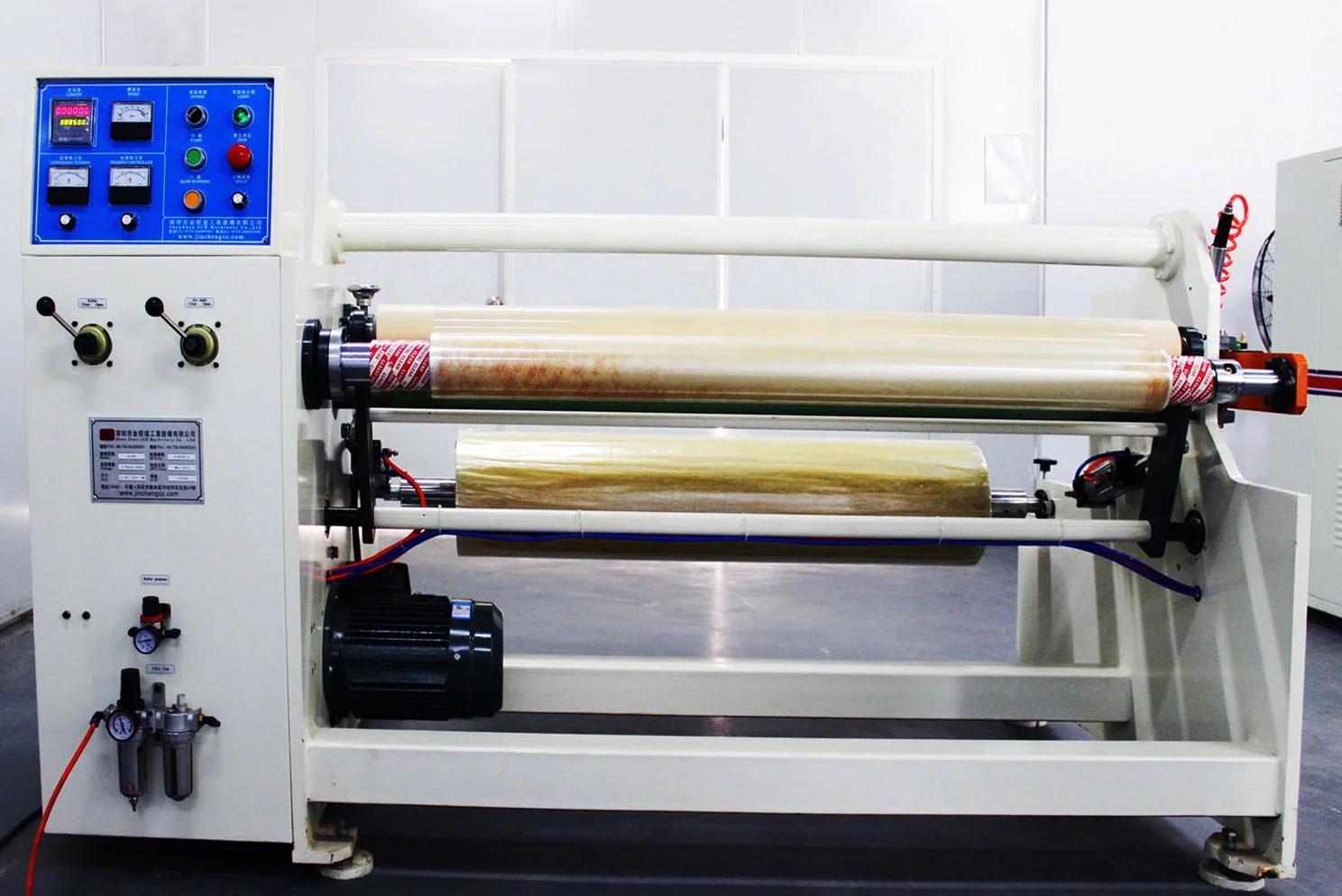

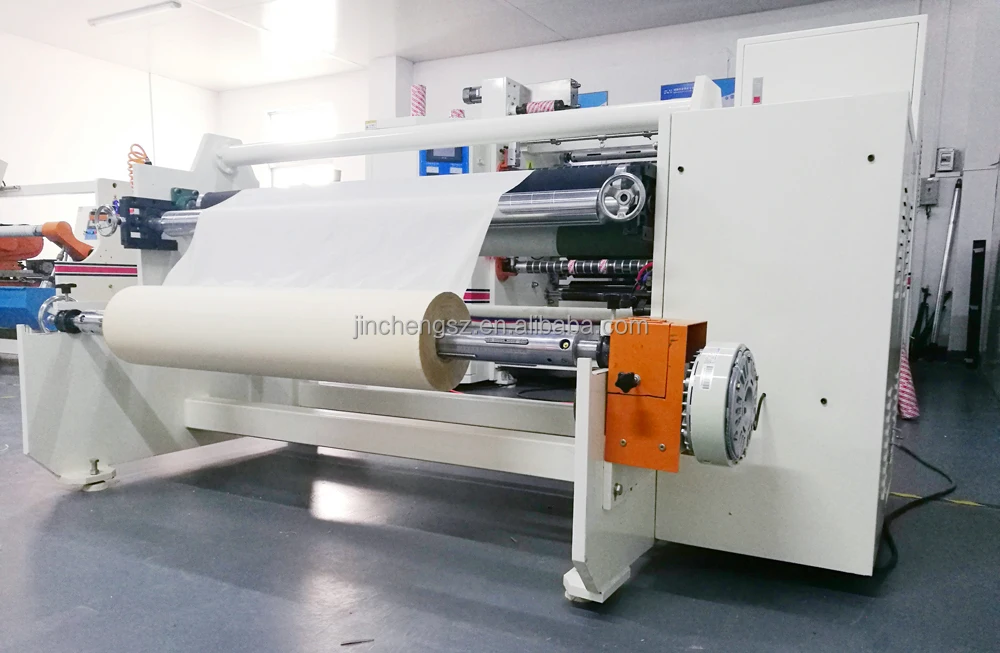

Jumbo roll to small roll rewinding machine
---MACHINE FUNCTION---
This rewinding machine is suitable for rewinding adhesive tapes, films, papers etc.
Such as masking tape, bopp tape, double sides tape, protective film, non woven etc.
---MACHINE FEATURES---
1 | 5HP A.C. motor with inverter control, brings the high efficiency, stability and reliability performance. |
2 | Unwind tension controlled by magnetic brake, rewind tension controlled by magnetic clutch. |
3 | Both unwind shaft and rewind shaft are 3'' air shaft. Rewind shaft is automatic air inflation type. |
4 | With lay-on roller for rewind shaft, to make sure smooth rewinding for finish roll. |
5 | With pneumatic rubber roller to ensure high quality rewinding without wrinkle and air bubbles. |

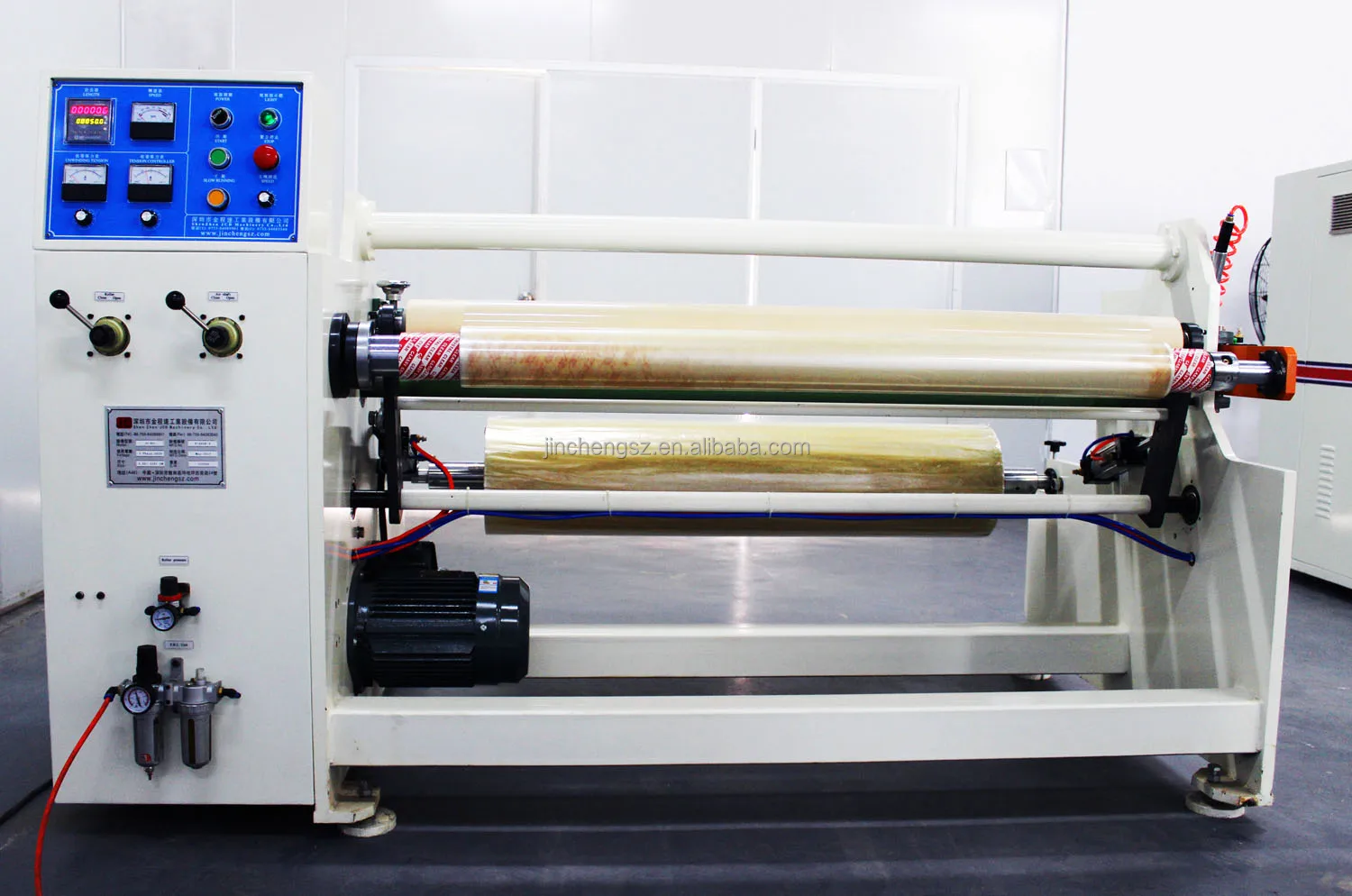

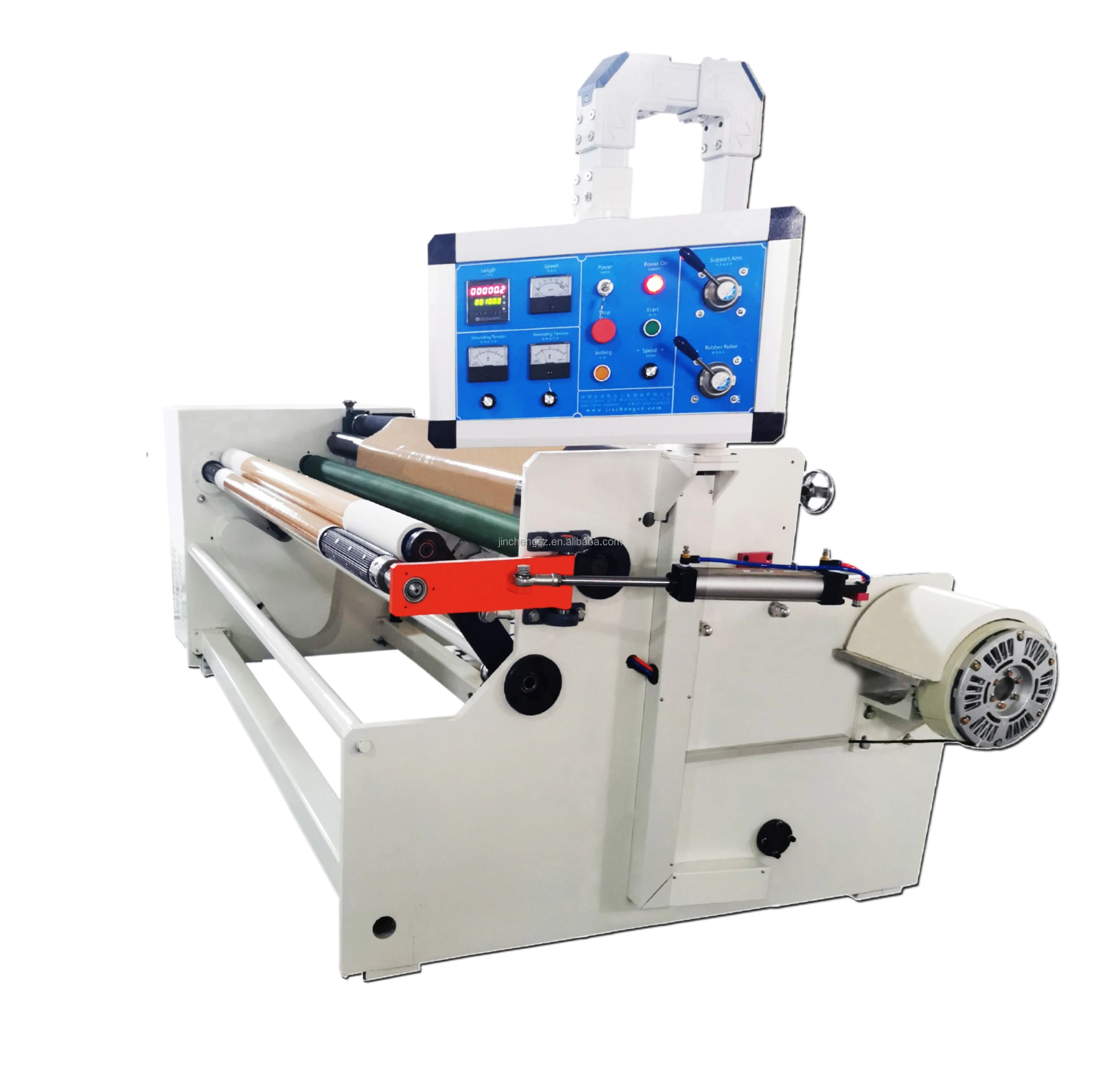

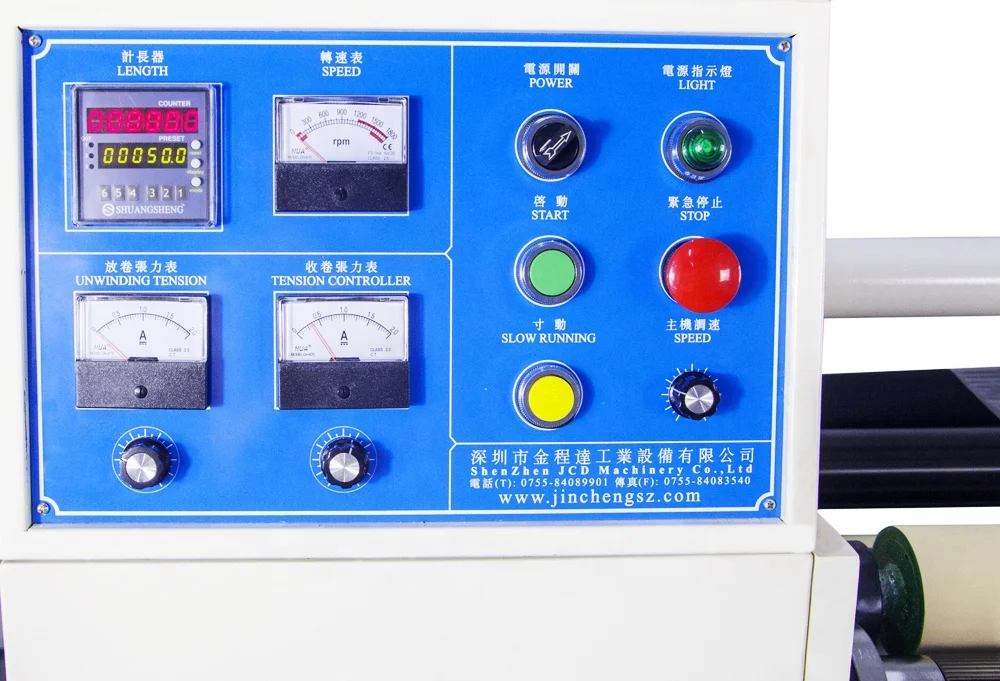

6 | Centralized control panel: both unwind and rewind tension and machine rewinding speed can be adjusted from the operation panel. |
7 | Rewind length setting: with two-step length counter. First section decelerates and the second section stops. Make sure the accurate wind length. |
---MACHINE PARAMETERS---
Valid width | 1300mm / 1600mm |
Max.unwind diameter | 800mm |
Max.rewind diameter | 300mm |
Unwind core I.D | 3'' |
Rewind core I.D | 1''~3'' |
Rewind speed | 0-1800 RPM |
Voltage | 3 phase 380V/ 50HZ |
Power | 5 HP |
Air pressure | 5 KG/CM2 |
---MACHINE PARTS---

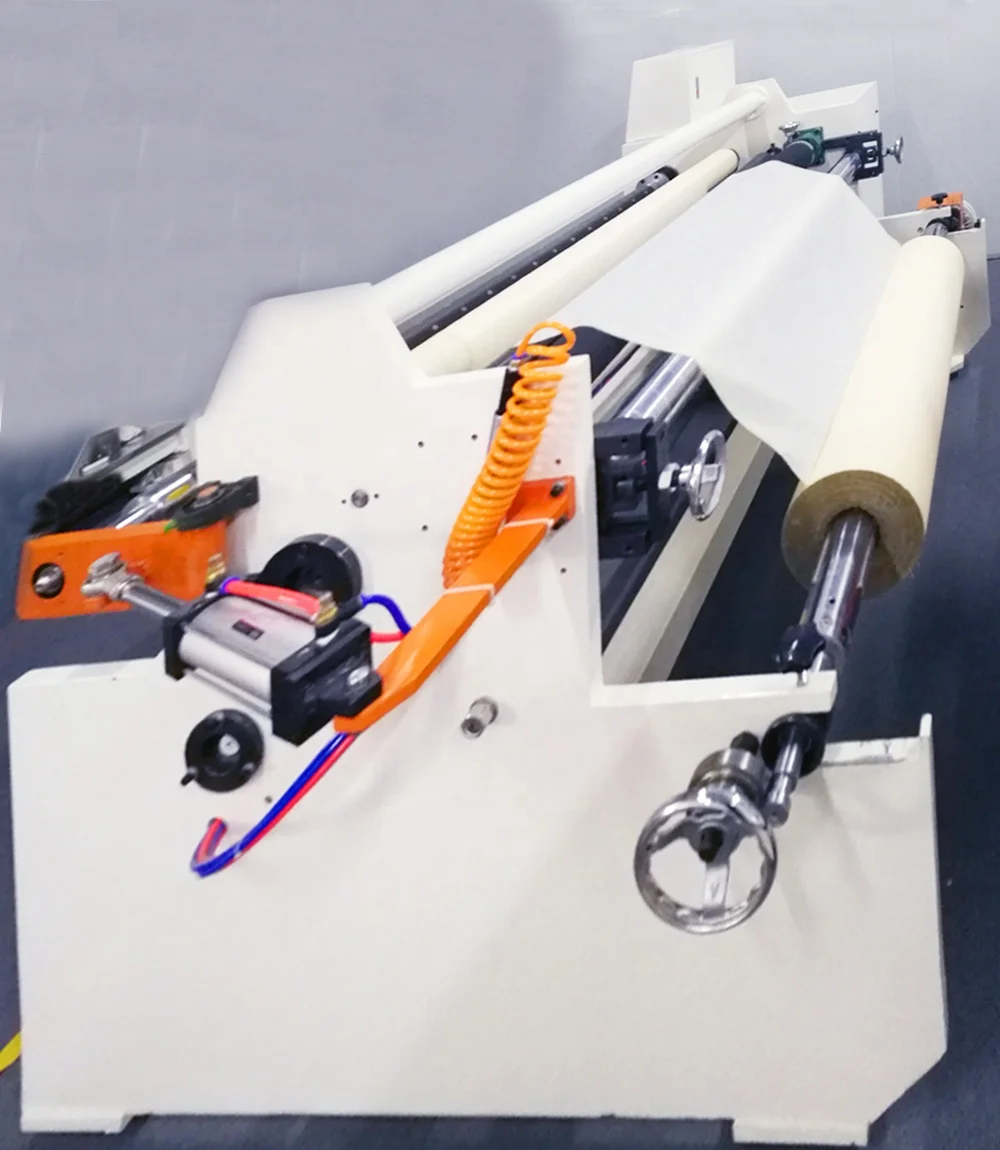

Jumbo roll
loading part:
Air pneumatic brake with air shaft for jumbo roll loading.

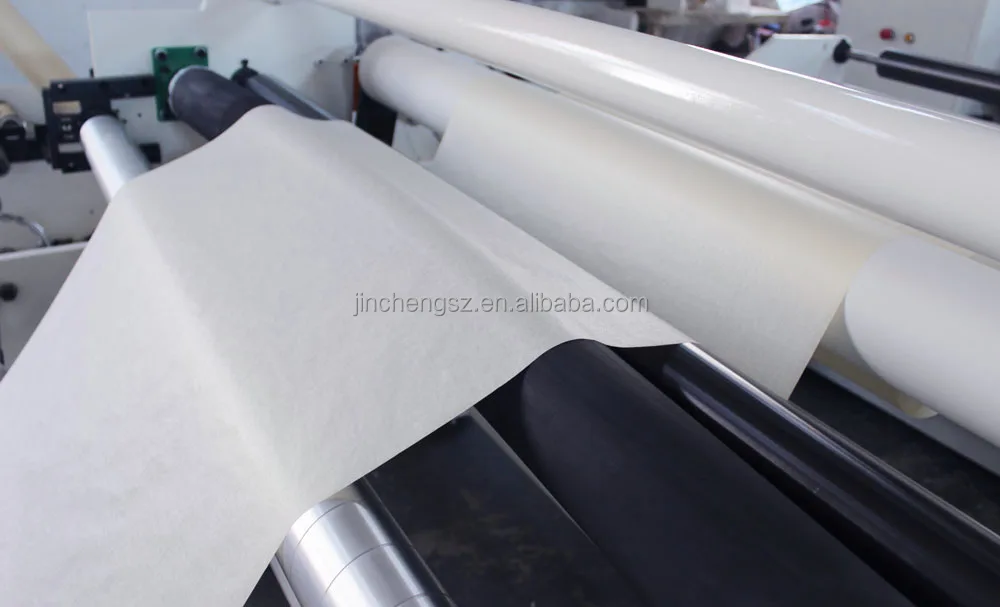

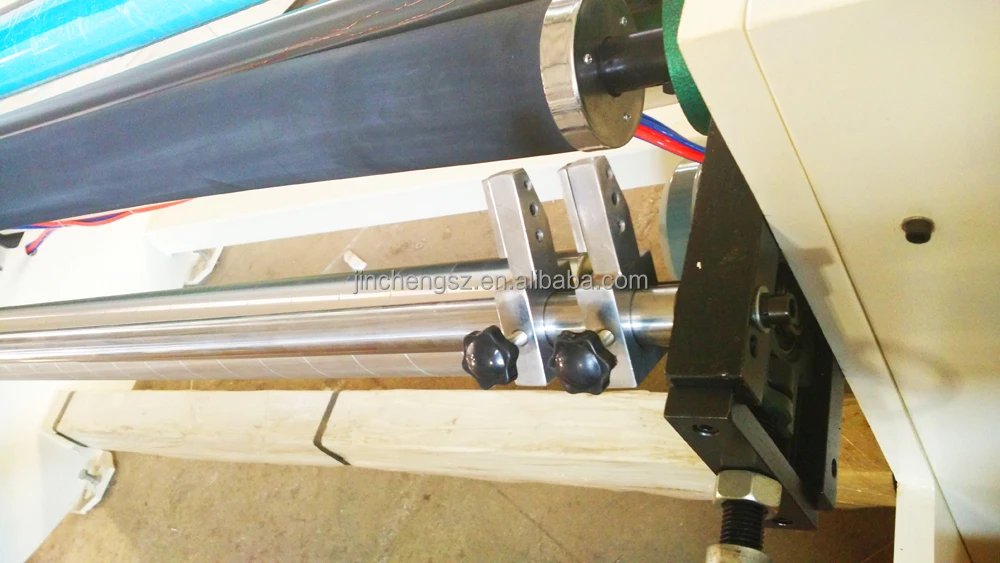

rewinding part:
Automatic air inflation shaft with lay-on roller.

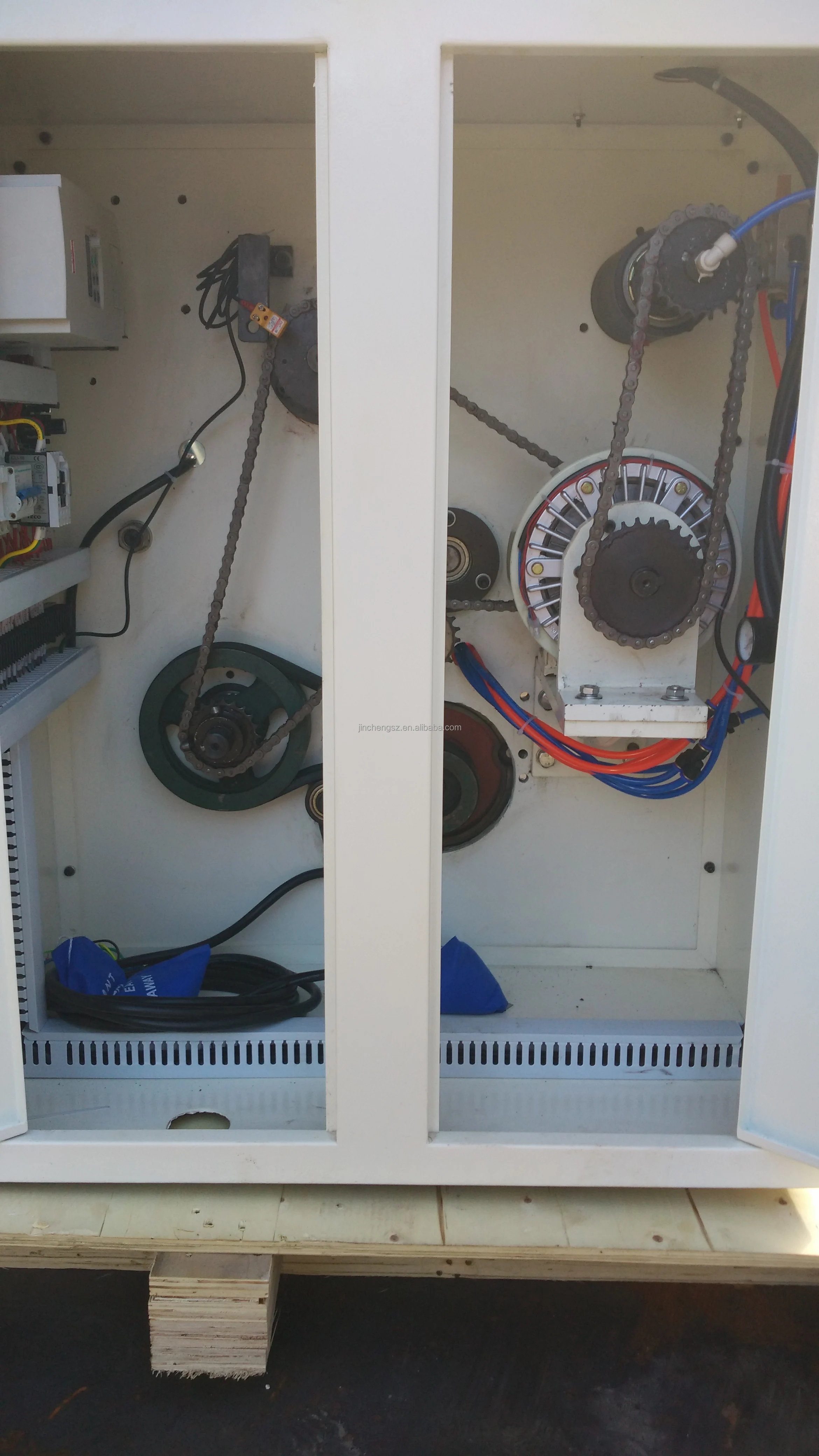

Driving roller
--- OPTIONAL DEVICE---

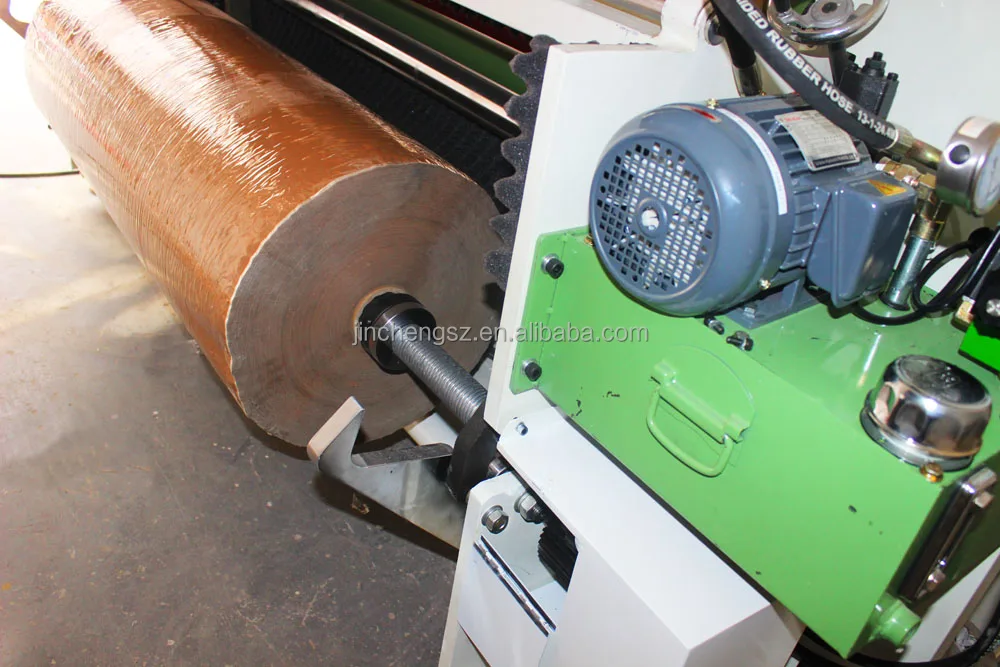

Hydraulic lifter

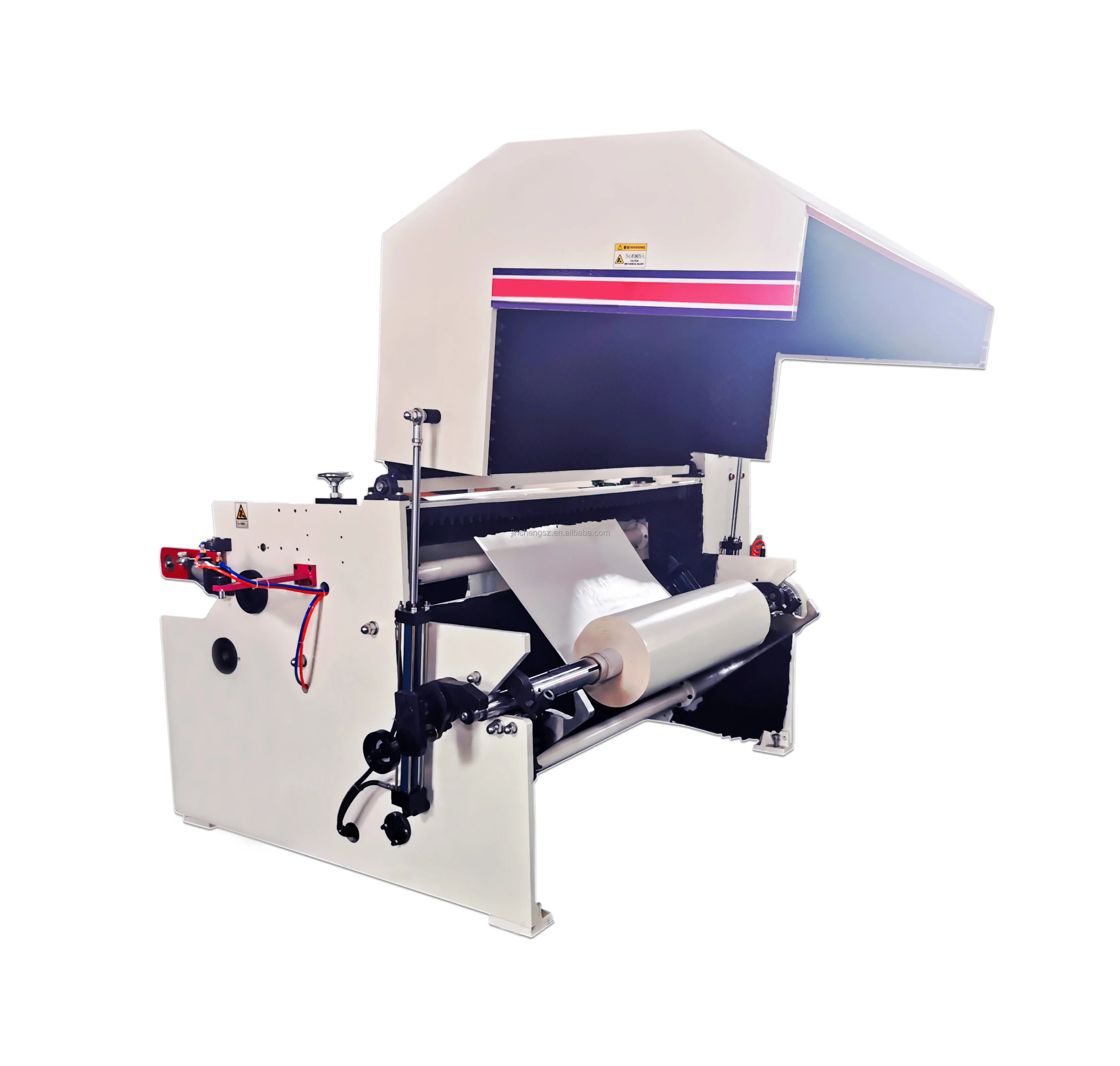

Noise reduction cover
---PACKING & DELIVERY---
Packaging: WOODEN CASE | ||
Packaging Details | A seaworthy wooden case for packing the whole machine. No need do fumigation bcs it is a kind of plywood. Convenient for the forklift operation during loading & unload in container. | |
Packaging: VACUUM PACKING | ||
Packaging Details | We also provide vacuum packing for machine according to customers special request. Avoid the electrical parts appliances during long distance transportation on the sea. | |
