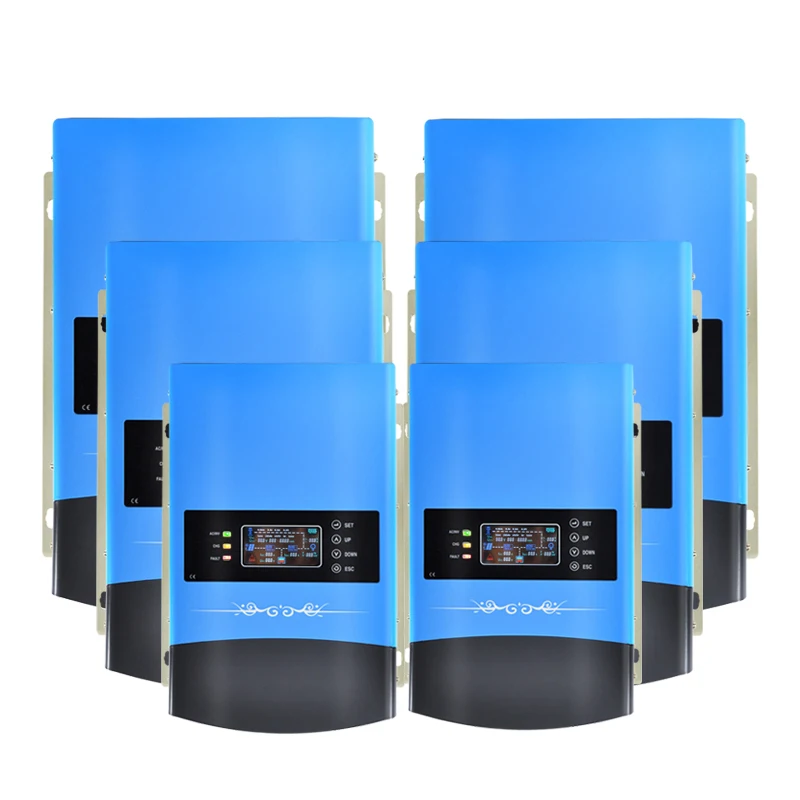

  • 3 Phases Pure Sine Wave Inverter 110V 220V 3Kw Off Grid Solar Hybrid Power Inverter MPPT Controller

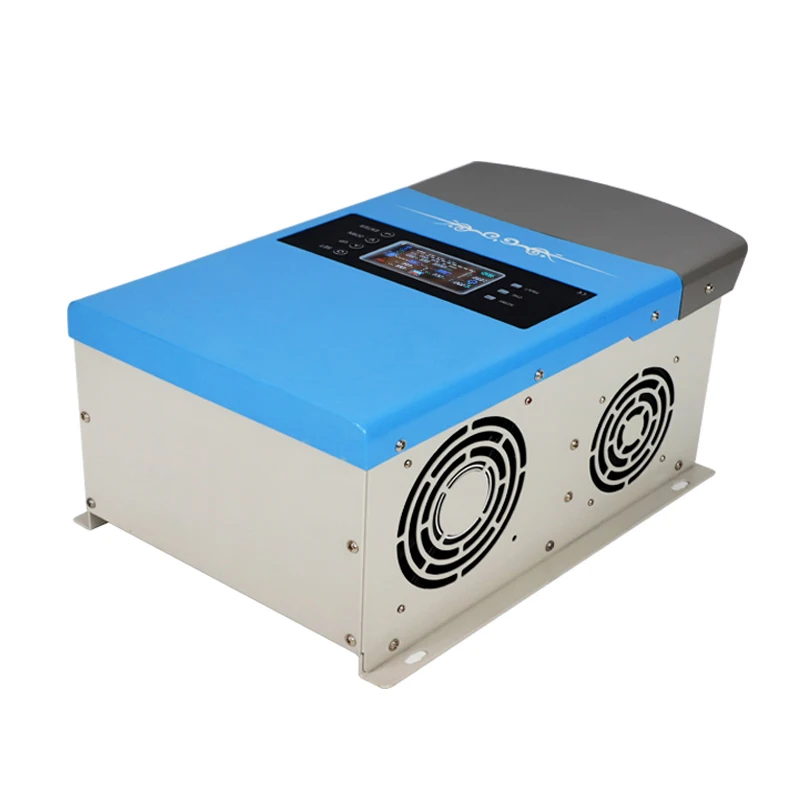

3 Phases Pure Sine Wave Inverter 110V 220V 3Kw Off Grid Solar Hybrid Power Inverter MPPT Controller
3 Phases Pure Sine Wave Inverter 110V 220V 3Kw Off Grid Solar Hybrid Power Inverter MPPT Controller
3 Phases Pure Sine Wave Inverter 110V 220V 3Kw Off Grid Solar Hybrid Power Inverter MPPT Controller
3 Phases Pure Sine Wave Inverter 110V 220V 3Kw Off Grid Solar Hybrid Power Inverter MPPT Controller
3 Phases Pure Sine Wave Inverter 110V 220V 3Kw Off Grid Solar Hybrid Power Inverter MPPT Controller
3 Phases Pure Sine Wave Inverter 110V 220V 3Kw Off Grid Solar Hybrid Power Inverter MPPT Controller
3 Phases Pure Sine Wave Inverter 110V 220V 3Kw Off Grid Solar Hybrid Power Inverter MPPT Controller

3 Phases Pure Sine Wave Inverter 110V 220V 3Kw Off Grid Solar Hybrid Power Inverter MPPT Controller

Share on (1600566642267):


Price:

Quantity:


Product Overview

Description

















Inverter and controller all-in-one parameters
Voltage
Size
Lumens
Material
CCT
CRI
Warranty
Parameter Name

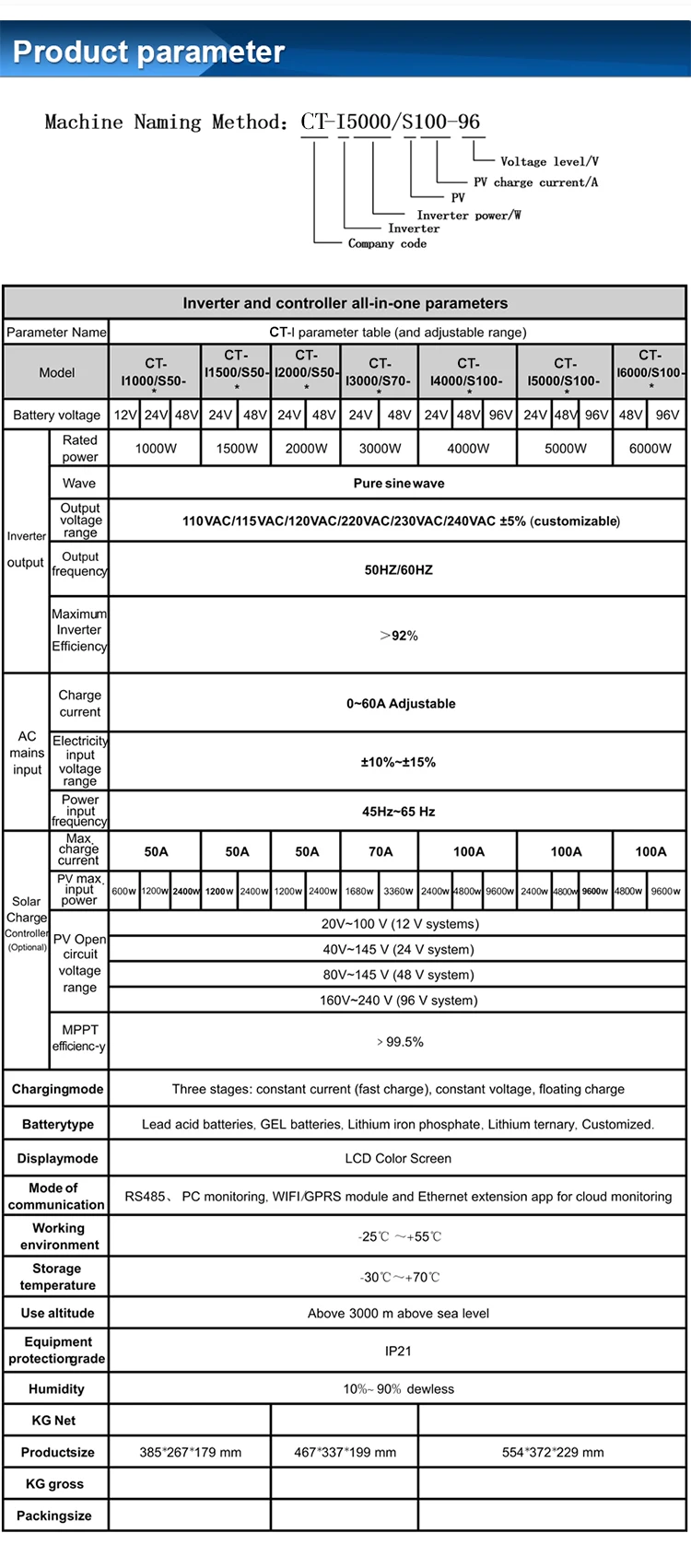

CT-I parameter table (and adjustable range)

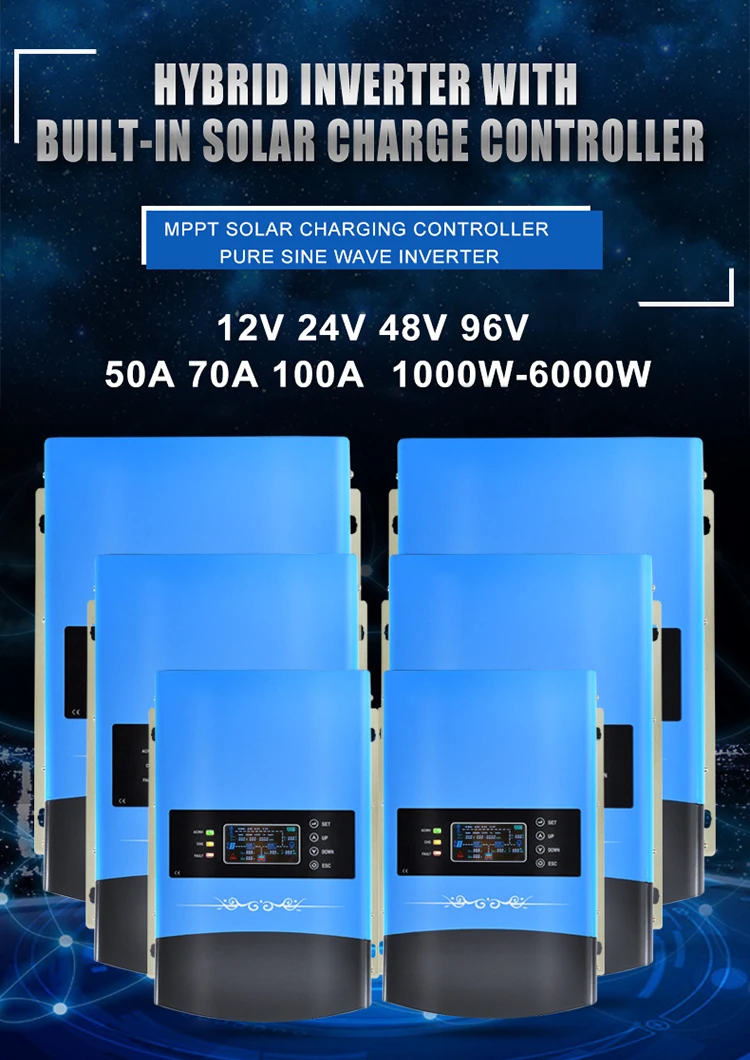

Model
CT- I1000/S50-*
CT- I1500/S50-*
CT- I2000/S50-*
CT- I3000/S70-*
CT- I4000/S100-*
CT- I5000/S100-*
CT- I6000/S100-*
Battery voltage
12V/24V/48V
24V/48V
24V/48V
24V/48V
24V/48V/ 96v
24V/48V/ 96V
48V/96V
Inverter output
Rated
power
1000W
1500W
2000W
3000W
4000W
5000W
6000W
Wave
Pure sine wave
Output voltage range
110VAC/115VAC/120VAC/220VAC/230VAC/240VAC ±5% (customizable)
Output frequency
50HZ/60HZ
Maximum Inverter Efficiency
> 92%
AC mains input
Charge current
0~60A Adjustable
AC mains input
Electricity input voltage range
±10%~ ±15%
Power input frequency
45Hz~65 Hz
Solar Charge Contoller (Optienal)|
Max
charge current
50A
50A
50A
70A
100A
100A
100A
PV max input power
600W/1200W/2400W
1200W/2400W
1200W/2400W
1680W/3360W
2400W/4800W/9600W
2400W/4800W/9600W
4800W/9600W
PV Open
circuit
voltage
range
20V~100 V (12 V systems)
40V~145 V (24 V system)
80V~145 V (48 V system)
160V- -240 V (96 V system)
MPPT
eficienc-y
> 99.5%
Chargingmode

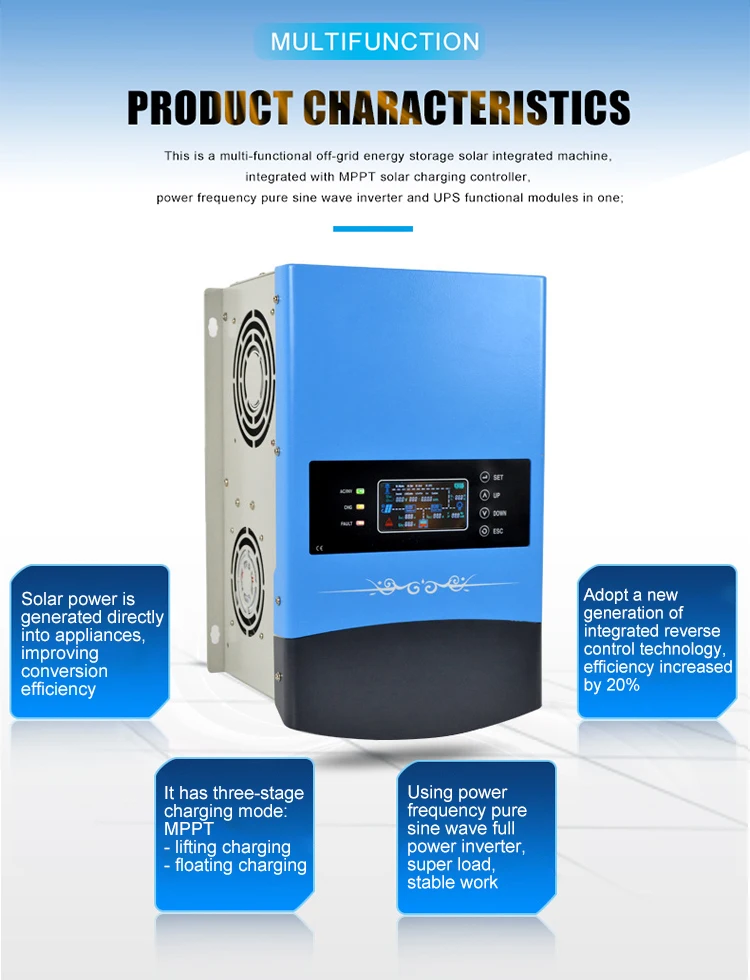

Three stages: constant current (fast charge ), constant voltage, floating charge
Batterytype
Lead acid batteries, GEL batteries, Lithium iron phosphate, Lithium ternary, Customized.
Displaymode
LCD Color Screen
Mode of communication
RS485、PC monitoring. WIFI/GPRS module and Ethernet extension app for cloud monitoring
Working environment
-25C ~+55C
Storage Storage temperature
-30C~+70C
Use altitude
Above 3000 m above sea level
Equipment protectiongrade
IP21
Humidity
10%~ 90% dewless
Productsize
385 *267*179 mm
467*337*199 mm
554*372 *229 mm










welcome to visit us
Anhui Chenxin Teco. Co., Ltd. headquartered in Anhui Province, China, is a large and professional manufacturer of various Solar products with 15 years of solid experience in the renewable energy industry. we export to over 60 countries including the US, Brazil, Mexico,Germany, Spain, UK, South Africa, Iran,Israel, Pakistan and more. By adhering to our mission, creating value for our customers, providing employee opportunities and bringing wealth to society, we hope to achieve exceptional success with all partners through exceptional products, reputation,and services.
