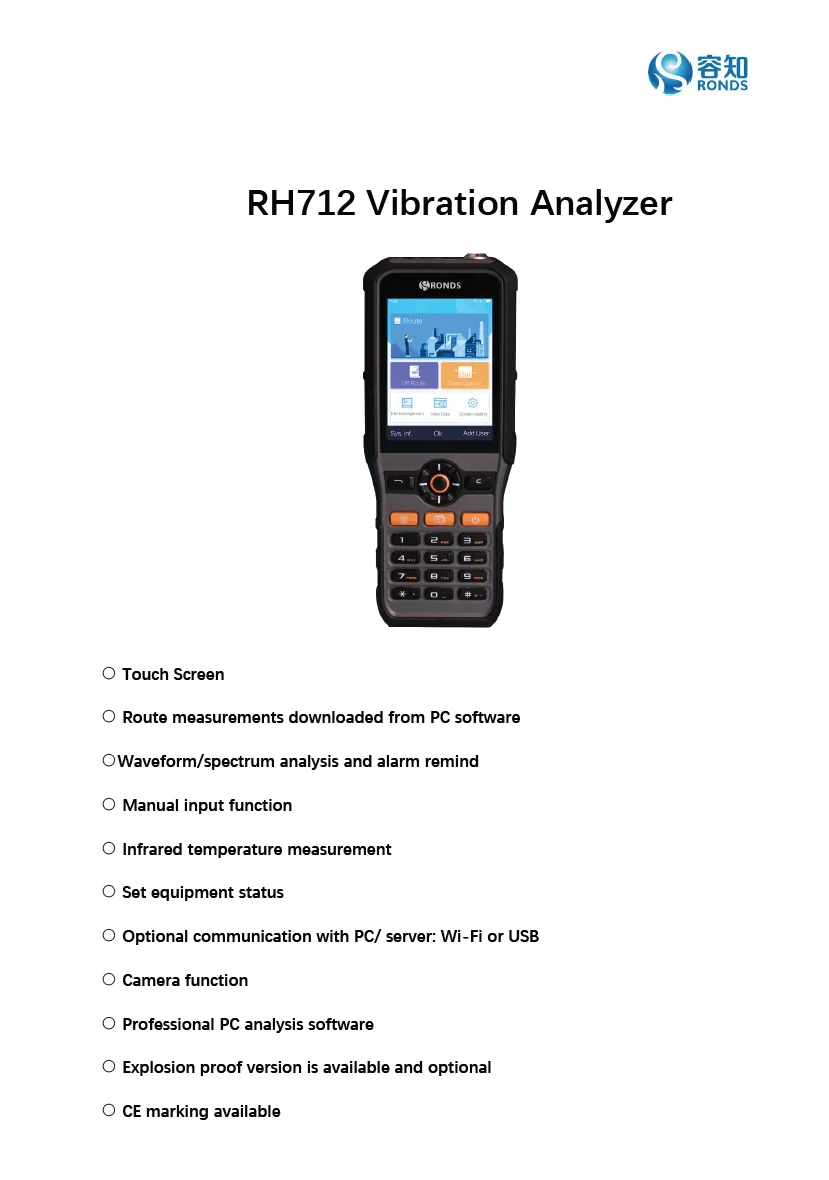

Ronds RH712 siterite explosion proof single channel vibration meter
- Category: >>>
- Supplier: Anhui Ronds Science & Technology Incorporated Company
Share on (1600566651051):
Product Overview
Description
Technical Index
Items | Specification |
Channel | CH1: Vibration Signal(ICP accelerometer), Voltage(±5V AC) |
Data Acquisition Parameters | Frequency Response Range: 2~10KHZ Sampling Frequency: maximal 25.6KHZ A/D Conversion: 24 bit Harmonic Distortion: <-70dB Precision: ±2% Parameters: sampling frequency, high pass filter, low pass filter, sampling length Waveform Length: 1024, 2048, 4096, 8192 Lines: 400, 800, 1600, 3200LINES Averaging: linearity, peak hold Window Function Type: Rectangle, Hanning |
Integrated Infrared Temperature Detector | Temperature Range: -30~420(℃) Precision: ±1.5% or 1℃ , take the maxium value Emissivity: 0~1 adjustable Distance Coefficient: 25:1 |
Dimension | Overall Dimension(length×Width×Height): 195×80×37(mm) Grip Size(Width×Thickness): 68×31(mm) |
LCD | 3.5 inches, 640×480 pixels, IPS TFT, capacitive touch screen panel |
Weight | Normal Version: 465g EX Version: 455g |
Vibration Sensor | external IEPE viberation sensor connection |
Keyboard | 21 keys, life: 2 million times with backlight, |
Working Environment | Tempreture: -10~50℃ Humidity: <95%(without condensate) Protection Grade: IP65, dust proof, water proof |
Charging Time | 4 hours |
Working Time | (continuous)>10 hours |
Communication | USB2.0 Wifi （IEEE 802.11 b/g/n 2.4GHz） |
Storage Capacity | 8G byte |
Radio Frequency Identification | UHF 900M RFID, recognition distance 30cm |
★Camera | a 5-megapixel camera with auto-focus function |
Flashlight | flashlight, convenient for dark place |
Lion Battery | 4.5 hours for nomal version, 2.5 hours for EX version |
Explosion Proof Class | ExiaIIBT4 Gb |
CE Certification | certified |
Main Features

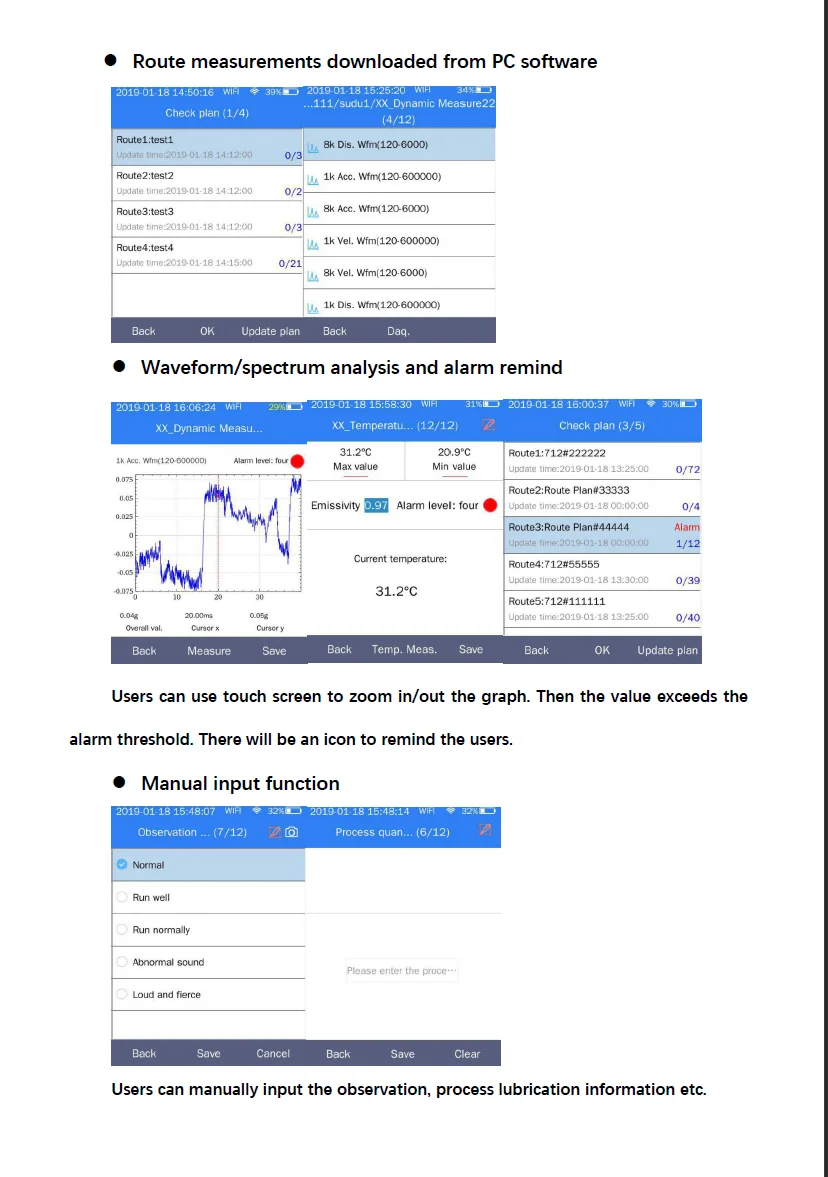

○ Route measurements downloaded from PC software
○Waveform/spectrum analysis and alarm remind
○ Manual input function

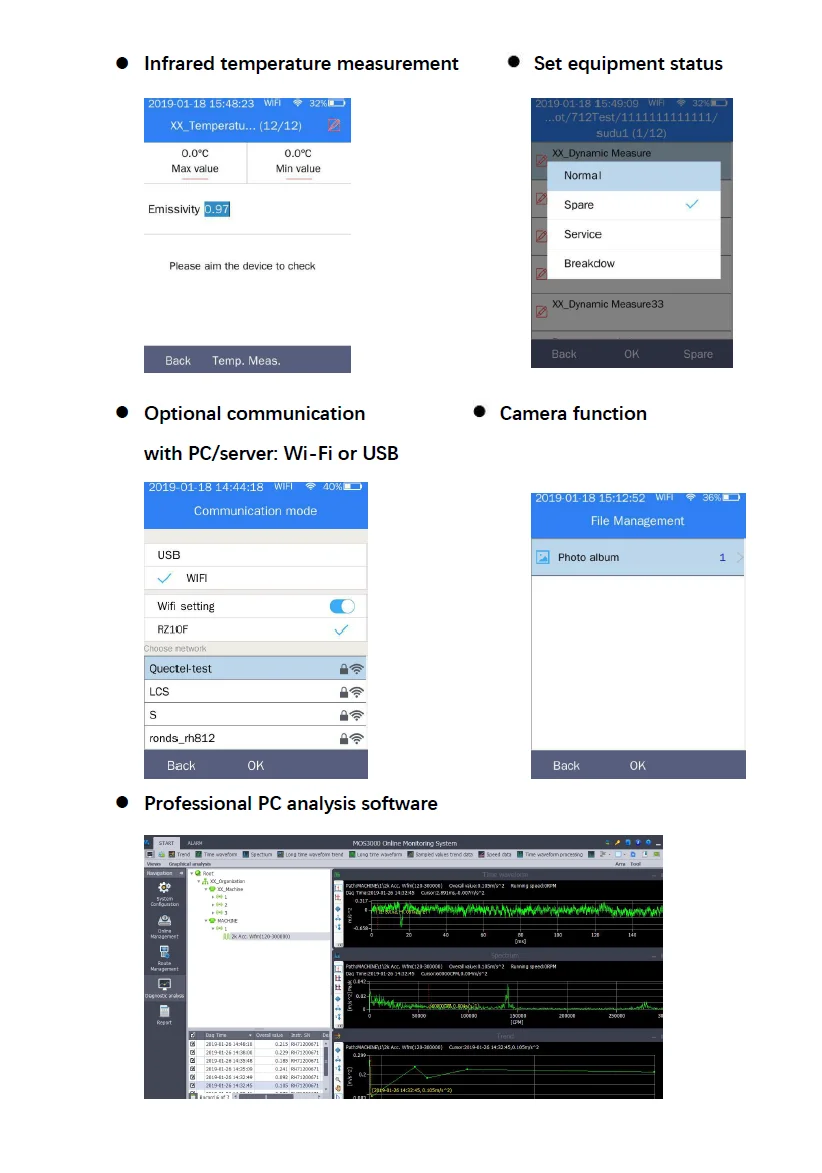

○ Infrared temperature measurement
○ Set equipment status
○ Multi-communication method with server: Wi-Fi or USB
○ Camera function
○ Professional PC analysis software
○ CE certification
○Waveform/spectrum analysis and alarm remind
○ Manual input function
○ Infrared temperature measurement
○ Set equipment status
○ Multi-communication method with server: Wi-Fi or USB
○ Camera function
○ Professional PC analysis software
○ CE certification
Product Picture
Detailed Information

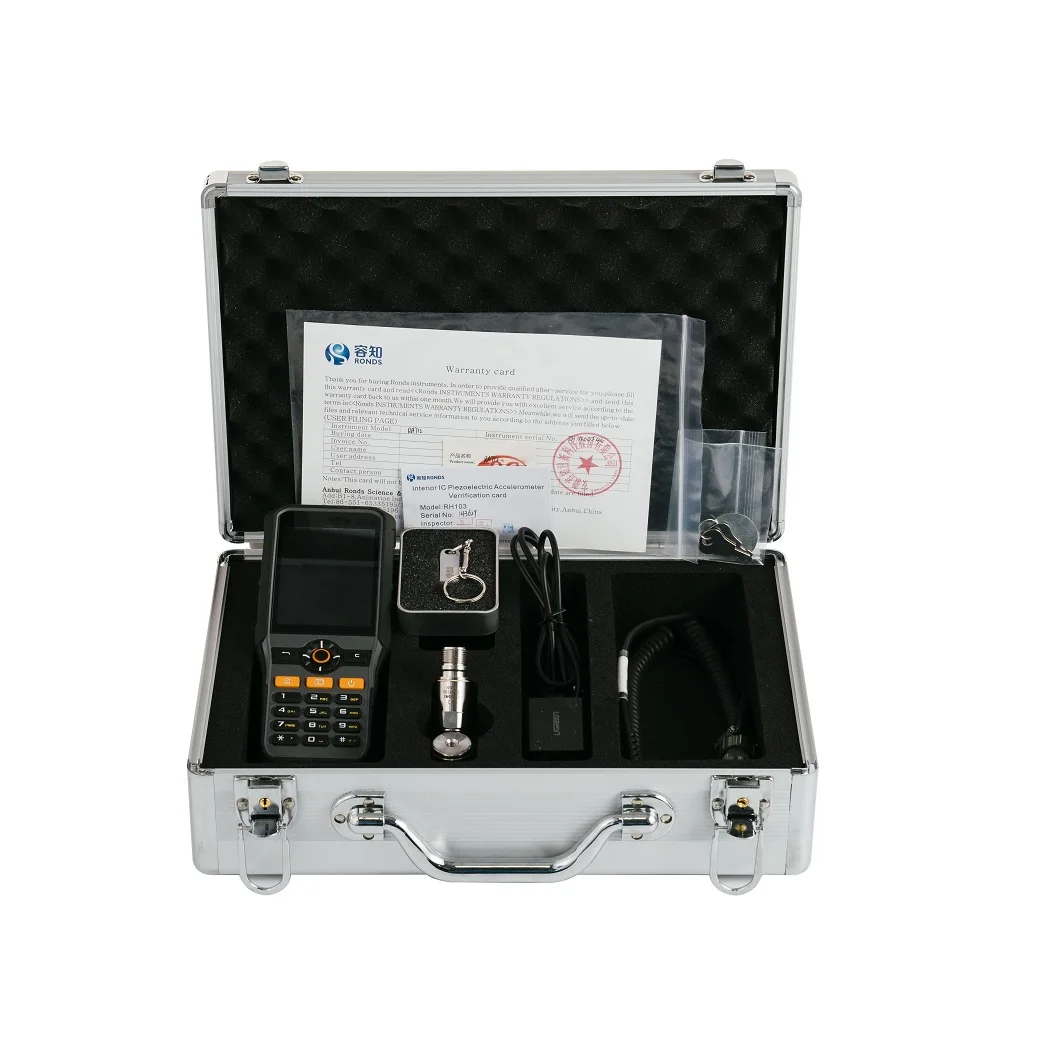

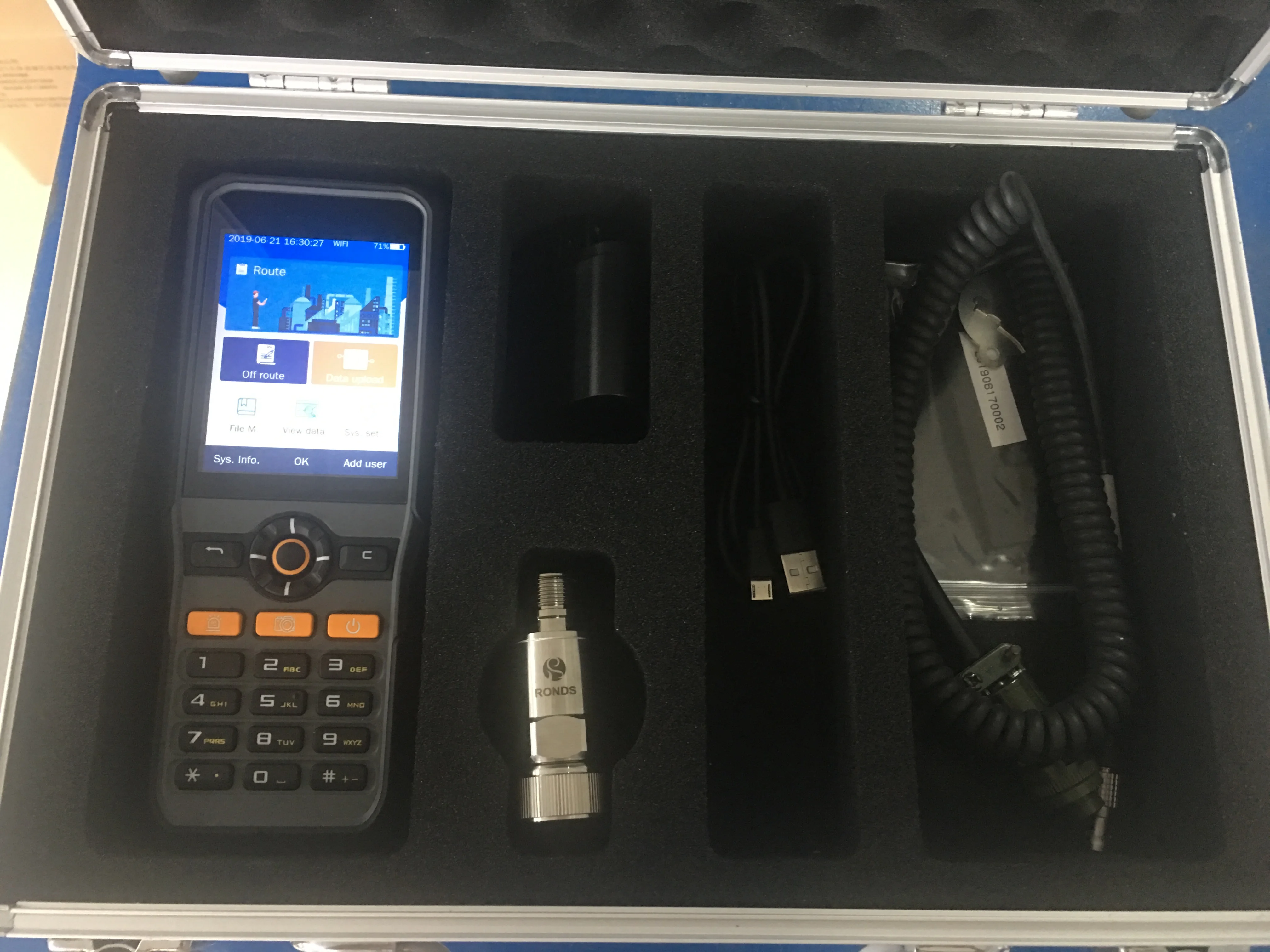

Packaging
Warranty
RONDS promises one year warranty
