CW Laser Diode Driver Laser Diode Module Repair Service
- Category: >>>
- Supplier: Beijing Belle Laser Technology Co. Ltd.
Share on (1600566651520):
Product Overview
Description
Diode Pumped Solid-State Laser Modules CW Laser Diode Driver Laser Diode Module Repair Service
Product Description
- Diode Pumped Solid-State Laser Modules
Laser Bar Pumped Gain Modules are designed for very high power applications from 50W CW up to 500W CW. The CW DPSS laser modules are widely used for laser marking, engraving, diamond cutting and etc.
| Module No. | DPLM-50 | DPLM-75 | DPLM-100 | DPLM-150 |
| Typical Output Power | >=50W | >=75W | >=100W | >=150W |
| Nd:YAG Diameter | 3mm | 3mm | 3mm | 4mm |
| Operation Current | 25A | 25A | 35A | 35A |
| Operation Voltage | <18V | <24V | <24V | <36V |
| Module No. | DPLM-200 | DPLM-300 | DPLM-400 | DPLM-500 |
| Typical Output Power | >=200W | >=300W | >=400W | >=500W |
| Nd:YAG Diameter | 5mm | 3mm | 3mm | 3mm |
| Operation Current | 35A | 35A | 35A | 35A |
| Operation Voltage | <40V | <72V | <80V | <100V |
- CW Laser Diode Driver
| Module No. | LDD-2430 | LDD-3660 | LDD-4840 | LDD-1070 |
| CW Output Current | 0.5~30A | 0.5~60A | 0.5~40A | 0.5~70A |
| Max Voltage | 24V | 36V | 48V | 10V |
Other output current&voltage can be customized upon request.
- Laser Diode Module Repair Service

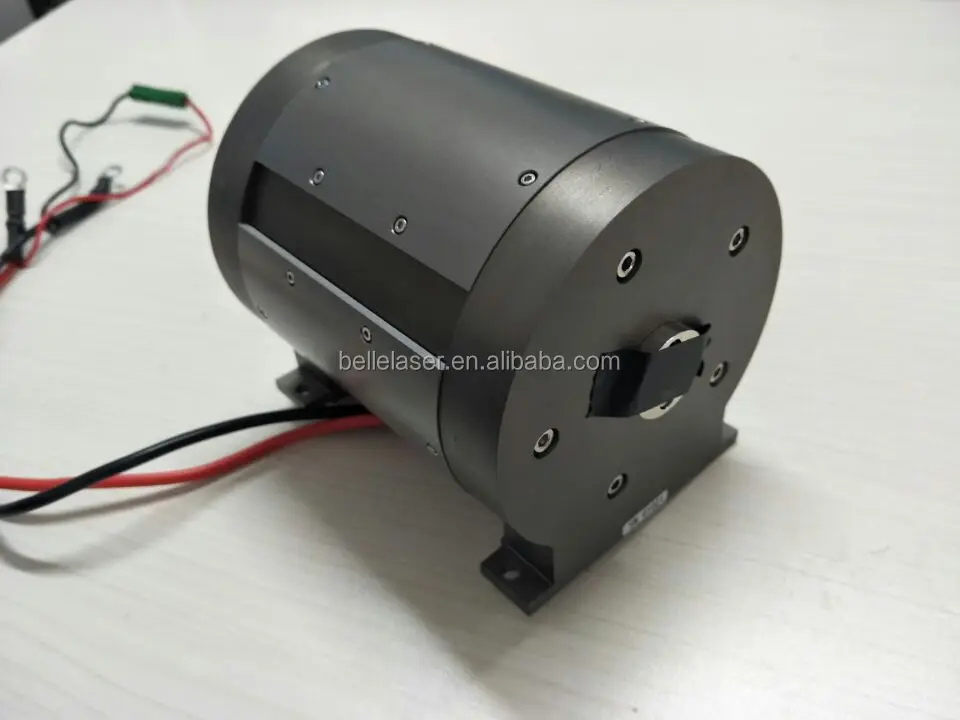

FOBA, Rofin-Sinar(50D,100D), Lee Laser(50W,100W), Cutting Edge Optronics and etc.
We provide diodes refurbishment & repair services for the old diode-pumped laser modules from different companies, such as Northrop Grumman /Cutting Edge Optronics, Rofin Sinar, Lee Laser, FOBA, and etc.
Features:
All laser modules based on side-pumping can be repaired
Same performance as the original laser modules
12 months warranty after repair
Low cost and fast delivery
Standard Products for Online-Ordering (Status Updated on Feb 20th, 2018)
| Manufacturer | Model No. | Output Power | Lead Time |
| Nothrop Grumman (Cutting Edge Optronics) | RB Plus / RBA30-1C2 | 50W | 3 workdays |
| Nothrop Grumman (Cutting Edge Optronics) | RB Plus / RBA24-1C2 | 75W | 7 workdays |
| Nothrop Grumman (Cutting Edge Optronics) | All Series | 10W~1000W | 3 workdays |
Rofin Sinar | 30D | 30W | 10 workdays |
| Rofin Sinar | 50D | 50W | 10 workdays |
FOBA | YDP | 50W | 10 workdays |
| Han's Laser | Hans 1x3-2 | 35W | 3 workdays |
| Lee Laser | Lee 20W | 20W | 10 workdays |
| Lee Laser | Lee 50W | 50W | 10 workdays |
| Lee Laser | Lee 100W | 100W | 10 workdays |
| nLight | |||
| LaserTel | |||
| JOLD / Jenoptik |
