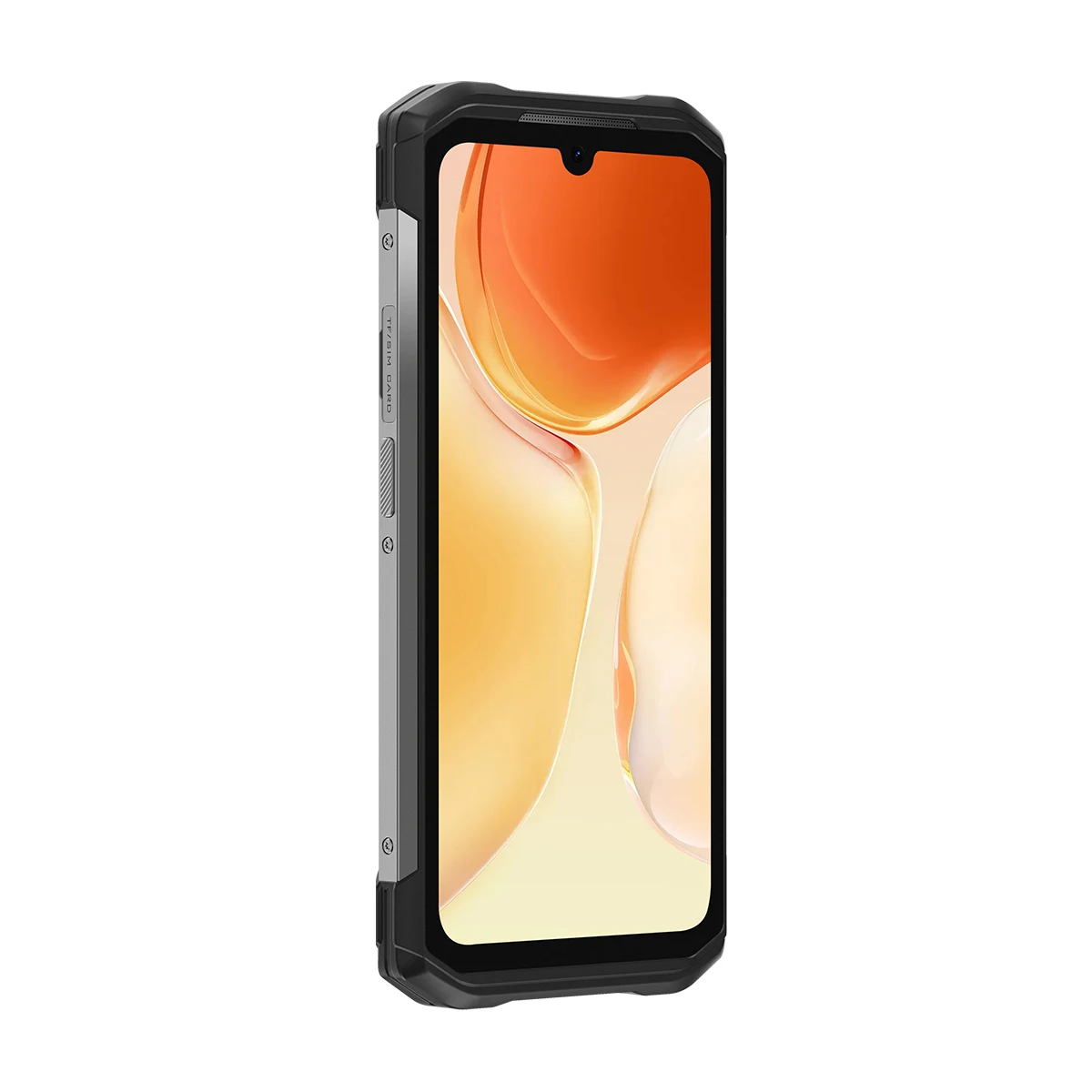

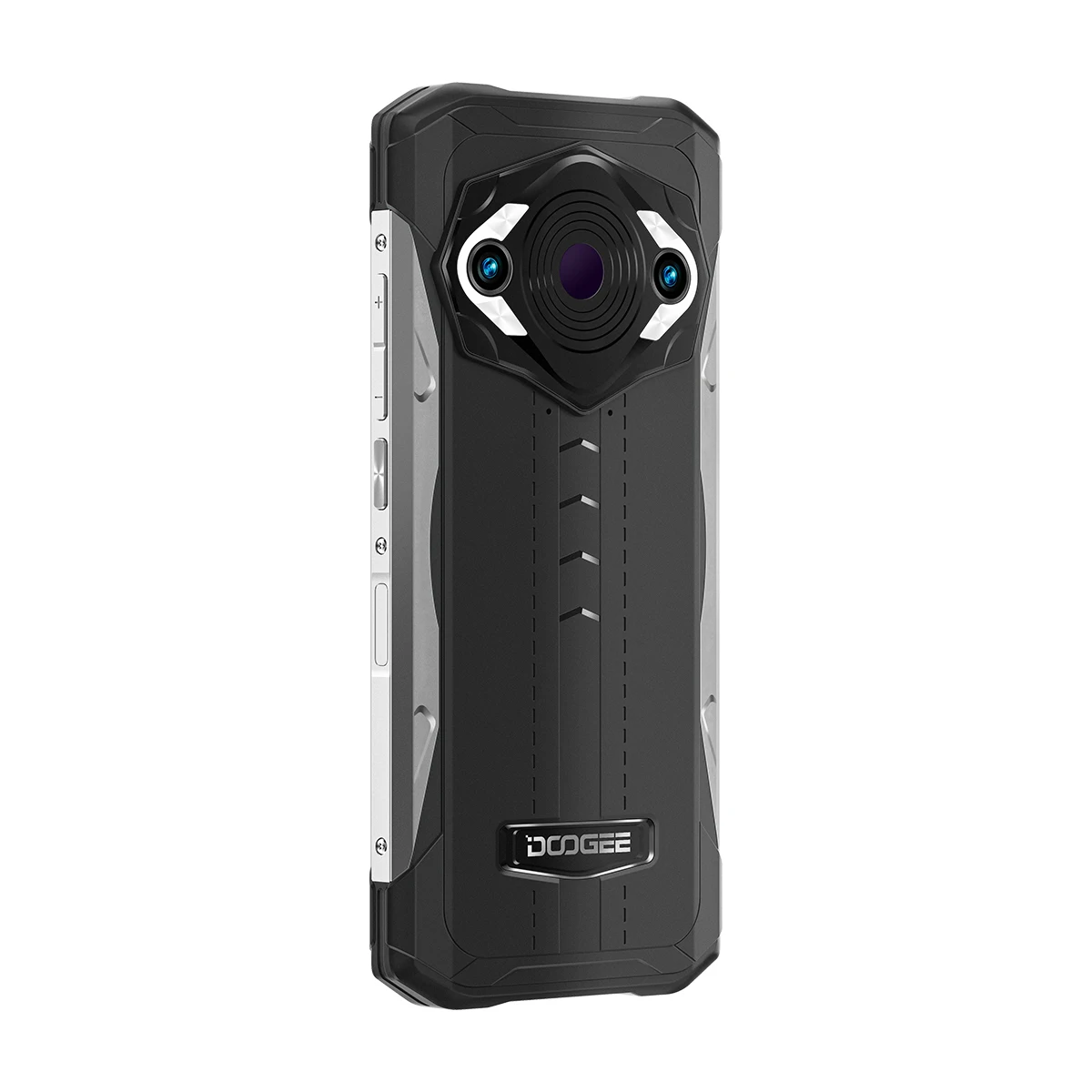

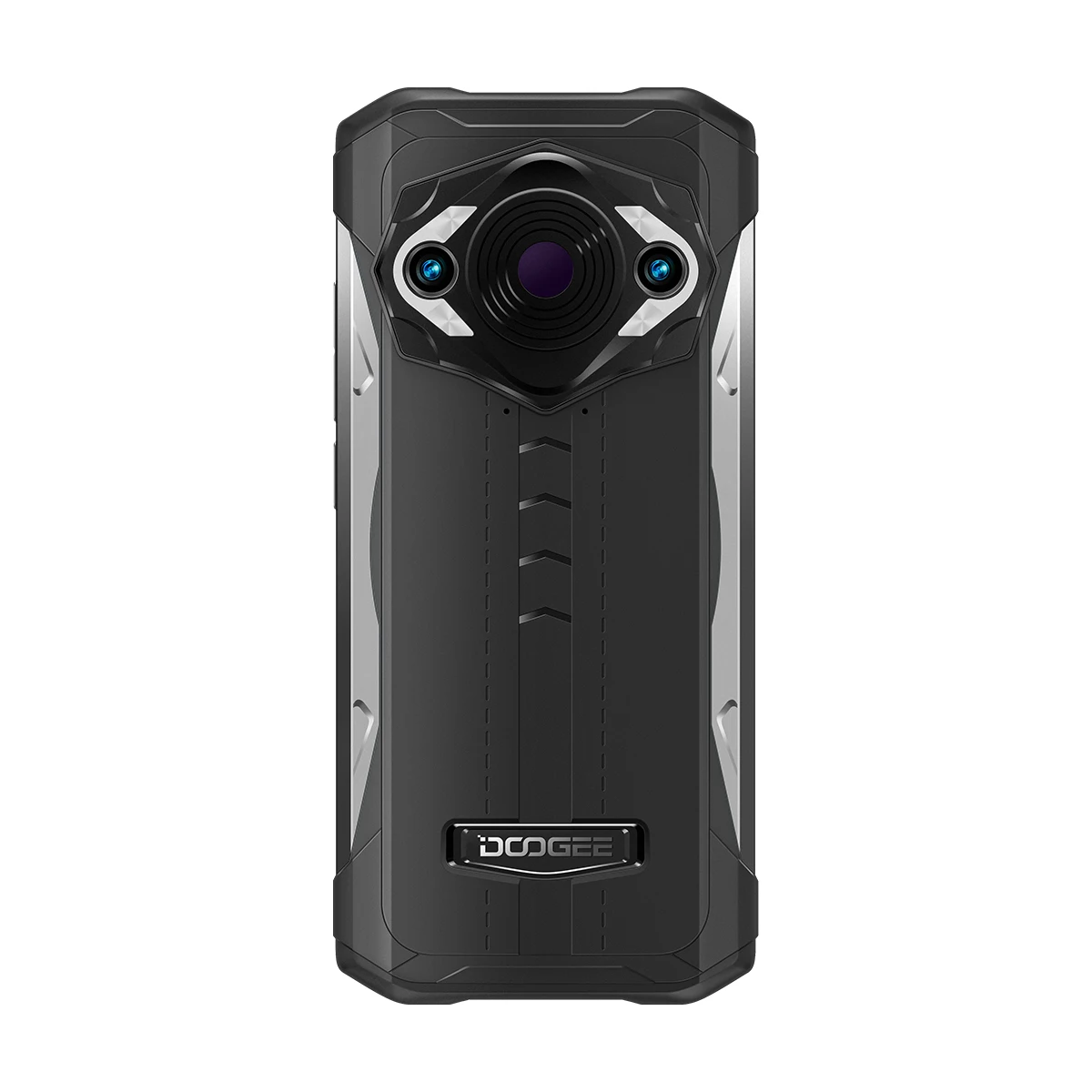

High quality Doogee S98 Pro 8GB 256GB Helio G96 CPU Rugged Smartphone with Night Vision and Thermal Image Camera 4G Cellphones

Product overview

Internal project name

ZN135S

Sales Model

S98 Pro

Unit weight (including battery)

400g

Dimensions (mm)

172mm*82mm*15.5mm

Package weight

暂无

Package size

暂无

Product selling point

· Thermal imaging camera
· Helio G96 / Octa Core / 2.1GHz / 12nm
· 6.3" LCD FHD+ Waterdrop Screen
· AI Double camera (48MP+20MP)
· SONY® IMX350 20MP Night vision camera
· 6000mAh Large battery / Support 33W fast charging
· Samsung® 16MP Front Camera
· 8GB RAM+256GB ROM / UFS 2.2
· IP68 / IP69K / MIL-STD-810H
· Side Fingerprint Recognition
· NFC Supports Google Pay
· Corning Gorilla Glass
· Android 12.0

Three defence standards

IP68 / IP69K / MIL-STD-810H

Slogan

NA

Operating system

Android 12.0

Certification

Battery certification

UN38.3 / MSDS / Air Freight / Maritime Transport

Hardware certification

CE( IEC62133 / ROHS / SAR )

Software certification

GMS

Hardware configuration

CPU

Model

Helio G96

Feature

Octa Core；
2x Cortex A76 2.05GHz 256KB L2
6x Cortex A55 2.0GHz 128KB L2
1MB L3

Framework

ARM Cortex A76/Cortex A55

Technology

12nm

GPU

GPU model

ARM Mali-G57
3600M pixel/sec@900MHz

Video

Video encode

2K30fps
FHD+120fps
H.264: 2K@60fps
H.265

Video decode

H.264:K2K@60fps
H.263/MPEG-4:2K@60fps/60Mbps
VP9:2K@60fps/60Mbps
H.265

network

Network

GSM/WCDMA/CDMA/FDD/TDD

Frequency

GSM（B2/3/5/8）
WCDMA（B1/2/4/5/6/8/19）
CDMA：BC0/BC1/BC10
FDD：B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66）
TDD：B34/38/39/40/41

EDGE/GPRS

SUPPORT

Storage

memory

8GB RAM+256GB ROM / UFS 2.2

SIM card type

SUPPORT Nano SIM+Nano SIM+TF card

Memory card type

T-flash card

Expanded memory

Up to 512GB

Front Camera 16MP

Front Camera

Sensor

Samsung S5K3P9sp 16MP

Sensing area

1/3.inch

Pixel area

4656*3504

Aperture

F/2.0±5%

Optical Image Stabilization

N/A

Sensor type

80°

PDAF

N/A

Flash led

N/A

Software function

(Video)、(Picture)、（Gif）、（Potrait）

Rear Camera 48MP + 20MP

Rear Main Camera

Sensor

48MP IMX582-AAJH5-C

Sensing area

1/2.3inch 6P

Pixel area

8000*6000

Aperture

1.8±5%

Optical Image Stabilization

N/A

Sensor type

90°

PDAF

Support

Flash led

Support

Software function

HDR、、AI、(Water Mark)、（Night Vision）、(Video)、(Picture)、(UHD)、(Night Mode)、(Pro Mode)、（Potrait）、(Gif)、(Panorama)、（Slow Motion）、(Time
Lapse)、(Intelligent Scanning)

Night vision camera

Sensor

20MP FF，IMX350-AAMH5-C | black/white

Sensing area

1/2.8inch

Pixel area

3880*5184

Aperture

1.8±5%

Optical Image Stabilization

N/A

Sensor type

80°

FF

Flash led

Support 2 infrared night vision lights

Software function

(Video)、(Picture)

Thermal imaging camera

Sensor

Vanadium Oxide Uncooled Infrared Focal Plane Detector

Sensing area

12μm

Pixel area

256*192

Aperture

3.2mm F1.1

Optical Image Stabilization

N/A

Sensor type

FOV 56°* 42°

FF

Flash led

N/A

Software function

Heat map video (Video), heat map photo (Picture), object surface temperature,Temperature imaging, dual light fusion

Display

Size & technology

6.3" LCD

Screen color

16.7 million colors

Type

INCELL

Resolution

1080*2340 FHD+

Pixel density

409PPI

Aspect Ratio

19:09

Screen-to-body ratio

87%

Brightness

480cd/m2/(TYP)

Screen contrast

15000:1(TYP)

Transmission function

navigation

SUPPORT Beidou,Galileo,Glonass,GPS

WIFI

SUPPORT 2.4G/5G（802.11ac/a/b/g/n）

BT

SUPPORT BT5.1

FM

SUPPORT / Insert the headphone adapter and the headphone supports external amplifier

OTG

SUPPORT

NFC

SUPPORT

Sensor

Hall switch

N/A

Infrared remote control

N/A

HotKnot

N/A

G-sensor

SUPPORT

Proximity sensor

SUPPORT

Ambient light senor

SUPPORT

Compass (magnetic)

SUPPORT

Geomagnetism

SUPPORT

Gyroscope

SUPPORT

Unlock method

Side fingerprint recognition

FT9391EC

Coating

no metal ring

0.19s response speed

360° identification angle

Capacitance touch sensor

Spatial resolution 564 DPI

Hardware features

Wireless charge

Support

Hard coulometer

Support

Rapid Charge

11V/3A

Sound Amplifier

Smart amplifier, AW88914

Touch panel

Panel technology

multi touch

IC

ILI7807G

Sensor technology

capacitive touch screen

Material

Corning 3rd Generation Material Glass

Fitting method with Display

INCELL

Physical buttons

Power button

Support

Volume button

Support

Custom key function

Support

Virtual buttons

Home button

Support

Menu button

Support

Return button

Support

Electric acoustic devices

Speaker

1217 BOX single BOX speaker

Motor

0827 Flat, wire-bonded

Receiver

0809 Shrapnel

Mic

Silicon Microphone

Notify light

Support

Buttun LED

N/A

Port

Headphone port

Yes(Type-c)

Charger interface

Type-c

Battery

Capacity

5850mah

Fully charge and discharge frequency

400 times

Material

Lithium cobaltate

Voltage

4.4V

Discharge coefficient

MAX 0.5C

Battery density ratio

639Wh/L

Housing

Housing structure

Two-color injection

Housing material

PC+10% fiber+TPU 90 degrees

Housing color

Classic Black

Software function

System function

System navigation

Support

Smart gesture

Support

Air gesture

N/A

Communication somatosensory

N/A

System somatosensory

Support

FOTA upgrade OTA

Support

Supported languages

English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, French, Russian, Arabic, Malay, Thai, Greek,
Ukrainian, Croatian, Czech,
Simplified Chinese, Traditional Chinese.（It has updated 48 languages）

Entertainment features

Video playback

Support AVI, MP4, WMV, RMVB, MKV, MOV, ASF, RM, FLV and other video formats, up to 2K/ 30fps

Video produce

Highest support 2K@30fps video shooting

Audioplayer

Support MP3, M4A, AAC, MKA, AMRAnd other video formats / supports lossless format：ALAC(Apple Lossless), FLAC, APE, WAV

Graphic format

Support JPEG, BMP, GIF,PNG etc.

Game

Support

Applications

Support

Other software

Market

Support

Share

Support

Software Toolbox

(Compass)、(SoundMeter)、(Pic Hanging)、(Gradienter)、(HeightMeasure)、(Magnifier)、(Protractor)、(Plumb Bob)

Privacy protection, visitor mode

N/A

Accessories

Package Contents
（Standard）

Cellphone

x1

Type-C USB Cable

x1

Charger

x1 11V/3A

Anti-explosion film（Posted on the screen）

x1

Anti-explosion film

x1

Card Slot Opener

x1

Sling

x1

Packing box

x1

manual

x1

Thermal Imaging User Manual

x1

warranty card

x1

Optional accessories

Leather case

N/A

Steel protective film

N/A

Protective case

N/A

Three-layer protective film

N/A
