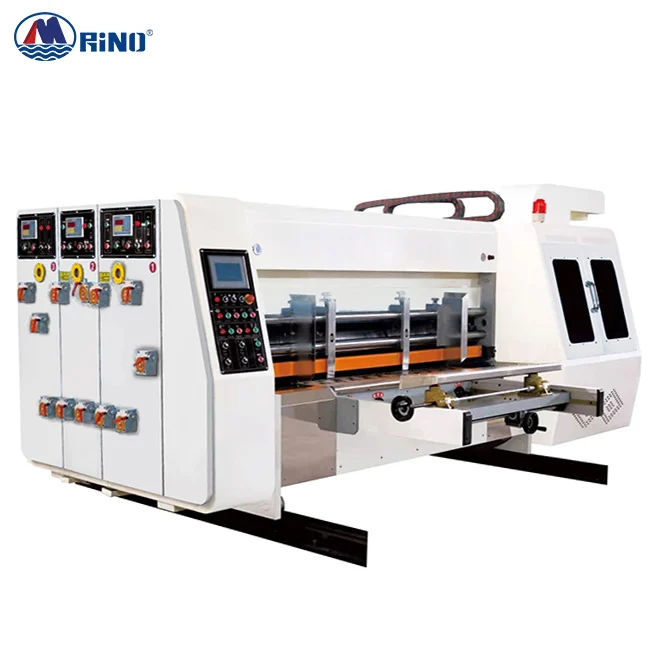

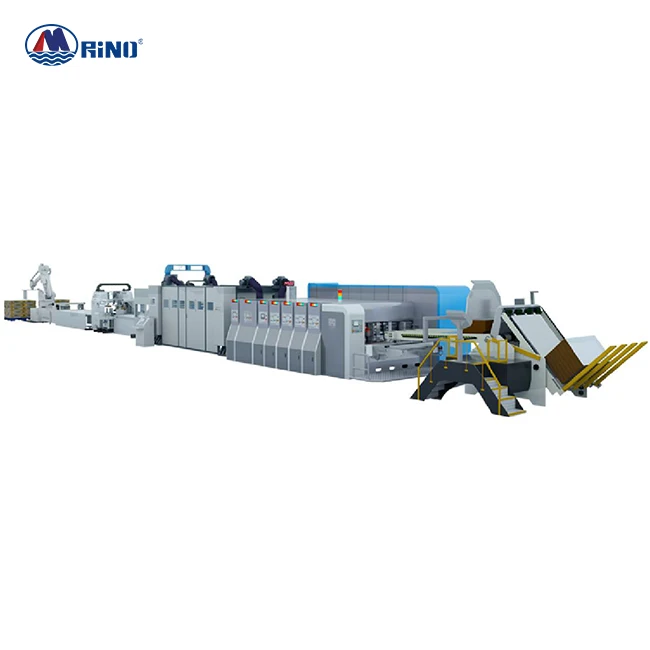

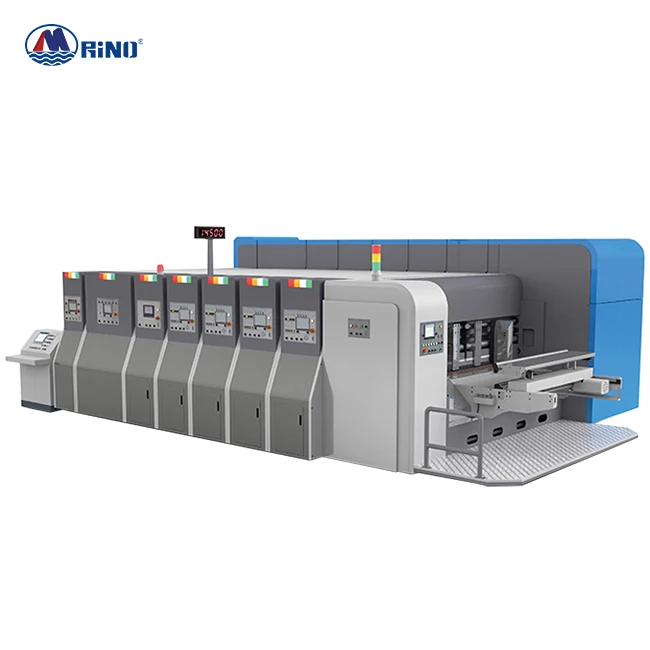

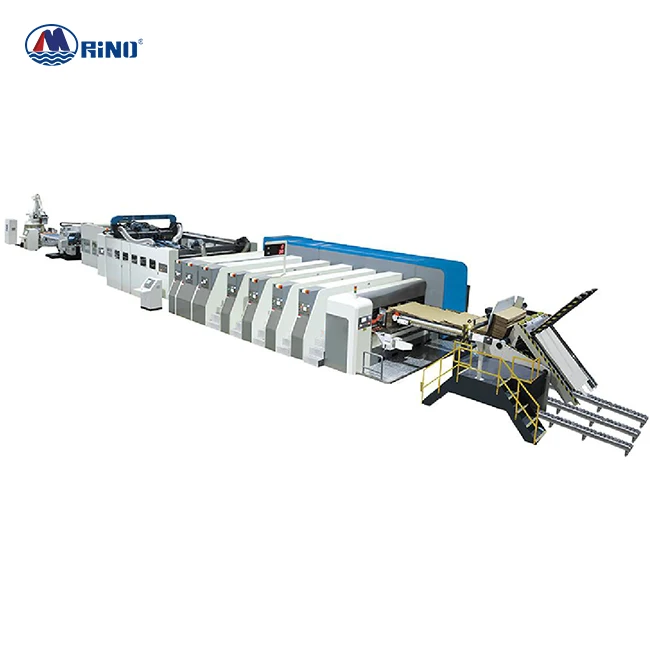

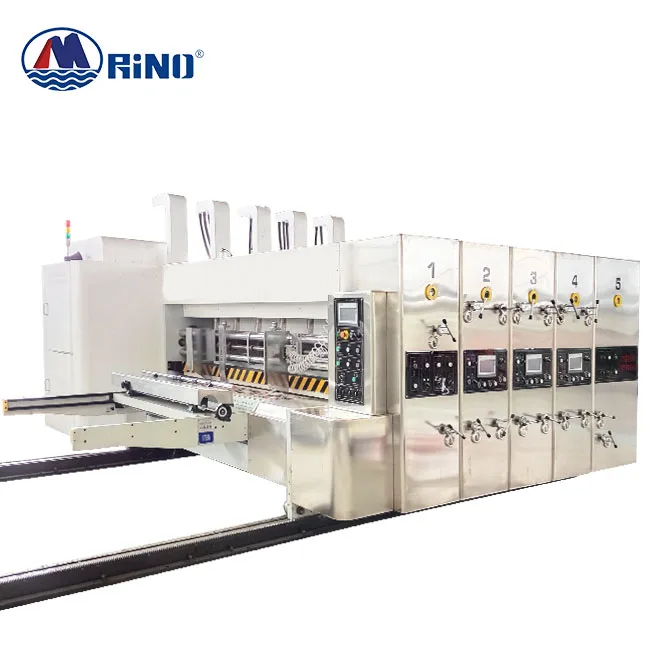

Corrugated Box Flexo Printing Slotting Folding Gluing Machine FFG Inline Factory Price

1.Choose high-quality materials and accessories. All drive rollers are made of high-quality steel, plated with hard chrome, and surface ground.

2.Imported transmission gears , which are hardened and ground, with hardness >60 HRC.

3.Automatically return to zero and automatically reset.

4.The automatic oil balance device keeps the oil of each unit at the same level.

5.Independent computer control, can store previous orders, the number of stored orders can reach 9999. Quick change of orders and more convenient operation.

6.Emergency stop switches are set in each unit, which can stop the movement of each unit internally to ensure the safety of operators.

7.Each unit of the whole machine is separated automatically or independently, making the operation more convenient, and the continuous ringing warning when walking ensures the safety of the operator.

8.A large-screen digital display is installed under the wire frame slot of the whole machine to display the printing speed of the whole machine (displayed by sheets/hour), so that the operator can easily see the running speed of the machine in different directions.

9.The gap between the feeding roller, embossing roller and anilox roller is adjusted by computer control.

Maximum speed

230pcs/min

Maximum feeding size

1200mm×2800mm

Skip feeding

1500mm×2800mm

Minimum feeding size

320mm×600mm

Maximum printing size

1200mm×2760mm

Paper feeding precision

±1.0mm

Printing precision

±0.5mm

Die cutting precision

±1.0mm

Slotting precision

±1.5mm

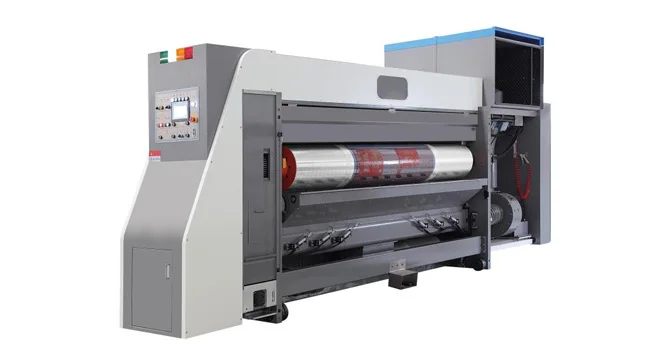

Printing unit

 1. Printing roller

The printing roller is made of high-quality steel, the surface is ground and hard chrome plated.

Balance correction, stable operation.

Plate hanging on the reel adopts locking devices on the left and right sides to make the plate hanging accurately aligned.

Full plate hanging groove, suitable for 10mm×3mm hanging plate.

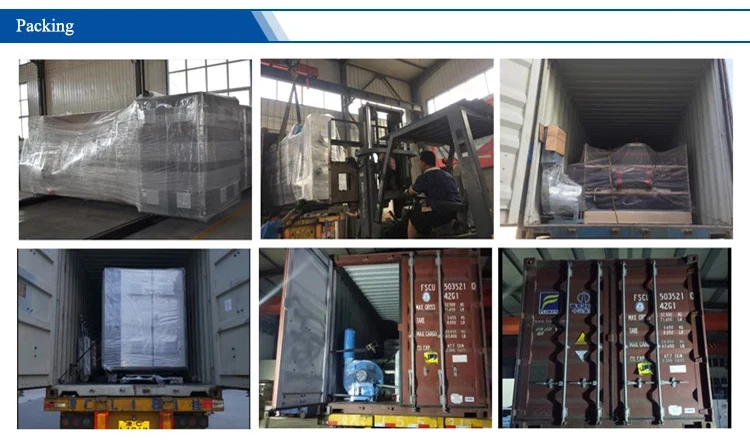

Packaging Details:
We usually packed this machine covered by plastic film.
Delivery Detail:
Within 30 days after we got the deposit.

1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes, issued by Italian organization
3.Q:What is the production time while placing order?
A:About 20 days
4.Q:What is the delivery time?
A:15-30days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
6.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
7.Q:How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
8.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
9.Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
10.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery.
11. Q: Do you accept factory visiting?
A:We are highly greeting for your visiting.
