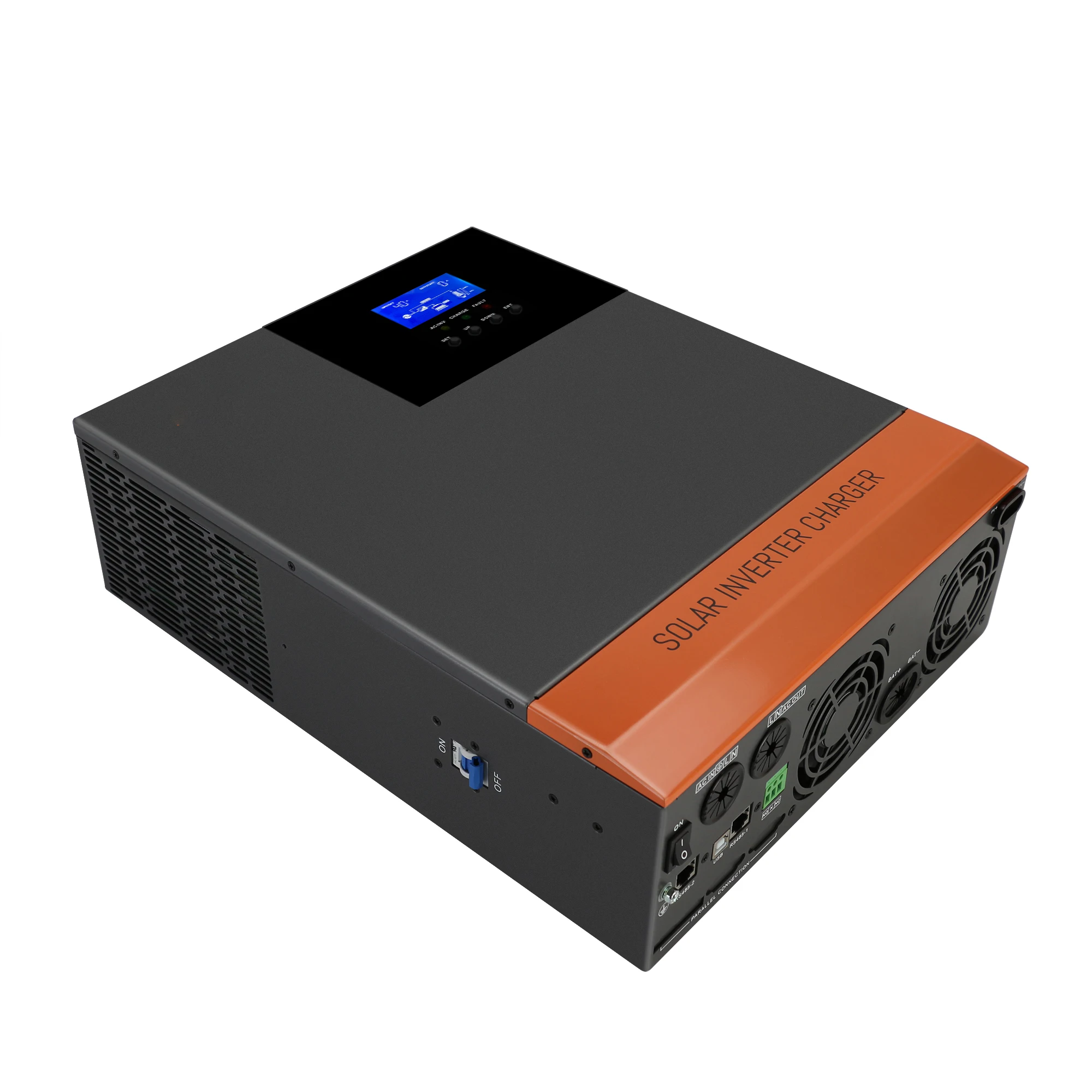

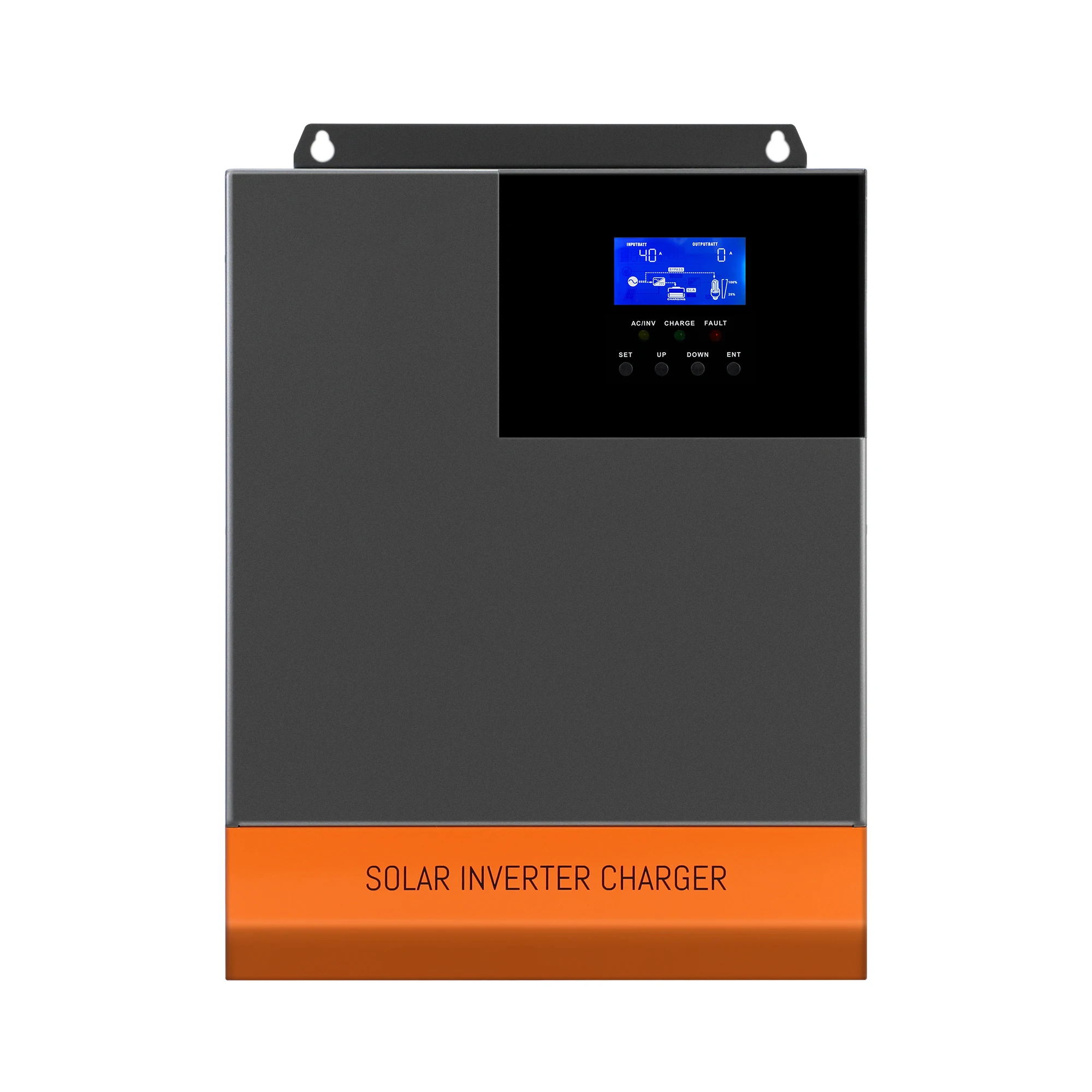

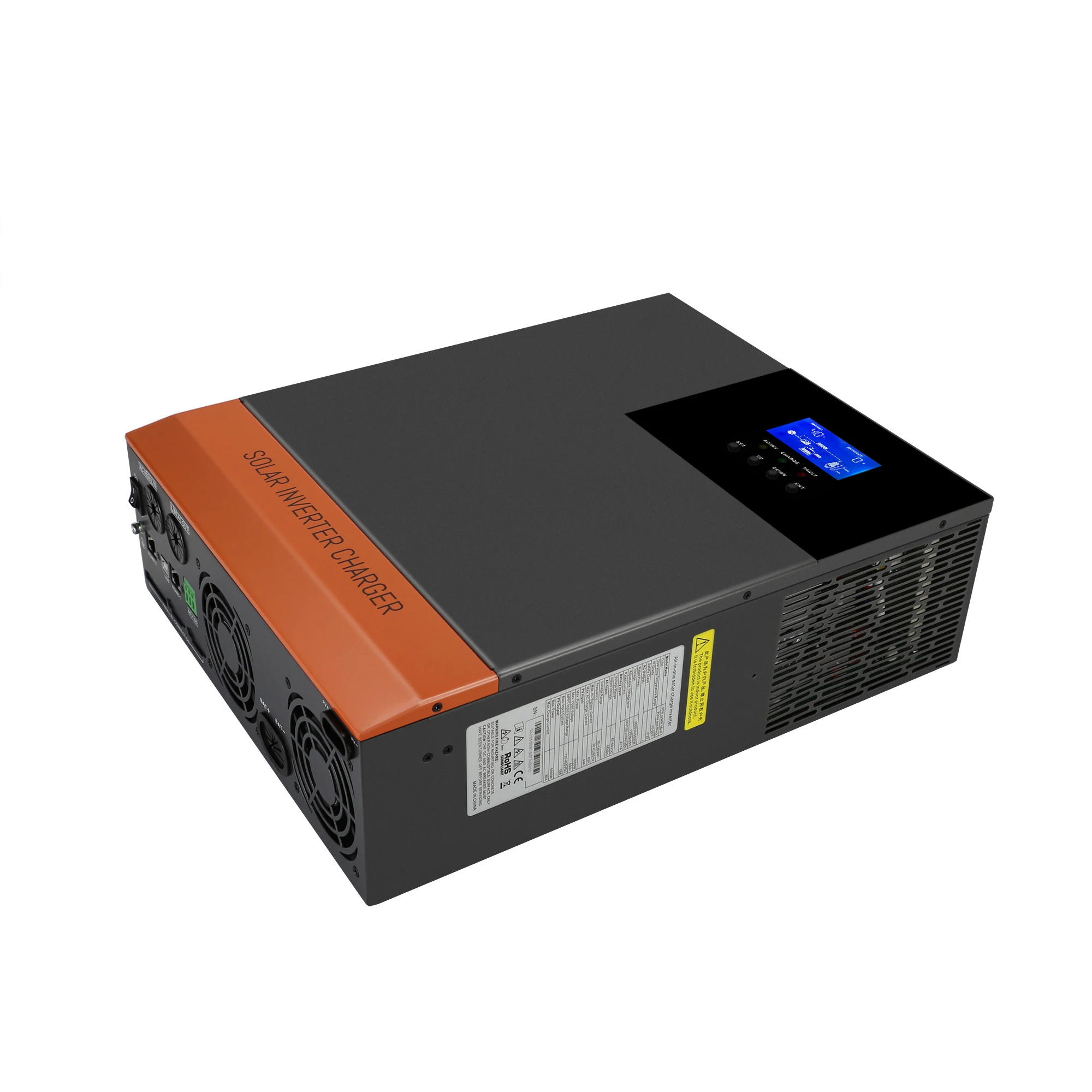

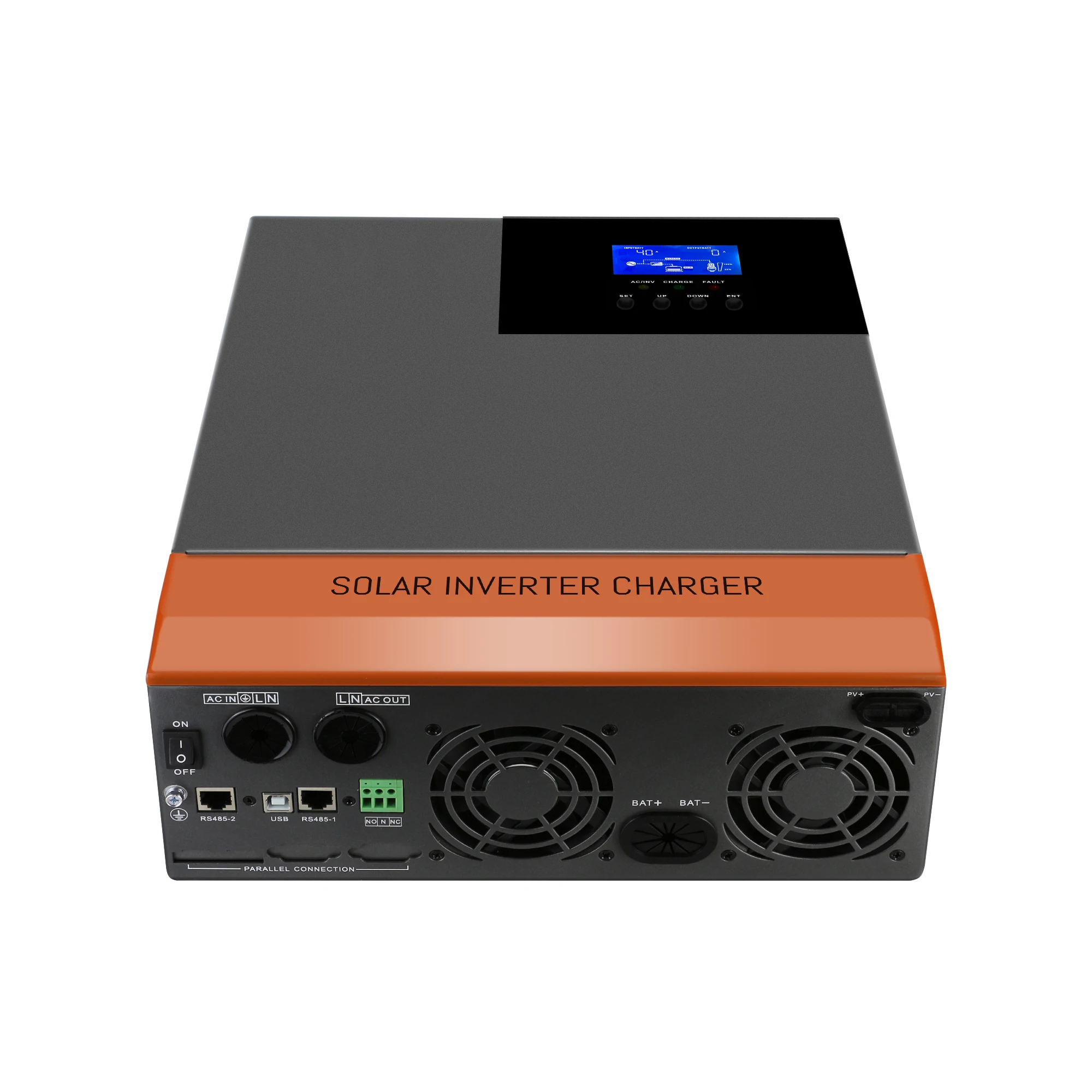

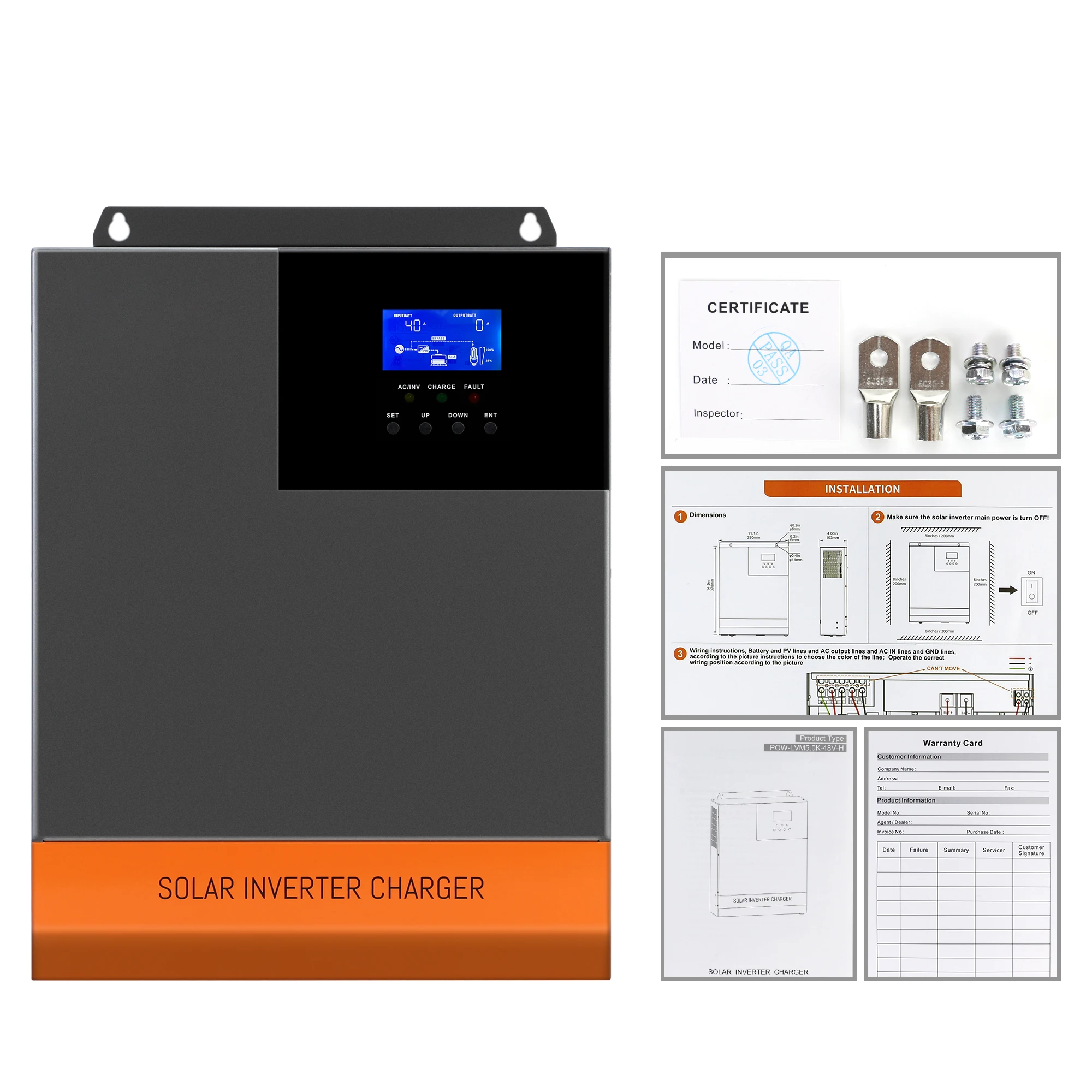

Hybrid Solar Inverter With Mppt Controller 3KW 3.5KW 5KW 110V 120V Off grid Pure Sine Wave Solar Inverter

Model

5KW 48V

                                                                                      Utility/Grid

Rated input Voltage

110/120Vac

Input voltage range

(90Vac~140Vac) ±2%

Frequency

50Hz/ 60Hz (auto detect)

Frequency range

47±0.3Hz ~ 55±0.3Hz (50Hz);
57±0.3Hz ~ 65±0.3Hz (60Hz);

Overload / Short circuit Protection

Breaker

Efficiency

>95%

Conversion time (Bypass and reverse)

10ms

Reverse Flow Protection

Yes

Max Bypass Current load

63A

                                                                                 Inverter

Waveform

Pure Sine Wave

Rated Output (VA)

5000(4100/4300/4500)

Rated Output (W)

5000(4100/4300/4500)

Power factor

1

Output AC Voltage

120Vac(100/105/110Vac Settable)

Unstable Input Error

±5%

Output Frequency (Hz)

50Hz ±0.3Hz 60Hz ± 0.3Hz

Efficiency

>90%

Overload protection

(102%<110%) 5 ±10%: reporting error and turn off the output after minutes;
(110%<125%) 10 ±10%: reporting error and turn off the output after seconds;
Load>125% ±10%: reporting error and turn off the output after 5 seconds;

Peak power

7000VA

Motor Capability

3HP

Output Short-circuit Protection

Breaker

Bypass Breaker Specifications

63A

Rated Battery Voltage

48V (minimum start-up voltage 44V)

Battery voltage range

40.0Vdc~60Vdc ± 0.6Vdc

Power Saving Mode Self-Consumption

≤50W

                                                                Utility/Grid Charging

Battery type

Lead Acid or Lithium

Maximum Charging Current (AC)

40A

Unstable Condition Error

± 5Adc

Charging Voltage Range

40 –60Vdc

Short-circuit protection

Breakers and blown fuses

Circuit Breaker Specifications

63A

Overcharge Protection

Yes; Automatically alerts and then turns off charging after1 minute

                                                             Solar (PV) Charging

Recommended PV Max

500Vdc

PV Operating Voltage

120-500Vdc

MPPT Voltage Range

120-450Vdc

Battery Charging Range

40-60Vdc

Maximum Input Power

5000W

Maximum Input Current

80A

Maximum Output Power

5000W

PV Charging Current Range

0-80A

Short-circuit Protection

Internal Fuse

Wiring Protection

Reverse Polarity

                                                                         General

Certifications

CE(IEC62109), RoHS, EN61000

Operating Temperature

5°F ~ 131°F/ -15°C ~ 55°C

Storage Temperature

-13°F ~ 140°F / -25°C ~ 60°C

Humidity

5% to 95% (three-layer paint protection)

Noise

≤60dB

Cooling

Fans, Forced cooling with adjustable air speed

IP Grade

IP 20

Safety Class

I

Dimensions (L-W-D)

16.8*12.7*4.9 in / 426*322*124 mm

Weight

25.6 lbs /11.6kg
