ZXG422B Xpon 1GE 3FE 2.4G Wifi 1*VoIP Pot FTTH fiber Gpon ONU Gpon router
- Category: >>>
- Supplier: Shenzhen,Zexing,Zhiyun,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
The ZXG422B is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal designed for high-end home users. It is well suited to FTTH/FTTO scenarios.At the network side, it supports 2.5 Gbps downlink and 1.25 Gbps uplink. At the user side, it provides four GE ports, two POTS ports, one USB port, and 2x2 802.11n@2.4GHz & 2x2 802.11ac@5GHz concurrent.
Specification
Module | Parameters |

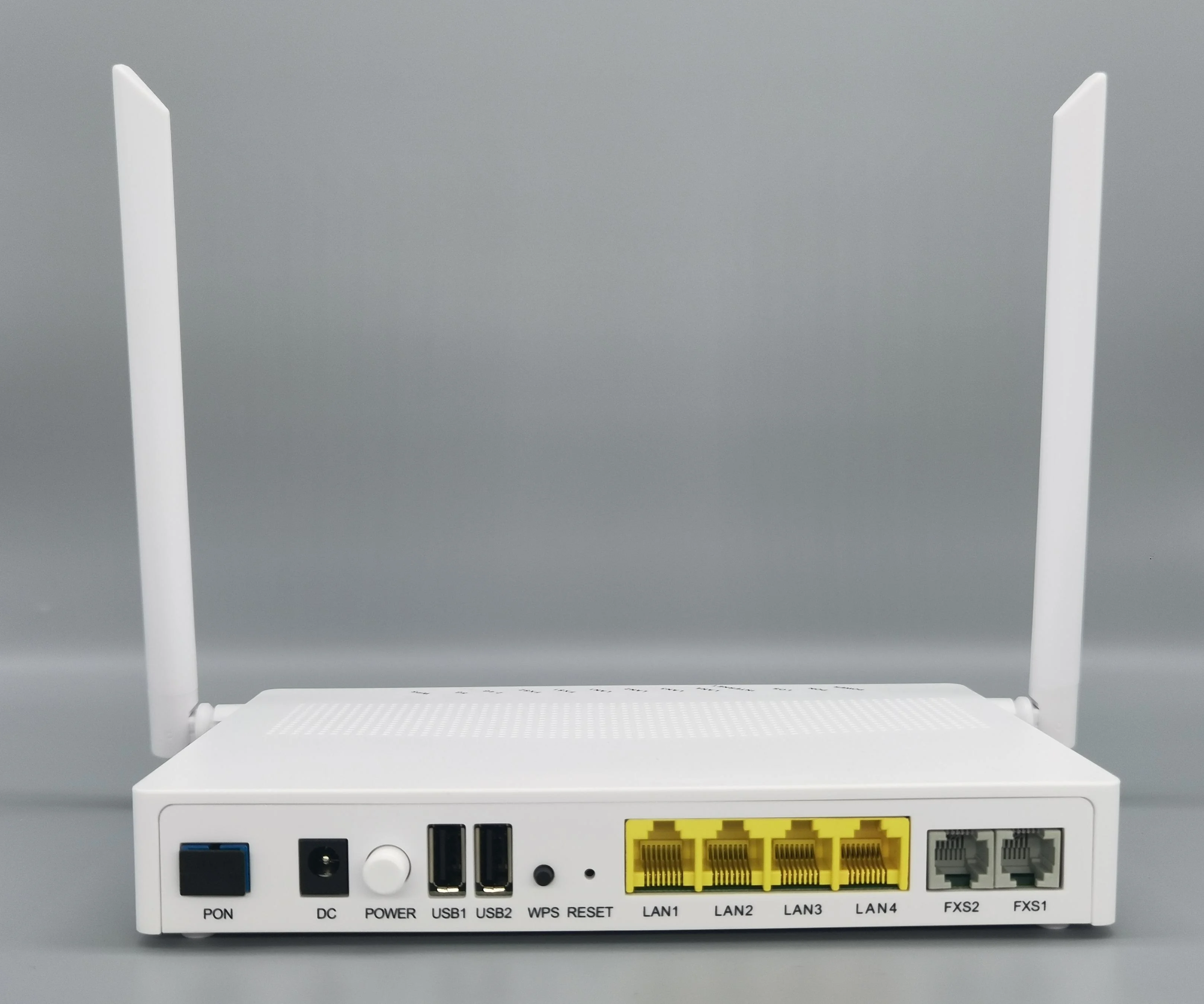

User interface | 4*10/100/1000M RJ45 port 2* RJ11 port 1* USB 2.4g Wi-Fi/5g Wi-Fi |
PON | Transmission speed :upstream 1.25Gbps /downstream 2.5Gbps Network coverage radius: 20KM Optical receive sensitivity:≥-28dBm Continuous light power: 0.5dBm~+5dBm Security: ONU authentication mechanism |
Ethernet | 4*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
POTS Port | 2*RJ11 with 3REN Max 1km distance Balanced Ring, 55V RMS |
Capability | Support NAT Support PPPOE/DHCP/Static IP/Bridge WAN |
QOS | Backpressure flow control(half-duplex) IEEE 802.3x flow control(full-duplex) Prevent Head Of Line IEEE 802.1p, CoS WR,SP and FIFO queue scheduling algorithm Port rate limit |
Safety | IEEE 802.1x, access control based upon Port Support local and remote RADIUS CHAP,EAP certification Storm control, port protection |
Size | 195mm(L)×165mm(W)×38mm(H) |
Environment | Operating temperature:0℃～60℃; Operating humidity:10%～85% non-condensing |
Storage temperature:-40℃～80℃; Storage humidity:5%～95% non-condensing | |
Power supply | 110～240VAC 12V/1.5A DC |
Power Consumption | 18W |
Management | Various management modes such as Web, TELNET Debug function |
Indicator | Description | ||||
1 | Power | Power status | On:The ONU is power on Off:The ONU is power off | ||
2 | PON | ONU register | Blinking:In process of registering to OLT On:Success to register to OLT Off:Fail to register to OLT | ||
3 | LOS | Optical signals | On:Optical link lower than receiver sensitivity Off:Optical in normal | ||
4 | LAN | LAN ports status | Blinking:Data is being transmitted On:Ethernet connection is normal Off:Ethernet connection is not set up | ||
5 | 2.4G | Wi-Fi | Blinking:Data is being transmitted On:Wi-Fi function opens Off:Wi-Fi function closes | ||
6 | 5G | Wi-Fi | Blinking:Data is being transmitted On:Wi-Fi function opens Off:Wi-Fi function closes | ||
7 | Voip | Voip status | On:The ONU’s Voip port registered Off:The ONU’s Voip port not registered | ||
8 | WPS | WPS | On:Connecting Off:not Connecting | ||
9 | NET | Internet status | On:ONU can access internet Off:ONU can not access internet | ||
10 | USB | USB status | On:USB connection is normal Off:USB connection is not normal | ||
Support port‐based rate limitation and bandwidth control
In compliant with IEEE802.3ah Standard & ITU-U G.984
Wi‐Fi series meet 802.11 n/b/g/ac technical standards
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation ,etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto‐discovery/Link detection/remote upgrade of software;
Support port mode of VLAN configuration
Support power‐off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support port flow control
Support ACL to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading
Support TR069 for ACS(Auto Config Server)
Support PPPOE/DHCP Server/IPTV/Voip/NAT
Support SIP (compatible with IMS), H.248, MGCP three VoIP protocol
Support the main producing soft exchange platform with the heartbeat function
Support ITU-T G.711, G.723.1, G.729 and other three kinds of compression algorithm;echo cancellation conforming to ITU-T G.168-2002, an echo canceller for the longest 128ms
Support high / low speed mode transparent transmission, T38 two fax
Support high-speed Modem (56Kbps) dial access; support RFC2833 and redundant RFC2833, ringing, MD5 certification, call forwarding, call waiting, the hotline, alarm
clock, abbreviated dialing and other value-added services
Support 2 POTS interface and the three party call, three party support local mixing
Support POTS port GR909 line test function
Support dynamic PPPoE, DHCP and static IP
7 * 24 hour call loss is less than or equal to 0.01%
Wi-Fi Specification IEEE 802.11n compliant, 2.4 GHz/5G
Full IEEE 802.11b/g/ac legacy compatibility with enhanced performance
Two-stream spatial multiplexing up to 866 Mbps PHY data rates
Support multi-SSID（Maximum 4 SSID）
Support automatic channel selection
Support hide SSID
Support wireless security of 64/128 bit WEP,802
In compliant with IEEE802.3ah Standard & ITU-U G.984
Wi‐Fi series meet 802.11 n/b/g/ac technical standards
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation ,etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto‐discovery/Link detection/remote upgrade of software;
Support port mode of VLAN configuration
Support power‐off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support port flow control
Support ACL to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading
Support TR069 for ACS(Auto Config Server)
Support PPPOE/DHCP Server/IPTV/Voip/NAT
Support SIP (compatible with IMS), H.248, MGCP three VoIP protocol
Support the main producing soft exchange platform with the heartbeat function
Support ITU-T G.711, G.723.1, G.729 and other three kinds of compression algorithm;echo cancellation conforming to ITU-T G.168-2002, an echo canceller for the longest 128ms
Support high / low speed mode transparent transmission, T38 two fax
Support high-speed Modem (56Kbps) dial access; support RFC2833 and redundant RFC2833, ringing, MD5 certification, call forwarding, call waiting, the hotline, alarm
clock, abbreviated dialing and other value-added services
Support 2 POTS interface and the three party call, three party support local mixing
Support POTS port GR909 line test function
Support dynamic PPPoE, DHCP and static IP
7 * 24 hour call loss is less than or equal to 0.01%
Wi-Fi Specification IEEE 802.11n compliant, 2.4 GHz/5G
Full IEEE 802.11b/g/ac legacy compatibility with enhanced performance
Two-stream spatial multiplexing up to 866 Mbps PHY data rates
Support multi-SSID（Maximum 4 SSID）
Support automatic channel selection
Support hide SSID
Support wireless security of 64/128 bit WEP,802
