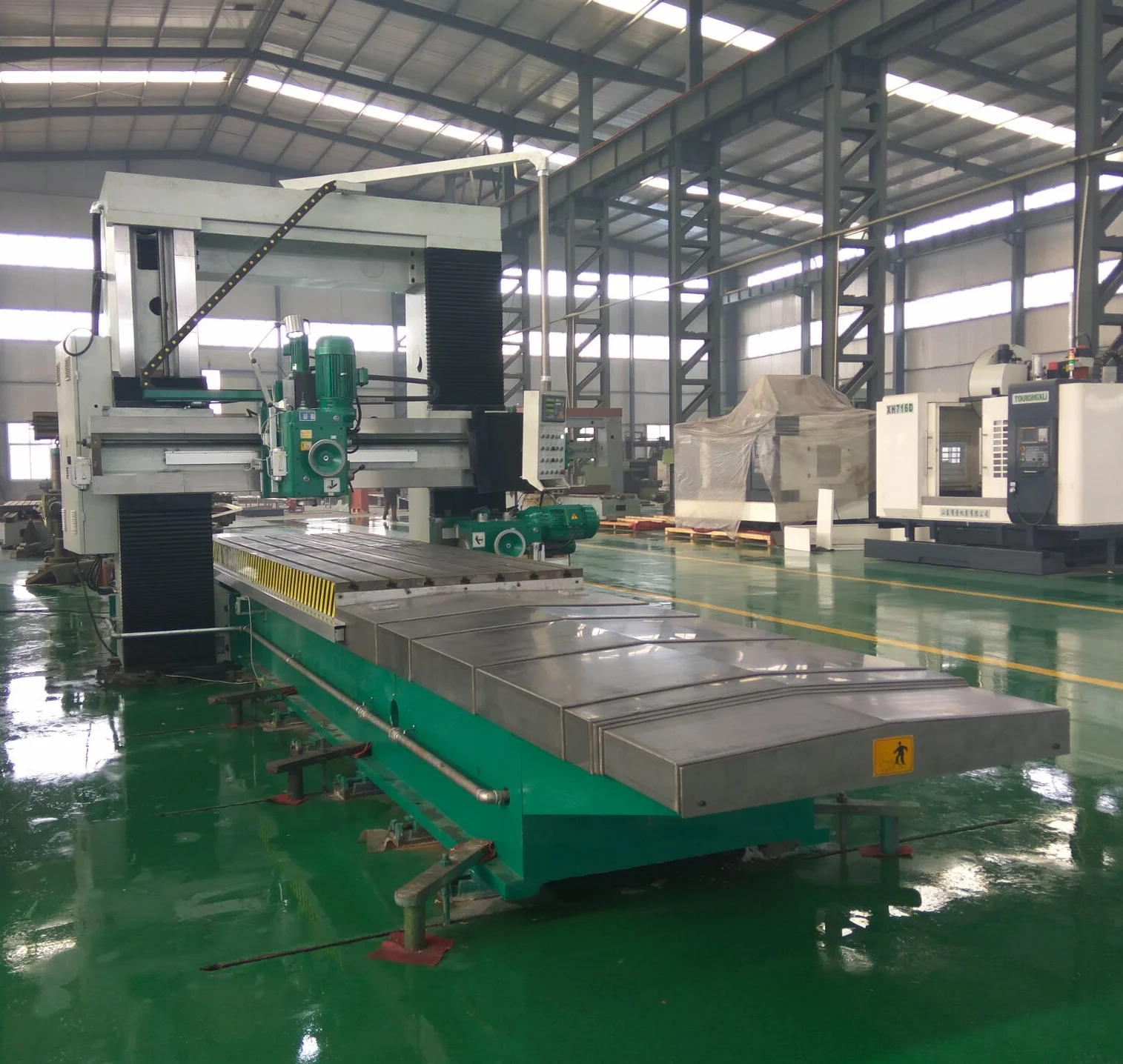

Gantry Milling Machine X2012 with Pneumatic Tool Locking Mechanism
- Category: >>>
- Supplier: ChinaSourcing E&T Co. Ltd.
Share on (1600566678432):
Product Overview
Description
Product Description
Optional Configuration
1. Airtight cover
2. DRO
3. Pneumatic tool locking mechanism
Specification
X axis travel | mm | 2000 |
Y axis travel | mm | 1400 |
Z axis travel | mm | 1000 |
Table dimensions | mm | 2000*1250 |
T-slots（number*width*spacing） | mm | 7*28*180 |
Spindle nose-to-table distance | mm | 130—1130 |
Table load capacity （max.） | kg | 3000 |
X axis rapid feed | mm/min | 1360 |
Y axis rapid feed | mm/min | 890 |
Z axis rapid feed （Gantry） | mm/min | 430 |
Z axis rapid feed （cutter head） | mm/min | 280 |
Work feed X axis | mm/min | 0—1360 |
Work feed on Y axis | mm/min | 65/320/890 |
Speed range | r.p.m | 82—505 |
Torque （max.） | N.m | 790 |
Spindle mount | ISO 50 | |
Head swivel range | ±35° | |
Motor rating-headstock | kW | 7.5 |
Motor rating X axis | kW | 5.5 |
Motor rating Y axis | kW | 1.1 |
Motor rating Z axis | kW | 4 |
Dimensions | mm | 5800*3550*3400 |
Weight | kg | 13000 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company & Brand
Established in 2003, ChinaSourcing E&T Co.,Ltd. has always been devoting to global sourcing of mechanical products. Our mission is to provide professional one-stop sourcing service and create added value for customers, and to build a strategic platform between the foreign customers and Chinese suppliers.
We have supplied more than 100 customers with hundreds of thousands of kinds of products, including components, assemblies, full machines, machine tools, automation products and etc.
Nowadays our business also involves in industrial investment and import & agency sales of agricultural machinery.
In 2005, we organized ChinaSourcing Alliance, which gathers more than 50 manufacturers involved in a wide range of industries. Connecting all the members as one, we provide Overall Solution for our customers. In 2021, the annual output of ChinaSourcing Alliance reached up to 30 billion RMB.
Every member of ChinaSourcing Alliance was selected after strict screening and represents the highest level of Chinese machinery manufacturing. And all the members have obtained CE certification.
In ChinaSourcing Alliance, there are more than 10 professional machine tool manufacturers, of which we decided to integrate the product lines and the production capacity to provide the customers with the most reliable products and the most varied choice, and this is how our self-owned machine tool brand CSAL came out.
