New Type rotary vacuum evaporator Distillation Equipment 50L Rotary Evaporator RE 5003

Product Overview

Description

Producr Description

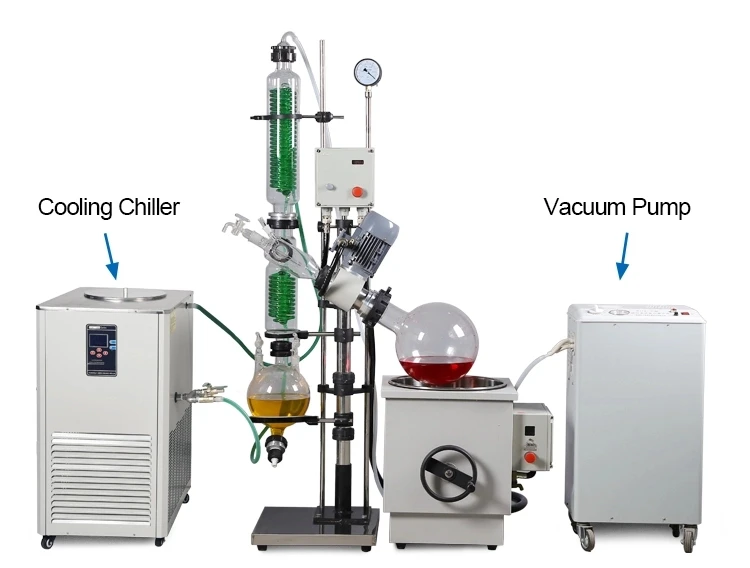

Rotary evaporator is better to use when when you want to get rid from the solvent. let’s say you have a solution of some chemical in some solvent. if you want to obtain a oil or crystal form of the chemical, you may put solution to rotary evaporator and evaporate the solvent. R-series large scale rotary evaporator mainly used in lab test, middle test, and production of biological,, chemical, food industries etc.it upgrade to have large capacity and caliber rotary evaporating flask, make solution diffuse and evaporate efficiently under the condition of constant rotating and heating in the water bath.it can match with vacuum pump, chiller etc to constitute system equipment.

Product Features:

1.Advanced EL gas-tight system keeps high vacuum degree.Gas-liquid separator, no reflux.
2.Main and auxiliary condenser, high recovery.
3.The rotating flask is easy to install and setup.
4.Continuous feed are available. (Inlet Valve)
5.Water(oil) bath,electric lifting, intelligent PID temp. controller.
6.Reasonable structure, exquisite material, with brake casters for easy movement.
7.Mechanical parts are made of stainless steel and aluminum die casting.

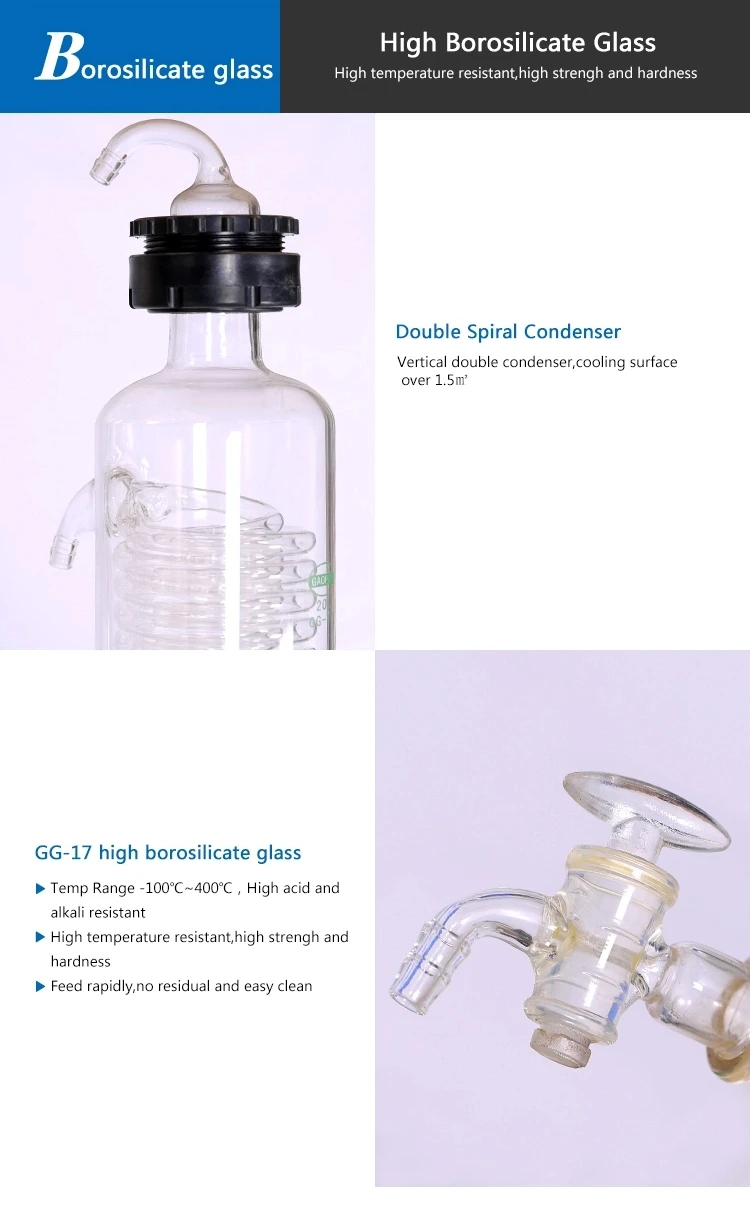

8.Adopt corrosion and high temperature resistance borosilicate glass.
9.Rubber parts adopt new standard materials, easy to change for users.
10.Built-in transmission system, frequency conversion speed regulation, stable speed.
11.Explosion-proof system is optional.
12.110 V/60HZ can be customized.

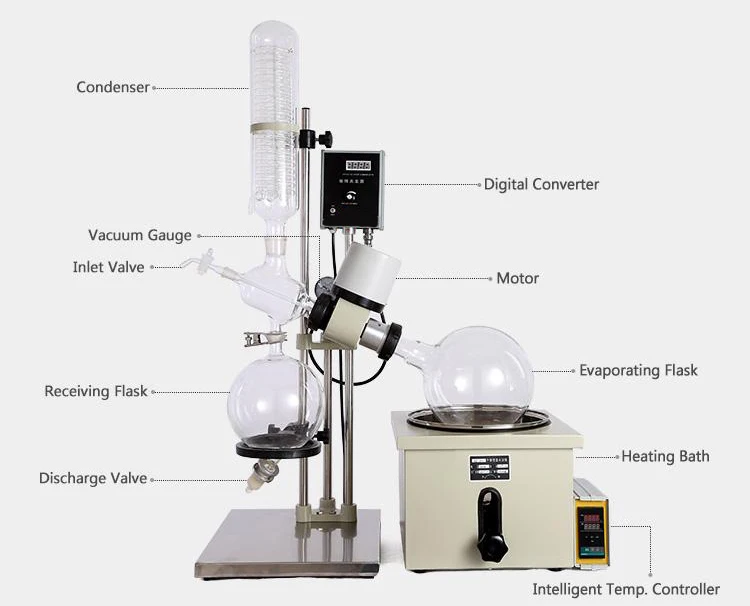

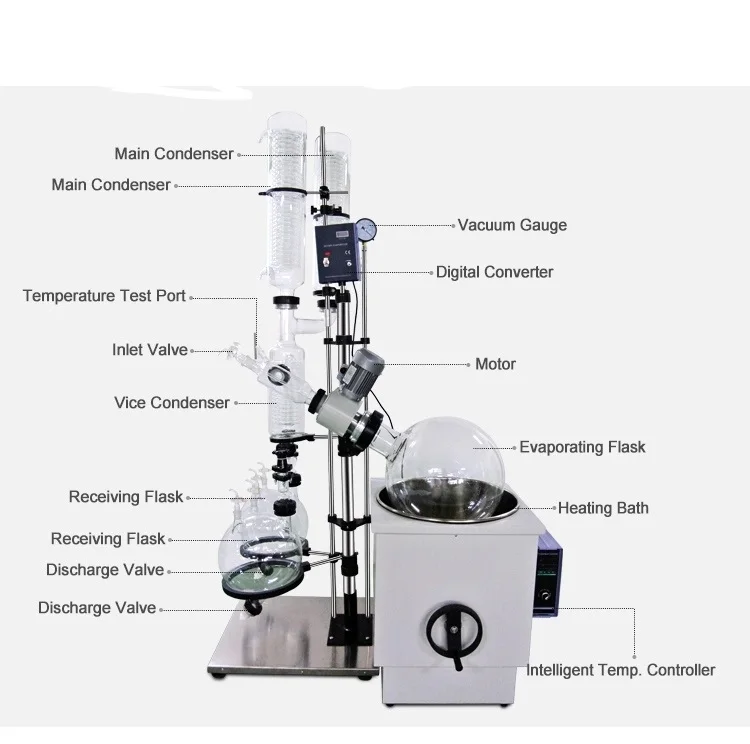

Product Pictures

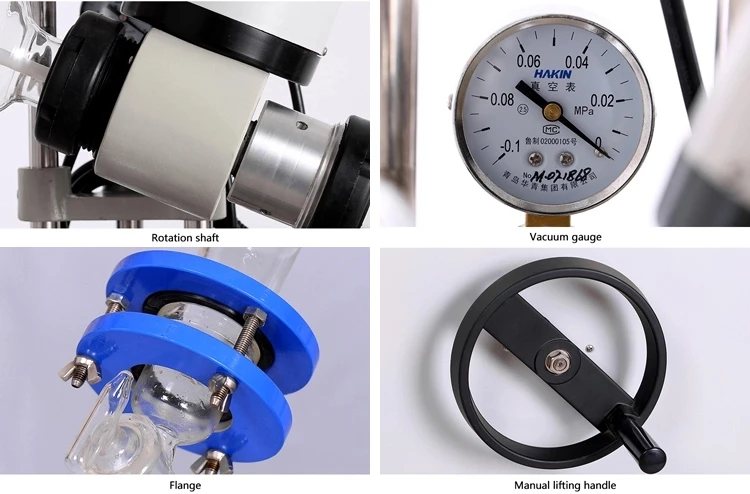

Product Details

Basic Parametrs

Type	RE-5003
Glass material	GG_17
Support material	Antisepsis Plastic Spraying
Shell material	Antisepsis Plastic Spraying 250*365*150mm
Inner cintauiner material	Stainless steel 240*120mm
Volume of the recycling bottle	50L
Vacuum degree	0.098Mpa
Rotating power	1KW
Rotating speed	120rpm
Heating power	1KW
Temperature control of bath kettle	0-99°C
Tenperature accuracy	±1°C
Voltage	220V
FRequency	50HZ
Up and dowe distance	120mm
Shape size(mm)	1520*620*2470mm
Package size(mm)	1600*700*2500
Package weight(Kg)	170
Speed adjustment mode	Electrodeless speed regulation
Temperature display mode	Digital diaplay
Temoerature control mode	Smart temperature control
Sealing mode	PTFE sealing
Condenser	Vertical condenser
Up and down mode	Manual up and down o9f Main Engine
