CE certified 37KW 6.5M3/MIN electric air compressor compressed air electr compressor for industrial use
- Category: >>>
- Supplier: Shanghai Landward Machine Co. Ltd.
Share on (1600566695117):
Product Overview
Description
Product Overview

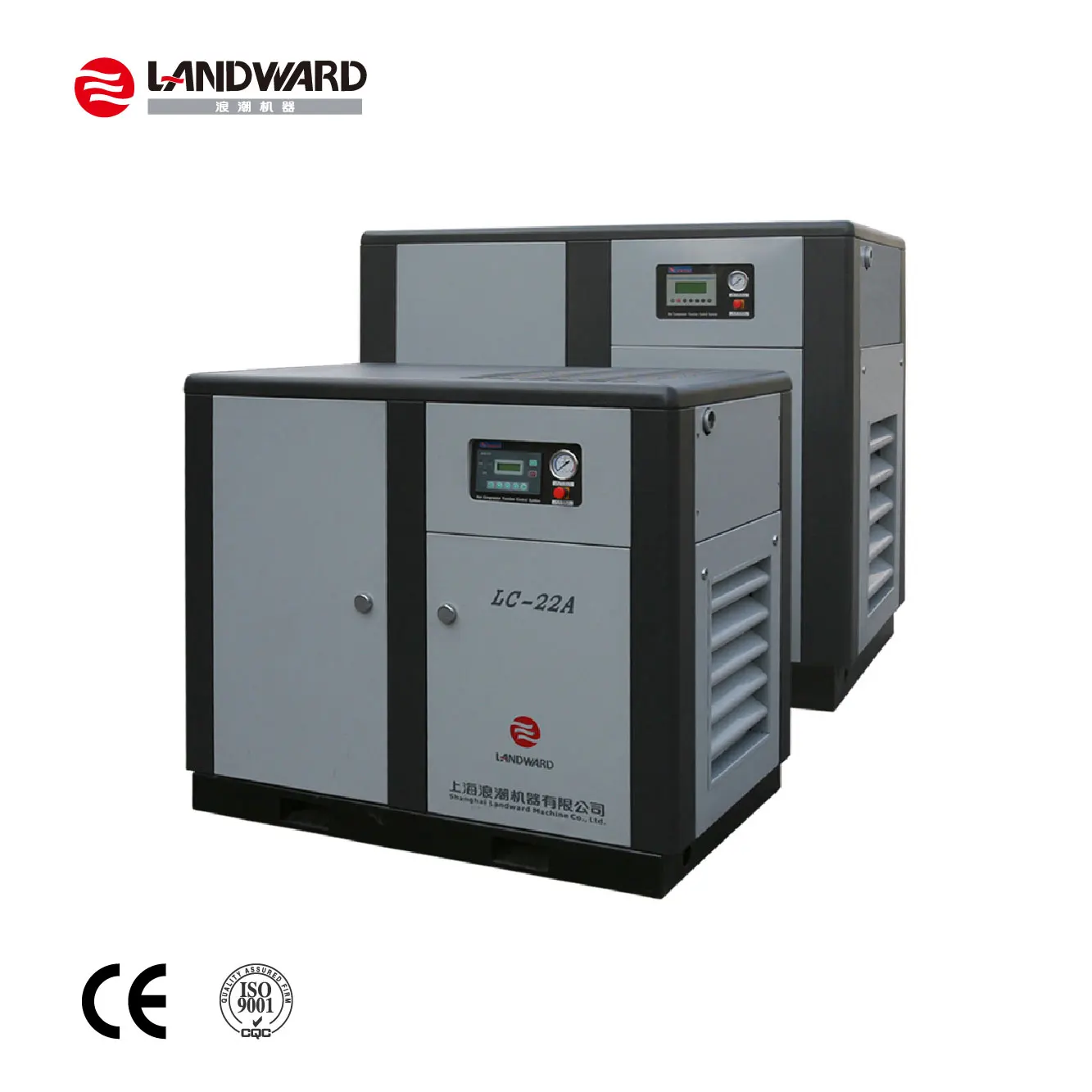

CE certified 37KW 6.5M3/MIN electric air compressor compressed air electr compressor for industrial use
FEATURES AT A GLANCE
Good quality ,we do OEM for many European brand .
HIGH QUALITY GRINDING MOTOR
ASSURANCE FOR HIGH QUALITY AND ACCURACY
TOP TACHNOLOGY ,FAMOUS BRAND PARTS
LOW OIL CONTENT
HIGH EFFICIENT AND STABLE MOTOR
PLC CONTROL MAKES THE OPERATION MORE EASIER
LEFT elevation
left elevation

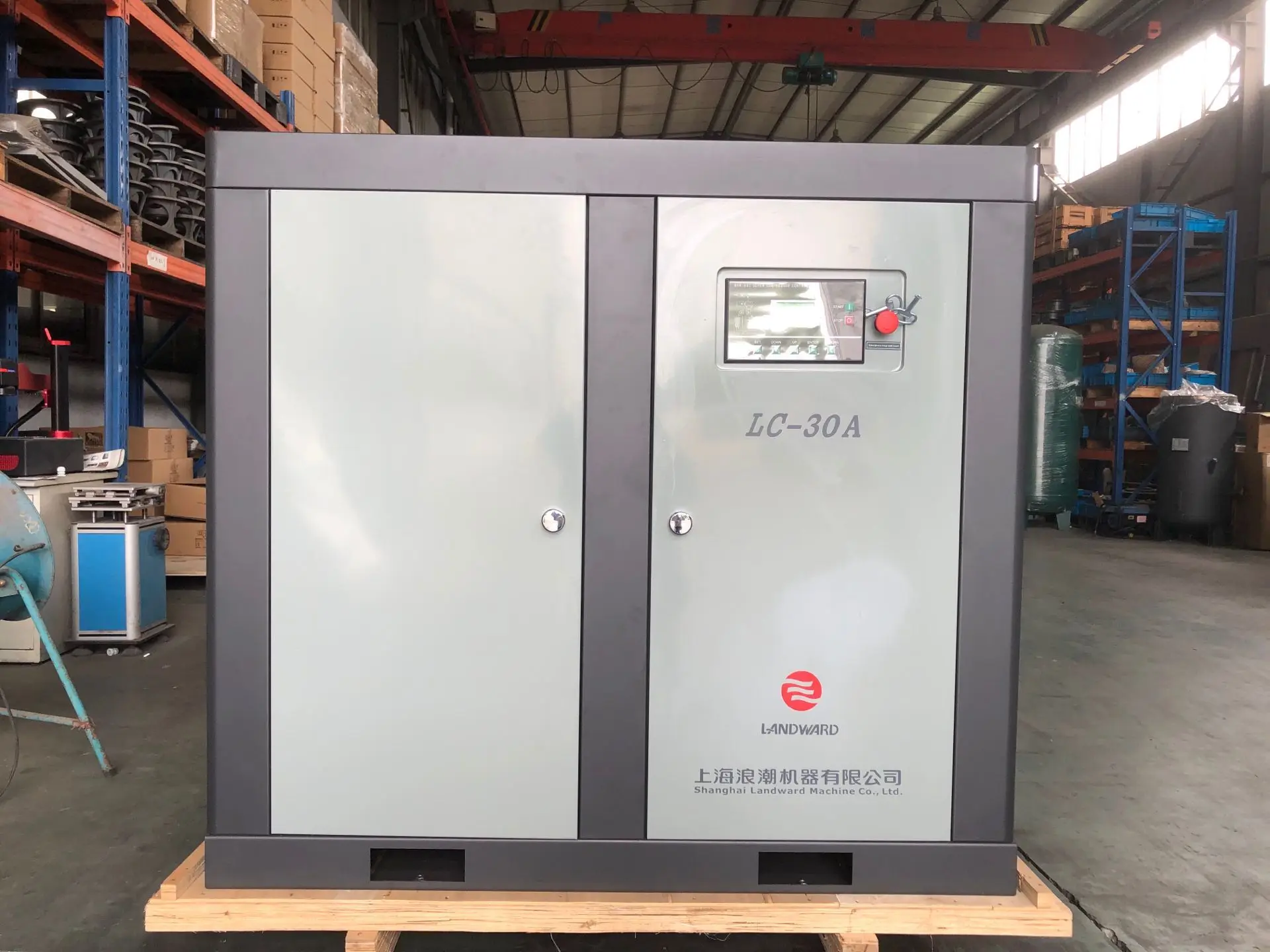

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | Item | Data |
1 | Displacement / discharge pressure ( m3/min.Mpa-1 ) | 6.5/ 0.7 6.3/0.8 5.8/1.0 5.0/1.2 | Air Supply Oil Content ( PPM ) | ≤3 |
2 | Gas temperature ( ℃ ) | ≤Ambient temperature +15℃ | Caliber to take over | G11/2" |
3 | Power ( KW/HP ) | 37KW/50HP | Cooling fan power ( KW ) | |
4 | Speed ( r/min ) | 2950 | LENGTH ( mm ) | 1470 |
5 | Way to start | Y-ΔStart | Width ( mm ) | 930 |
6 | Voltage( V ) | 380 | Height ( mm ) | 1300 |
7 | Engine displacement | 6750ml | Weight ( Kg) | 890 |
8 | Transmission way | shaft coupling transmission | Noise [dB(A)]±2 | 65 |
PRODUCT CONFIGURATION
FAMOUSE BRAND AIR END
QUALITY BRAND ACCESSORIES
PLC CONTROL MAKES EASIER OPERATION

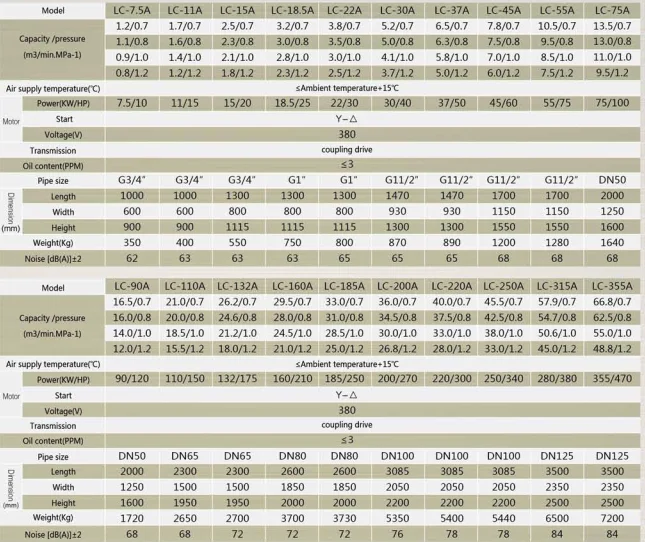

product series
hot sale double screw compressor fixed speed normal type
power from 5.5kw-355kw

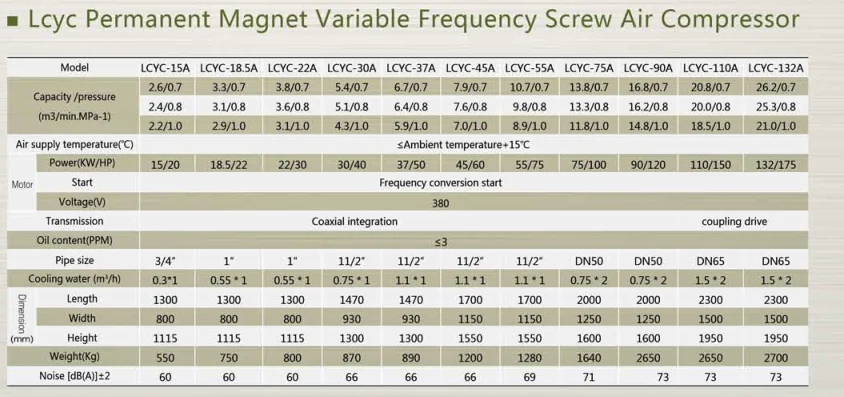

Hot sale pm inverter compressor
power from 7.5kw-250kw
save your energy more than 10%
SIMILAR PRODUCTS
Company Profile
Our factory in shanghai more than 50,000 square meter .
Shanghai Landward Machines Co., Ltd. is a modern and new company, with high-quality technicians and management talents, as well astechnology experts of air compressor with rich experience. Who has the ability of developing, researching and manufacturing the
most advanced single-screw air compressor in the world.
Landward has several departments, they are strong-powered technology development sector, advanced production sector, strict-guard
quality assurance sector, flexible-to-market and warm marketing sector and quick after sales service sector. We adopt perfect
quality management system and have passed ISO9001-2000 quality control system .Our research, design, purchase, processing,
manufacture, assembly , sales and after-services are strictly followed those systems.
Shanghai Landward Machine Co., Ltd. believes that the quality is the soul of an enterprise. We are adopting foreign advanced
technologies, investing a lot on introducing hi-tech equipments, making all efforts on quality assurance, developing, researching
and manufacturing OGLC series single-screw air compressor in batches, with several technical indexes exceeding that of foreign
similar products. Meanwhile, it has awarded national invention patent, with the patent number of 2005 (0111598.2)
Our products are renowned in domestic markets, known as the ideal substitute for imported air compressors and are widely used in
such industries: national defense military, food, pharmaceutics, textile, instrument, electronics, machinery, chemicals, and power
generation. At present, our company can produce air compressors of over 80 types, exhaust volume from 0.9 to 64m³/minute, pressure
from 0.4Mpa to 1.3Mpa, which could totally meet the demands for every walk of life.
Landward ‘s objective is people-oriented, quality for development, competitive price for the market, sincerity for cooperation, we
would like to create a better future with all of our clients.
