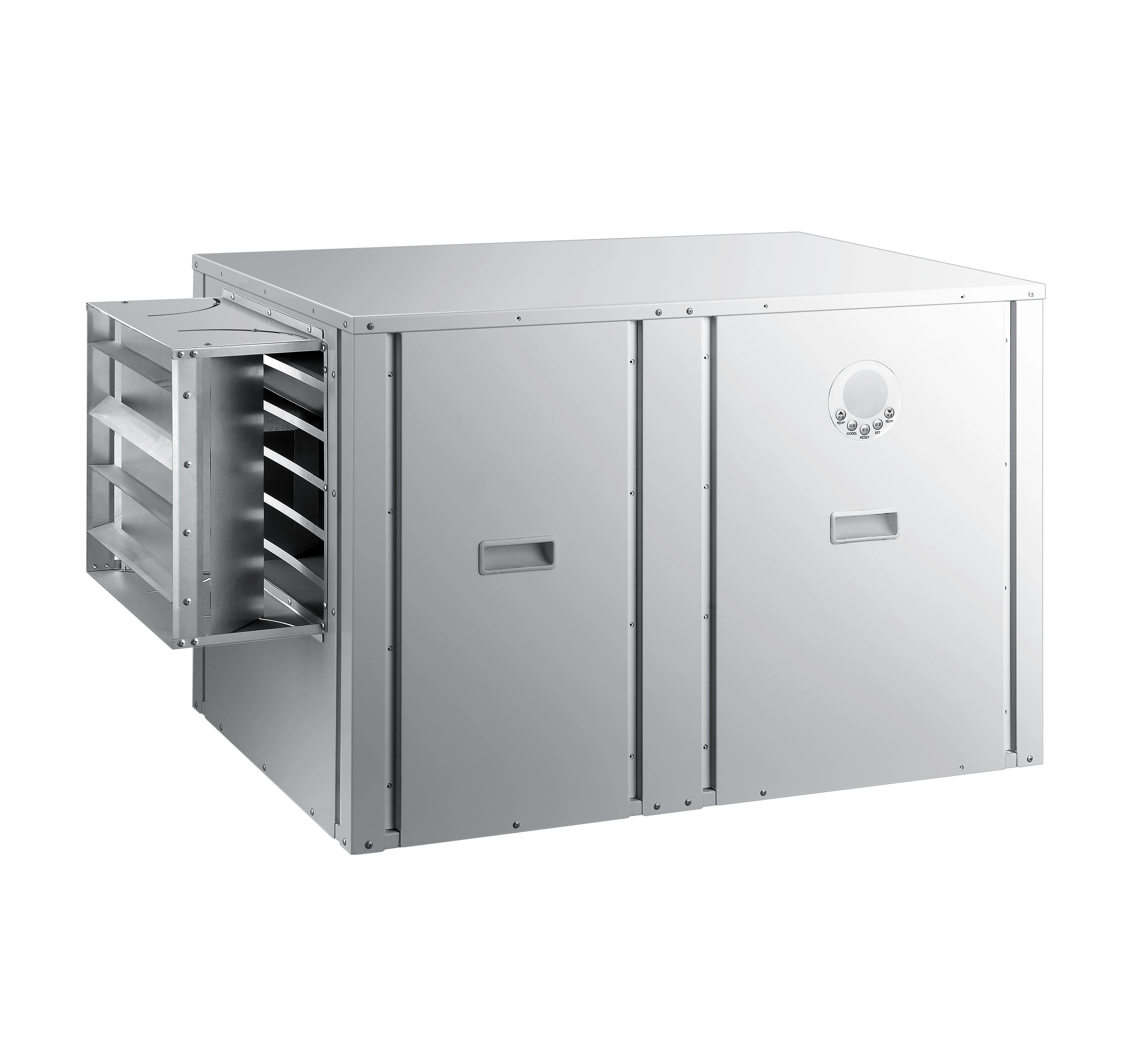

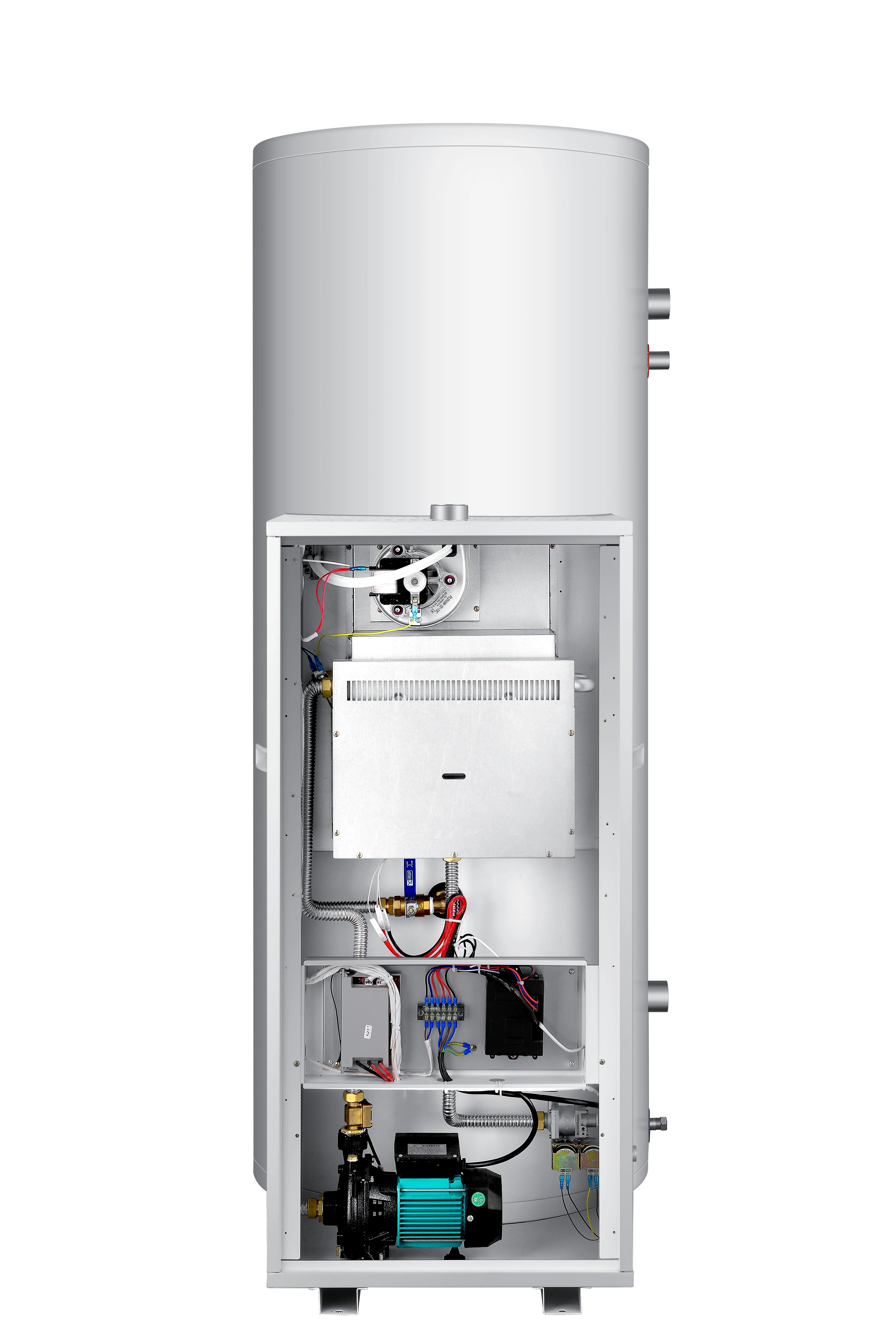

Factory price Condensing Boiler automatic Gas Water heater
- Category: >>>
- Supplier: Yonyan Electric Gas Technology Co. Ltd.
Share on (1600566713312):
Product Overview
Description
Product Description
Specifications
Rated heat load (KW) | 200 | Rated gas consumption(m3/h) | <19.9 | |
Rated working pressure(MPa) | 0.75 | Rated gas pressure(pa) | 2000 | |
Heat efficiency(%) | >98 | Combustion method | Atmospheric combustion | |
Gas pipe diameter | Φ160mm | Combustion control mode | Intelligent automatic | |
Reheat rate(L) | t=25°C | 6700 | Inlet/outlet pipe diameter | DN50(G2M) |
| t=35°C | 4800 | Gas pipe diameter | DN40(G1 1/2M) |
Temperature adjustment range(℃) | 30-85 | Gas Type | Natural Gas /LPG | |
| Installation location | Indoor | Voltage | 220V/50HZ |
Installation conditions | Ambient temperature | -18℃ ~ 79℃ | Electric power(W) | 290/External primary circulating water pump 1.5KW AC380V |
| Environment humidity | 6%~90% | Noise (db) | <65 |
| Altitude | <4800m | Net Weight(kg) | 210±5 |
Recommended heating area(m2) | 1800-1900 | Product Size(mm) | 1030*900*1640 | |
Related Products

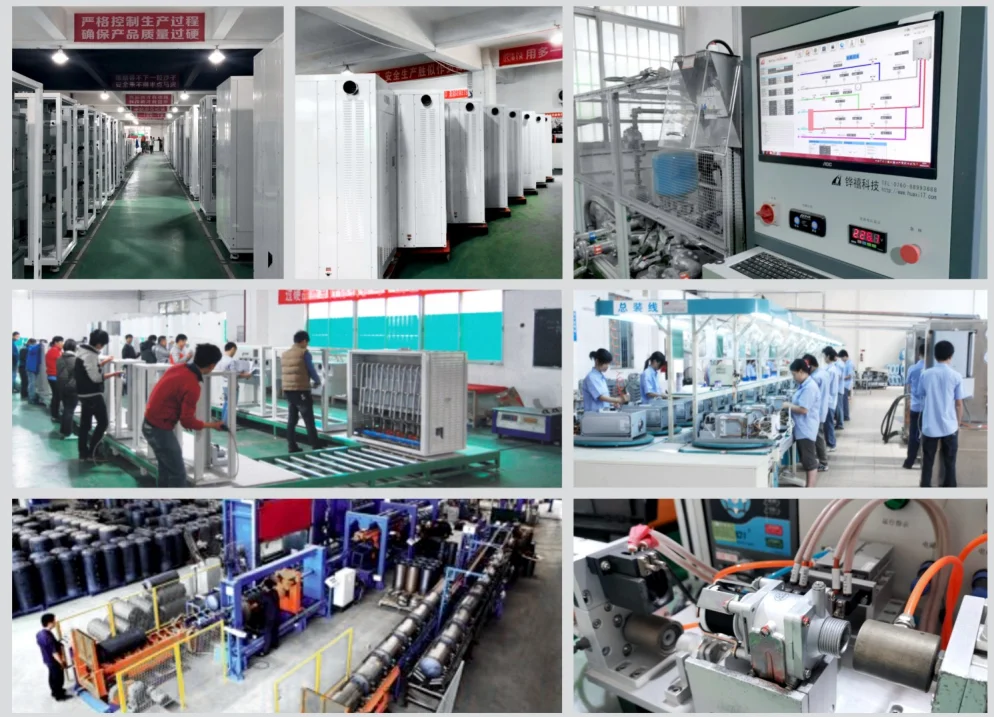

Production Process
