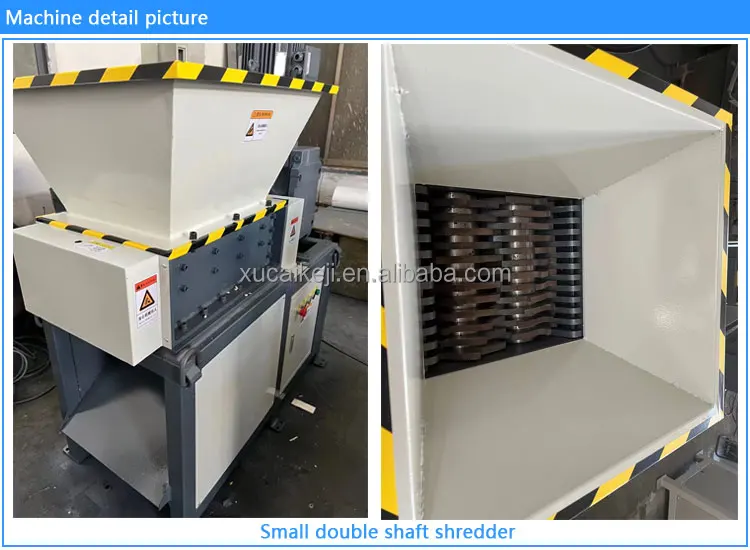

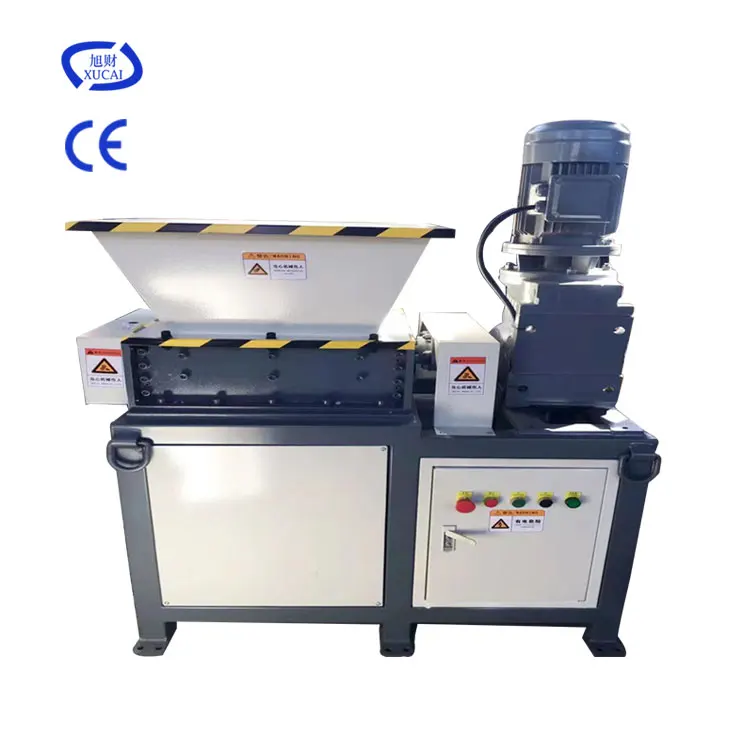

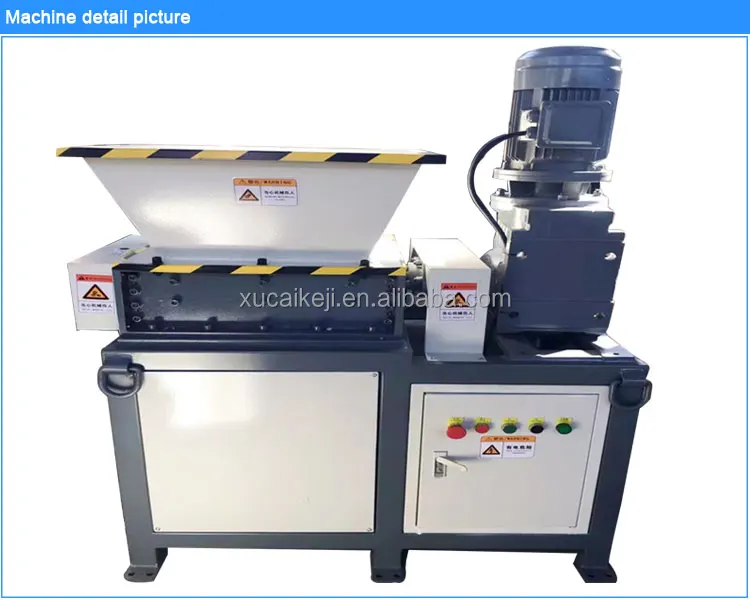

Double shaft shredder characteristics:
1.This shredder used for shredding tire,basket materials,pipes,plates,wood,wheel and huge rolls of films,which are hard to be shredded on a single shaft shredder.
2.The outer frame is made of super thick plates with mixed structure after intensified processing,equipped with powerful hexagonal rotation axis with wide angles and huge-diameter inlet so that huge raw materials may be put inside and crushed.
3.The rotary cutter has unique design in terms of thickness.This kind of crushing machine is sharp and keen enough to finish shredding work efficiently.
4.With PLC control, in case that there are too many processing materials, forward/reserve operation and stop function can be activated to ensure operating security.
5.Operation is in low speed with low noise and low poeder discharge during operation.

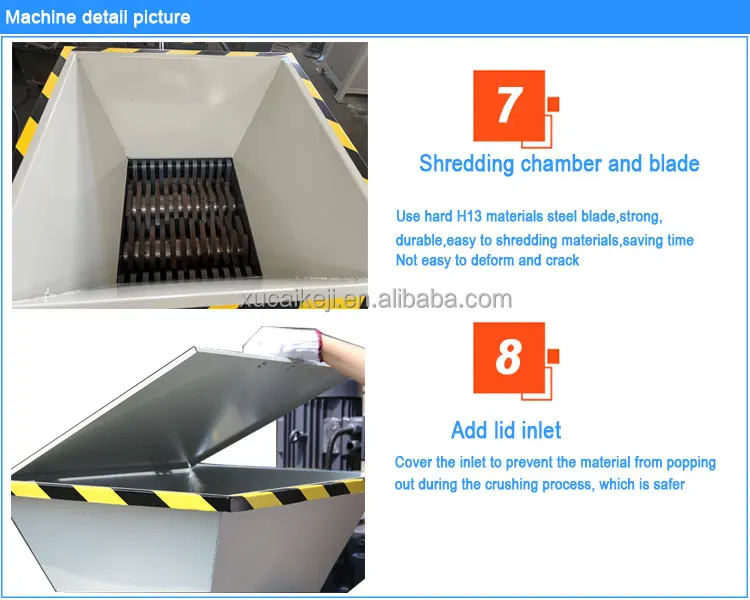

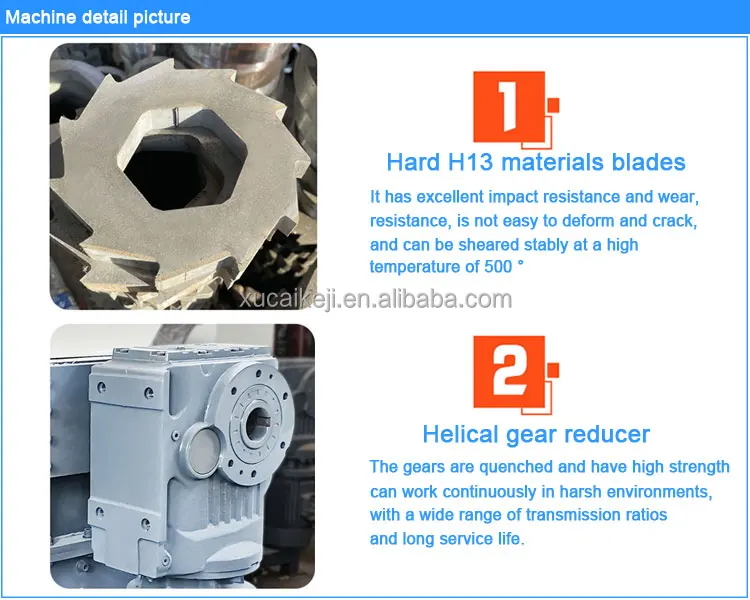

6.The blade is made of special alloy steel,which is hard and durable.
Technical parameters:
Model | XC-300 | XC-400 | XC-500 |
Reducer | JL2# | JL3# | JL4# |

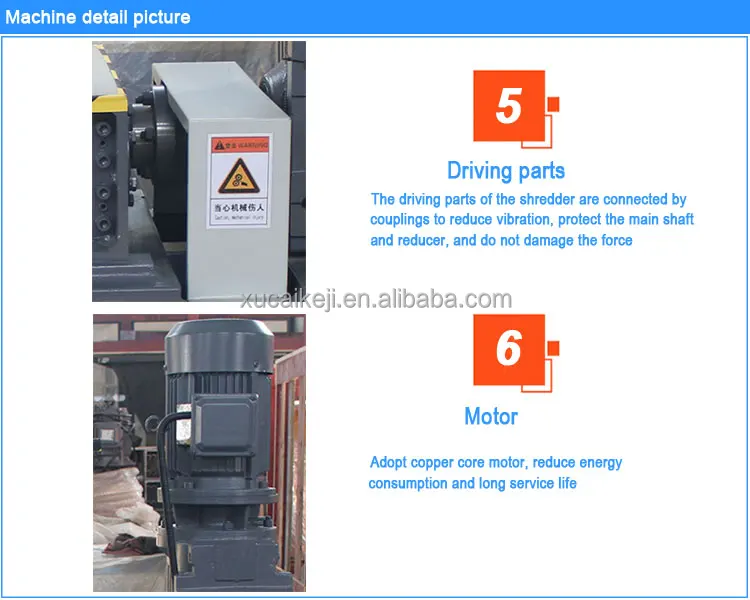

Motor | 3kw | 4kw | 7.5kw |
Input rotation speed | 16r/min | 17r/min | 15r/min |
Input torque | 1696Nm | 2176Nm | 4574Nm |
Input axis diameter(mm) | 50 | 60 | 70 |
Blade size(mm) | 180*12 | 180*15 | 200*20 |
Blade quantity | 24pcs | 26pcs | 25pcs |
Hopper input size(mm) | 500x500x300 | 500x600x300 | 600x700x400 |
Dimensions(mm) | 1100x650x1350 | 1250x650x1350 | 1400x750x1600 |
Weight(kg) | 400 | 500 | 630 |
Voltage:220-415v,50/60Hz,3 phase(can be customized made) | |||
Bearing automatic oil supply | |||
Blade materials:H13(can be customized made other types materials) | |||

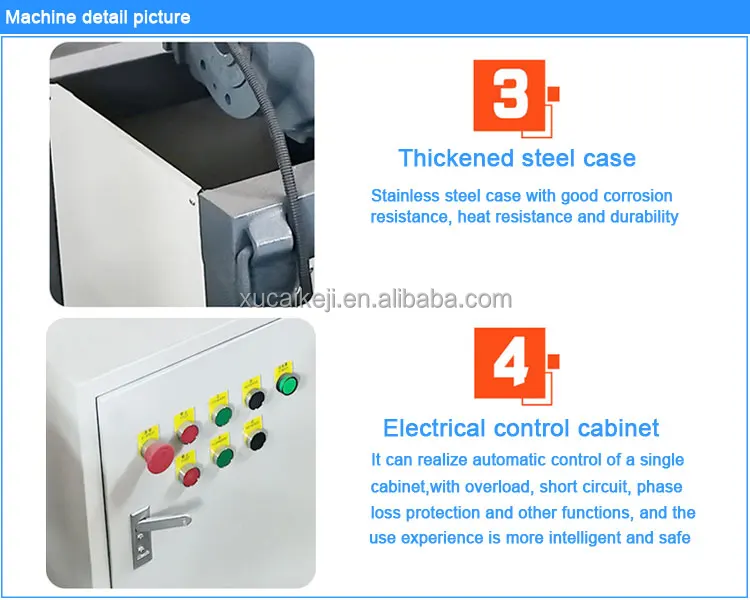

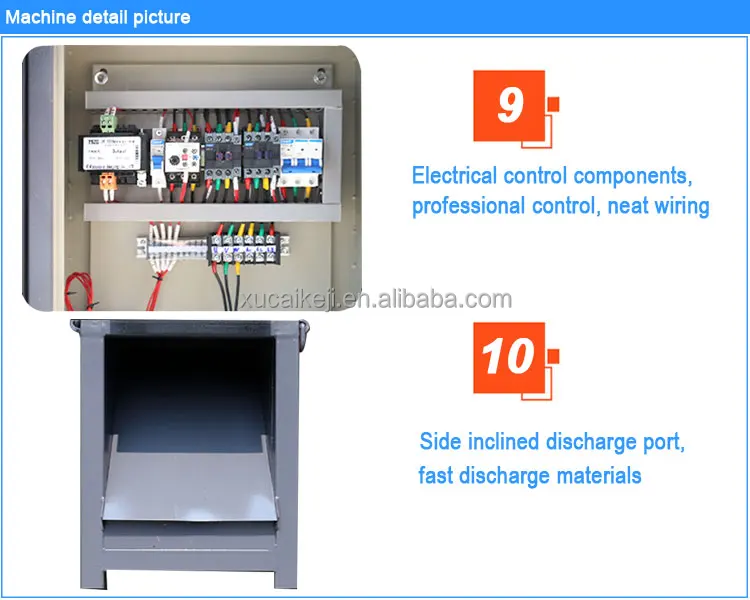

Electric control cabinet:PLC protection system | |||
When happen jam occurs, the machine reverses | |||
CE certificate | |||
Wooden case packaged | |||









We are manufacturer and have 10+years production experiences.We are focus on specialized in R&D, manufacture and marketing businesses of Plastic Auxiliary Equipment.
We are professional production plastic crusher,plastic dryer,plastic mixer,plastic blender,vacuum auto loader,mold temperature controller,industrial water chiller,conveyor belt,vibrating sieve,water cooling tower,cabinet dryer,proportional valve,etc.
We always adhere to the "quality of survival, integrity management" as the value of XuCai environmental technology. Our company's products have passed the ISO9001 quality system certification and exported to the CE certification.
We strictly controls the whole process of product design, production, quality inspection and service, making Xu Cai's products sell well domestic and foreign and received a consistent praise.Our products have been sold to more than 50 countries and regions around the world.
We have a professional R&D and production team that can customize different products according to customers' needs and can provide OEM services.







1.Are you trading company or manufacturer?
A:we are factory,we production all series plastic auxiliary machines.
2.How long is your delivery time?
A:the common model usually need 5-8 days.Customized type need 15-20 work days.
3.Does your product have a warranty?
A:One year warranty, no warranty for wearing parts, no warranty for man-made damage.
4.What is your after-sale service?
a:Regular return visits to remind the maintenance of the machine.
b:Video operation guidance.
c:In warranty free spare parts.
5.Do you inspection machine defore delivery?
A:we inspection team,their will 100% inspection all machine before delivery.
