Business ideas with small investment Adobe 2021 QT4 15 Brick Making Machinery widely used
- Category: >>>
- Supplier: Meysher Industrial ( Shanghai ) Co. Ltd.
Share on (1600566725687):
Product Overview
Description
Product Overview
Products Characteristic

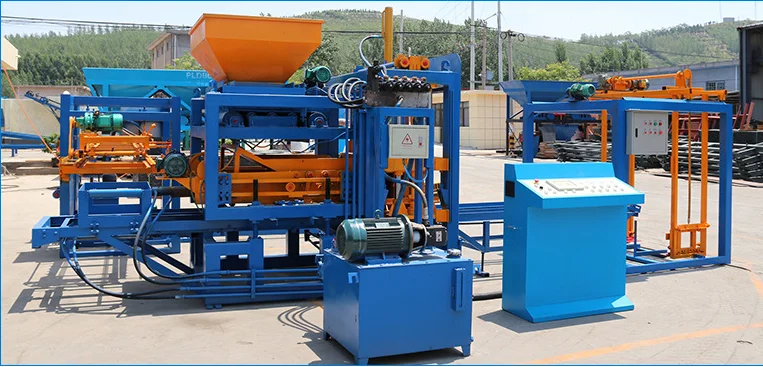

QT4-15 Block machine Summary:
1.Certificates:CE//ISO9001:2000
1.Certificates:CE//ISO9001:2000
2.Hydraulic and Semi- automatic
3.Strong hight-strength steel structure
4.Block mould adopt heat treatment technology
5.PLC Control / International Brand motors
6.Use worm wheel and screw mandrel to adjust the material feeder platform.
4.Block mould adopt heat treatment technology
5.PLC Control / International Brand motors
6.Use worm wheel and screw mandrel to adjust the material feeder platform.

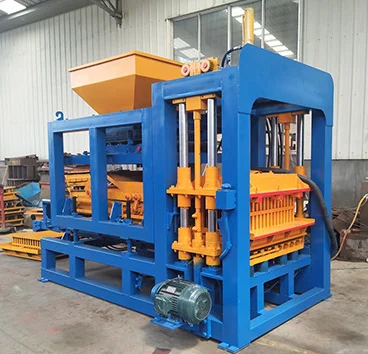

Business ideas with small investment Adobe 2021 QT4-15 Brick Making Machinery widely used
Main Parameters
Overall Dimension | 7100*1600*2610mm | water consumption | 4T/day |
Total Mass | 4.5T | Mixer model | JQ500/JD500/JS500 |
Host machine power | 24KW | Molding cycle | 15-20S |
Vibration Force | 40KN | Pallet Size | 880*580*22-25 |

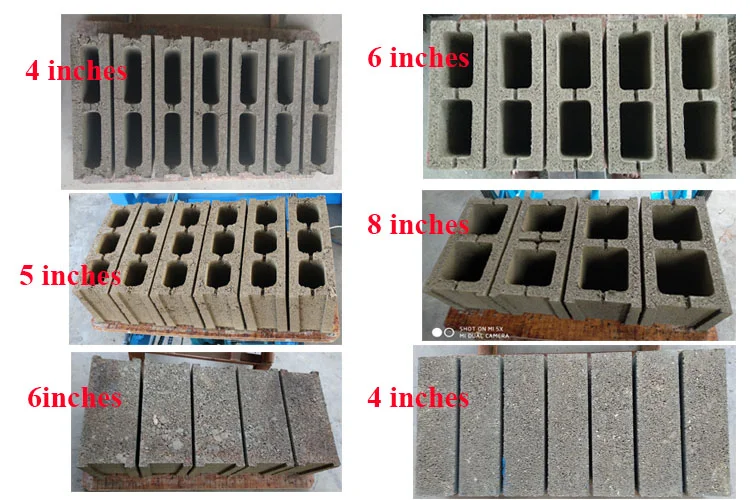

Theoretical Production Capacity

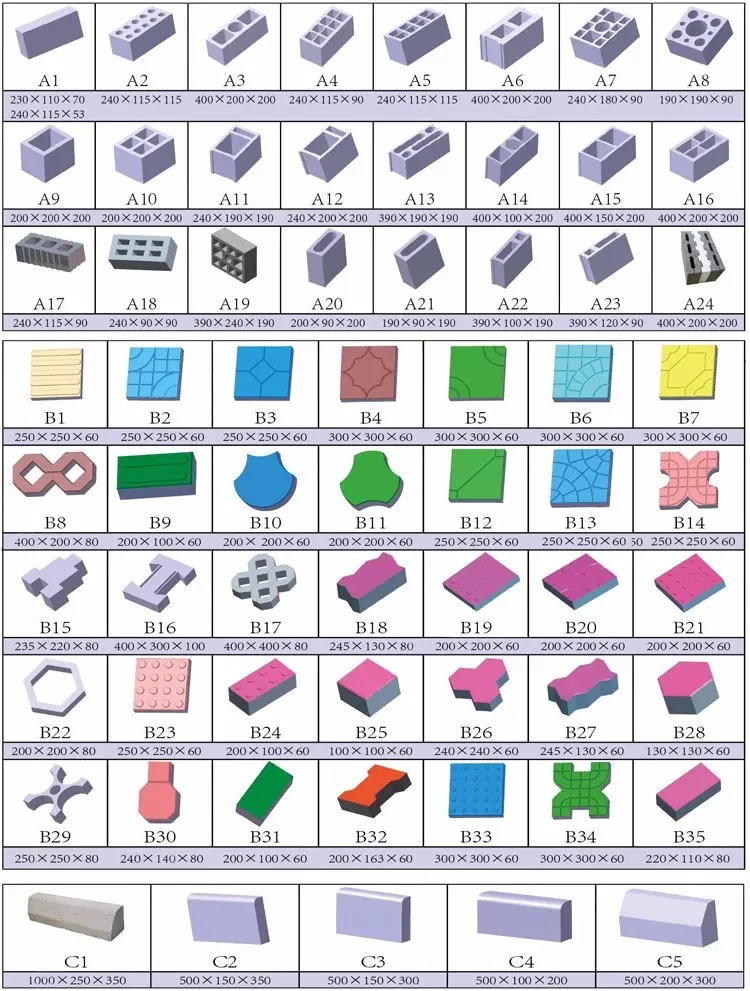

Size(LxWxH) | Pcs/Mould | Pcs/Hr | Pcs/8Hr |
hollow 390*190*190 | 4 | 960 | 7680 |
hollow 390*140*190 | 5 | 1200 | 9600 |
hollow 390*120*190 | 6 | 1440 | 11520 |
hollow 390*90*190 | 8 | 1920 | 15360 |
Solid:220x108x70mm | 20 | 4800 | 38400 |

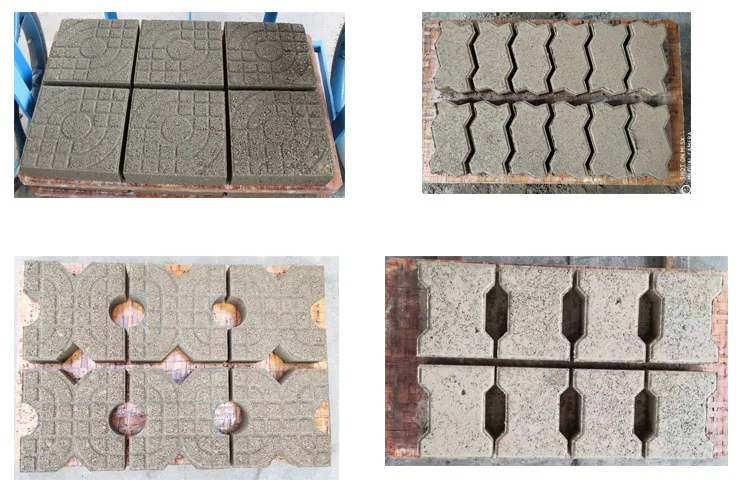

Paver:200x100x60xmm | 16 | 2880 | 23040 |
Paver:225x112.5x60mm | 12 | 2160 | 17280 |

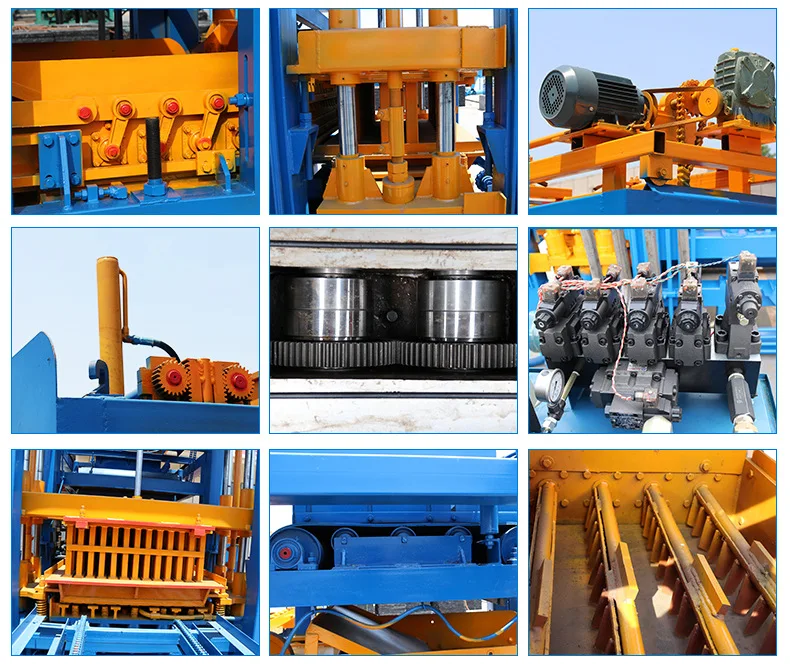

PRODUCT CONFIGURATION

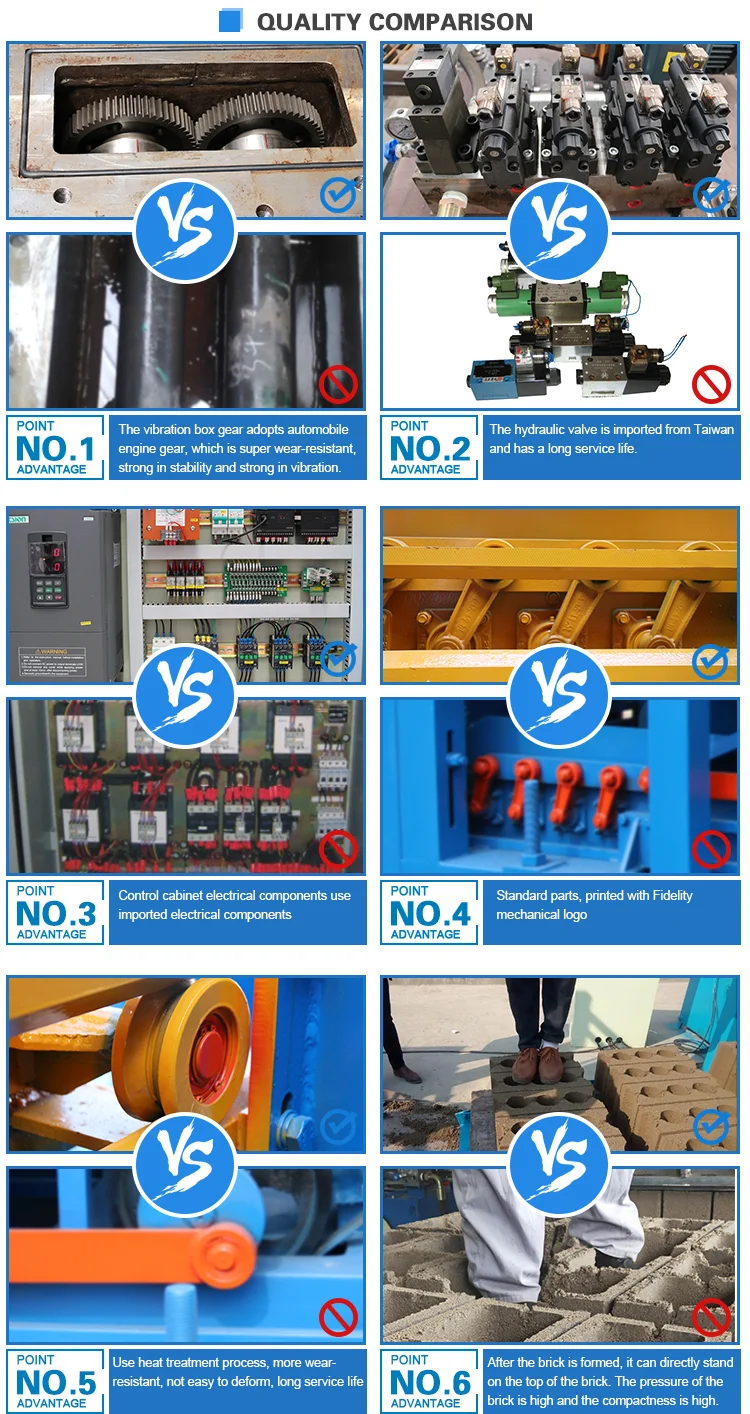

QT4-15 Block Machine Advantage:

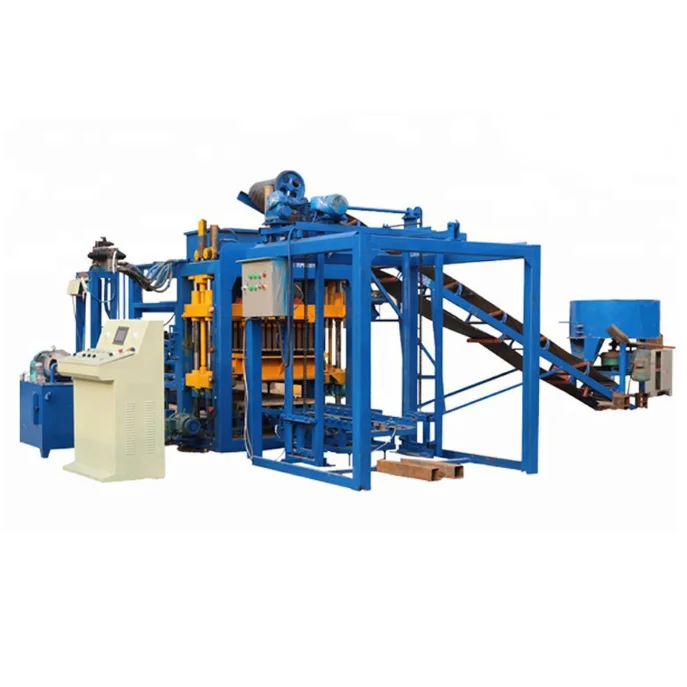

Business ideas with small investment Adobe 2021 QT4-15 Brick Making Machinery widely used
1.Control System:
Electric control system consists of imported color touch screen and programmed PLC with data input and output device, including safety logical control and trouble shooting system. Vibration analyzing system:detecting the vibration frequency, vibration amplitude, vibration acceleration and noise of the whole machine,so as to adjust the vibration to optimum efficiency.
2.Hydraulic System:
The system consists of imported components and seals with high dynamic performance proportional valves. The action of key cylinders can be operated through the regulator of flow and pressure according to the working requirement.The main frame is wide for the convenience of mold filling, so more blocks can be made. In order to get even pressure, three oil reservoirs are used, which raise the pressure to as high as 100t. Moreover, the smallest reservoir in the middle increases the operating speed of the left and right ones respectively, thus improving the productivity.
3.Frequency conversion motor drive the vibrating case, easy to obtain ideal vibration force,
vibration frequency and amplitude, can produce high quality block. Unique double-vibration box drives all in one vibration table to make the deviation of amplitude lower, more even so as to guarantee the consistency firm and durable.
4.Adopts more advanced material-feeding technology, material from the hopper fall into the mould case rapidly and evenly, make the weight error less than ±5%,the intensity error less than≤±15%.
5.Low energy consuming. Compared with common Block Making Machine, these equipment investment has increased by about 18%,but output has been improved by 35%,unit consumption has been reduced by about 5%.
6.incomparable advantages in producing process:High thickness and rectangle steel frame, four guidance column, solidity structure and prolonged life.
1.Control System:
Electric control system consists of imported color touch screen and programmed PLC with data input and output device, including safety logical control and trouble shooting system. Vibration analyzing system:detecting the vibration frequency, vibration amplitude, vibration acceleration and noise of the whole machine,so as to adjust the vibration to optimum efficiency.
2.Hydraulic System:
The system consists of imported components and seals with high dynamic performance proportional valves. The action of key cylinders can be operated through the regulator of flow and pressure according to the working requirement.The main frame is wide for the convenience of mold filling, so more blocks can be made. In order to get even pressure, three oil reservoirs are used, which raise the pressure to as high as 100t. Moreover, the smallest reservoir in the middle increases the operating speed of the left and right ones respectively, thus improving the productivity.
3.Frequency conversion motor drive the vibrating case, easy to obtain ideal vibration force,
vibration frequency and amplitude, can produce high quality block. Unique double-vibration box drives all in one vibration table to make the deviation of amplitude lower, more even so as to guarantee the consistency firm and durable.
4.Adopts more advanced material-feeding technology, material from the hopper fall into the mould case rapidly and evenly, make the weight error less than ±5%,the intensity error less than≤±15%.
5.Low energy consuming. Compared with common Block Making Machine, these equipment investment has increased by about 18%,but output has been improved by 35%,unit consumption has been reduced by about 5%.
6.incomparable advantages in producing process:High thickness and rectangle steel frame, four guidance column, solidity structure and prolonged life.

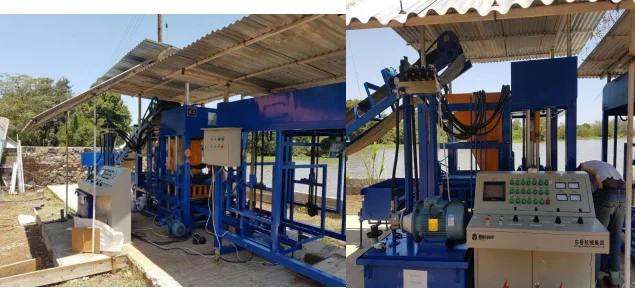

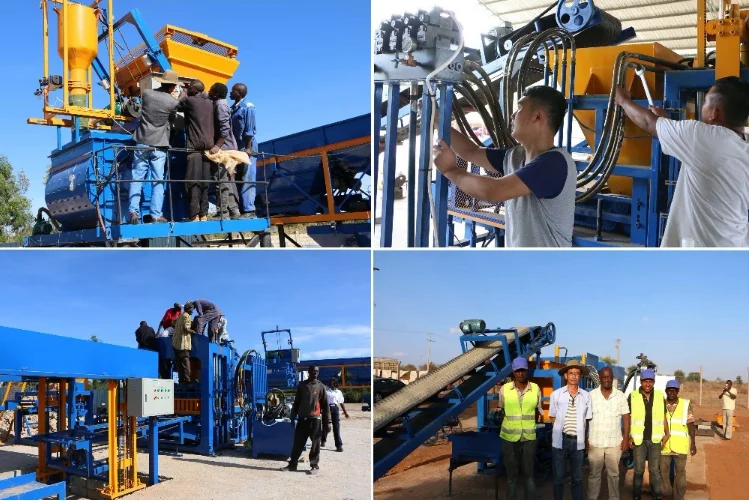

Successful Project
Project in Ghana
Project in India
Project in south Africa
SIMILAR PRODUCTS

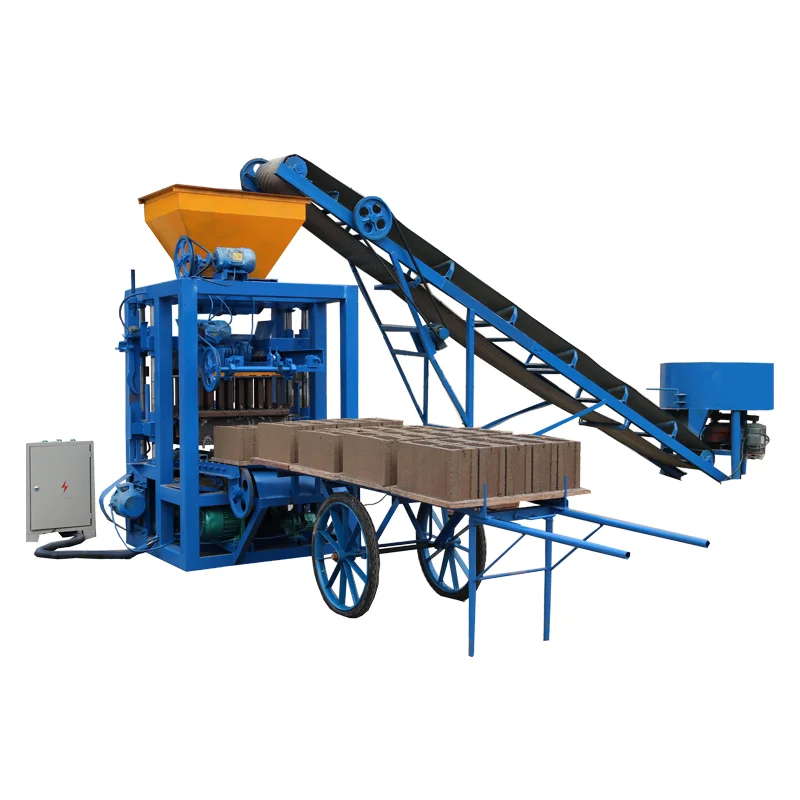

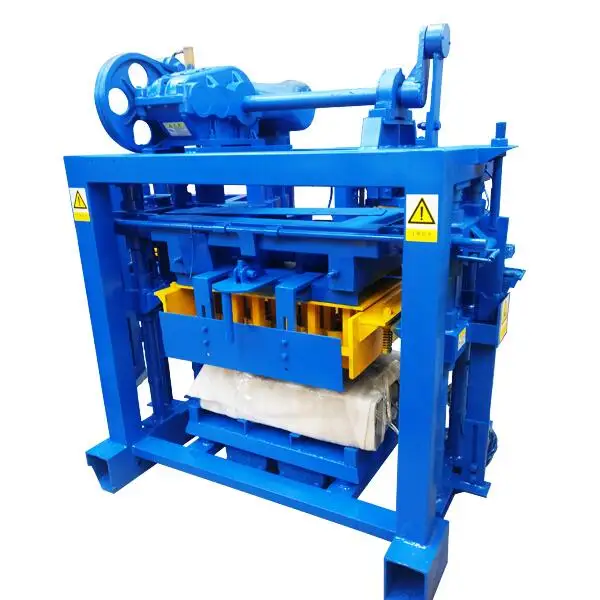

Semi-Automatic QT4-24 block making machine

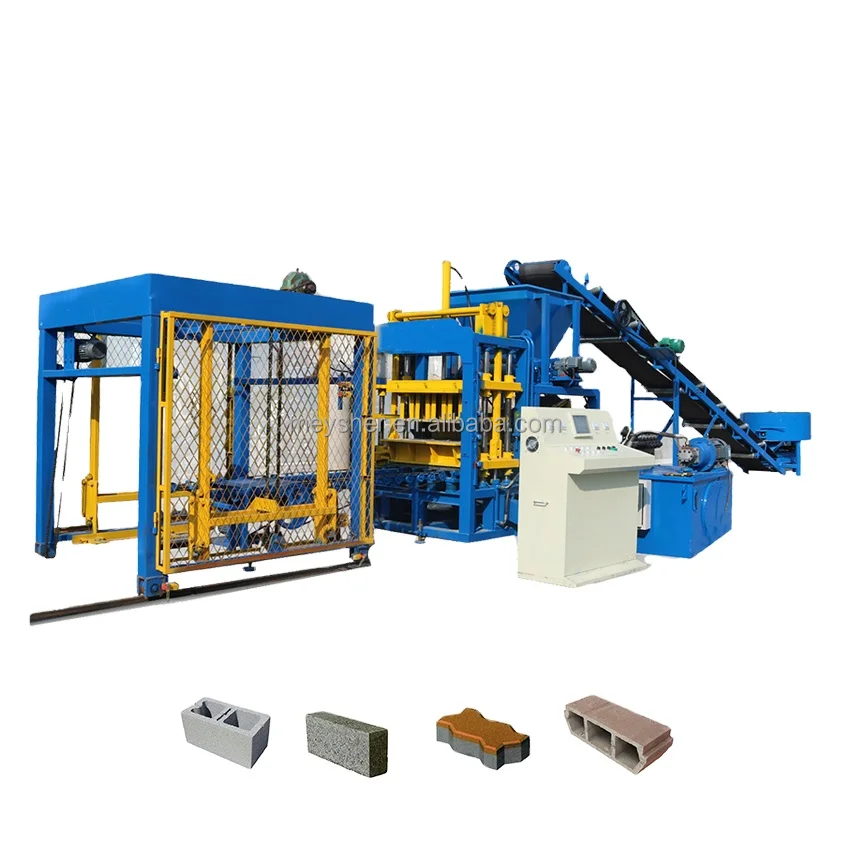

Automatic block making machine popular design QT4-15

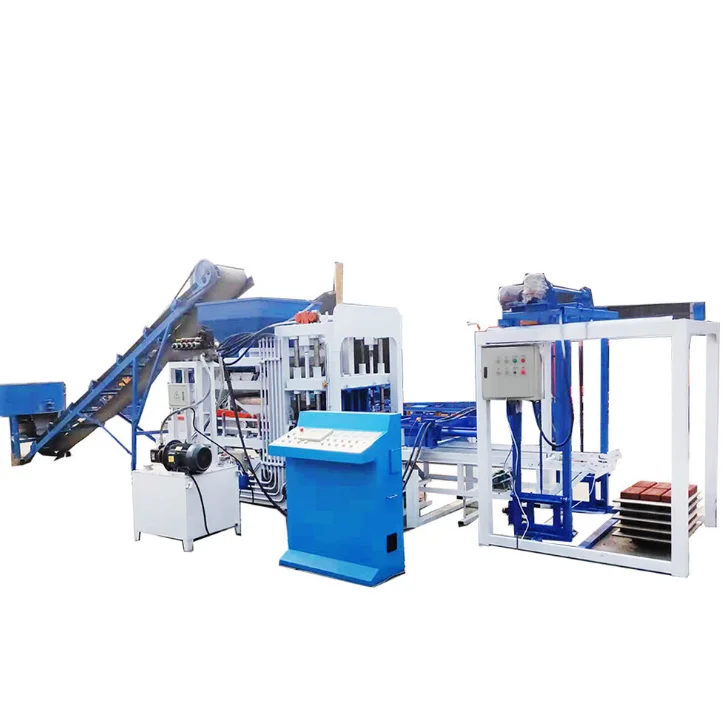

Business ideas with small investment QT4-40 block machine
Raw materials -These are the most popular proportion
1.Standard concrete block: cement 9-12%,sand 40%,stone 45%,water 3%.
2.Light concrete block: cement 9-12%, slag 80-90% ,water 3%.
3.cement 9-12%,sand 10-20%,stone 30-40%, slag 25-50%, water 3%.
3.cement 9-12%,sand 10-20%,stone 30-40%, slag 25-50%, water 3%.
4.Cement8-10%,sand30- 40%,stone 50-60%, water 3%.
5.cement 8%,sand 60%,fly ash 30%, gypsum 2%.
SALES AND SERVICE NETWORK
☎ Our Service
Business ideas with small investment Adobe 2021 QT4-15 Brick Making Machinery widely used
★Pre-Sales
1.Perfect 7*24 hours inquiry and professional consulting services.
2.Visit our factory anytime.
★Sale
1.Update the production schedule in time.
2.Quality supervision.
3.Production acceptance.
4.Shipping on time.
★After-Sales
1.Warranty period :2 YEAR after acceptance, during this period we will offer free spare parts if they are broken.
2.Training how to install and use machine.
3.Engineers available to service overseas.
4.Skill support the whole using life.
★Pre-Sales
1.Perfect 7*24 hours inquiry and professional consulting services.
2.Visit our factory anytime.
★Sale
1.Update the production schedule in time.
2.Quality supervision.
3.Production acceptance.
4.Shipping on time.
★After-Sales
1.Warranty period :2 YEAR after acceptance, during this period we will offer free spare parts if they are broken.
2.Training how to install and use machine.
3.Engineers available to service overseas.
4.Skill support the whole using life.
FAQ
☎ The FAQ
☛1.Q: What kind of payment terms do we accept?
A:T/T and L/C are common for us. Other ways are ok by negotiation.
☛2.Q:How about your Production time ?
A: Normally 20-25 days after your deposit.
A:
☛3.Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
☛4.Q: Do you provide after-sale service?
☛1.Q: What kind of payment terms do we accept?
A:T/T and L/C are common for us. Other ways are ok by negotiation.
☛2.Q:How about your Production time ?
A: Normally 20-25 days after your deposit.
A:
☛3.Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
☛4.Q: Do you provide after-sale service?
A:We provide Perfect 7*24 hours inquiry and professional consulting services.
