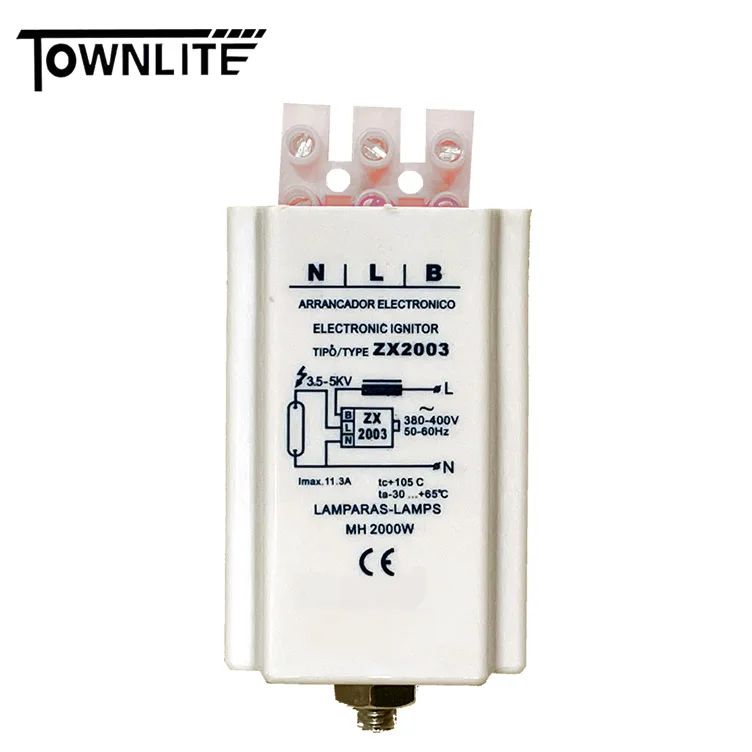

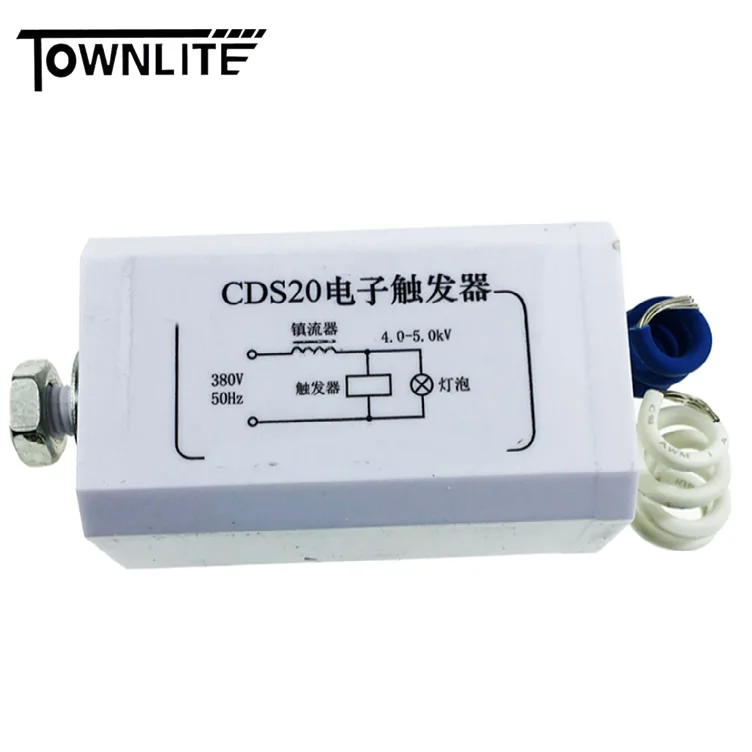

2000w 380v 400v electronic start metal halide ignitor for hid bulb

1.Type: ignitor

2.Characteristics and used:The ignitor is Mainly used for high pressure sodium lamp, metal halide and other types of gas discharge lamp startup.It has a compact structure,is easy to use,and work

reliable.

3.Technique date:

1).main voltage:380-400v

2).response voltage:≤185v

3).cut -out voltage: ≥165v

4).reak voltage:5kv

5).pulse width:≥1us

6).number of impulseper cycle :≥200n

7).permissible load capacity:less than or equal to 300pf

8).starting power of lamp:1000W-2000W

9).max.casing temp:≤105°c

Detailed Product Description.

We produce the inductance ballasts genera, mounted inside the starter

since its shape, feeling type ballast design is beautiful, easy to install.

And we produce the important fittings,such as ignitors,starters and so on.

Under normal atmospheric pressure at startup, reliable and easy to use

normal life can reach 8-10 years.

Electronic Lighting Ignitor .

1. Adapted for Lamp: 1000W-2000W

2. Certificate: CE

3. Low power consumption

4. Low magnetic leakage

5. Low raise temperature

6. With good quality and satisfactory prices

7. Providing long service life and super quietness

Picture of Factory
