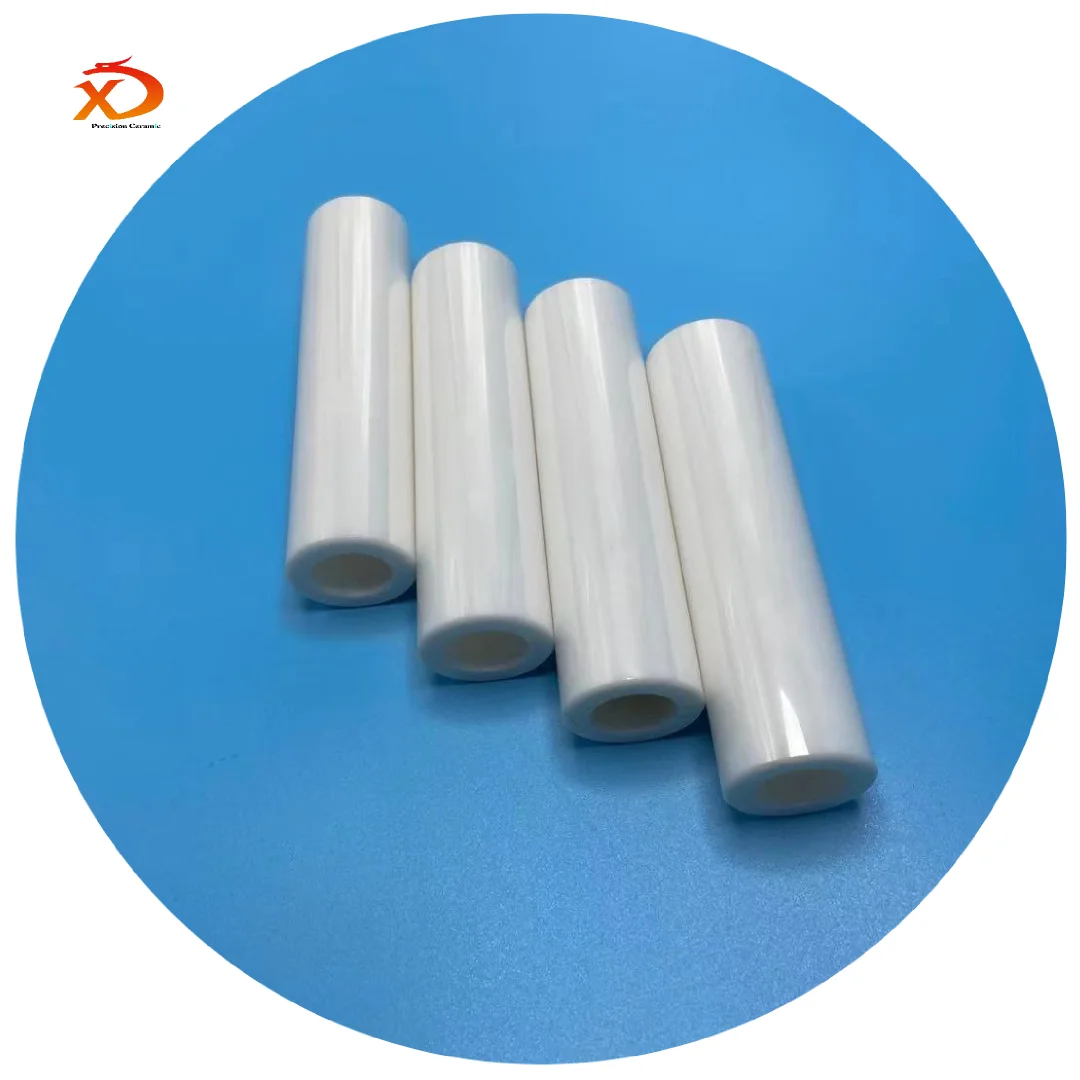

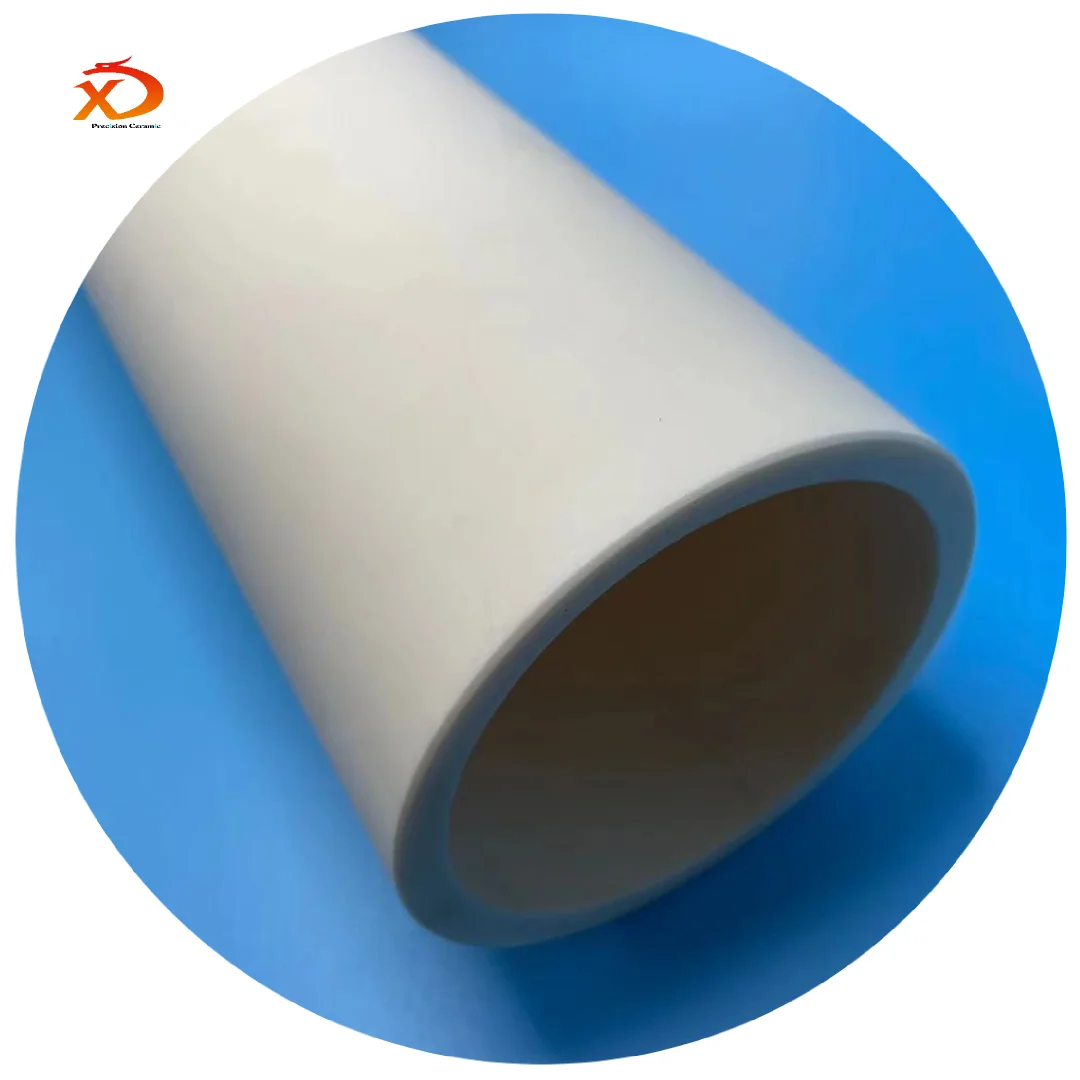

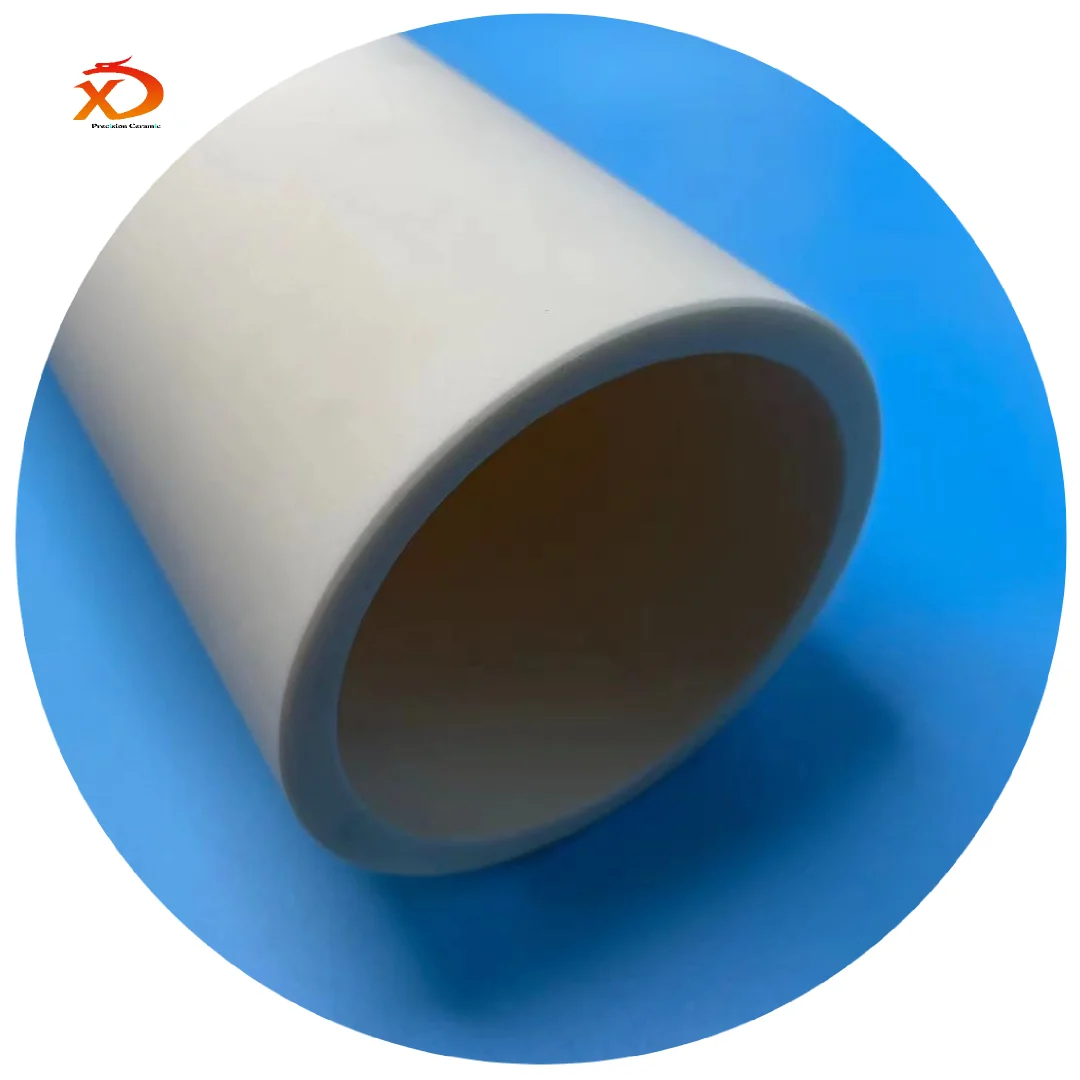

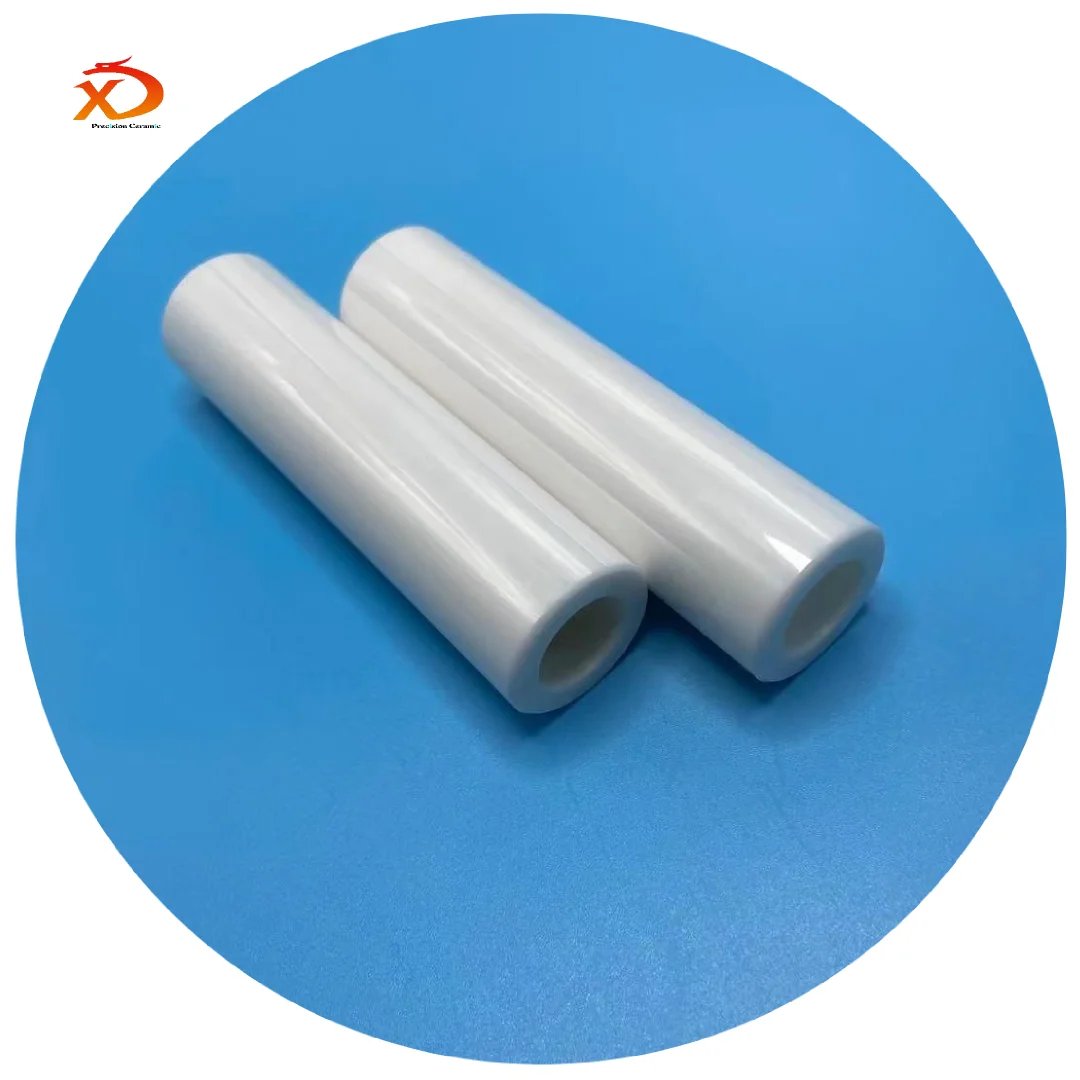

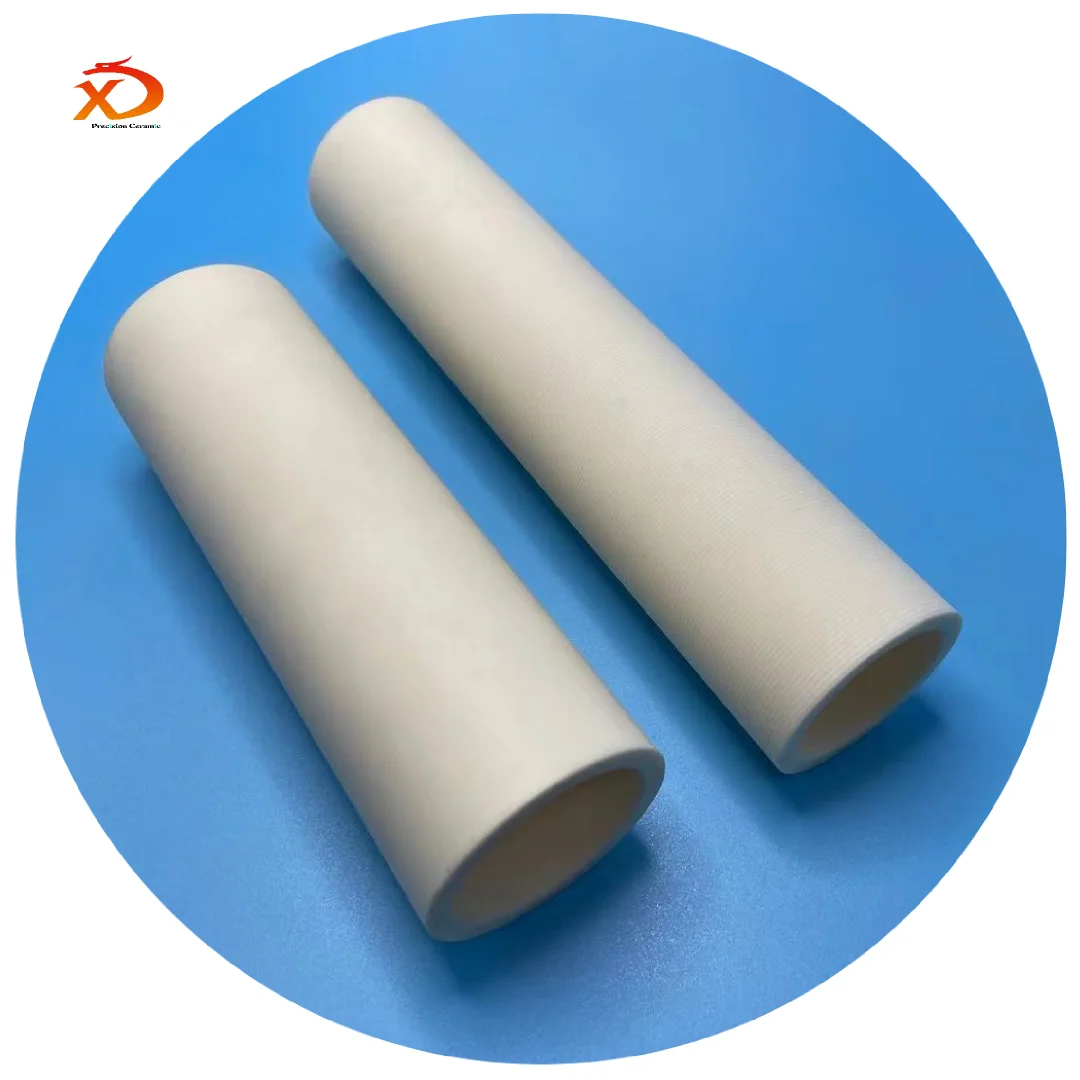

Professional manufacture insulator alumina Ceramic Rod Tube
- Category: >>>
- Supplier: Jiangsu Xindelong Precision Ceramic Co. Ltd.
Share on (1600566784869):
Product Overview
Description
Products Description
Features:
1.Excellent high temperature strength
2.Good heat and cold resistance
3.Outstanding corrosion resistance
4.The quality of long-term stability
2.Good heat and cold resistance
3.Outstanding corrosion resistance
4.The quality of long-term stability
Technical Parameters
Physical properties of ceramic roller | ||||||||
Unit | HM100 | HM90 | HM75 | |||||
Al2O3 content | % | 76-78 | 75-77 | 78-80 | ||||
Density | g/cm3 | 2.8-3.0 | 2.7-2.9 | 2.5-2.6 | ||||
Water absorption | % | 5-7 | 5-7 | 8-9 | ||||
PT flexural strength | mpa | 65-75 | 60-70 | 50-60 | ||||
Thermal expansion（20-1000°C） | 10^-6/°C | 6 | 6 | 6 | ||||
Modulus of elasticity | Gpa | 95 | 90 | 80 | ||||
Maximum use temperature | °C | 1350 | 1350 | 1300 | ||||
Thermal shock resistance | very good | very good | very good | very good | ||||
application area | glazed tile |
High tech ceramics | |
Household ceramics | |
Glass ceramics | |
Sanitary ware | |
New energy lithium ore smelting |

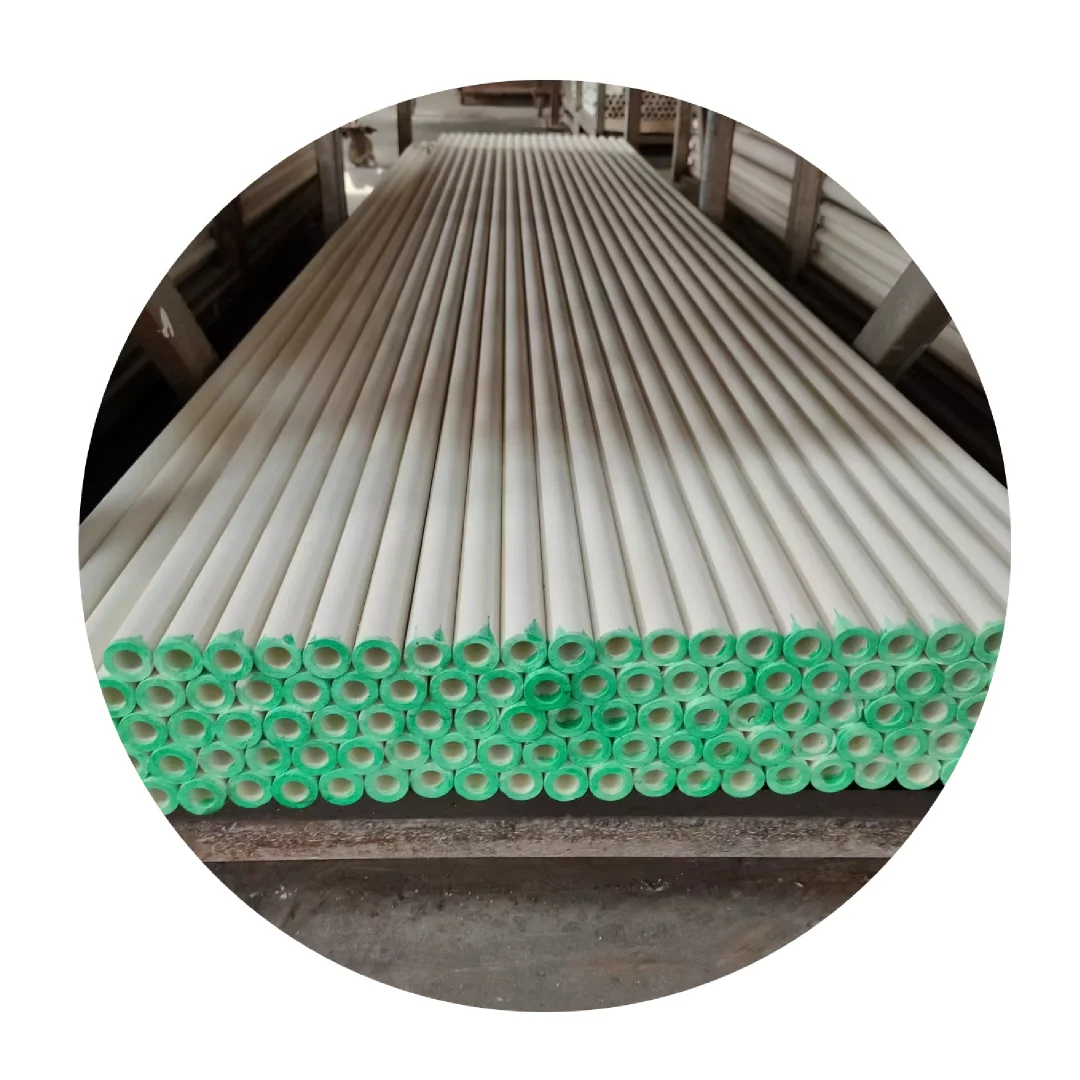

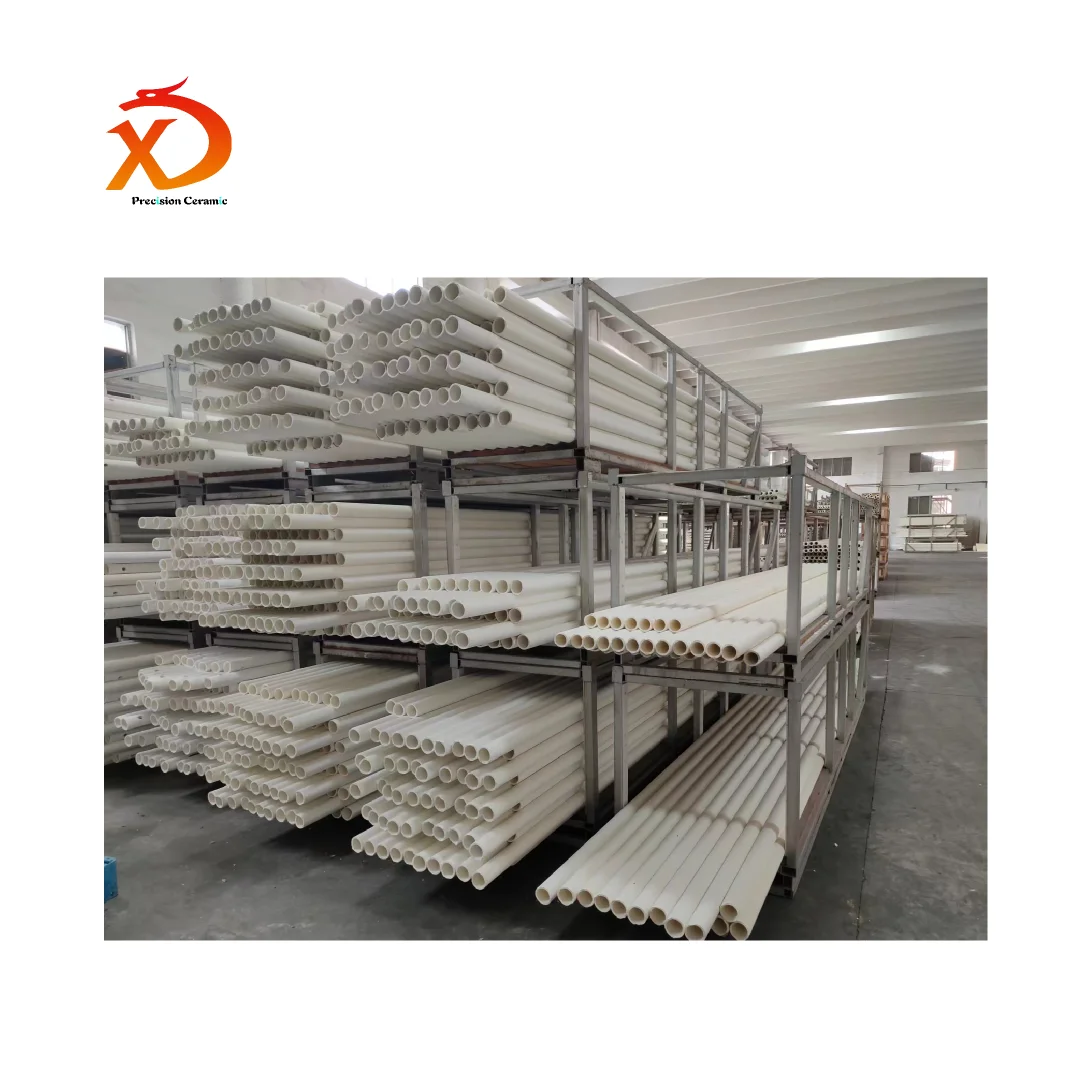

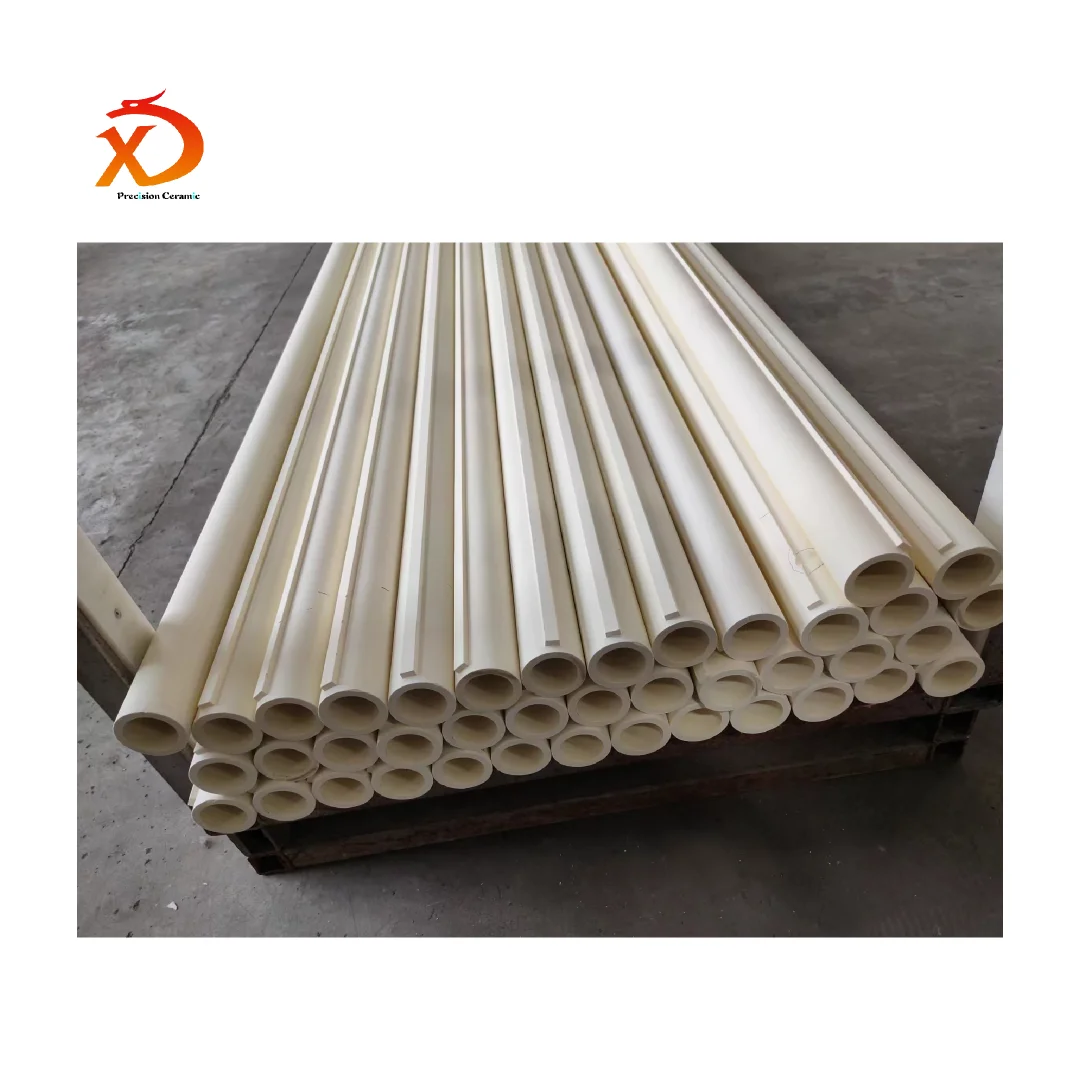

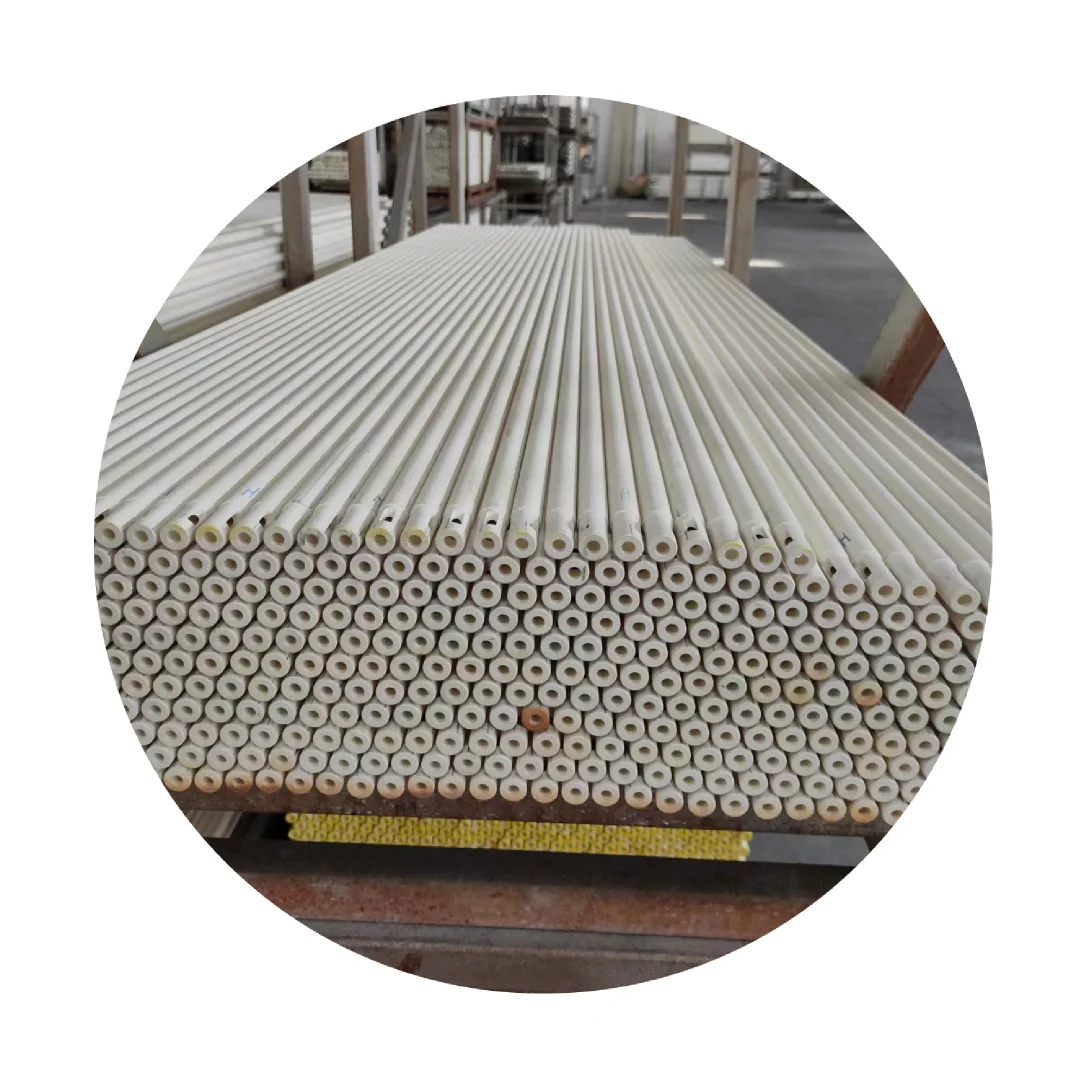

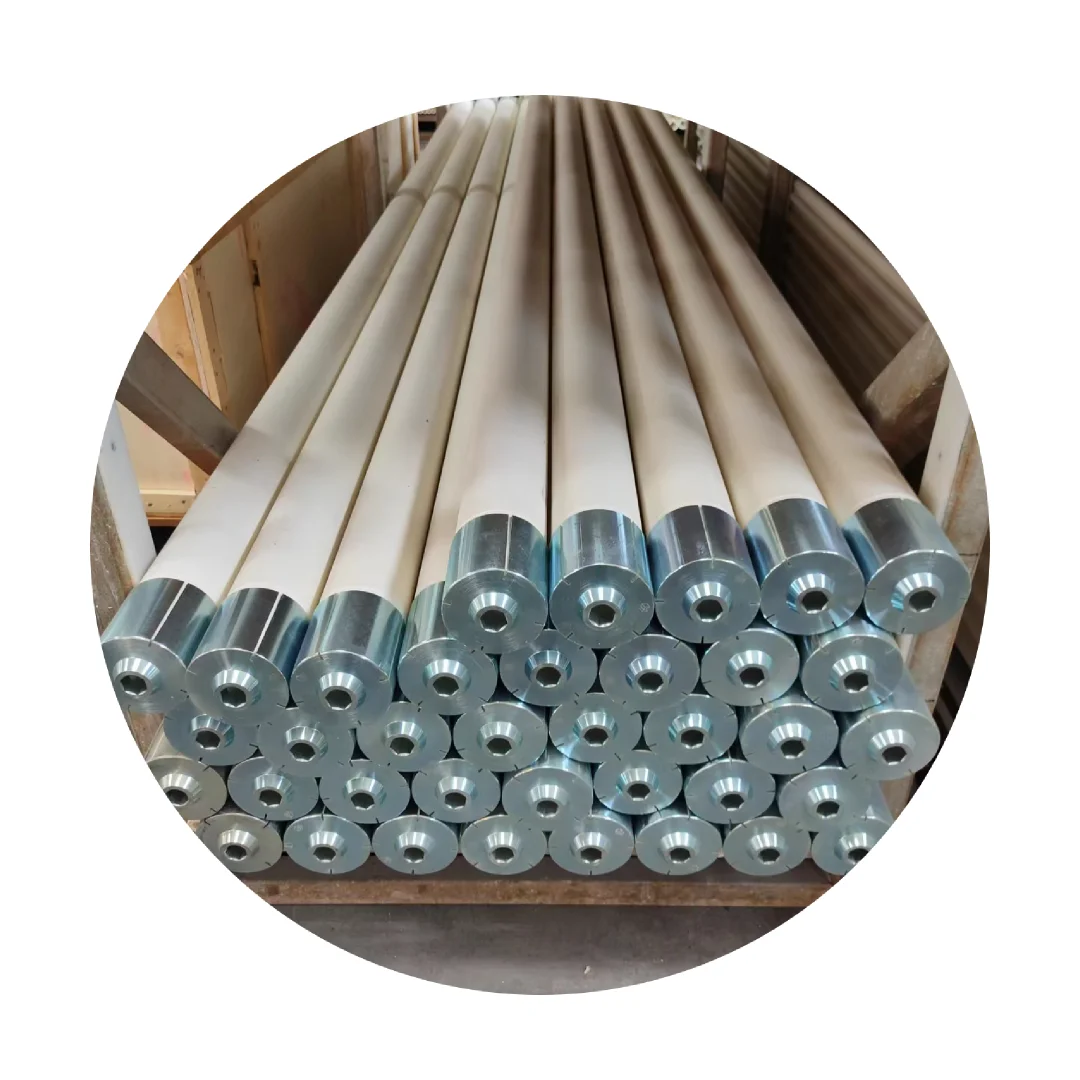

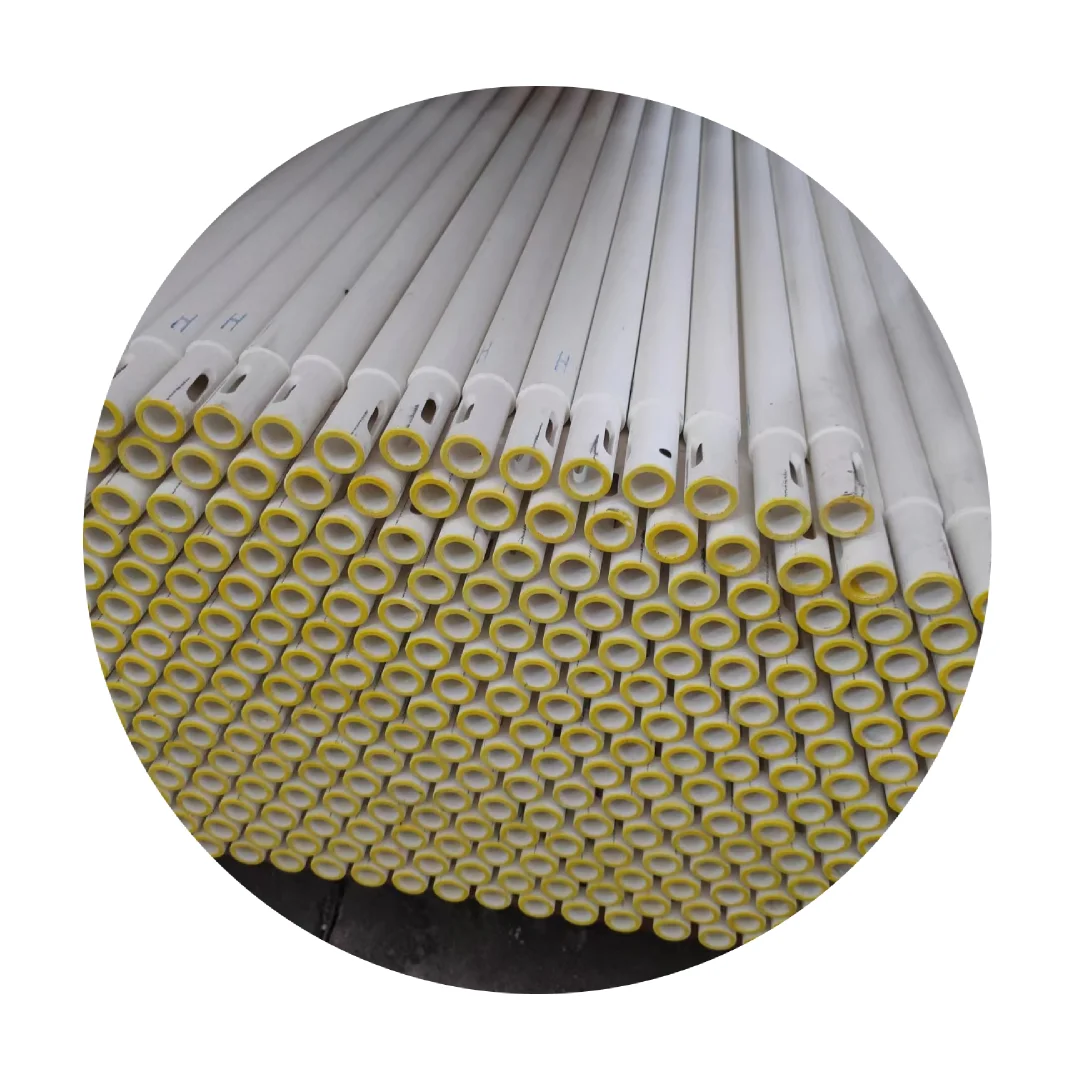

Alumina ceramic roller

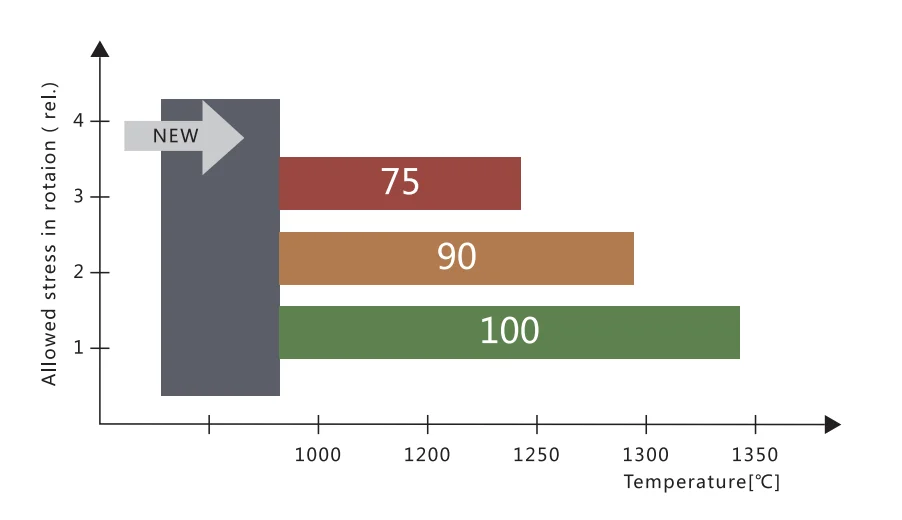

♦HM75 is the main product of inner wall brick and vitrified brick
♦HM90 Higher application temperature, higher loading ability, excellent thermal shock and eroding resistance stability. Your first choice for high quality exterior wall tile, glazed tile and interior wall tile.

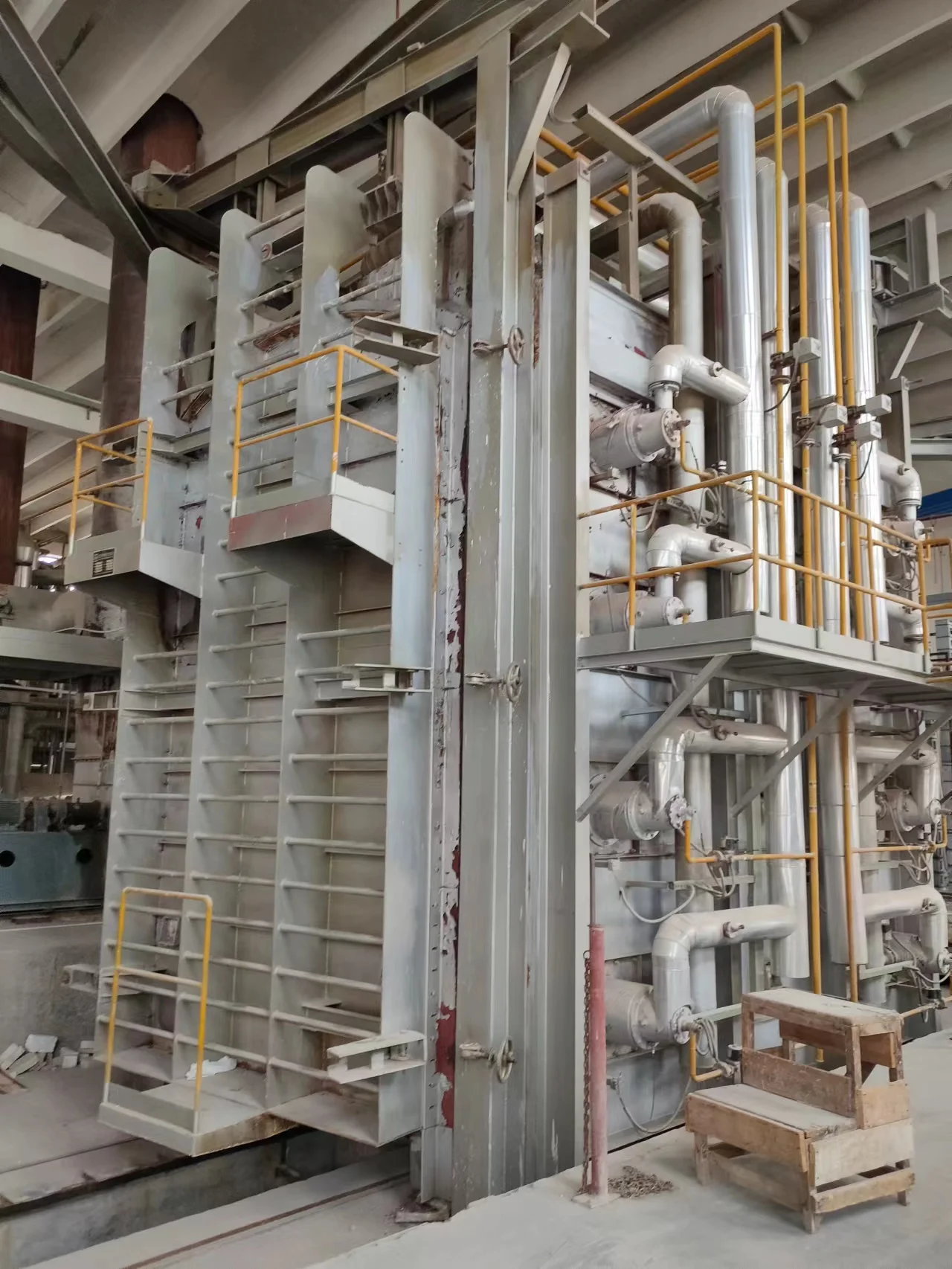

♦HM100 Higher strength than MHR90, excellent thermal shock resistance. Especially it is the first choice for the wide-body kilns and the firing of heavy products.
♦HM90 Higher application temperature, higher loading ability, excellent thermal shock and eroding resistance stability. Your first choice for high quality exterior wall tile, glazed tile and interior wall tile.
♦HM100 Higher strength than MHR90, excellent thermal shock resistance. Especially it is the first choice for the wide-body kilns and the firing of heavy products.
