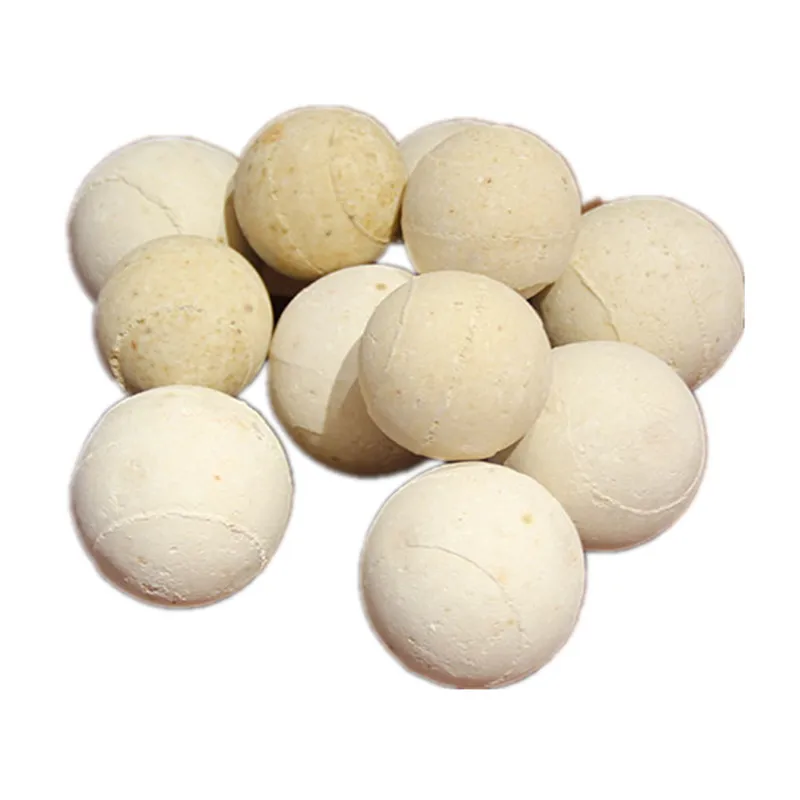

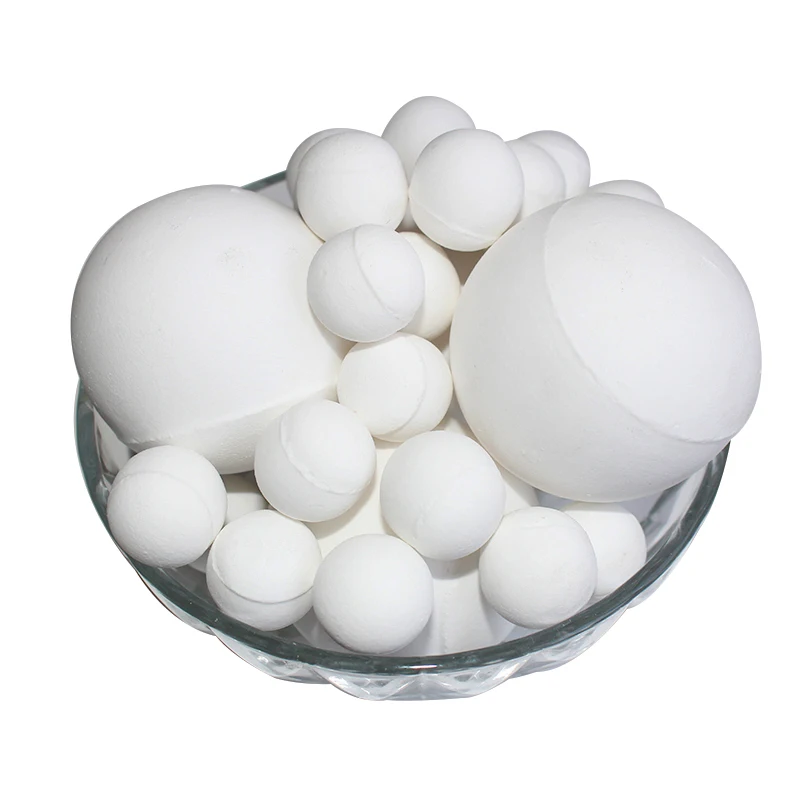

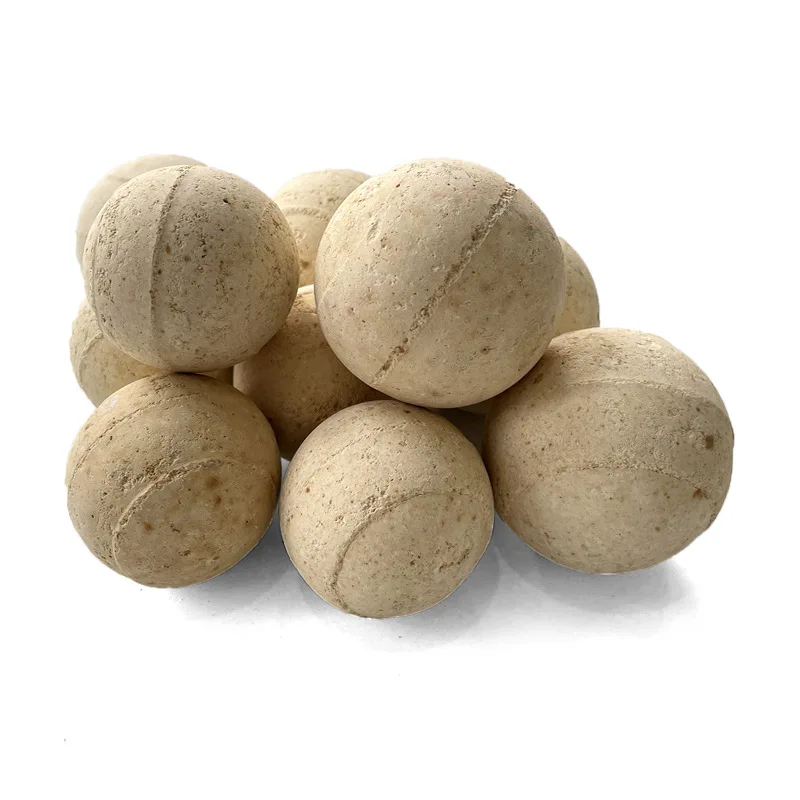

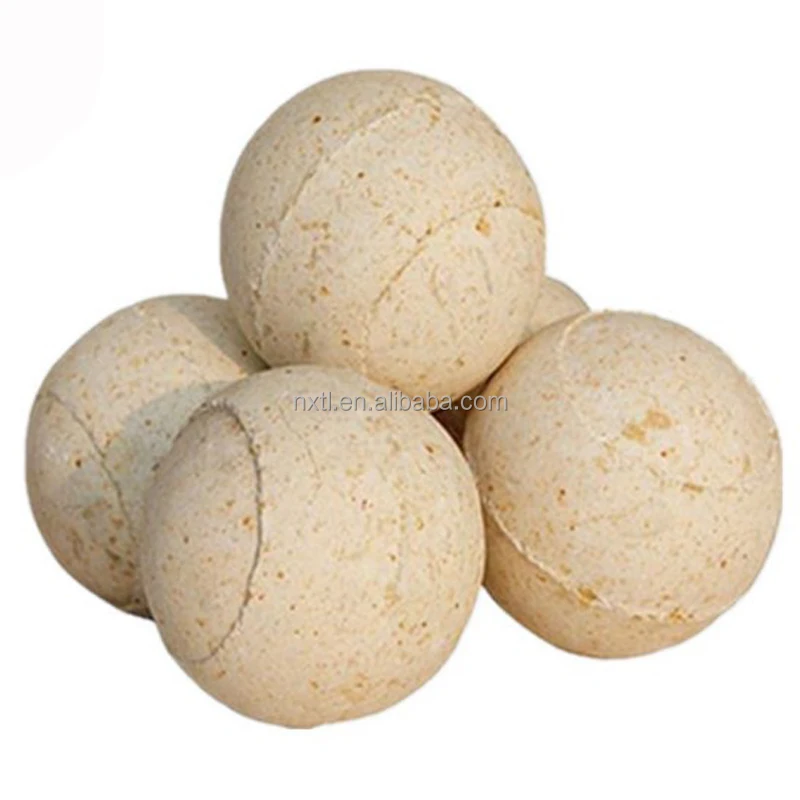

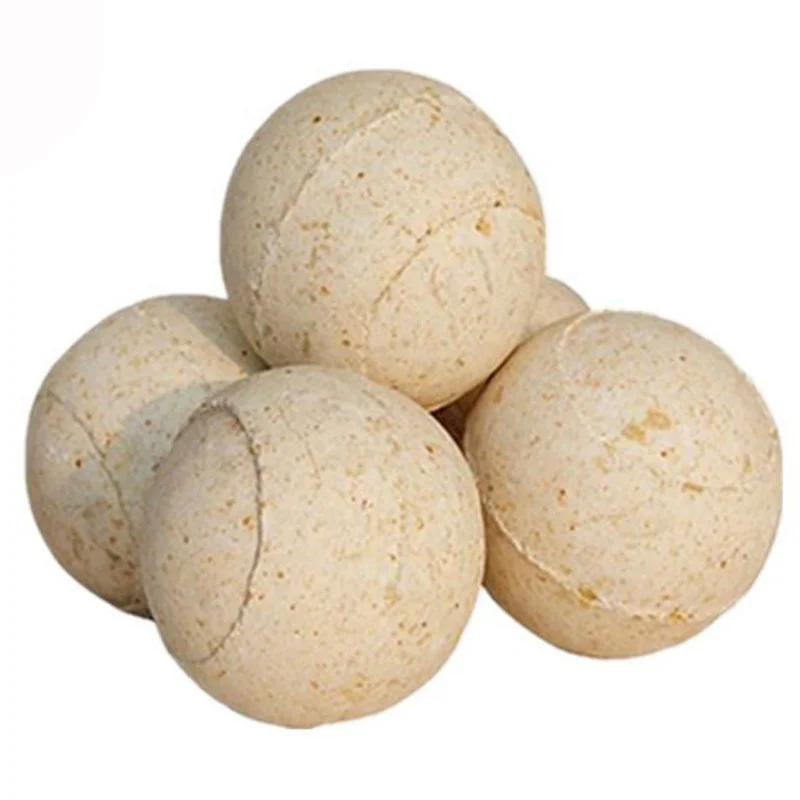

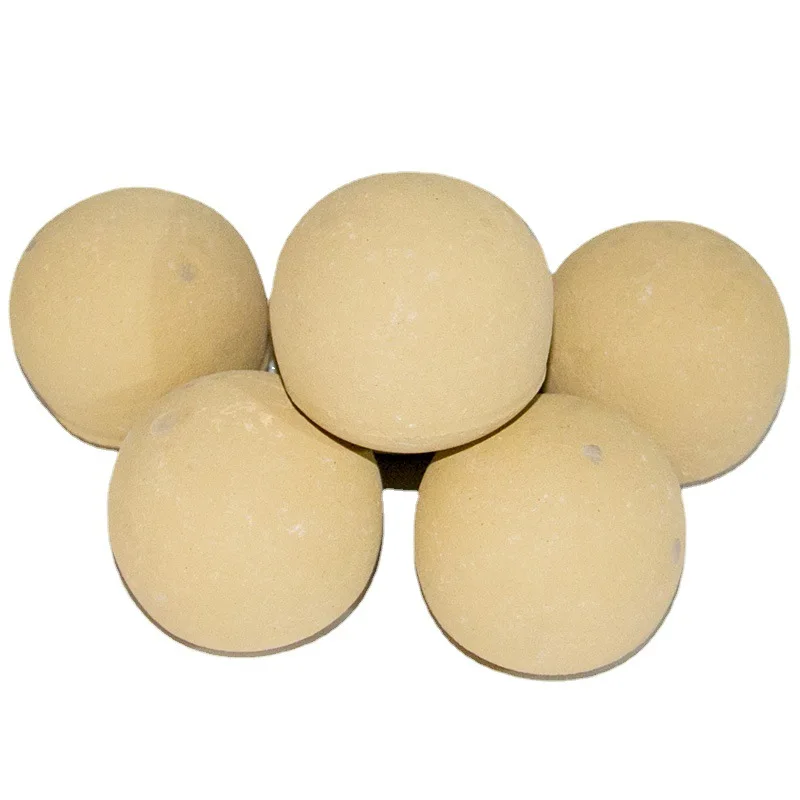

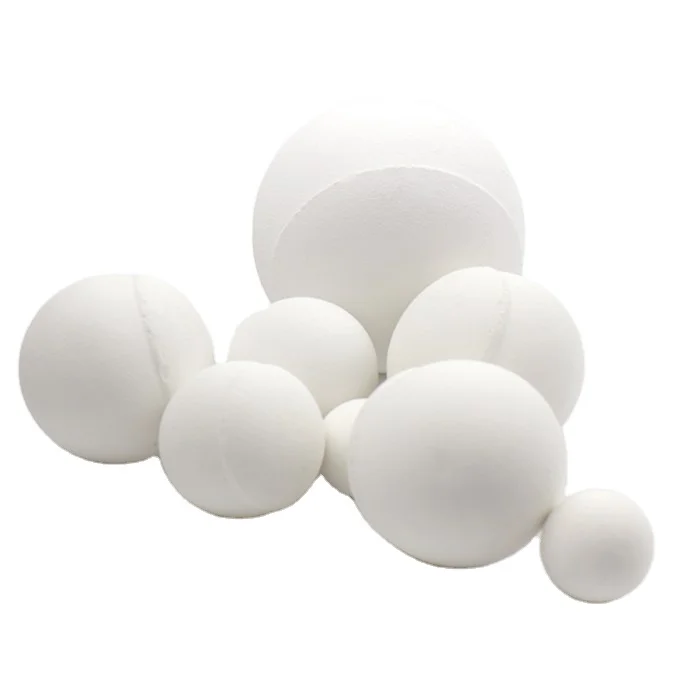

Good Quality High Strength High Alumina Refractory Ceramic Balls heat storage ceramic balls
- Category: >>>
- Supplier: Pingxiang Nanxiang Chemical Packing Co. Ltd.
Share on (1600566792557):
Product Overview
Description
Video Presentation
Products Description
Ceramic packing ball also named inert alumina balls are manufactured from very high quality chemical-porcelain clay materials.
According to the different content of Al2O3,the packing ceramic ball is divided into: common ceramic ball, inert ceramic ball, medium alumina ball, high alumina ball and 99% alumina Ball, actived alumina ceramic ball, opening hole ceramic ball, micro porous ceramic ball, heat storage ceramic ball.
High Alumina Ceramic Ball Characteristics and Advantages
1.High mechanical strength (Monolithic spheres will not split, crack or spall in use)
2.High temperature resistance
3.Lower water absorption
4.Quite excellent chemical stability
5.Can resist corrosion of acid, alkali and other organic solvent
6.Excellent thermal shock resistance (can withstand the temperature urgent changes occurred in production process)
7.Trouble-free reactor filling due to high crush strength
8.Will not plug catalyst bed, optimizing the process efficiency by keeping the pressure drop low and catalyst activity high
9.No contaminate catalyst due to maximize resistance to attrition, extending the catalyst Activity life and reduce the operation cost
High Alumina Ceramic Ball Application:
Inert alumina balls are widely used as the covering or supporting media of the catalyst in the reactors and tower packing in many fields such as petroleum, chemical industry, chemical fertilizer, natural gas and environmental protection etc. The main role is to buffer the impact of liquid and gas to the catalyst in the reactor, protect the catalyst and improve the distribution of liquid and gas in the reactor.
High Alumina Ceramic Ball Technical Index | ||||||||||
Specification | Common Ceramic Ball | Inert Ceramic Ball | Medium Alumina Ball | High Alumina Ball | 99% Alumina Ball | |||||
Al2O3 + SiO2 (%) | >93 | >92 | >93 | >94 | >99 | |||||
Al2O3 (%) | 17-23 | 23-30 | 47-56 | 90-93 | 99 | |||||
Fe2O3 (%) | <1 | <1 | <1 | <1 | <1 | |||||
CaO (%) | <0.5 | <1.5 | <2 | <4 | 0.2 | |||||
MgO (%) | <0.5 | <2.5 | <0.5 | <0.5 | 0.1 | |||||
K2O + Na2O (%) | <4 | <4 | <3.5 | <4 | >0.5 | |||||
TiO2 | <0.5 | 0.1 | 0.1 | 0.5 | ||||||
Leachable Iron (%) | <0.1 | <0.001 | <0.001 | |||||||
Water Absorption (%) | <0.5 | <0.2 | <2 | <3 | 2.0-6.0 | |||||
Bulk Density (g/cm3) | 1.35-1.40 | 1.35-1.40 | 1.35-1.45 | 1.8-2.0 | 1.8-2.0 | |||||
Operation Temp. max. | >1100 | >1100 | 1480 | 1760 | ||||||
Mohs Hardness (scale) | >6.5 | >7 | >7 | >7 | >7.5 | |||||
Crush Strength | KN/particle | |||||||||
1/4 inch (6mm) | >0.5 | >0.54 | >0.56 | >0.44 | >1 | |||||
1/2 inch (13mm) | >1.5 | >1.67 | >1.56 | >1.99 | >3 | |||||
3/4 inch (19mm) | >4.15 | >4.21 | >2.89 | >3.21 | >5 | |||||
1 inch (25mm) | >6.07 | >6.22 | >4.89 | >5.33 | >8 | |||||
1-1/2 inch (38mm) | >8.52 | >8.92 | >5.33 | >5.28 | >8 | |||||
2 inch (50mm) | >9.7 | >9.8 | >6.22 | >8 | >1 | |||||
High Alumina Ceramic Ball Common Size | ||||||||
Dimensions (mm)- tolerances | bulk density (kg/m³) | specific surface area (m²/m³) | Void volume (%) | compressive strength (kg) | ||||
1/8”-3mm 2.5-3.5mm | 1310 | 720 | 44 | 30 | ||||
1/4”-6mm 5.5-6.5mm | 1310 | 520 | 44 | 50 | ||||
3/8”-9mm 8-10mm | 1310 | 360 | 44 | 120 | ||||
1/2”-13mm 12-14mm | 1290 | 275 | 45 | 180 | ||||
3/4”-19mm 18-20mm | 1290 | 190 | 45 | 300 | ||||
1”-25mm 24-26mm | 1250 | 144 | 45 | 400 | ||||
1¼”-32mm 31-33mm | 1250 | 120 | 45 | 520 | ||||
1½”-38mm 37-39mm | 1250 | 100 | 45 | 600 | ||||
2”-50mm 48-53mm | 1250 | 75 | 45 | 720 | ||||

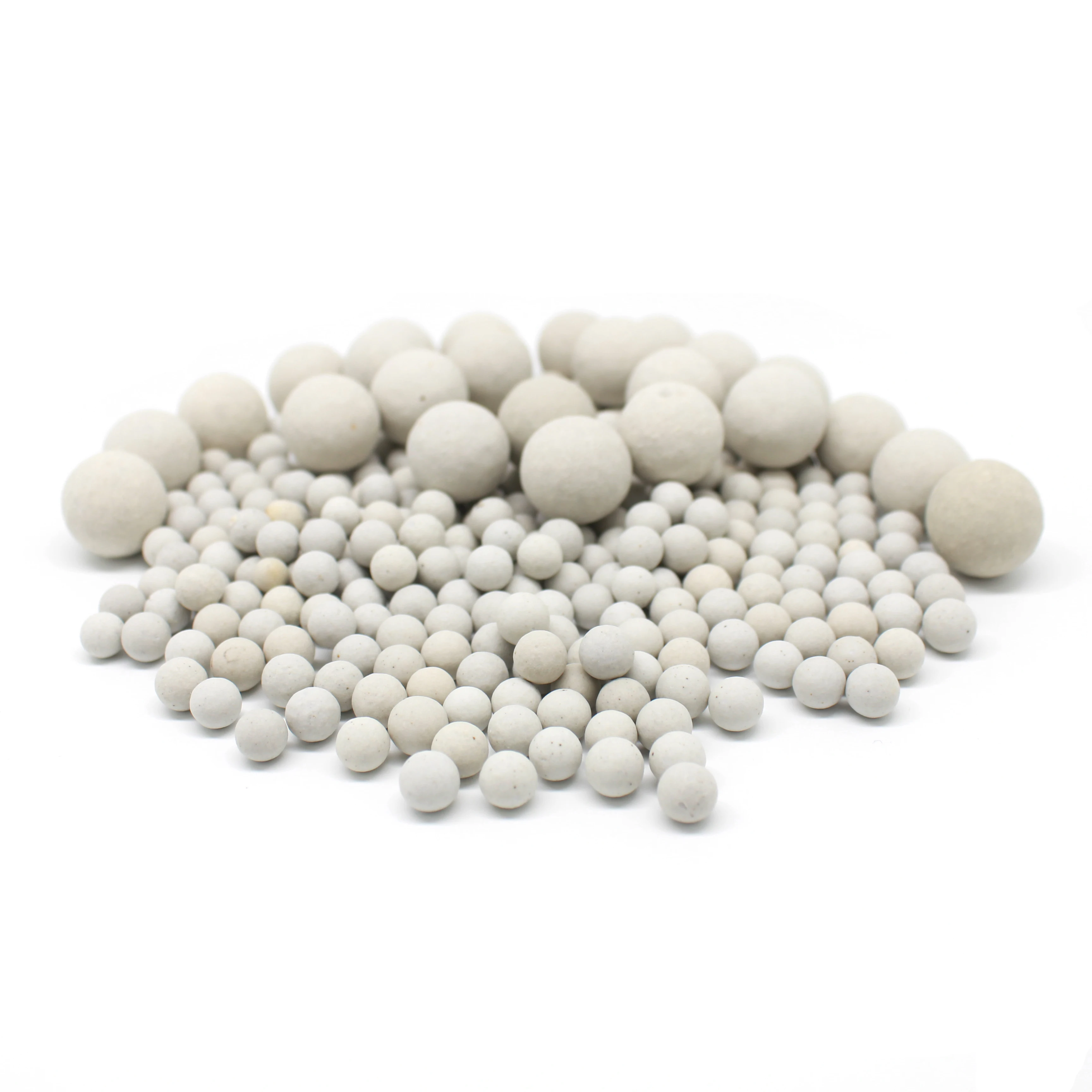

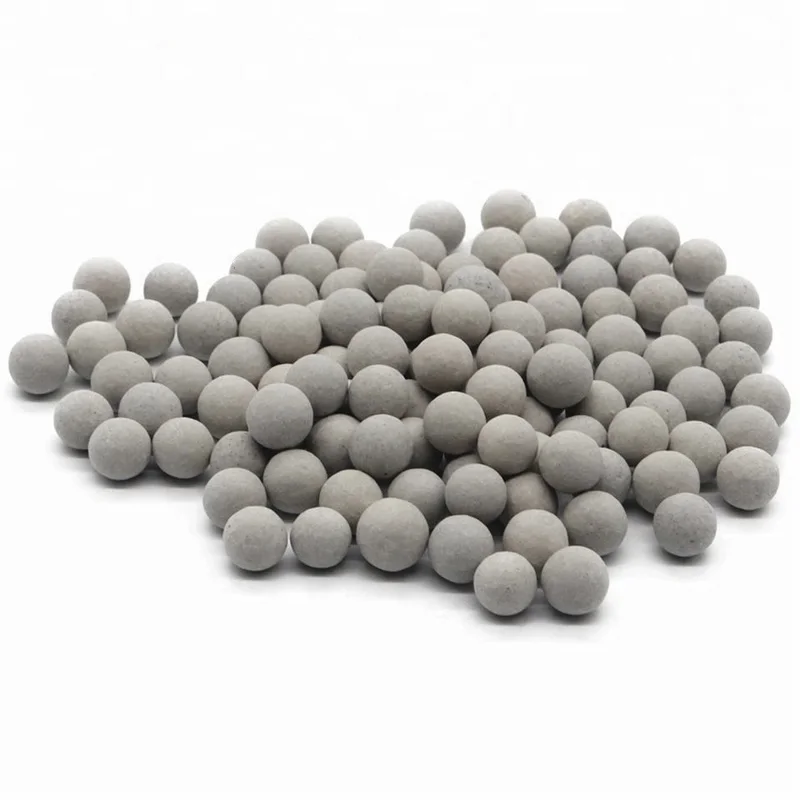

30% Al2O3 ceramic balls
Size: 3mm, 6mm, 10mm...... 50mm
Color: Light gray
Al2O3: 30-35%
SiO2: 57-66%
Moh’s hardness: >7.0
Bulk density: 1300-1400kgs/m3
Color: Light gray
Al2O3: 30-35%
SiO2: 57-66%
Moh’s hardness: >7.0
Bulk density: 1300-1400kgs/m3
65-70% Al2O3 ceramic balls
Size: 3mm, 6mm, 10mm...... 50mm
Water adsorption: 22-28%
Al2O3: 65-70%
SiO2: < 25%
Moh’s hardness: >8
Bulk density: 1650kgs/m3
Water adsorption: 22-28%
Al2O3: 65-70%
SiO2: < 25%
Moh’s hardness: >8
Bulk density: 1650kgs/m3
92% Al2O3 grinding balls
Size: 3mm, 6mm, 10mm, 20mm, 30mm, 40mm 50mm, 60mm etc
Color: Pure white
Al2O3: 90% 92% 95%
Moh’s hardness: 9
Bulk density: 3650kgs/m3
Color: Pure white
Al2O3: 90% 92% 95%
Moh’s hardness: 9
Bulk density: 3650kgs/m3
Packing & Shipping
Jumbo Bag Packaging
Kraft Paper Drum Packaging
Wooden Case Packaging
Woven Bag Packaging
