Top Reasons to Choose YS-L680
1. Wide range of application
1) Applicable screw range: M2- M6
2)Applicable screw heads range :for any universal type.
3) Applicable surface treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.
4) Applicable Screw Materials: iron, copper, stainless steel, etc.
2. Save labor
1) Screw hopper capacity for M2 screw is 65000pcs.
2) With screw counter to record QTY.
3) With screw feeding system to convey screws automatically.
3. High efficient
1) Screw tighten speed is 50-70 pcs/min (depends on screw length)
1) Screw feeding speed is 0.5 sec/ piece.
4. Portable
1) Machine volume is only 0.13 CBM,weight is only 26kgs.
2) Can be used flexibly with the production line

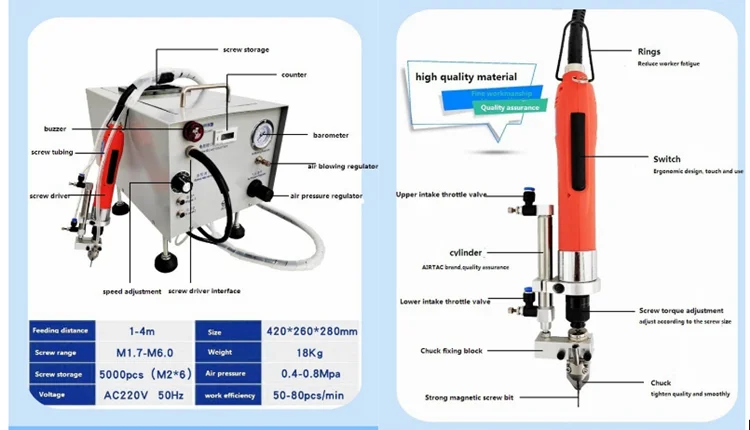

Specifications
Voltage | 220V/110V, 50HZ/60HZ |
Power | 30W |
Capacity of Screw Pocket | M2 X 65000PCS |
Screw-feeding Speed | 0.5 sec/ piece |
Efficiency | 50-70 pcs/min depends on screw length |
Air Pressure | 2-3 KGF/CM |
Conveying Distance | 1-4M |
Noise | below 65db |
Size(L*W*H) | 570*440*500 mm |
Weight | 26kgs |

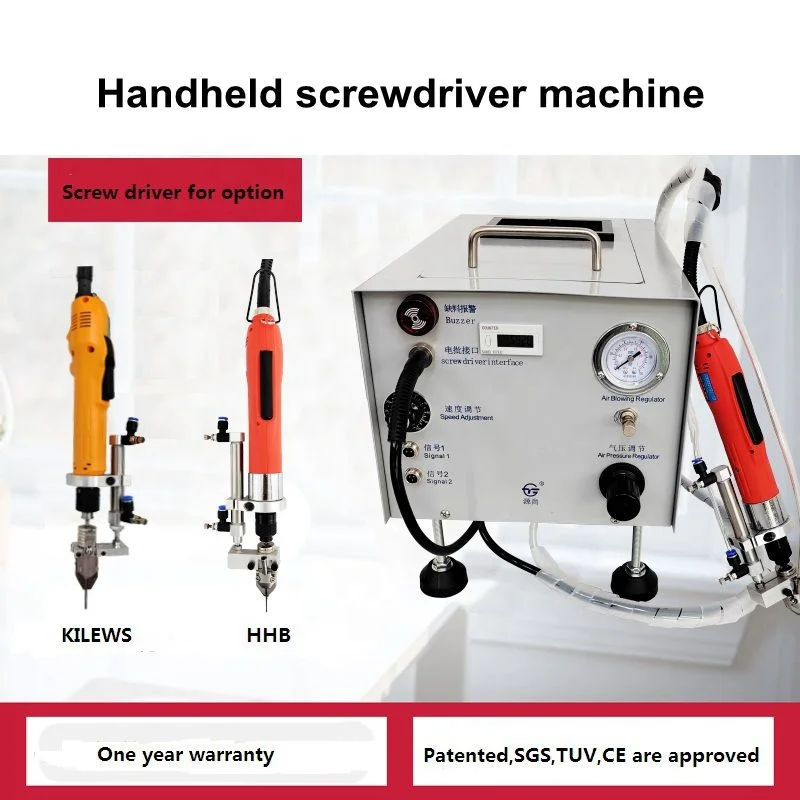

Screwdriver Machine Applications Case Show

Hot Selling Models


Packing

Shipping

----Purchase Guidance
If not sure which one is your best choice within the budget, please provide the details or samples to us. We will provide the best solutions and machines.
As one of leading manufacturer in China, we offer factory price and very thorough quality check before
----After Sale Services
We provide lifelong support after sale including operation guidance, parts replacement and maintenance support. Just feel free to contact us.
----Technology Consultation
Any question about wires, cables, machinery, and even the production line please feel free to contact us. We can provide reasonable budget and suggestions.
----OEM Services
We provide OEM services.
